TOYOTA SUPRA 1995 Service Repair Manual 2. INSPECT REAR WIPER MOTOR AND RELAY
OPERATION
(a) Connect the positive (+) lead from the battery to terminal 1,
and the negative (±) lead to terminal 3 and the motor body,
check that the motor ope

Page 642 of 2543

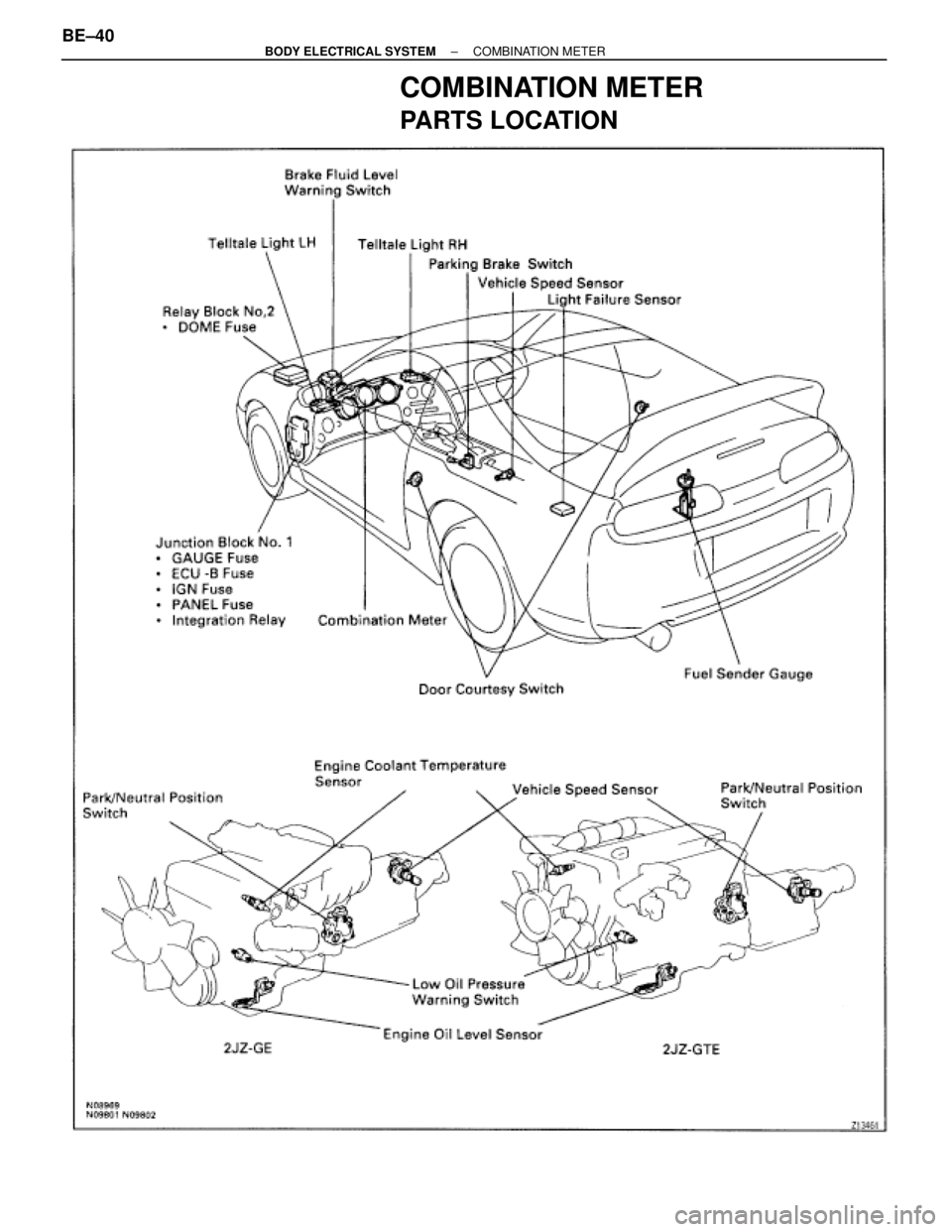

TOYOTA SUPRA 1995 Service Repair Manual COMBINATION METER
PARTS LOCATION
BE±40± BODY ELECTRICAL SYSTEMCOMBINATION METER

Page 643 of 2543

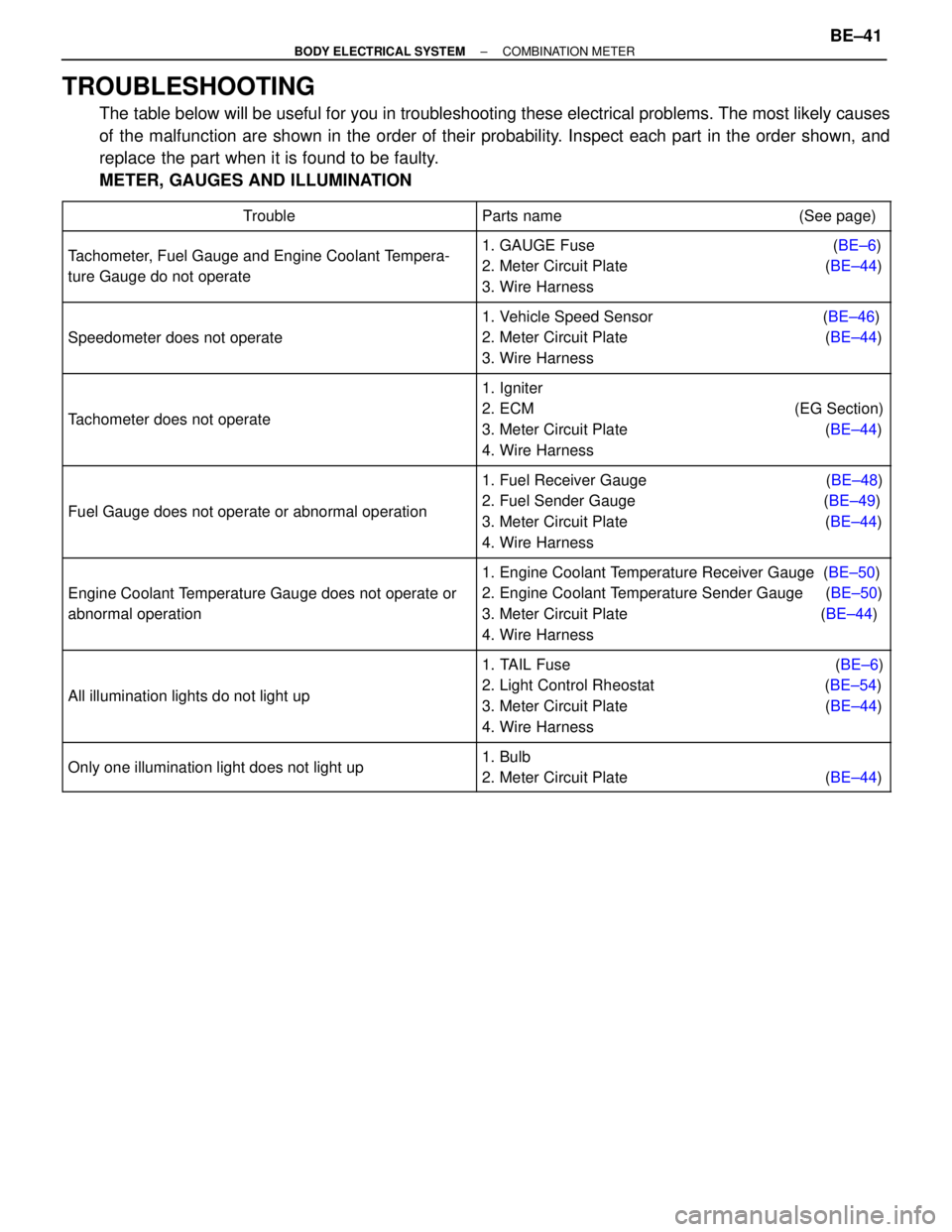

TOYOTA SUPRA 1995 Service Repair Manual TROUBLESHOOTING
The table below will be useful for you in troubleshooting these electrical problems. The most likely causes
of the malfunction are shown in the order of their probability. Inspect each

TROUBLESHOOTING
The table below will be useful for you in troubleshooting these electrical problems. The most likely causes
of the malfunction are shown in the order of their probability. Inspect each part in the order shown, and
replace the part when it is found to be faulty.
METER, GAUGES AND ILLUMINATION
Trouble Parts name (See page)

Tachometer, Fuel Gauge and Engine Coolant Tempera-
ture Gauge do not operate

1. GAUGE Fuse (BE±6)
2. Meter Circuit Plate (BE±44)
3. Wire Harness

Speedometer does not operate

1. Vehicle Speed Sensor (BE±46)
2. Meter Circuit Plate (BE±44)
3. Wire Harness

Tachometer does not operate

1. Igniter
2. ECM (EG Section)
3. Meter Circuit Plate (BE±44)
4. Wire Harness

Fuel Gauge does not operate or abnormal operation

1. Fuel Receiver Gauge (BE±48)
2. Fuel Sender Gauge (BE±49)
3. Meter Circuit Plate (BE±44)
4. Wire Harness

Engine Coolant Temperature Gauge does not operate or
abnormal operation

1. Engine Coolant Temperature Receiver Gauge (BE±50)
2. Engine Coolant Temperature Sender Gauge (BE±50)
3. Meter Circuit Plate (BE±44)
4. Wire Harness

All illumination lights do not light up

1. TAIL Fuse (BE±6)
2. Light Control Rheostat (BE±54)
3. Meter Circuit Plate (BE±44)
4. Wire Harness

Only one illumination light does not light up

1. Bulb
2. Meter Circuit Plate (BE±44)
± BODY ELECTRICAL SYSTEMCOMBINATION METERBE±41

Page 644 of 2543

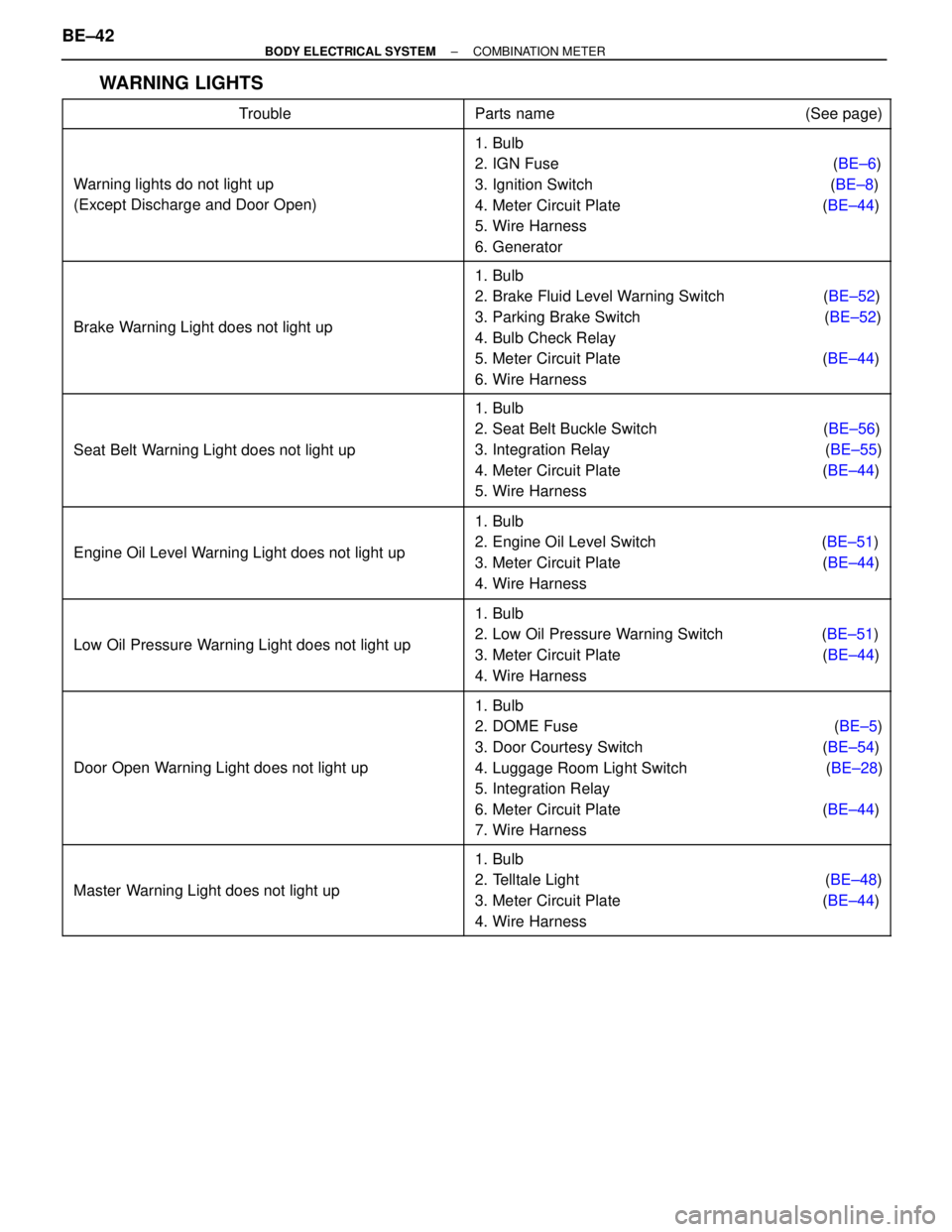

TOYOTA SUPRA 1995 Service Repair Manual WARNING LIGHTS
Trouble Parts name (See page)

WARNING LIGHTS
Trouble Parts name (See page)

Warning lights do not light up
(Except Discharge and Door Open)

1. Bulb
2. IGN Fuse (BE±6)
3. Ignition Switch (BE±8)
4. Meter Circuit Plate (BE±44)
5. Wire Harness
6. Generator

Brake Warning Light does not light up

1. Bulb
2. Brake Fluid Level Warning Switch (BE±52)
3. Parking Brake Switch (BE±52)
4. Bulb Check Relay
5. Meter Circuit Plate (BE±44)
6. Wire Harness

Seat Belt Warning Light does not light up

1. Bulb
2. Seat Belt Buckle Switch (BE±56)
3. Integration Relay (BE±55)
4. Meter Circuit Plate (BE±44)
5. Wire Harness

Engine Oil Level Warning Light does not light up

1. Bulb
2. Engine Oil Level Switch (BE±51)
3. Meter Circuit Plate (BE±44)
4. Wire Harness

Low Oil Pressure Warning Light does not light up

1. Bulb
2. Low Oil Pressure Warning Switch (BE±51)
3. Meter Circuit Plate (BE±44)
4. Wire Harness

Door Open Warning Light does not light up

1. Bulb
2. DOME Fuse (BE±5)
3. Door Courtesy Switch (BE±54)
4. Luggage Room Light Switch (BE±28)
5. Integration Relay
6. Meter Circuit Plate (BE±44)
7. Wire Harness

Master Warning Light does not light up

1. Bulb
2. Telltale Light (BE±48)
3. Meter Circuit Plate (BE±44)
4. Wire Harness
BE±42± BODY ELECTRICAL SYSTEMCOMBINATION METER

Page 645 of 2543

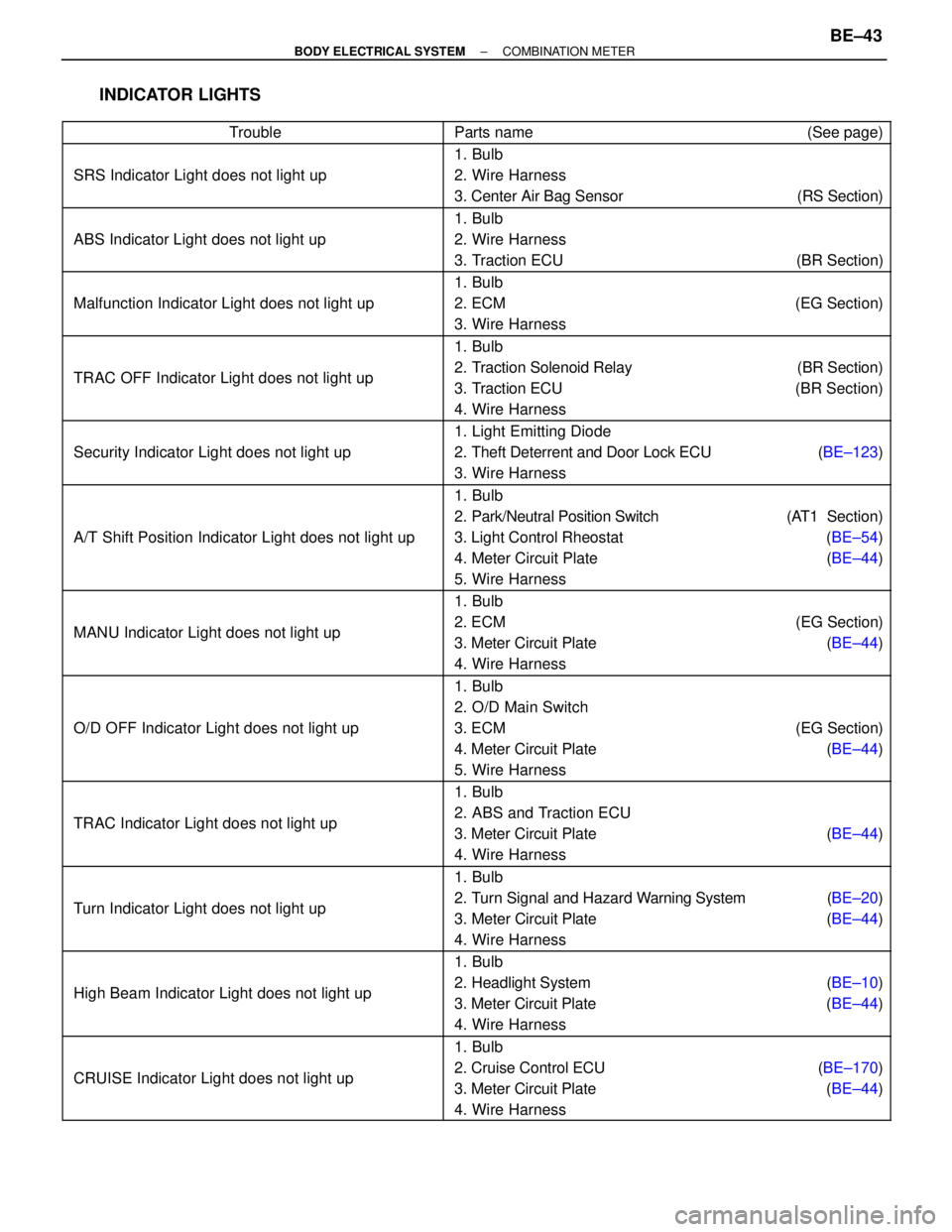

TOYOTA SUPRA 1995 Service Repair Manual INDICATOR LIGHTS
TroubleParts name (See page)

INDICATOR LIGHTS
TroubleParts name (See page)

SRS Indicator Light does not light up

1. Bulb
2. Wire Harness
3. Center Air Bag Sensor (RS Section)

ABS Indicator Light does not light up

1. Bulb
2. Wire Harness
3. Traction ECU (BR Section)

Malfunction Indicator Light does not light up

1. Bulb
2. ECM (EG Section)
3. Wire Harness

TRAC OFF Indicator Light does not light up

1. Bulb
2. Traction Solenoid Relay (BR Section)
3. Traction ECU (BR Section)
4. Wire Harness

Security Indicator Light does not light up

1. Light Emitting Diode
2. Theft Deterrent and Door Lock ECU (BE±123)
3. Wire Harness

A/T Shift Position Indicator Light does not light up

1. Bulb
2. Park/Neutral Position Switch (AT1 Section)
3. Light Control Rheostat (BE±54)
4. Meter Circuit Plate (BE±44)
5. Wire Harness

MANU Indicator Light does not light up

1. Bulb
2. ECM (EG Section)
3. Meter Circuit Plate (BE±44)
4. Wire Harness

O/D OFF Indicator Light does not light up

1. Bulb
2. O/D Main Switch
3. ECM (EG Section)
4. Meter Circuit Plate (BE±44)
5. Wire Harness

TRAC Indicator Light does not light up

1. Bulb
2. ABS and Traction ECU
3. Meter Circuit Plate (BE±44)
4. Wire Harness

Turn Indicator Light does not light up

1. Bulb
2. Turn Signal and Hazard Warning System (BE±20)
3. Meter Circuit Plate (BE±44)
4. Wire Harness

High Beam Indicator Light does not light up

1. Bulb
2. Headlight System (BE±10)
3. Meter Circuit Plate (BE±44)
4. Wire Harness

CRUISE Indicator Light does not light up

1. Bulb
2. Cruise Control ECU (BE±170)
3. Meter Circuit Plate (BE±44)
4. Wire Harness
± BODY ELECTRICAL SYSTEMCOMBINATION METERBE±43

Page 646 of 2543

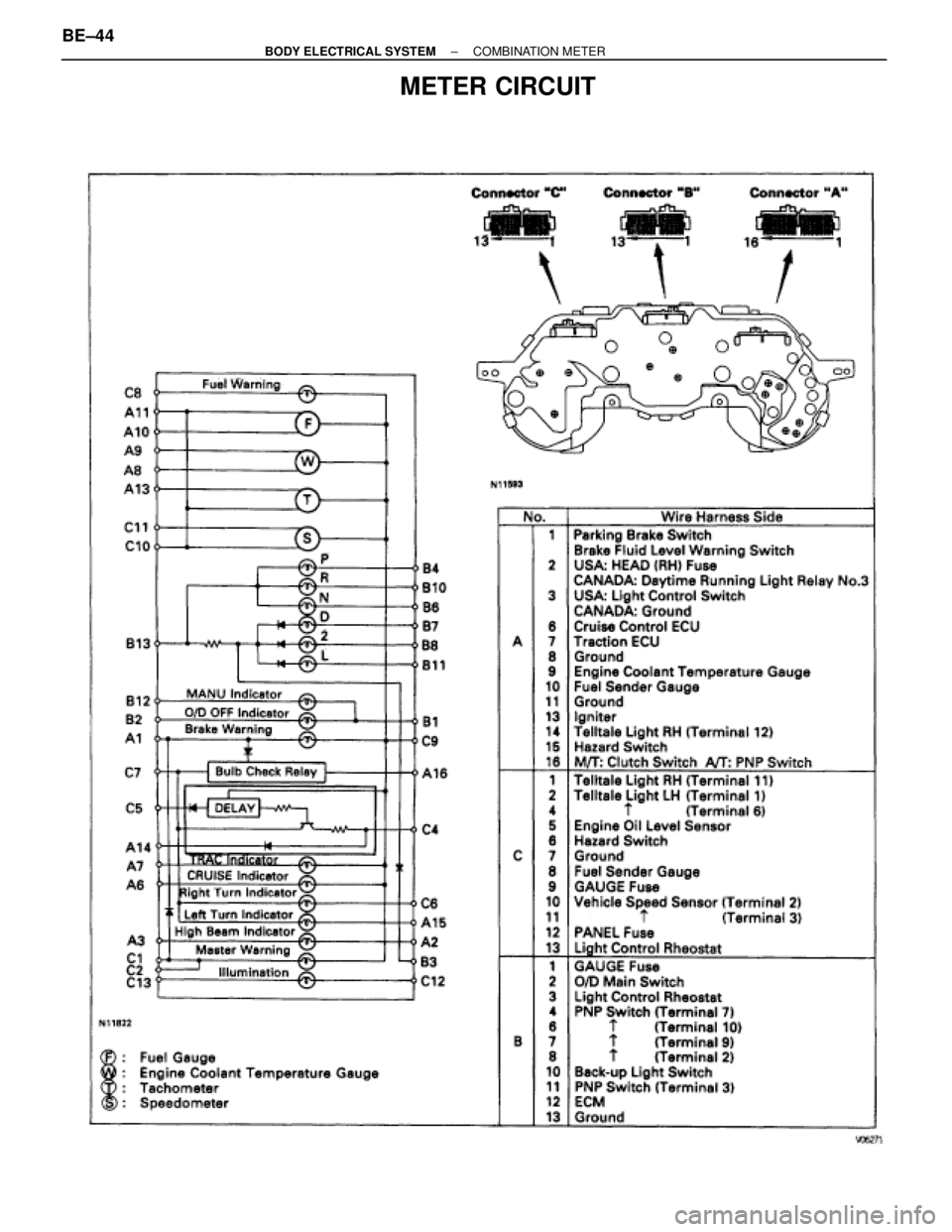

TOYOTA SUPRA 1995 Service Repair Manual METER CIRCUIT
BE±44± BODY ELECTRICAL SYSTEMCOMBINATION METER

Page 647 of 2543

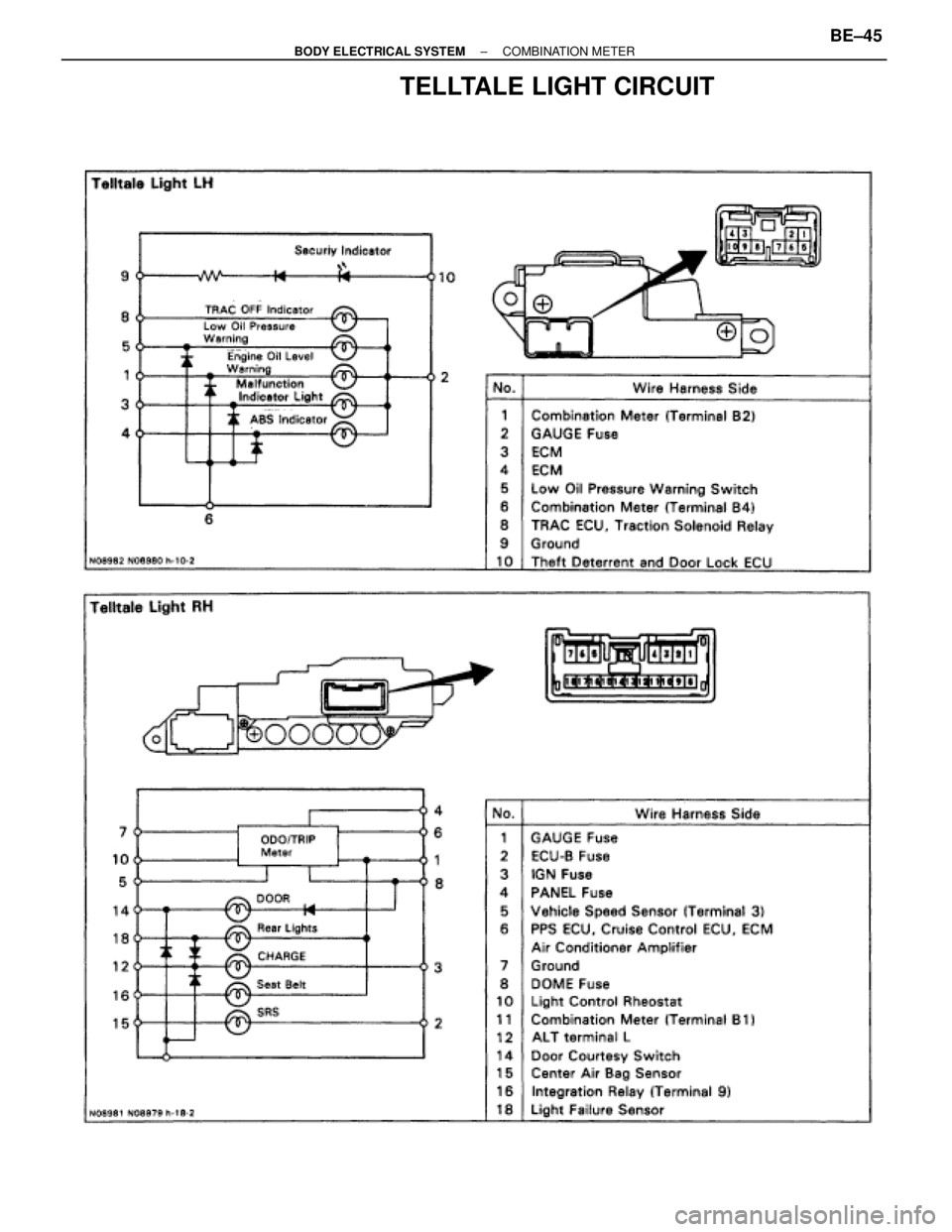

TOYOTA SUPRA 1995 Service Repair Manual TELLTALE LIGHT CIRCUIT
± BODY ELECTRICAL SYSTEMCOMBINATION METERBE±45

Page 648 of 2543

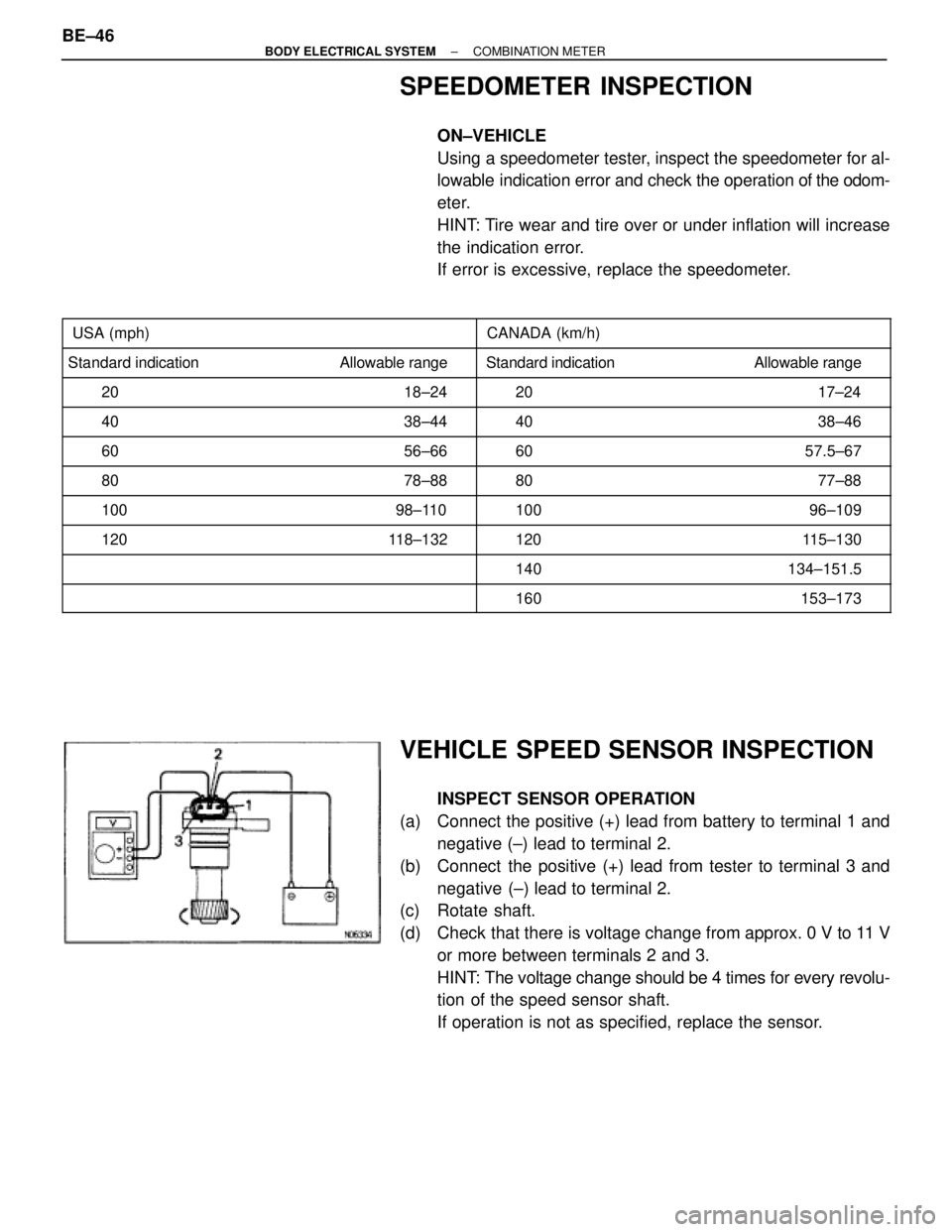

TOYOTA SUPRA 1995 Service Repair Manual SPEEDOMETER INSPECTION
ON±VEHICLE
Using a speedometer tester, inspect the speedometer for al-
lowable indication error and check the operation of the odom-
eter.
HINT: Tire wear and tire over or und

SPEEDOMETER INSPECTION
ON±VEHICLE
Using a speedometer tester, inspect the speedometer for al-
lowable indication error and check the operation of the odom-
eter.
HINT: Tire wear and tire over or under inflation will increase
the indication error.
If error is excessive, replace the speedometer.
USA (mph) CANADA (km/h)
Standard indication Allowable range Standard indication Allowable range
20 18±24
20 17±24
40 38±44 40 38±46
60 56±66 60 57.5±67
80 78±88 80 77±88
100 98±110 100 96±109
120 118±132

120 115±130
140 134±151.5
160 153±173
VEHICLE SPEED SENSOR INSPECTION
INSPECT SENSOR OPERATION
(a) Connect the positive (+) lead from battery to terminal 1 and
negative (±) lead to terminal 2.
(b) Connect the positive (+) lead from tester to terminal 3 and
negative (±) lead to terminal 2.
(c) Rotate shaft.
(d) Check that there is voltage change from approx. 0 V to 11 V
or more between terminals 2 and 3.
HINT: The voltage change should be 4 times for every revolu-
tion of the speed sensor shaft.
If operation is not as specified, replace the sensor. BE±46
± BODY ELECTRICAL SYSTEMCOMBINATION METER
