Page 1337 of 2543

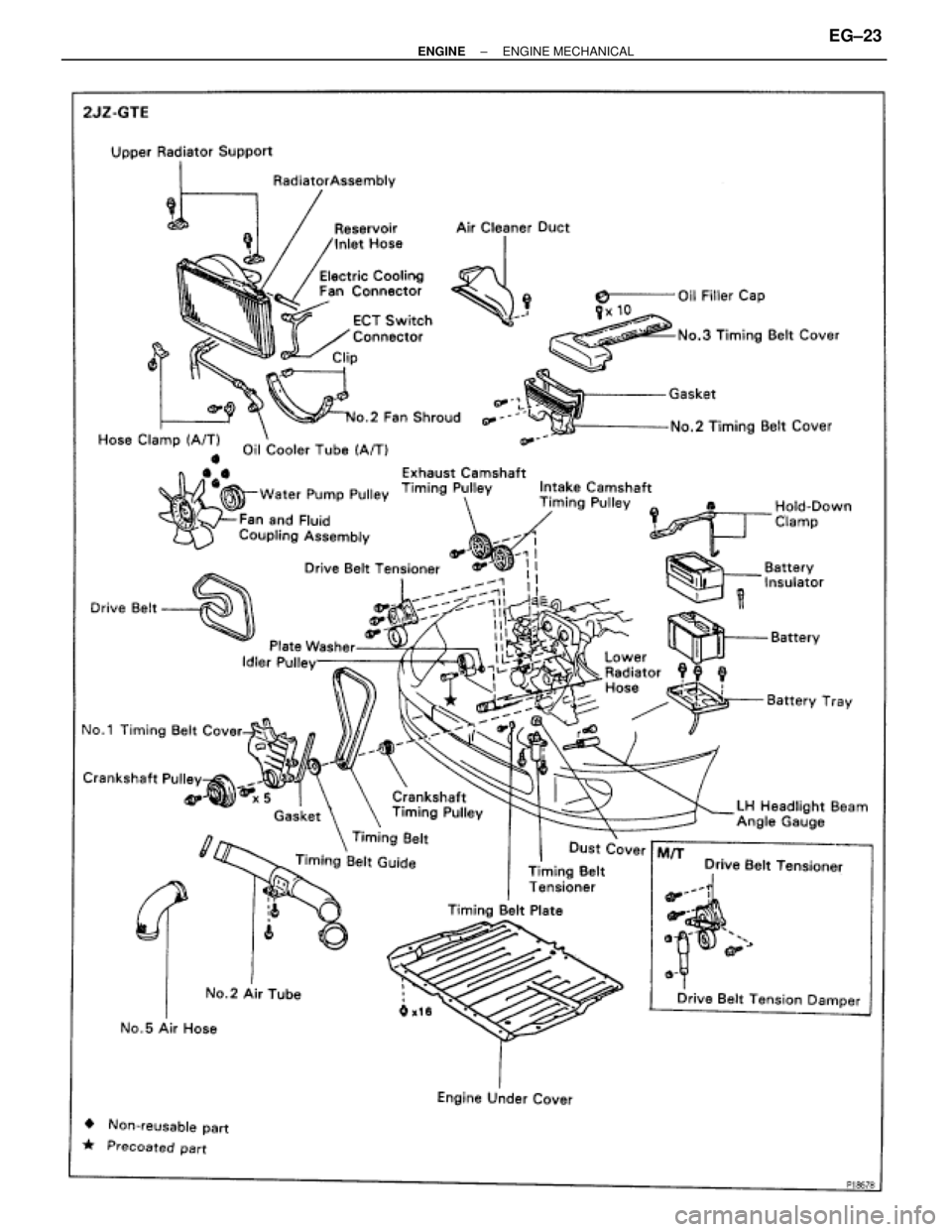

TOYOTA SUPRA 1995 Service Repair Manual ± ENGINEENGINE MECHANICALEG±23

Page 1338 of 2543

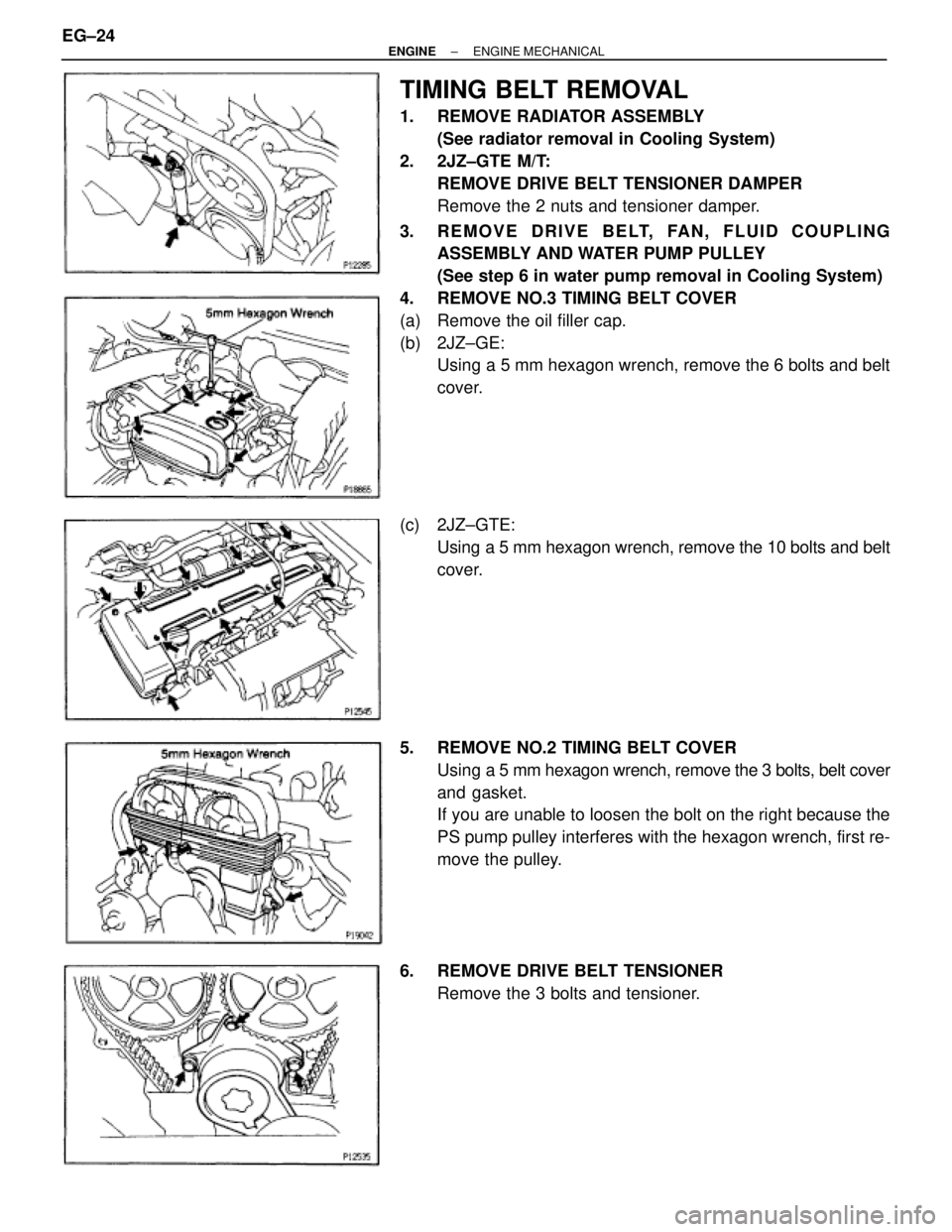

TOYOTA SUPRA 1995 Service Repair Manual TIMING BELT REMOVAL 1. REMOVE RADIATOR ASSEMBLY (See radiator removal in Cooling System) 2. 2JZ±GTE M/T: REMOVE DRIVE BELT TENSIONER DAMPER Remove the 2 nuts and tensioner damper. 3. REMOVE DRIVE BE

Page 1339 of 2543

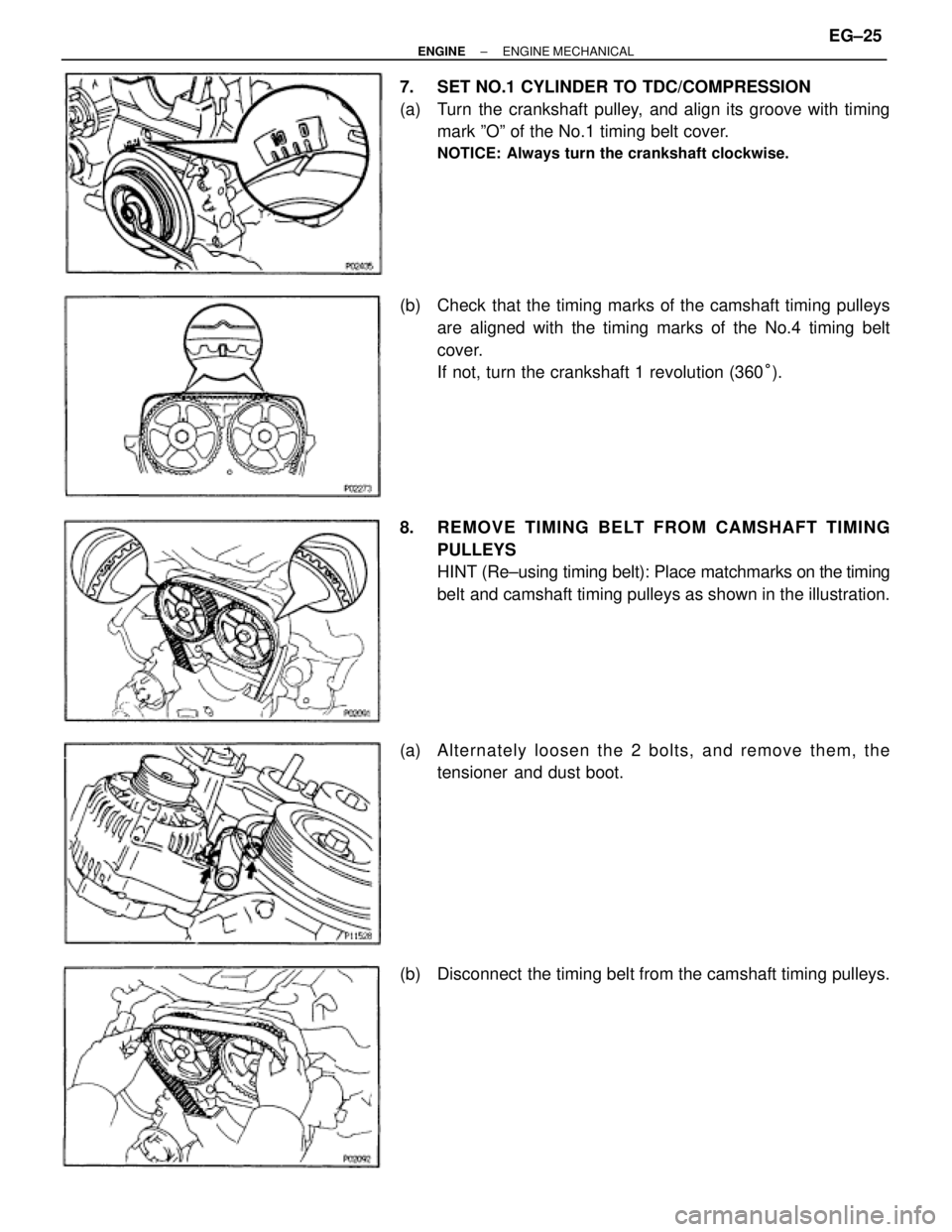

TOYOTA SUPRA 1995 Service Repair Manual 7. SET NO.1 CYLINDER TO TDC/COMPRESSION (a) Turn the crankshaft pulley, and align its groove with timing mark ºOº of the No.1 timing belt cover. NOTICE: Always turn the crankshaft clockwise. (b)

Page 1340 of 2543

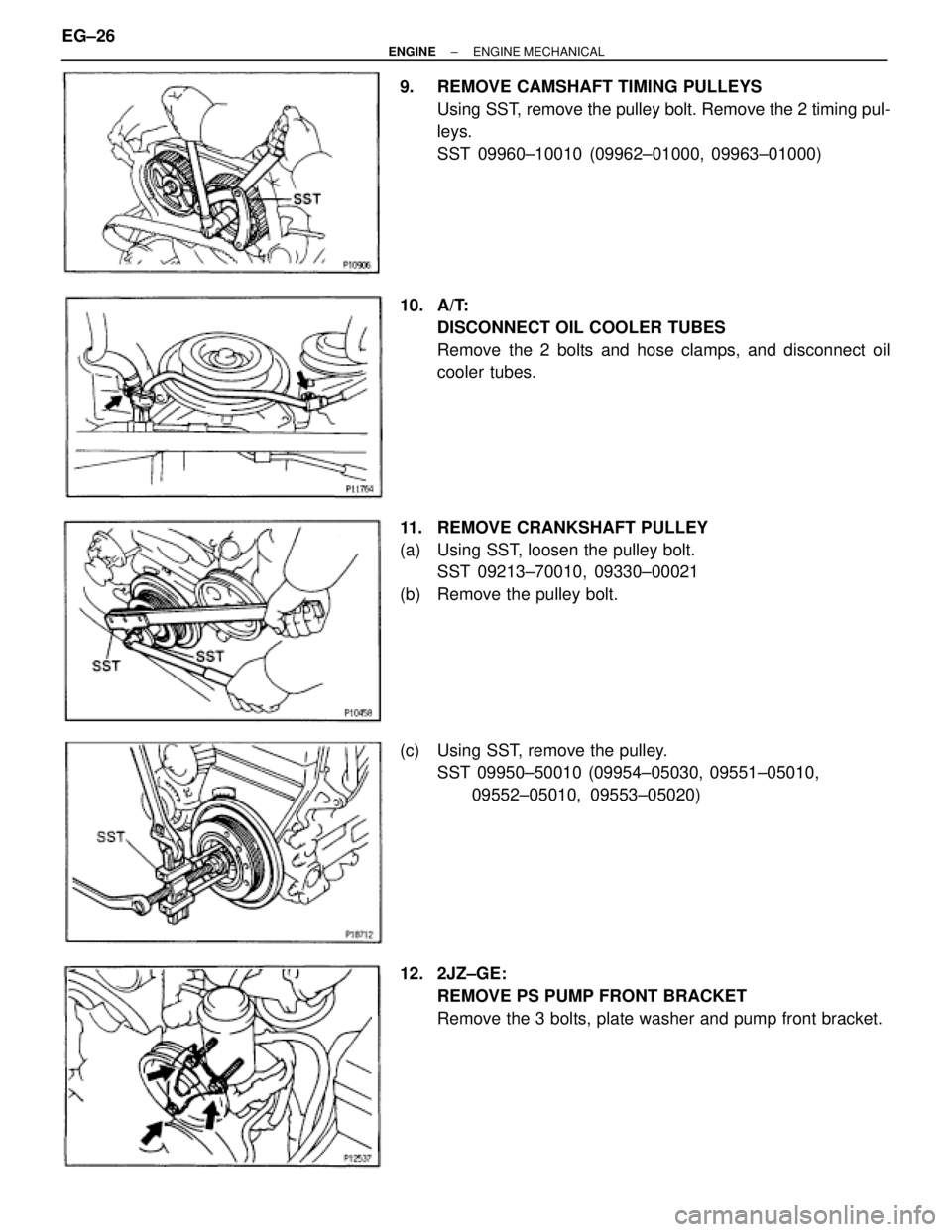

TOYOTA SUPRA 1995 Service Repair Manual 9. REMOVE CAMSHAFT TIMING PULLEYS Using SST, remove the pulley bolt. Remove the 2 timing pul- leys. SST 09960±10010 (09962±01000, 09963±01000) 10. A/T: DISCONNECT OIL COOLER TUBES Remove the 2 bol

Page 1341 of 2543

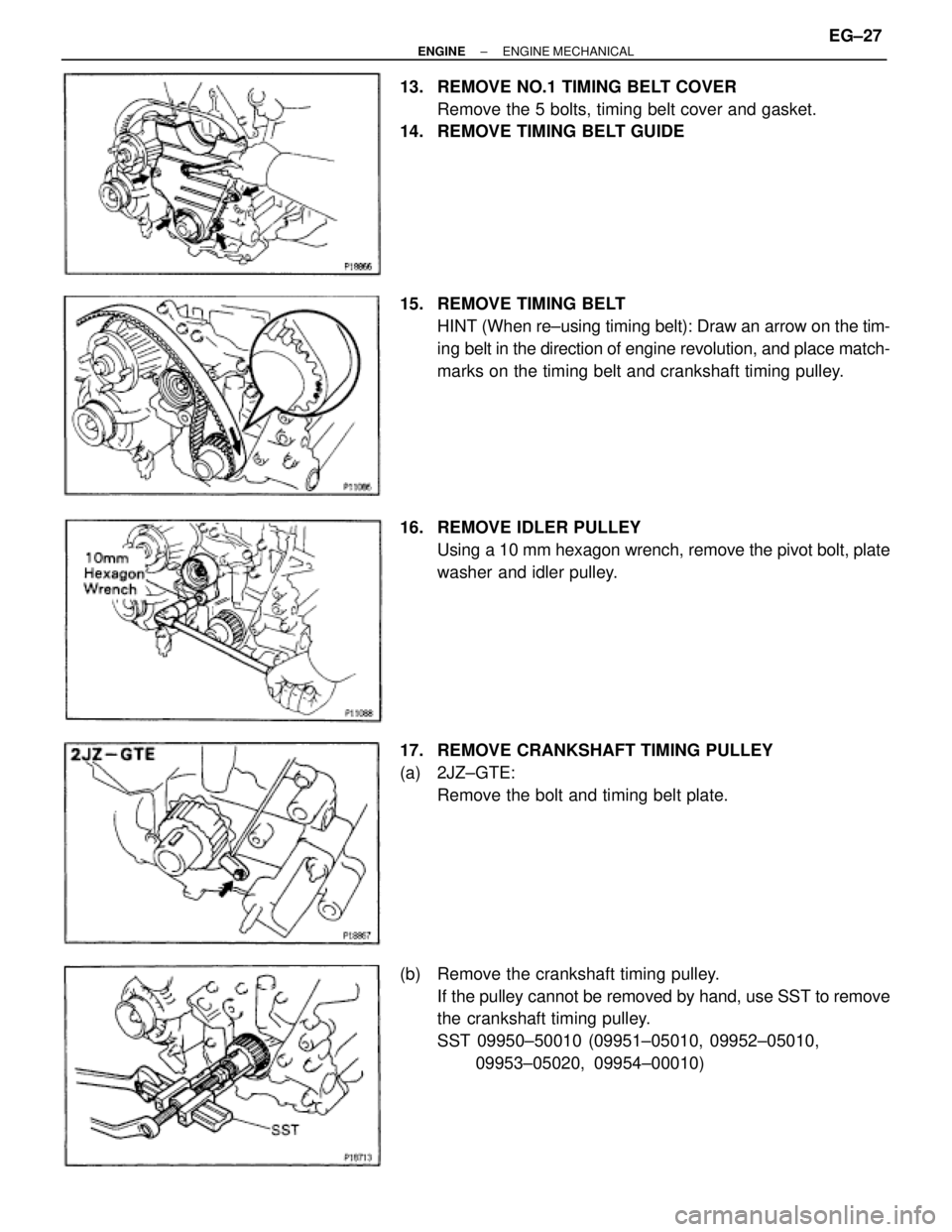

TOYOTA SUPRA 1995 Service Repair Manual 13. REMOVE NO.1 TIMING BELT COVER Remove the 5 bolts, timing belt cover and gasket. 14. REMOVE TIMING BELT GUIDE 15. REMOVE TIMING BELT HINT (When re±using timing belt): Draw an arrow on the tim-

Page 1342 of 2543

TOYOTA SUPRA 1995 Service Repair Manual TIMING BELT COMPONENTS INSPECTION 1. INSPECTION TIMING BELT NOTICE: wDo not bend, twist or turn the timing belt inside out. wDo not allow the timing belt to come into contact with oil, water or steam.

Page 1343 of 2543

TOYOTA SUPRA 1995 Service Repair Manual (b) Hold the tensioner with both hands and push the push rod strongly against the floor or wall to check that it doesnt move. If the push rod moves, replace the tensioner. (c) Measure the protrusion

Page 1344 of 2543

TOYOTA SUPRA 1995 Service Repair Manual (c) 2JZ±GTE: Install the timing belt plate with the bolt. Torque: 7.8 NVm (80 kgfVcm, 69 in.Vlbf) 2. INSTALL IDLER PULLEY (a) Apply adhesive to 2 or 3 threads of the pivot bolt. Adhesive: Part No.
