Page 1569 of 2543
(e) Remove the 6 insulators from the delivery pipe.
INSTALLATION HINT: Use 6 new insulators.
INJECTORS INSPECTION
1. INSPECT INJECTOR INJECTION
CAUTION: Keep injector clear of sparks during the test.
(a) Install the insulator to each injector.
(b) Install the 3 injector holders with the 6 bolts.
Torque: 7.8 NVm (80 kgfVcm, 69 in.Vlbf)
± ENGINESFI SYSTEM (2JZ±GTE)EG±279
Page 1570 of 2543

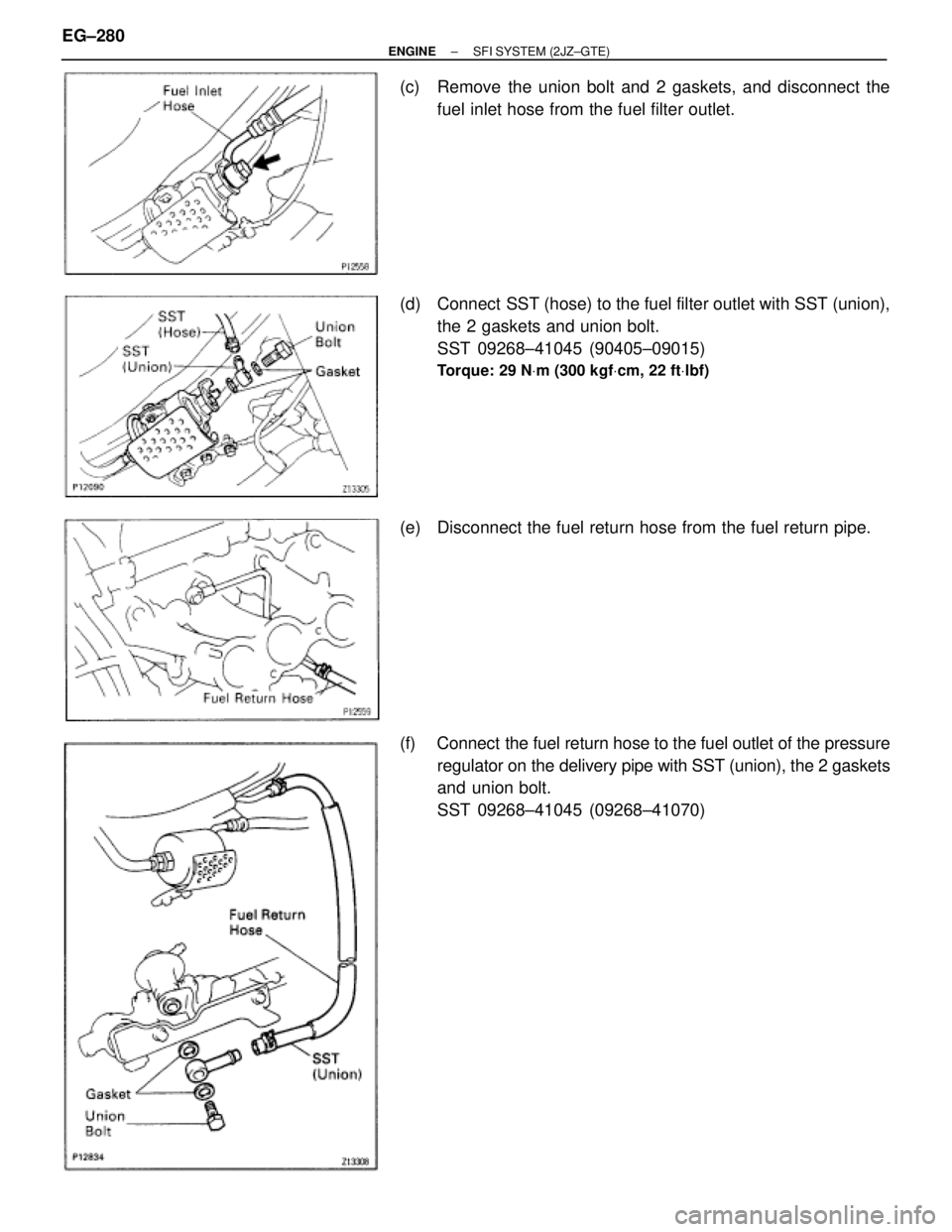

(c) Remove the union bolt and 2 gaskets, and disconnect the
fuel inlet hose from the fuel filter outlet.
(d) Connect SST (hose) to the fuel filter outlet with SST (union),
the 2 gaskets and union bolt.
SST 09268±41045 (90405±09015)
Torque: 29 NVm (300 kgfVcm, 22 ftVlbf)
(e) Disconnect the fuel return hose from the fuel return pipe.
(f) Connect the fuel return hose to the fuel outlet of the pressure
regulator on the delivery pipe with SST (union), the 2 gaskets
and union bolt.
SST 09268±41045 (09268±41070) EG±280
± ENGINESFI SYSTEM (2JZ±GTE)
Page 1571 of 2543

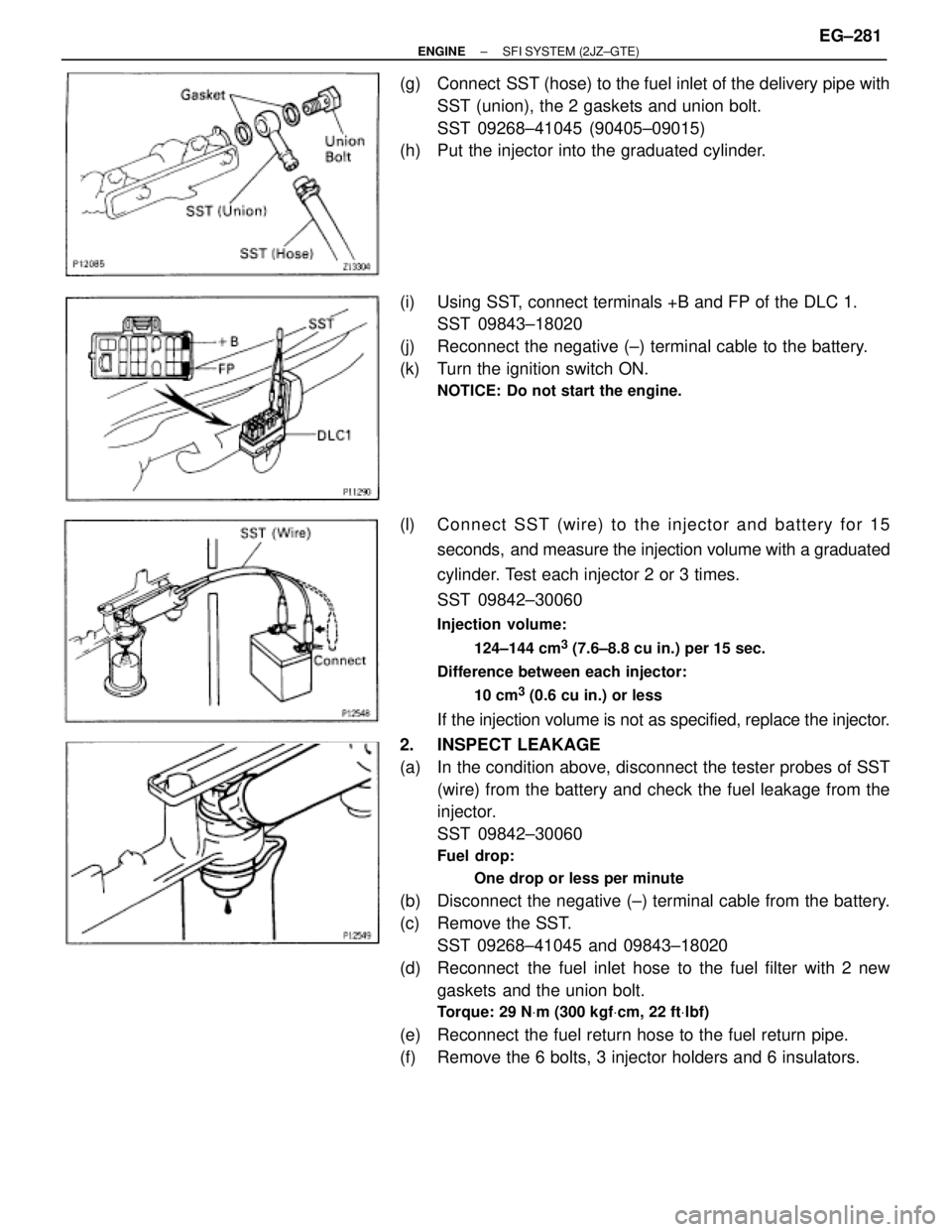

(g) Connect SST (hose) to the fuel inlet of the delivery pipe with
SST (union), the 2 gaskets and union bolt.
SST 09268±41045 (90405±09015)
(h) Put the injector into the graduated cylinder.
(i) Using SST, connect terminals +B and FP of the DLC 1.
SST 09843±18020
(j) Reconnect the negative (±) terminal cable to the battery.
(k) Turn the ignition switch ON.
NOTICE: Do not start the engine.
(l) Connect SST (wire) to the injector and battery for 15
seconds, and measure the injection volume with a graduated
cylinder. Test each injector 2 or 3 times.
SST 09842±30060
Injection volume:
124±144 cm
3 (7.6±8.8 cu in.) per 15 sec.
Difference between each injector:
10 cm
3 (0.6 cu in.) or less
If the injection volume is not as specified, replace the injector.
2. INSPECT LEAKAGE
(a) In the condition above, disconnect the tester probes of SST
(wire) from the battery and check the fuel leakage from the
injector.
SST 09842±30060
Fuel drop:
One drop or less per minute
(b) Disconnect the negative (±) terminal cable from the battery.
(c) Remove the SST.
SST 09268±41045 and 09843±18020
(d) Reconnect the fuel inlet hose to the fuel filter with 2 new
gaskets and the union bolt.
Torque: 29 NVm (300 kgfVcm, 22 ftVlbf)
(e) Reconnect the fuel return hose to the fuel return pipe.
(f) Remove the 6 bolts, 3 injector holders and 6 insulators.
± ENGINESFI SYSTEM (2JZ±GTE)EG±281
Page 1572 of 2543
INJECTORS REPLACEMENT
1. REMOVE INJECTORS
(a) Apply gasoline between the delivery pipe and injectors.
(b) Using SST, lift up the 6 injectors.
SST 09268±74010
(c) Remove the insulator and 2 O±rings from each injector.
2. REINSTALL INJECTORS
(a) Apply a light coat of gasoline to 2 new O±rings.
(b) Install the 2 O±rings and new insulator to each injector.
(c) Push in the 6 injectors so that the injector connectors are
positioned as shown in the illustration. EG±282
± ENGINESFI SYSTEM (2JZ±GTE)
Page 1573 of 2543

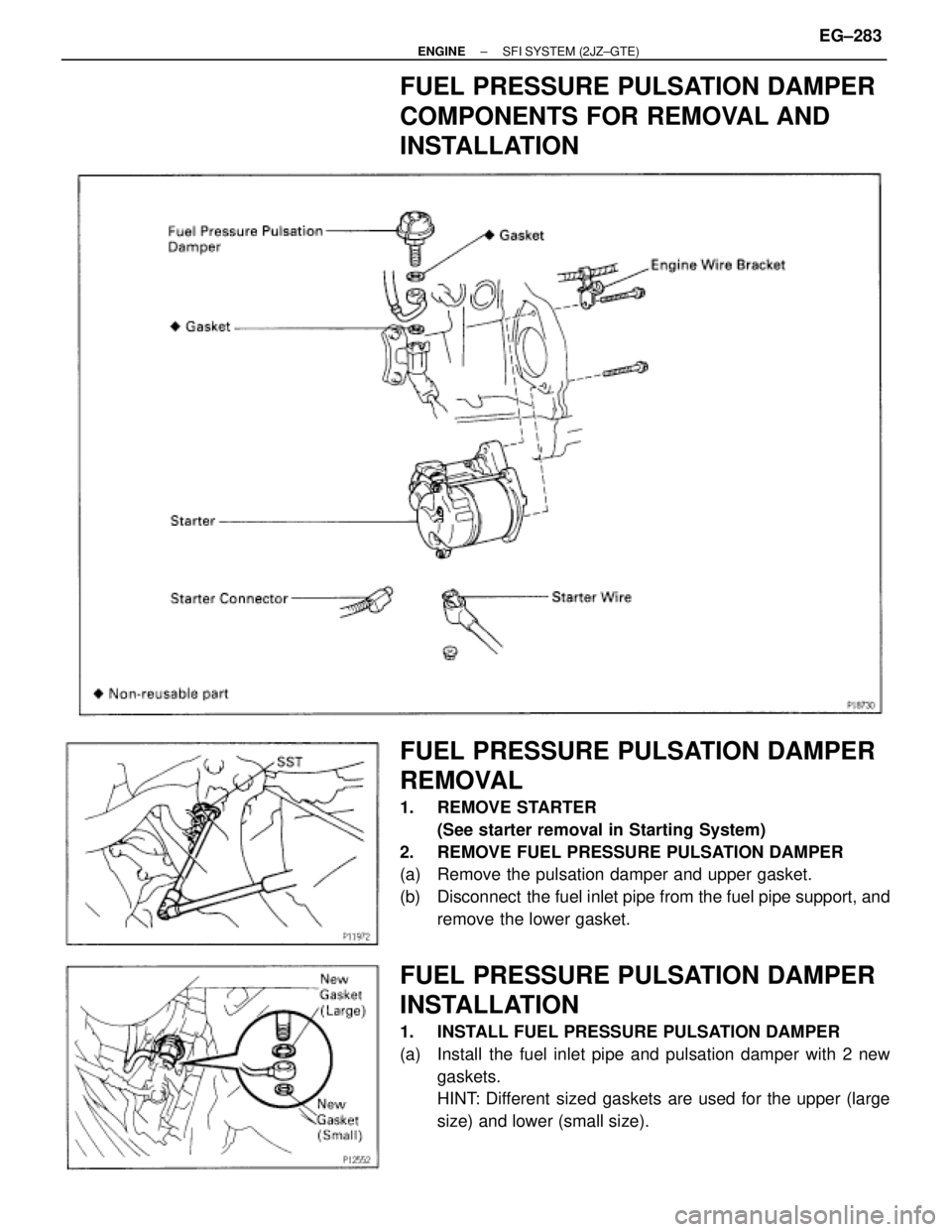

FUEL PRESSURE PULSATION DAMPER
COMPONENTS FOR REMOVAL AND
INSTALLATION
FUEL PRESSURE PULSATION DAMPER
REMOVAL
1. REMOVE STARTER
(See starter removal in Starting System)
2. REMOVE FUEL PRESSURE PULSATION DAMPER
(a) Remove the pulsation damper and upper gasket.
(b) Disconnect the fuel inlet pipe from the fuel pipe support, and
remove the lower gasket.
FUEL PRESSURE PULSATION DAMPER
INSTALLATION
1. INSTALL FUEL PRESSURE PULSATION DAMPER
(a) Install the fuel inlet pipe and pulsation damper with 2 new
gaskets.
HINT: Different sized gaskets are used for the upper (large
size) and lower (small size).
± ENGINESFI SYSTEM (2JZ±GTE)EG±283
Page 1574 of 2543
(b) Using SST, tighten the pulsation damper.
SST 09612±24014 (09617±24011)
Torque:
41 NVm (420 kgfVcm, 30 ftVlbf)
35 NVm (350 kgfVcm, 25 ftVlbf) for SST
HINT: Use a torque wrench with a fulcrum length of 30 cm
(11.81 in.).
2. INSTALL STARTER
(See starter installation in Starting System)
4. CHECK FOR FUEL LEAKS
(See item 5 in fuel system in precaution) EG±284
± ENGINESFI SYSTEM (2JZ±GTE)
Page 1575 of 2543

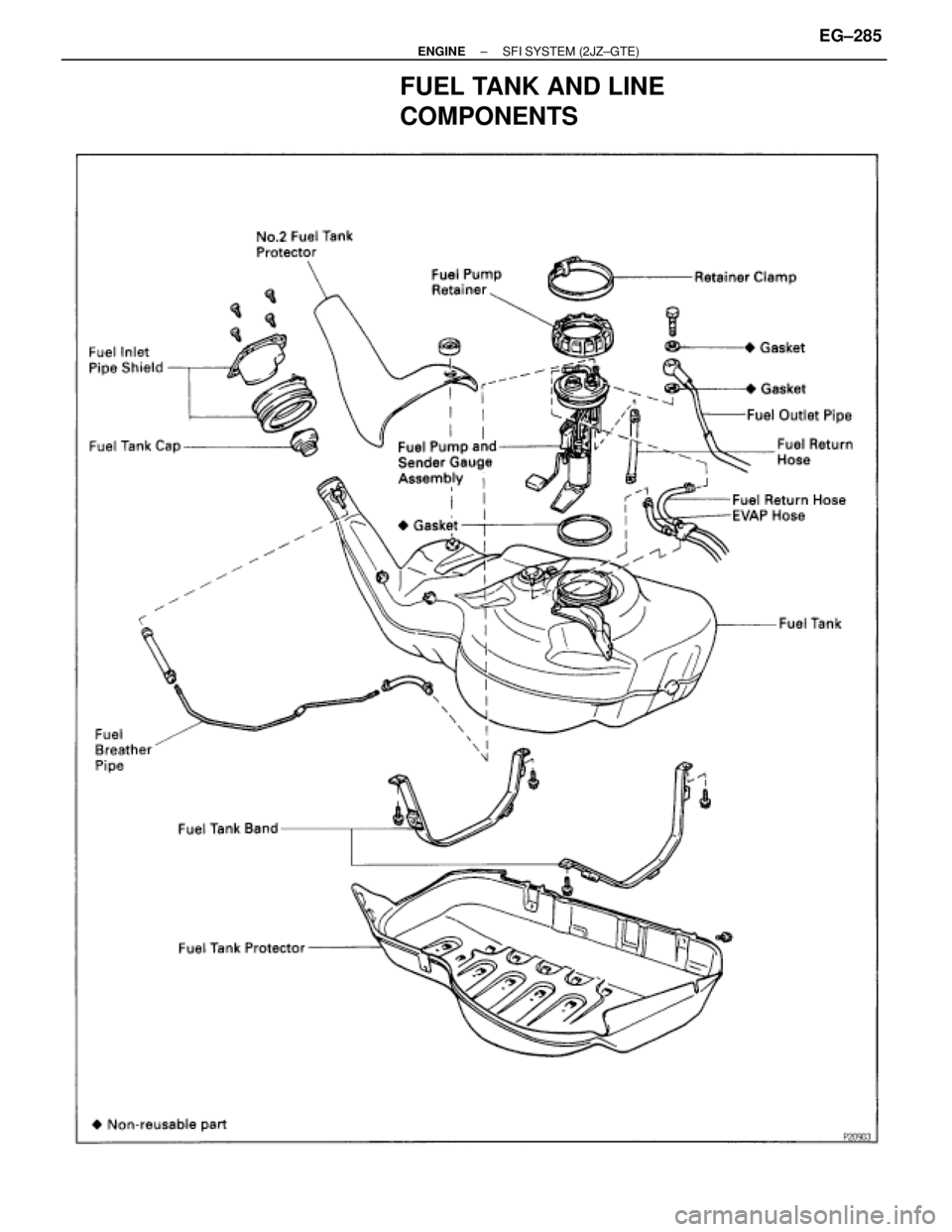

FUEL TANK AND LINE
COMPONENTS
± ENGINESFI SYSTEM (2JZ±GTE)EG±285
Page 1576 of 2543
PRECAUTIONS
1. Always use new gaskets when replacing the fuel tank or
component parts.
2. Apply the proper torque to all parts tightened.

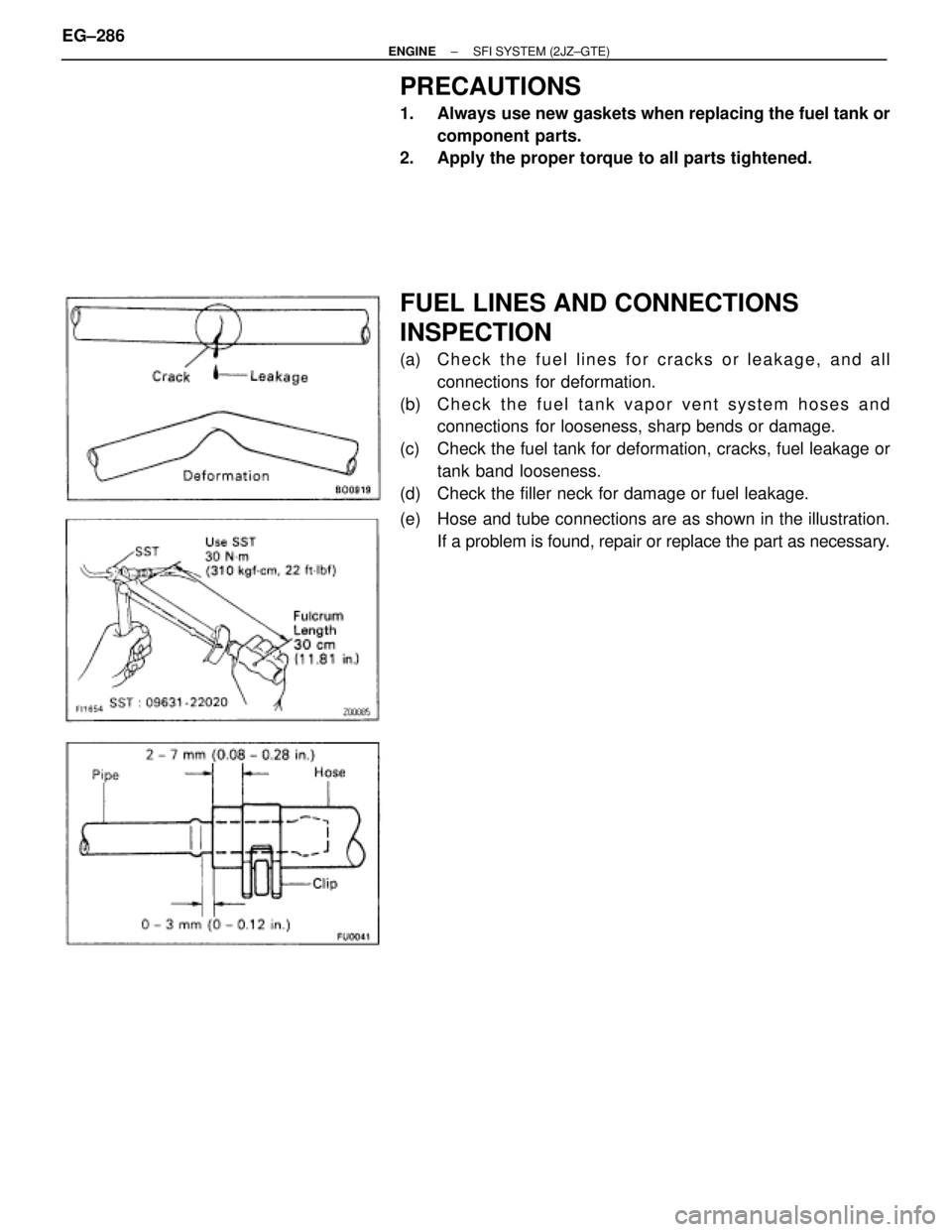

FUEL LINES AND CONNECTIONS
INSPECTION
(a) Check the fuel lines for cracks or leakage, and all
connections for deformation.
(b) C h e c k t h e f u e l t a n k vapor vent system hoses and
connections for looseness, sharp bends or damage.
(c) Check the fuel tank for deformation, cracks, fuel leakage or
tank band looseness.
(d) Check the filler neck for damage or fuel leakage.
(e) Hose and tube connections are as shown in the illustration.
If a problem is found, repair or replace the part as necessary. EG±286
± ENGINESFI SYSTEM (2JZ±GTE)
