6. 2JZ±GTE M/T:
REMOVE CLUTCH COVER SET BOLTS
(a) Remove the 2 bolts and service hole cover.
(b) Place the matchmarks on the flywheel and clutch cover.
(c) Remove the 6 bolts.
7. A/T:
REMOVE TORQUE CONVERTER CLUTCH MOUNTING
BOLTS
(a) Remove the hole plug.
(b) Turn the crankshaft to gain access to each bolt.
Remove the 6 bolts.
8. SEPARATE ENGINE AND TRANSMISSION
Remove the 6 bolts and transmission.
HINT: The º17º is 17 mm head bolt, and º14º is 14 mm head
bolt.
9. 2JZ±GE M/T:
REMOVE CLUTCH COVER AND DISC
(a) Place matchmarks on the flywheel and clutch cover.
(b) Loosen each bolt one turn at a time until spring tension is
released.
(c) Remove the bolts, and pull off the clutch cover with the clutch
disc.
NOTICE: Do not drop the clutch disc.
± ENGINEENGINE MECHANICALEG±95
Page 1410 of 2543
COMPONENTS FOR CYLINDER BLOCK
DISASSEMBLY AND ASSEMBLY
EG±96± ENGINEENGINE MECHANICAL
Page 1411 of 2543
± ENGINEENGINE MECHANICALEG±97
Page 1412 of 2543
PREPARATION FOR DISASSEMBLY
1. M/T:
REMOVE FLYWHEEL
2. A/T:
REMOVE DRIVE PLATE
3. INSTALL ENGINE TO ENGINE STAND FOR
DISASSEMBLY
4. REMOVE GENERATOR
5. REMOVE TIMING BELT AND PULLEYS
(See timing belt removal)
6. REMOVE CYLINDER HEAD
(See cylinder head removal)
7. REMOVE OIL FILTER
(See oil and filter replacement in Lubrication System)
8. 2JZ±GTE:
REMOVE OIL COOLER
(See oil cooler removal in Lubrication System)
9. REMOVE NO.2 WATER BYPASS PIPE
(a) 2JZ±GE:
Remove the bolt, 2 nuts, water bypass pipe and gasket.
(b) 2JZ±GTE:
Remove the 2 bolts, 2 nuts, water bypass pipe and gasket.
10. REMOVE OIL FILTER BRACKET
Remove the union bolt, gasket, oil filter bracket and O ±ring.
11. REMOVE LH ENGINE MOUNTING BRACKET AND
INSULATOR ASSEMBLY
12. REMOVE FUEL PIPE SUPPORT EG±98
± ENGINEENGINE MECHANICAL
Page 1413 of 2543

13. REMOVE OIL PRESSURE SWITCH AND KNOCK
SENSORS
Using SST, remove the switch and sensors.
SST 09816±30010
14. 2JZ±GTE:
REMOVE UNION FOR OIL COOLER HOSE
15. REMOVE ENGINE COOLANT DRAIN PLUG
16. R E M O V E R H E N G I N E M O U N T I N G B R A C K E T A N D
INSULATOR ASSEMBLY
17. 2JZ±GTE:
REMOVE CRANKSHAFT POSITION SENSOR
18. REMOVE WATER PUMP
(See water pump removal in Cooling System)
19. REMOVE OIL PUMP
(See oil pump removal in Lubrication System)
CYLINDER BLOCK DISASSEMBLY
1. REMOVE REAR OIL SEAL RETAINER
(a) Remove the 6 bolts.
(b) Remove the oil seal retainer by prying the area between the
oil seal retainer and main bearing cap with a screwdriver.
2. CHECK CONNECTING ROD THRUST CLEARANCE
Using a dial indicator, measure the thrust clearance while
moving the connecting rods back and forth.
Standard thrust clearance:
0.250±0.402 mm (0.0098±0.0158 in.)
Maximum thrust clearance:
0.50 mm (0.0197 in.)
If the thrust clearance is greater than maximum, replace the
connecting rod assembly(s). If necessary, replace the crank-
shaft.
Connecting rod thickness:
25.898±25.950 mm (1.0196±1.0217 in.)
3. REMOVE CONNECTING ROD CAPS AND CHECK OIL
CLEARANCE
(a) Check the matchmarks on the connecting rod and cap to
ensure correct reassembly.
± ENGINEENGINE MECHANICALEG±99
Page 1414 of 2543
(b) Remove the connecting rod cap bolts.
(c) Using the 2 removed connecting rod bolts, remove the
connecting rod cap and lower bearing by wiggling the
connecting rod cap right and left.
HINT: Keep the lower bearing inserted with the connecting
rod cap.
(d) Clean the crank pin and bearings.
(e) Check the crank pin and bearing for pitting and scratches.
If the crank pin or bearing is damaged, replace the bearings.
If necessary, replace the crankshaft.
(f) Lay a strip of Plastigage across the crank pin.
(g) Install the connecting rod cap with the 2 bolts.
(See step 8 in cylinder block assembly)
Torque:
1st
29 NVm (300 kgfVcm, 22 ftVlbf)
2nd
Turn 905
NOTICE: Do not turn the crankshaft.
(h) Remove the 2 bolts, connecting rod cap and lower bearing.
(See procedure (b) and (c) above) EG±100
± ENGINEENGINE MECHANICAL
Page 1415 of 2543

(i) Measure the Plastigage at its widest point.
Standard oil clearance:
STD
.035±0.053 mm (0.0014±0.0021 in.)
U/S 0.25
.040±0.078 mm (0.0016±0.0031 in.)
Maximum oil clearance.
STD
.08 mm (0.0031 in.)
U/S 0.25
.09 mm (0.0035 in.)
If the oil clearance is greater than maximum, replace the
bearings. If necessary, grind or replace the crankshaft.

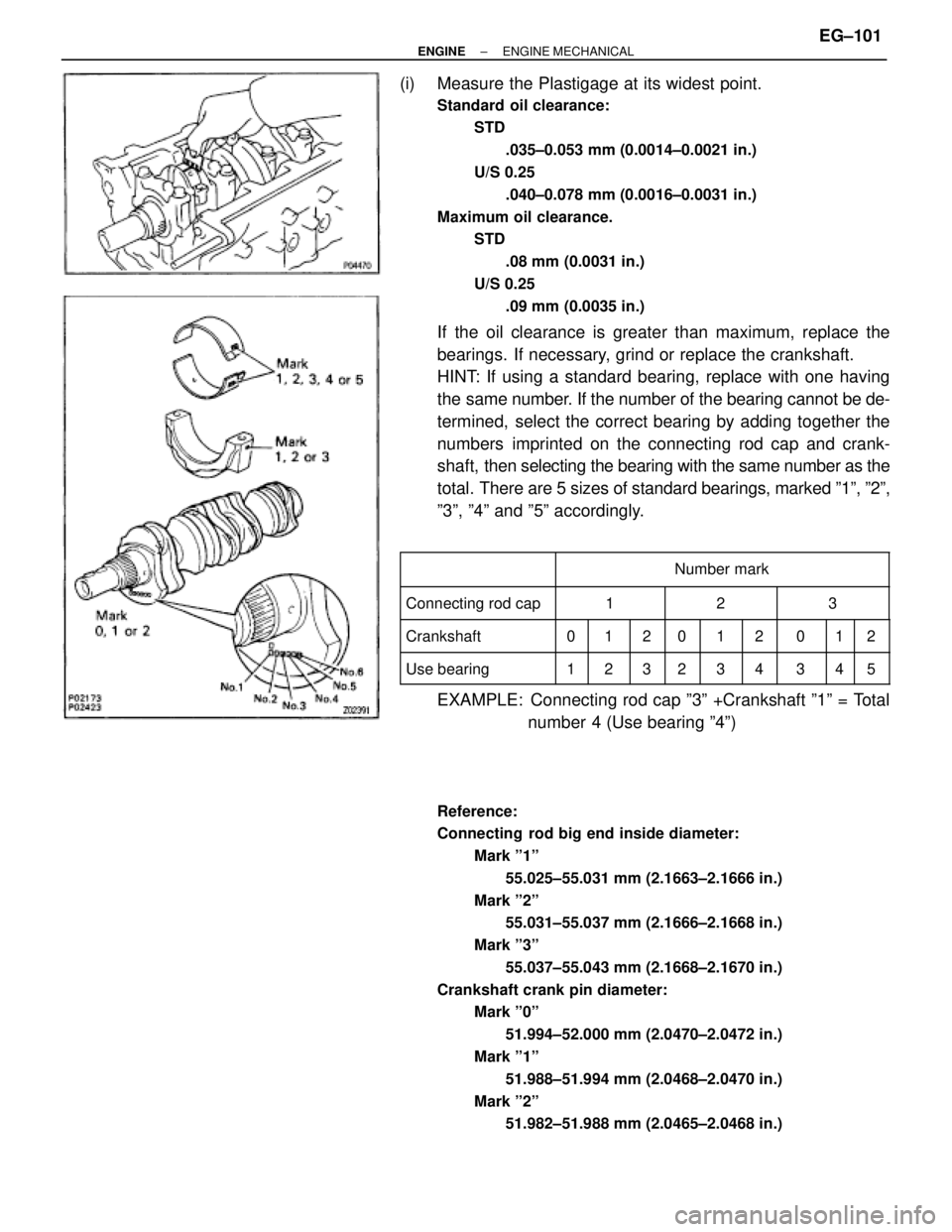

HINT: If using a standard bearing, replace with one having
the same number. If the number of the bearing cannot be de-
termined, select the correct bearing by adding together the
numbers imprinted on the connecting rod cap and crank-
shaft, then selecting the bearing with the same number as the
total. There are 5 sizes of standard bearings, marked º1º, º2º,
º3º, º4º and º5º accordingly.
Number mark
Connecting rod cap 1 2 3
Crankshaft
0
1
2
0
1
2
0
1
2
Use bearing 1 2 3 2 3 4 3 4 5
EXAMPLE: Connecting rod cap º3º +Crankshaft º1º = Total
number 4 (Use bearing º4º)
Reference:
Connecting rod big end inside diameter:
Mark º1º
55.025±55.031 mm (2.1663±2.1666 in.)
Mark º2º
55.031±55.037 mm (2.1666±2.1668 in.)
Mark º3º
55.037±55.043 mm (2.1668±2.1670 in.)
Crankshaft crank pin diameter:
Mark º0º
51.994±52.000 mm (2.0470±2.0472 in.)
Mark º1º
51.988±51.994 mm (2.0468±2.0470 in.)
Mark º2º
51.982±51.988 mm (2.0465±2.0468 in.)
± ENGINEENGINE MECHANICALEG±101
Page 1416 of 2543

Bearing center wall thickness:
Mark º1º
1.492±1.495 mm (0.0587±0.0589 in.)
Mark º2º
1.495±1.498 mm (0.0589±0.0590 in.)
Mark º3º
1.498±1.501 mm (0.0590±0.0591 in.)
Mark º4º
1.501±1.504 mm (0.0591±0.0592 in.)
Mark º5º
1.504±1.507 mm (0.0592±0.0593 in.)
(j) Completely remove the Plastigage.
4. REMOVE PISTON AND CONNECTING ROD
ASSEMBLIES
(a) Using a ridge reamer, remove all the carbon from the top of
the cylinder.
(b) Push the piston, connecting rod assembly and upper bearing
through the top of the cylinder block.
HINT:
wKeep the bearings, connecting rod and cap together.
wArrange the piston and connecting rod assemblies in
correct order.
5. CHECK CRANKSHAFT THRUST CLEARANCE
Using a dial indicator, measure the thrust clearance while pry-
ing the crankshaft back and forth with a screwdriver.
Standard thrust clearance:
0.020±0.220 mm (0.0008±0.0087 in.)
Maximum thrust clearance:
0.30 mm (0.0118 in.)
If the thrust clearance is greater than maximum, replace the
thrust washers as a set.
Thrust washer thickness:
1.940±1.990 mm (0.0764±0.0783 in.)
6. REMOVE MAIN BEARING CAPS AND CHECK OIL
CLEARANCE
(a) Uniformly loosen and remove the 14 main bearing cap bolts,
in severval passes, in the sequence shown.
(b) Using the removed main bearing cap bolts, pry the main
bearing cap back and forth, and remove the main bearing
caps, lower bearings and lower thrust washers (No.4 main
bearing cap only).
HINT:
wKeep the lower bearing and main bearing cap together.
wArrange the main bearing caps and lower thrust
washers in correct order. EG±102
