Page 1633 of 2543

TOYOTA SUPRA 1995 Service Repair Manual PRECAUTION wCare must be taken to replace parts properly because they could affect the performance of the steering system and result in a driving hazard. wThe steering wheel pad has an SRS (Supplement

Page 1634 of 2543

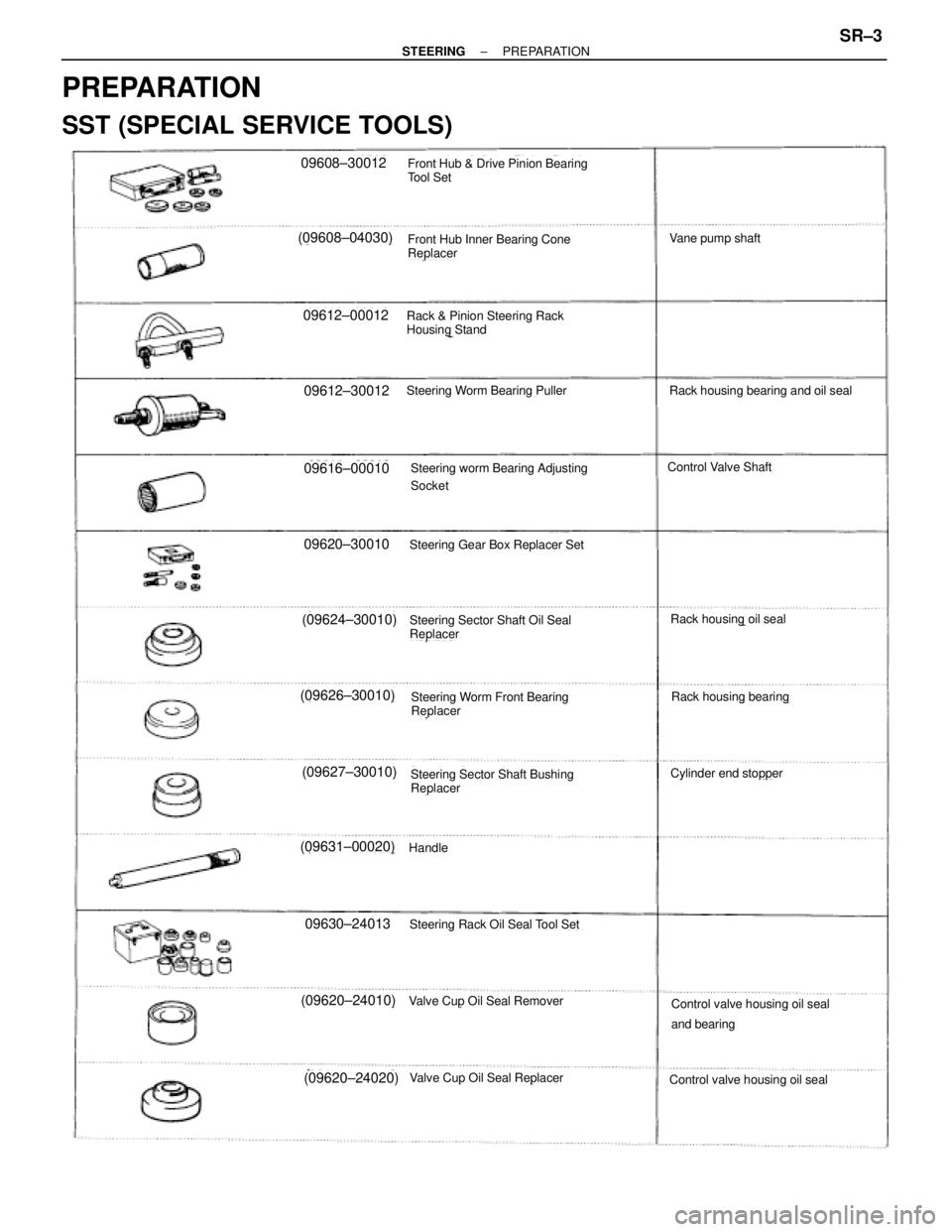

TOYOTA SUPRA 1995 Service Repair Manual PREPARATION SST (SPECIAL SERVICE TOOLS) 09608±30012 (09608±04030) 09612±00012 09612±30012 09616±00010 09620±30010 (09624±30010) (09626±30010) (09627±30010) (09631±00020) 09630±24013 (09620

Page 1635 of 2543

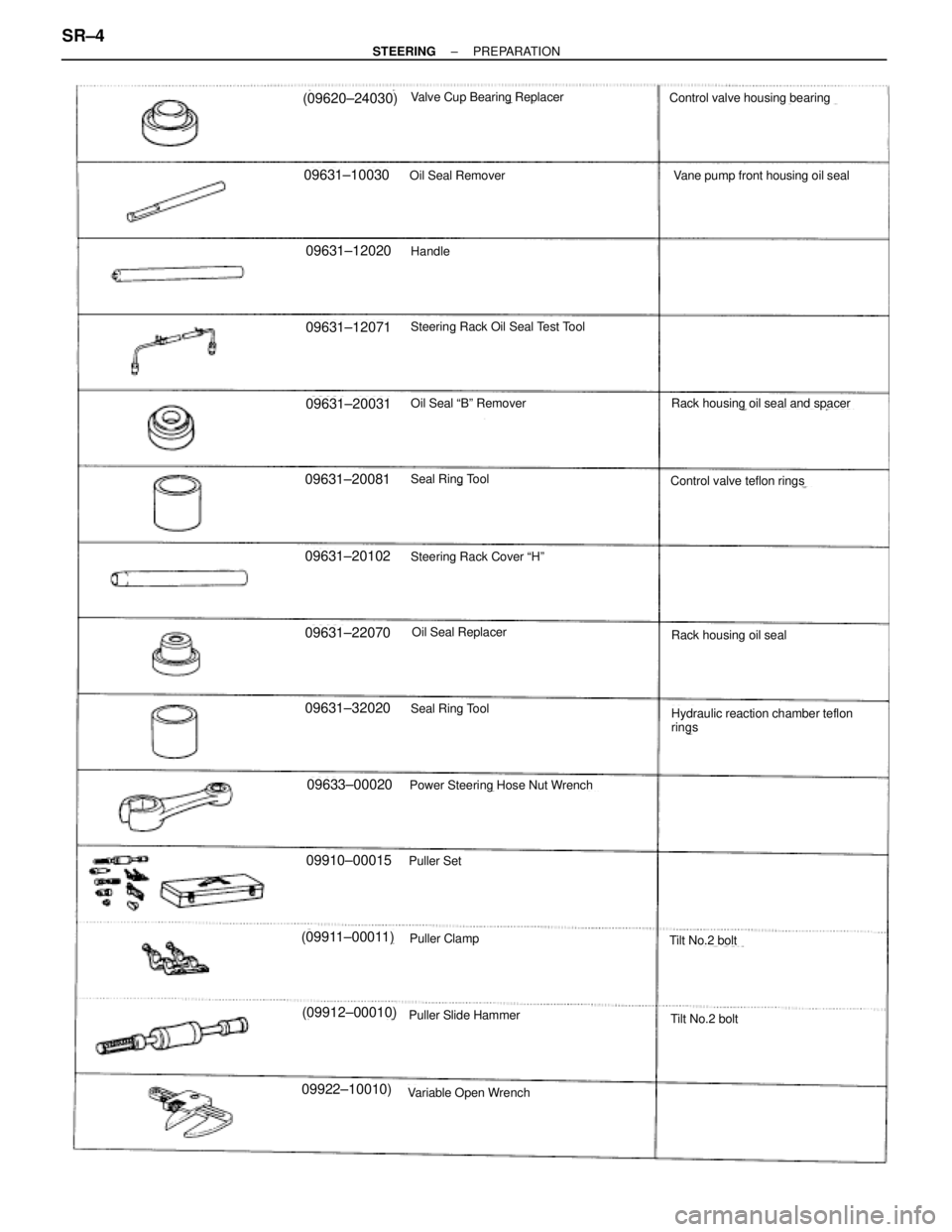

TOYOTA SUPRA 1995 Service Repair Manual (09620±24030) 09631±10030 09631±12020 09631±12071 09631±20031 09631±20081 Valve Cup Bearing Replacer Oil Seal Remover Handle Steering Rack Oil Seal Test Tool Control valve housing bearing Contro

Page 1636 of 2543

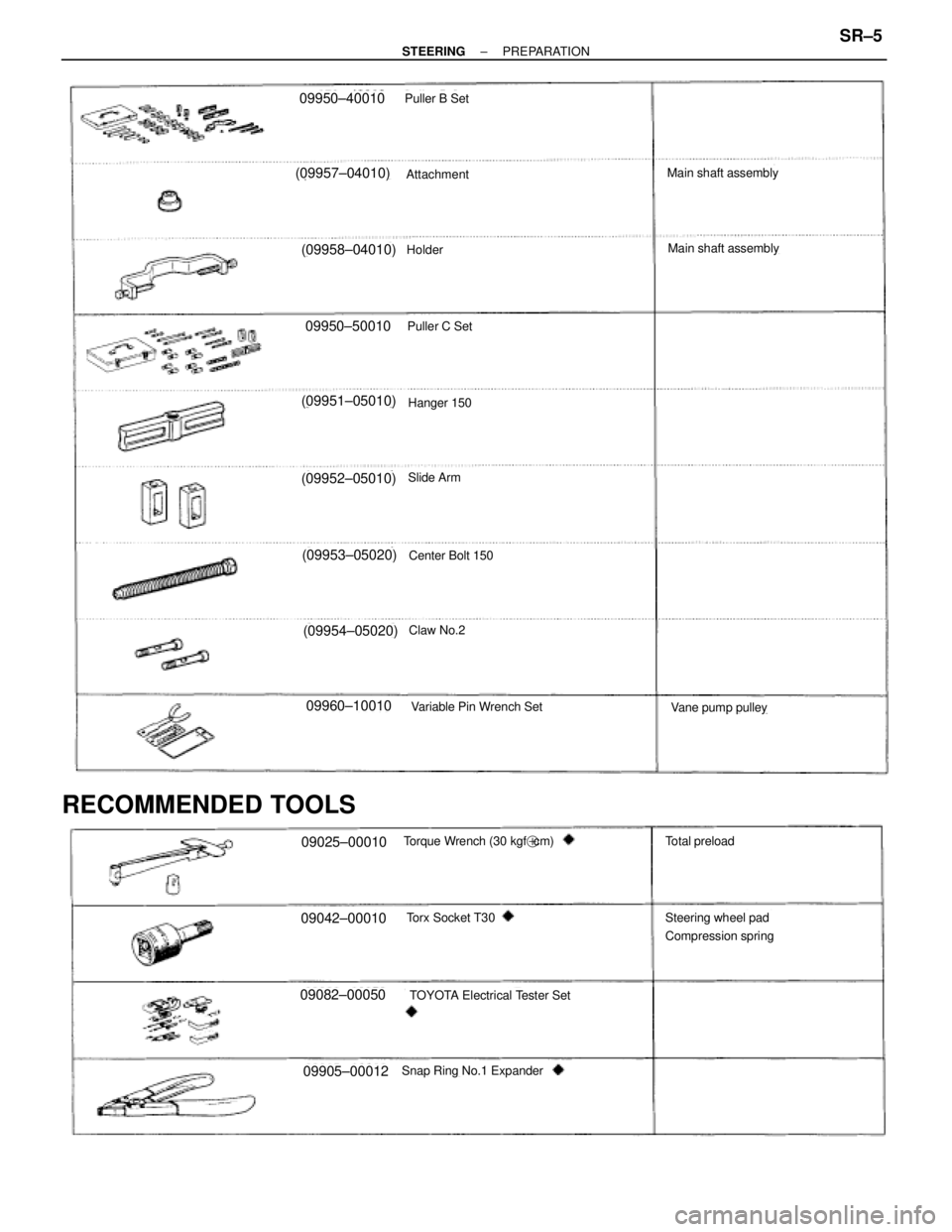

TOYOTA SUPRA 1995 Service Repair Manual (09957±04010) 09950±40010 (09958±04010) 09950±50010 (09951±05010) (09952±05010) (09953±05020) (09954±05020) 09960±10010 Puller B Set Attachment Holder Puller C Set Slide Arm Hanger 150 Center

Page 1637 of 2543

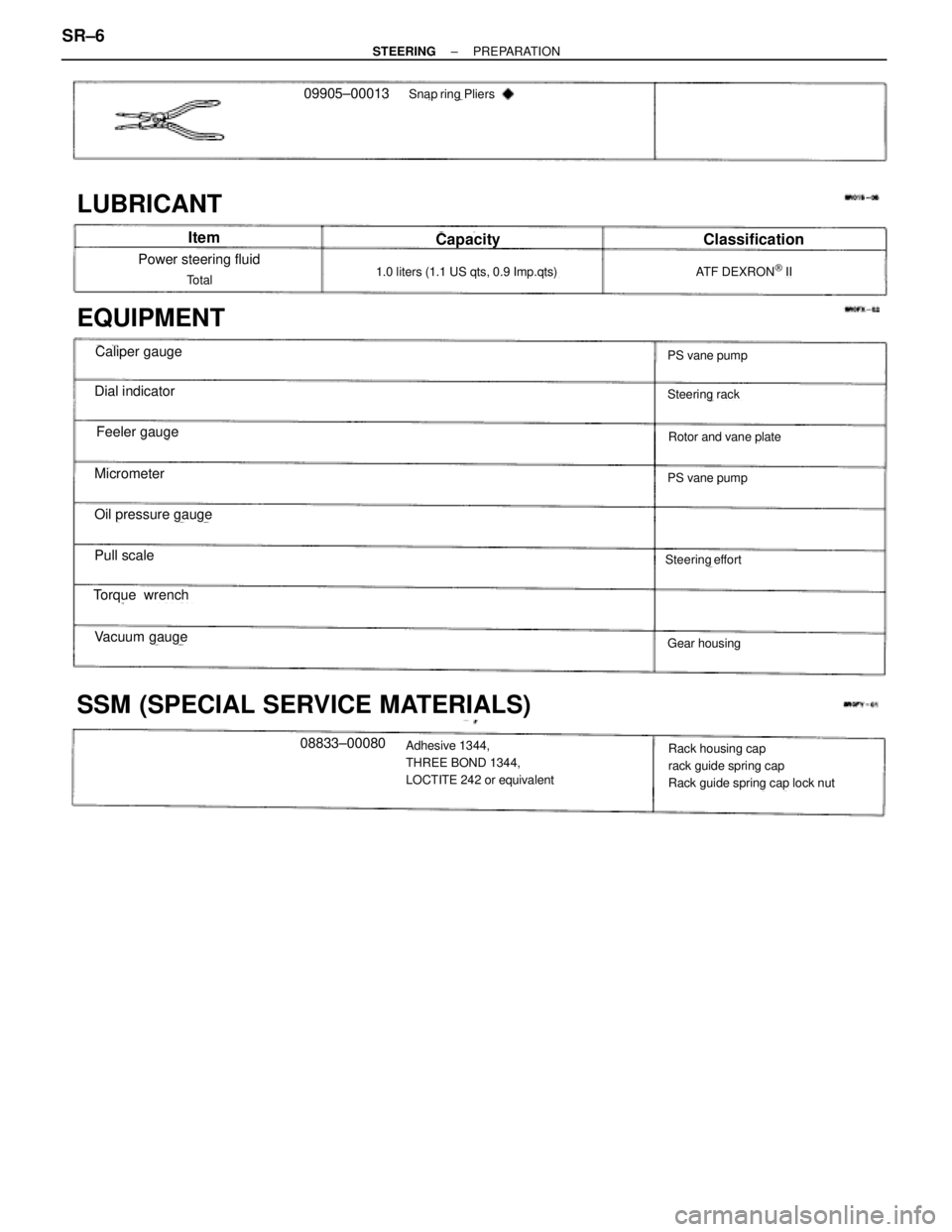

TOYOTA SUPRA 1995 Service Repair Manual LUBRICANT EQUIPMENT SSM (SPECIAL SERVICE MATERIALS) 09905±00013Snap ring Pliers Power steering fluid Total1.0 liters (1.1 US qts, 0.9 Imp.qts)ATF DEXRON[ II PS vane pump PS vane pump Steering rack R

Page 1638 of 2543

TOYOTA SUPRA 1995 Service Repair Manual ON±VEHICLE INSPECTION STEERING WHEEL FREEPLAY CHECK With the vehicle stopped and tires pointed straight ahead, rock the steering wheel gently back and forth with light finger pressure. Freeplay shoul

Page 1639 of 2543

TOYOTA SUPRA 1995 Service Repair Manual 4. CHECK FOR FOAMING OR EMULSIFICATION If there is foaming or emulsification, bleed power steering system. (See page SR±9) 5. CHECK FLUID LEVEL RISE (a) With the engine idling, measure the fluid le

Page 1640 of 2543

TOYOTA SUPRA 1995 Service Repair Manual POWER STEERING SYSTEM BLEEDING 1. JACK UP FRONT OF VEHICLE AND SUPPORT IT WITH STANDS 2. TURN STEERING WHEEL With the engine stopped, turn the steering slowly from lock to lock several times. NOTICE
