Page 1073 of 2543
wRelease bearing hub inside groove
wRelease bearing front surface
(b) Apply clutch spline grease.
wClutch disc spline
HINT: Recommended grease part number 08887±01706.
6. INSTALL CLUTCH RELEASE BEARING
(a) Install the release bearing hub, wave washer and plate
washer.
(b) Using a snap ring expander, install a new snap ring.
7. INSTALL CLUTCH RELEASE BEARING HUB
(a) Install the thrust cone washer and plate washer to release
bearing hub.
NOTICE: Install the thrust cone washer in correct direction.
(b) Install the release bearing hub to release bearing.
(c) Using a snap ring expander, install a new snap ring. CL±16
± CLUTCHCLUTCH UNIT (2JZ±GTE)
Page 1074 of 2543
8. INSTALL CLUTCH COVER ASSEMBLY
9. INSTALL CLUTCH DISC
NOTICE: Install the clutch disc in the correct direction.
10. INSTALL RELEASE FORK ASSEMBLY
Install the release bearing assembly to the release fork as-
sembly, and then install them to the transmission.
11. INSTALL TRANSMISSION TO ENGINE
(See page MT2±5)
CLUTCH UNIT (2JZ±GE)
COMPONENTS
± CLUTCHCLUTCH UNIT (2JZ±GTE, 2JZ±GE)CL±17
Page 1075 of 2543

CLUTCH UNIT REMOVAL
1. REMOVE TRANSMISSION FROM ENGINE
(See page MT1±8)
HINT: Do not drain the transmission oil.
2. REMOVE CLUTCH COVER AND DISC
(a) Place matchmarks on the flywheel and clutch cover.
(b) Loosen each set bolt one turn at a time until spring tension
is released.
(c) Remove the set bolts, and pull off the clutch cover with the
clutch disc.
NOTICE: Do not drop the clutch disc.
3. REMOVE RELEASE BEARING, FORK AND BOOT FROM
TRANSMISSION
(a) Remove the clips, and pull off the bearing and hub.
(b) Remove the fork and boot.
CLUTCH PARTS INSPECTION AND
REPAIR
1. INSPECT CLUTCH DISC FOR WEAR OR DAMAGE
Using calipers, measure the rivet head depth.
Minimum rivet depth:
0.3 mm (0.012 in.)
If a problem is found, replace the clutch disc.
2. INSPECT CLUTCH DISC RUNOUT
Using a dial indicator, check the disc runout.
Maximum runout:
0.8 mm (0.031 in.)
If runout is excessive, replace the clutch disc.
3. INSPECT FLYWHEEL RUNOUT
Using a dial indicator, check the flywheel runout.
Maximum runout:
0.1 mm (0.004 in.)
If runout excessive, replace the flywheel. CL±18
± CLUTCHCLUTCH UNIT (2JZ±GE)
Page 1076 of 2543
4. INSPECT PILOT BEARING
Turn the bearing by hand while applying force in the axial
direction.
If the bearing sticks or has much resistance, replace the pilot
bearing.
5. IF NECESSARY, REPLACE PILOT BEARING
(a) Remove the 2 bolts at diametrically opposite points.
(b) Using SST, remove the pilot bearing.
SST 09303±35011
(c) Using SST and a hammer, drive in a new pilot bearing.
SST 09304±30012
(d) Install 2 new bolts.
(e) First, torque the 2 bolts uniformly a little at a time.
Torque: 49 NVm (500 kgfVcm, 36 ftVlbf)
(f) Then tighten the 2 bolts an additional 80±100°.
± CLUTCHCLUTCH UNIT (2JZ±GE)CL±19

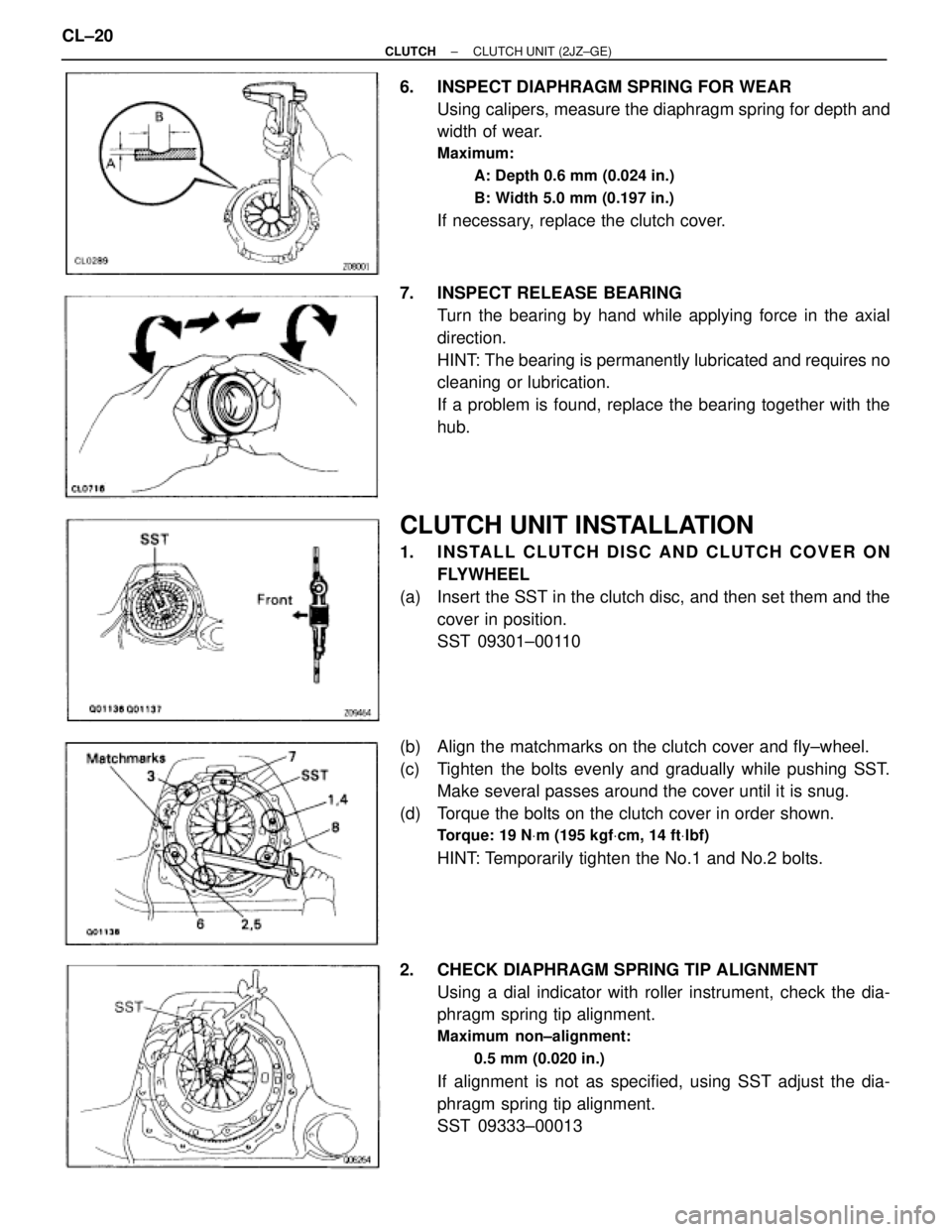

Page 1077 of 2543

6. INSPECT DIAPHRAGM SPRING FOR WEAR
Using calipers, measure the diaphragm spring for depth and
width of wear.
Maximum:
A: Depth 0.6 mm (0.024 in.)
B: Width 5.0 mm (0.197 in.)
If necessary, replace the clutch cover.
7. INSPECT RELEASE BEARING
Turn the bearing by hand while applying force in the axial
direction.
HINT: The bearing is permanently lubricated and requires no
cleaning or lubrication.
If a problem is found, replace the bearing together with the
hub.
CLUTCH UNIT INSTALLATION
1. INSTALL CLUTCH DISC AND CLUTCH COVER ON
FLYWHEEL
(a) Insert the SST in the clutch disc, and then set them and the
cover in position.
SST 09301±00110
(b) Align the matchmarks on the clutch cover and fly±wheel.
(c) Tighten the bolts evenly and gradually while pushing SST.
Make several passes around the cover until it is snug.
(d) Torque the bolts on the clutch cover in order shown.
Torque: 19 NVm (195 kgfVcm, 14 ftVlbf)
HINT: Temporarily tighten the No.1 and No.2 bolts.
2. CHECK DIAPHRAGM SPRING TIP ALIGNMENT
Using a dial indicator with roller instrument, check the dia-
phragm spring tip alignment.
Maximum non±alignment:
0.5 mm (0.020 in.)
If alignment is not as specified, using SST adjust the dia-
phragm spring tip alignment.
SST 09333±00013 CL±20
± CLUTCHCLUTCH UNIT (2JZ±GE)

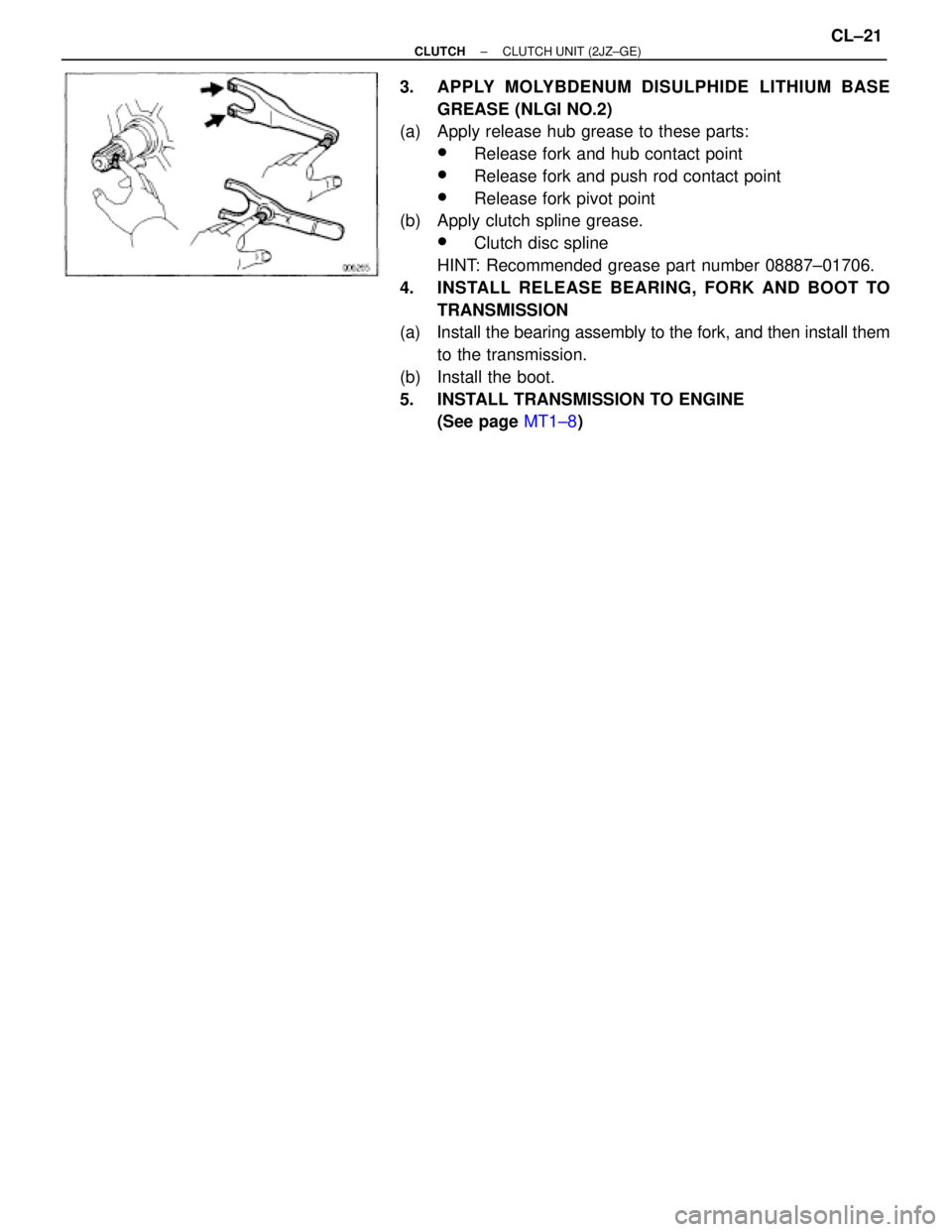

Page 1078 of 2543
3. APPLY MOLYBDENUM DISULPHIDE LITHIUM BASE
GREASE (NLGI NO.2)
(a) Apply release hub grease to these parts:
wRelease fork and hub contact point
wRelease fork and push rod contact point
wRelease fork pivot point
(b) Apply clutch spline grease.
wClutch disc spline
HINT: Recommended grease part number 08887±01706.
4. INSTALL RELEASE BEARING, FORK AND BOOT TO
TRANSMISSION
(a) Install the bearing assembly to the fork, and then install them
to the transmission.
(b) Install the boot.
5. INSTALL TRANSMISSION TO ENGINE
(See page MT1±8)
± CLUTCHCLUTCH UNIT (2JZ±GE)CL±21

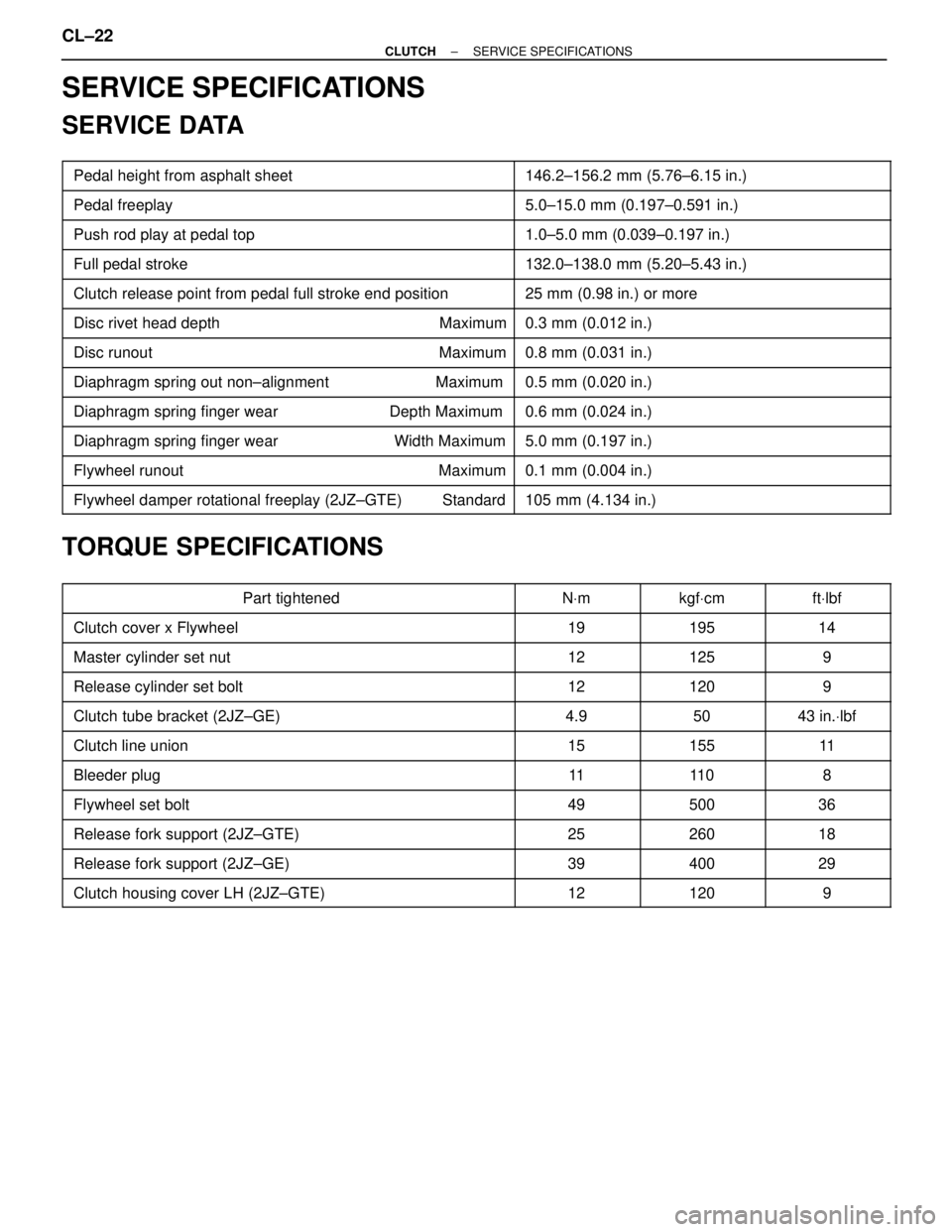

Page 1079 of 2543

SERVICE SPECIFICATIONS
SERVICE DATA
Pedal height from asphalt sheet 146.2±156.2 mm (5.76±6.15 in.)
Pedal freeplay
5.0±15.0 mm (0.197±0.591 in.)
Push rod play at pedal top 1.0±5.0 mm (0.039±0.197 in.)
Full pedal stroke 132.0±138.0 mm (5.20±5.43 in.)
Clutch release point from pedal full stroke end position 25 mm (0.98 in.) or more
Disc rivet head depth Maximum
0.3 mm (0.012 in.)
Disc runout Maximum 0.8 mm (0.031 in.)
Diaphragm spring out non±alignment Maximum 0.5 mm (0.020 in.)
Diaphragm spring finger wear Depth Maximum 0.6 mm (0.024 in.)
Diaphragm spring finger wear Width Maximum
5.0 mm (0.197 in.)
Flywheel runout Maximum 0.1 mm (0.004 in.)
Flywheel damper rotational freeplay (2JZ±GTE) Standard 105 mm (4.134 in.)
TORQUE SPECIFICATIONS
Part tightened NVm kgfVcm ftVlbf
Clutch cover x Flywheel 19 195 14
Master cylinder set nut
12
125
9
Release cylinder set bolt 12 120 9
Clutch tube bracket (2JZ±GE) 4.9 50 43 in.Vlbf
Clutch line union 15 155 11
Bleeder plug
11
11 0
8
Flywheel set bolt 49 500 36
Release fork support (2JZ±GTE) 25 260 18
Release fork support (2JZ±GE) 39 400 29 Clutch housing cover LH (2JZ±GTE) 12 120 9
CL±22± CLUTCHSERVICE SPECIFICATIONS

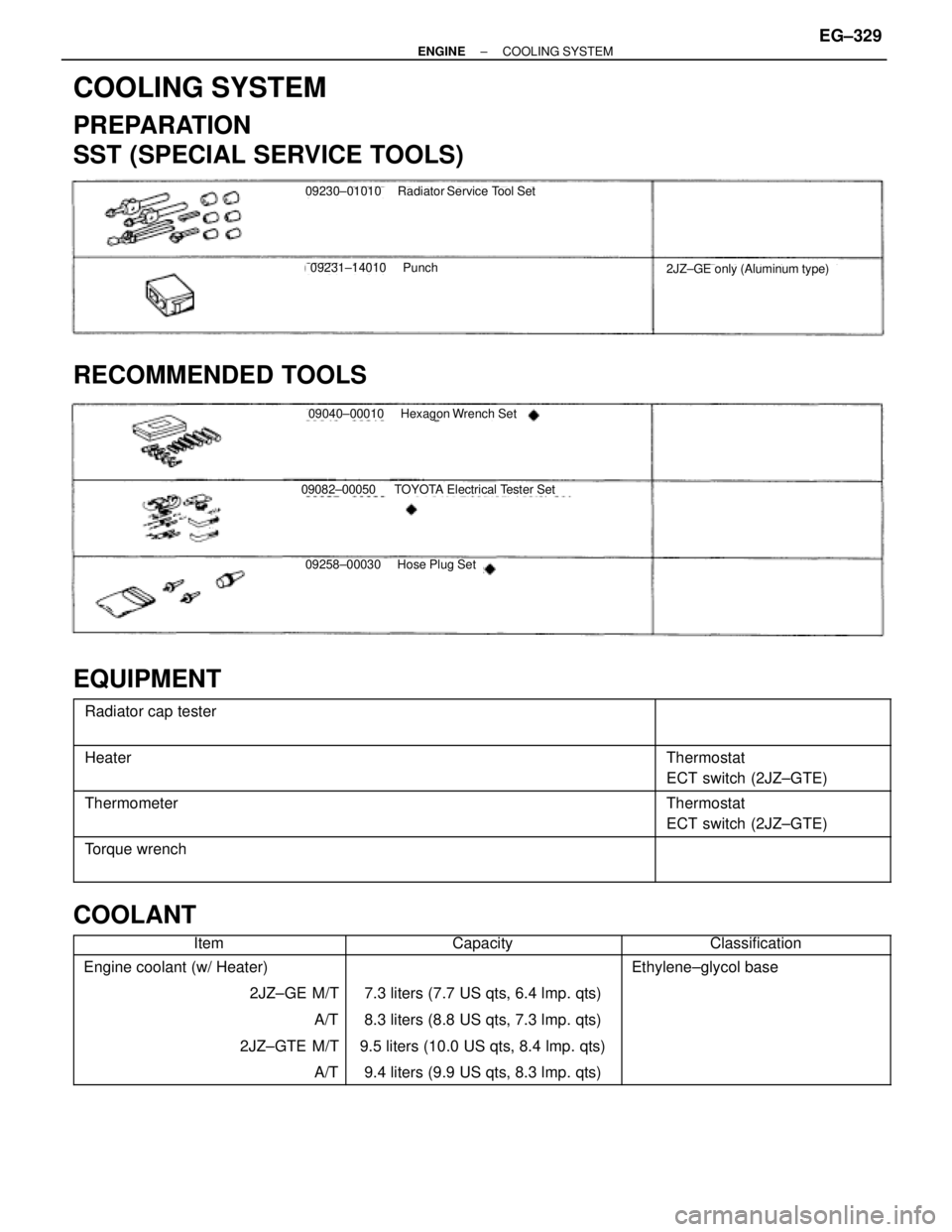

Page 1080 of 2543
COOLING SYSTEM
PREPARATION
SST (SPECIAL SERVICE TOOLS)
09230±01010 Radiator Service Tool Set
09231±14010 Punch2JZ±GE only (Aluminum type)
RECOMMENDED TOOLS
09040±00010 Hexagon Wrench Set
09082±00050 TOYOTA Electrical Tester Set
09258±00030 Hose Plug Set
EQUIPMENT
Radiator cap tester
Heater
Thermostat
ECT switch (2JZ±GTE)
Thermometer
Thermostat
ECT switch (2JZ±GTE)
Torque wrench
COOLANT
ItemCapacityClassification
Engine coolant (w/ Heater)
2JZ±GE M/T
A/T
2JZ±GTE M/T
A/T
7.3 liters (7.7 US qts, 6.4 lmp. qts)
8.3 liters (8.8 US qts, 7.3 lmp. qts)
9.5 liters (10.0 US qts, 8.4 lmp. qts)
9.4 liters (9.9 US qts, 8.3 lmp. qts)
Ethylene±glycol base
± ENGINECOOLING SYSTEMEG±329
