Page 1945 of 2543

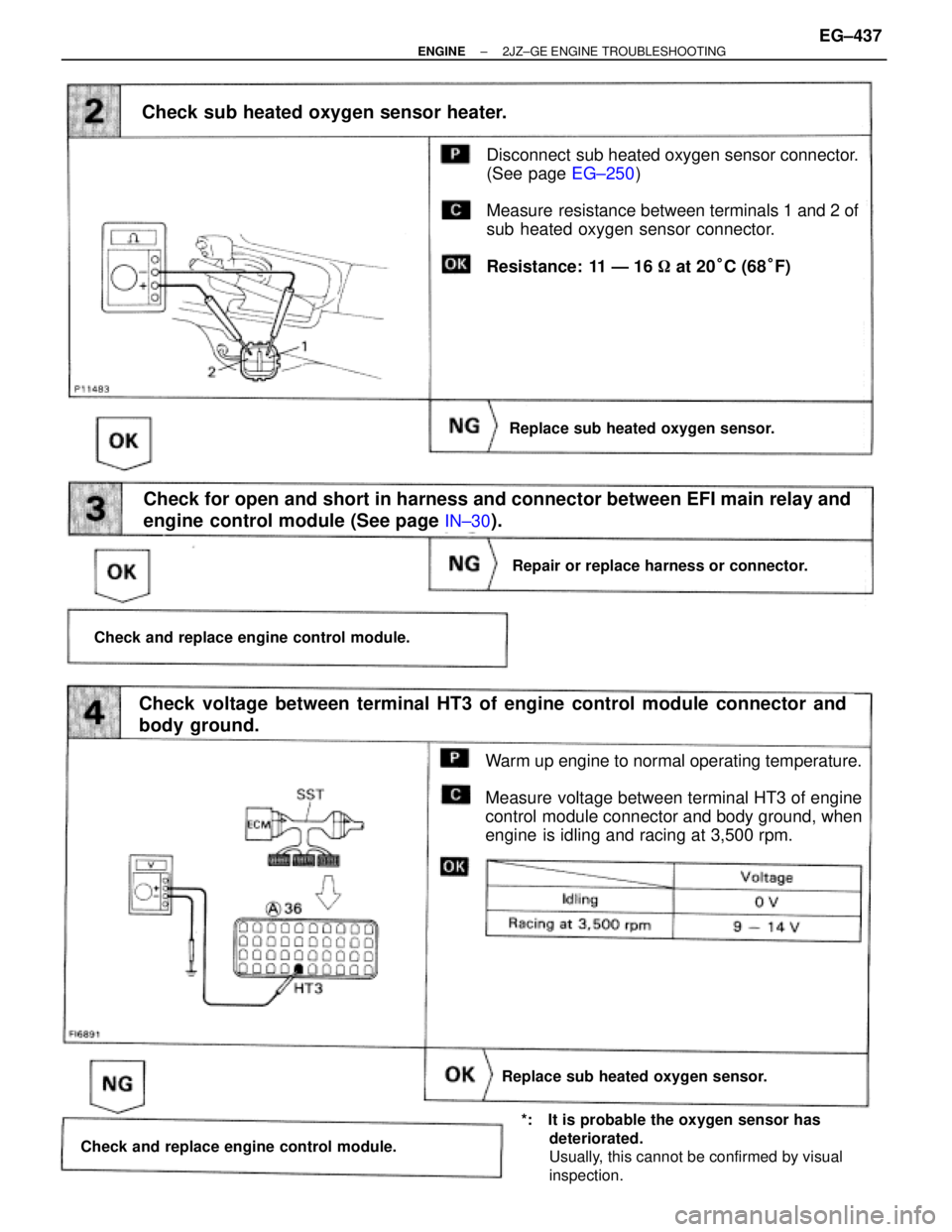

TOYOTA SUPRA 1995 Service Repair Manual Check sub heated oxygen sensor heater. Disconnect sub heated oxygen sensor connector. (See page EG±250) Measure resistance between terminals 1 and 2 of sub heated oxygen sensor connector. Resistance

Page 1946 of 2543

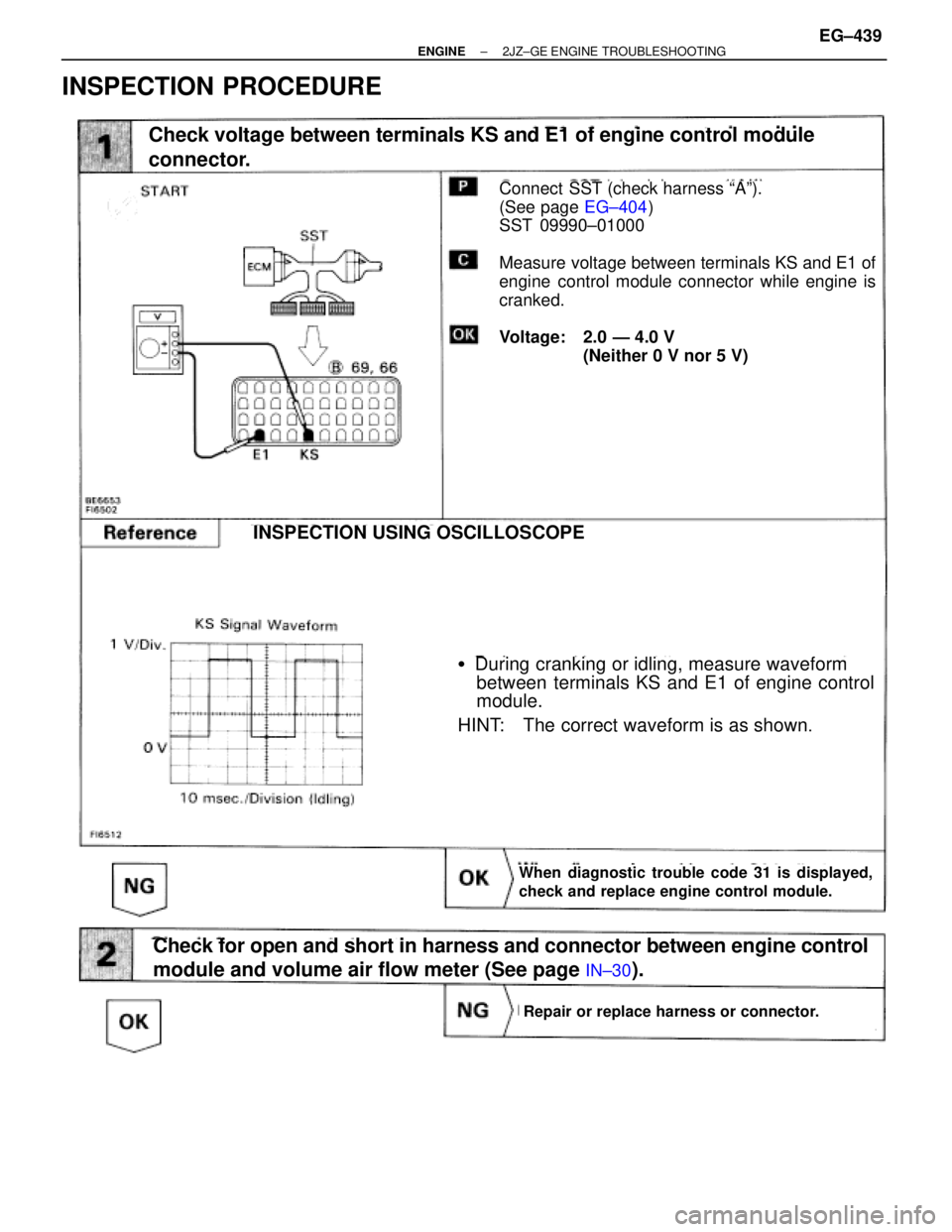

TOYOTA SUPRA 1995 Service Repair Manual DTC 31 Volume Air Flow Meter Circuit CIRCUIT DESCRIPTION As shown in the figure at right, when a pillar (Vortex generating body is placed in the path of a uniform flow, vortices called Karman±Vortex

Page 1947 of 2543

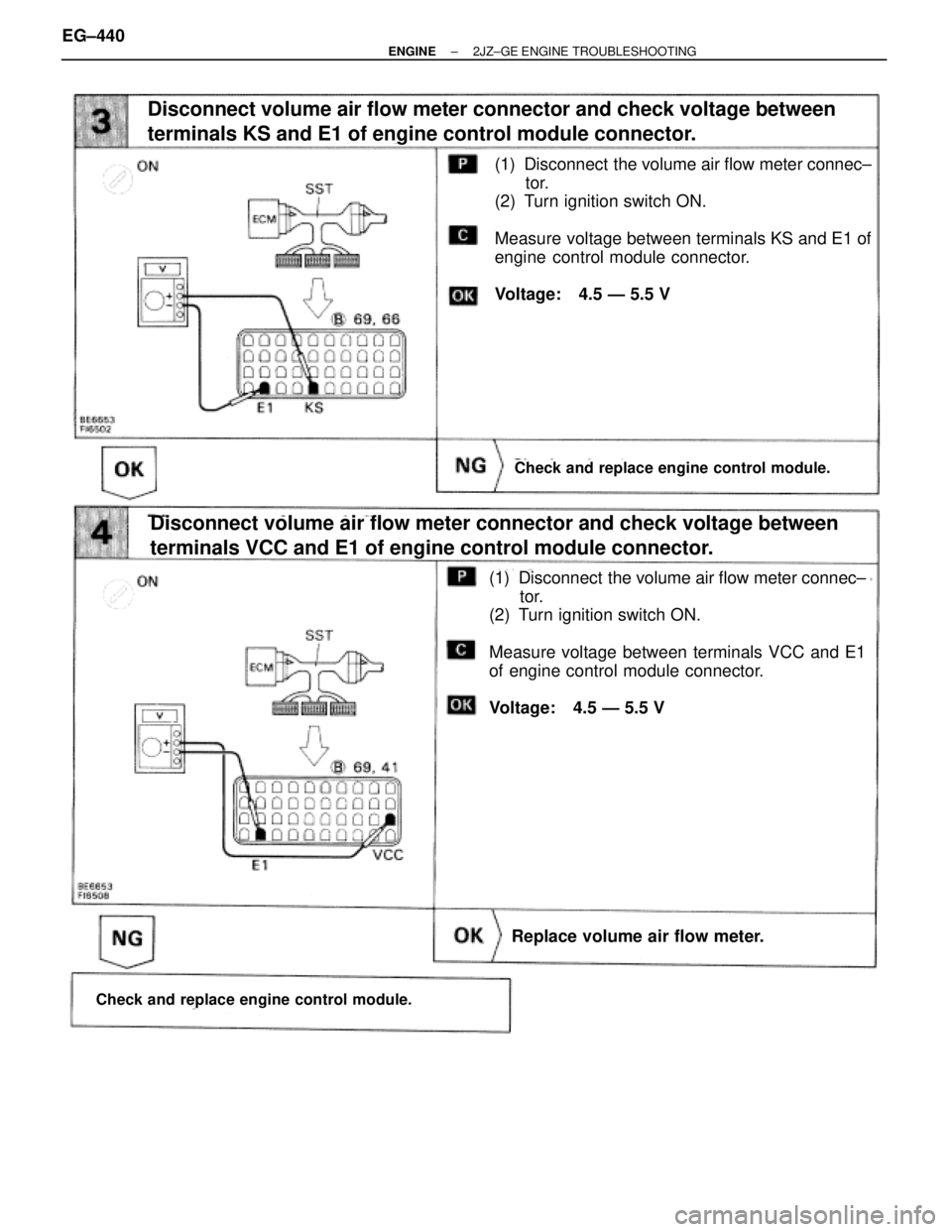

TOYOTA SUPRA 1995 Service Repair Manual INSPECTION PROCEDURE (See page EG±404) Check voltage between terminals KS and E1 of engine control module connector. Connect SST (check harness ªAº). (See page EG±404) SST 09990±01000 Measure vo

Page 1948 of 2543

TOYOTA SUPRA 1995 Service Repair Manual Disconnect volume air flow meter connector and check voltage between terminals KS and E1 of engine control module connector. (1) Disconnect the volume air flow meter connec± tor. (2) Turn ignition s

Page 1949 of 2543

TOYOTA SUPRA 1995 Service Repair Manual DTC 35 Barometric Pressure Sensor Circuit CIRCUIT DESCRIPTION The BARO sensor is built into the ECM. This is a semiconductor pressure sensor with properties which cause its electrical resistance to ch

Page 1950 of 2543

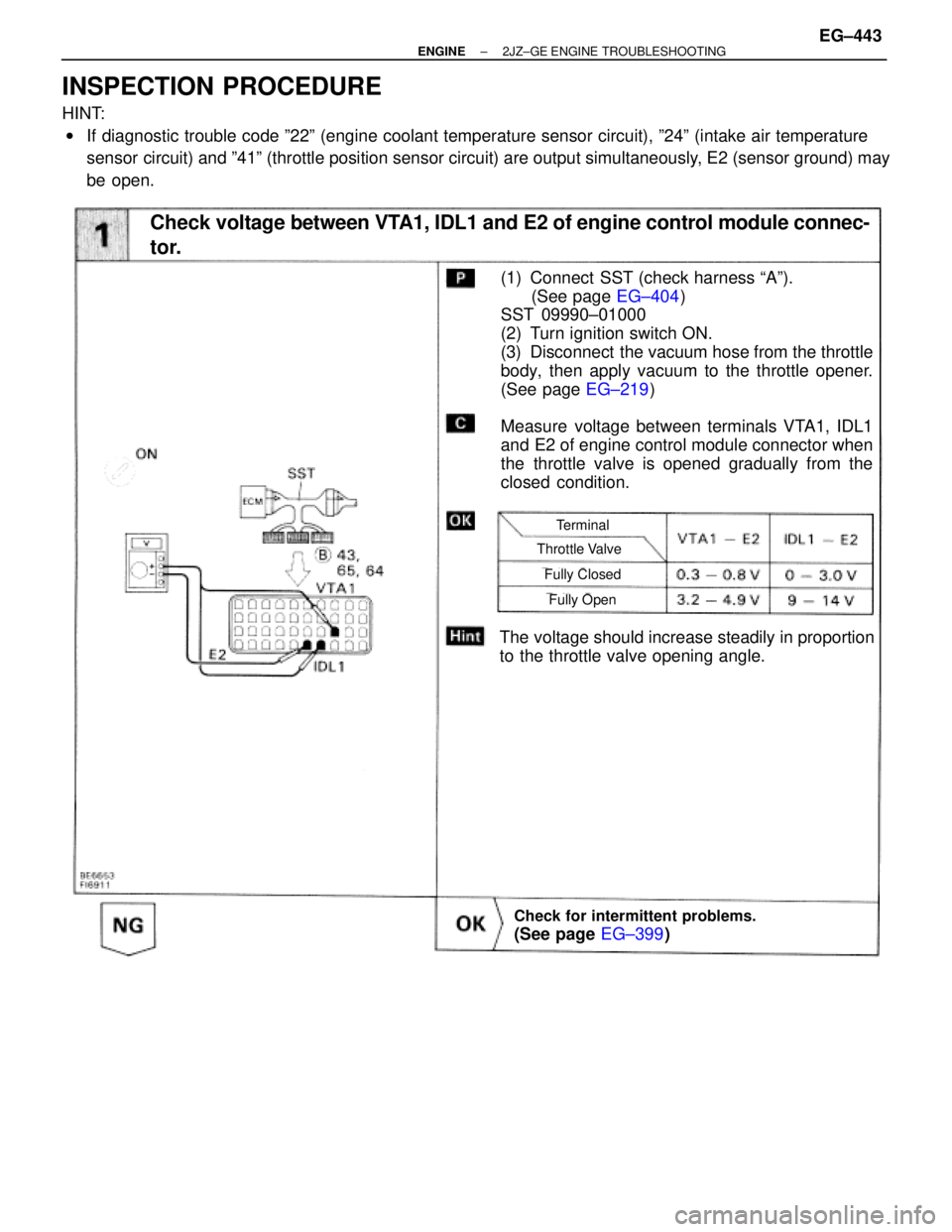

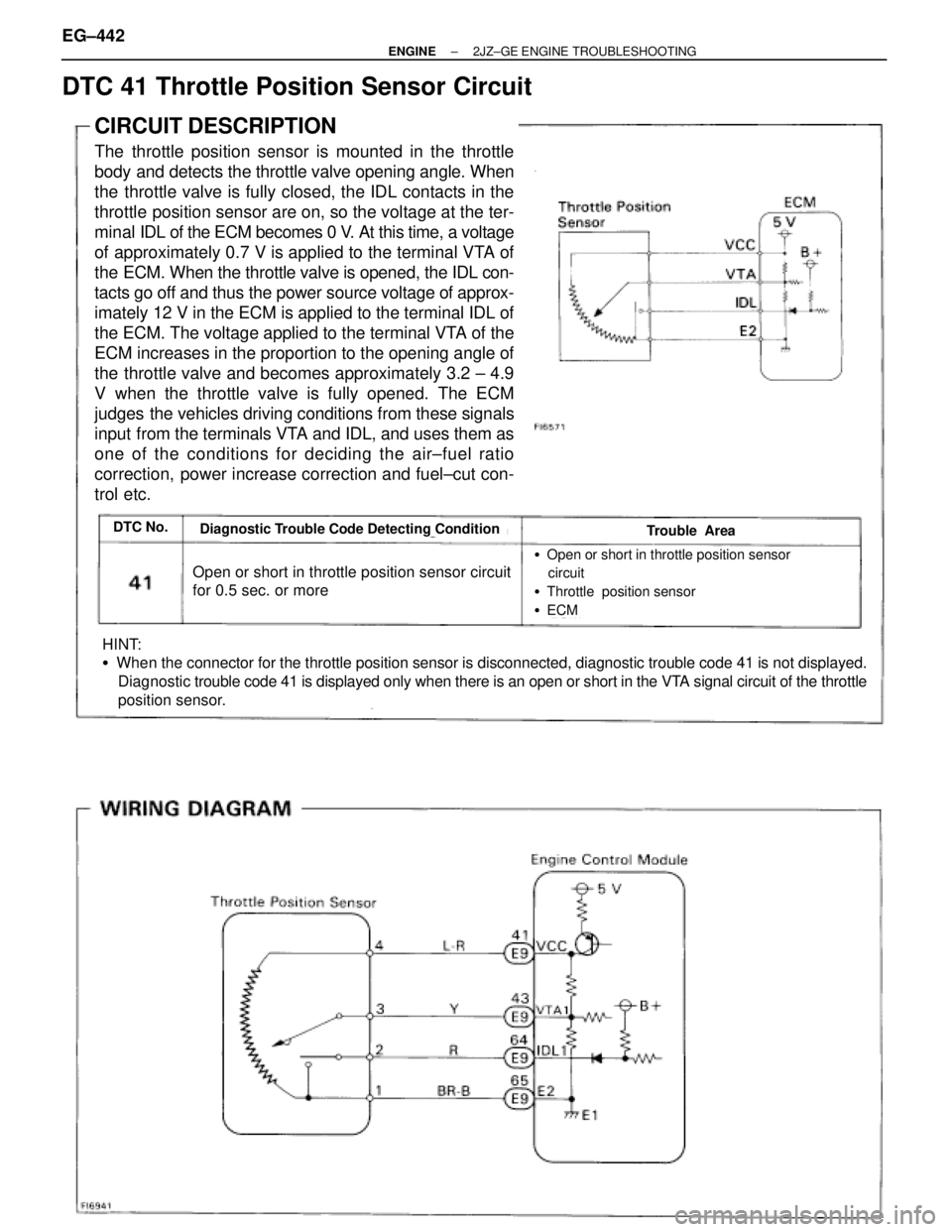

TOYOTA SUPRA 1995 Service Repair Manual DTC 41 Throttle Position Sensor Circuit CIRCUIT DESCRIPTION The throttle position sensor is mounted in the throttle body and detects the throttle valve opening angle. When the throttle valve is fully

Page 1951 of 2543

TOYOTA SUPRA 1995 Service Repair Manual INSPECTION PROCEDURE HINT: wIf diagnostic trouble code º22º (engine coolant temperature sensor circuit), º24º (intake air temperature sensor circuit) and º41º (throttle position sensor circuit)

Page 1952 of 2543

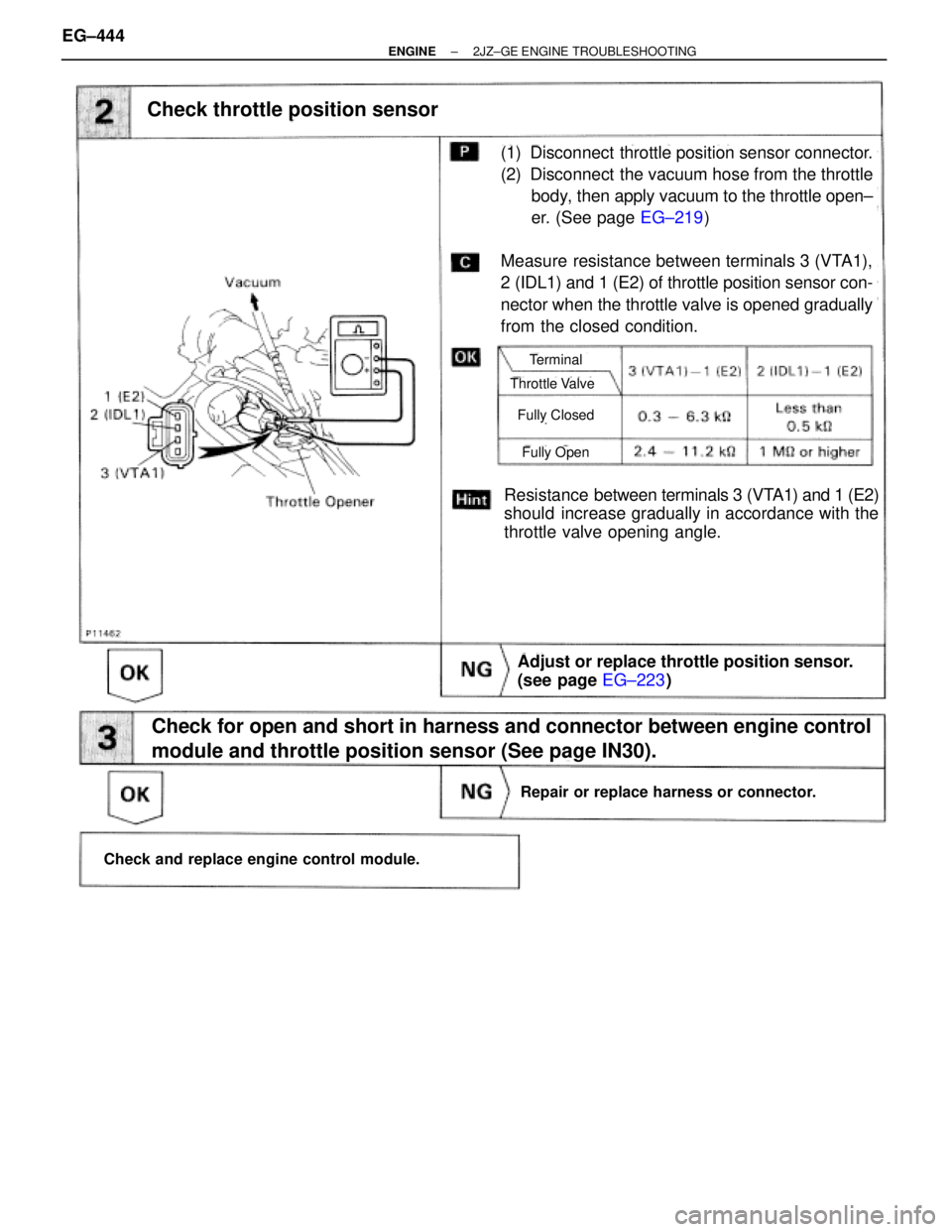

TOYOTA SUPRA 1995 Service Repair Manual Check throttle position sensor (1) Disconnect throttle position sensor connector. (2) Disconnect the vacuum hose from the throttle body, then apply vacuum to the throttle open± er. (See page EG±21
