DTC 58 TRAC Pump Motor Circuit
CIRCUIT DESCRIPTION
This motor is used to apply hydraulic pressure for the rear wheel brakes during TRAC control.
DTC No. Diagnostic Trouble Code Detecting Condition Trouble area
58
Conditions (1) through (3) continue for 2 sec.
or more:
(1) TRAC motor relay: Normal
(2) TRAC motor: OFF
(3) Voltage of ABS & TRAC ECU terminal
MTT: 4±8 V
TRAC pump motor
Open in TRAC pump motor circuit
ECU
Fail safe function: If trouble occurs in this circuit, the ECU cuts off current to the TRAC solenoid relay and
prohibits TRAC control.
BR±100± BRAKE SYSTEMANTI±LOCK BRAKE SYSTEM (ABS)
Page 970 of 2543
Check TRAC pump motor.
Check for open and short in harness and connector between TRAC pump
motor and ECU (See page IN±30).
Replace TRAC pump motor.
Measure resistance between terminal 1 of TRAC
pump motor connector and body ground.
Resistance: 1 or less
Check and replace ABS & TRAC ECU.
Check continuity between terminal 1 of TRAC pump motor connector and
body ground.
Repair or replace harness or connector.
Repair or replace harness or connector.
Terminals 1 and 3
Terminals 2 and 3
Continuity (Reference
value 100
or less)
Continuity (Reference
value 4 ~ 6
or less)
Disconnect TRAC pump motor connector.
Check continuity between each terminal of TRAC
pump motor shown below.
INSPECTION PROCEDURE.
± BRAKE SYSTEMANTI±LOCK BRAKE SYSTEM (ABS)BR±101
Page 971 of 2543
DTC 61 TRAC ECU Communication Circuit Malfunction

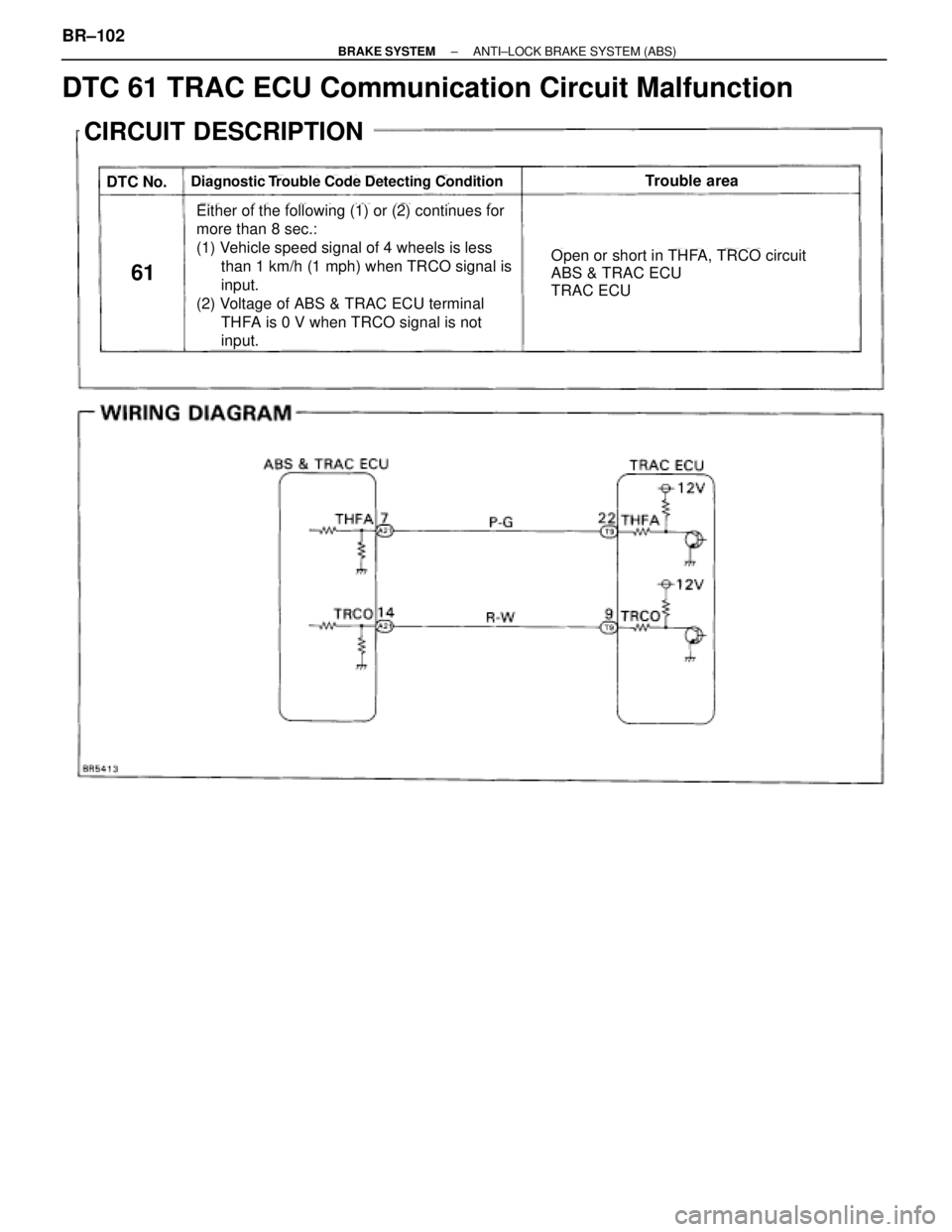

CIRCUIT DESCRIPTION
DTC No.Diagnostic Trouble Code Detecting ConditionTrouble area
61
Open or short in THFA, TRCO circuit
ABS & TRAC ECU
TRAC ECU
Either of the following (1) or (2) continues for
more than 8 sec.:
(1) Vehicle speed signal of 4 wheels is less
than 1 km/h (1 mph) when TRCO signal is
input.
(2) Voltage of ABS & TRAC ECU terminal
THFA is 0 V when TRCO signal is not
input.
BR±102± BRAKE SYSTEMANTI±LOCK BRAKE SYSTEM (ABS)
Page 972 of 2543

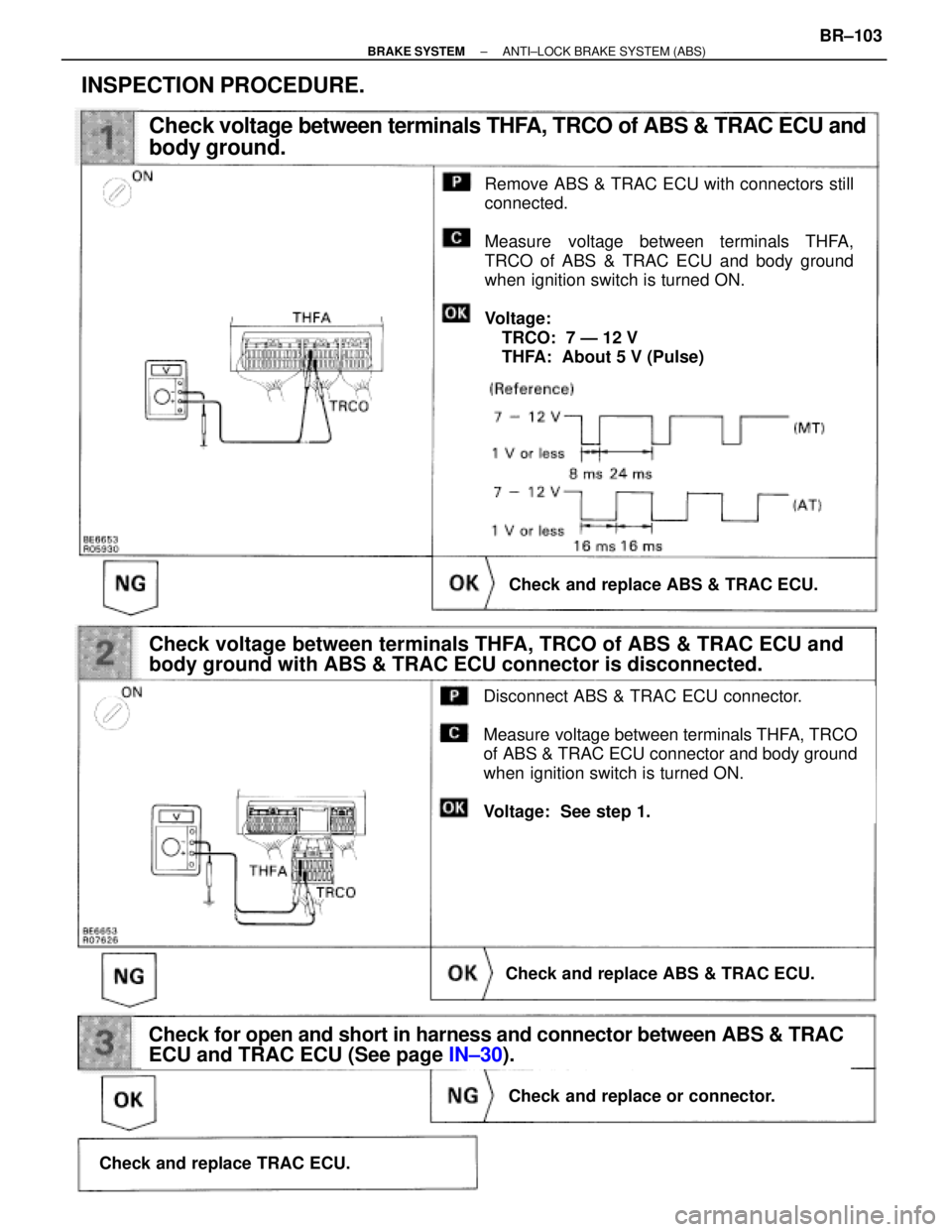

Check voltage between terminals THFA, TRCO of ABS & TRAC ECU and
body ground.
Check and replace ABS & TRAC ECU.
Disconnect ABS & TRAC ECU connector.
Measure voltage between terminals THFA, TRCO
of ABS & TRAC ECU connector and body ground
when ignition switch is turned ON.
Voltage: See step 1.
Check voltage between terminals THFA, TRCO of ABS & TRAC ECU and
body ground with ABS & TRAC ECU connector is disconnected.
Remove ABS & TRAC ECU with connectors still
connected.
Measure voltage between terminals THFA,
TRCO of ABS & TRAC ECU and body ground
when ignition switch is turned ON.
Voltage:
TRCO: 7 Ð 12 V
THFA: About 5 V (Pulse)
Check and replace ABS & TRAC ECU.
Check for open and short in harness and connector between ABS & TRAC
ECU and TRAC ECU (See page IN±30).
Check and replace or connector.
Check and replace TRAC ECU.
INSPECTION PROCEDURE.
± BRAKE SYSTEMANTI±LOCK BRAKE SYSTEM (ABS)BR±103
Page 973 of 2543

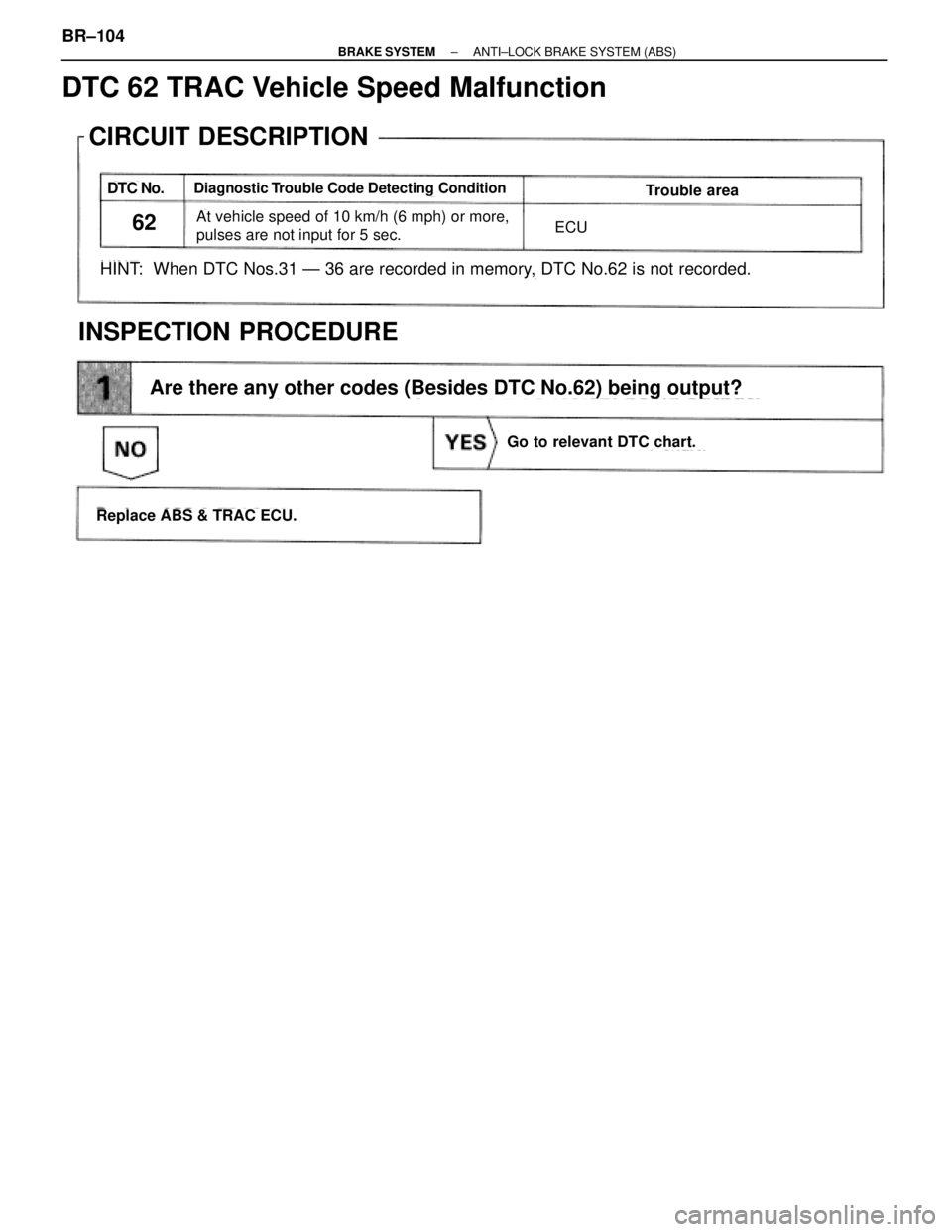

DTC 62 TRAC Vehicle Speed Malfunction
DTC No.Diagnostic Trouble Code Detecting ConditionTrouble area
62 ECUAt vehicle speed of 10 km/h (6 mph) or more,
pulses are not input for 5 sec.
HINT: When DTC Nos.31 Ð 36 are recorded in memory, DTC No.62 is not recorded.
Go to relevant DTC chart.
Replace ABS & TRAC ECU.
CIRCUIT DESCRIPTION
INSPECTION PROCEDURE
Are there any other codes (Besides DTC No.62) being output?
BR±104± BRAKE SYSTEMANTI±LOCK BRAKE SYSTEM (ABS)
Page 974 of 2543
Stop Light Switch Circuit

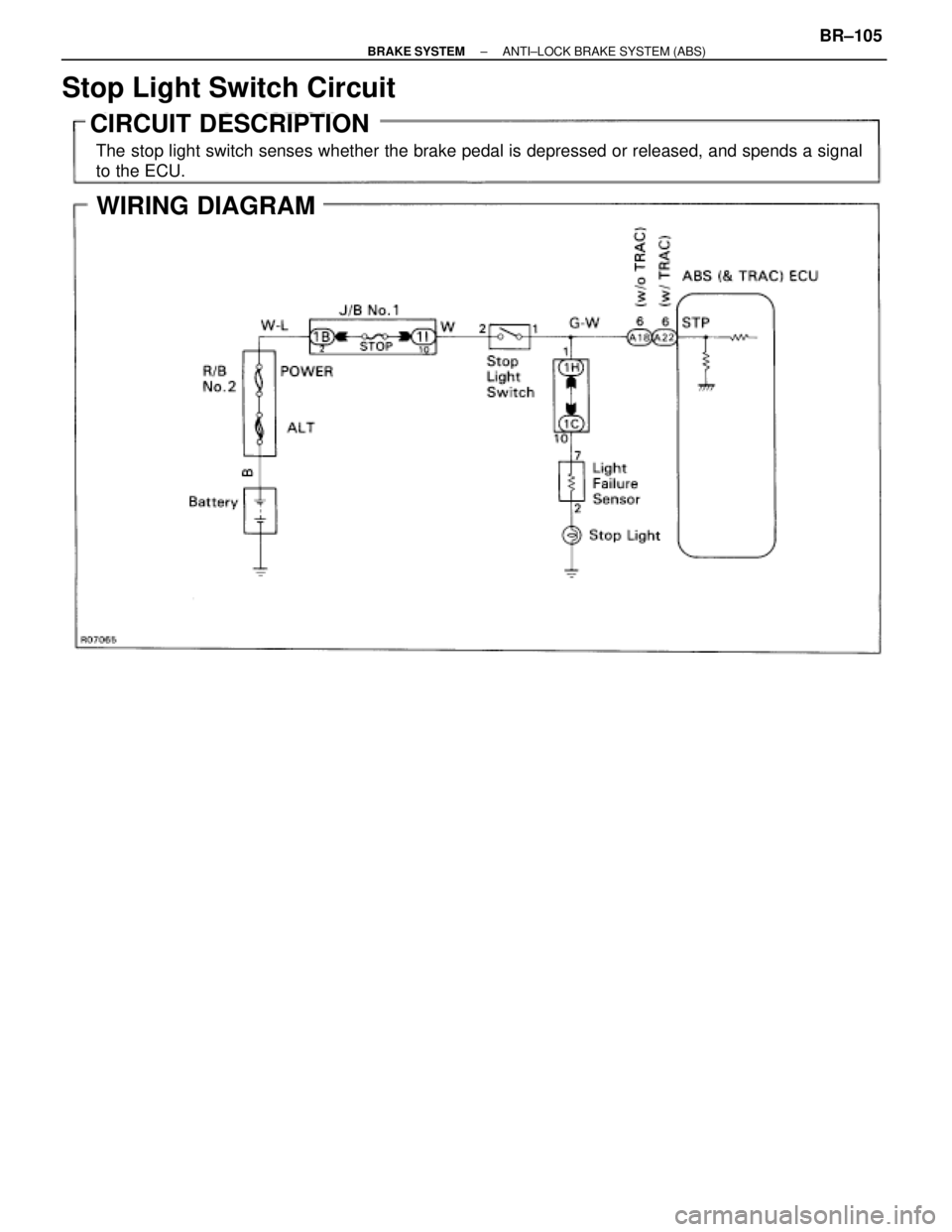

CIRCUIT DESCRIPTION
WIRING DIAGRAM
The stop light switch senses whether the brake pedal is depressed or released, and spends a signal
to the ECU.
± BRAKE SYSTEMANTI±LOCK BRAKE SYSTEM (ABS)BR±105
Page 975 of 2543

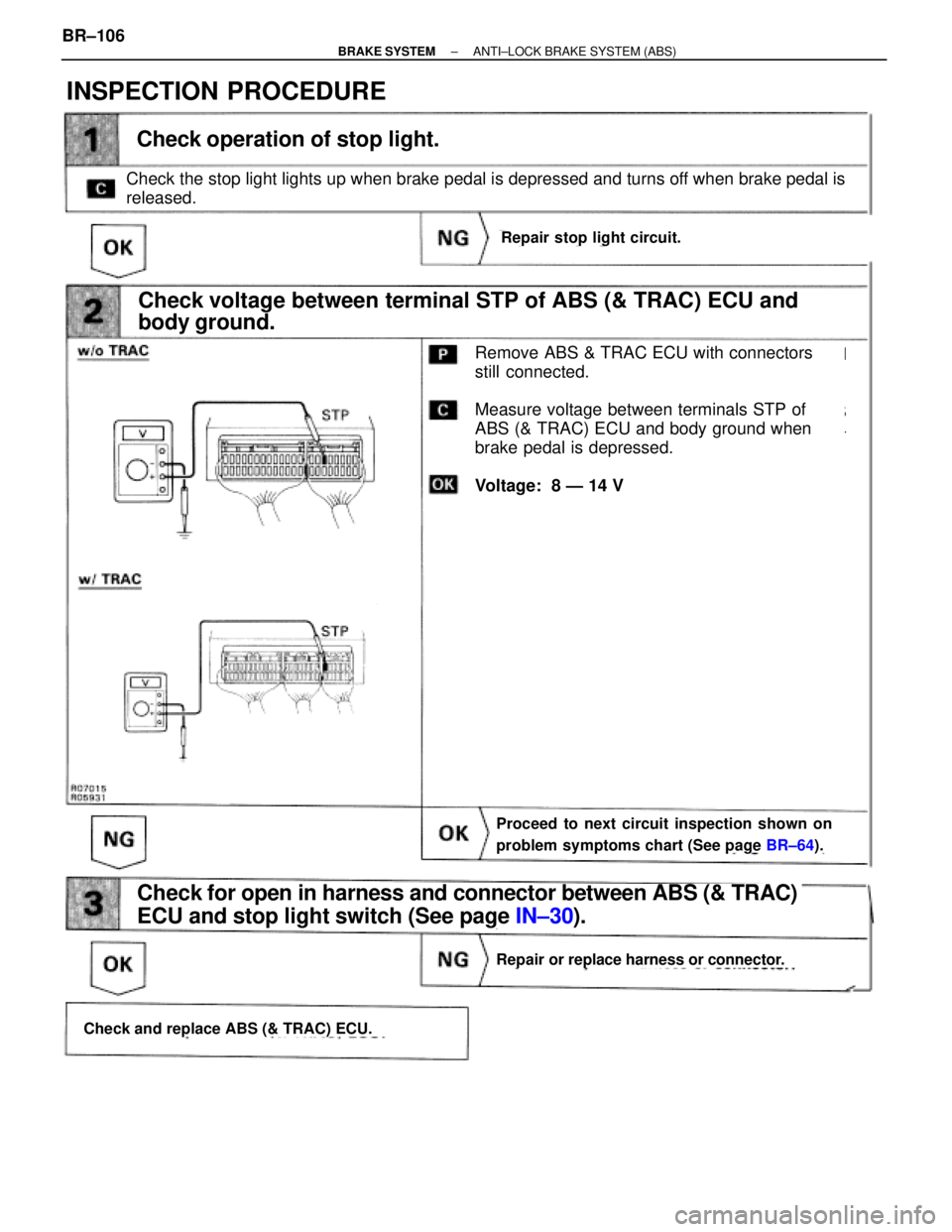

INSPECTION PROCEDURE
Remove ABS & TRAC ECU with connectors still
connected.
Measure voltage between terminals STP of ABS
(& TRAC) ECU and body ground when brake ped-
al is depressed
Voltage: 8 Ð 14 V
Check operation of stop light.
Check voltage between terminal STP of ABS (& TRAC) ECU and
body ground.
Remove ABS & TRAC ECU with connectors
still connected.
Measure voltage between terminals STP of
ABS (& TRAC) ECU and body ground when
brake pedal is depressed.
Voltage: 8 Ð 14 V
Repair stop light circuit.
Repair or replace harness or connector.
Proceed to next circuit inspection shown on
problem symptoms chart (See page BR±64).
Check for open in harness and connector between ABS (& TRAC)
ECU and stop light switch (See page IN±30).
Check and replace ABS (& TRAC) ECU.
Check the stop light lights up when brake pedal is depressed and turns off when brake pedal is
released. BR±106
± BRAKE SYSTEMANTI±LOCK BRAKE SYSTEM (ABS)
Page 976 of 2543
ABS Warning Light Circuit

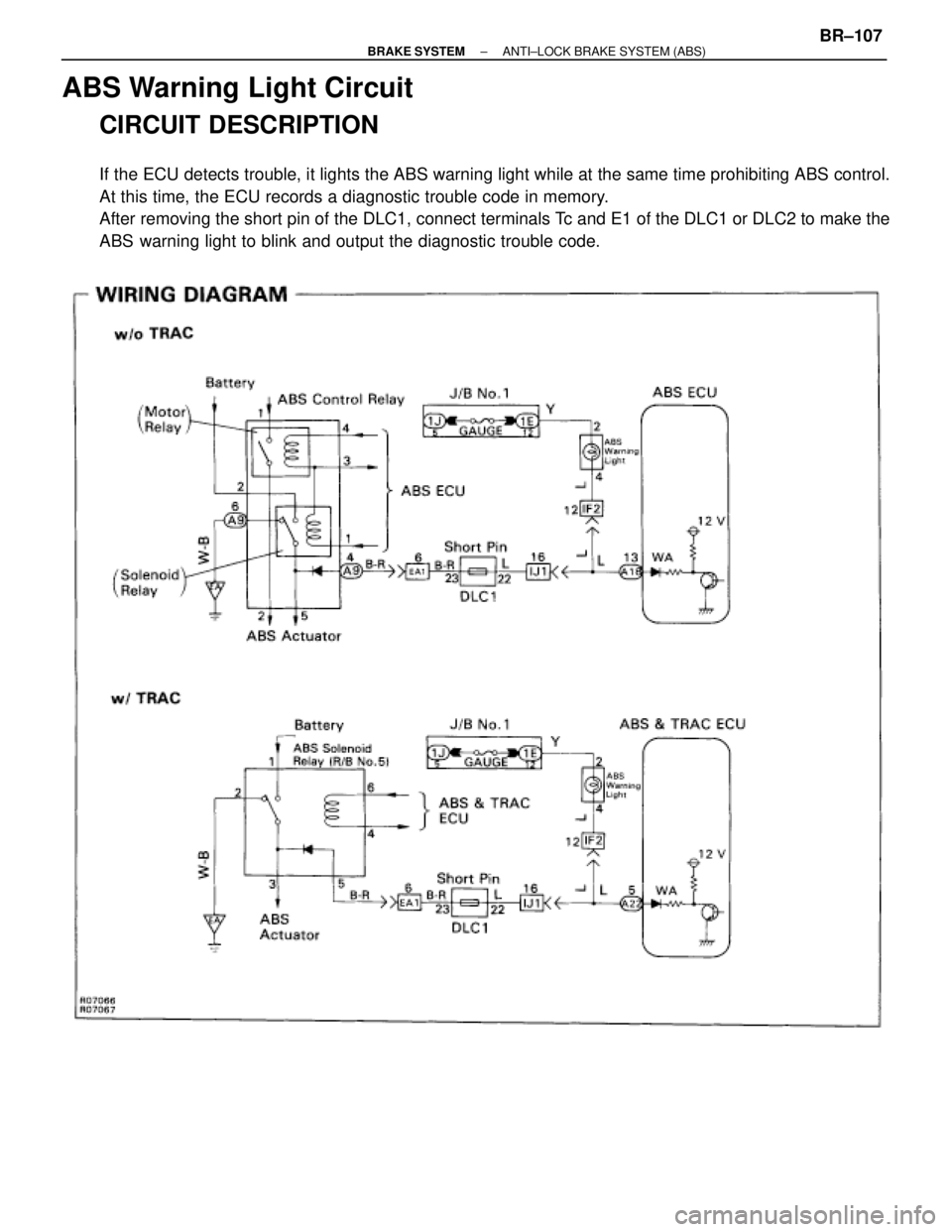

CIRCUIT DESCRIPTION
If the ECU detects trouble, it lights the ABS warning light while at the same time prohibiting ABS control.
At this time, the ECU records a diagnostic trouble code in memory.
After removing the short pin of the DLC1, connect terminals Tc and E1 of the DLC1 or DLC2 to make the
ABS warning light to blink and output the diagnostic trouble code.
± BRAKE SYSTEMANTI±LOCK BRAKE SYSTEM (ABS)BR±107
