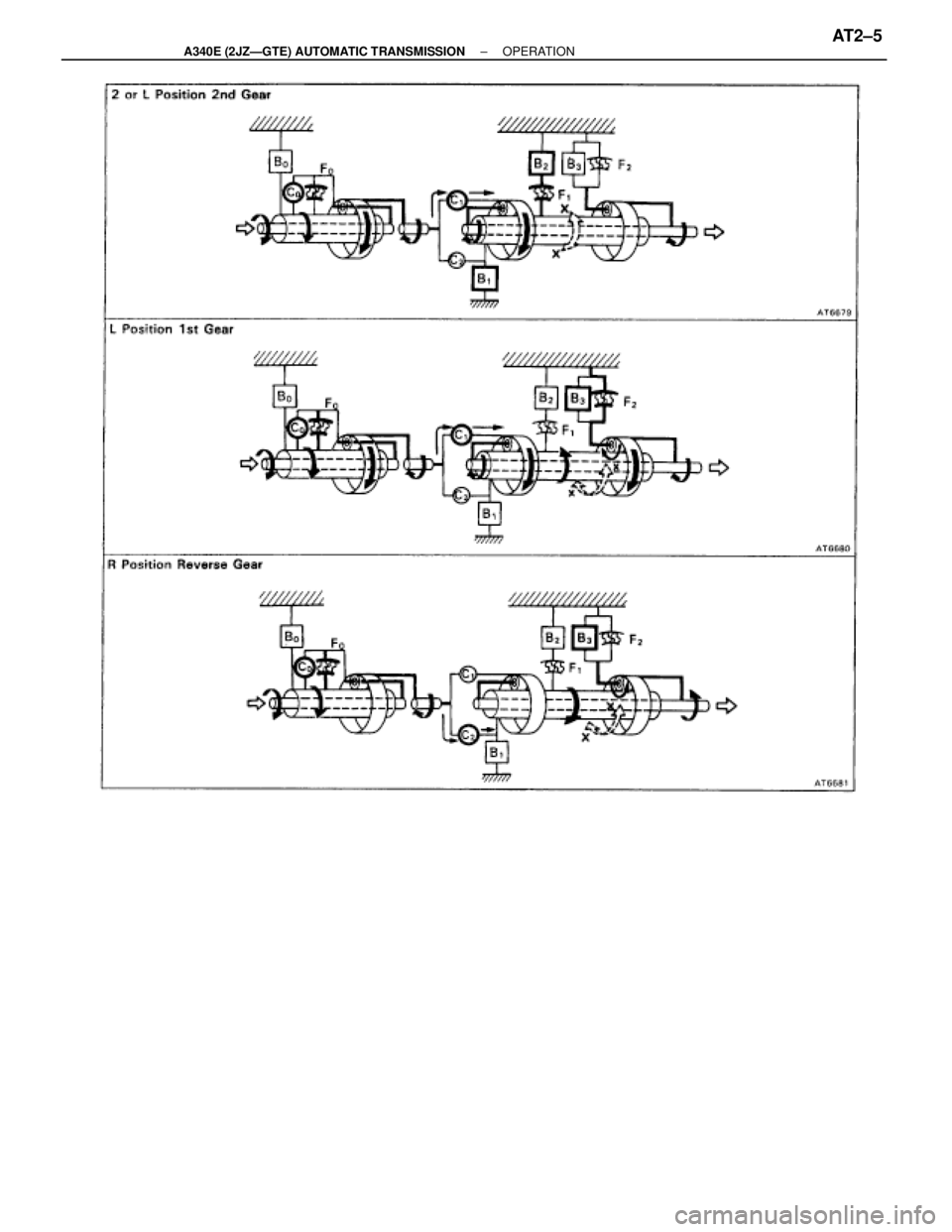

± A340E (2JZÐGTE) AUTOMATIC TRANSMISSIONOPERATIONAT2±5
Page 490 of 2543

HYDRAULIC CONTROL SYSTEM
The hydraulic control system is composed of an oil pump, valve body, solenoid valves, accumulators,
clutches and brakes, as well as the fluid passages which connect all of these components. Based on the
hydraulic pressure created by the oil pump, the hydraulic control system governs the hydraulic pressure
acting on the torque converter clutch, clutches and brakes in accordance with the vehicle driving condi-
tions.
There are five solenoid valves on the valve body.
The No.1 and No.2 solenoid valves are turned on and off by signals from the ECM to control the shift valves,
and change the gear shift position.
The No.3 solenoid valve is operated by signals from the ECM to engage or disengage the lock±up clutch
of the torque converter clutch.
The No.4 solenoid valve is operated by signals from the ECM to control the engagement speed and reduce
gear shift shock.
The No.5 solenoid valve is operated by signals from the ECM to regulate the line pressure to throttle pres-
sure.

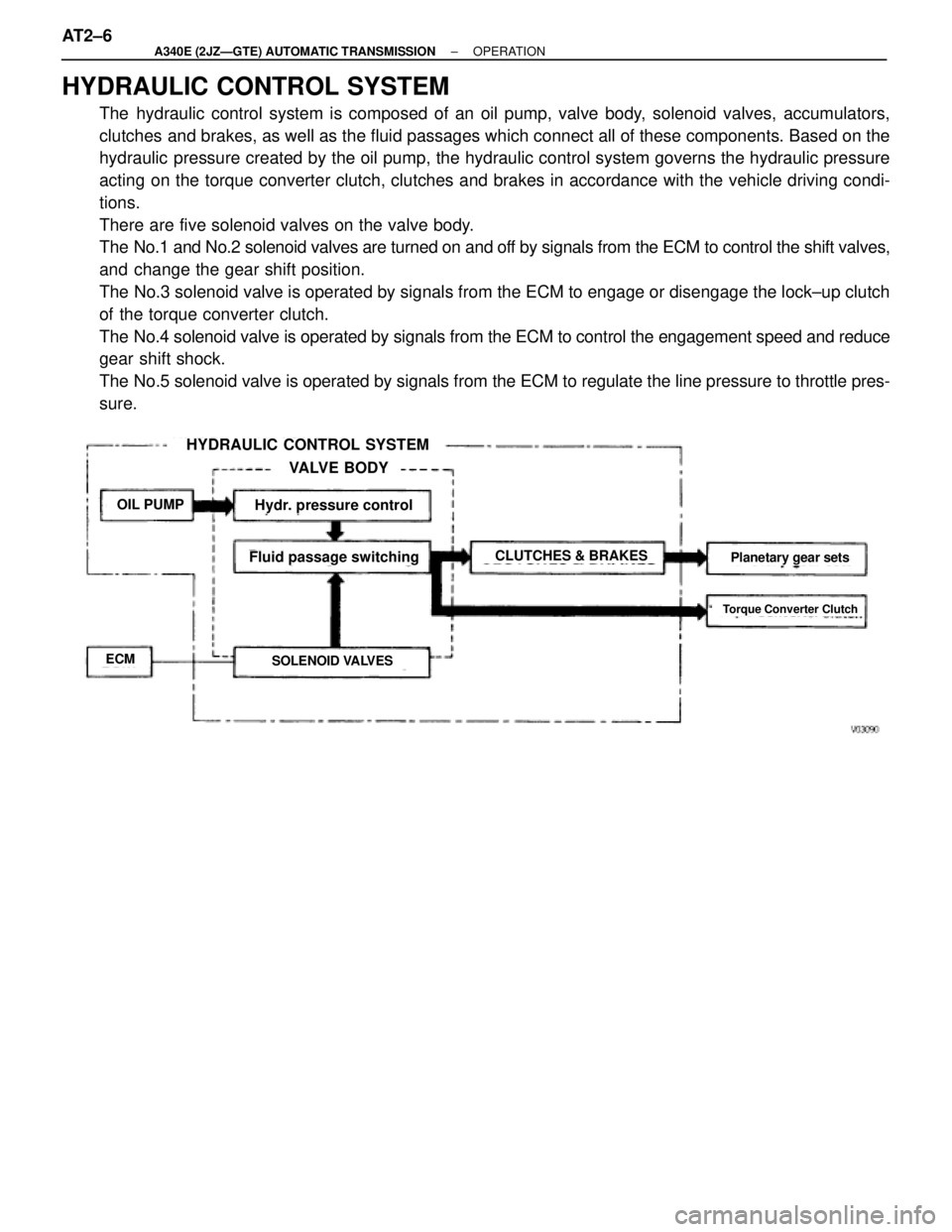

HYDRAULIC CONTROL SYSTEM
VALVE BODY
OIL PUMP
ECMSOLENOID VALVES
CLUTCHES & BRAKES
Hydr. pressure control
Fluid passage switchingPlanetary gear sets
Torque Converter Clutch
AT2±6± A340E (2JZÐGTE) AUTOMATIC TRANSMISSIONOPERATION
Page 491 of 2543

ELECTRONIC CONTROL SYSTEM
The electronic control system for the A340E automatic transmission provides extremely precise control of
the gear shift timing and lock±up timing in response to driving conditions as sensed by various sensors
located throughout the vehicle and in response to the engine's running condition.
At the same time, the ECM control reduces vehicle squat when the vehicle starts out and gear shift shock.
The electronic control system is also equipped with a self diagnosis system which diagnoses malfunctions
for the vehicle to continue functioning when a malfunction occurs.
CONSTRUCTION
The electronic control system can be broadly divided onto three groups; the sensors, ECM and actuators.
No. 1 Vehicle Speed Sensor
No. 2 Vehicle Speed Sensor
Crankshaft Position Sensor
Camshaft Position Sensor No.1, No.2
Park/Neutral Position Switch
Neutral Start Signal
Shift lever Position Signal
Idling Signal
Throttle Position Signal
Main (Sub) Ð throttle Position Sensor
Engine Coolant temp. Sensor
A/T Fluid Temp. Sensor
O/D Main Switch
Cruise Control ECU
Kick±Down Switch
Stop Light Switch
Pattern Select Switch
SENSORSECMACTUATORS
No.1 Solenoid Valve
No.2 Solenoid Valve
No.3 Solenoid Valve
No.4 Solenoid Valve
No.5 Solenoid Valve
Engine Torque Control (ESA)
Igniters
Ignition Coils
Distributors
Spark Plugs
O/D OFF Indicator Light
(Diagnostic Trouble Code
Display)
TRAC ECU
O/D Direct Clutch Speed Sensor
± A340E (2JZÐGTE) AUTOMATIC TRANSMISSIONOPERATIONAT2±7
Page 492 of 2543

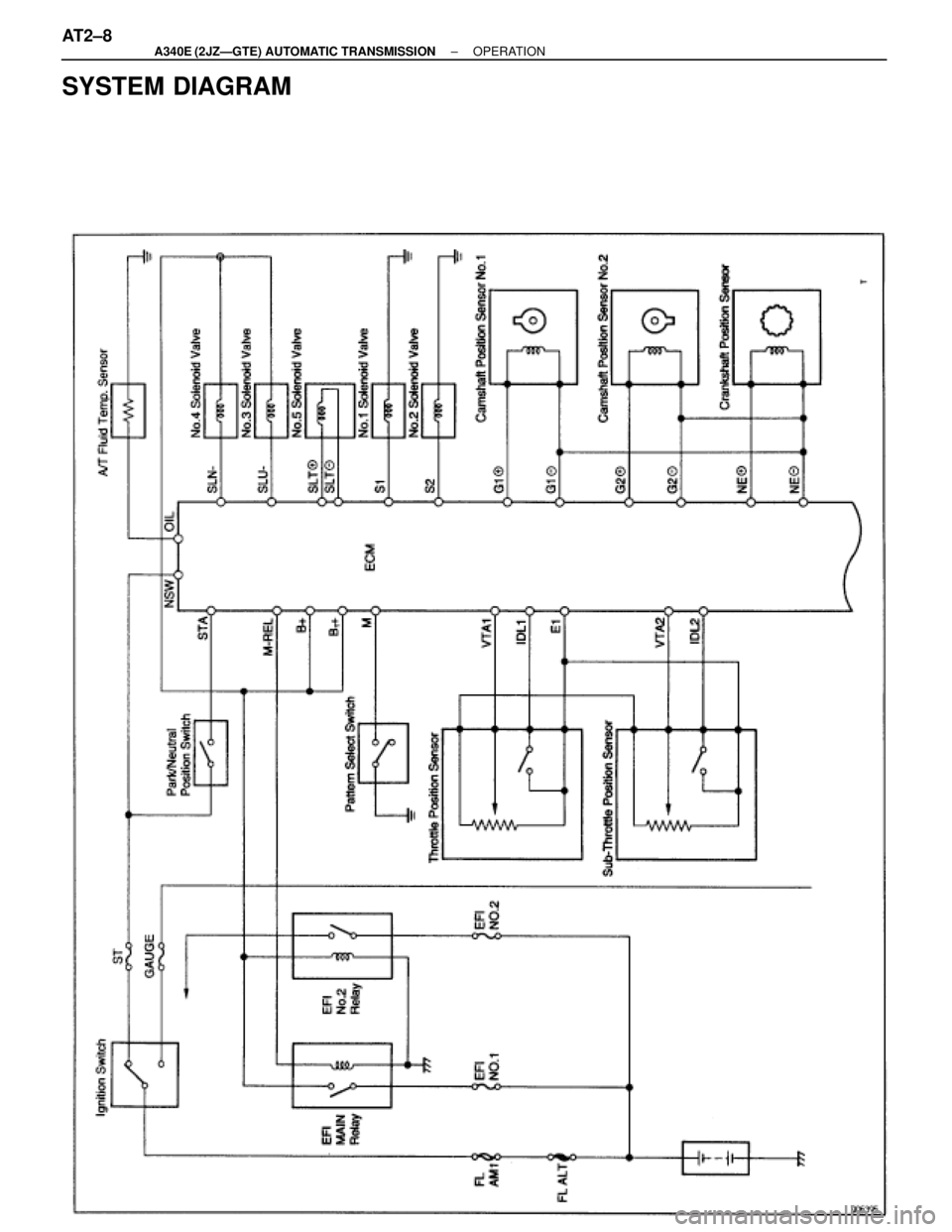

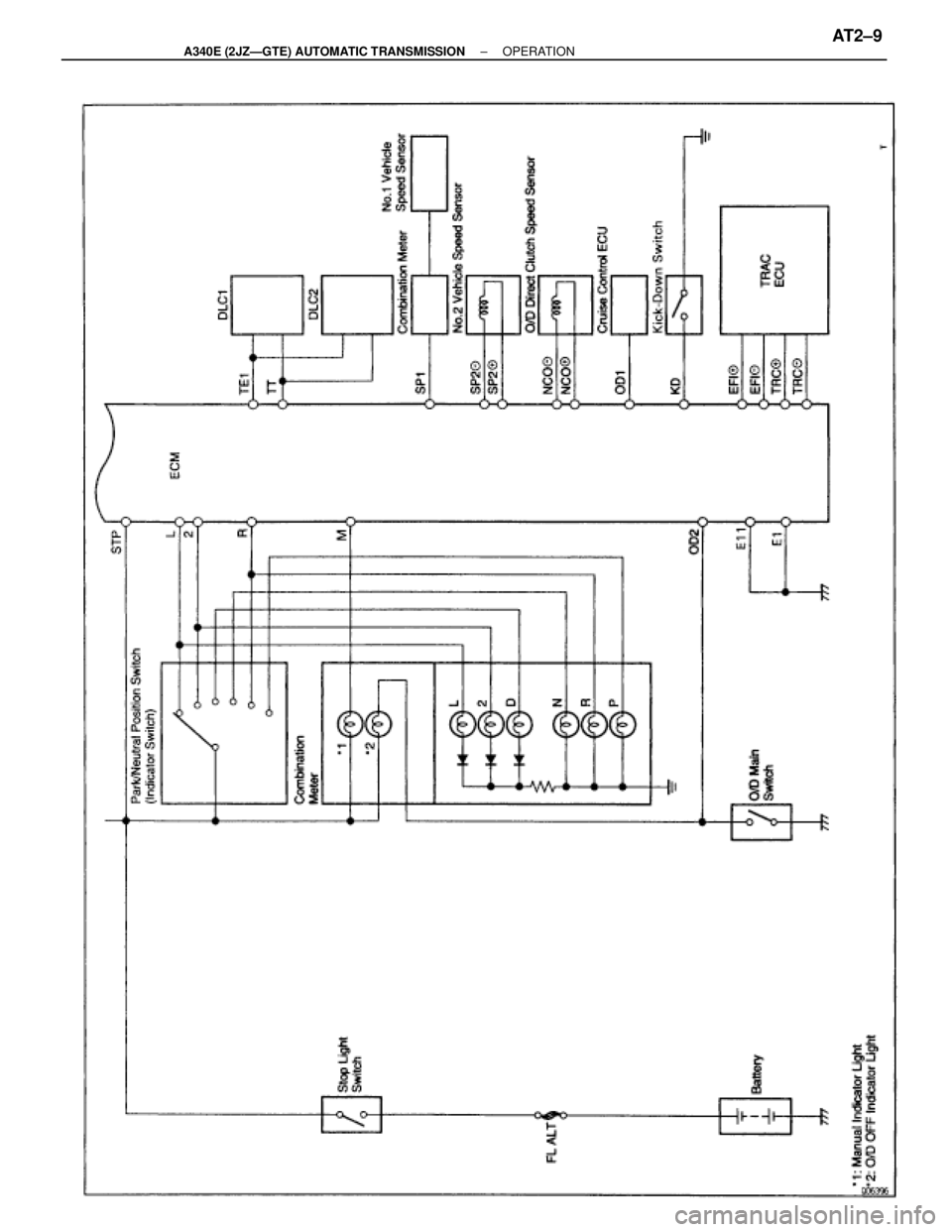

SYSTEM DIAGRAM
AT2±8± A340E (2JZÐGTE) AUTOMATIC TRANSMISSIONOPERATION
Page 493 of 2543
± A340E (2JZÐGTE) AUTOMATIC TRANSMISSIONOPERATIONAT2±9
Page 494 of 2543

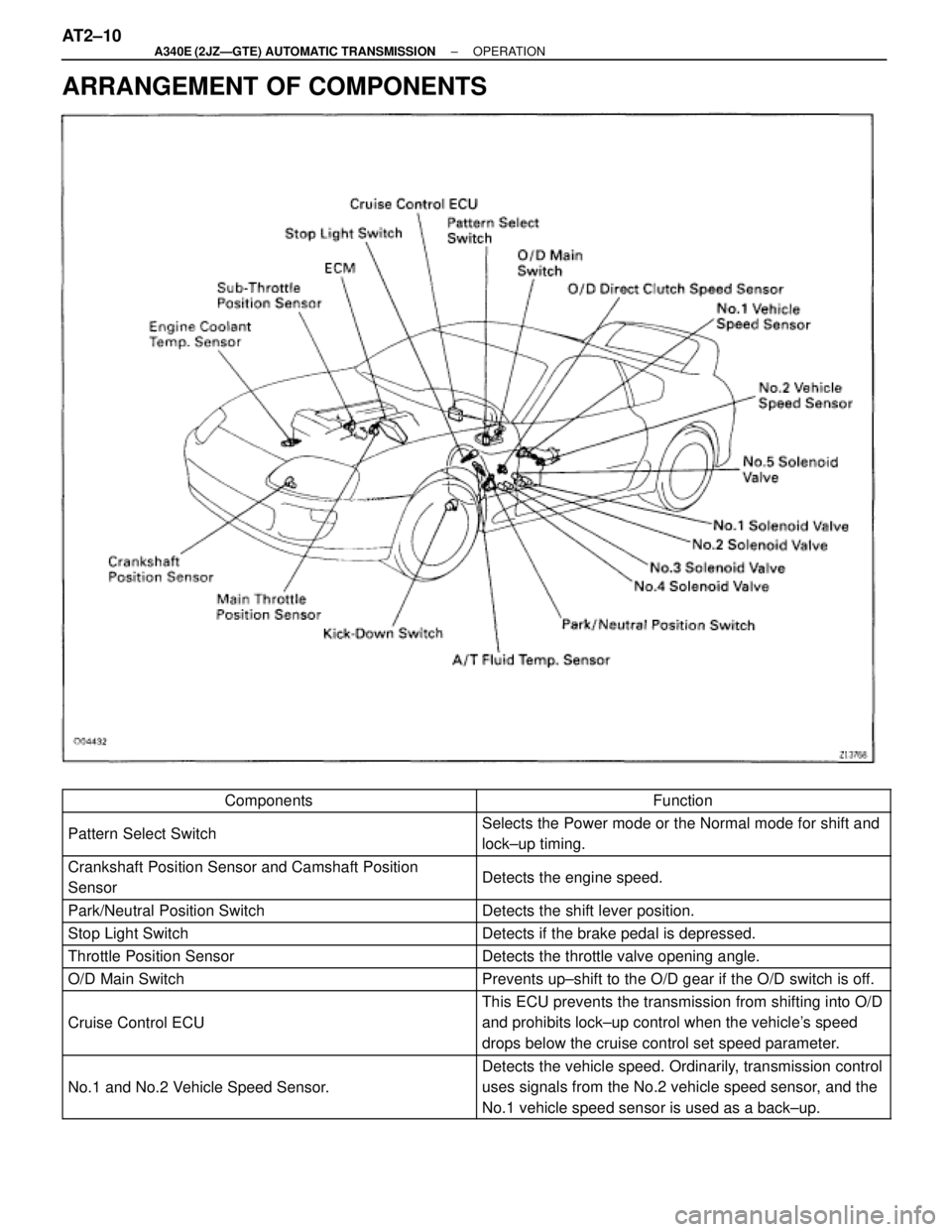

ARRANGEMENT OF COMPONENTS
ComponentsFunction
Pattern Select Switch
Selects the Power mode or the Normal mode for shift and
lock±up timing.
Crankshaft Position Sensor and Camshaft Position
Sensor
Detects the engine speed.
Park/Neutral Position Switch Detects the shift lever position.
Stop Light Switch Detects if the brake pedal is depressed.
Throttle Position Sensor Detects the throttle valve opening angle.
O/D Main Switch Prevents up±shift to the O/D gear if the O/D switch is off.
Cruise Control ECU
This ECU prevents the transmission from shifting into O/D
and prohibits lock±up control when the vehicle's speed
drops below the cruise control set speed parameter.
No.1 and No.2 Vehicle Speed Sensor.
Detects the vehicle speed. Ordinarily, transmission control
uses signals from the No.2 vehicle speed sensor, and the
No.1 vehicle speed sensor is used as a back±up.
AT2±10± A340E (2JZÐGTE) AUTOMATIC TRANSMISSIONOPERATION
Page 495 of 2543

O/D Direct Clutch Speed Sensor Detects the input shaft speed from 1st gear to 3rd gear
Engine Coolant Temp. Sensor Detects the engine coolant temp.
ECM
Controls the engine and transmission actuators based on signals from
each sensor.
No.1 and No.2 Solenoid Valves
Control the hydraulic pressure applied to each shift valve, and control the
gear position and timing.
No.4 Solenoid Valve
(For accumulator back pressure modulation)
Controls the hydraulic pressure applied to the back chamber of the accu-
mulator and smoothes the engagement of clutches and brakes during
shifting.
No.3 Solenoid Valve
(For lock±up control pressure modulation)
Controls the hydraulic pressure applied to the lock±up clutch and controls
lock±up timing.
No.5 Solenoid Valve
(For line pressure modulation)
Controls the line pressure.
O/D OFF Indicator Light
Blinks and warns the driver, while the O/D main switch is pushed in,
when the electronic control circuit is malfunctioning.
A/T Fluid Temp. Sensor Detects A/T fluid temp.
± A340E (2JZÐGTE) AUTOMATIC TRANSMISSIONOPERATIONAT2±11
Page 496 of 2543

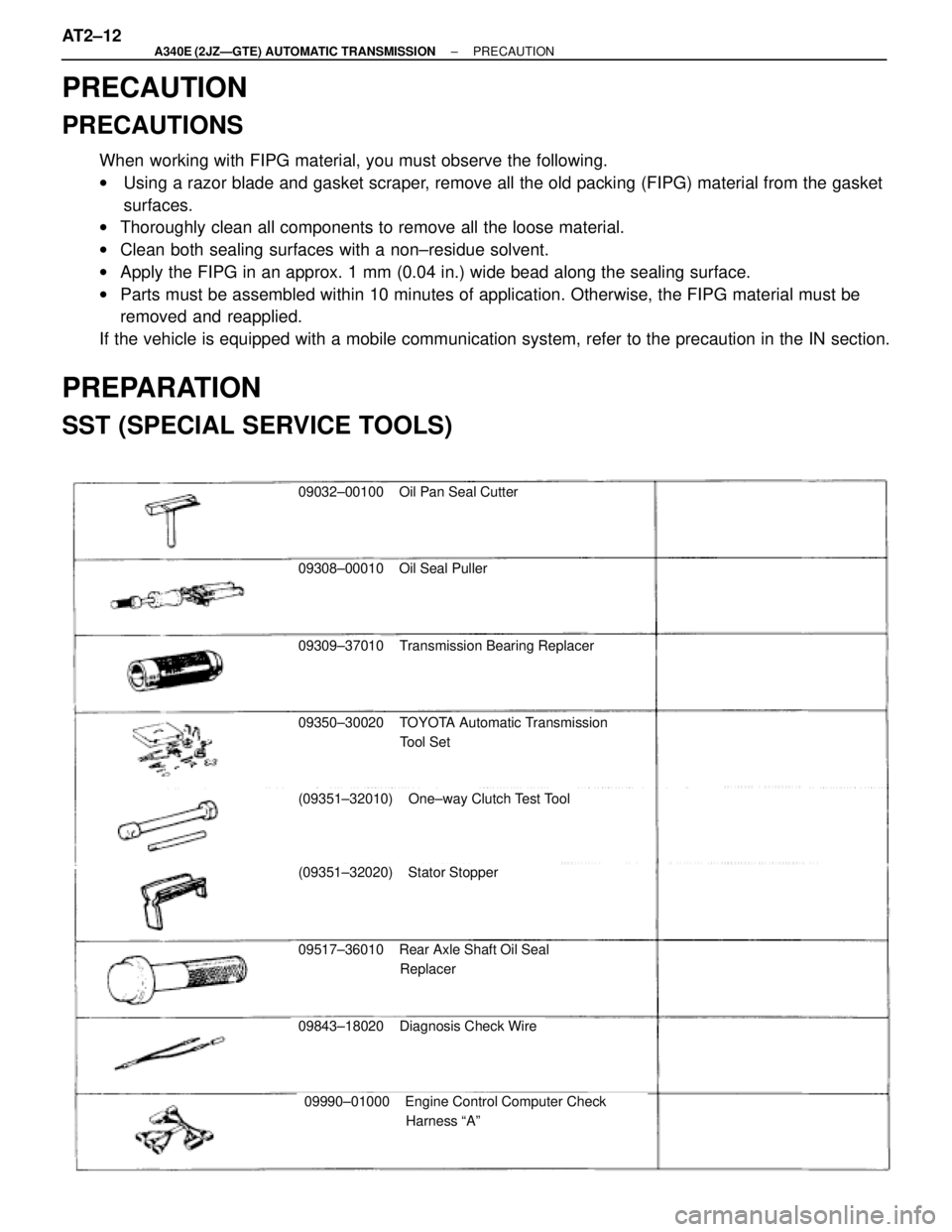

09032±00100 Oil Pan Seal Cutter
09308±00010 Oil Seal Puller
09309±37010 Transmission Bearing Replacer
09350±30020 TOYOTA Automatic Transmission
Tool Set
(09351±32010) One±way Clutch Test Tool
(09351±32020) Stator Stopper
09517±36010 Rear Axle Shaft Oil Seal
Replacer
09990±01000 Engine Control Computer Check
Harness ªAº
09843±18020 Diagnosis Check Wire
PRECAUTION
PRECAUTIONS
When working with FIPG material, you must observe the following.
wUsing a razor blade and gasket scraper, remove all the old packing (FIPG) material from the gasket
surfaces.
wThoroughly clean all components to remove all the loose material.
wClean both sealing surfaces with a non±residue solvent.
wApply the FIPG in an approx. 1 mm (0.04 in.) wide bead along the sealing surface.
wParts must be assembled within 10 minutes of application. Otherwise, the FIPG material must be
removed and reapplied.
If the vehicle is equipped with a mobile communication system, refer to the precaution in the IN section.
PREPARATION
SST (SPECIAL SERVICE TOOLS)
AT2±12± A340E (2JZÐGTE) AUTOMATIC TRANSMISSIONPRECAUTION
