Page 1857 of 2543

(a) Using SST and a press, install the front bearing outer race.
2JZ±GTE M/T:
SST 09502±24010, 09608±35014 (09608±06020)
Except 2JZ±GTE M/T:
SST 09608±35014 (09608±06020, 09608±06110)
(b) Using SST and a press, install a new adjusting plate washer
and the rear bearing outer race.
2JZ±GTE M/T:
SST 09608±35014 (09608±06020, 09608±06160)
Except 2JZ±GTE M/T:
SST 09250±10011 (09252±10010, 09255±10011)
7. INSTALL REAR BEARING TO DRIVE PINION
Using SST and a press, install the rear bearing.
2JZ±GTE M/T:
SST 09316±20011
Except 2JZ±GTE M/T:
SST 09502±24010
8. TEMPORARILY INSTALL DRIVE PINION, FRONT
BEARING, (OIL SLINGER) AND COMPANION FLANGE
(a) Position the drive pinion in the differential carrier.
(b) Using SST and a press, install the front bearing, oil slinger
(Except 2 JZ±GTE M / T) and companion flange.
SST 09608±30012 (09608±04030),
09608±35014 (09608±06040)
HINT: Assemble the spacer, oil slinger (2JZ±GTE M/ T) and
oil seal after adjusting the tooth contact pattern.
NOTICE: Be careful not to press the bearing too far onto
the drive pinion's bearing surface. SA±72
± SUSPENSION AND AXLEREAR DIFFERENTIAL
Page 1858 of 2543

9. TEMPORARILY ADJUST DRIVE PINION PRELOAD
(a) Adjust the drive pinion preload by tightening the nut.
HINT: Using SST (and a 36 mm deep socket wrench) to hold
the companion flange, tighten the nut.
SST 09229±55010 (Except 2JZ±GTE M/T),
09330±00021
NOTICE: As there is no spacer, tighten the nut a little at
a time, being careful not to overtighten it.
(b) Using SST (or a 36 mm deep socket) and a torque wrench,
measure the drive pinion preload.
SST 09229±55010
Preload (at start):
New bearing
2JZ±GTE M/T
2.0±2.5 NVm (20±25 kgfVcm, 17.3±21.7 in.Vlbf)
Except 2JZ±GTE M/T
1.2±1.8 NVm (12±18 kgfVcm, 10.8±16.0 in.Vlbf)
Reused bearing
2JZ±GTE M/T
1.0±1.2 NVm (10±12 kgfVcm, 8.9±10.6 in.Vlbf)
Except 2JZ±GTE M/T
0.5±0.8 NVm (5±8 kgfVcm, 4.3±6.9 in.Vlbf)
10. INSTALL SIDE BEARING OUTER RACE (AND ADJUST
PLATE WASHER)
2JZ±GTE M/T:
Using SST and a press, press the outer race.
SST 09608±35014 (09608±06020, 09608±06150)
Except 2JZ±GTE M/T:
Using SST and a press, press the outer race and adjusting
plate washer.
SST 09608±35014 (09608±06020, 09608±06210)
11. INSTALL DIFFERENTIAL CASE IN CARRIER
Install the drive side bearing in the differential carrier first, as
shown in the illustration, then install the differential case.
± SUSPENSION AND AXLEREAR DIFFERENTIALSA±73
Page 1859 of 2543

12. INSTALL (ADJUSTING PLATE WASHER AND)
DIFFERENTIAL CARRIER RETAINERS
2JZ±GTE M/T:
(a) Place the adjusting washer to the carrier retainer.
(b) Using SST and hammer, install the carrier retainer with
adjusting washer.
SST 09608±35014 (09608±06020, 09608±06150)
HINT: Do not install a new O±ring and a new oil seal. Install
it after inspect tooth contact pattern.
(c) Tighten the 8 bolts.
Torque: 47 NVm (480 kgfVcm, 35 ftVlbf)
Except 2JZ±GTE M/T:
(a) Using SST and hammer, install the carrier retainer.
SST 09608±35014 (09608±06020, 09608±06180)
(b) Tighten the 8 bolts.
Torque: 22 NVm (225 kgfVcm, 16 ftVlbf)
13. CHECK RING GEAR BACKLASH
Using dial gauge, measure the backlash of the ring gear and
drive pinion at 3 positions at least.
Backlash (average value):
0.08±0.13 mm (0.0031±0.0051 in.)
NOTICE: The difference between the maximum and mini-
mum measured values must be less than 0.05 mm
(0.0020 in.).
HINT: The measured values should be used for reference
when selecting washers, so make a memo of the values.
If the backlash is not within the specification replace the
washer on the ring gear side with one of a different thickness
using the following procedure.
Adjusting washer thickness
2JZ±GTE M/T: mm (in.)
Thickness Thickness Thickness
1.18 (0.0465) 1.48 (0.0583) 1.78 (0.0701)
1.20 (0.0472) 1.50 (0.0591) 1.80 (0.0709)
1.22 (0.0480)1.52 (0.0598)1.82 (0.0717) 1.24 (0.0488) 1.54 (0.0606) 1.84 (0.0724) 1.26 (0.0496) 1.56 (0.0614) 1.86 (0.0732) 1.28 (0.0504) 1.58 (0.0622) 1.88 (0.0740)
1.30 (0.0512) 1.60 (0.0630) 1.90 (0.0748)
1.32 (0.0520) 1.62 (0.0638) 1.92 (0.0756)
1.34 (0.0528) 1.64 (0.0646) 1.08 (0.0425)
1.36 (0.0535)1.66 (0.0654)1.10 (0.0433) 1.38 (0.0543) 1.68 (0.0661) 1.12 (0.0441) 1.40 (0.0551) 1.70 (0.0669) 1.14 (0.0449) 1.42 (0.0559) 1.72 (0.0677) 1.16 (0.0457)
1.44 (0.0567) 1.74 (0.0685)
1.46 (0.0575) 1.76 (0.0693)
SA±74± SUSPENSION AND AXLEREAR DIFFERENTIAL
Page 1860 of 2543

Except 2JZ±GTE M/T: mm (in.)
No. Thickness No. Thickness No. Thickness
02 2.02 (0.0795) 32 2.32 (0.0913) 62 2.62 (0.1031) 04 2.04 (0.0803) 34 2.34 (0.0921) 64 2.64 (0.1039) 06 2.06 (0.0811) 36 2.36 (0.0929) 66 2.66 (0.1047) 08 2.08 (0.0819) 38 2.38 (0.0937) 68 2.68 (0.1055) 10 2.10 (0.0827) 40 2.40 (0.0945) 70 2.70 (0.1063) 12 2.12 (0.0835) 42 2.42 (0.0953) 72 2.72 (0.1071) 14 2.14 (0.0843) 44 2.44 (0.0961) 74 2.74 (0.1079) 16 2.16 (0.0850) 46 2.46 (0.0969) 76 2.76 (0.1087) 18 2.18 (0.0858) 48 2.48 (0.0976) 78 2.78 (0.1094) 20 2.20 (0.0866) 50 2.50 (0.0984) 80 2.80 (0.1102) 22 2.22 (0.0874) 52 2.52 (0.0992) 82 2.82 (0.1110) 24 2.24 (0.0882) 54 2.54 (0.1000) 84 2.84 (0.1118)
26
2.26 (0.0890)
56
2.56 (0.1008)
86
2.86 (0.1126)
28
2.28 (0.0898)
58
2.58 (0.1016)
30
2.30 (0.0906)
60
2.60 (0.1024)
14. MEASURE TOTAL PRELOAD
Using SST (or a 36 mm deep socket) and a torque wrench,
measure the total preload.
SST 09229±55010
Total preload (In addition to drive pinion preload):
New and Reused bearing
2JZ±GTE M/T
0.4±0.6 NVm (4±6 kgfVcm, 3.5±5.2 in.Vlbf)
Except 2JZ±GTE M/T
0.5±0.8 NVm (5±8 kgfVcm, 4.3±6.9 in.Vlbf)
If the measured preload is less than specification, replace the
washer of the ring gear's tooth surface side with a thicker
one.
If the preload is greater than the specification, replace the
washer of the ring gear's tooth surface side with thinner one.
HINT: Changing the washer thickness by 0.02 mm (0.0008
in.) will change the total preload by approx. 0.1 NVm (1 kgfVcm,
0.9 in.Vlbf).
15. INSPECT TOOTH CONTACT PATTERN
(a) Coat 3 or 4 teeth at 3 different positions on the ring gear with
red lead.
(b) Hold the companion flange firmly and rotate the ring gear in
both directions.
(c) Inspect the tooth contact pattern.
± SUSPENSION AND AXLEREAR DIFFERENTIALSA±75
Page 1861 of 2543
Tooth contact patternAdjusting washer selection
Replacing the washer with
one 0.14 mm (0.0055 in.) thick-
er will give proper contact pat-
tern.
Replacing the washer with
one 0.08 mm (0.0031 in.) thick-
er will give proper contact pat-
tern.
Replacing the washer with
one 0.14 mm (0.0055 in.) thick-
er will give proper contact pat-
tern.
Replacing the washer with
one 0.08 mm (0.0031 in.) thick-
er will give proper contact pat-
tern.
+ 0.08 mm
(+ 0.0031 in.)
+ 0.08 mm
(+ 0.0031 in.)
+ 0.14 mm
(+ 0.0055 in.)
+ 0.14 mm
(+ 0.0055 in.)
If tooth contact pattern is not correct, replace the adjusting
washer installed on the front of the drive pinion rear bearing
to adjust it.
NOTICE: Be sure to always use a new part when replac-
ing adjusting washer.
HINT: Refer to the table below for selection of the adjusting
washer. SA±76
± SUSPENSION AND AXLEREAR DIFFERENTIAL
Page 1862 of 2543

HINT: Adjust washer are available in 42 different thicknesses,
in increments of 0.01 mm (0.004 in.).
Adjusting washer thickness
2JZ±GTE M/T: mm (in.)
No.
Thickness
No.
Thickness
No.
Thickness
No.
Thickness
80
1.80 (0.0709)
91
1.91 (0.0752)
02
2.02 (0.0795)
13
2.13 (0.0839)
81
1.81 (0.0713)
92
1.92 (0.0756)
03
2.03 (0.0799)
14
2.14 (0.0843)
82
1.82 (0.0717)
93
1.93 (0.0760)
04
2.04 (0.0803)
15
2.15 (0.0846)
83
1.83 (0.0720)
94
1.94 (0.0764)
05
2.05 (0.0807)
16
2.16 (0.0850)
84
1.84 (0.0724)
95
1.95 (0.0768)
06
2.06 (0.0811)
17
2.17 (0.0854)
85
1.85 (0.0728)
96
1.96 (0.0772)
07
2.07 (0.0815)
18
2.18 (0.0858)
86
1.86 (0.0732)
97
1.97 (0.0776)
08
2.08 (0.0819)
77
1.77 (0.0697)
87
1.87 (0.0736)
98
1.98 (0.0780)
09
2.09 (0.0823)
78
1.78 (0.0701)
88
1.88 (0.0740)
99
1.99 (0.0783)
10
2.10 (0.0827)
79
1.79 (0.0705)
89
1.89 (0.0744)
00
2.00 (0.0787)
11
2.11 (0.0831)
90
1.90 (0.0748)
01
2.01 (0.0791)
12
2.12 (0.0835)
Except 2JZ±GTE M/T: mm (in.)
No. Thickness No. Thickness No. Thickness No. Thickness 87 1.87 (0.0736) 98 1.98 (0.0780) 09 2.09 (0.0823) 20 2.20 (0.0866) 88 1.88 (0.0740) 99 1.99 (0.0783) 10 2.10 (0.0827) 21 2.21 (0.0870) 89 1.89 (0.0744) 00 2.00 (0.0787) 11 2.11 (0.0831) 22 2.22 (0.0874) 90 1.90 (0.0748) 01 2.01 (0.0791) 12 2.12 (0.0835) 23 2.23 (0.0878) 91 1.91 (0.0752) 02 2.02 (0.0795) 13 2.13 (0.0839) 24 2.24 (0.0882) 92 1.92 (0.0756) 03 2.03 (0.0799) 14 2.14 (0.0843) 25 2.25 (0.0886) 93 1.93 (0.0760) 04 2.04 (0.0803) 15 2.15 (0.0846) 26 2.26 (0.0890) 94 1.94 (0.0764) 05 2.05 (0.0807) 16 2.16 (0.0850) 27 2.27 (0.0894) 95 1.95 (0.0768) 06 2.06 (0.0811) 17 2.17 (0.0854) 28 2.28 (0.0898) 96 1.96 (0.0772) 07 2.07 (0.0815) 18 2.18 (0.0858)
97 1.97 (0.0776) 08 2.08 (0.0819) 19 2.19 (0.0862)
16. REMOVE DIFFERENTIAL RETAINER, DIFFERENTIAL
CASE AND DRIVE PINION
(See page SA±66, 67)
17. INSTALL SPACER (AND OIL SLINGER) ON DRIVE PINION
Install a new spacer and the oil slinger (2JZ±GTE M/ T only)
on the drive pinion.
18. POSITION DRIVE PINION IN DIFFERENTIAL CARRIER
(See page SA±72)
19. INSTALL FRONT BEARING (AND OIL SLINGER)
(See page SA±72)
± SUSPENSION AND AXLEREAR DIFFERENTIALSA±77
Page 1863 of 2543

20. INSTALL OIL SEAL
(a) Using SST, install a new oil seal to the differential carrier.
2JZ±GTE M/T:
SST 09316±60010 (09316±00010,
09316±00070), 09502±24010
Except 2JZ±GTE M/T:
SST 09316±60010 (09316±00010,
09316±00040), 09502±12010
(b) Apply the MP grease to a new oil seal lip.
21. INSTALL COMPANION FLANGE
Using SST and a press, install the companion flange.
SST 09608±30012 (09608±04030), 09608±35014
(09608±06040)
NOTICE:
wBe careful not to damage the oil seal.
wBe careful not to press the bearing too far onto the drive
pinion's bearing surface.
22. ADJUST DRIVE PINION PRELOAD
(a) Coat the drive pinion's threads and a new nut's flange with
hypoid gear oil for LSD.
(b) Using SST (and a 36 mm deep socket wrench), tighten the
nut.
SST 09229±55010 (Except 2JZ±GTE M/T only),
09330±00021
(c) Using SST (or a 36 mm deep socket) and a torque wrench,
measure the drive pinion preload.
SST 09229±55010
Preload (at starting):
New bearing
2JZ±GTE M/T
2.0±2.5 NVm (20±25 kgfVcm, 17.3±21.7 in.Vlbf)
Except 2JZ±GTE M/T
1.2±1.8 NVm (12±18 kgfVcm, 10.8±16.0 in.Vlbf)
SA±78± SUSPENSION AND AXLEREAR DIFFERENTIAL
Page 1864 of 2543

Reused bearing
2JZ±GTE M/T
1.0±1.2 NVm (10±12 kgfVcm, 8.9±10.6 in.Vlbf)
Except 2JZ±GTE M/T
0.5±0.8 NVm (5±8 kgfVcm, 4.3±6.9 in.Vlbf)
wIf the preload is greater than the specification, replace
the spacer and repeat the preload procedure.
wIf the preload is less than the specification, retighten the
nut 13 NVm (130 kgfVcm, 9 ftVlbf) at a time until the
specified preload is reached.
Maximum torque:
2JZ±GTE M/T
510 NVm (5,200 kgfVcm, 376 ftVlbf)
Except 2JZ±GTE M/T
490 NVm (5,000 kgfVcm, 362 ftVlbf)
If the maximum torque is exceeded while retightening the
nut, replace the spacer and repeat the preload procedure.
Do not back off the nut to reduce the preload.
23. CHECK DRIVE PINION SHAFT RUNOUT
Measure the drive pinion shaft runout at a point 10 mm (0.39
in.) from the end of the shaft.
Maximum runout:
0.08 mm (0.0031 in.)
24. INSTALL DIFFERENTIAL CASE IN CARRIER
(See page SA±73)
25. INSTALL O±RING
(a) Coat a new O±ring with hypoid gear oil.
(b) Install the O±ring to the carrier retainer.
26. INSTALL OIL SEAL

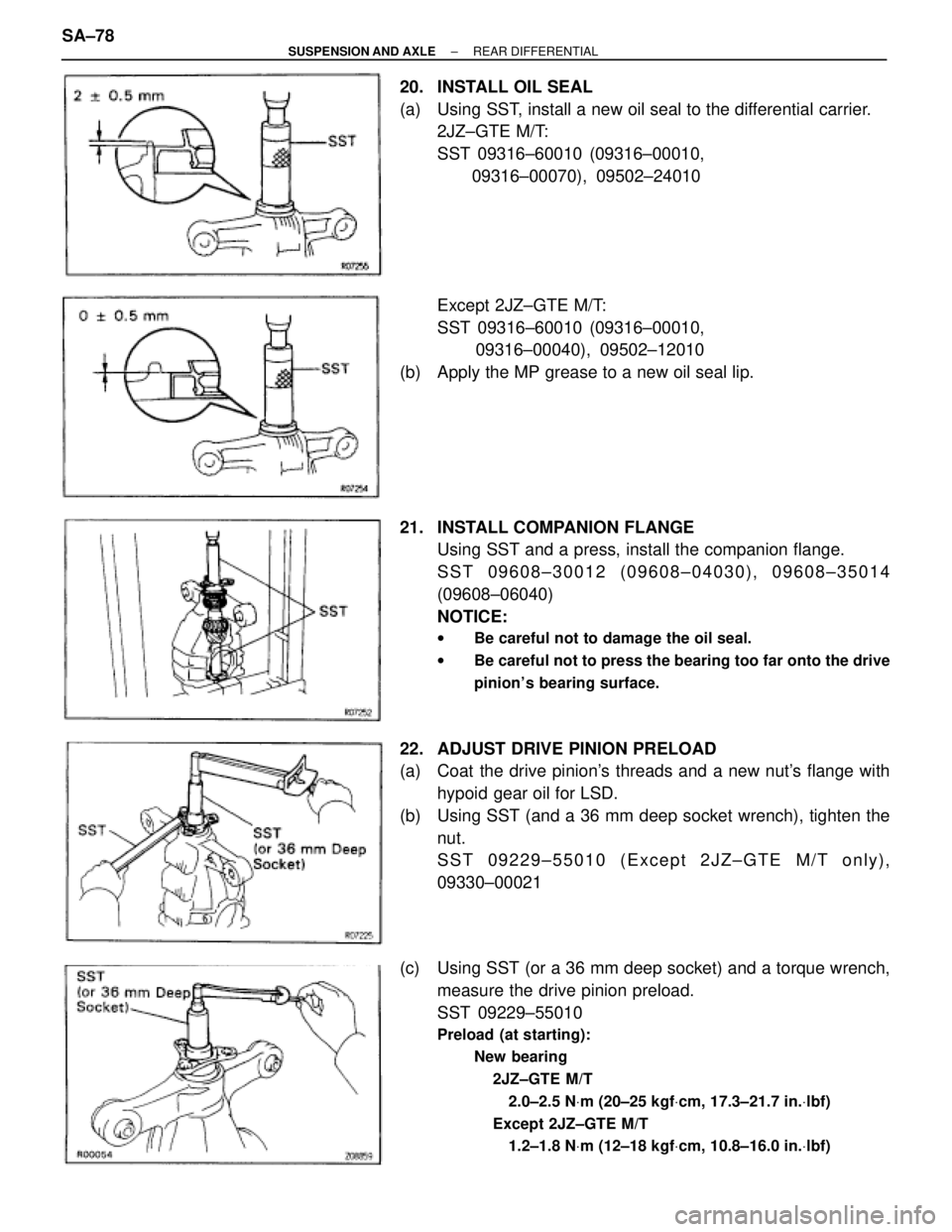

(a) Using SST and a press, install a new oil seal to the carrier
retainer.
2JZ±GTE M/T:
SST 09223±15030, 09608±35014 (09608±06020)
± SUSPENSION AND AXLEREAR DIFFERENTIALSA±79
