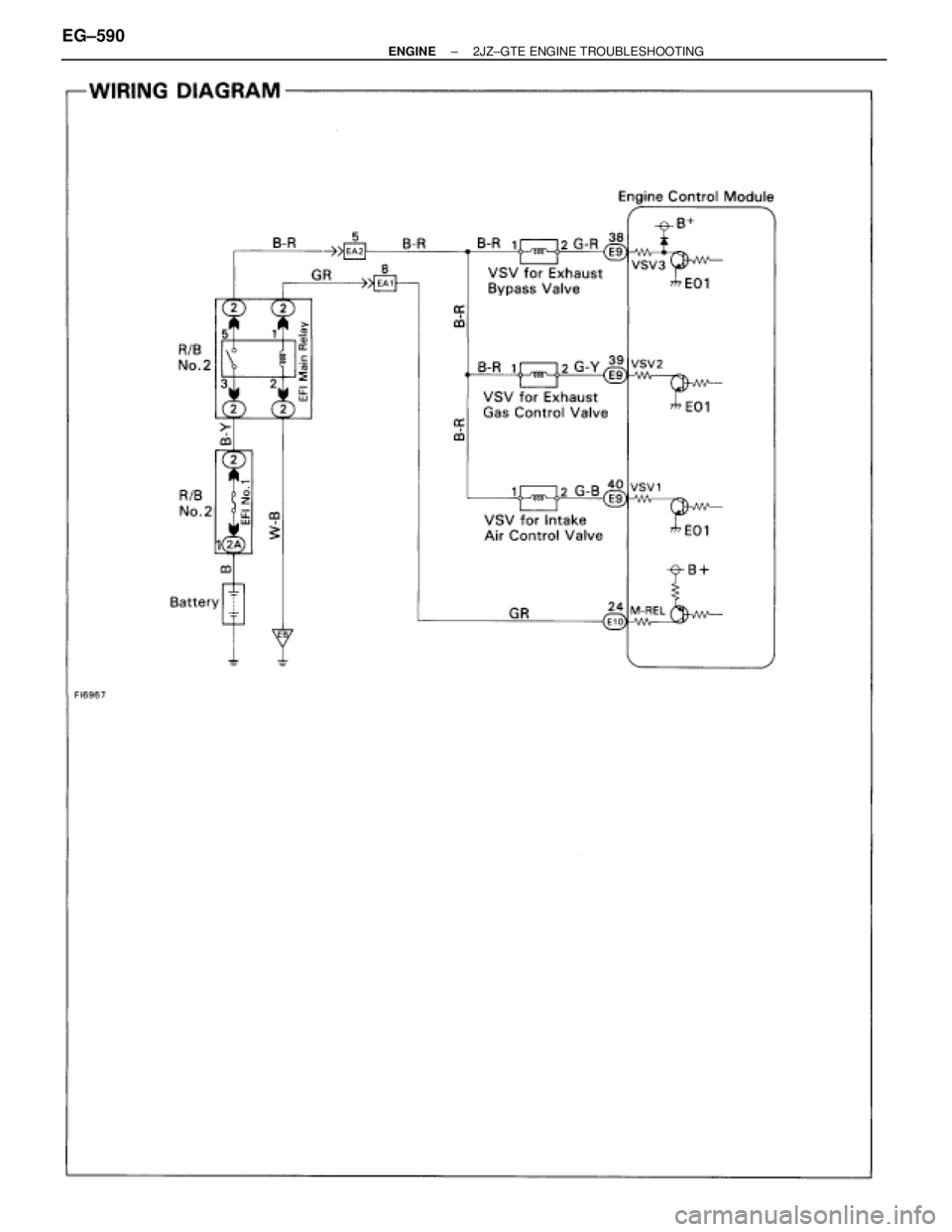

EG±590± ENGINE2JZ±GTE ENGINE TROUBLESHOOTING
Page 2098 of 2543
INSPECTION PROCEDURE
(1) Remove VSV.
(2) Disconnect VSV connector.
(1) Measure resistance between terminals.
(2) Measure resistance between each terminal
and the body.
(1) Resistance: 22 Ð26 at 20°C (68°F)
(2) Resistance: 1 M or higher
Check operation of VSV when battery positive volt-
age is applied and released to the VSV terminals.
Battery positive voltage is applied:
Air from port E is flowing out through port F.
Battery positive voltage is not applied:
Closed air passage from port E to F.

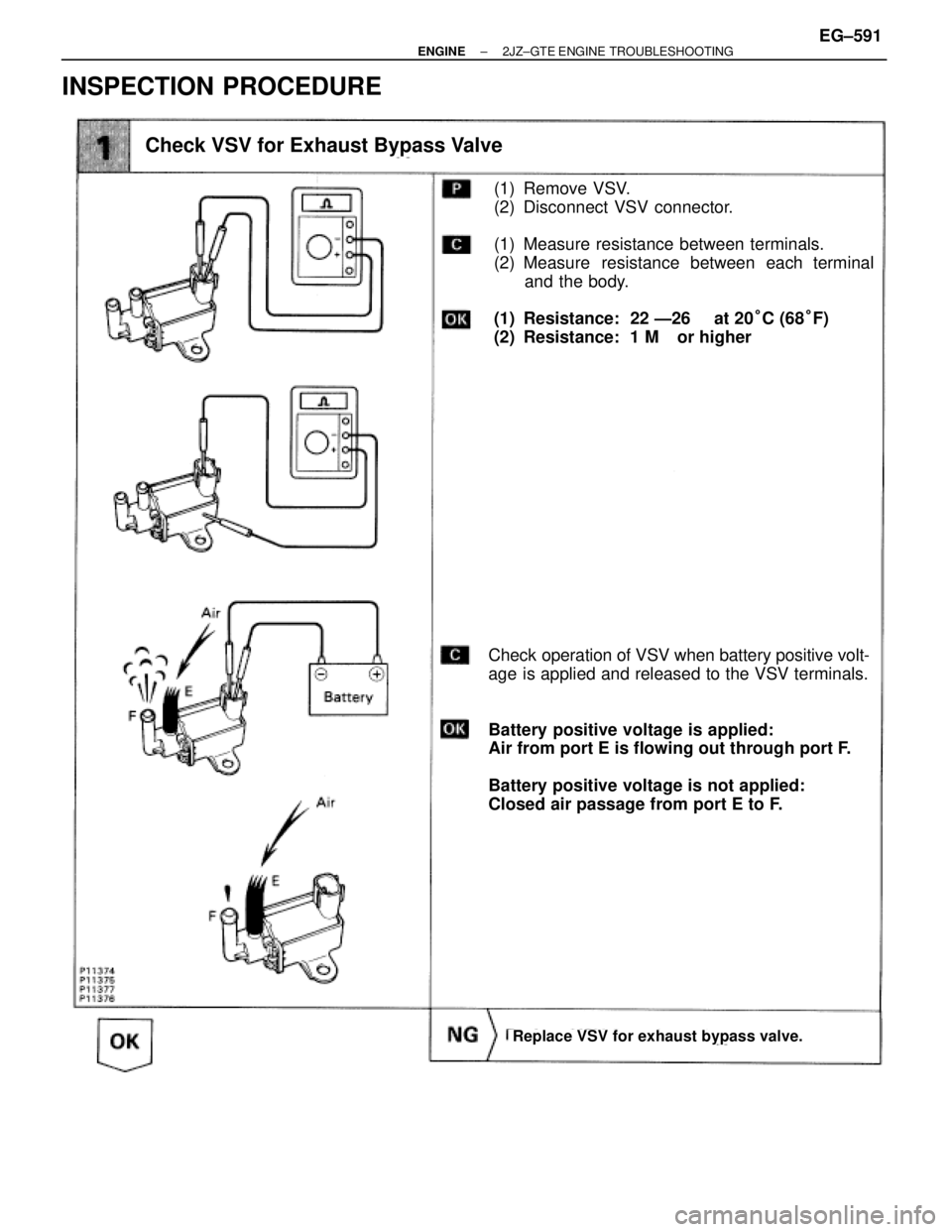

Check VSV for Exhaust Bypass Valve
Replace VSV for exhaust bypass valve.
± ENGINE2JZ±GTE ENGINE TROUBLESHOOTINGEG±591
Page 2099 of 2543
(1) Remove VSV.
(2) Disconnect VSV connector.
(1) Measure resistance between terminals.
(2) Measure resistance between each terminal
and the body.
(1) Resistance: 38 Ð 44 at 20°C (68°F)
(2) Resistance: 1 M or higher
Check operation of VSV when battery positive volt-
age is applied and released to the VSV terminals.
Battery positive voltage is applied:
Air from port E is flowing out through port F.
Battery positive voltage is not applied:
Air from port E is flowing out through the air fil-
ter.

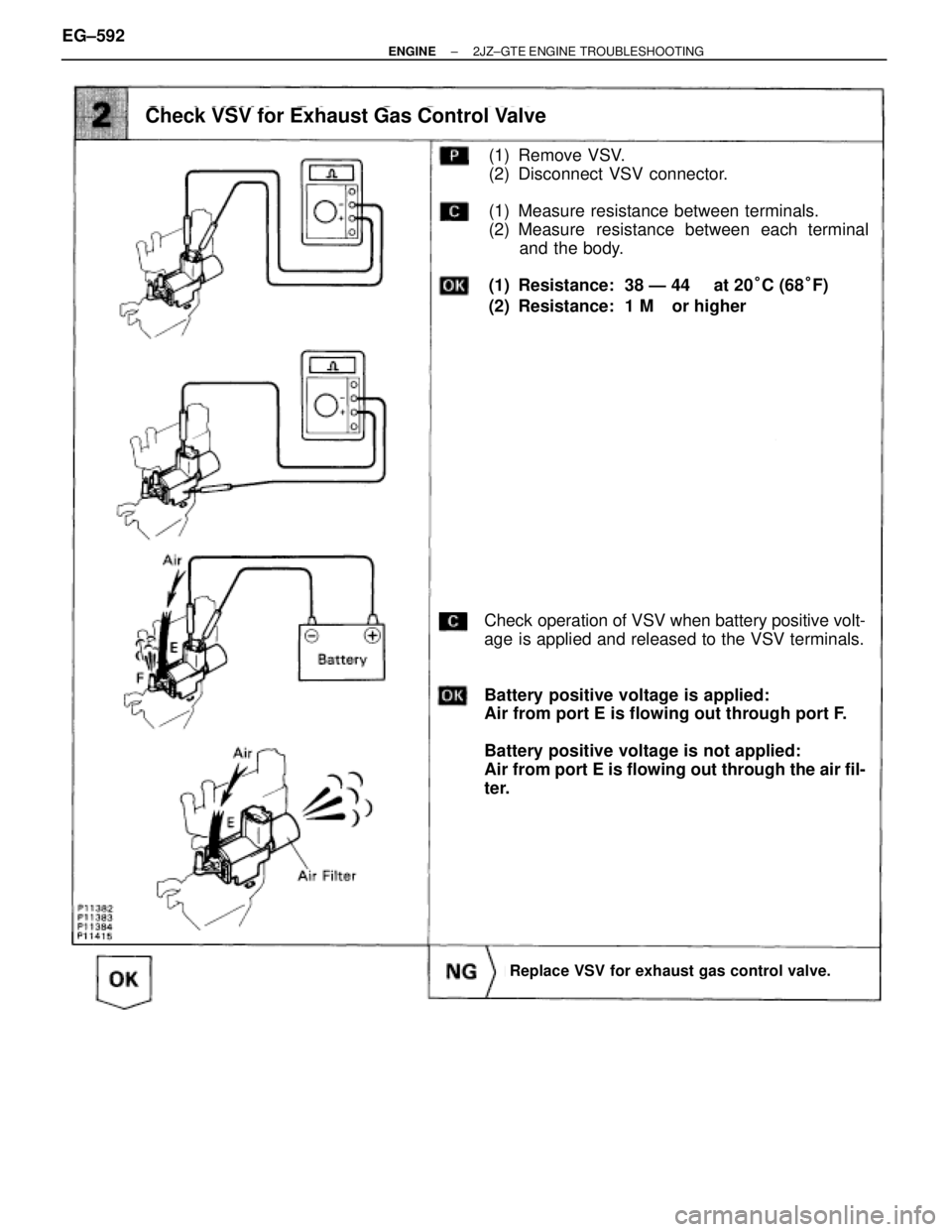

Check VSV for Exhaust Gas Control Valve
Replace VSV for exhaust gas control valve.
EG±592± ENGINE2JZ±GTE ENGINE TROUBLESHOOTING
Page 2100 of 2543
(1) Remove VSV.
(2) Disconnect VSV connector.
(1) Measure resistance between terminals.
(2) Measure resistance between each terminal
and the body.
(1) Resistance: 38.5 Ð 44.5 at 20°C (68°F)
(2) Resistance: 1 M or higher
Check operation of VSV when battery positive volt-
age is applied and released to the VSV terminals.
Battery positive voltage is applied:
Air from port E is flowing out through port F.
Battery positive voltage is not applied:
Air from port E is flowing out through the air
filter.

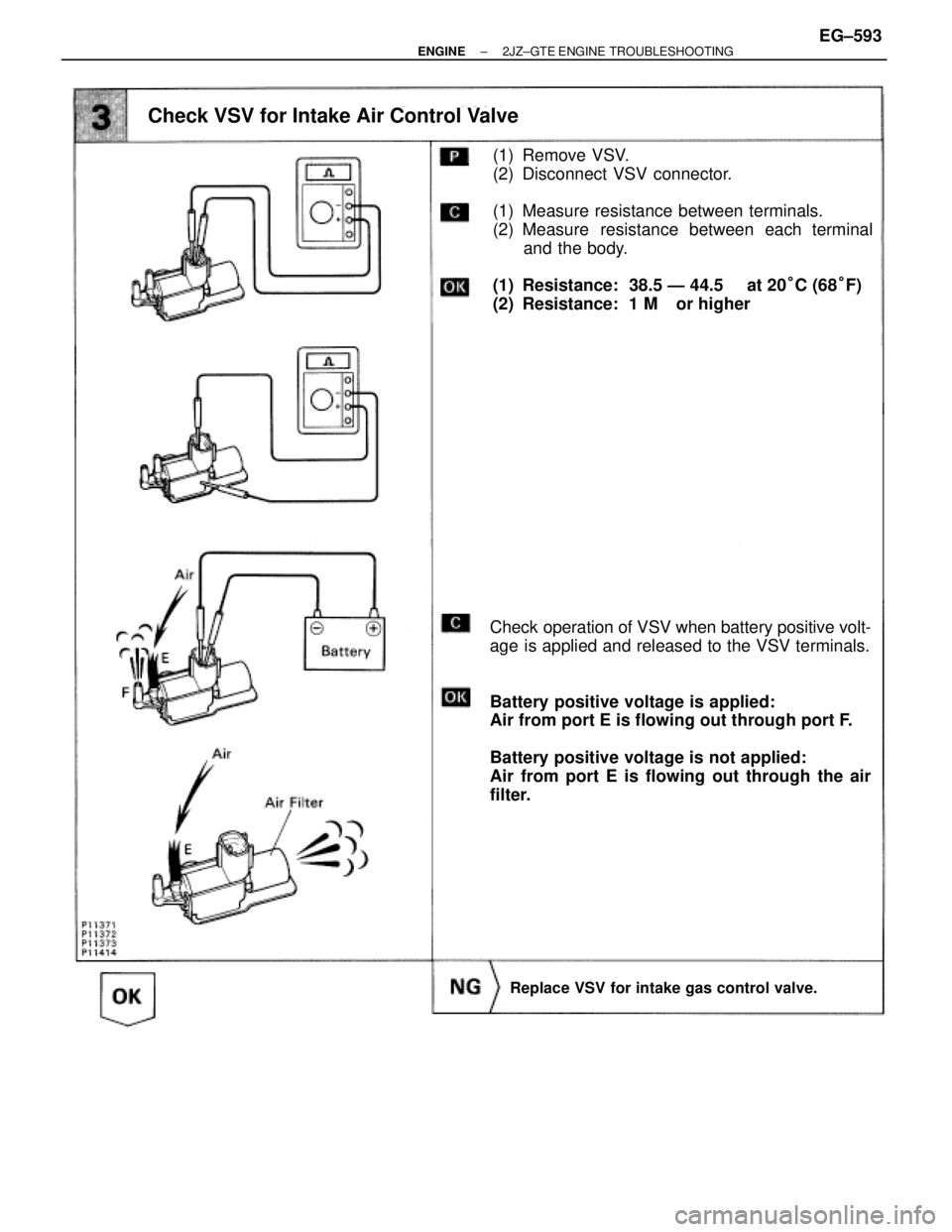

Check VSV for Intake Air Control Valve
Replace VSV for intake gas control valve.
± ENGINE2JZ±GTE ENGINE TROUBLESHOOTINGEG±593
Page 2101 of 2543
(See page EG±510)
(See page IN±30).
(1) Connect SST (check harness ªAº).
(See page EG±510)
(2) Turn ignition switch ON.
Measure voltage between terminal VSV1, VSV2,
VSV3 of engine control module connector and
body ground.
Voltage: 9 Ð 14 V

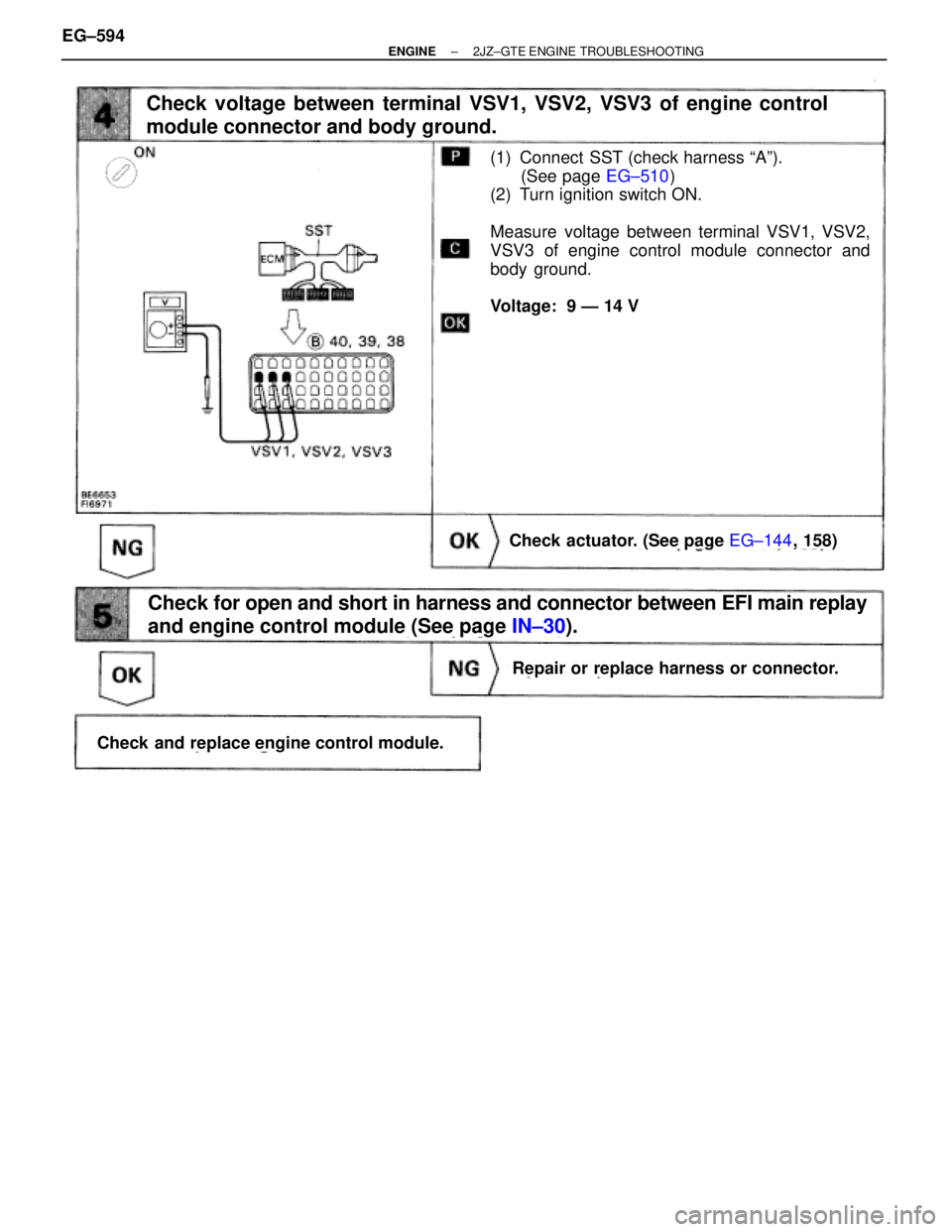

Check voltage between terminal VSV1, VSV2, VSV3 of engine control
module connector and body ground.
Check actuator. (See page EG±144, 158)
Repair or replace harness or connector.
Check for open and short in harness and connector between EFI main replay
and engine control module (See page IN±30).
Check and replace engine control module. EG±594
± ENGINE2JZ±GTE ENGINE TROUBLESHOOTING
Page 2102 of 2543

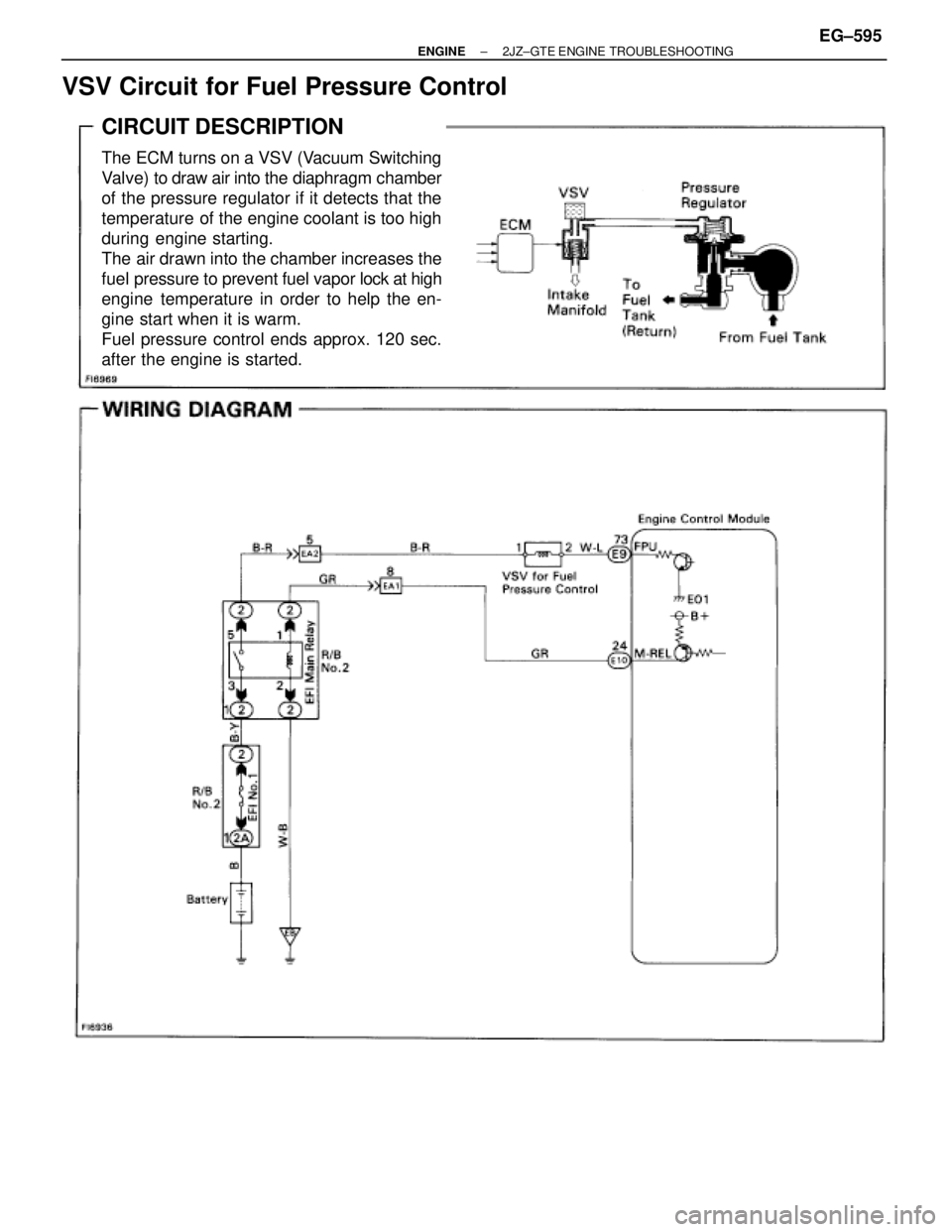

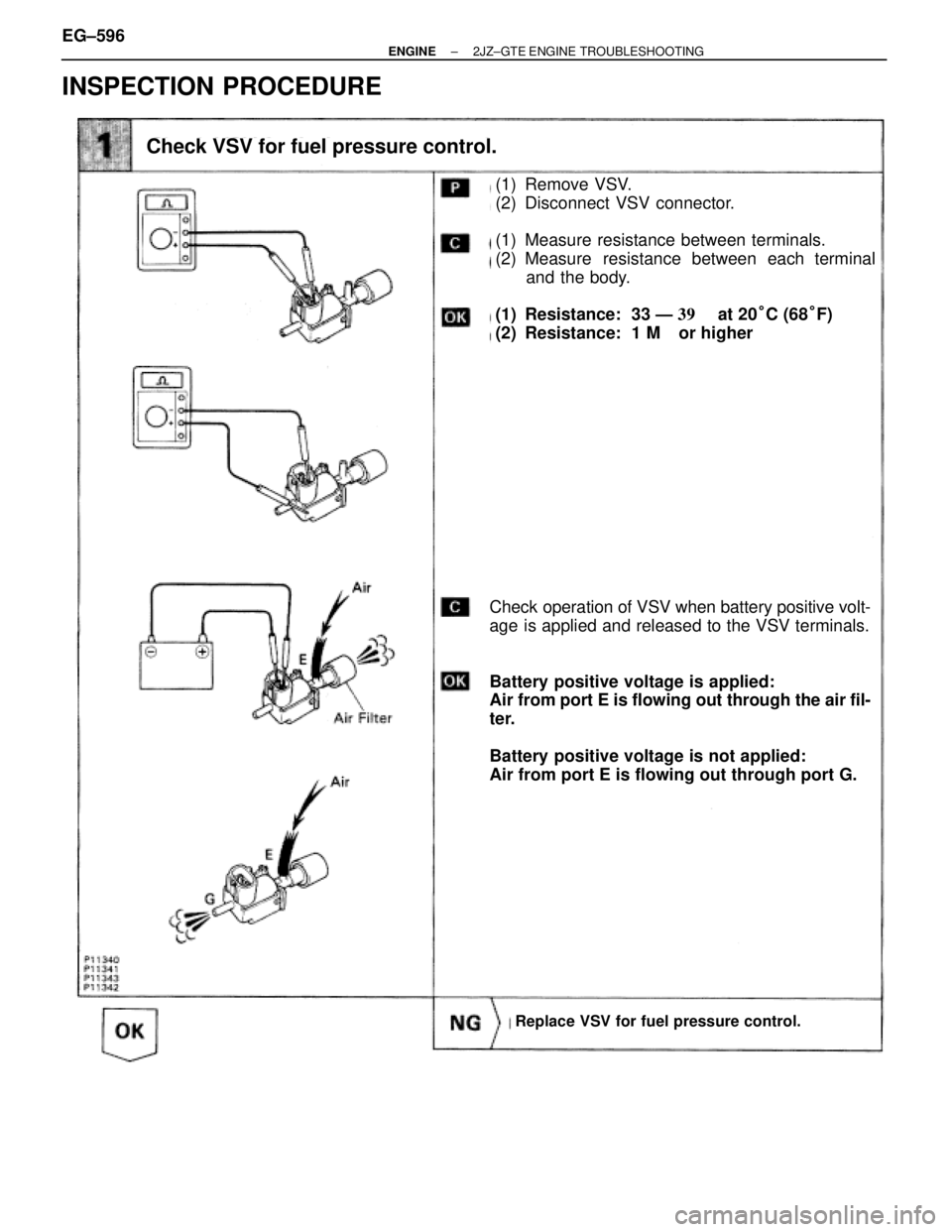

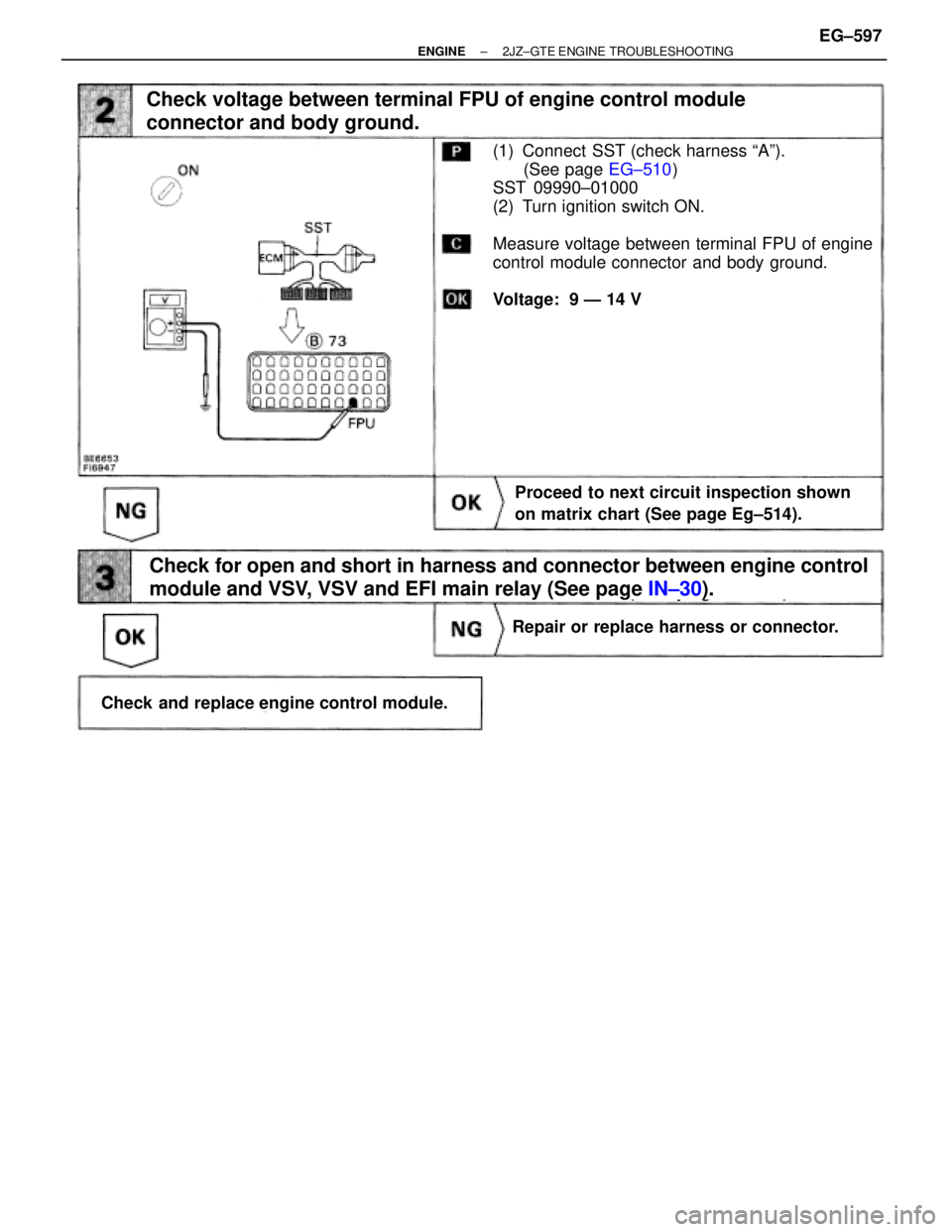

VSV Circuit for Fuel Pressure Control
CIRCUIT DESCRIPTION
The ECM turns on a VSV (Vacuum Switching
Valve) to draw air into the diaphragm chamber
of the pressure regulator if it detects that the
temperature of the engine coolant is too high
during engine starting.
The air drawn into the chamber increases the
fuel pressure to prevent fuel vapor lock at high
engine temperature in order to help the en-
gine start when it is warm.
Fuel pressure control ends approx. 120 sec.
after the engine is started.
± ENGINE2JZ±GTE ENGINE TROUBLESHOOTINGEG±595
