ASSEMBLY REMOVAL AND
INSTALLATION

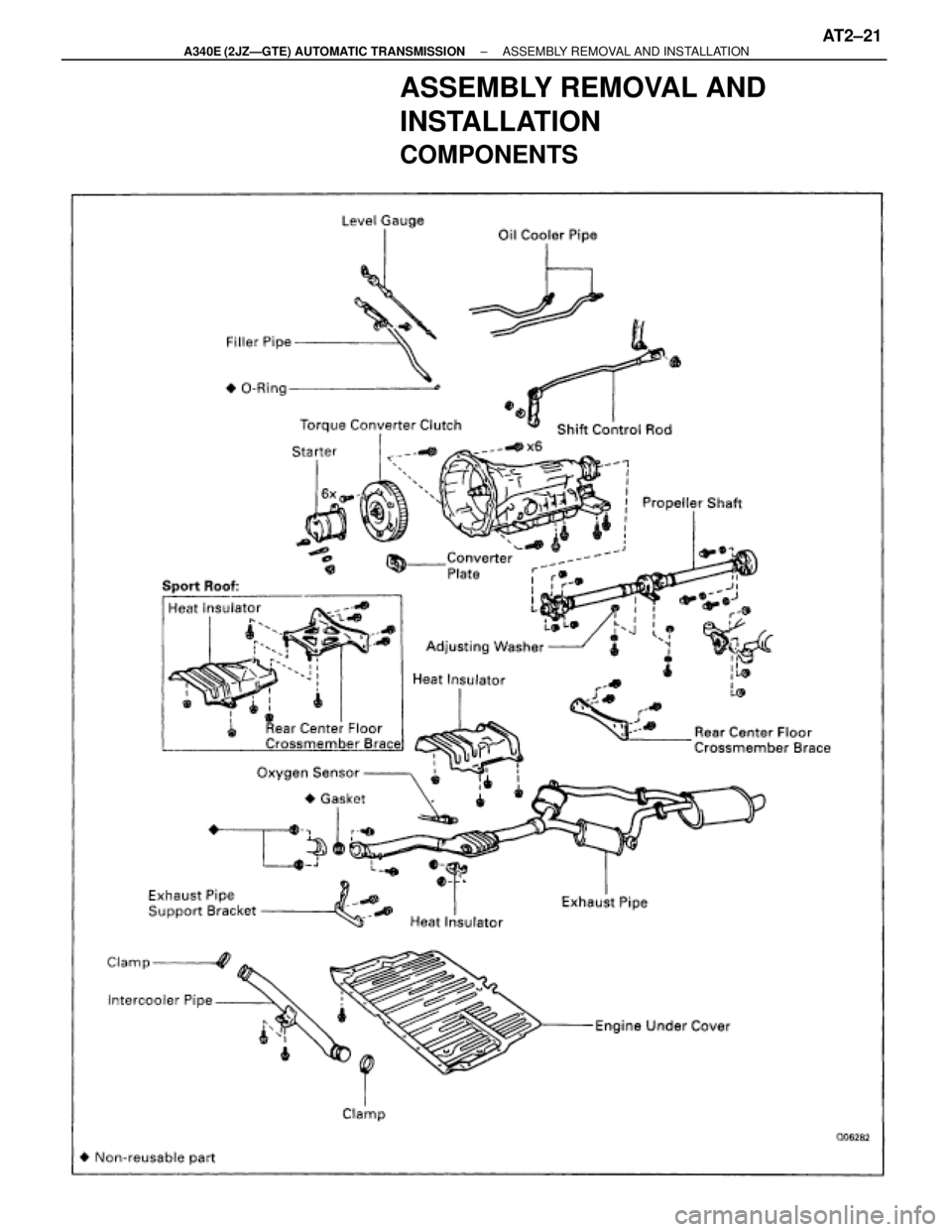

COMPONENTS
± A340E (2JZÐGTE) AUTOMATIC TRANSMISSIONASSEMBLY REMOVAL AND INSTALLATIONAT2±21
Page 506 of 2543
TRANSMISSION REMOVAL
Installation is in the reverse order of removal.
INSTALLATION HINT: After installation, fill A/T fluid and
check fluid level. (See page AT2±42)

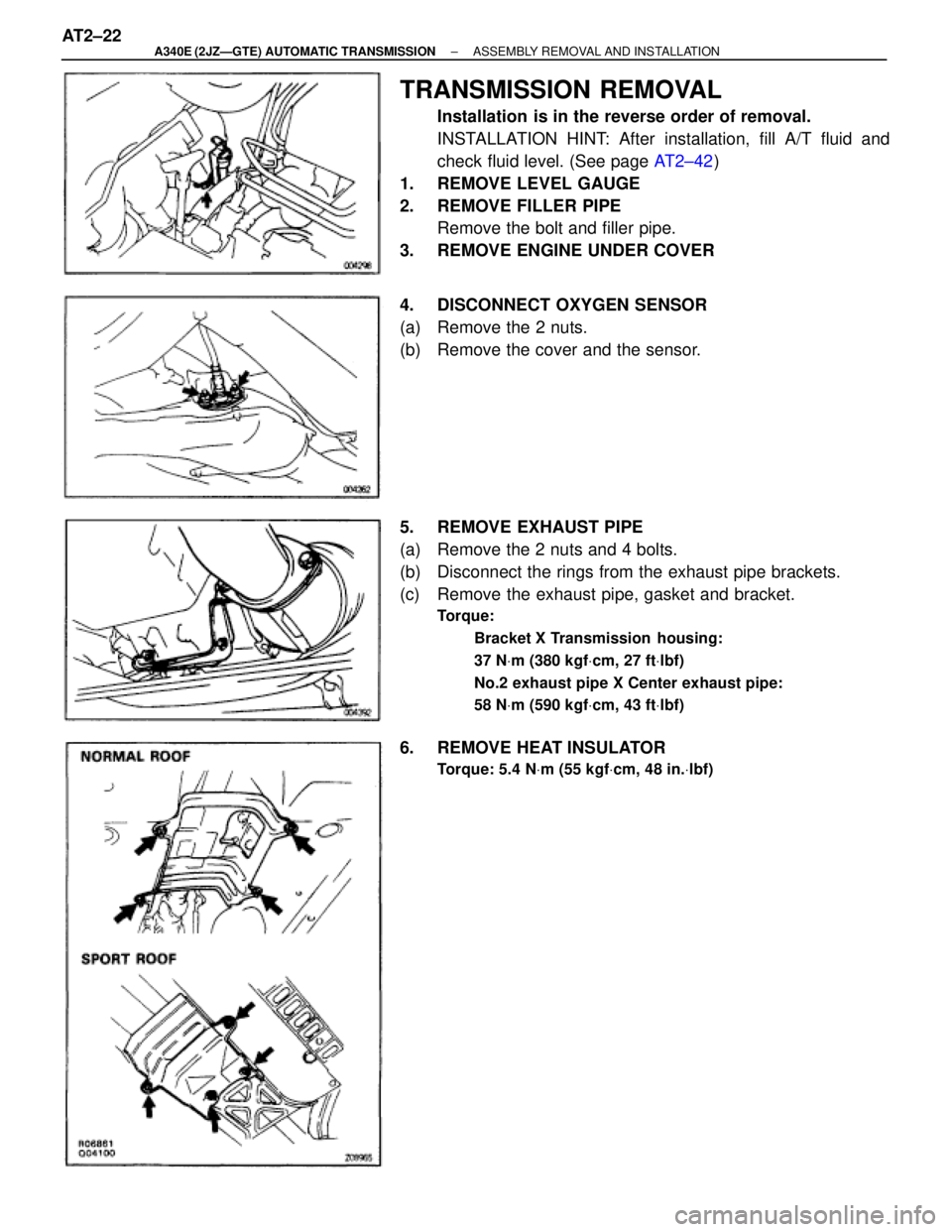

1. REMOVE LEVEL GAUGE
2. REMOVE FILLER PIPE
Remove the bolt and filler pipe.
3. REMOVE ENGINE UNDER COVER
4. DISCONNECT OXYGEN SENSOR
(a) Remove the 2 nuts.
(b) Remove the cover and the sensor.
5. REMOVE EXHAUST PIPE
(a) Remove the 2 nuts and 4 bolts.
(b) Disconnect the rings from the exhaust pipe brackets.
(c) Remove the exhaust pipe, gasket and bracket.
Torque:
Bracket X Transmission housing:
37 NVm (380 kgfVcm, 27 ftVlbf)
No.2 exhaust pipe X Center exhaust pipe:
58 NVm (590 kgfVcm, 43 ftVlbf)
6. REMOVE HEAT INSULATOR
Torque: 5.4 NVm (55 kgfVcm, 48 in.Vlbf)
AT2±22± A340E (2JZÐGTE) AUTOMATIC TRANSMISSIONASSEMBLY REMOVAL AND INSTALLATION
Page 507 of 2543

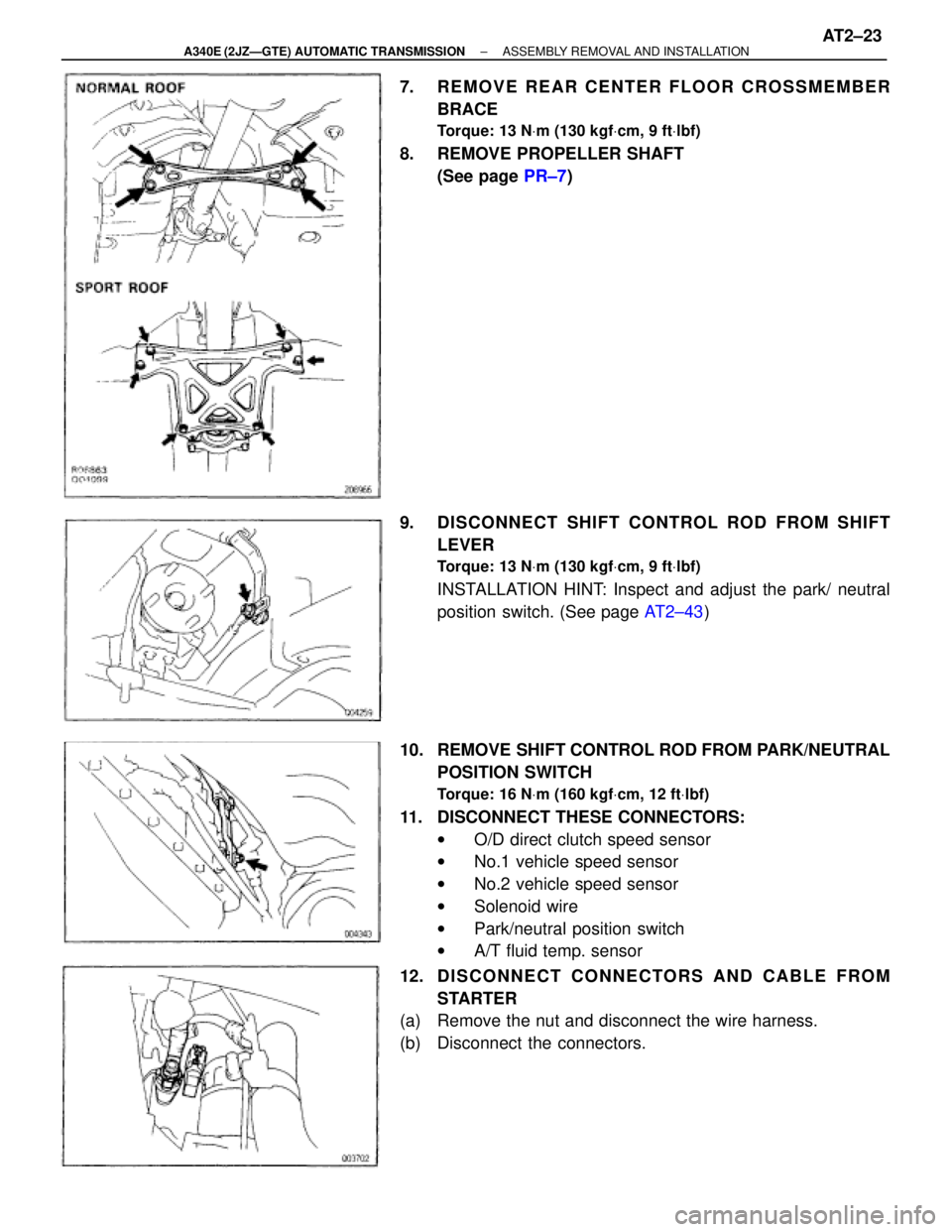

7. REMOVE REAR CENTER FLOOR CROSSMEMBER
BRACE
Torque: 13 NVm (130 kgfVcm, 9 ftVlbf)
8. REMOVE PROPELLER SHAFT
(See page PR±7)
9. DISCONNECT SHIFT CONTROL ROD FROM SHIFT
LEVER
Torque: 13 NVm (130 kgfVcm, 9 ftVlbf)
INSTALLATION HINT: Inspect and adjust the park/ neutral
position switch. (See page AT2±43)
10. REMOVE SHIFT CONTROL ROD FROM PARK/NEUTRAL
POSITION SWITCH
Torque: 16 NVm (160 kgfVcm, 12 ftVlbf)
11. DISCONNECT THESE CONNECTORS:
wO/D direct clutch speed sensor
wNo.1 vehicle speed sensor
wNo.2 vehicle speed sensor
wSolenoid wire
wPark/neutral position switch
wA/T fluid temp. sensor
12. D I S C O N N E C T C O N N E C TO R S A N D C A B L E F R O M
STARTER
(a) Remove the nut and disconnect the wire harness.
(b) Disconnect the connectors.
± A340E (2JZÐGTE) AUTOMATIC TRANSMISSIONASSEMBLY REMOVAL AND INSTALLATIONAT2±23
Page 508 of 2543

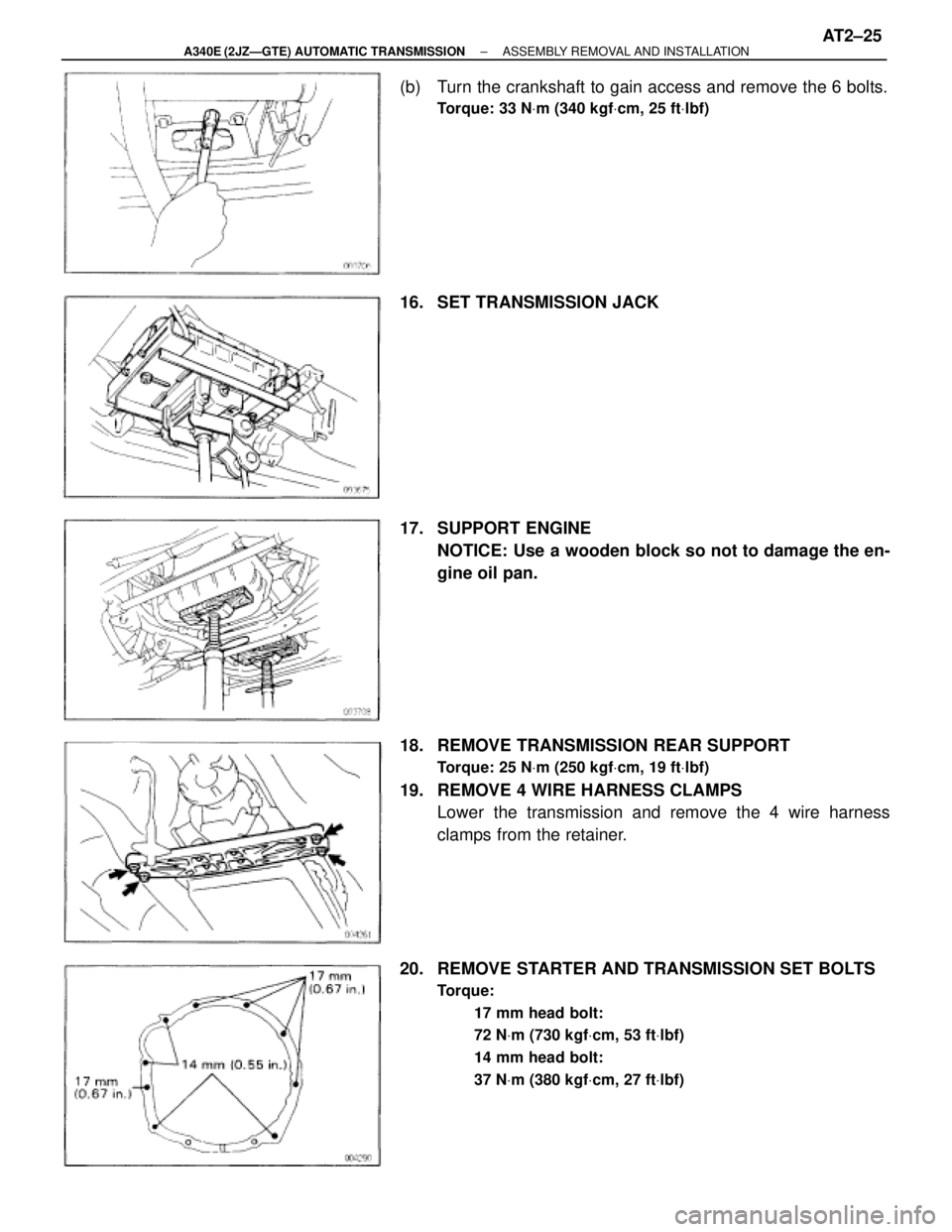

13. REMOVE OIL COOLER PIPES
(a) Loosen the 2 oil cooler union nuts.
INSTALLATION HINT:
wPlace the 2 oil cooler pipes at installation position.
wTighten the 2 oil cooler union nuts to the transmission.
Torque: 34 NVm (350 kgfVcm, 25 ftVlbf)
(b) Remove the center and rear oil cooler pipe brackets.
Torque: 10 NVm (100 kgfVcm, 7 ftVlbf)
(c) Remove the front oil cooler pipe bracket.
Torque: 10 NVm (100 kgfVcm, 7 ftVlbf)
(d) Disconnect the 2 oil cooler pipes.

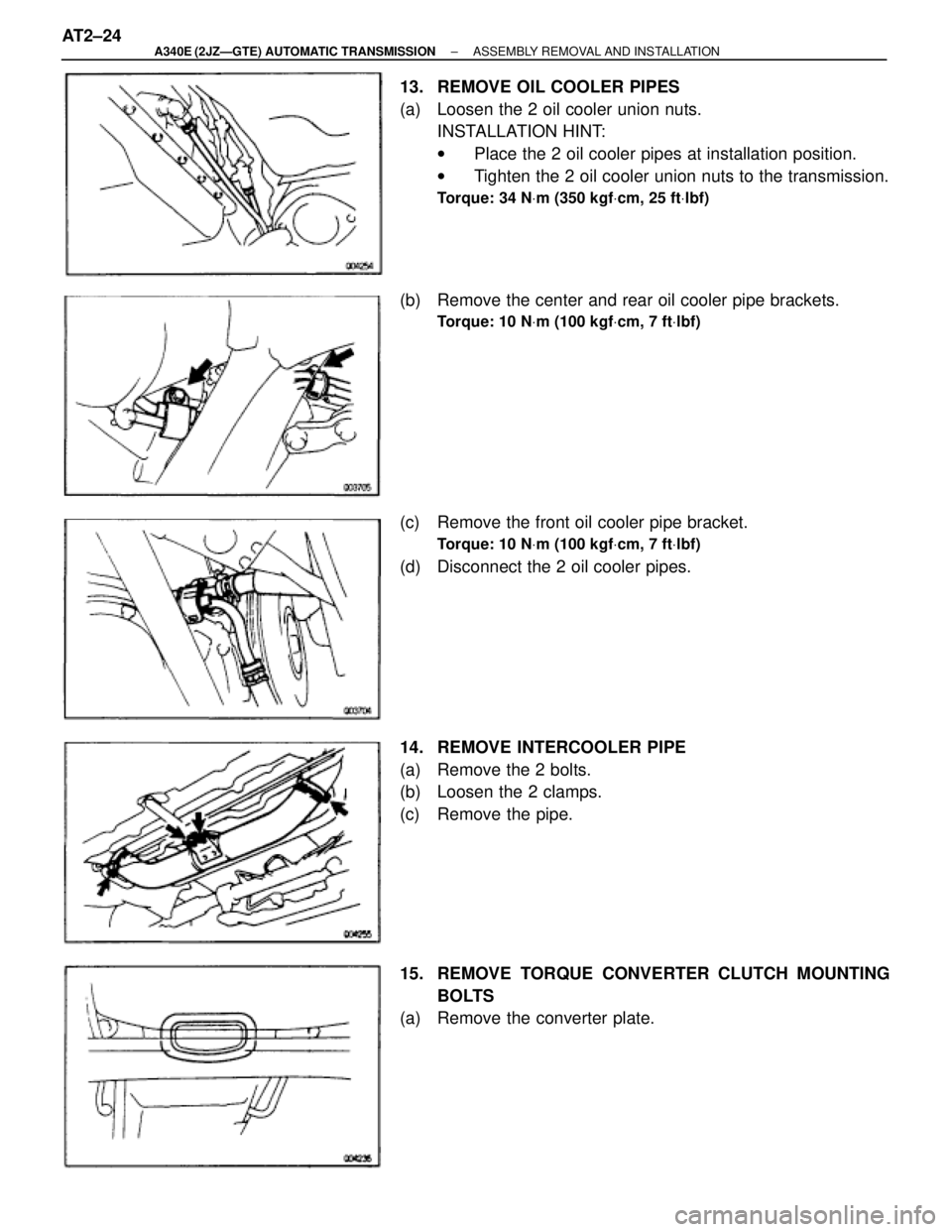

14. REMOVE INTERCOOLER PIPE
(a) Remove the 2 bolts.
(b) Loosen the 2 clamps.
(c) Remove the pipe.
15. REMOVE TORQUE CONVERTER CLUTCH MOUNTING
BOLTS
(a) Remove the converter plate. AT2±24
± A340E (2JZÐGTE) AUTOMATIC TRANSMISSIONASSEMBLY REMOVAL AND INSTALLATION
Page 509 of 2543
(b) Turn the crankshaft to gain access and remove the 6 bolts.
Torque: 33 NVm (340 kgfVcm, 25 ftVlbf)
16. SET TRANSMISSION JACK
17. SUPPORT ENGINE
NOTICE: Use a wooden block so not to damage the en-
gine oil pan.
18. REMOVE TRANSMISSION REAR SUPPORT
Torque: 25 NVm (250 kgfVcm, 19 ftVlbf)
19. REMOVE 4 WIRE HARNESS CLAMPS
Lower the transmission and remove the 4 wire harness
clamps from the retainer.
20. REMOVE STARTER AND TRANSMISSION SET BOLTS
Torque:
17 mm head bolt:
72 NVm (730 kgfVcm, 53 ftVlbf)
14 mm head bolt:
37 NVm (380 kgfVcm, 27 ftVlbf)
± A340E (2JZÐGTE) AUTOMATIC TRANSMISSIONASSEMBLY REMOVAL AND INSTALLATIONAT2±25
Page 510 of 2543

21. REMOVE TRANSMISSION FROM ENGINE
INSTALLATION HINT:
wJack up and push the transmission fully into position.
wMake sure the engine and transmission are aligned
precisely.
wAdjust the angle of the engine and transmission so that
the engine installation surface and transmission
surfaces are parallel.
TORQUE CONVERTER CLUTCH
INSTALLATION

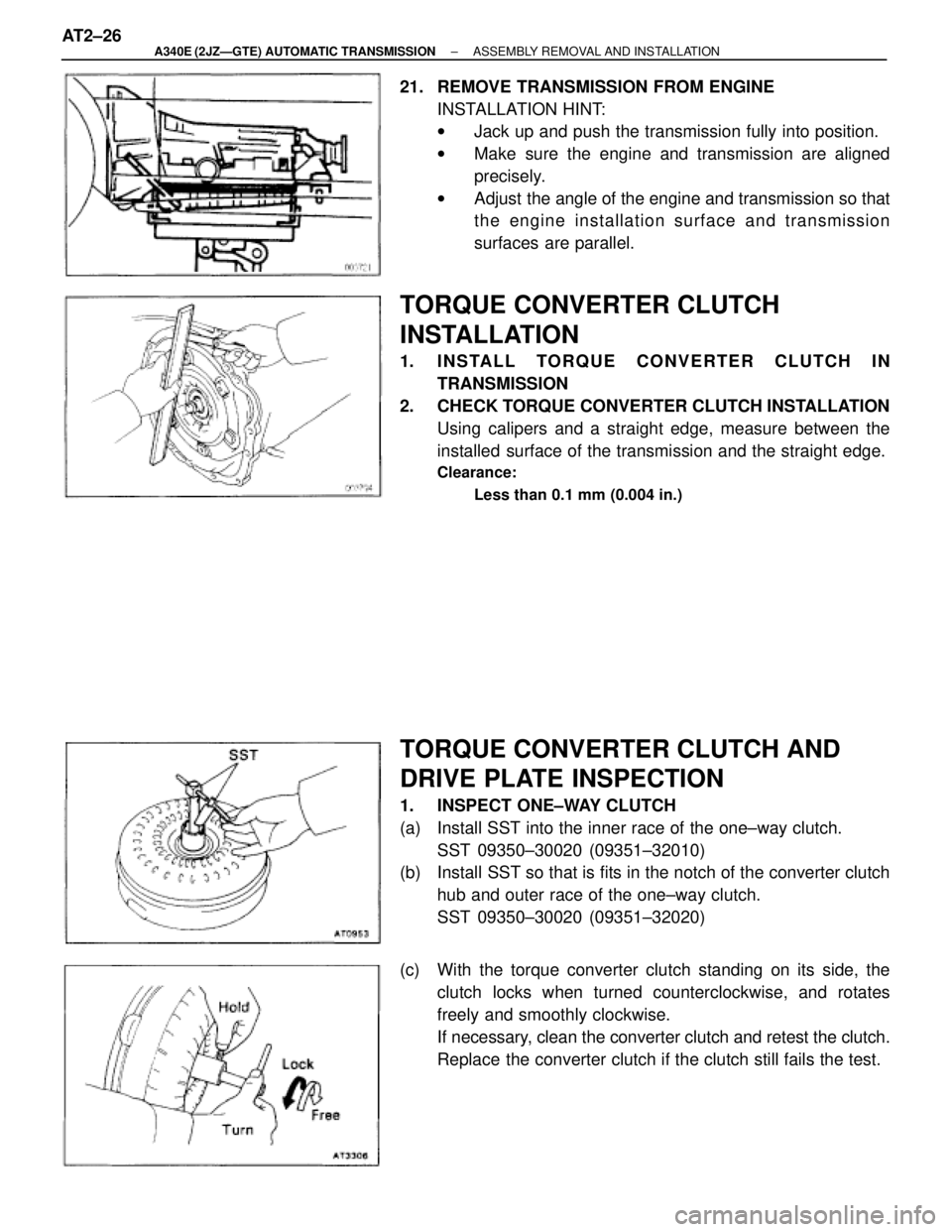

1. INSTALL TORQUE CONVERTER CLUTCH IN
TRANSMISSION
2. CHECK TORQUE CONVERTER CLUTCH INSTALLATION
Using calipers and a straight edge, measure between the
installed surface of the transmission and the straight edge.
Clearance:
Less than 0.1 mm (0.004 in.)
TORQUE CONVERTER CLUTCH AND
DRIVE PLATE INSPECTION
1. INSPECT ONE±WAY CLUTCH
(a) Install SST into the inner race of the one±way clutch.
SST 09350±30020 (09351±32010)
(b) Install SST so that is fits in the notch of the converter clutch
hub and outer race of the one±way clutch.
SST 09350±30020 (09351±32020)
(c) With the torque converter clutch standing on its side, the
clutch locks when turned counterclockwise, and rotates
freely and smoothly clockwise.
If necessary, clean the converter clutch and retest the clutch.
Replace the converter clutch if the clutch still fails the test. AT2±26
± A340E (2JZÐGTE) AUTOMATIC TRANSMISSIONASSEMBLY REMOVAL AND INSTALLATION
Page 511 of 2543

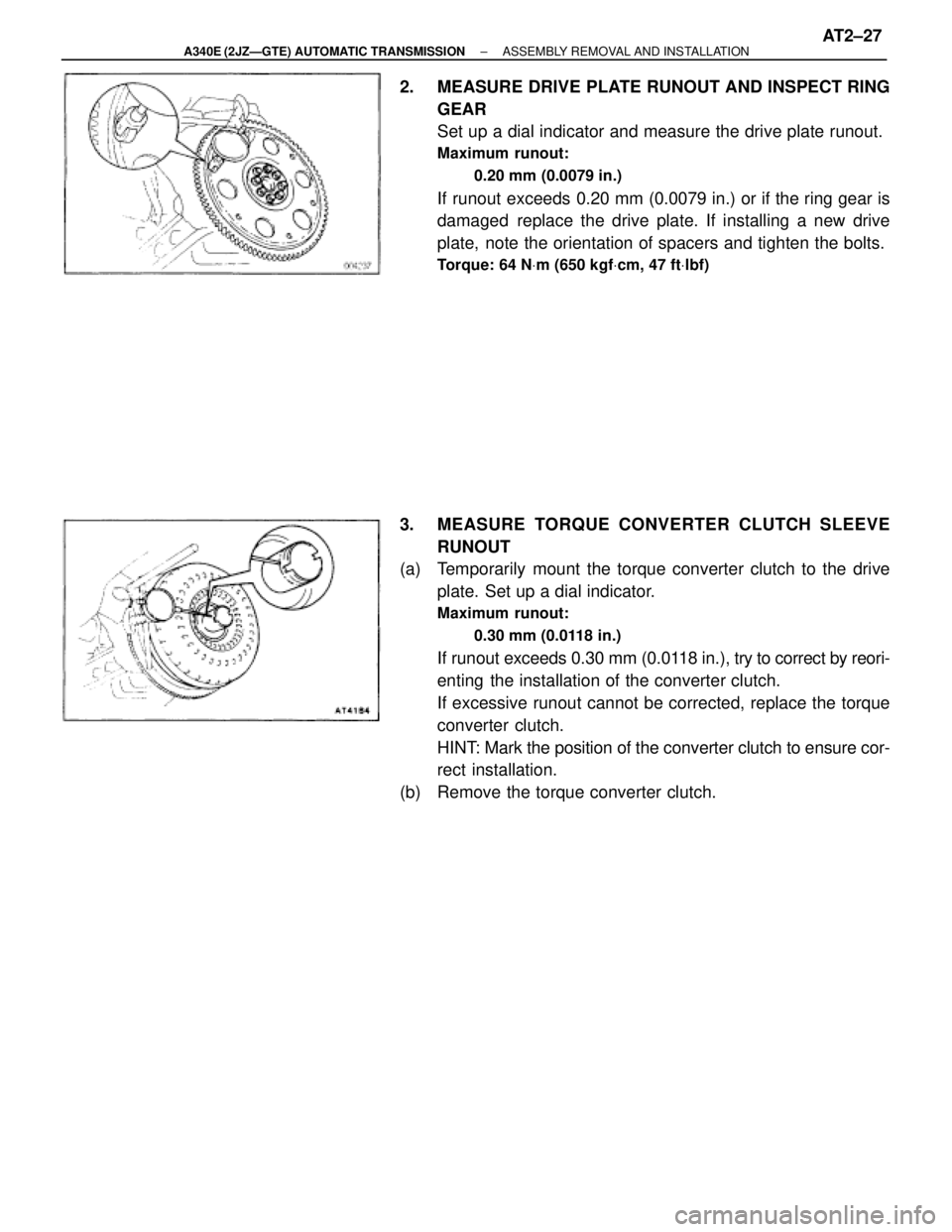

2. MEASURE DRIVE PLATE RUNOUT AND INSPECT RING
GEAR
Set up a dial indicator and measure the drive plate runout.
Maximum runout:
0.20 mm (0.0079 in.)
If runout exceeds 0.20 mm (0.0079 in.) or if the ring gear is
damaged replace the drive plate. If installing a new drive
plate, note the orientation of spacers and tighten the bolts.
Torque: 64 NVm (650 kgfVcm, 47 ftVlbf)
3. MEASURE TORQUE CONVERTER CLUTCH SLEEVE
RUNOUT
(a) Temporarily mount the torque converter clutch to the drive
plate. Set up a dial indicator.
Maximum runout:
0.30 mm (0.0118 in.)
If runout exceeds 0.30 mm (0.0118 in.), try to correct by reori-
enting the installation of the converter clutch.
If excessive runout cannot be corrected, replace the torque
converter clutch.
HINT: Mark the position of the converter clutch to ensure cor-
rect installation.
(b) Remove the torque converter clutch.
± A340E (2JZÐGTE) AUTOMATIC TRANSMISSIONASSEMBLY REMOVAL AND INSTALLATIONAT2±27
Page 512 of 2543
SHIFT LOCK SYSTEM

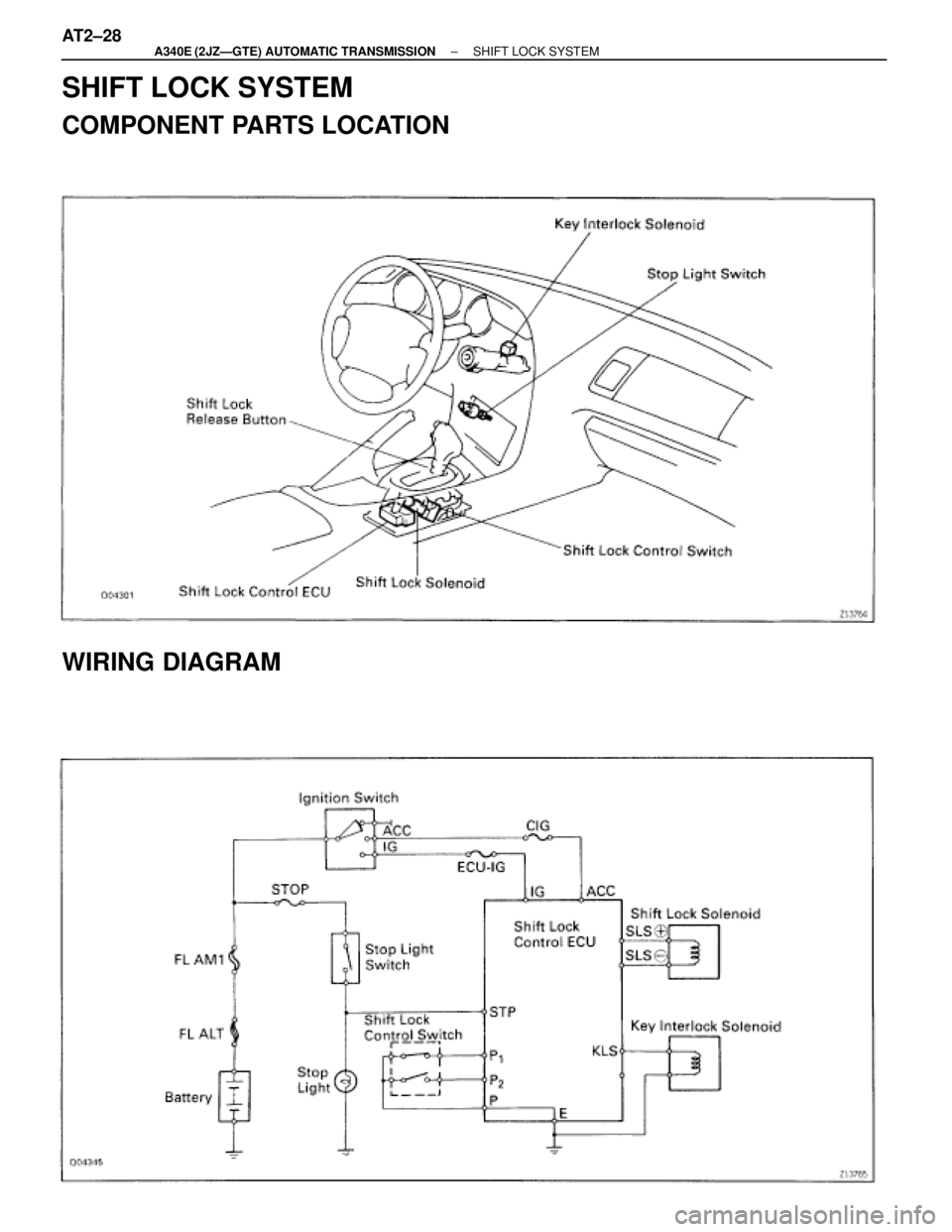

COMPONENT PARTS LOCATION
WIRING DIAGRAM
AT2±28± A340E (2JZÐGTE) AUTOMATIC TRANSMISSIONSHIFT LOCK SYSTEM
