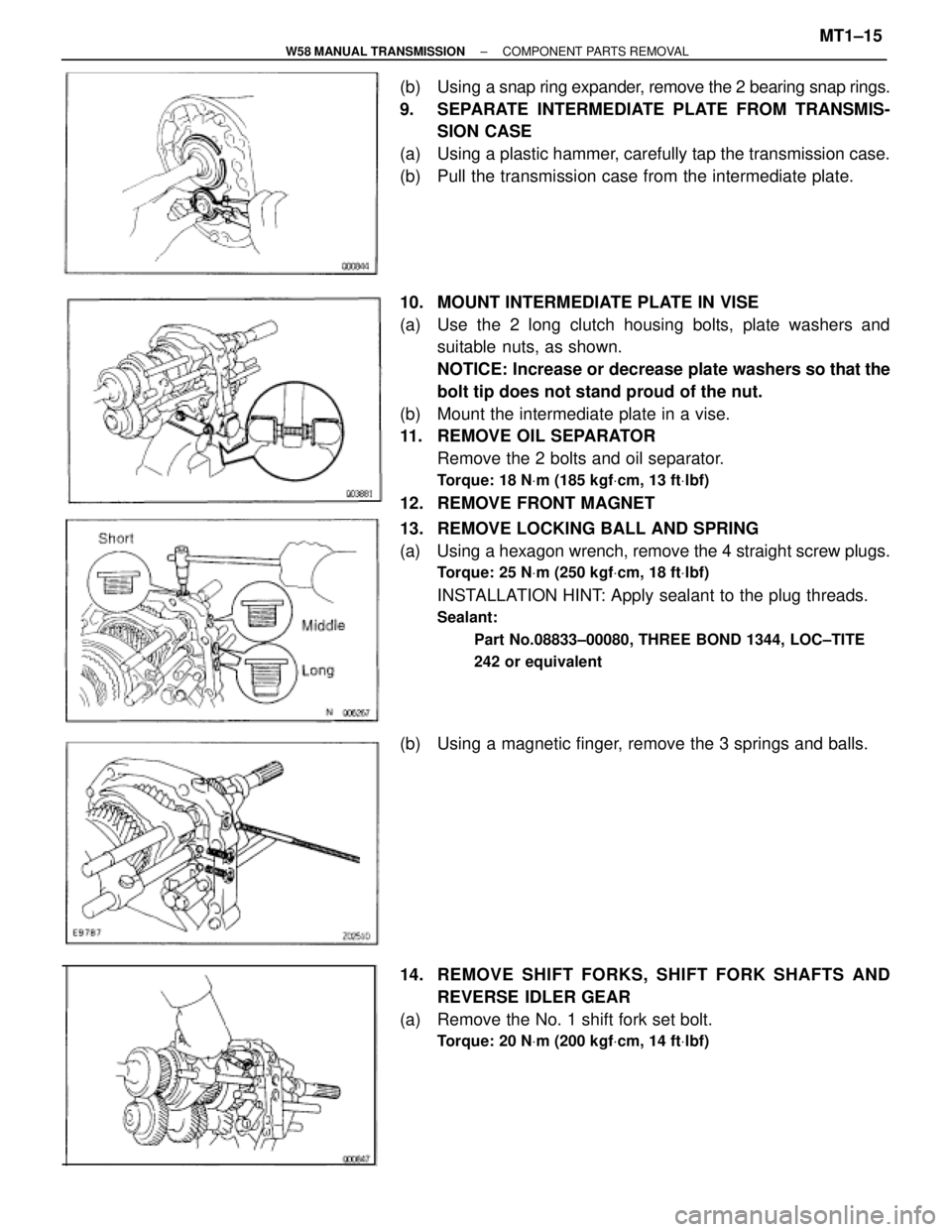

(b) Using a snap ring expander, remove the 2 bearing snap rings.
9. SEPARATE INTERMEDIATE PLATE FROM TRANSMIS-
SION CASE
(a) Using a plastic hammer, carefully tap the transmission case.
(b) Pull the transmission case from the intermediate plate.

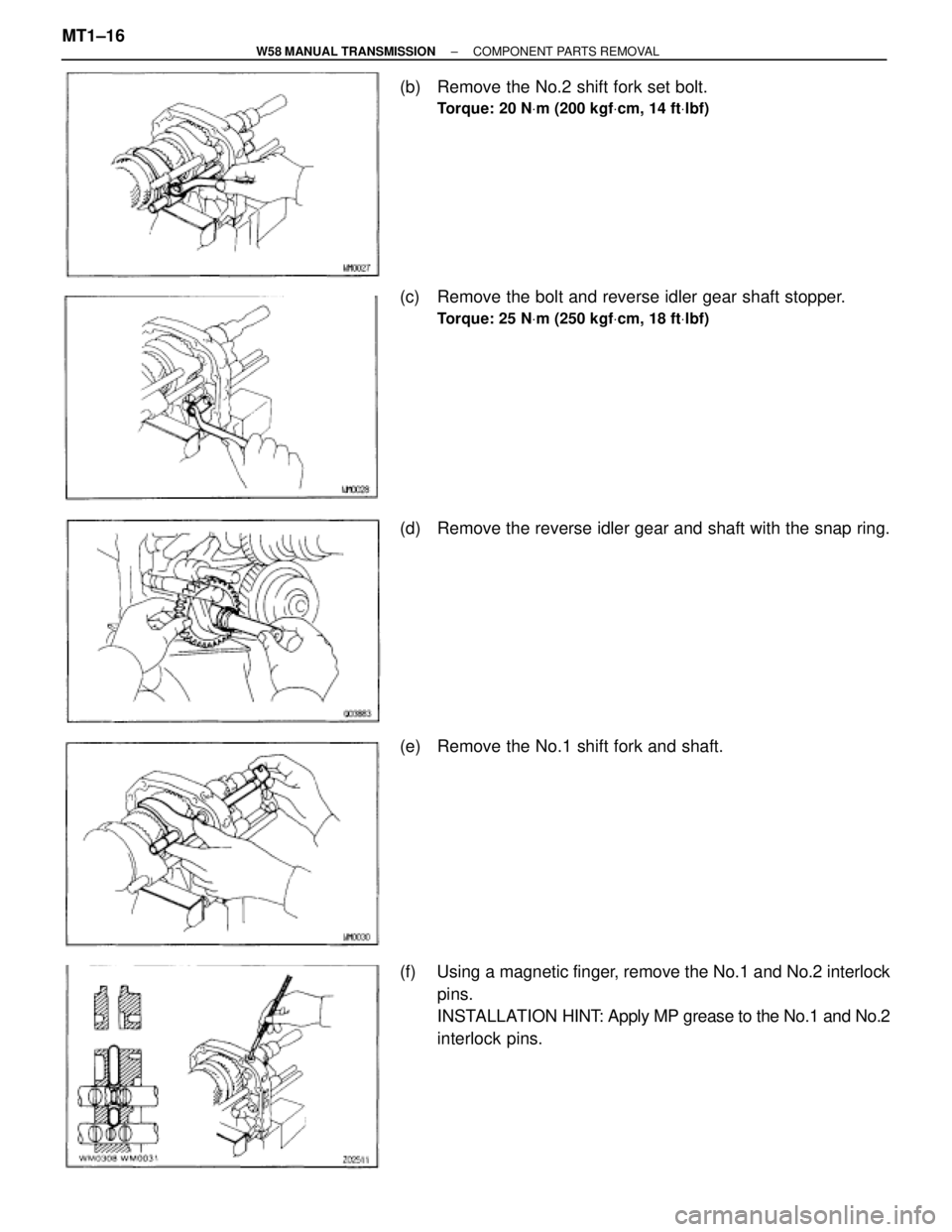

10. MOUNT INTERMEDIATE PLATE IN VISE
(a) Use the 2 long clutch housing bolts, plate washers and
suitable nuts, as shown.
NOTICE: Increase or decrease plate washers so that the
bolt tip does not stand proud of the nut.
(b) Mount the intermediate plate in a vise.
11. REMOVE OIL SEPARATOR
Remove the 2 bolts and oil separator.
Torque: 18 NVm (185 kgfVcm, 13 ftVlbf)
12. REMOVE FRONT MAGNET
13. REMOVE LOCKING BALL AND SPRING
(a) Using a hexagon wrench, remove the 4 straight screw plugs.
Torque: 25 NVm (250 kgfVcm, 18 ftVlbf)
INSTALLATION HINT: Apply sealant to the plug threads.
Sealant:
Part No.08833±00080, THREE BOND 1344, LOC±TITE
242 or equivalent
(b) Using a magnetic finger, remove the 3 springs and balls.
14. REMOVE SHIFT FORKS, SHIFT FORK SHAFTS AND
REVERSE IDLER GEAR
(a) Remove the No. 1 shift fork set bolt.
Torque: 20 NVm (200 kgfVcm, 14 ftVlbf)
± W58 MANUAL TRANSMISSIONCOMPONENT PARTS REMOVALMT1±15
Page 1282 of 2543

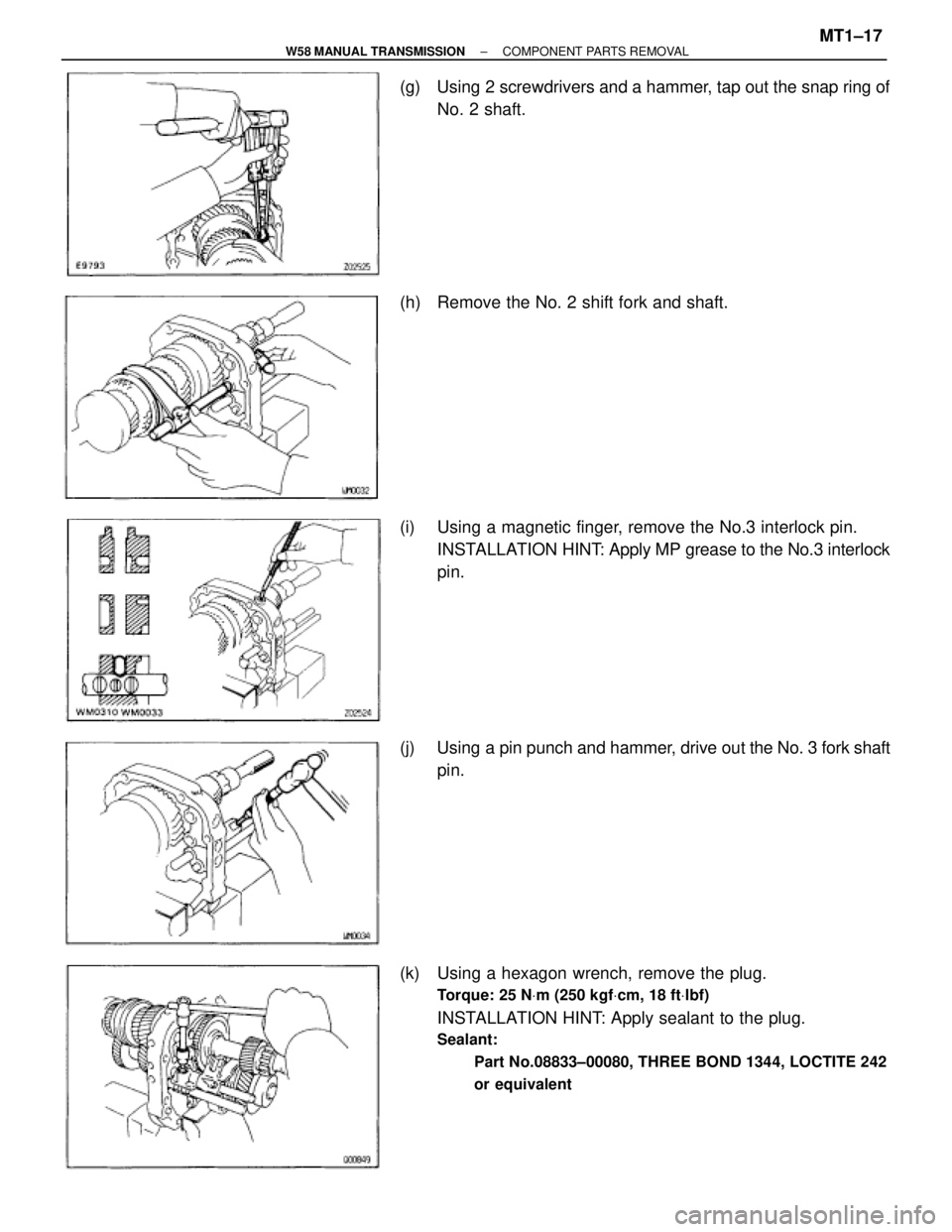

(b) Remove the No.2 shift fork set bolt.
Torque: 20 NVm (200 kgfVcm, 14 ftVlbf)
(c) Remove the bolt and reverse idler gear shaft stopper.
Torque: 25 NVm (250 kgfVcm, 18 ftVlbf)
(d) Remove the reverse idler gear and shaft with the snap ring.
(e) Remove the No.1 shift fork and shaft.
(f) Using a magnetic finger, remove the No.1 and No.2 interlock
pins.
INSTALLATION HINT: Apply MP grease to the No.1 and No.2
interlock pins. MT1±16
± W58 MANUAL TRANSMISSIONCOMPONENT PARTS REMOVAL
Page 1283 of 2543
(g) Using 2 screwdrivers and a hammer, tap out the snap ring of
No. 2 shaft.
(h) Remove the No. 2 shift fork and shaft.
(i) Using a magnetic finger, remove the No.3 interlock pin.
INSTALLATION HINT: Apply MP grease to the No.3 interlock
pin.
(j) Using a pin punch and hammer, drive out the No. 3 fork shaft
pin.
(k) Using a hexagon wrench, remove the plug.
Torque: 25 NVm (250 kgfVcm, 18 ftVlbf)
INSTALLATION HINT: Apply sealant to the plug.
Sealant:
Part No.08833±00080, THREE BOND 1344, LOCTITE 242
or equivalent
± W58 MANUAL TRANSMISSIONCOMPONENT PARTS REMOVALMT1±17
Page 1284 of 2543

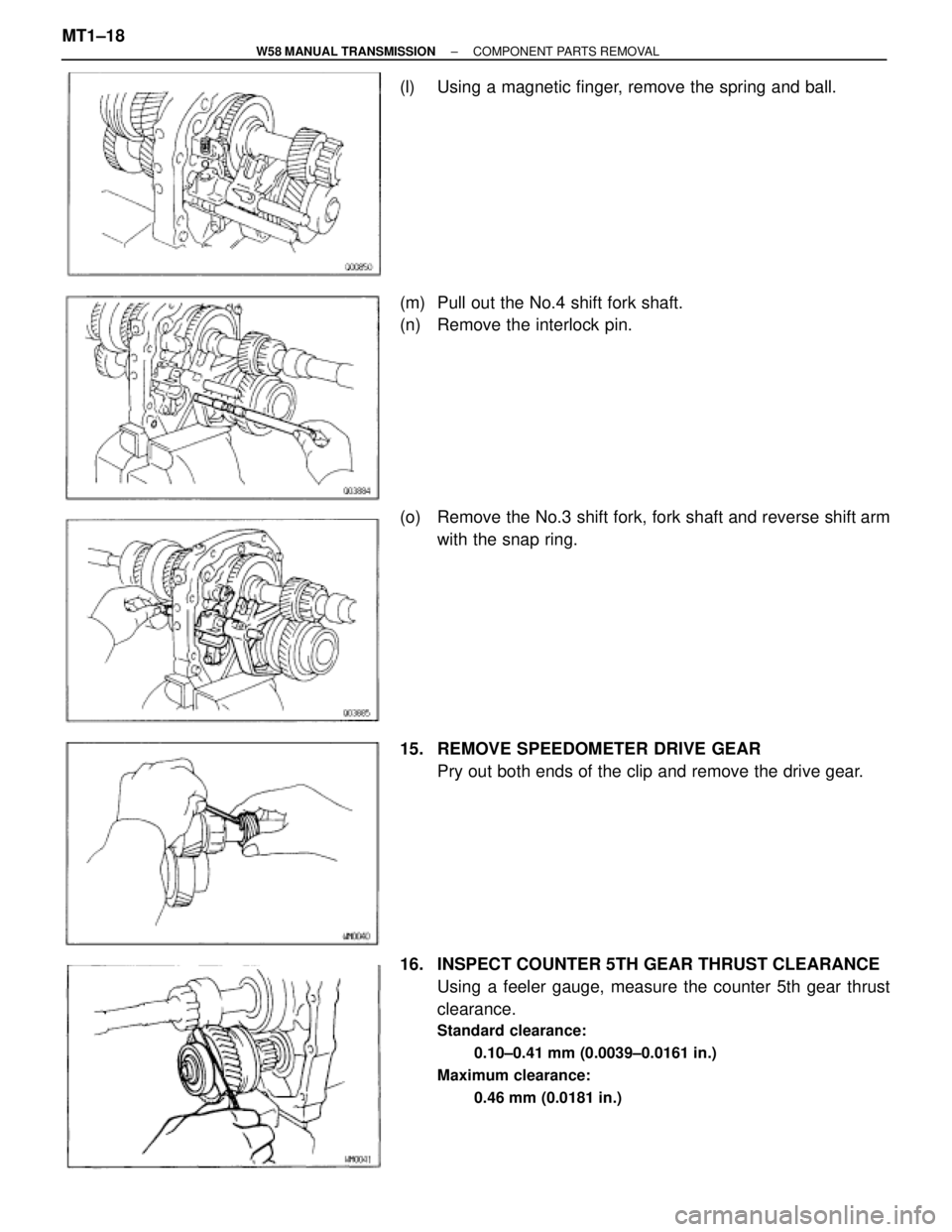

(l) Using a magnetic finger, remove the spring and ball.
(m) Pull out the No.4 shift fork shaft.
(n) Remove the interlock pin.
(o) Remove the No.3 shift fork, fork shaft and reverse shift arm
with the snap ring.
15. REMOVE SPEEDOMETER DRIVE GEAR
Pry out both ends of the clip and remove the drive gear.
16. INSPECT COUNTER 5TH GEAR THRUST CLEARANCE
Using a feeler gauge, measure the counter 5th gear thrust
clearance.
Standard clearance:
0.10±0.41 mm (0.0039±0.0161 in.)
Maximum clearance:
0.46 mm (0.0181 in.)
MT1±18± W58 MANUAL TRANSMISSIONCOMPONENT PARTS REMOVAL
Page 1285 of 2543

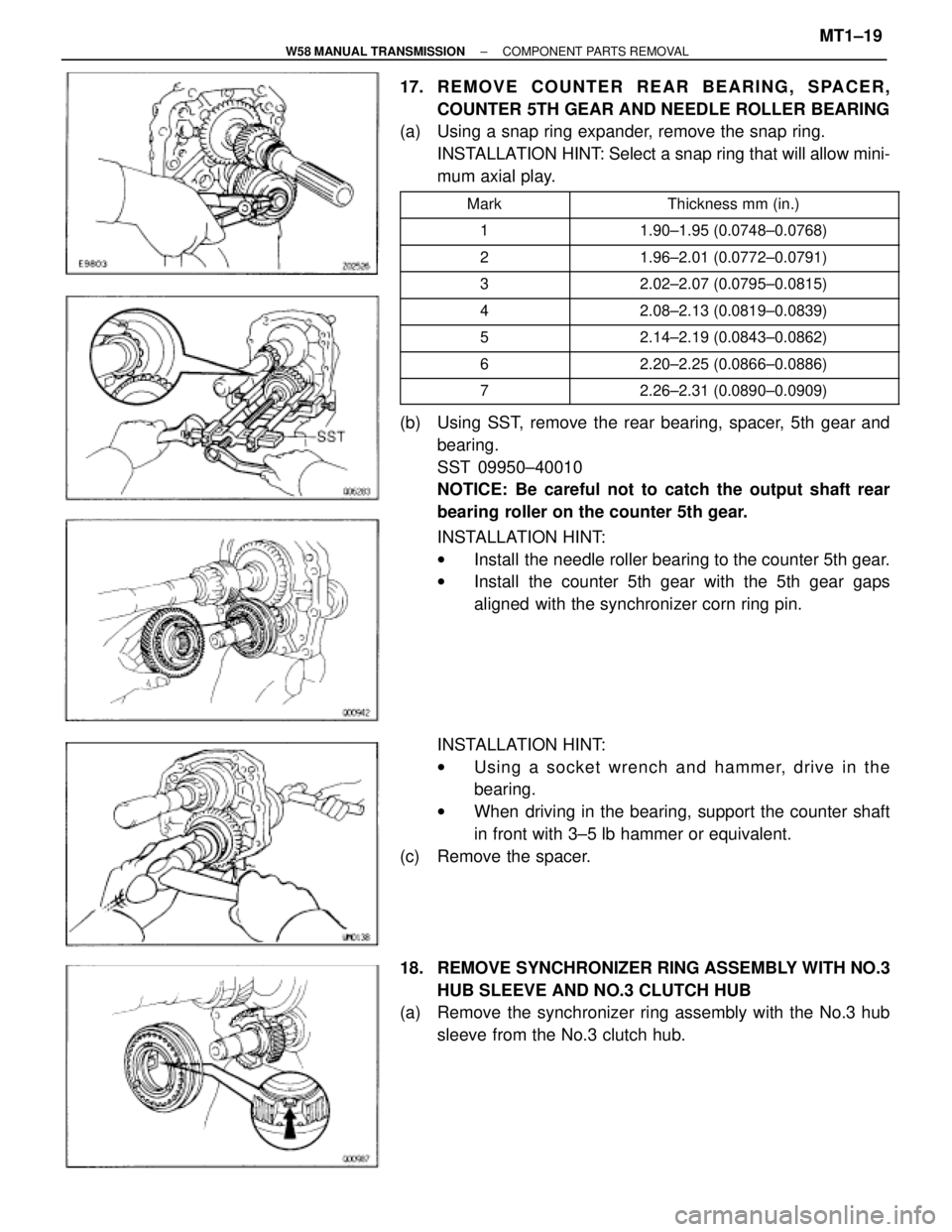

17. REMOVE COUNTER REAR BEARING, SPACER,
COUNTER 5TH GEAR AND NEEDLE ROLLER BEARING
(a) Using a snap ring expander, remove the snap ring.
INSTALLATION HINT: Select a snap ring that will allow mini-
mum axial play.
Mark
Thickness mm (in.)
1 1.90±1.95 (0.0748±0.0768)
2 1.96±2.01 (0.0772±0.0791)
3 2.02±2.07 (0.0795±0.0815)
4 2.08±2.13 (0.0819±0.0839)
5 2.14±2.19 (0.0843±0.0862)
6 2.20±2.25 (0.0866±0.0886) 7 2.26±2.31 (0.0890±0.0909)
(b) Using SST, remove the rear bearing, spacer, 5th gear and
bearing.
SST 09950±40010
NOTICE: Be careful not to catch the output shaft rear
bearing roller on the counter 5th gear.
INSTALLATION HINT:
wInstall the needle roller bearing to the counter 5th gear.
wInstall the counter 5th gear with the 5th gear gaps
aligned with the synchronizer corn ring pin.
INSTALLATION HINT:
wUsing a socket wrench and hammer, drive in the
bearing.
wWhen driving in the bearing, support the counter shaft
in front with 3±5 lb hammer or equivalent.
(c) Remove the spacer.
18. REMOVE SYNCHRONIZER RING ASSEMBLY WITH NO.3
HUB SLEEVE AND NO.3 CLUTCH HUB
(a) Remove the synchronizer ring assembly with the No.3 hub
sleeve from the No.3 clutch hub.
± W58 MANUAL TRANSMISSIONCOMPONENT PARTS REMOVALMT1±19

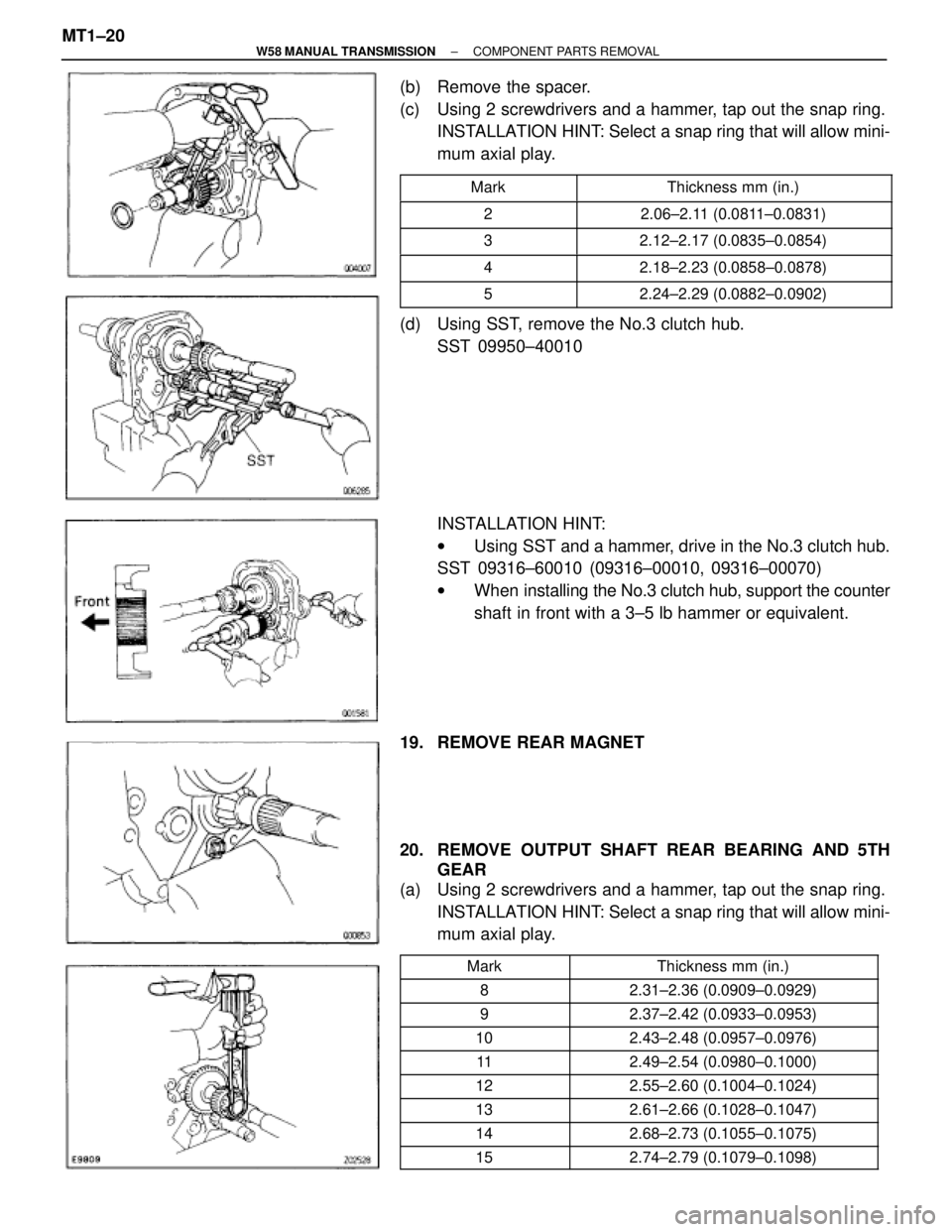

Page 1286 of 2543

(b) Remove the spacer.
(c) Using 2 screwdrivers and a hammer, tap out the snap ring.
INSTALLATION HINT: Select a snap ring that will allow mini-
mum axial play.
Mark Thickness mm (in.)
2 2.06±2.11 (0.0811±0.0831)
3 2.12±2.17 (0.0835±0.0854)
4 2.18±2.23 (0.0858±0.0878) 5 2.24±2.29 (0.0882±0.0902)
(d) Using SST, remove the No.3 clutch hub.
SST 09950±40010
INSTALLATION HINT:
wUsing SST and a hammer, drive in the No.3 clutch hub.
SST 09316±60010 (09316±00010, 09316±00070)
wWhen installing the No.3 clutch hub, support the counter
shaft in front with a 3±5 lb hammer or equivalent.
19. REMOVE REAR MAGNET
20. REMOVE OUTPUT SHAFT REAR BEARING AND 5TH
GEAR
(a) Using 2 screwdrivers and a hammer, tap out the snap ring.
INSTALLATION HINT: Select a snap ring that will allow mini-
mum axial play.
Mark
Thickness mm (in.)
8
2.31±2.36 (0.0909±0.0929)
9
2.37±2.42 (0.0933±0.0953)
10
2.43±2.48 (0.0957±0.0976)
11
2.49±2.54 (0.0980±0.1000)
12
2.55±2.60 (0.1004±0.1024)
13
2.61±2.66 (0.1028±0.1047)
14
2.68±2.73 (0.1055±0.1075)
15
2.74±2.79 (0.1079±0.1098)
MT1±20± W58 MANUAL TRANSMISSIONCOMPONENT PARTS REMOVAL
Page 1287 of 2543

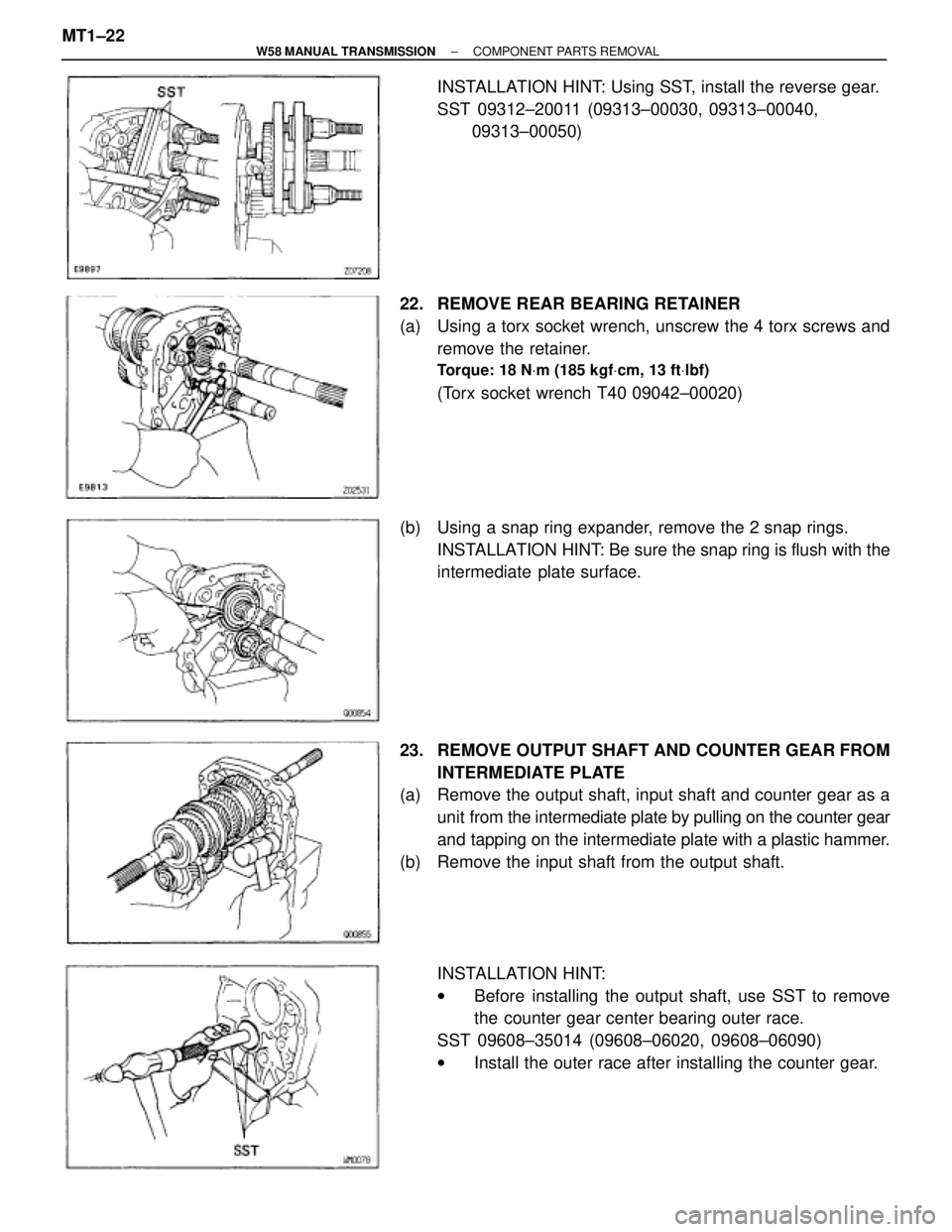

(b) Using SST, remove the rear bearing and 5th gear.
SST 09312±20011 (09313±00030, 09313±00040,
09313±00050)
INSTALLATION HINT: Using SST, install the 5th gear and
rear bearing.
SST 09312±20011 (09313±00010, 09313±00030,
09313±00040, 09313±00050)

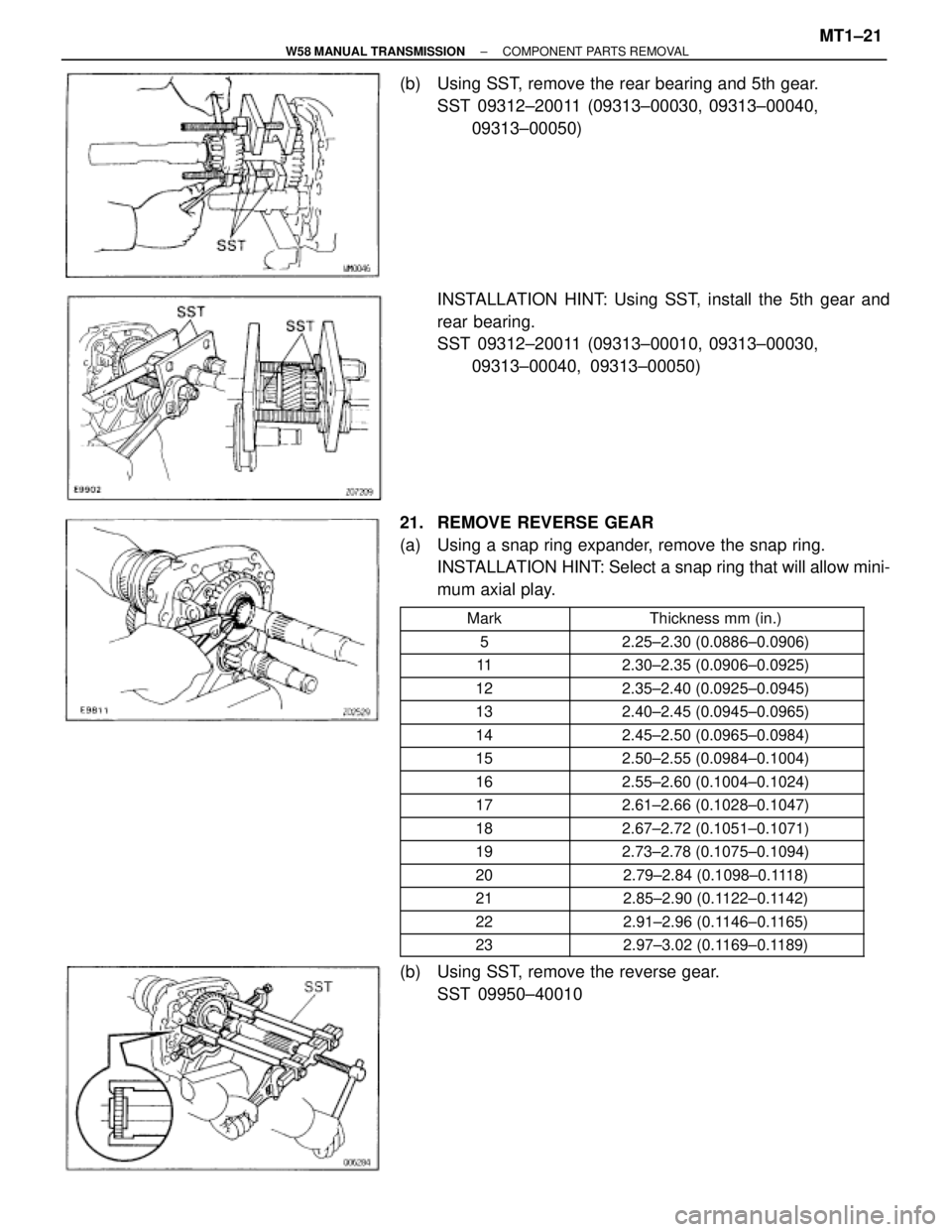

21. REMOVE REVERSE GEAR
(a) Using a snap ring expander, remove the snap ring.
INSTALLATION HINT: Select a snap ring that will allow mini-
mum axial play.
Mark Thickness mm (in.)
5 2.25±2.30 (0.0886±0.0906)
11 2.30±2.35 (0.0906±0.0925)
12 2.35±2.40 (0.0925±0.0945)
13 2.40±2.45 (0.0945±0.0965)
14 2.45±2.50 (0.0965±0.0984)
15 2.50±2.55 (0.0984±0.1004)
16 2.55±2.60 (0.1004±0.1024)
17 2.61±2.66 (0.1028±0.1047)
18 2.67±2.72 (0.1051±0.1071)
19 2.73±2.78 (0.1075±0.1094)
20 2.79±2.84 (0.1098±0.1118)
21 2.85±2.90 (0.1122±0.1142)
22 2.91±2.96 (0.1146±0.1165)
23 2.97±3.02 (0.1169±0.1189)
(b) Using SST, remove the reverse gear.
SST 09950±40010
± W58 MANUAL TRANSMISSIONCOMPONENT PARTS REMOVALMT1±21
Page 1288 of 2543

INSTALLATION HINT: Using SST, install the reverse gear.
SST 09312±20011 (09313±00030, 09313±00040,
09313±00050)
22. REMOVE REAR BEARING RETAINER
(a) Using a torx socket wrench, unscrew the 4 torx screws and
remove the retainer.
Torque: 18 NVm (185 kgfVcm, 13 ftVlbf)
(Torx socket wrench T40 09042±00020)
(b) Using a snap ring expander, remove the 2 snap rings.
INSTALLATION HINT: Be sure the snap ring is flush with the
intermediate plate surface.
23. REMOVE OUTPUT SHAFT AND COUNTER GEAR FROM
INTERMEDIATE PLATE
(a) Remove the output shaft, input shaft and counter gear as a
unit from the intermediate plate by pulling on the counter gear
and tapping on the intermediate plate with a plastic hammer.
(b) Remove the input shaft from the output shaft.
INSTALLATION HINT:
wBefore installing the output shaft, use SST to remove
the counter gear center bearing outer race.
SST 09608±35014 (09608±06020, 09608±06090)
wInstall the outer race after installing the counter gear. MT1±22
± W58 MANUAL TRANSMISSIONCOMPONENT PARTS REMOVAL
