Page 1105 of 2543
Cooling Fan
COMPONENTS FOR REMOVAL AND
INSTALLATION
COOLING FAN INSPECTION
INSPECT COOLING FAN
(a) Disconnect the fan connector.
(b) Connect battery and ammeter to the cooling fan connector.
(c) Check that the cooling fan rotates smoothly, and check the
reading on the ammeter.
Standard amperage:
2.5±4.5 A
(d) Reconnect the fan connector. EG±354
± ENGINECOOLING SYSTEM
Page 1106 of 2543
COOLING FAN REMOVAL
Installation is in the reverse order of removal.
1. REMOVE ENGINE UNDER COVER
2. REMOVE COOLING FAN
(a) Disconnect the cooling fan connector.
(b) Remove the 3 bolts and cooling fan.
COMPONENTS FOR DISASSEMBLY AND
ASSEMBLY
COOLING FAN DISASSEMBLY
Assembly is in the reverse order of disassembly.
1. REMOVE FAN
Remove the 3 screws and fan.
2. REMOVE FAN MOTOR
(a) Disconnect the connector from the fan shroud.
(b) Remove the 3 screws and fan motor.
± ENGINECOOLING SYSTEMEG±355
Page 1107 of 2543

Engine Coolant Temperature (ECT)
Switch
ECT SWITCH INSPECTION
1. REMOVE ENGINE UNDER COVER
2. DRAIN ENGINE COOLANT
3. REMOVE ECT SWITCH
(a) Disconnect the ECT switch connector.
(b) Remove the ECT switch.
(c) Remove the O±ring from the ECT switch.
4. INSPECT ECT SWITCH
(a) Usin g an oh mme te r, ch e ck th a t th e re is no co n tin u ity
between the terminals when the coolant temperature is
above 97°C (207°F).
(b) Using an ohmmeter, check that there is continuity between
the terminals when the coolant temperature is below 88°C
(190°F).
If continuity is not as specified, replace the switch.
5. REINSTALL ECT SWITCH
(a) Install a new O±ring to the ECT switch.
(b) Apply soapy water to the O±ring.
(c) Install the ECT switch.
Torque: 7.4 NVm (75 kgfVcm, 65 in.Vlbf)
(d) Connect the ECT switch connector.
6. REFILL WITH ENGINE COOLANT
7. START ENGINE AND CHECK FOR LEAKS
8. REINSTALL ENGINE UNDER COVER
No.1 Radiator Fan Relay
(ºRADIATOR FAN RELAYº)
RADIATOR FAN RELAY INSPECTION
1. w/ Auto Spoiler:
REMOVE LH HEADLIGHT
2. w/o Auto Spoiler:
REMOVE ENGINE UNDER COVER
3. REMOVE RADIATOR FAN RELAY
4. INSPECT RADIATOR FAN RELAY
A. Inspect relay continuity
(a) Using an ohmmeter, check that there is continuity between
terminals 3 and 4.
(b) Check that there is no continuity between terminals 1 and 2.
If continuity is as specified, replace the relay. EG±356
± ENGINECOOLING SYSTEM
Page 1108 of 2543

B. Inspect relay operation
(a) Apply battery voltage across terminals 3 and 4.
(b) Using an ohmmeter, check that there is continuity between
terminals 1 and 2.
If operation is not as specified, replace the relay.
5. REINSTALL RADIATOR FAN RELAY
6. w/ Auto Spoiler:
REINSTALL LH HEADLIGHT
7. w/o Auto Spoiler:
REINSTALL ENGINE UNDER COVER
No.2 Radiator Fan Relay
(ºA.B.S. (TRAC) RELAYº)
RADIATOR FAN RELAY INSPECTION
1. w/ Auto Spoiler:
REMOVE LH HEADLIGHT
2. w/o Auto Spoiler:
REMOVE ENGINE UNDER COVER
3. REMOVE RADIATOR FAN RELAY
4. INSPECT RADIATOR FAN RELAY
A. Inspect relay continuity
(a) Using an ohmmeter, check that there is continuity between
terminals 1 and 6.
(b) Check that there is continuity between terminals 3 and 5.
(c) Check that there is no continuity between terminals 2 and 5.
If continuity is not as specified, replace the relay.
B. Inspect relay operation
(a) Apply battery voltage across terminals 1 and 6.
(b) Usin g an oh mme te r, ch e ck th a t th e re is no co n tin u ity
between terminals 3 and 5.
(c) Check that there is continuity between terminals 2 and 5.
If operation is not as specified, replace the relay.
5. REINSTALL RADIATOR FAN RELAY
6. w/ Auto Spoiler:
REINSTALL LH HEADLIGHT
7. w/o Auto Spoiler:
REINSTALL ENGINE UNDER COVER
± ENGINECOOLING SYSTEMEG±357
Page 1109 of 2543

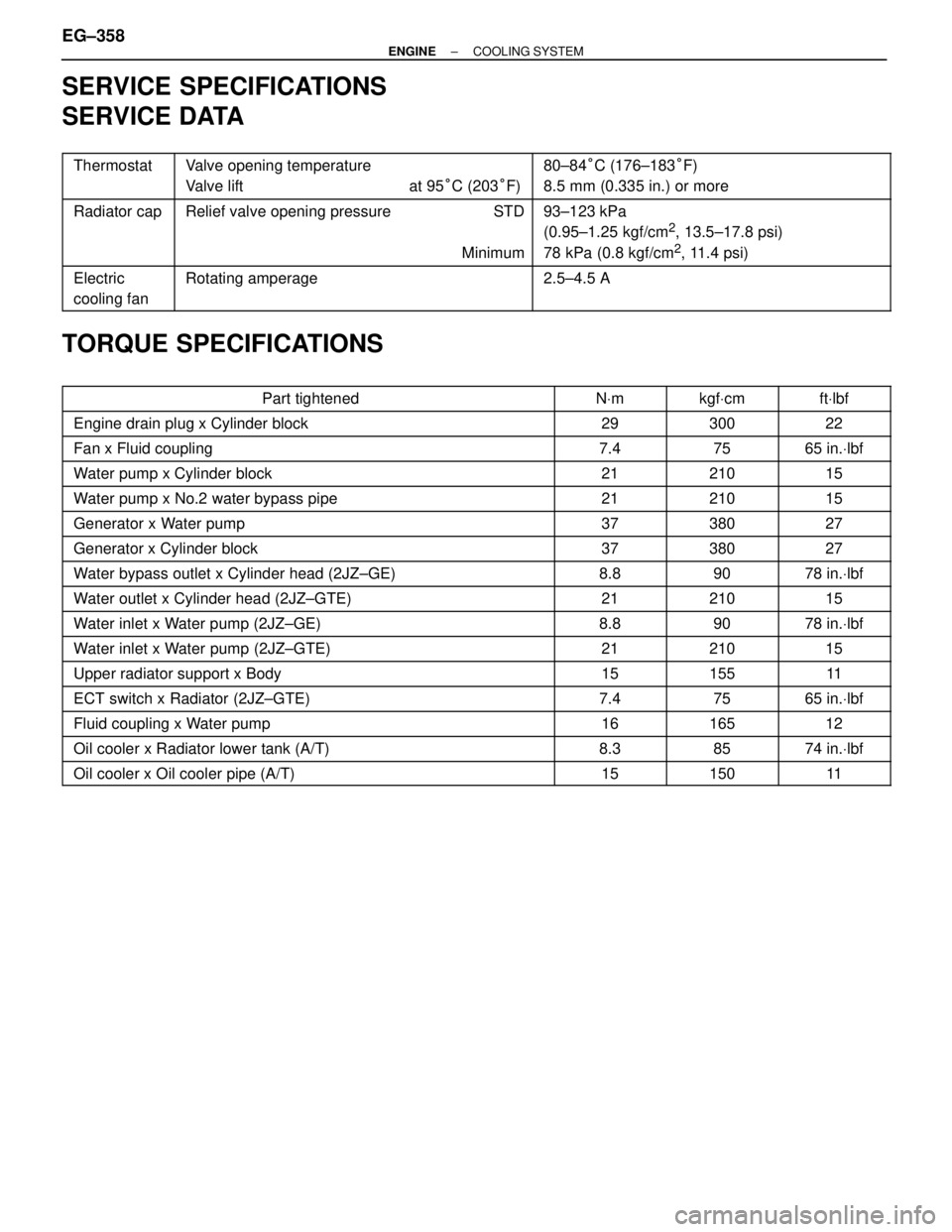

SERVICE SPECIFICATIONS
SERVICE DATA
Thermostat
Valve opening temperature
Valve lift at 95°C (203°F)
80±84°C (176±183°F)
8.5 mm (0.335 in.) or more
Radiator cap
Relief valve opening pressure STD
Minimum
93±123 kPa
(0.95±1.25 kgf/cm2, 13.5±17.8 psi)
78 kPa (0.8 kgf/cm
2, 11.4 psi)
Electric
cooling fan
Rotating amperage
2.5±4.5 A
TORQUE SPECIFICATIONS
Part tightened NVm kgfVcm ftVlbf
Engine drain plug x Cylinder block 29 300 22
Fan x Fluid coupling 7.4 75 65 in.Vlbf
Water pump x Cylinder block 21 210 15
Water pump x No.2 water bypass pipe 21 210 15
Generator x Water pump 37 380 27
Generator x Cylinder block 37 380 27
Water bypass outlet x Cylinder head (2JZ±GE) 8.8 90 78 in.Vlbf
Water outlet x Cylinder head (2JZ±GTE) 21 210 15
Water inlet x Water pump (2JZ±GE) 8.8 90 78 in.Vlbf
Water inlet x Water pump (2JZ±GTE) 21 210 15 Upper radiator support x Body 15 155 11 ECT switch x Radiator (2JZ±GTE) 7.4 75 65 in.Vlbf Fluid coupling x Water pump 16 165 12 Oil cooler x Radiator lower tank (A/T) 8.3 85 74 in.Vlbf Oil cooler x Oil cooler pipe (A/T) 15 150 11
EG±358± ENGINECOOLING SYSTEM
Page 1110 of 2543

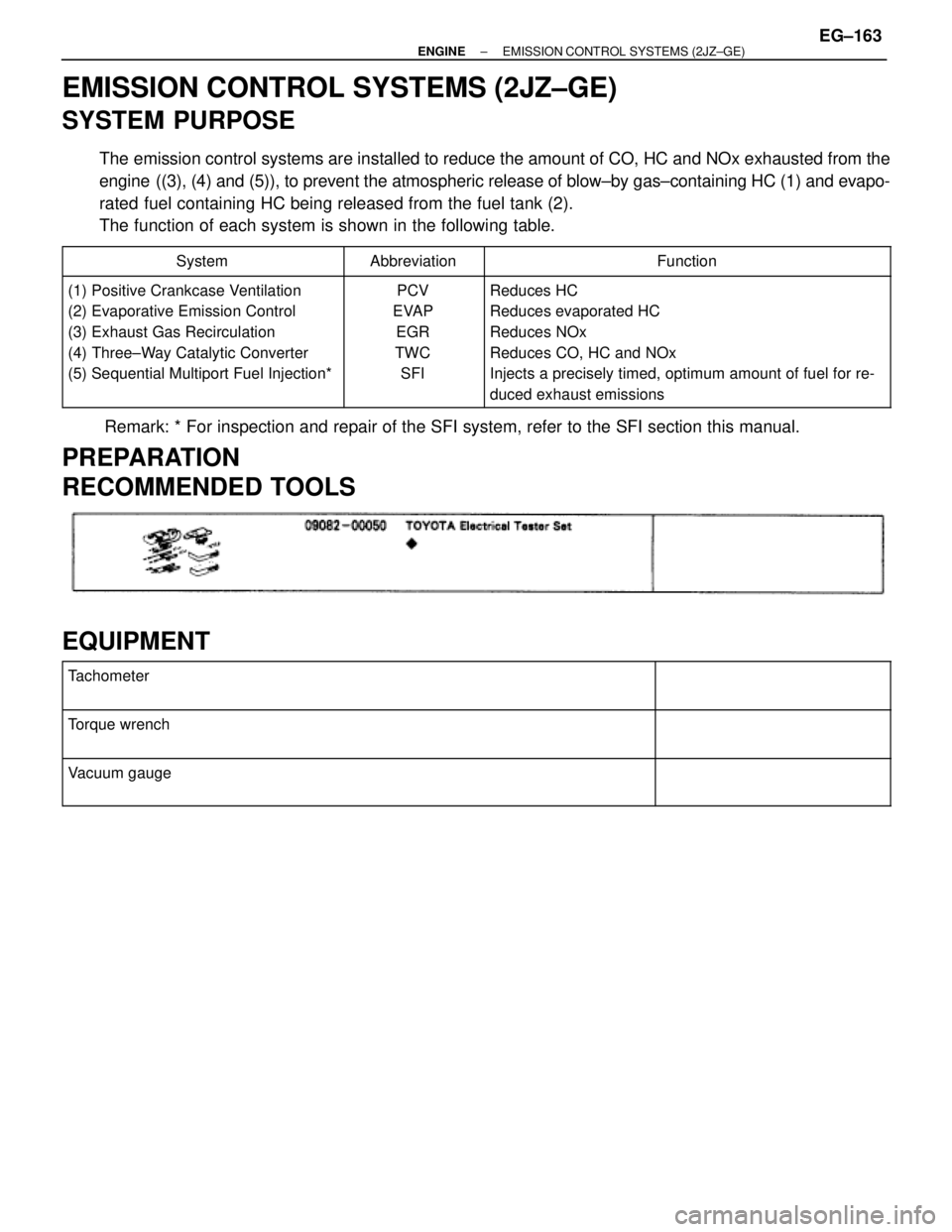

EMISSION CONTROL SYSTEMS (2JZ±GE)
SYSTEM PURPOSE
The emission control systems are installed to reduce the amount of CO, HC and NOx exhausted from the
engine ((3), (4) and (5)), to prevent the atmospheric release of blow±by gas±containing HC (1) and evapo-
rated fuel containing HC being released from the fuel tank (2).
The function of each system is shown in the following table.
System Abbreviation Function
(1) Positive Crankcase Ventilation
(2) Evaporative Emission Control
(3) Exhaust Gas Recirculation
(4) Three±Way Catalytic Converter
(5) Sequential Multiport Fuel Injection*
PCV
EVAP
EGR
TWC
SFI
Reduces HC
Reduces evaporated HC
Reduces NOx
Reduces CO, HC and NOx
Injects a precisely timed, optimum amount of fuel for re-
duced exhaust emissions
Remark: * For inspection and repair of the SFI system, refer to the SFI section this manual.
PREPARATION
RECOMMENDED TOOLS
09082±00050 TOYOTA Electrical Tester Set
EQUIPMENT
Tachometer
Torque wrench
Vacuum gauge
± ENGINEEMISSION CONTROL SYSTEMS (2JZ±GE)EG±163
Page 1111 of 2543
EMISSION CONTROL SYSTEMS (2JZ±GE)
SYSTEM PURPOSE
The emission control systems are installed to reduce the amount of CO, HC and NOx exhausted from the
engine ((3), (4) and (5)), to prevent the atmospheric release of blow±by gas±containing HC (1) and evapo-
rated fuel containing HC being released from the fuel tank (2).
The function of each system is shown in the following table.
System Abbreviation Function
(1) Positive Crankcase Ventilation
(2) Evaporative Emission Control
(3) Exhaust Gas Recirculation
(4) Three±Way Catalytic Converter
(5) Sequential Multiport Fuel Injection*
PCV
EVAP
EGR
TWC
SFI
Reduces HC
Reduces evaporated HC
Reduces NOx
Reduces CO, HC and NOx
Injects a precisely timed, optimum amount of fuel for re-
duced exhaust emissions
Remark: * For inspection and repair of the SFI system, refer to the SFI section this manual.
PREPARATION
RECOMMENDED TOOLS
EQUIPMENT
Tachometer
Torque wrench
Vacuum gauge
± ENGINEEMISSION CONTROL SYSTEMS (2JZ±GE)EG±163
Page 1112 of 2543

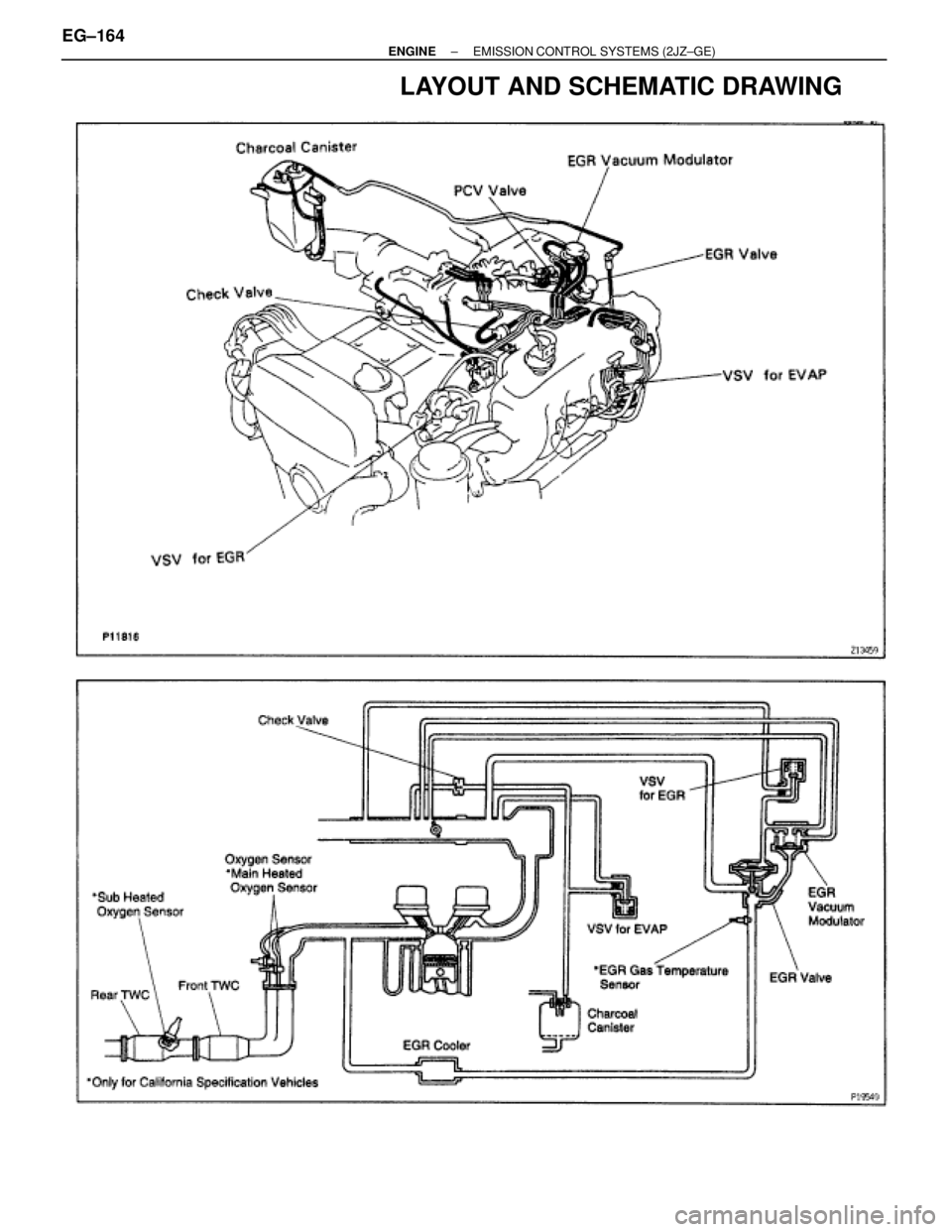

LAYOUT AND SCHEMATIC DRAWING
EG±164± ENGINEEMISSION CONTROL SYSTEMS (2JZ±GE)
