Page 57 of 2543
INSPECTION PROCEDURE

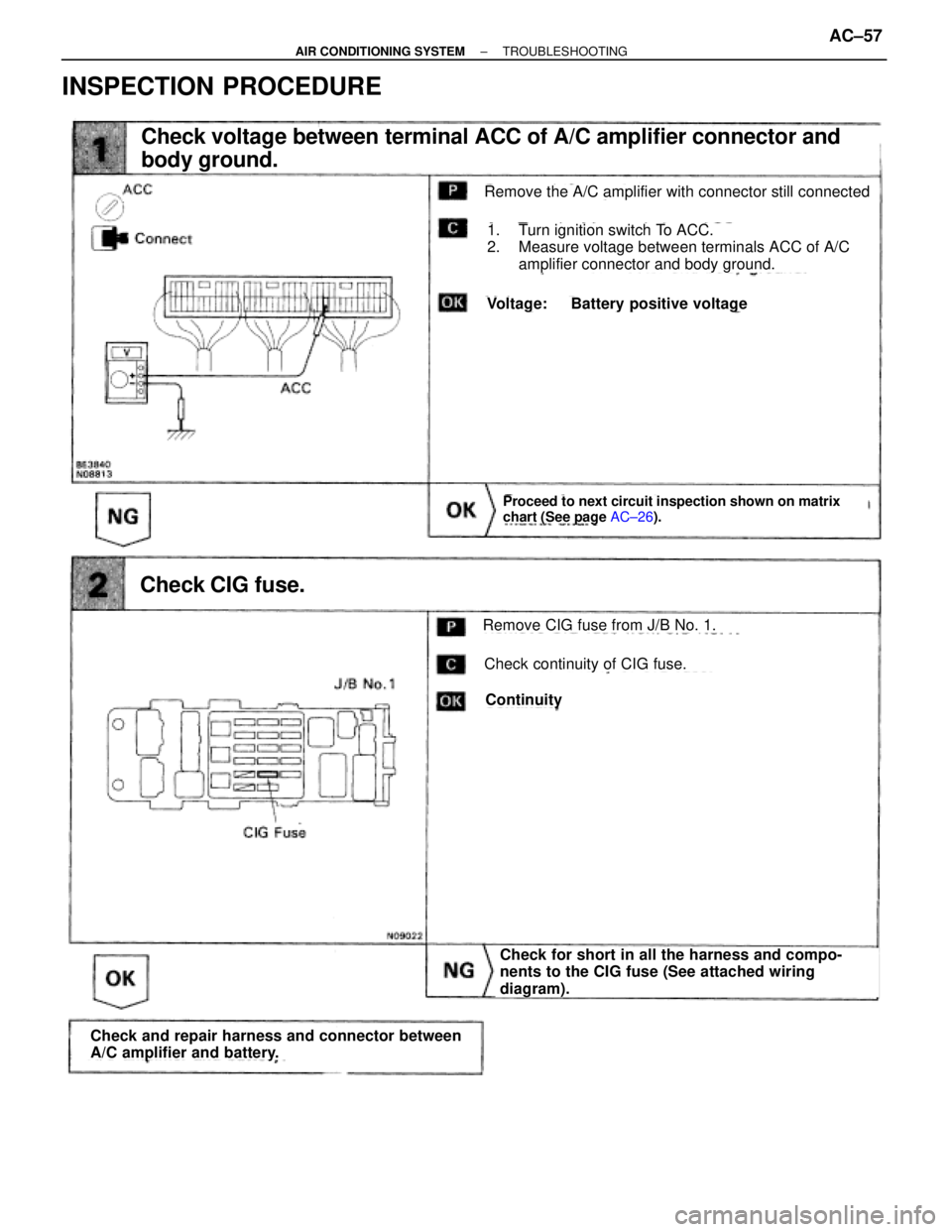

Check voltage between terminal ACC of A/C amplifier connector and
body ground.
Remove the A/C amplifier with connector still connected
Voltage: Battery positive voltage
1. Turn ignition switch To ACC.
2. Measure voltage between terminals ACC of A/C
amplifier connector and body ground.
Remove CIG fuse from J/B No. 1.
Check continuity of CIG fuse.
Continuity
Proceed to next circuit inspection shown on matrix
chart (See page AC±26).
Check CIG fuse.
Check for short in all the harness and compo-
nents to the CIG fuse (See attached wiring
diagram).
Check and repair harness and connector between
A/C amplifier and battery.
± AIR CONDITIONING SYSTEMTROUBLESHOOTINGAC±57
Page 58 of 2543

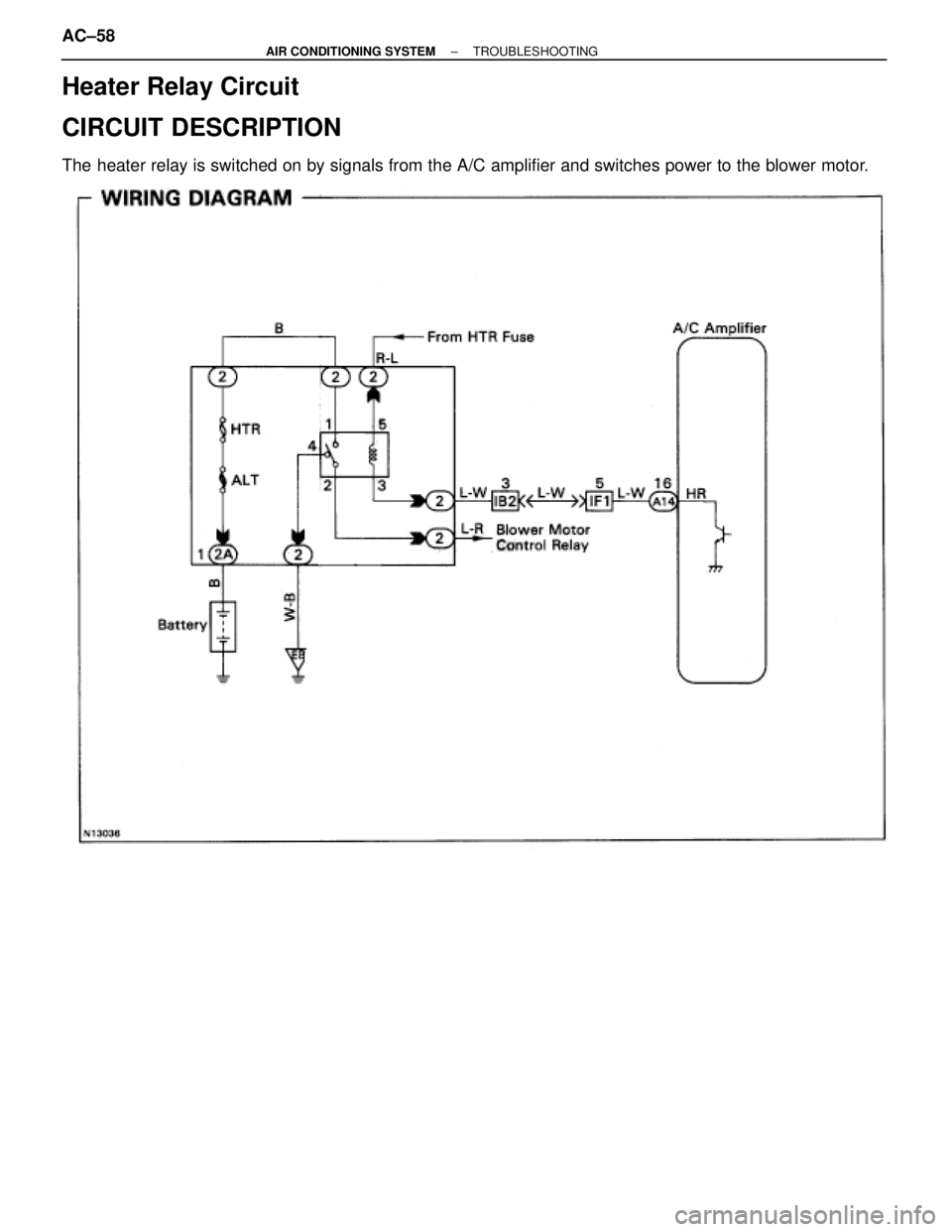

Heater Relay Circuit
CIRCUIT DESCRIPTION
The heater relay is switched on by signals from the A/C amplifier and switches power to the blower motor.
AC±58± AIR CONDITIONING SYSTEMTROUBLESHOOTING
Page 59 of 2543

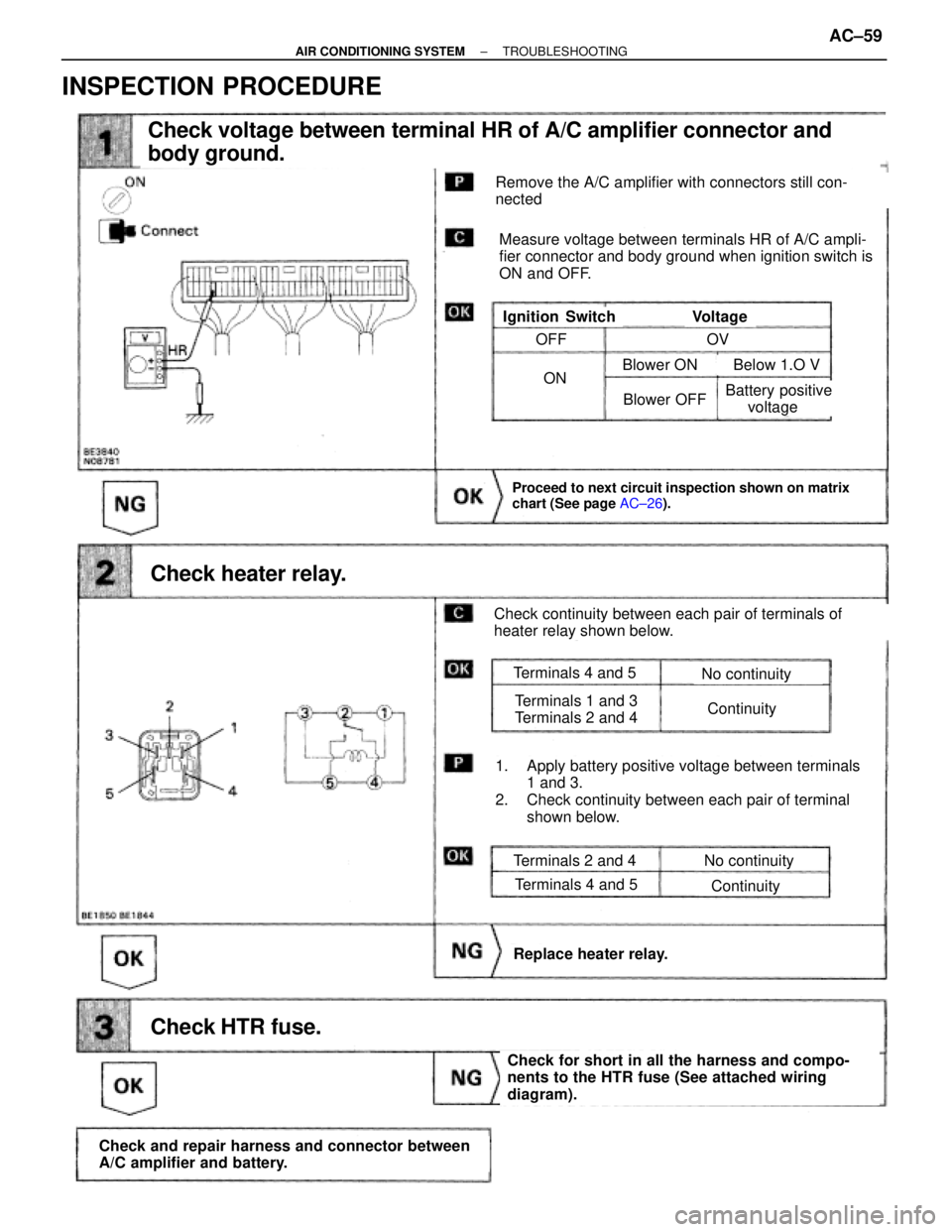

Check voltage between terminal HR of A/C amplifier connector and
body ground.
Check heater relay.
Proceed to next circuit inspection shown on matrix
chart (See page AC±26).
Check HTR fuse.
Check and repair harness and connector between
A/C amplifier and battery.
Check for short in all the harness and compo-
nents to the HTR fuse (See attached wiring
diagram).
Replace heater relay.
Remove the A/C amplifier with connectors still con-
nected
Measure voltage between terminals HR of A/C ampli-
fier connector and body ground when ignition switch is
ON and OFF.
VoltageIgnition Switch
Check continuity between each pair of terminals of
heater relay shown below.
1. Apply battery positive voltage between terminals
1 and 3.
2. Check continuity between each pair of terminal
shown below.
Terminals 2 and 4
Terminals 4 and 5
No continuity
Continuity
Terminals 4 and 5
Terminals 1 and 3
Terminals 2 and 4
No continuity
Continuity
OFF
ON
OV
Blower OFF
Blower ON Below 1.O V
Battery positive
voltage
INSPECTION PROCEDURE
± AIR CONDITIONING SYSTEMTROUBLESHOOTINGAC±59
Page 60 of 2543

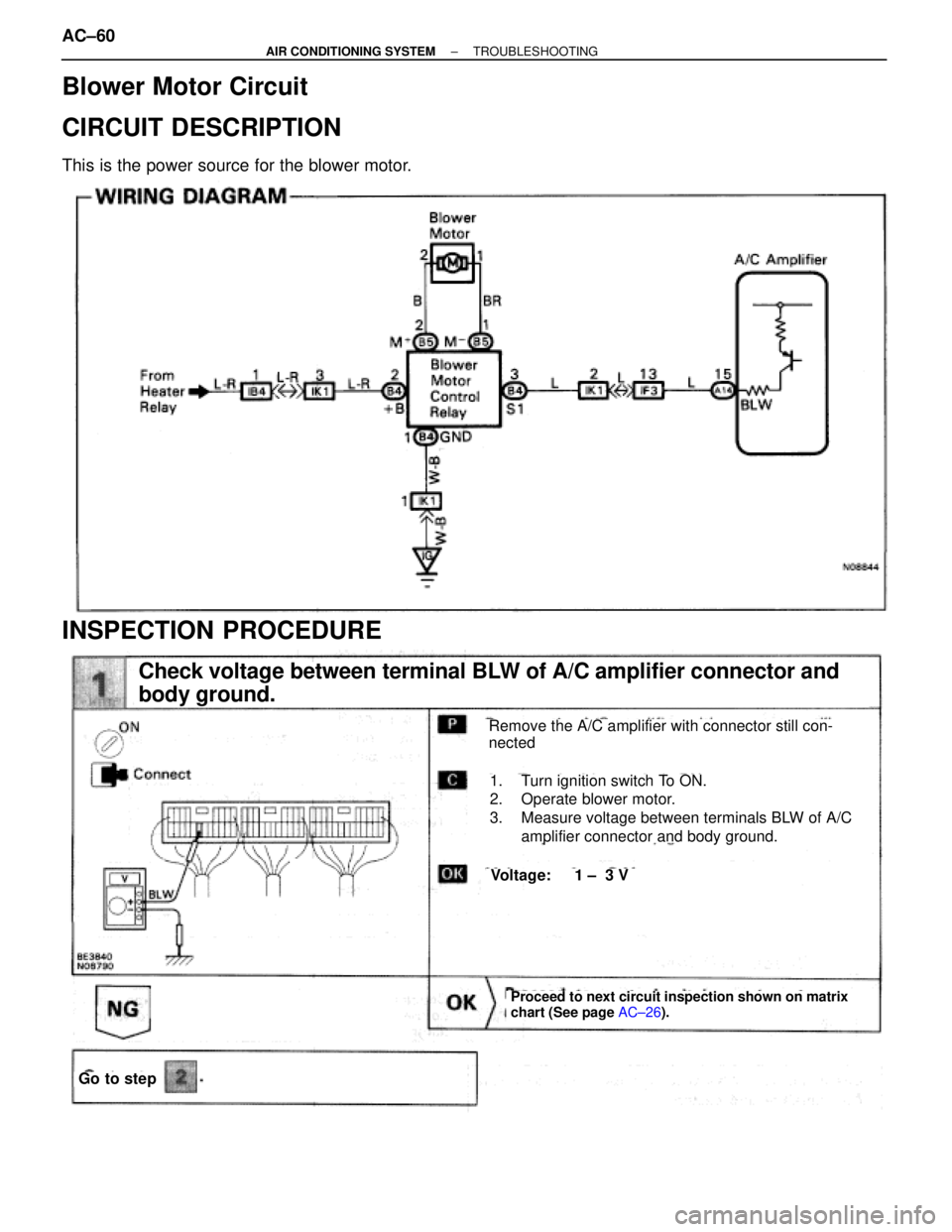

Blower Motor Circuit
CIRCUIT DESCRIPTION
This is the power source for the blower motor.
INSPECTION PROCEDURE
Check voltage between terminal BLW of A/C amplifier connector and
body ground.
Proceed to next circuit inspection shown on matrix
chart (See page AC±26).
Go to step
Remove the A/C amplifier with connector still con-
nected
Voltage: 1 ± 3 V
1. Turn ignition switch To ON.
2. Operate blower motor.
3. Measure voltage between terminals BLW of A/C
amplifier connector and body ground.
AC±60± AIR CONDITIONING SYSTEMTROUBLESHOOTING
Page 61 of 2543
(See page AC±99).

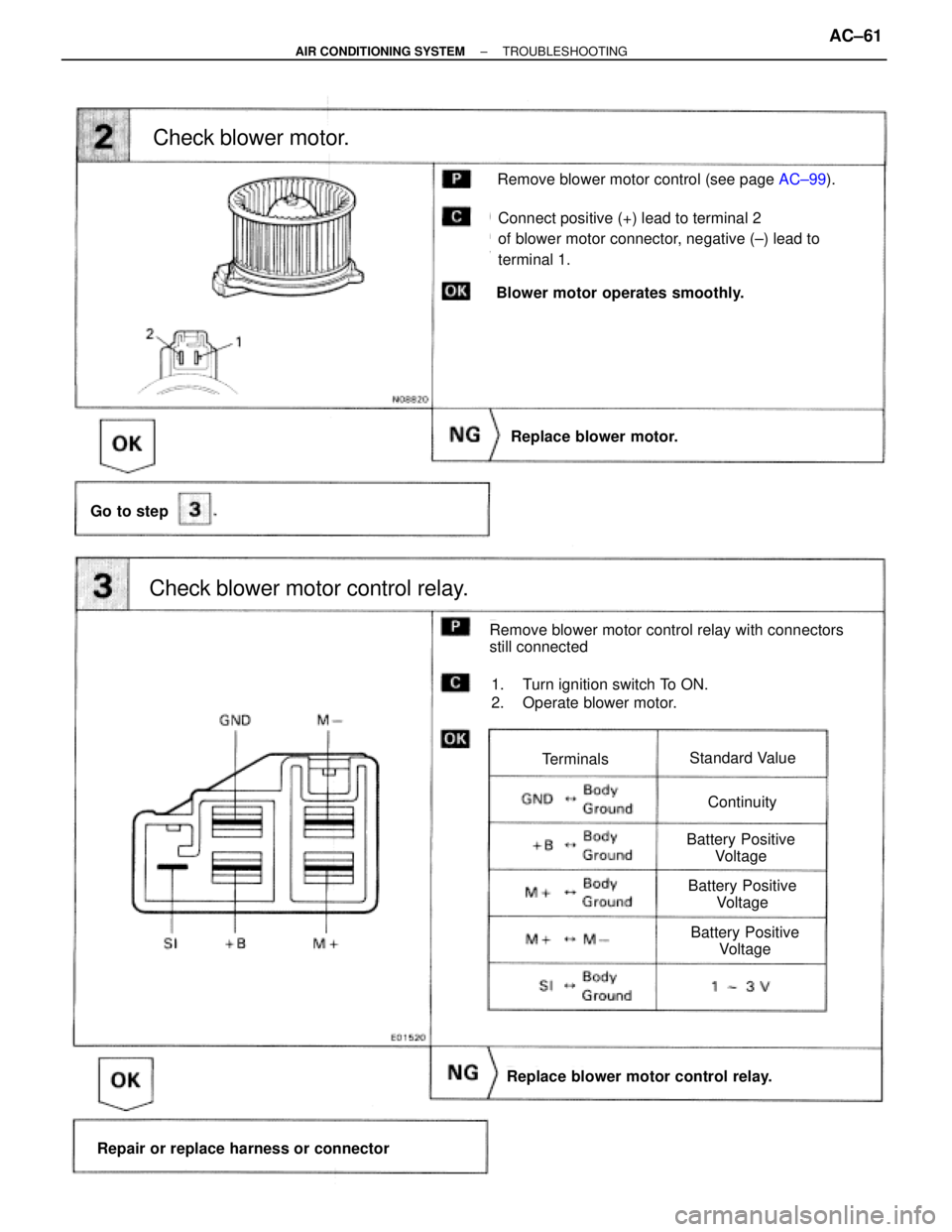

Check blower motor.
Go to step
Replace blower motor.
Check blower motor control relay.
Replace blower motor control relay.
Repair or replace harness or connector
Remove blower motor control relay with connectors
still connected
1. Turn ignition switch To ON.
2. Operate blower motor.
TerminalsStandard Value
Continuity
Battery Positive
Voltage
Battery Positive
Voltage
Battery Positive
Voltage
Connect positive (+) lead to terminal 2
of blower motor connector, negative (±) lead to
terminal 1.
Remove blower motor control (see page AC±99).
Blower motor operates smoothly.
± AIR CONDITIONING SYSTEMTROUBLESHOOTINGAC±61
Page 62 of 2543

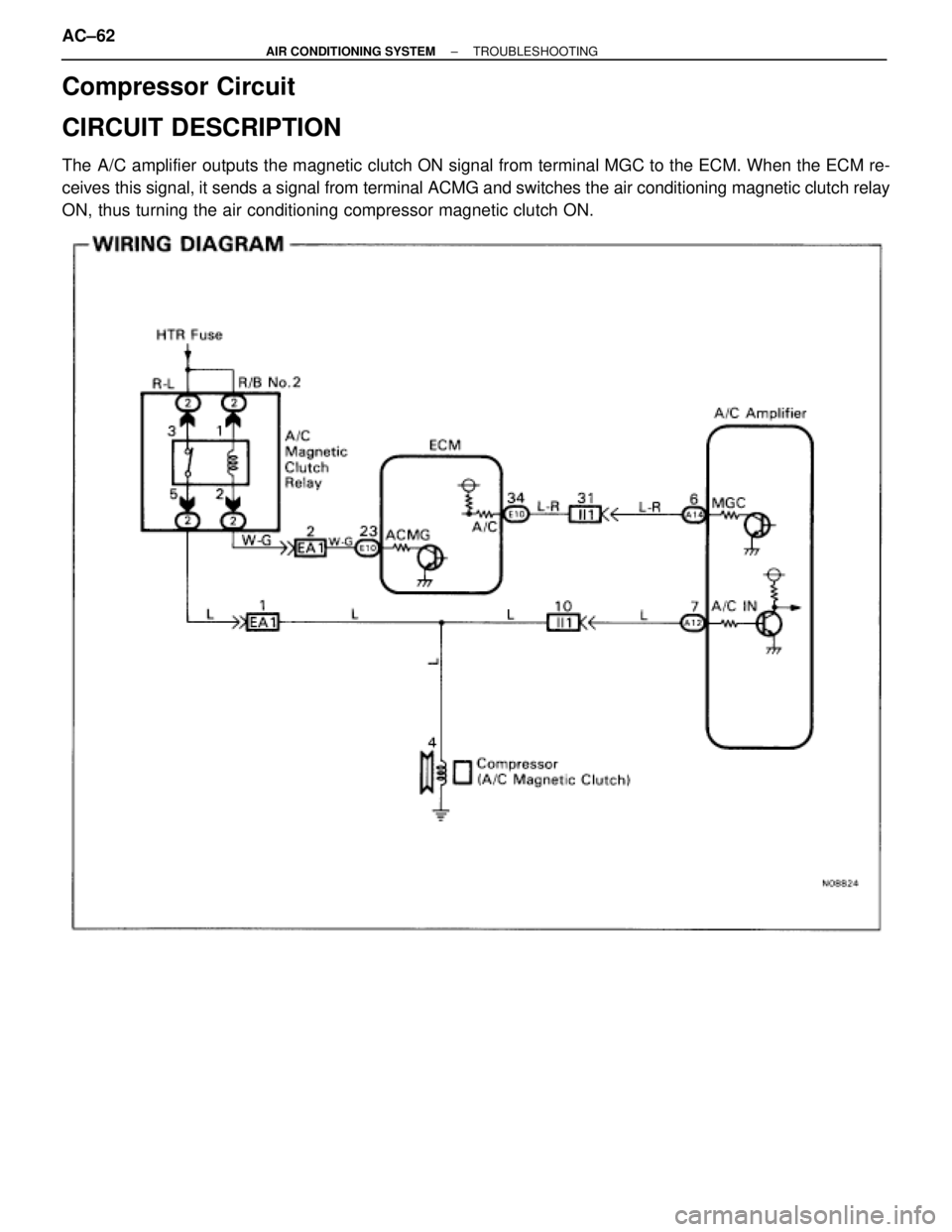

Compressor Circuit
CIRCUIT DESCRIPTION
The A/C amplifier outputs the magnetic clutch ON signal from terminal MGC to the ECM. When the ECM re-
ceives this signal, it sends a signal from terminal ACMG and switches the air conditioning magnetic clutch relay
ON, thus turning the air conditioning compressor magnetic clutch ON.
AC±62± AIR CONDITIONING SYSTEMTROUBLESHOOTING
Page 63 of 2543

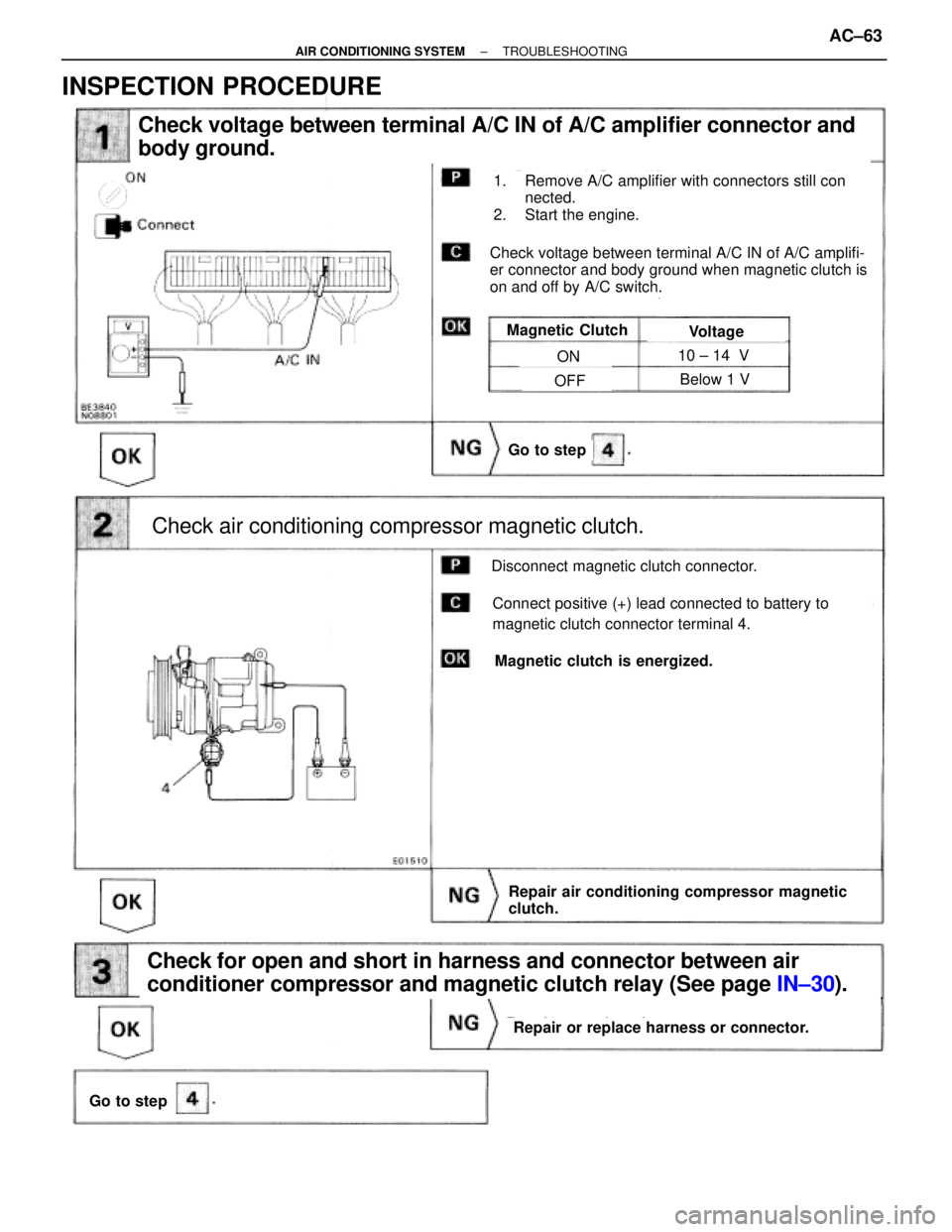

Check voltage between terminal A/C IN of A/C amplifier connector and
body ground.
Check air conditioning compressor magnetic clutch.
Go to step
Check for open and short in harness and connector between air
conditioner compressor and magnetic clutch relay (See page IN±30).
Repair or replace harness or connector.
Go to step
1. Remove A/C amplifier with connectors still con
nected.
2. Start the engine.
Check voltage between terminal A/C IN of A/C amplifi-
er connector and body ground when magnetic clutch is
on and off by A/C switch.
Magnetic ClutchVoltage
ON
OFF Below 1 V
Connect positive (+) lead connected to battery to
magnetic clutch connector terminal 4.
Disconnect magnetic clutch connector.
Magnetic clutch is energized.
Repair air conditioning compressor magnetic
clutch.
10 ± 14 V
INSPECTION PROCEDURE
± AIR CONDITIONING SYSTEMTROUBLESHOOTINGAC±63
Page 64 of 2543
Go to step
Check and replace ECM.
Check voltage between terminal A/C of ECM and body ground.

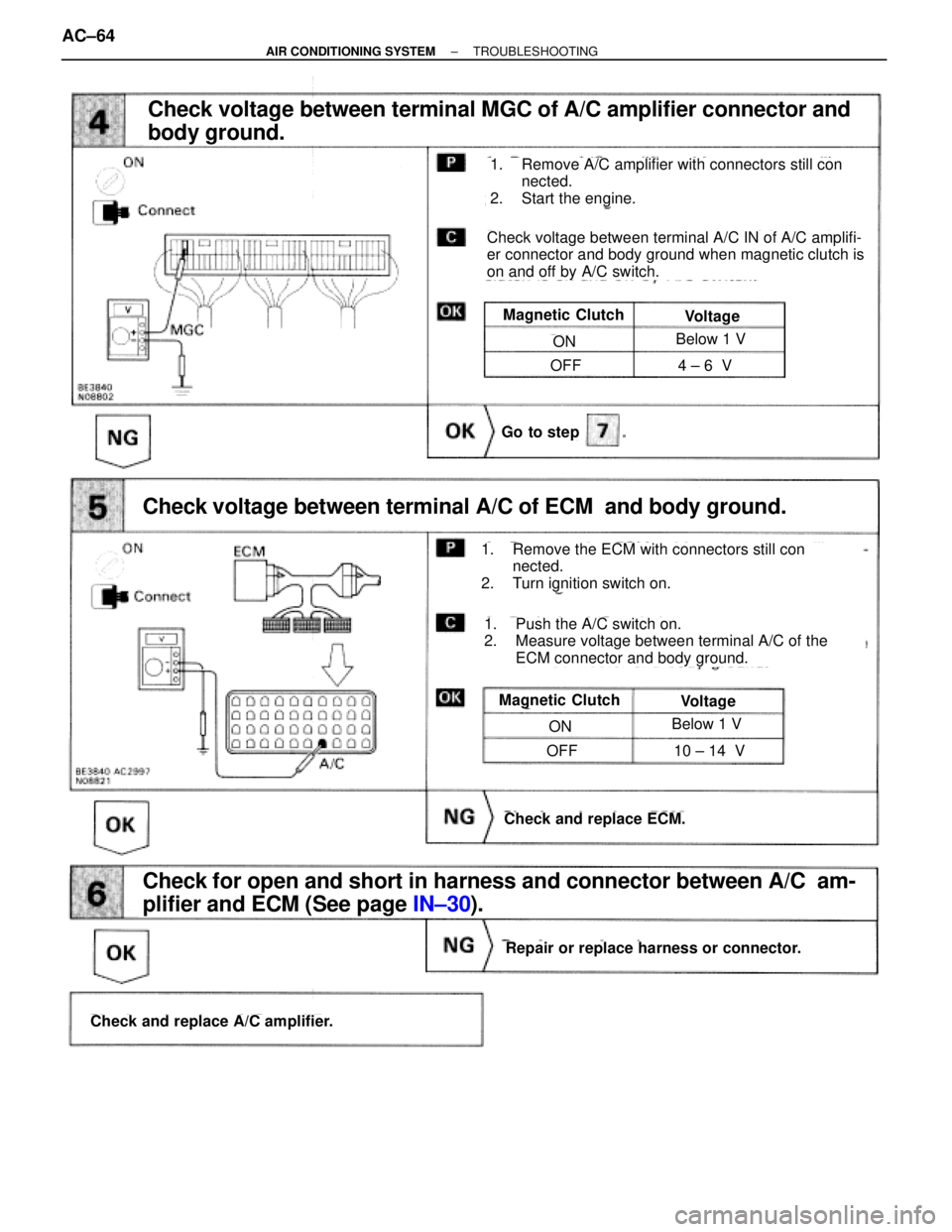

Check voltage between terminal MGC of A/C amplifier connector and
body ground.
Magnetic ClutchVoltage
ON
OFF
Below 1 V
4 ± 6 V
1. Remove A/C amplifier with connectors still con
nected.
2. Start the engine.
Check voltage between terminal A/C IN of A/C amplifi-
er connector and body ground when magnetic clutch is
on and off by A/C switch.
1. Remove the ECM with connectors still con
nected.
2. Turn ignition switch on.
Magnetic ClutchVoltage
ON
OFF
Below 1 V
10 ± 14 V
Check and replace A/C amplifier.
Repair or replace harness or connector.
Check for open and short in harness and connector between A/C am-
plifier and ECM (See page IN±30).
1. Push the A/C switch on.
2. Measure voltage between terminal A/C of the
ECM connector and body ground.
AC±64± AIR CONDITIONING SYSTEMTROUBLESHOOTING
