TC Circuit
CIRCUIT DESCRIPTION
This circuit sends a signal to the ECU that diagnostic code output is required.

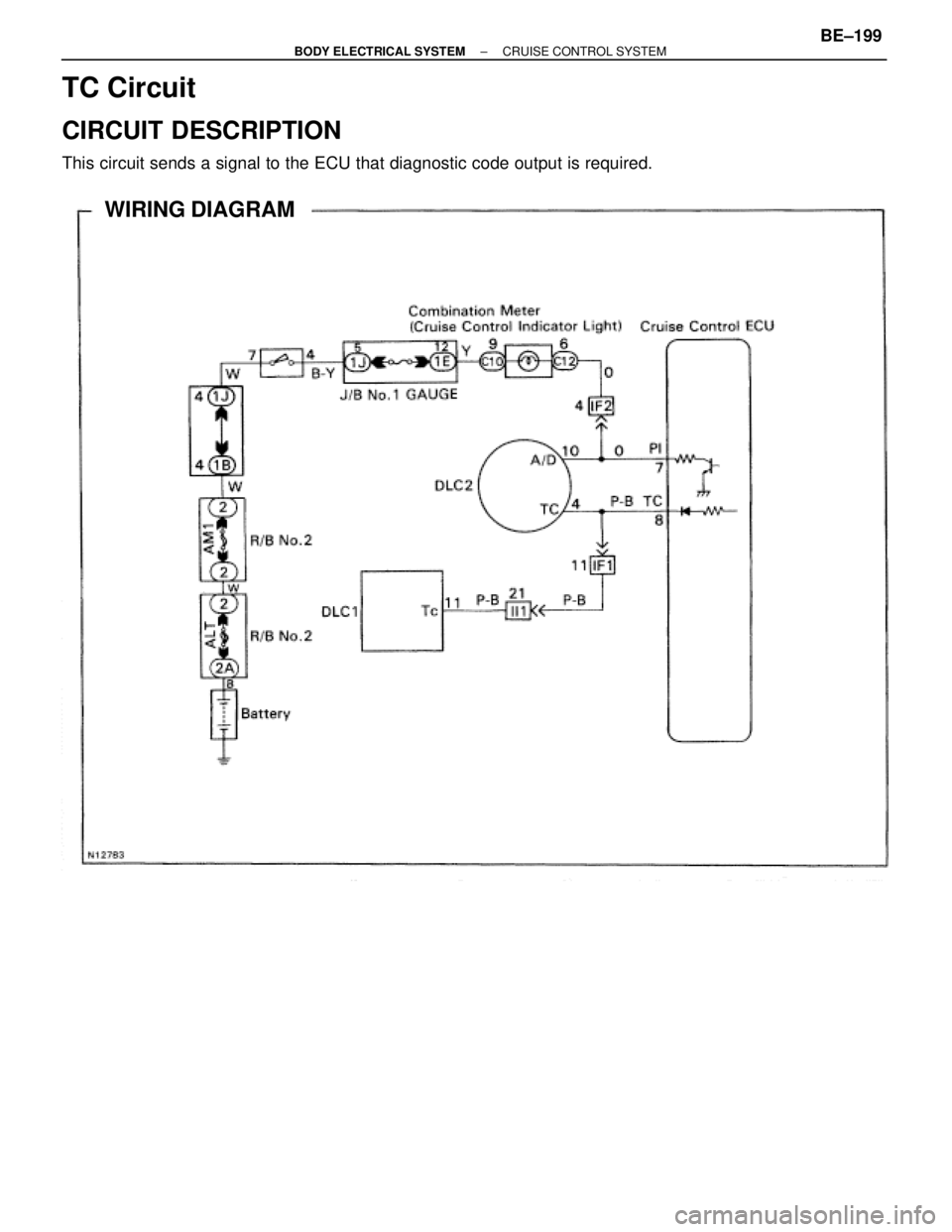

WIRING DIAGRAM
± BODY ELECTRICAL SYSTEMCRUISE CONTROL SYSTEMBE±199
Page 802 of 2543
INSPECTION PROCEDURE
Check for open and short in harness and connector between ECU and TDCL,
TDCL and body ground. (See page IN±30).
Repair or replace harness or connector.
Check and replace ECU.
Voltage: 10 ± 14 V
Proceed to next circuit inspection shown on matrix
chart (See page
BE±170).

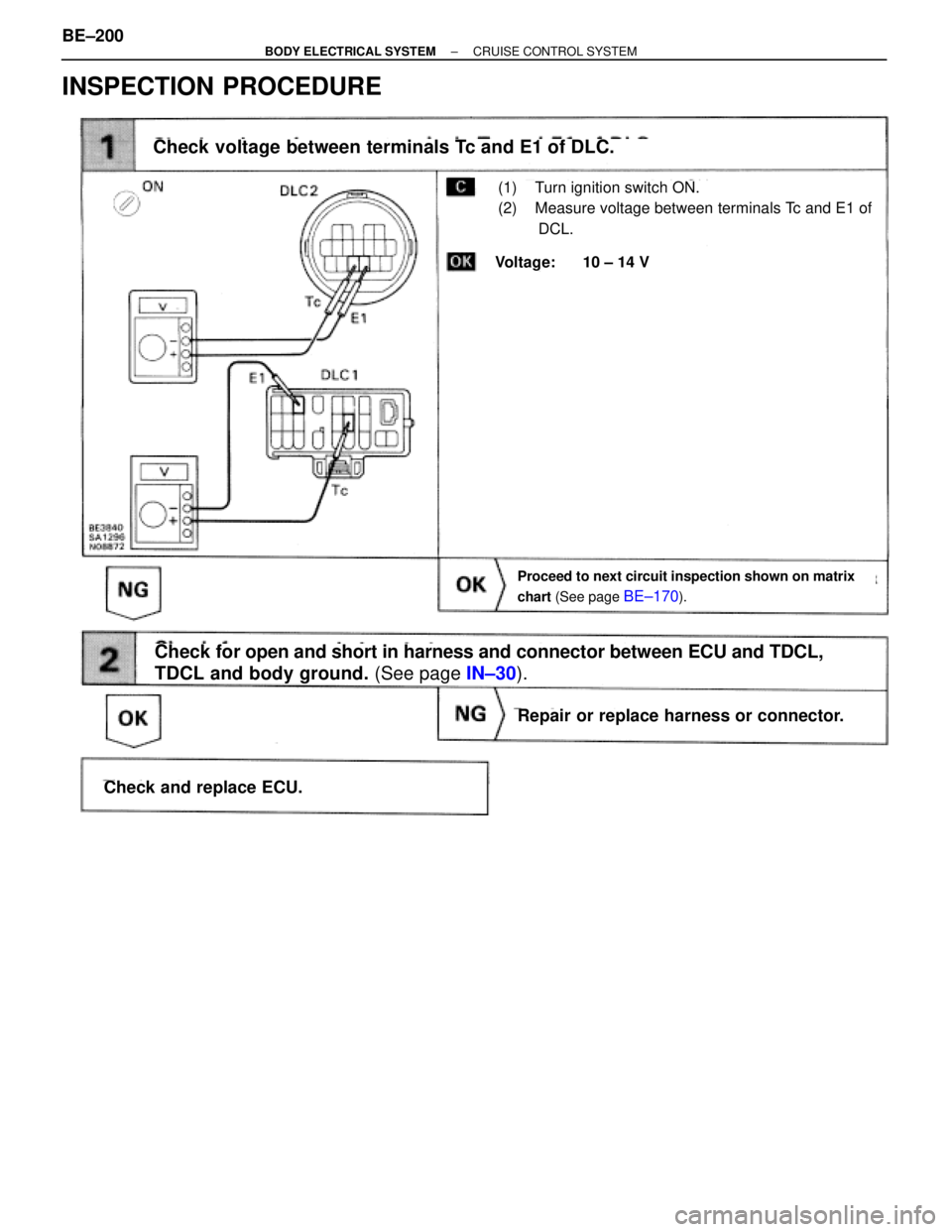

(1) Turn ignition switch ON.
(2) Measure voltage between terminals Tc and E1 of
DCL.
Check voltage between terminals Tc and E1 of DLC.
BE±200± BODY ELECTRICAL SYSTEMCRUISE CONTROL SYSTEM
Page 803 of 2543

SERVICE SPECIFICATIONS
SERVICE DATA

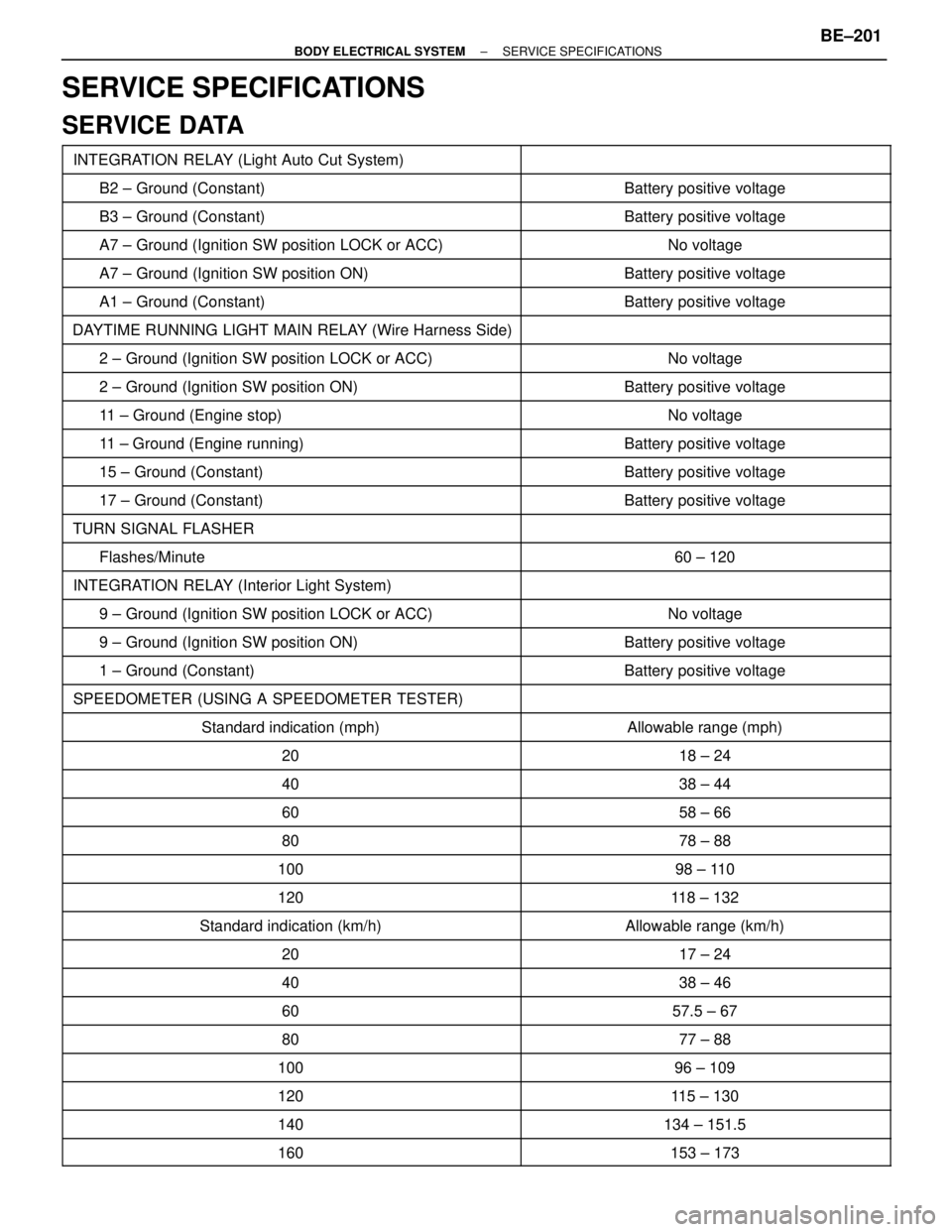

INTEGRATION RELAY (Light Auto Cut System)
B2 ± Ground (Constant) Battery positive voltage
B3 ± Ground (Constant) Battery positive voltage
A7 ± Ground (Ignition SW position LOCK or ACC) No voltage
A7 ± Ground (Ignition SW position ON)
Battery positive voltage
A1 ± Ground (Constant)
Battery positive voltage
DAYTIME RUNNING LIGHT MAIN RELAY (Wire Harness Side)
2 ± Ground (Ignition SW position LOCK or ACC) No voltage
2 ± Ground (Ignition SW position ON) Battery positive voltage 11 ± Ground (Engine stop) No voltage
11 ± Ground (Engine running)
Battery positive voltage
15 ± Ground (Constant) Battery positive voltage
17 ± Ground (Constant) Battery positive voltage
TURN SIGNAL FLASHER
Flashes/Minute 60 ± 120
INTEGRATION RELAY (Interior Light System)
9 ± Ground (Ignition SW position LOCK or ACC) No voltage
9 ± Ground (Ignition SW position ON) Battery positive voltage
1 ± Ground (Constant) Battery positive voltage
SPEEDOMETER (USING A SPEEDOMETER TESTER)
Standard indication (mph)
Allowable range (mph)
20
18 ± 24
40 38 ± 44
60 58 ± 66
80 78 ± 88 100 98 ± 110
120
118 ± 132
Standard indication (km/h) Allowable range (km/h)
20 17 ± 24
40 38 ± 46
60 57.5 ± 67
80
77 ± 88
100 96 ± 109
120 115 ± 130
140 134 ± 151.5
160 153 ± 173
± BODY ELECTRICAL SYSTEMSERVICE SPECIFICATIONSBE±201
Page 804 of 2543

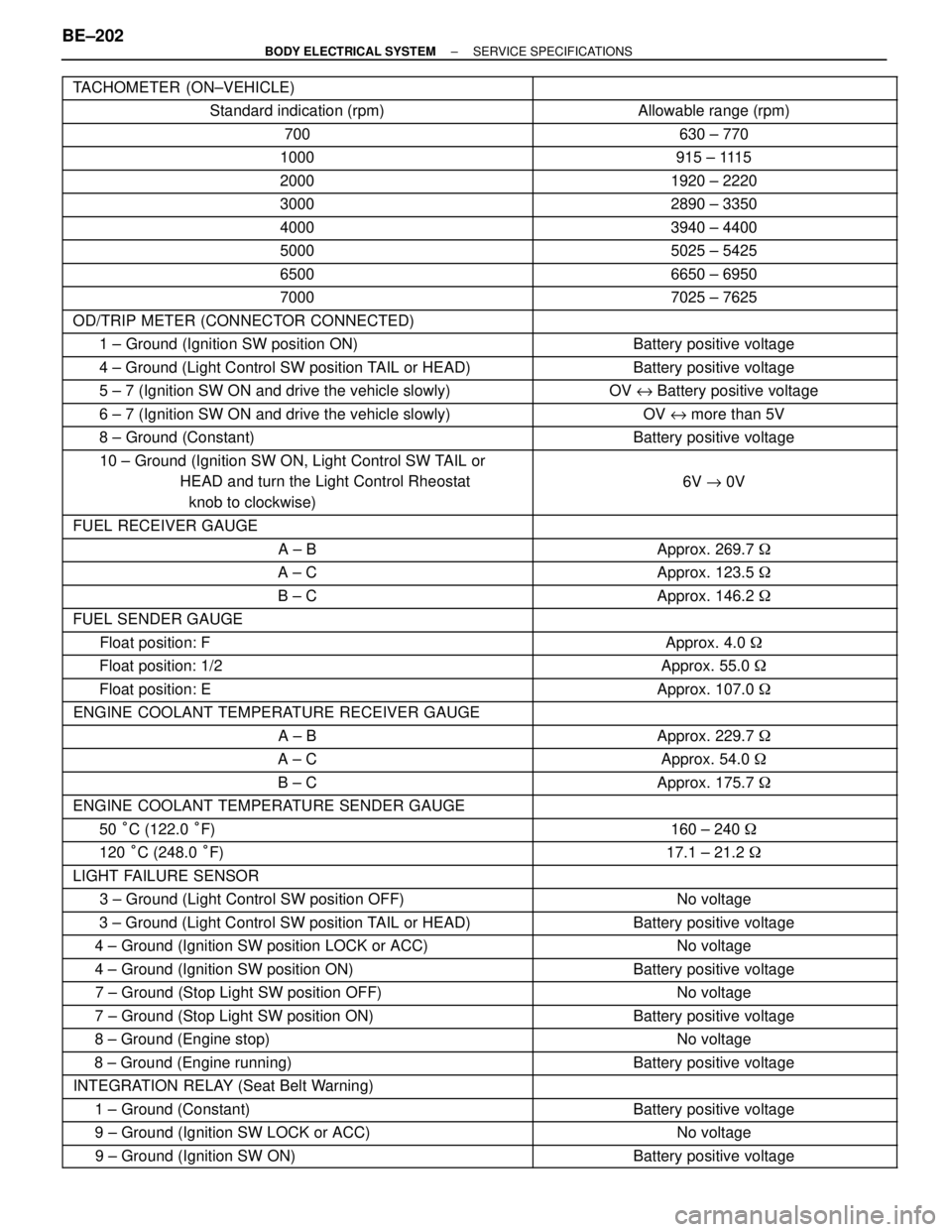

TACHOMETER (ON±VEHICLE)
Standard indication (rpm) Allowable range (rpm)
700 630 ± 770
1000 915 ± 1115
2000 1920 ± 2220
3000 2890 ± 3350
4000 3940 ± 4400
50005025 ± 5425
6500
6650 ± 6950
7000
7025 ± 7625 OD/TRIP METER (CONNECTOR CONNECTED)
1 ± Ground (Ignition SW position ON) Battery positive voltage 4 ± Ground (Light Control SW position TAIL or HEAD) Battery positive voltage 5 ± 7 (Ignition SW ON and drive the vehicle slowly) OV eBattery positive voltage 6 ± 7 (Ignition SW ON and drive the vehicle slowly) OV emore than 5V 8 ± Ground (Constant) Battery positive voltage
10 ± Ground (Ignition SW ON, Light Control SW TAIL or
HEAD and turn the Light Control Rheostat
knob to clockwise)
6V " 0V
FUEL RECEIVER GAUGE
A ± B Approx. 269.7
A ± C Approx. 123.5
B ± C Approx. 146.2
FUEL SENDER GAUGE
Float position: F Approx. 4.0
Float position: 1/2 Approx. 55.0
Float position: E Approx. 107.0
ENGINE COOLANT TEMPERATURE RECEIVER GAUGE
A ± B Approx. 229.7
A ± C Approx. 54.0
B ± C Approx. 175.7
ENGINE COOLANT TEMPERATURE SENDER GAUGE
50 °C (122.0 °F) 160 ± 240
120 °C (248.0 °F) 17.1 ± 21.2
LIGHT FAILURE SENSOR
3 ± Ground (Light Control SW position OFF) No voltage
3 ± Ground (Light Control SW position TAIL or HEAD) Battery positive voltage
4 ± Ground (Ignition SW position LOCK or ACC) No voltage
4 ± Ground (Ignition SW position ON) Battery positive voltage
7 ± Ground (Stop Light SW position OFF) No voltage
7 ± Ground (Stop Light SW position ON) Battery positive voltage
8 ± Ground (Engine stop)No voltage
8 ± Ground (Engine running)
Battery positive voltage
INTEGRATION RELAY (Seat Belt Warning)
1 ± Ground (Constant) Battery positive voltage 9 ± Ground (Ignition SW LOCK or ACC) No voltage 9 ± Ground (Ignition SW ON) Battery positive voltage
BE±202± BODY ELECTRICAL SYSTEMSERVICE SPECIFICATIONS
Page 805 of 2543
ANTENNA MOTOR CONTROL RELAY (Wire Harness Side)
1 ± Ground (Constant) Battery positive voltage
4 ± Ground (Ignition SW position ON) Battery positive voltage
5 ± Ground (Ignition SW position ACC or ON)
Battery positive voltage
7 ± Ground (Ignition SW position ACC or ON and radio SW ON) Battery positive voltage
8 ± Ground (Ignition SW position ACC or ON) Battery positive voltage
± BODY ELECTRICAL SYSTEMSERVICE SPECIFICATIONSBE±203
Page 806 of 2543
Page 807 of 2543

GENERAL INFORMATION
HANDLING PRECAUTIONS

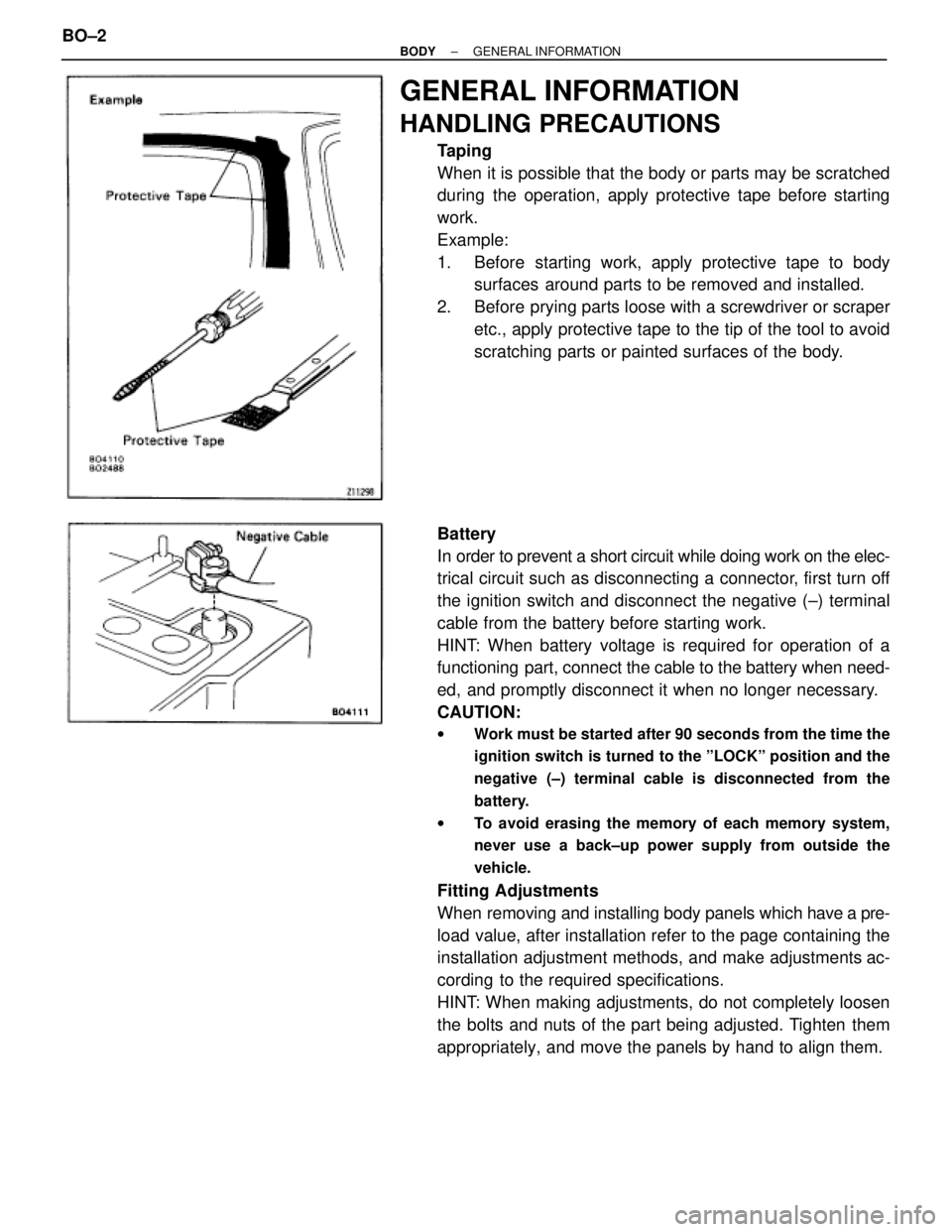

Taping
When it is possible that the body or parts may be scratched
during the operation, apply protective tape before starting
work.
Example:
1. Before starting work, apply protective tape to body
surfaces around parts to be removed and installed.
2. Before prying parts loose with a screwdriver or scraper
etc., apply protective tape to the tip of the tool to avoid
scratching parts or painted surfaces of the body.
Battery
In order to prevent a short circuit while doing work on the elec-
trical circuit such as disconnecting a connector, first turn off
the ignition switch and disconnect the negative (±) terminal
cable from the battery before starting work.
HINT: When battery voltage is required for operation of a
functioning part, connect the cable to the battery when need-
ed, and promptly disconnect it when no longer necessary.
CAUTION:
wWork must be started after 90 seconds from the time the
ignition switch is turned to the ºLOCKº position and the
negative (±) terminal cable is disconnected from the
battery.
wTo avoid erasing the memory of each memory system,
never use a back±up power supply from outside the
vehicle.
Fitting Adjustments
When removing and installing body panels which have a pre-
load value, after installation refer to the page containing the
installation adjustment methods, and make adjustments ac-
cording to the required specifications.
HINT: When making adjustments, do not completely loosen
the bolts and nuts of the part being adjusted. Tighten them
appropriately, and move the panels by hand to align them. BO±2
± BODYGENERAL INFORMATION
Page 808 of 2543
CLIPS

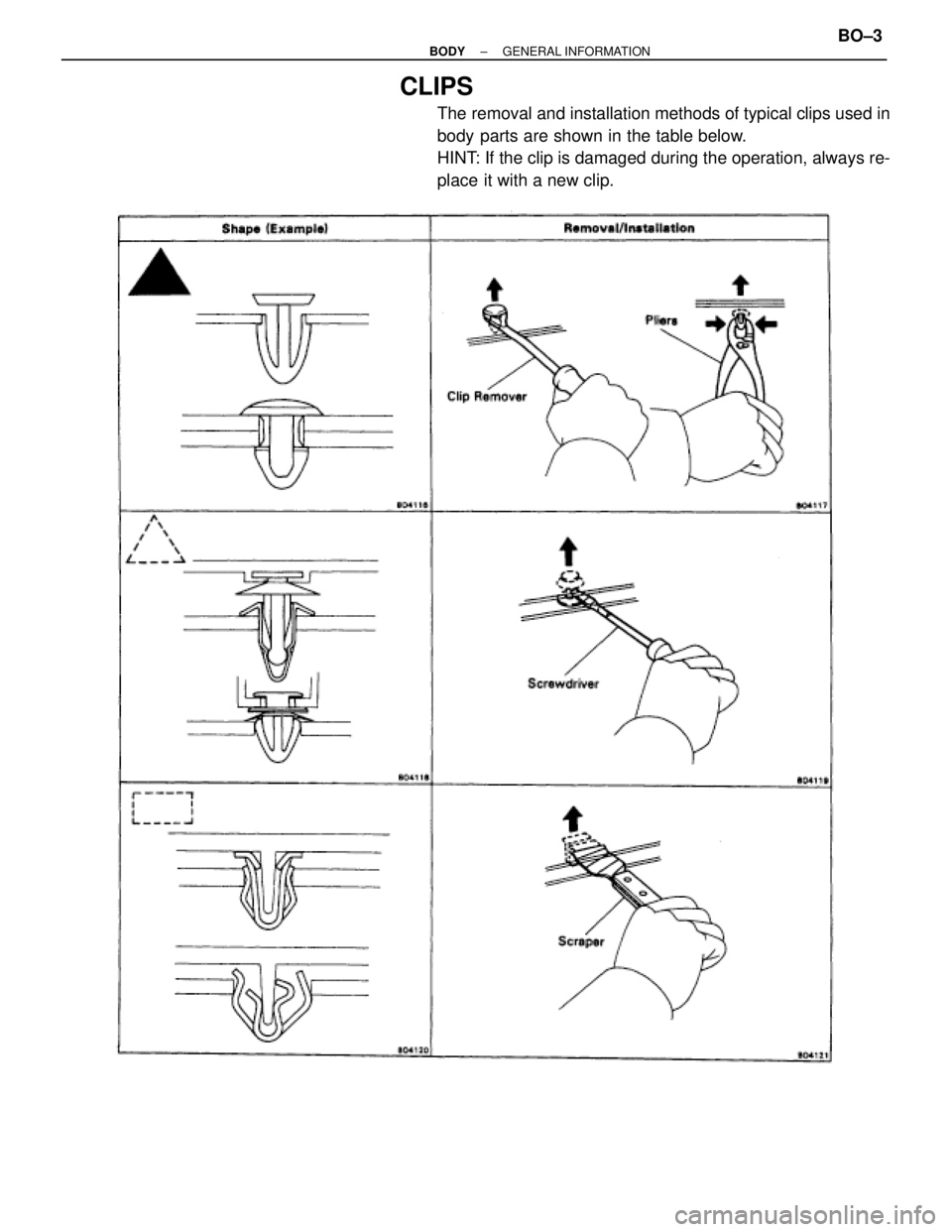

The removal and installation methods of typical clips used in
body parts are shown in the table below.
HINT: If the clip is damaged during the operation, always re-
place it with a new clip.
± BODYGENERAL INFORMATIONBO±3
