Page 1241 of 2543

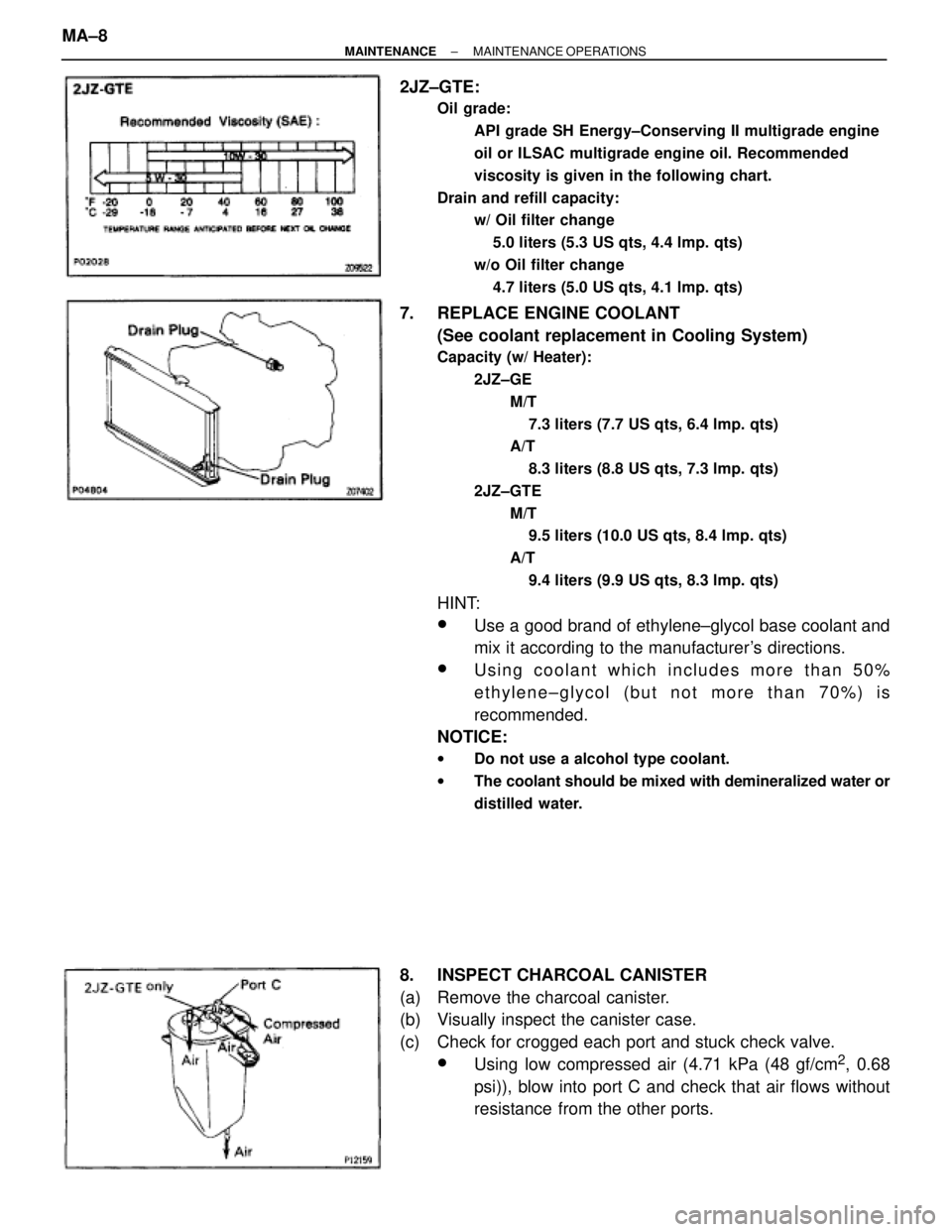

TOYOTA SUPRA 1995 Service Repair Manual 2JZ±GTE: Oil grade: API grade SH Energy±Conserving II multigrade engine oil or ILSAC multigrade engine oil. Recommended viscosity is given in the following chart. Drain and refill capacity: w/ Oil f

Page 1242 of 2543

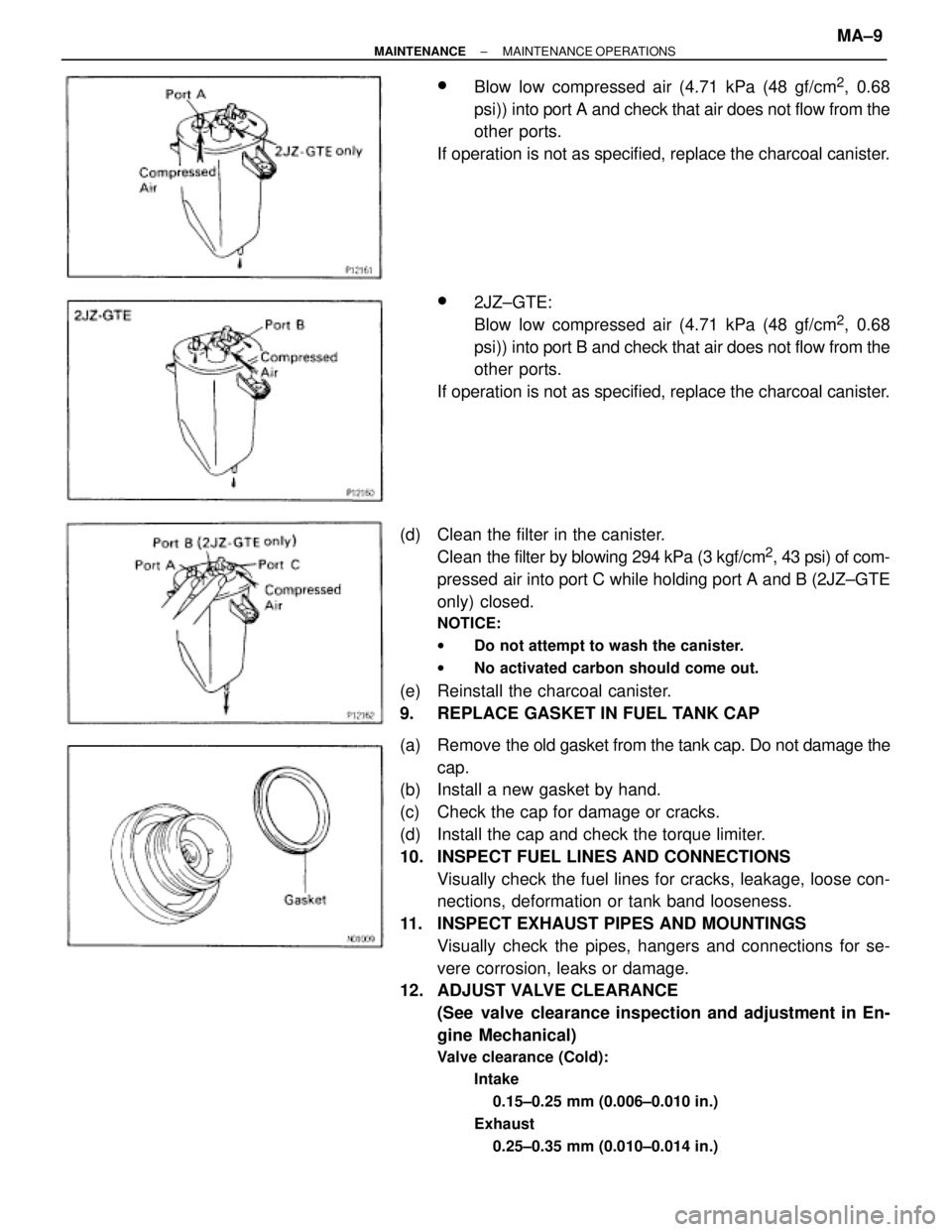

TOYOTA SUPRA 1995 Service Repair Manual wBlow low compressed air (4.71 kPa (48 gf/cm2, 0.68 psi)) into port A and check that air does not flow from the other ports. If operation is not as specified, replace the charcoal canister. w2JZ±GTE:

Page 1243 of 2543

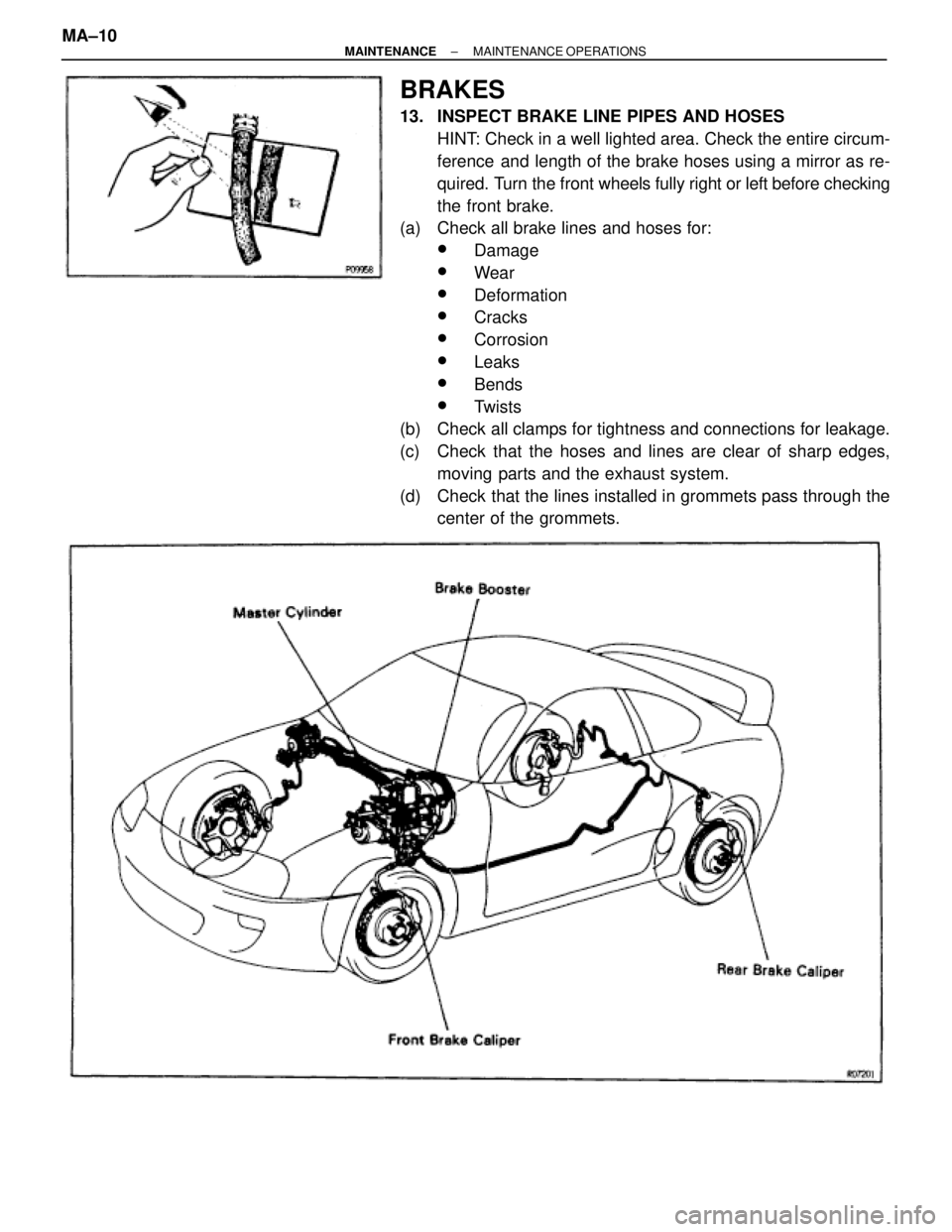

TOYOTA SUPRA 1995 Service Repair Manual BRAKES 13. INSPECT BRAKE LINE PIPES AND HOSES HINT: Check in a well lighted area. Check the entire circum- ference and length of the brake hoses using a mirror as re- quired. Turn the front wheels f

Page 1244 of 2543

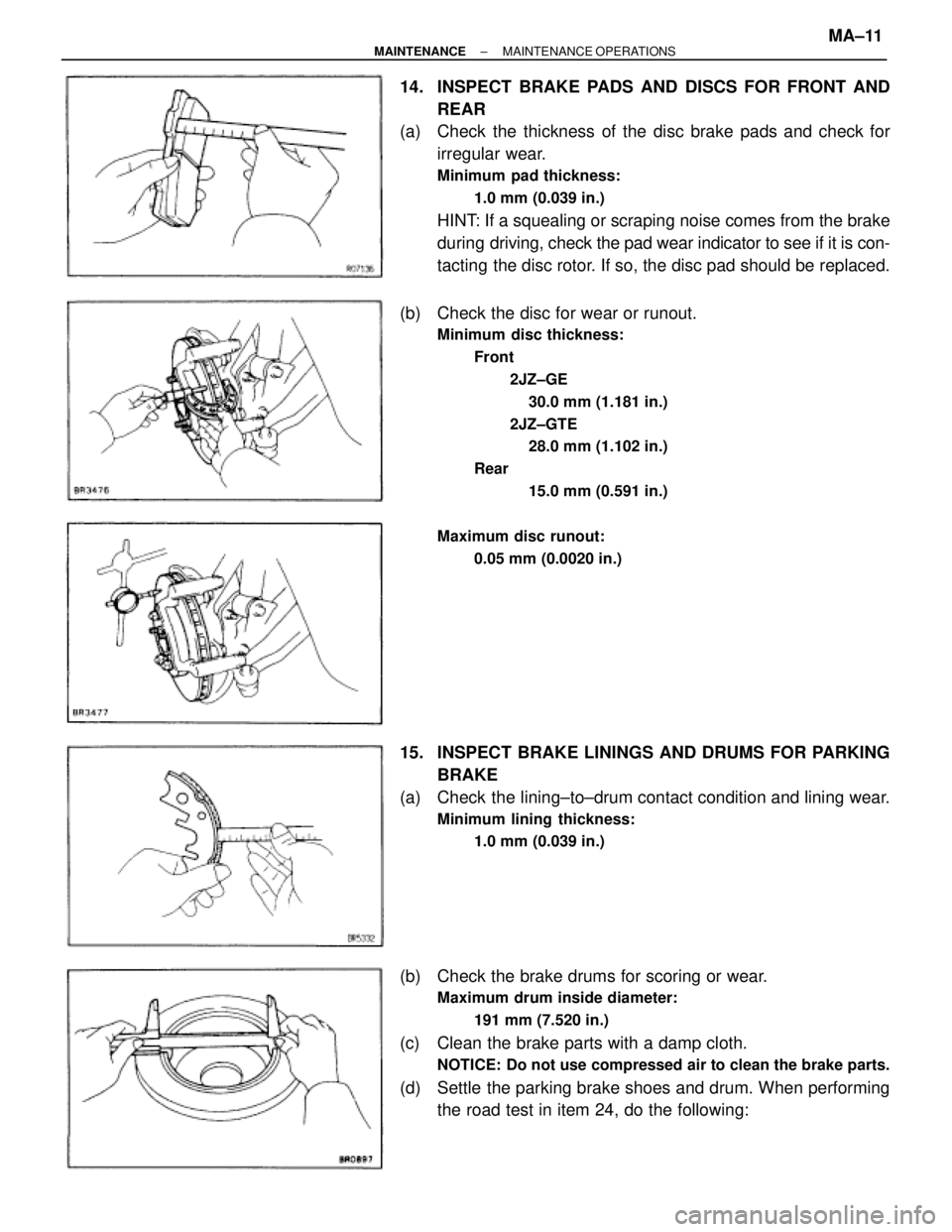

TOYOTA SUPRA 1995 Service Repair Manual 14. INSPECT BRAKE PADS AND DISCS FOR FRONT AND REAR (a) Check the thickness of the disc brake pads and check for irregular wear. Minimum pad thickness: 1.0 mm (0.039 in.) HINT: If a squealing or sc

Page 1245 of 2543

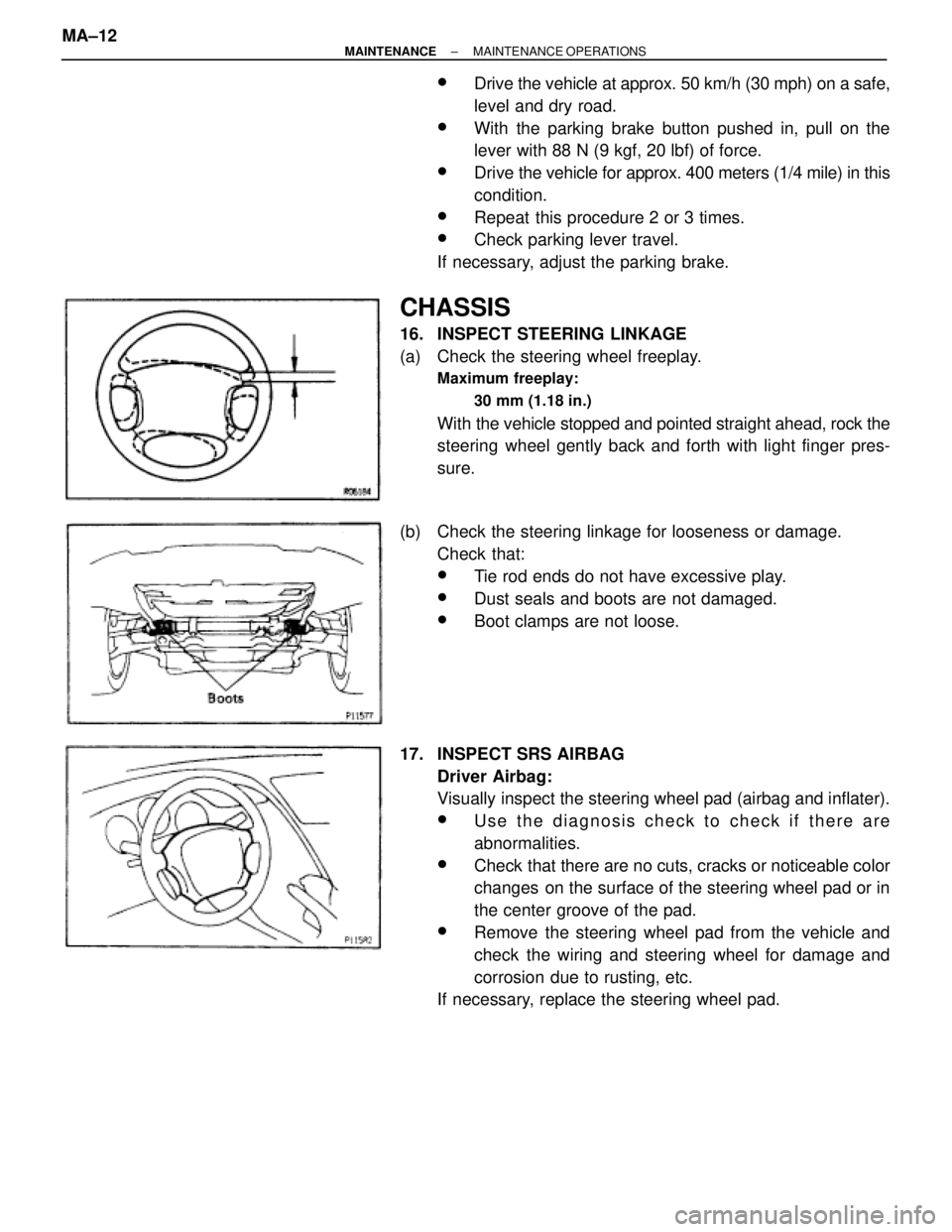

TOYOTA SUPRA 1995 Service Repair Manual wDrive the vehicle at approx. 50 km/h (30 mph) on a safe, level and dry road. wWith the parking brake button pushed in, pull on the lever with 88 N (9 kgf, 20 lbf) of force. wDrive the vehicle for app

Page 1246 of 2543

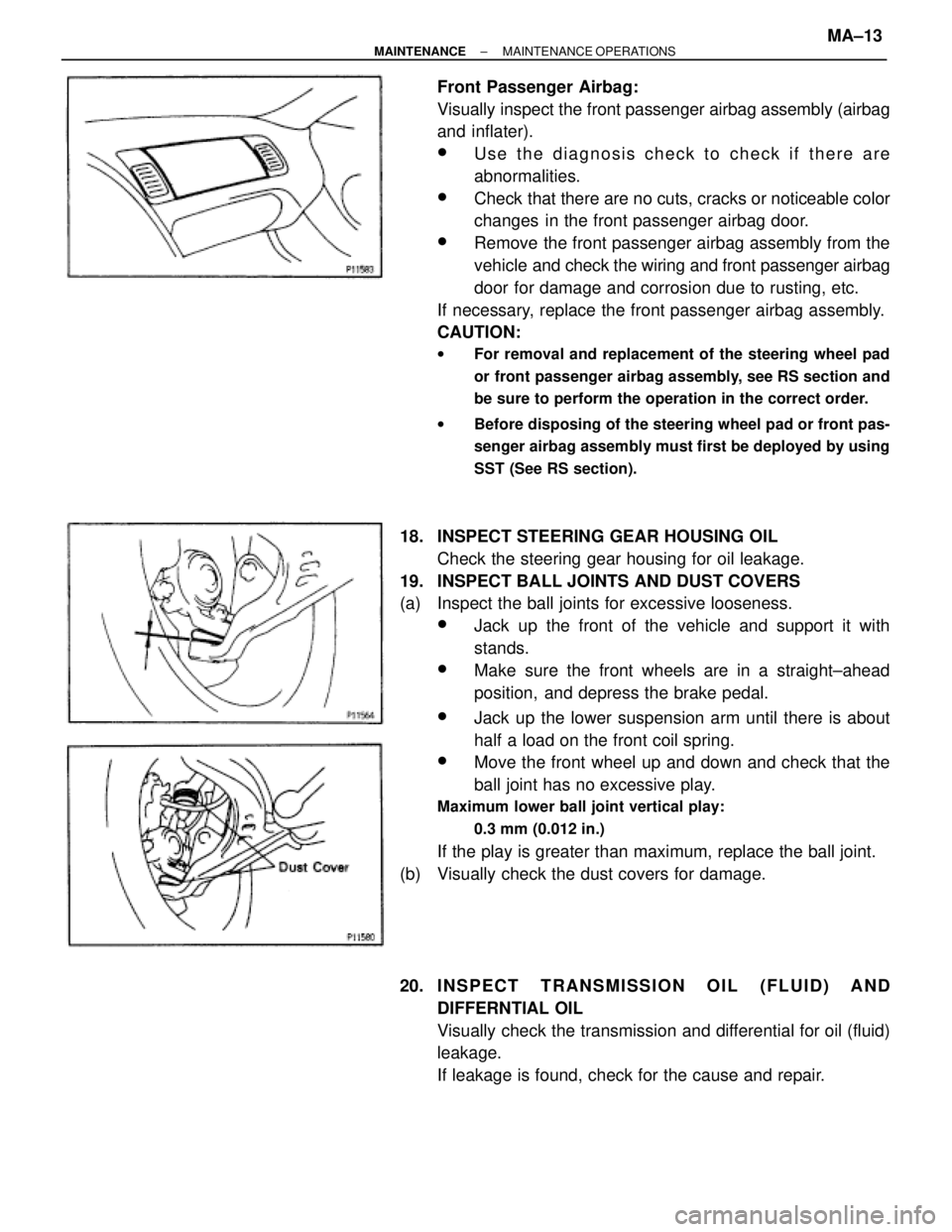

TOYOTA SUPRA 1995 Service Repair Manual Front Passenger Airbag: Visually inspect the front passenger airbag assembly (airbag and inflater). wUse the diagnosis check to check if there are abnormalities. wCheck that there are no cuts, cracks

Page 1247 of 2543

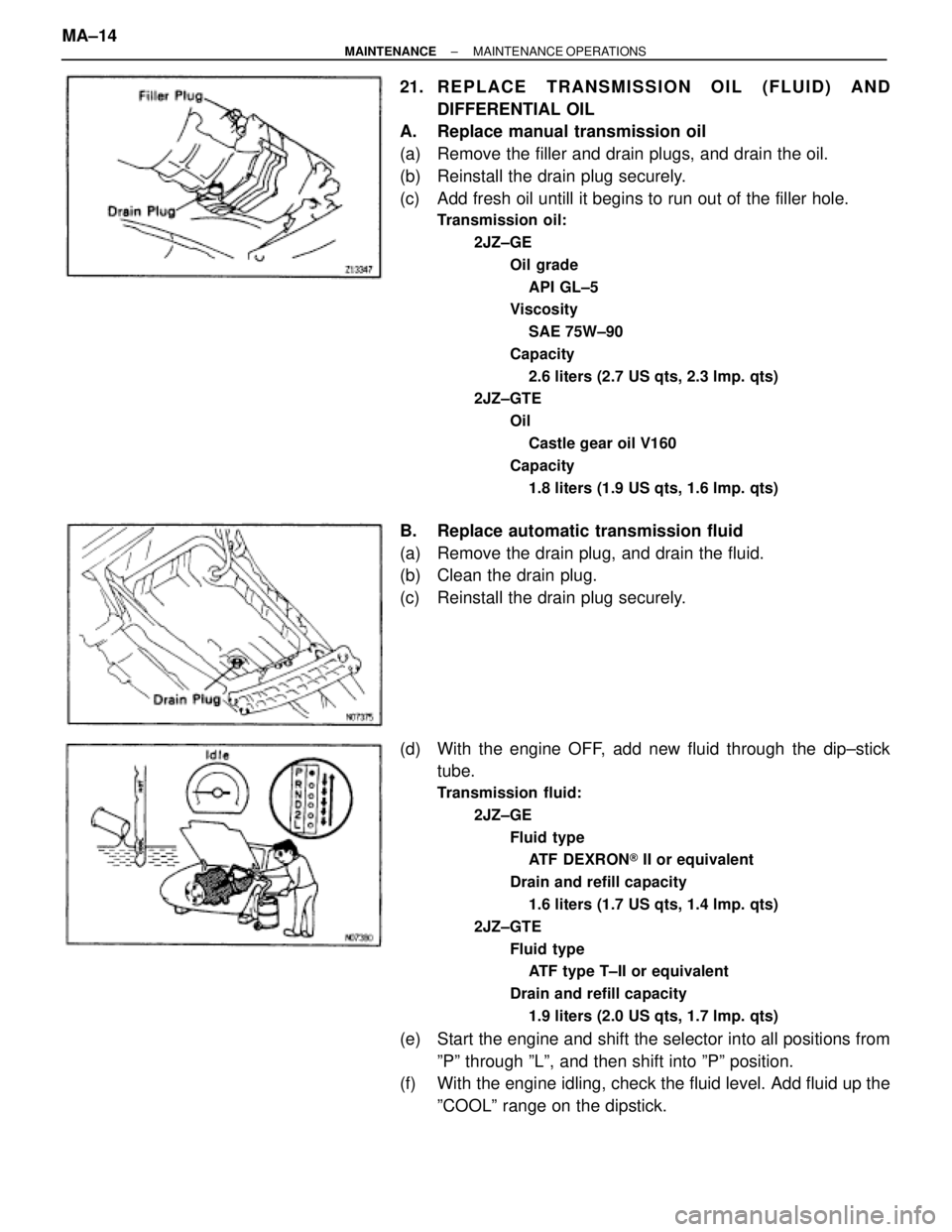

TOYOTA SUPRA 1995 Service Repair Manual 21. REPLACE TRANSMISSION OIL (FLUID) AND DIFFERENTIAL OIL A. Replace manual transmission oil (a) Remove the filler and drain plugs, and drain the oil. (b) Reinstall the drain plug securely. (c)

Page 1248 of 2543

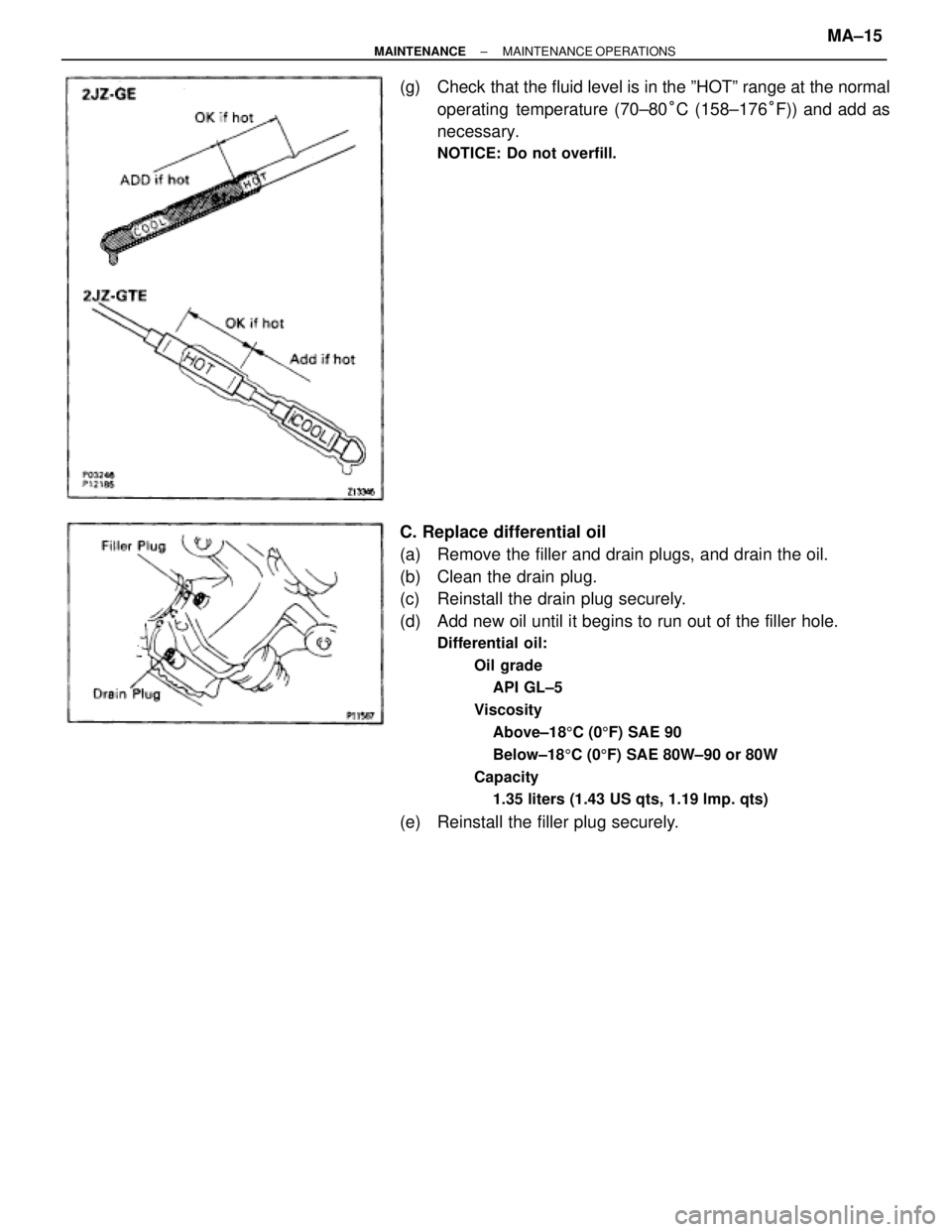

TOYOTA SUPRA 1995 Service Repair Manual (g) Check that the fluid level is in the ºHOTº range at the normal operating temperature (70±80°C (158±176°F)) and add as necessary. NOTICE: Do not overfill. C. Replace differential oil (a) R
