Page 1265 of 2543

TOYOTA SUPRA 1995 Service Repair Manual SERVICE SPECIFICATIONS
SERVICE DATA

Companion fl

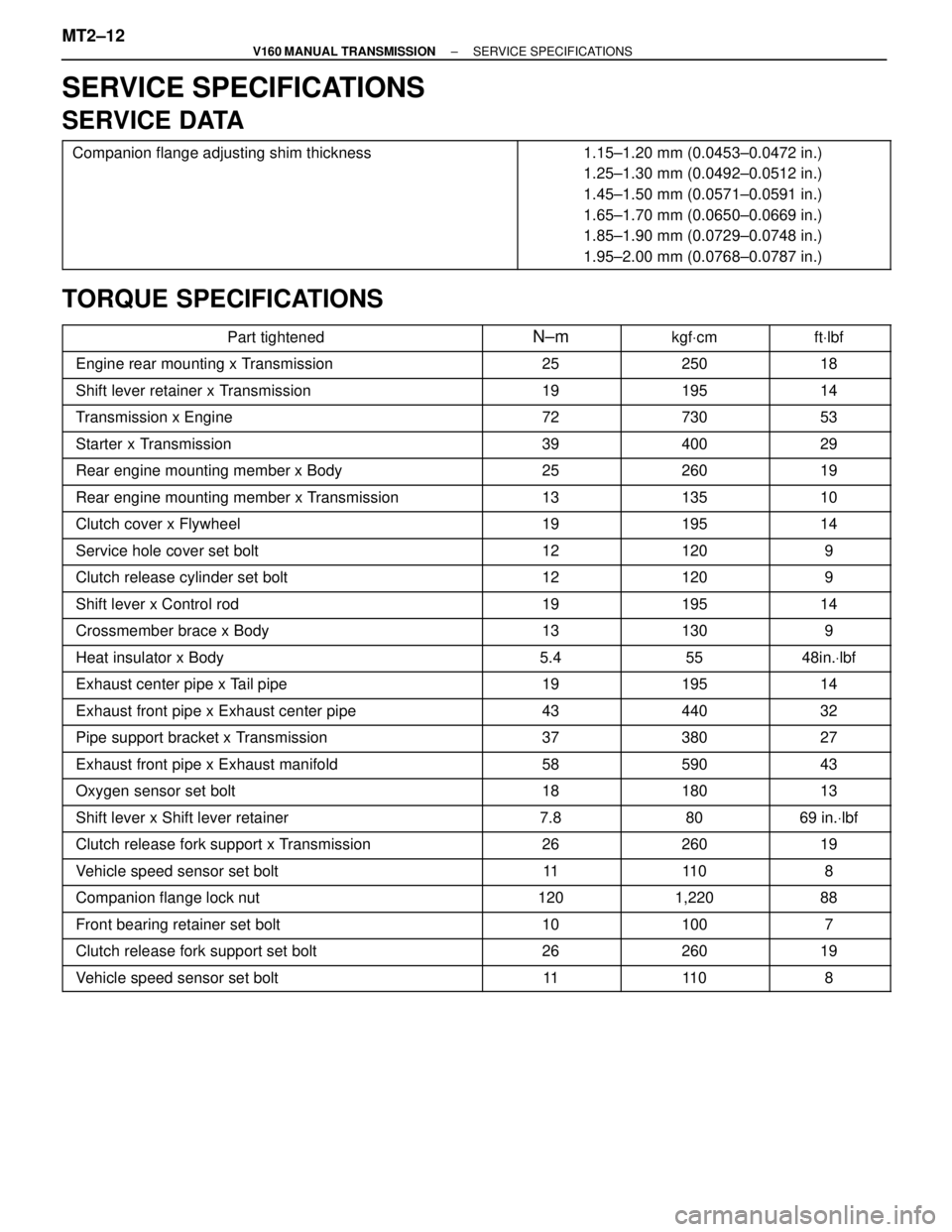

SERVICE SPECIFICATIONS
SERVICE DATA

Companion flange adjusting shim thickness

1.15±1.20 mm (0.0453±0.0472 in.)
1.25±1.30 mm (0.0492±0.0512 in.)
1.45±1.50 mm (0.0571±0.0591 in.)
1.65±1.70 mm (0.0650±0.0669 in.)
1.85±1.90 mm (0.0729±0.0748 in.)
1.95±2.00 mm (0.0768±0.0787 in.)
TORQUE SPECIFICATIONS
Part tightened N±m kgfVcm ftVlbf
Engine rear mounting x Transmission 25 250 18 Shift lever retainer x Transmission 19 195 14
Transmission x Engine

72

730

53
Starter x Transmission 39 400 29
Rear engine mounting member x Body 25 260 19
Rear engine mounting member x Transmission 13 135 10
Clutch cover x Flywheel 19 195 14
Service hole cover set bolt 12 120 9
Clutch release cylinder set bolt 12 120 9 Shift lever x Control rod 19 195 14 Crossmember brace x Body 13 130 9
Heat insulator x Body

5.4

55

48in.Vlbf
Exhaust center pipe x Tail pipe 19 195 14
Exhaust front pipe x Exhaust center pipe 43 440 32
Pipe support bracket x Transmission 37 380 27
Exhaust front pipe x Exhaust manifold 58 590 43
Oxygen sensor set bolt 18 180 13
Shift lever x Shift lever retainer 7.8 80 69 in.Vlbf Clutch release fork support x Transmission 26 260 19
Vehicle speed sensor set bolt

11

11 0

8
Companion flange lock nut 120 1,220 88
Front bearing retainer set bolt 10 100 7
Clutch release fork support set bolt 26 260 19
Vehicle speed sensor set bolt 11 11 0 8
MT2±12± V160 MANUAL TRANSMISSIONSERVICE SPECIFICATIONS

Page 1266 of 2543

TOYOTA SUPRA 1995 Service Repair Manual W58 MANUAL TRANSMISSION
MT1±1

Page 1267 of 2543

TOYOTA SUPRA 1995 Service Repair Manual OPERATION

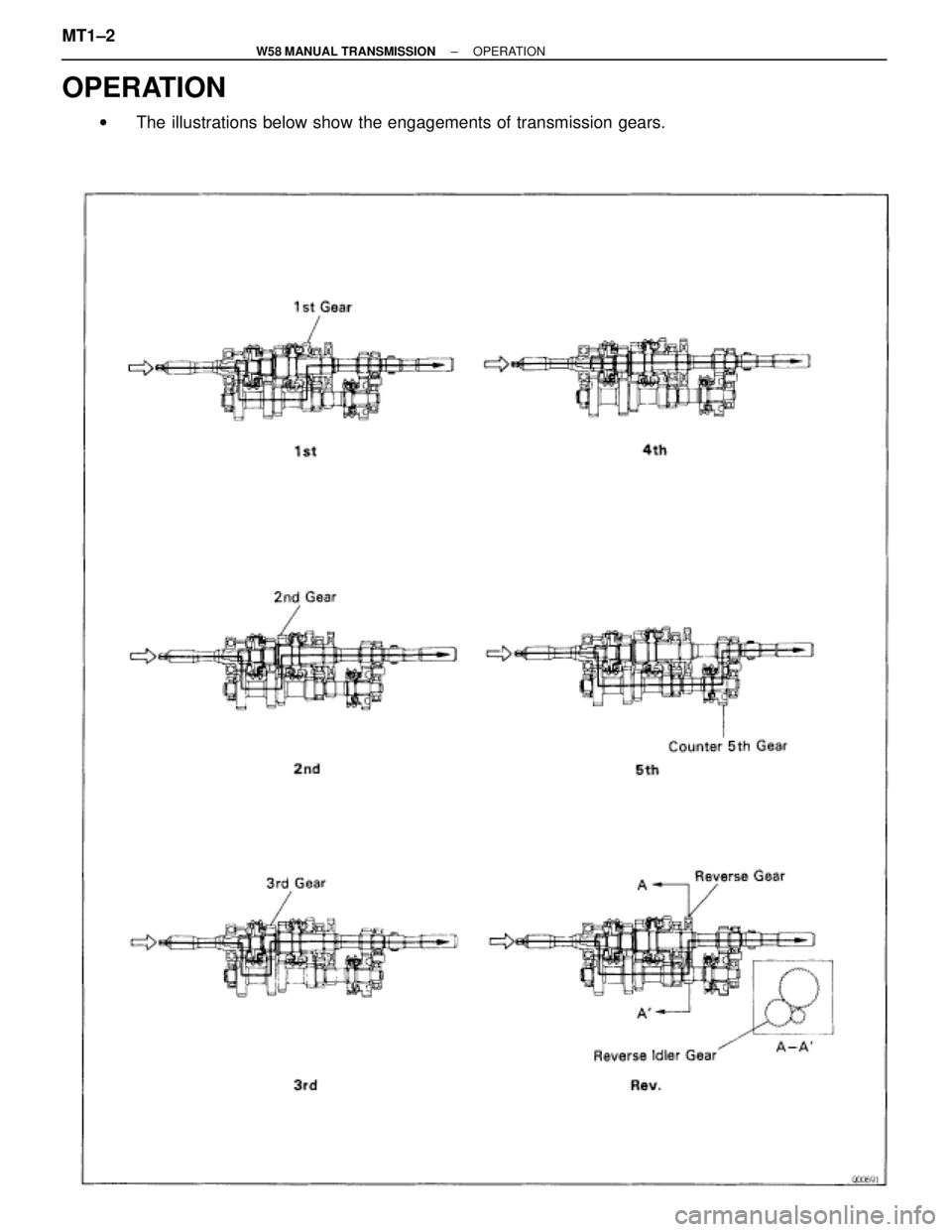

wThe illustrations below show the engagements of transmission gears. MT1±2
± W58 MANUAL TRANSMISSIONOPERATION

Page 1268 of 2543

TOYOTA SUPRA 1995 Service Repair Manual PREPARATION

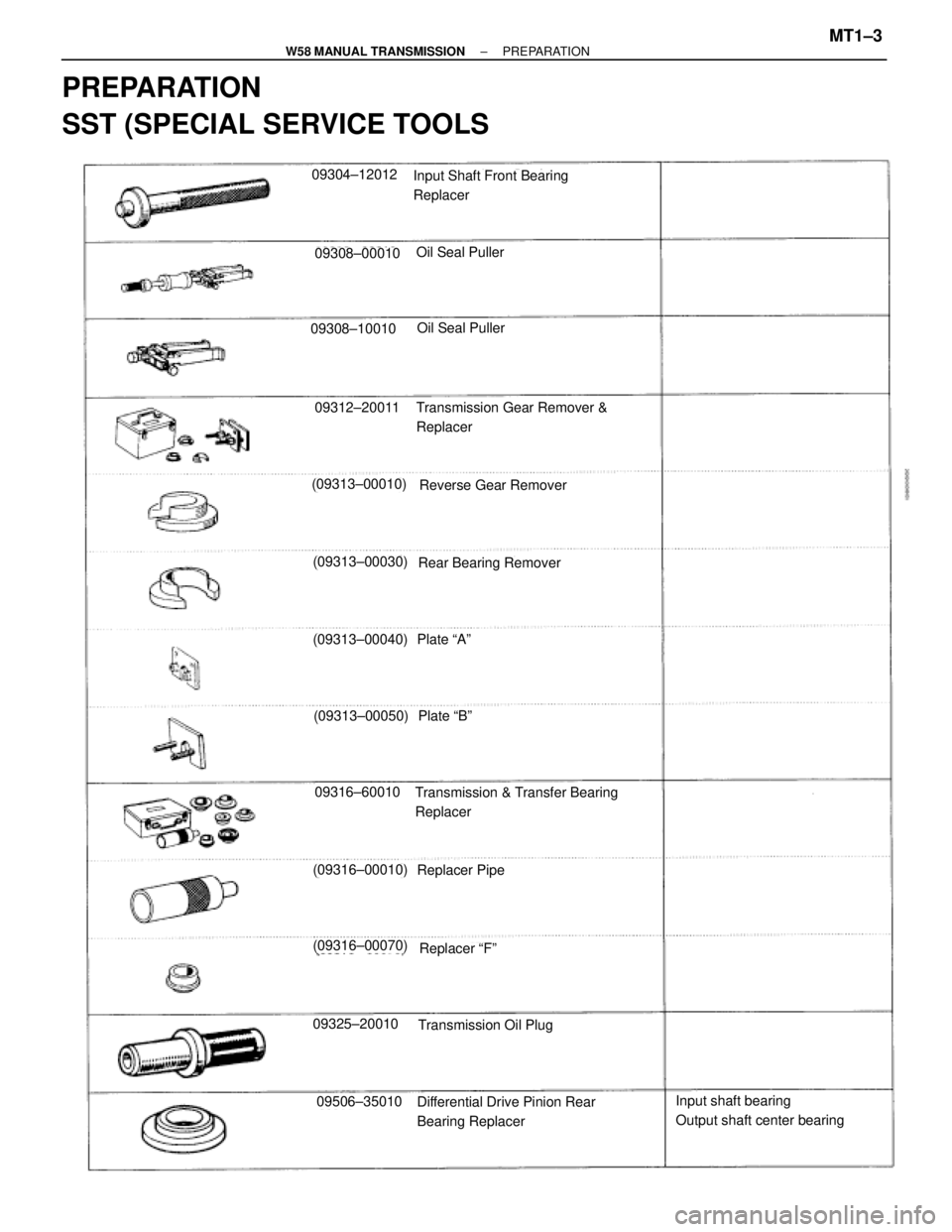

SST (SPECIAL SERVICE TOOLS
09304±12012
09308±00010
09308±10010
09312±20011
(09313±00010)
(09313±00030)
(09313±00040)
(09313±00050)
Input Shaft Front Bearing
Replacer
Oil Seal Pulle

Page 1269 of 2543

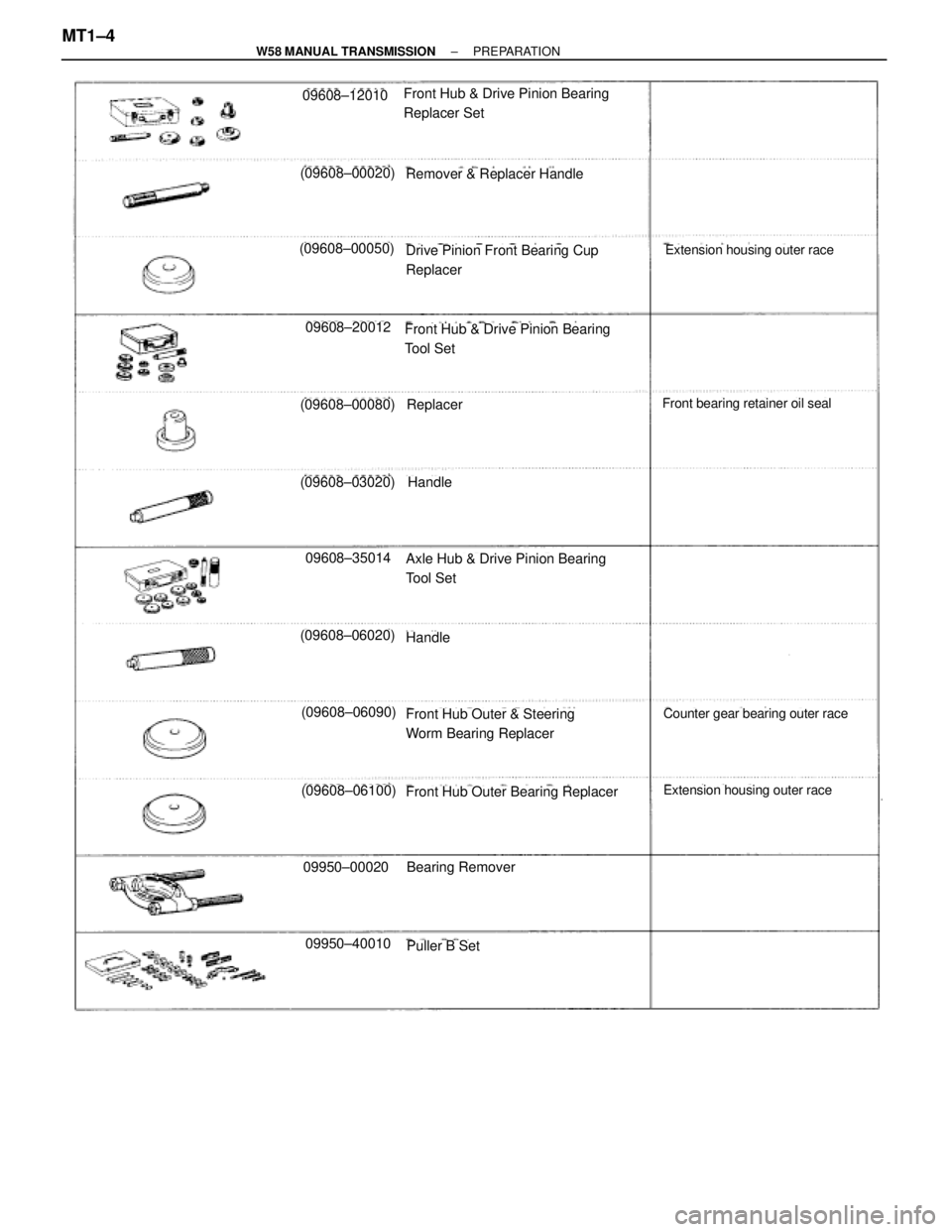

TOYOTA SUPRA 1995 Service Repair Manual Front Hub & Drive Pinion Bearing
Replacer Set
Remover & Replacer Handle
Drive Pinion Front Bearing Cup
Replacer
Front Hub & Drive Pinion Bearing
Tool Set
Replacer
Handle
Axle Hub & Drive Pinion Bearin

Page 1270 of 2543

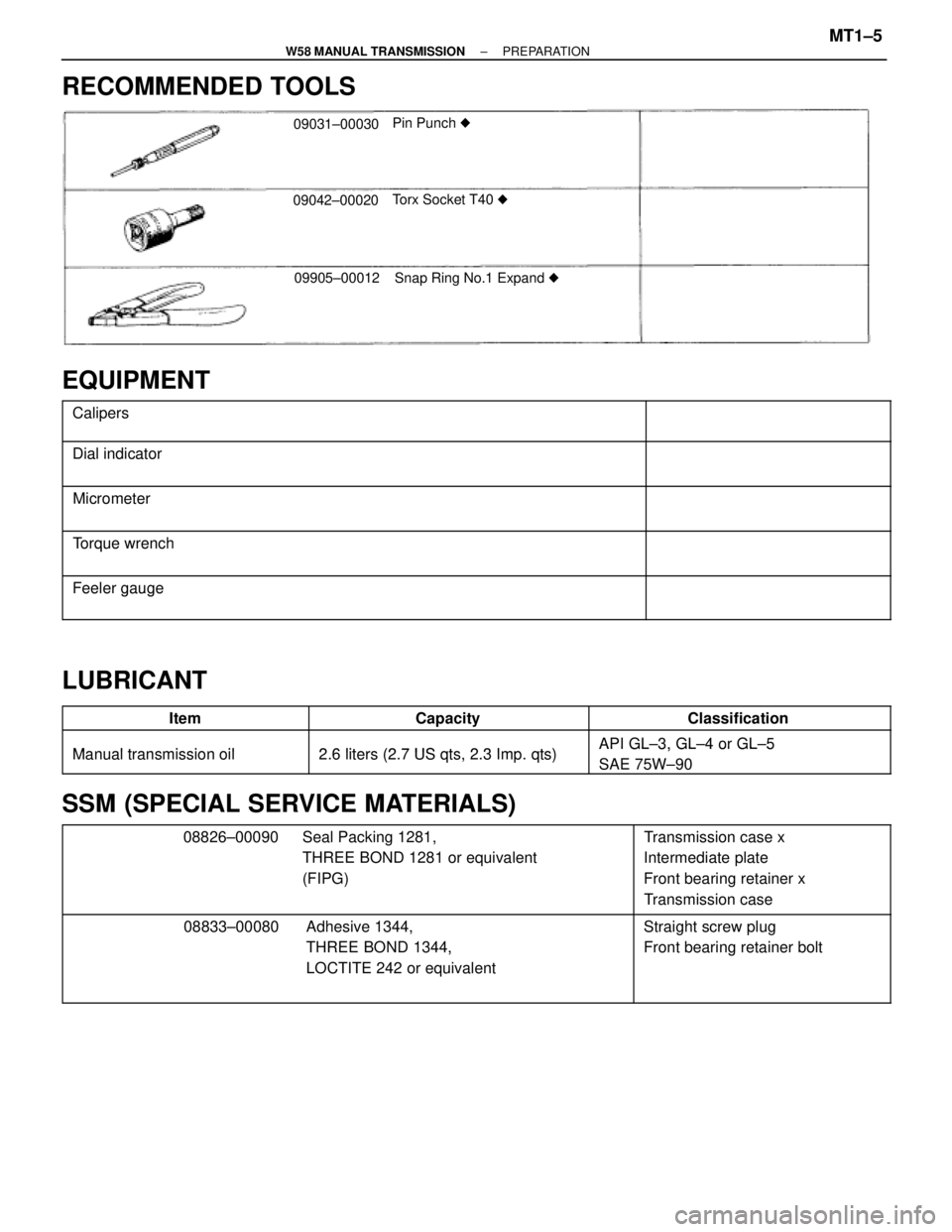

TOYOTA SUPRA 1995 Service Repair Manual 09031±00030
09042±00020
09905±00012
Pin Punch
Torx Socket T40
Snap Ring No.1 Expand
RECOMMENDED TOOLS
EQUIPMENT

09031±00030
09042±00020
09905±00012
Pin Punch
Torx Socket T40
Snap Ring No.1 Expand
RECOMMENDED TOOLS
EQUIPMENT

Calipers

Dial indicator

Dial indicator
Micrometer

Micrometer
Torque wrench

Torque wrench
Feeler gauge

Feeler gauge
LUBRICANT
Item Capacity Classification

Manual transmission oil2 6 liters (2 7 US qts 2 3 Imp qts) API GL±3, GL±4 or GL±5
Manual transmission oil 2.6 liters (2.7 US qts, 2.3 Imp. qts) API GL 3, GL 4 or GL 5
SAE 75W±90
SSM (SPECIAL SERVICE MATERIALS)

08826±00090 Seal Packing 1281,
THREE BOND 1281 or equivalent
(FIPG)

Transmission case x
Intermediate plate
Front bearing retainer x
Transmission case

08833±00080 Adhesive 1344,
THREE BOND 1344, Straight screw plug
Front bearing retainer bolt

,
LOCTITE 242 or equivalent
g
± W58 MANUAL TRANSMISSIONPREPARATIONMT1±5

Page 1271 of 2543

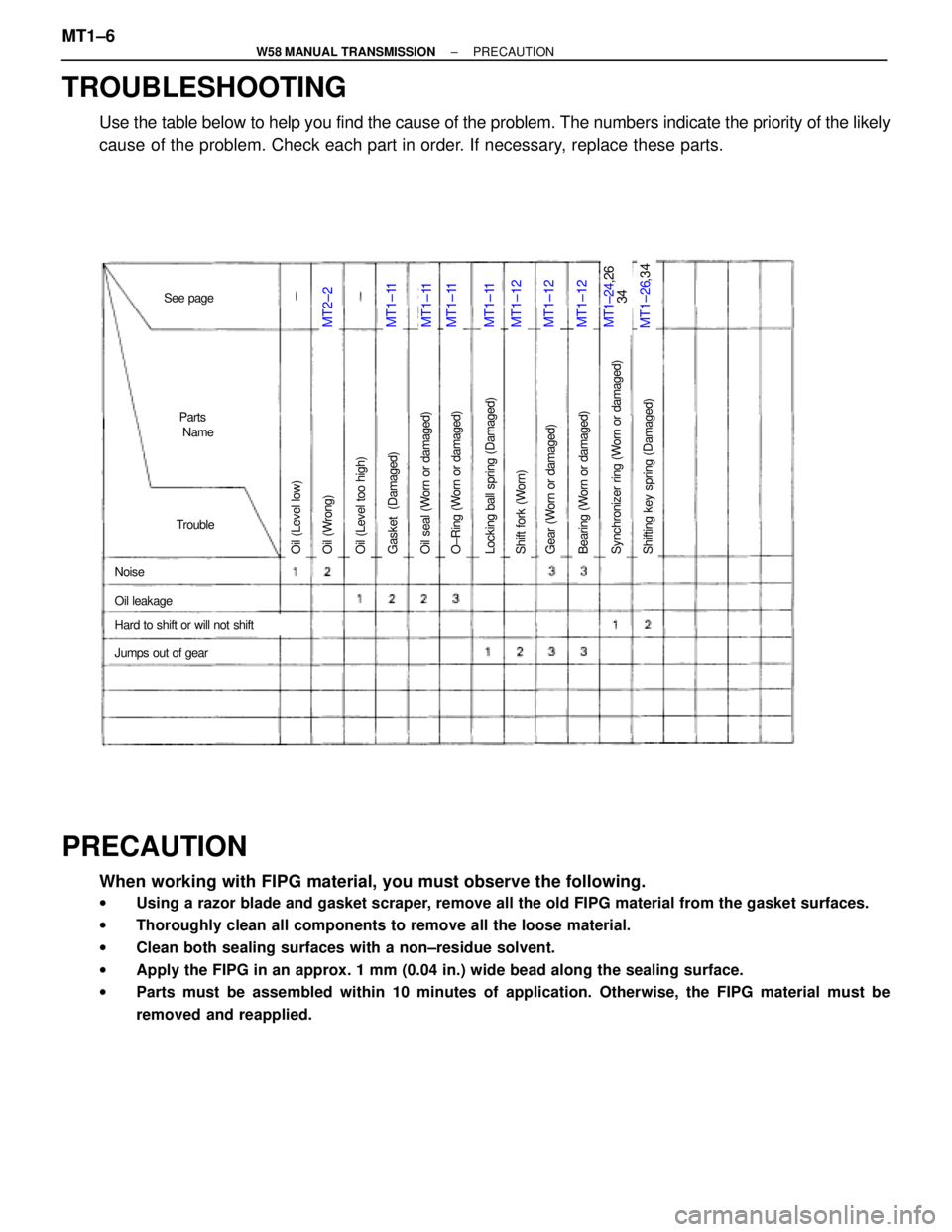

TOYOTA SUPRA 1995 Service Repair Manual MT1±11MT1±26,34MT2±2MT1±24,26
34MT1±11MT1±11MT1±11MT1±12MT1±12MT1±12
Oil (Level low)O±Ring (Worn or damaged)Oil seal (Worn or damaged)Gasket (Damaged)Oil (Level too high)Oil (Wrong)Bearing

Page 1272 of 2543

TOYOTA SUPRA 1995 Service Repair Manual MT1±11MT1±26,34MT2±2MT1±24,26
34MT1±11MT1±11MT1±11MT1±12MT1±12MT1±12
Oil (Level low)O±Ring (Worn or damaged)Oil seal (Worn or damaged)Gasket (Damaged)Oil (Level too high)Oil (Wrong)Bearing
