Page 833 of 2543

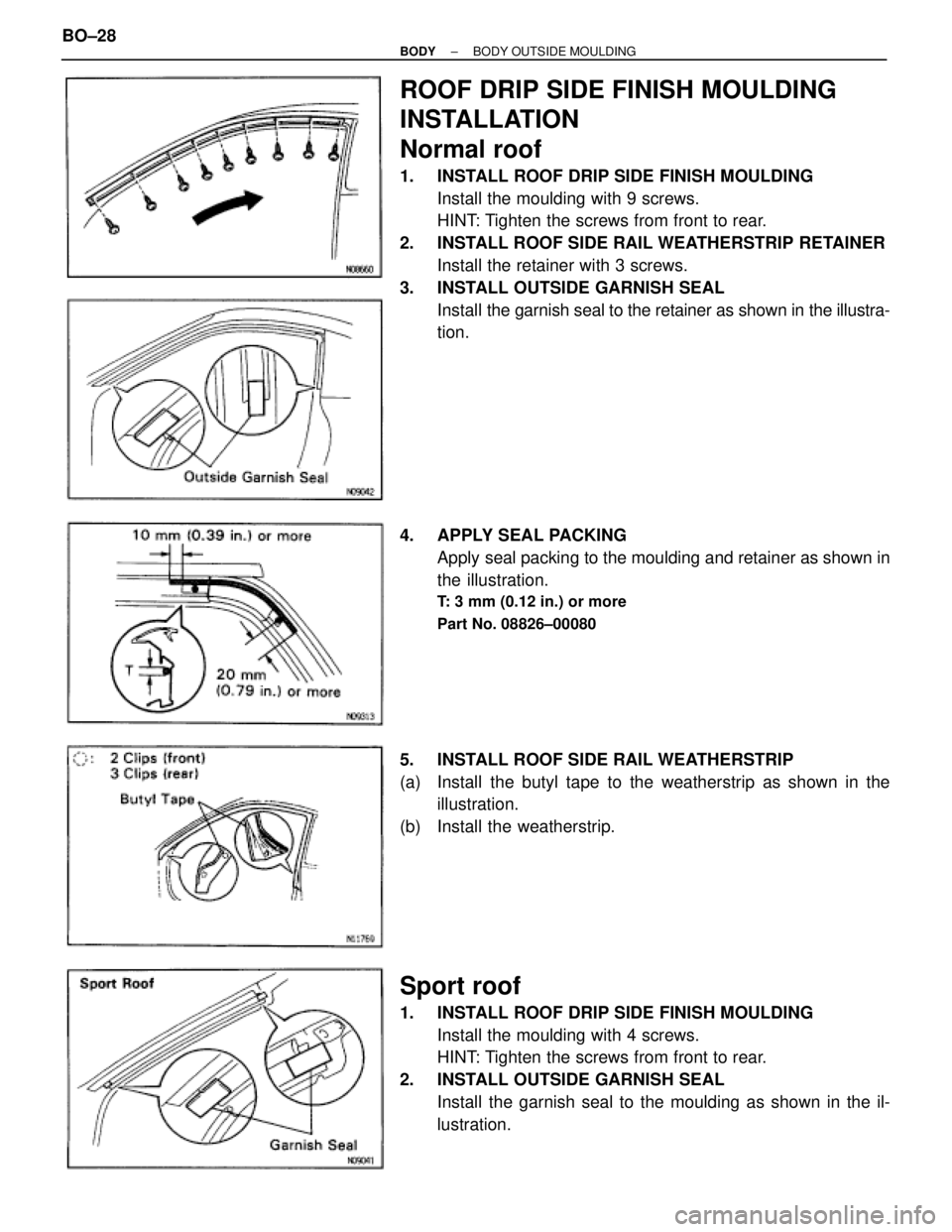

TOYOTA SUPRA 1995 Service Repair Manual ROOF DRIP SIDE FINISH MOULDING INSTALLATION Normal roof 1. INSTALL ROOF DRIP SIDE FINISH MOULDING Install the moulding with 9 screws. HINT: Tighten the screws from front to rear. 2. INSTALL ROOF SIDE

Page 834 of 2543

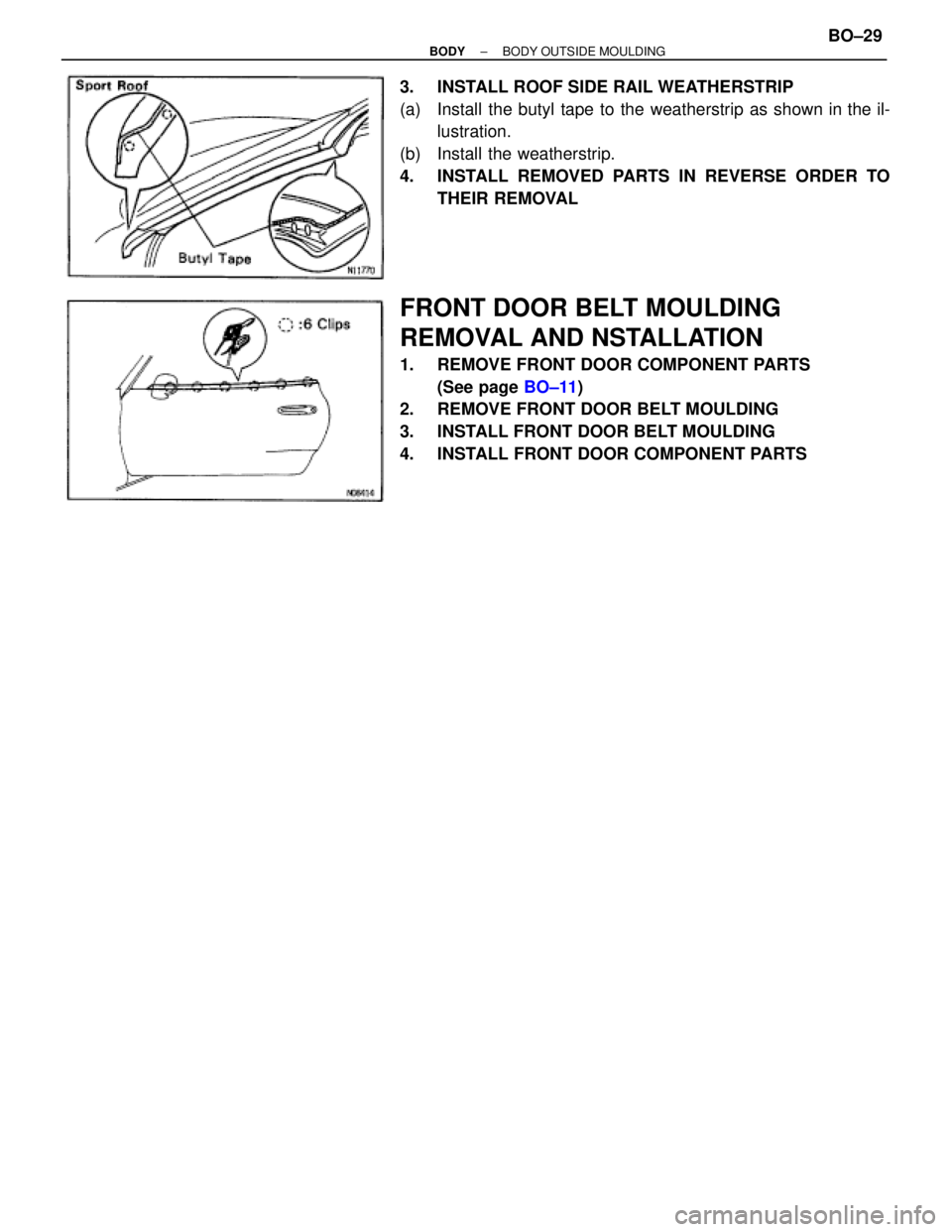

TOYOTA SUPRA 1995 Service Repair Manual 3. INSTALL ROOF SIDE RAIL WEATHERSTRIP (a) Install the butyl tape to the weatherstrip as shown in the il- lustration. (b) Install the weatherstrip. 4. INSTALL REMOVED PARTS IN REVERSE ORDER TO THEIR

Page 835 of 2543

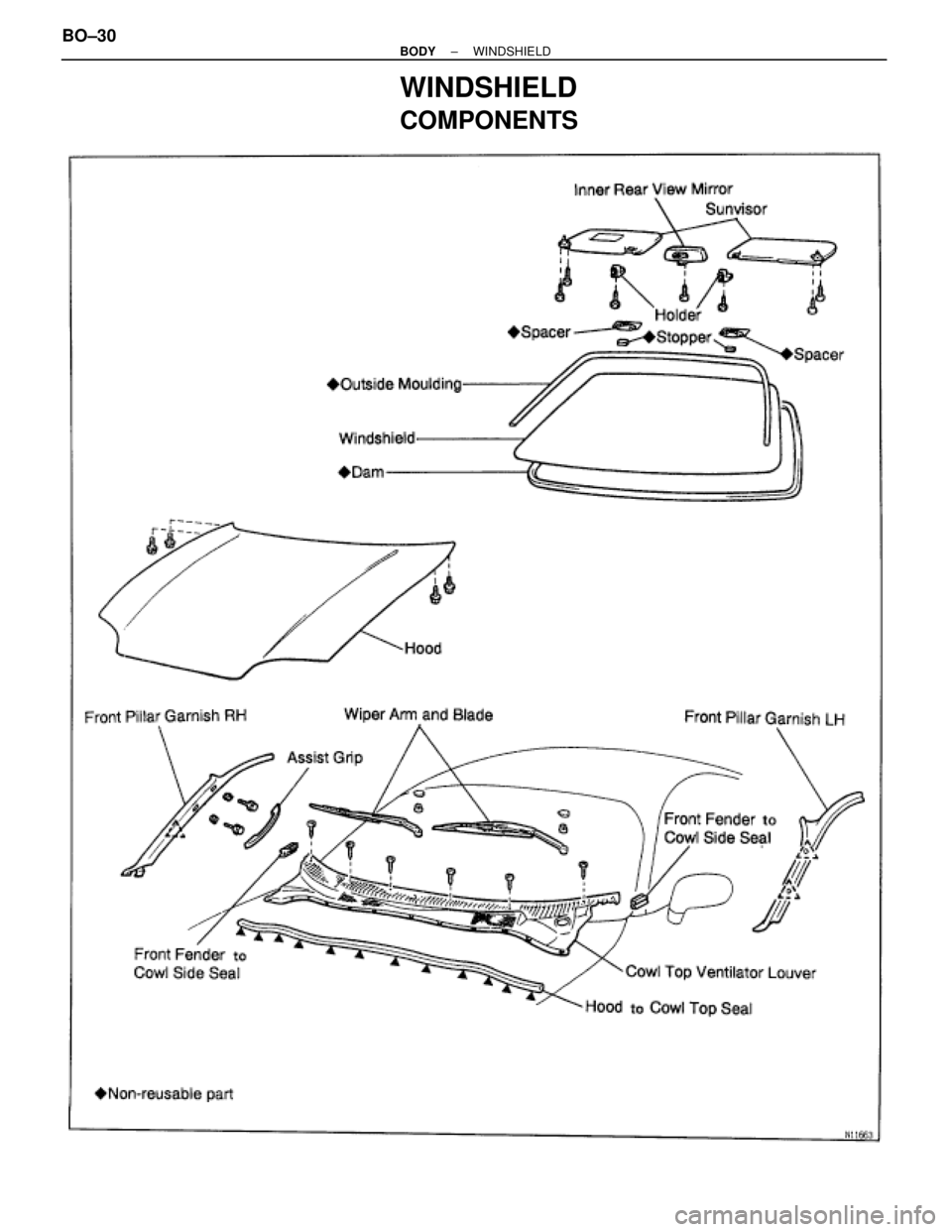

TOYOTA SUPRA 1995 Service Repair Manual WINDSHIELD COMPONENTS BO±30± BODYWINDSHIELD

Page 836 of 2543

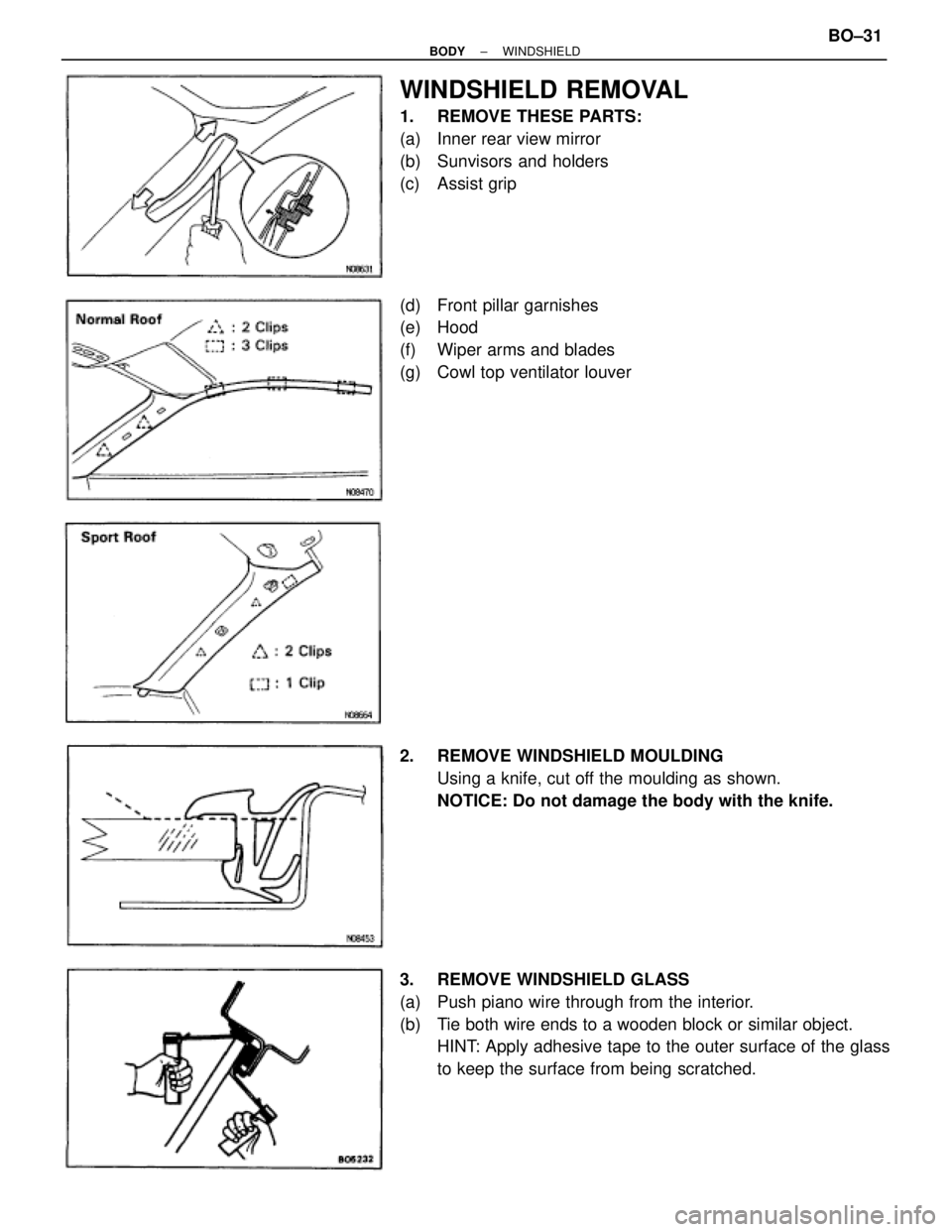

TOYOTA SUPRA 1995 Service Repair Manual WINDSHIELD REMOVAL 1. REMOVE THESE PARTS: (a) Inner rear view mirror (b) Sunvisors and holders (c) Assist grip (d) Front pillar garnishes (e) Hood (f) Wiper arms and blades (g) Cowl top ventilat

Page 837 of 2543

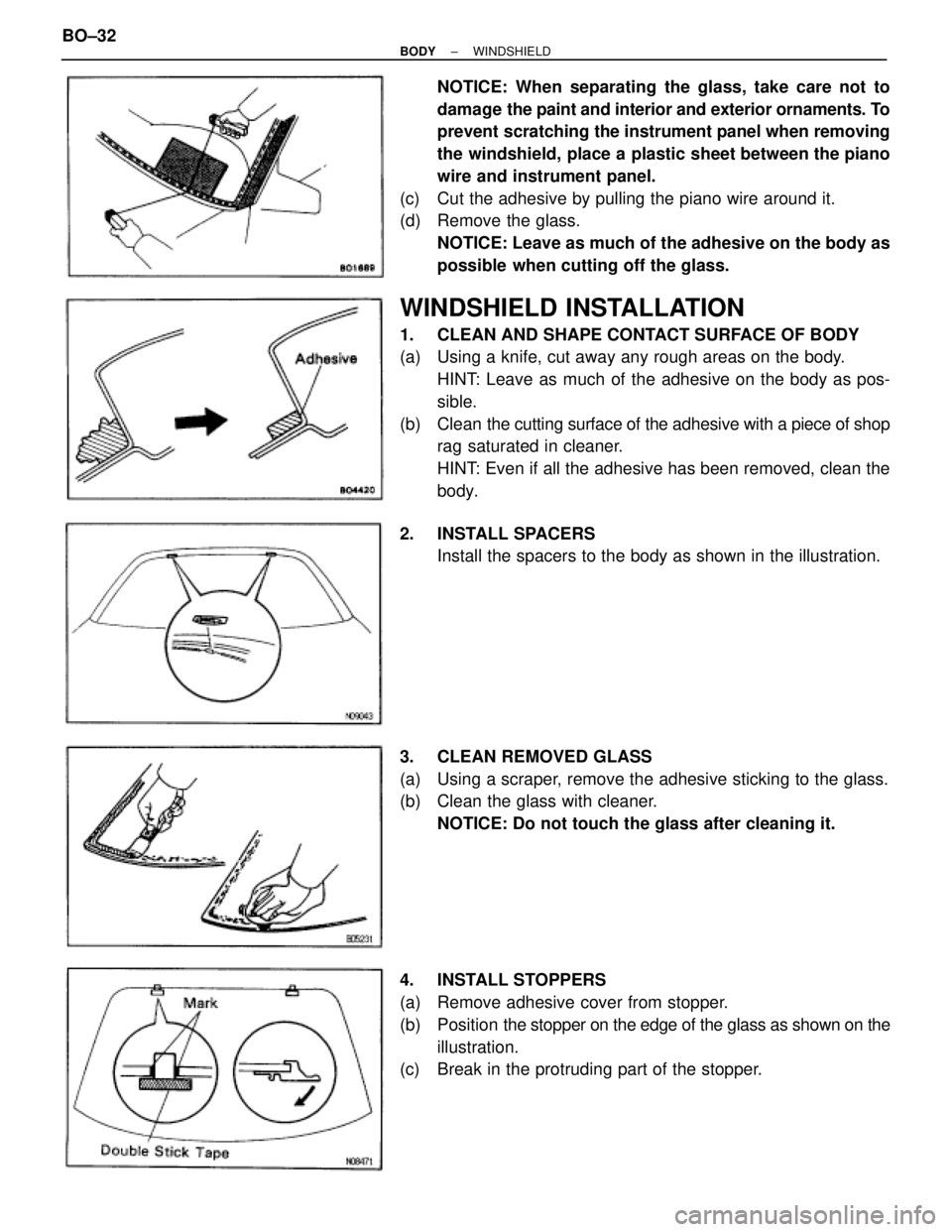

TOYOTA SUPRA 1995 Service Repair Manual NOTICE: When separating the glass, take care not to damage the paint and interior and exterior ornaments. To prevent scratching the instrument panel when removing the windshield, place a plastic shee

Page 838 of 2543

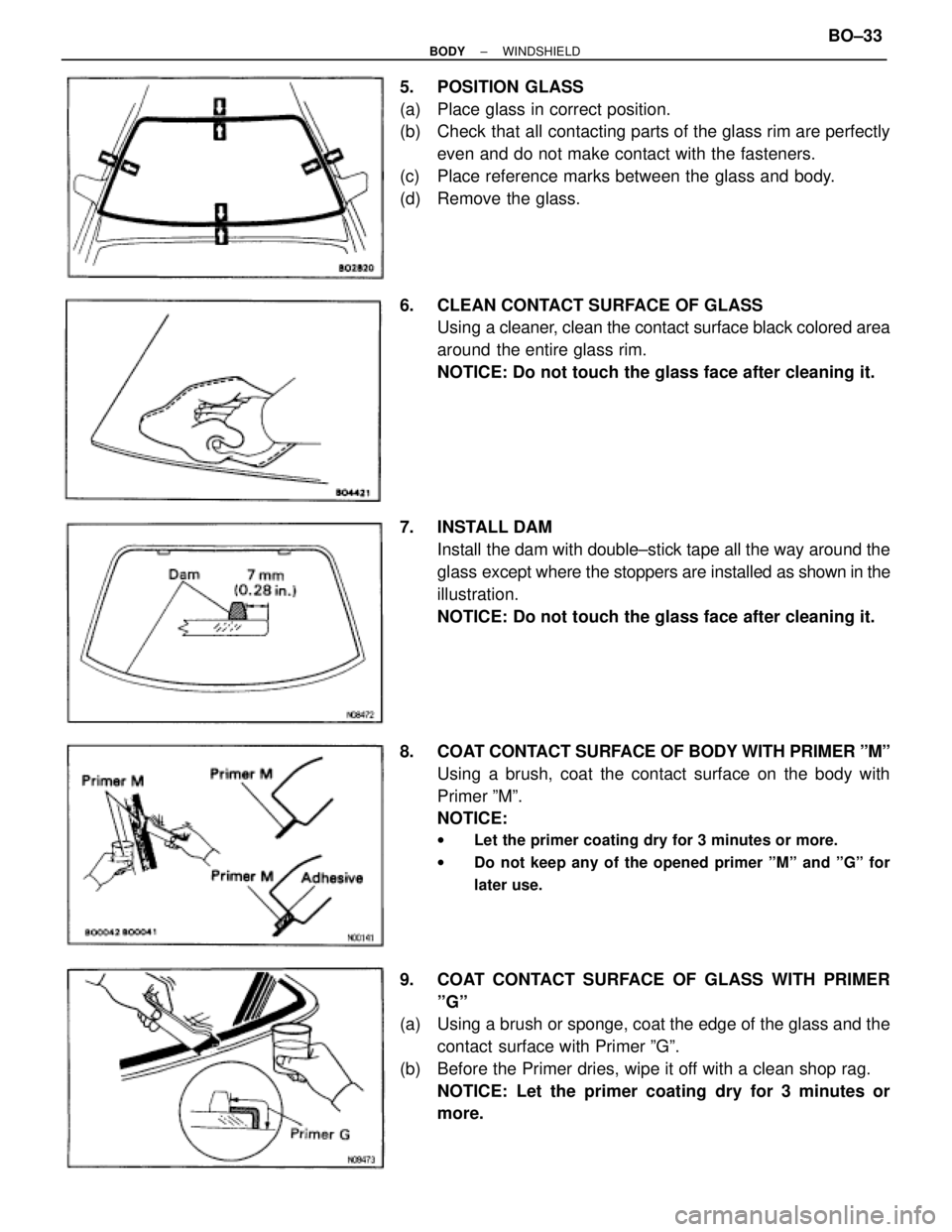

TOYOTA SUPRA 1995 Service Repair Manual 5. POSITION GLASS (a) Place glass in correct position. (b) Check that all contacting parts of the glass rim are perfectly even and do not make contact with the fasteners. (c) Place reference marks b

Page 839 of 2543

TOYOTA SUPRA 1995 Service Repair Manual 10. MIX ADHESIVE COATING NOTICE: wBe sure that installation of the moulding is finished within the adhesives usable time. (See step 2 on page BO±7) wThe mixture should be made in 5 minutes or less

Page 840 of 2543

TOYOTA SUPRA 1995 Service Repair Manual (c) Use a scraper to remove any excess or protruding adhesive. (d) Fasten glass securely until the adhesive sets. 13. INSTALL WINDSHIELD MOULDING Place the moulding onto the body and install it by
