Page 425 of 2543

TOYOTA SUPRA 1995 Service Repair Manual (c) Check for abnormal noise and vibration. Run at the D position lock±up or O/D gear and check for ab- normal noise and vibration. HINT: The check for the cause of abnormal noise and vibra- tion mu

Page 426 of 2543

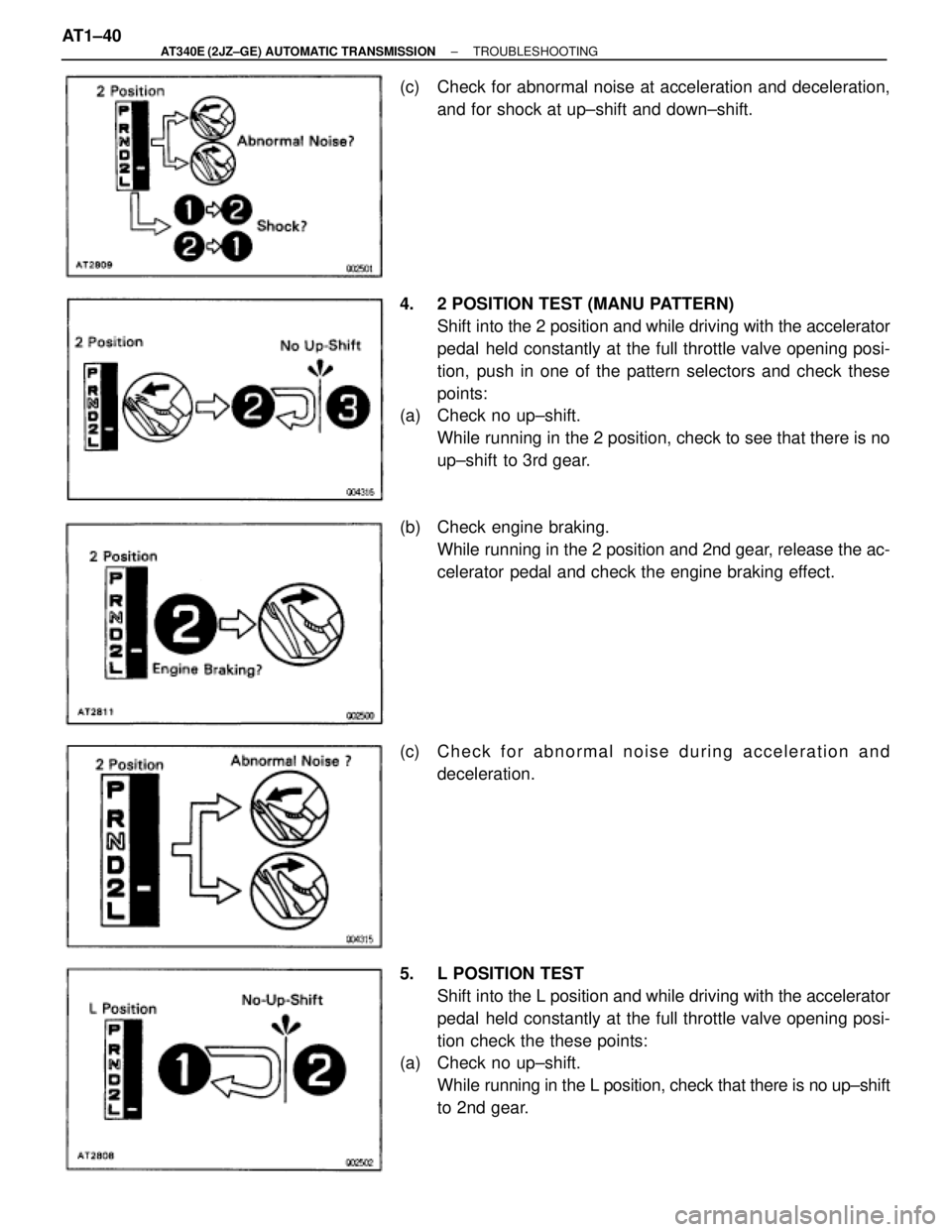

TOYOTA SUPRA 1995 Service Repair Manual (c) Check for abnormal noise at acceleration and deceleration, and for shock at up±shift and down±shift. 4. 2 POSITION TEST (MANU PATTERN) Shift into the 2 position and while driving with the acce

Page 427 of 2543

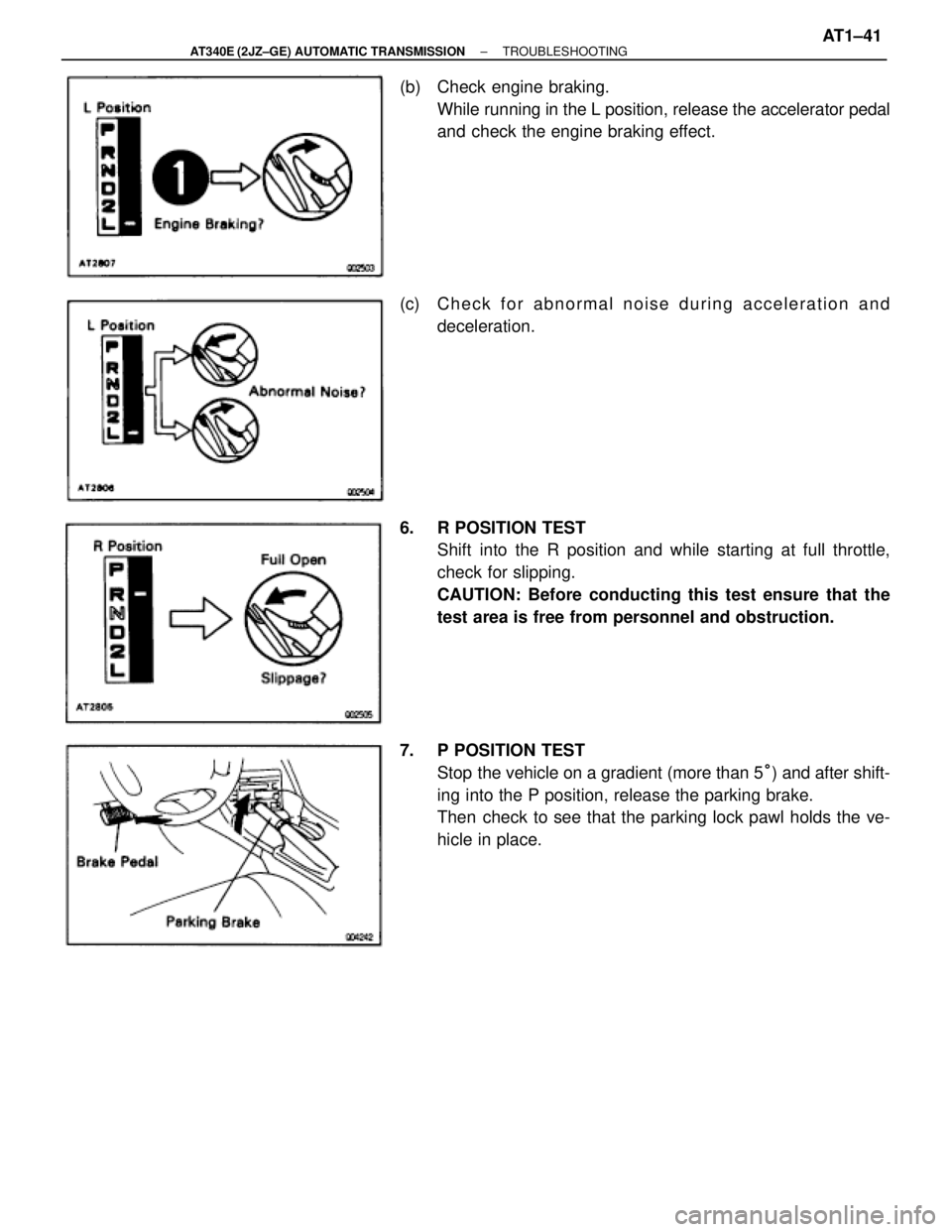

TOYOTA SUPRA 1995 Service Repair Manual (b) Check engine braking. While running in the L position, release the accelerator pedal and check the engine braking effect. (c) C h e c k f o r abnormal noise during acceleration and deceleration.

Page 428 of 2543

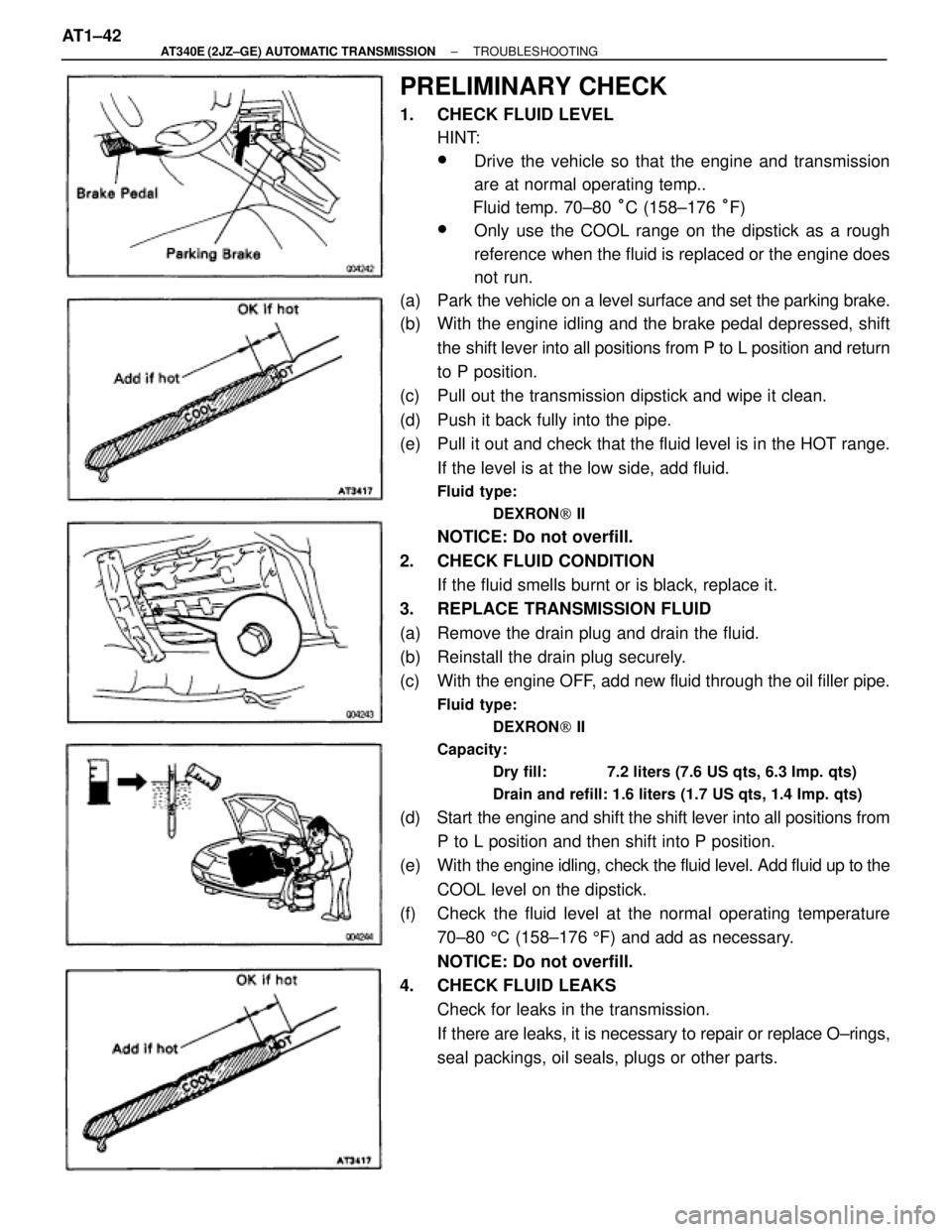

TOYOTA SUPRA 1995 Service Repair Manual PRELIMINARY CHECK 1. CHECK FLUID LEVEL HINT: wDrive the vehicle so that the engine and transmission are at normal operating temp.. Fluid temp. 70±80 °C (158±176 °F) wOnly use the COOL range on th

Page 429 of 2543

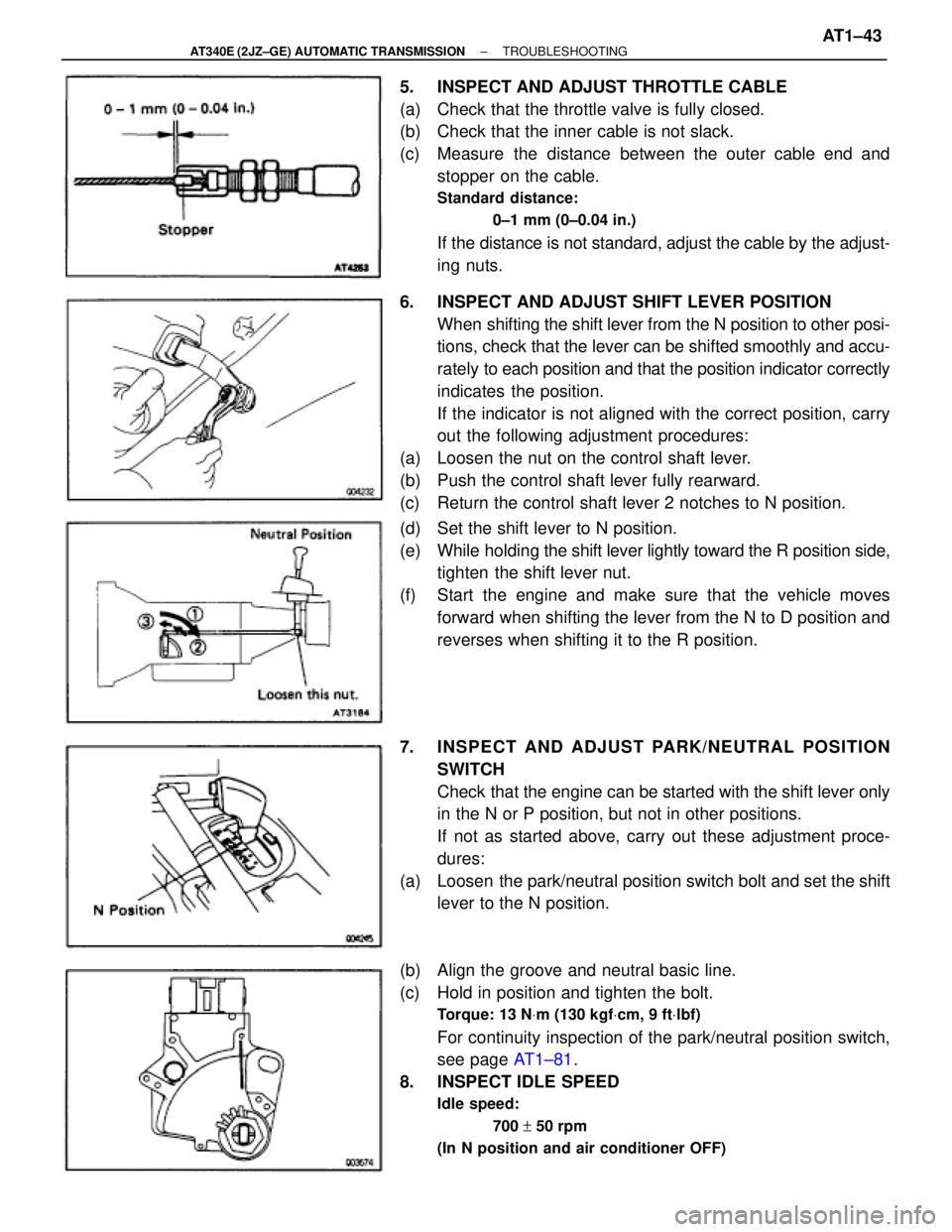

TOYOTA SUPRA 1995 Service Repair Manual 5. INSPECT AND ADJUST THROTTLE CABLE (a) Check that the throttle valve is fully closed. (b) Check that the inner cable is not slack. (c) Measure the distance between the outer cable end and stoppe

Page 430 of 2543

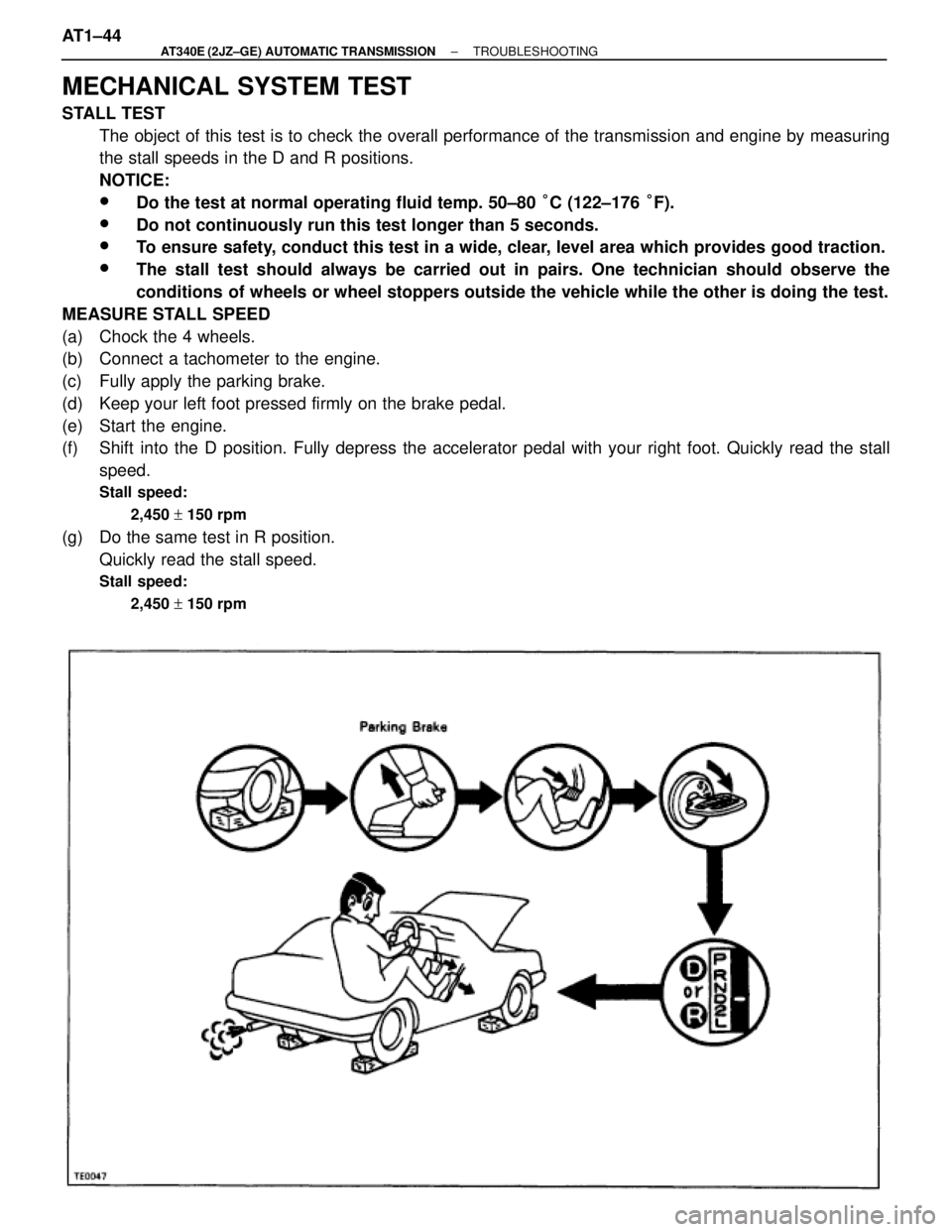

TOYOTA SUPRA 1995 Service Repair Manual MECHANICAL SYSTEM TEST STALL TEST The object of this test is to check the overall performance of the transmission and engine by measuring the stall speeds in the D and R positions. NOTICE: wDo the tes

Page 431 of 2543

TOYOTA SUPRA 1995 Service Repair Manual EVALUATION ProblemPossible cause Problem Possible cause

Page 432 of 2543

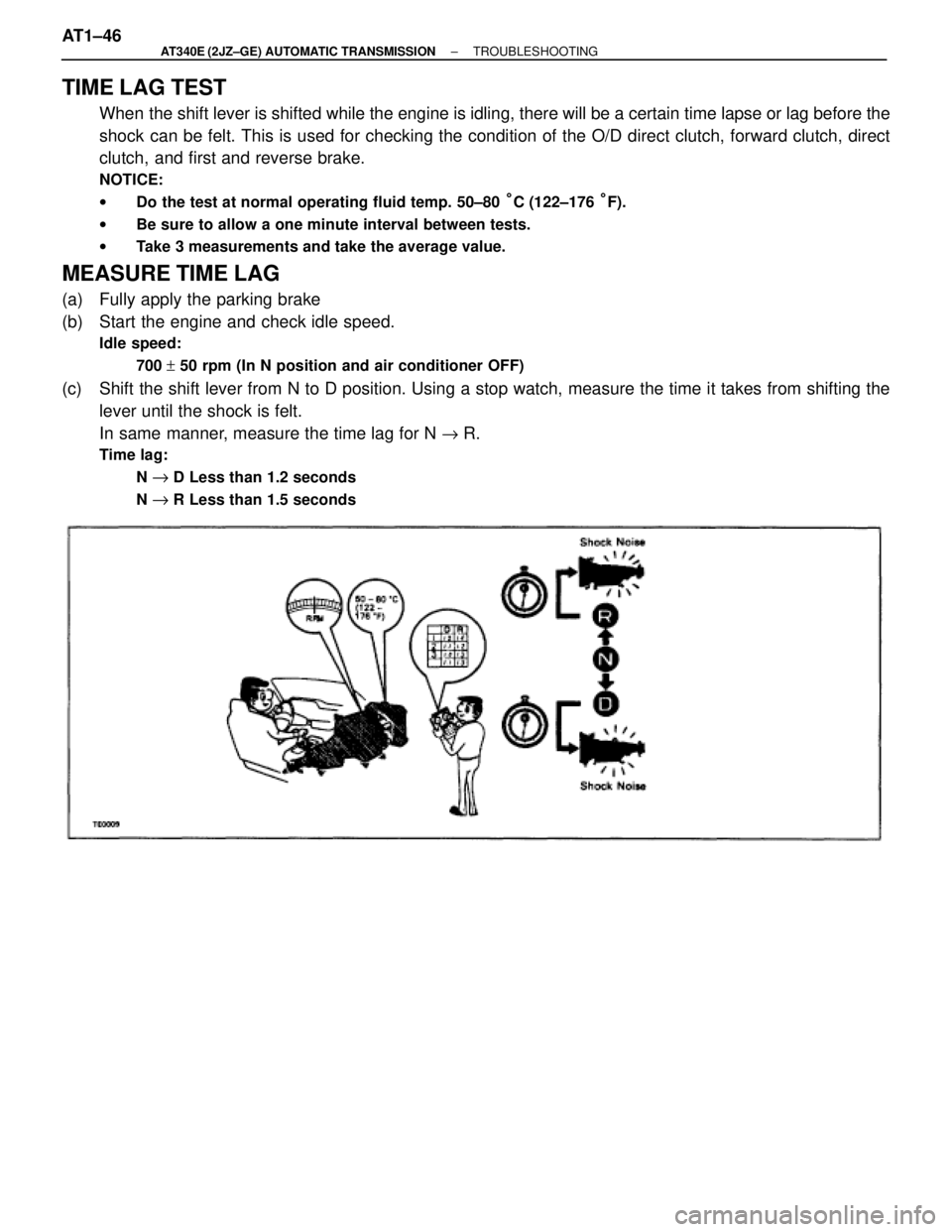

TOYOTA SUPRA 1995 Service Repair Manual TIME LAG TEST When the shift lever is shifted while the engine is idling, there will be a certain time lapse or lag before the shock can be felt. This is used for checking the condition of the O/D dir
