Page 2025 of 2543

TOYOTA SUPRA 1995 Service Repair Manual DTC 13 G NE Signal Circuit (No.2)
CIRCUIT DESCRIPTION
Refer to G, NE signal circuit (No.1) on page EG±515
DTC No. Diagnostic Trouble Code Detecting Cond

Page 2026 of 2543

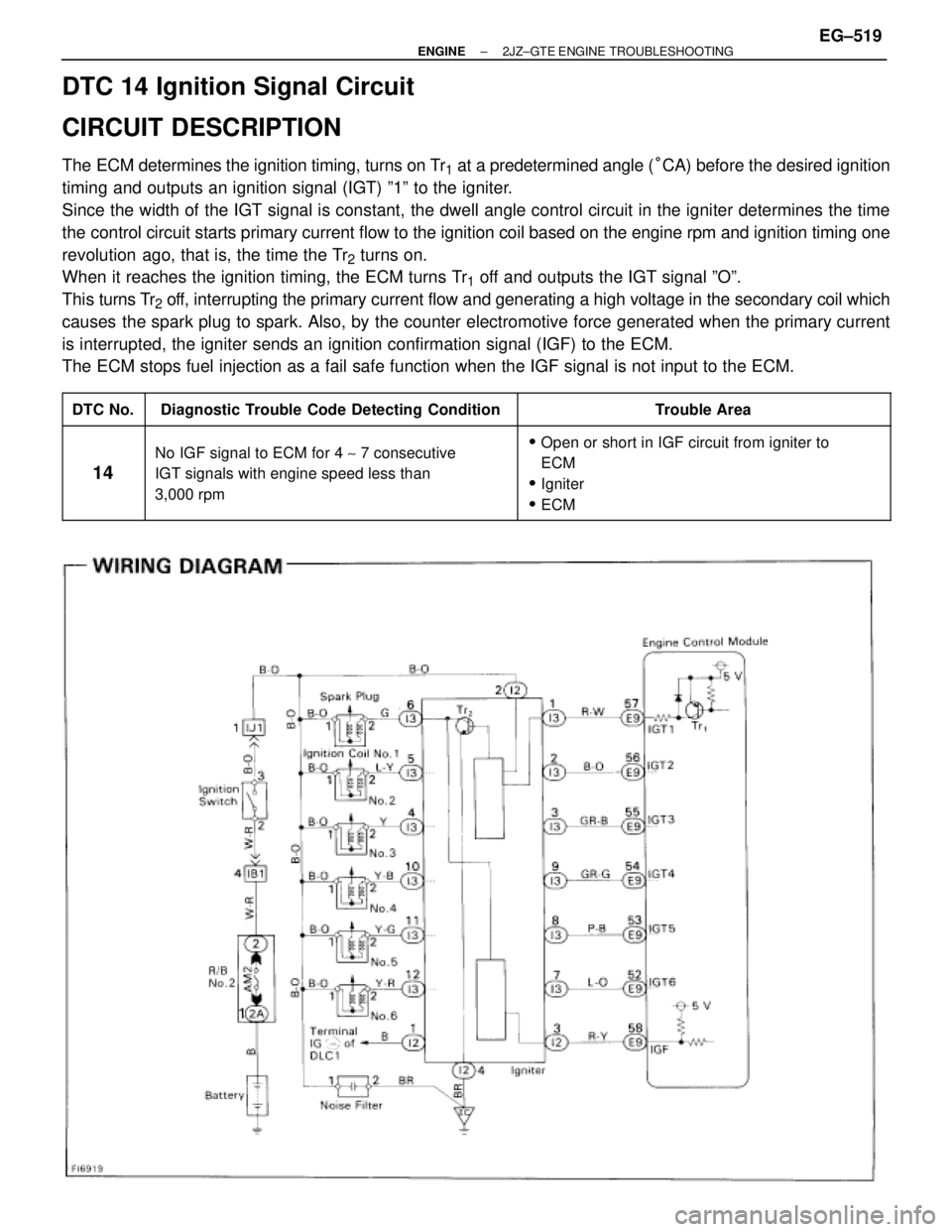

TOYOTA SUPRA 1995 Service Repair Manual DTC 14 Ignition Signal Circuit
CIRCUIT DESCRIPTION
The ECM determines the ignition timing, turns on Tr1 at a predetermined angle (°CA) before the desired ignition
timing and outputs an ignition signa

Page 2027 of 2543

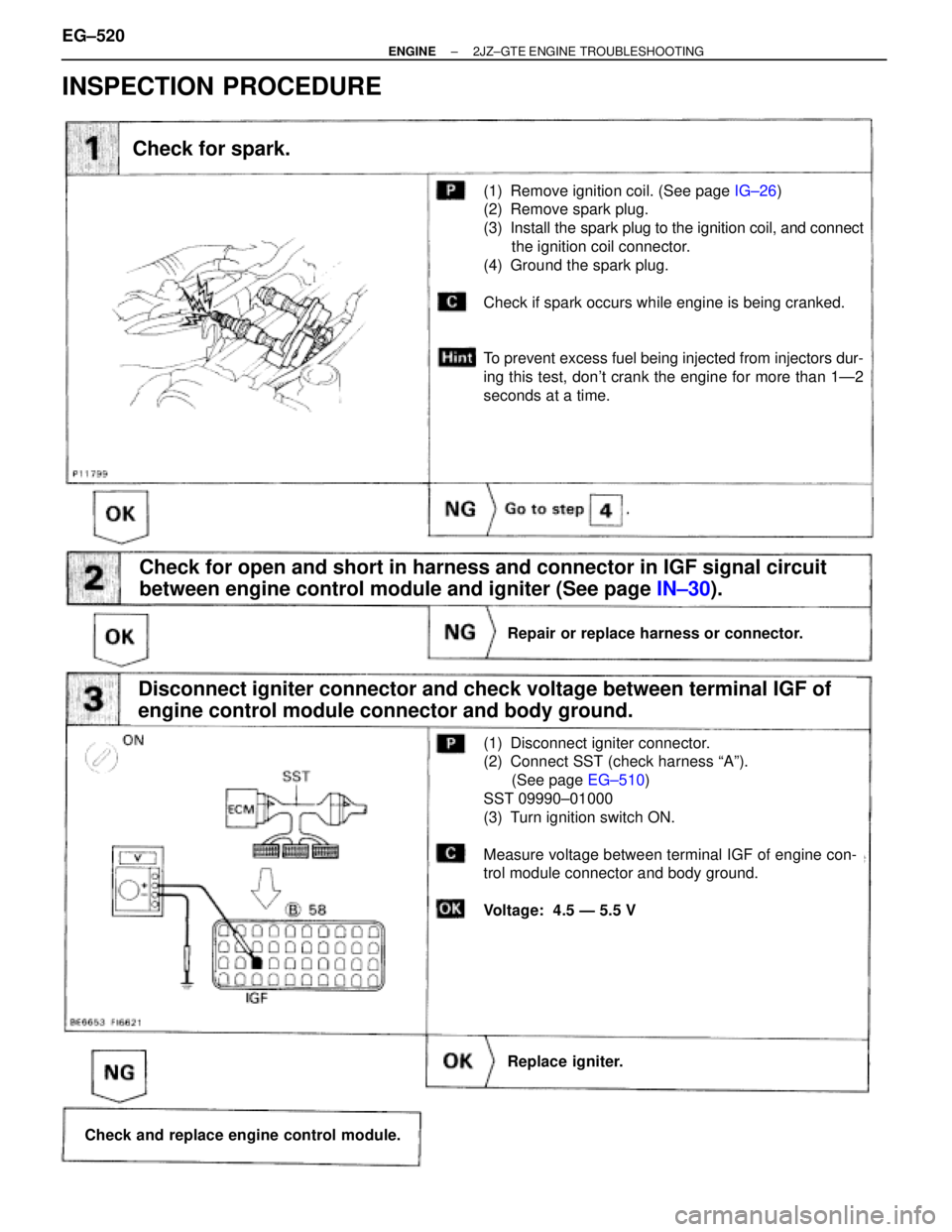

TOYOTA SUPRA 1995 Service Repair Manual Check for spark.
(1) Remove ignition coil. (See page IG±26)
(2) Remove spark plug.
(3) Install the spark plug to the ignition coil, and connect
the ignition coil connector.
(4) Ground the spark plug.

Page 2028 of 2543

TOYOTA SUPRA 1995 Service Repair Manual (See page EG±510)
During idling, check waveforms between termi±
nals IGT1, IGF and E1 of engine control module.
HINT: The correct rectangular waveforms are as
shown, IGT2, IGT3, IGT4, IGT5 and IGT6

Page 2029 of 2543

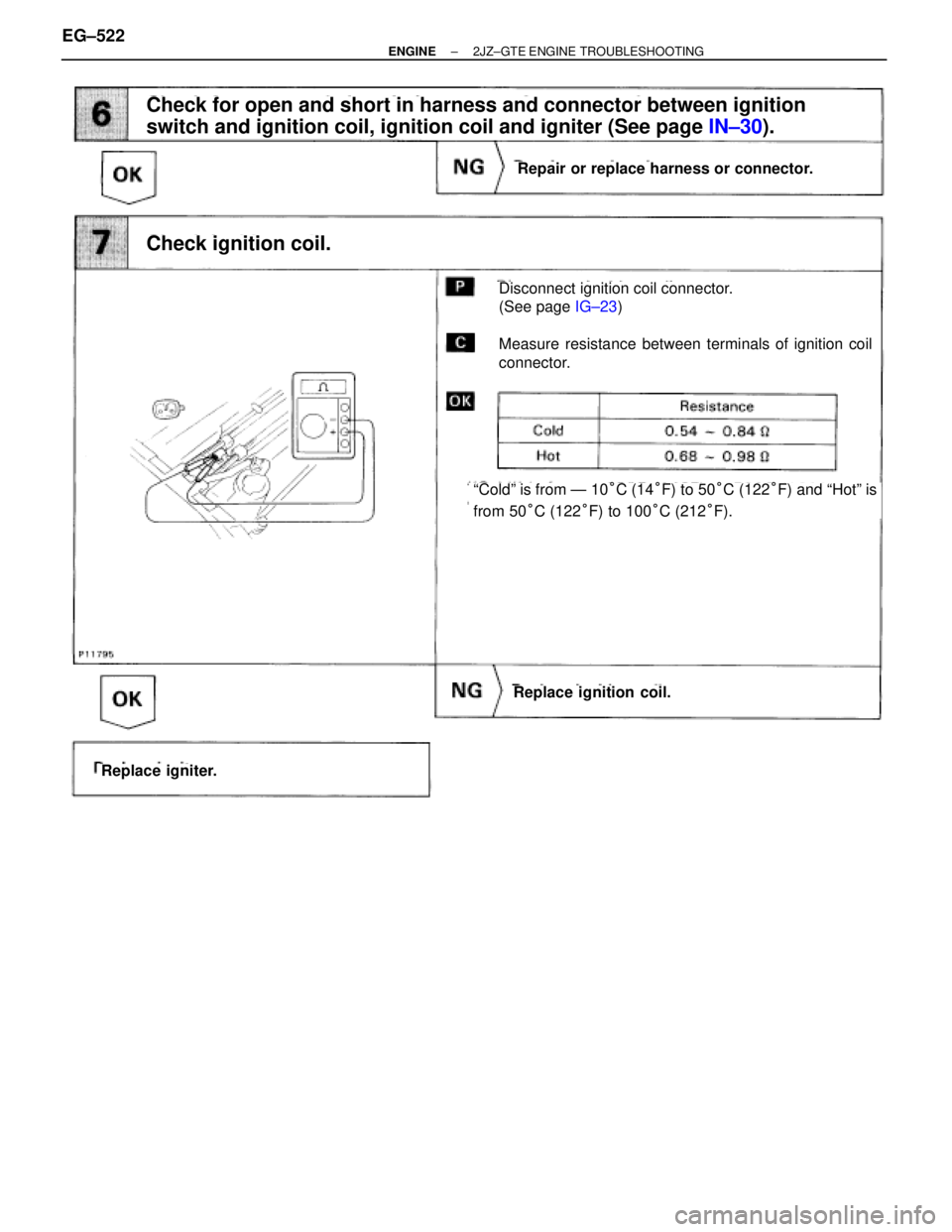

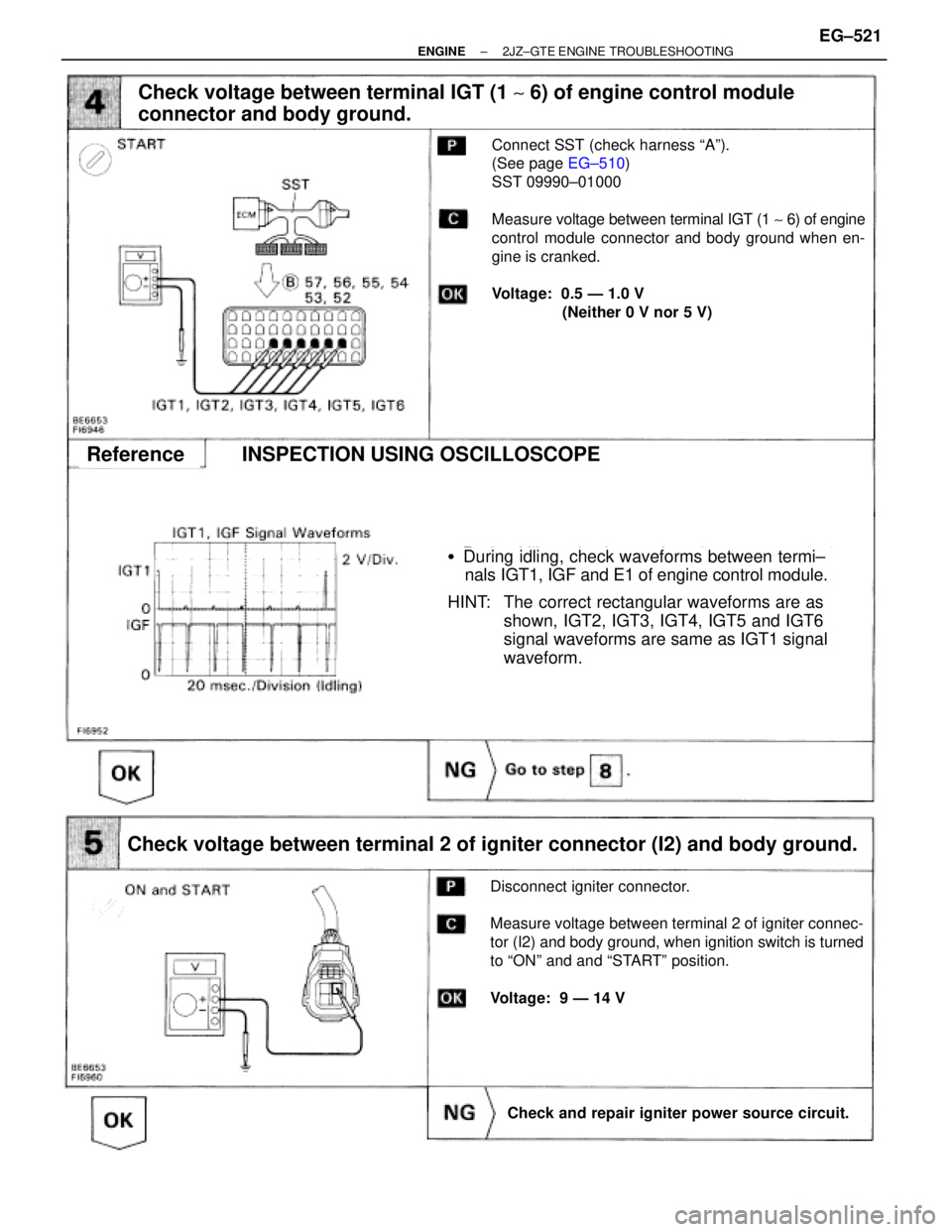

TOYOTA SUPRA 1995 Service Repair Manual Check for open and short in harness and connector between ignition
switch and ignition coil, ignition coil and igniter (See page IN±30).
Disconnect ignition coil connector.
(See page IG±23)
Measure

Page 2030 of 2543

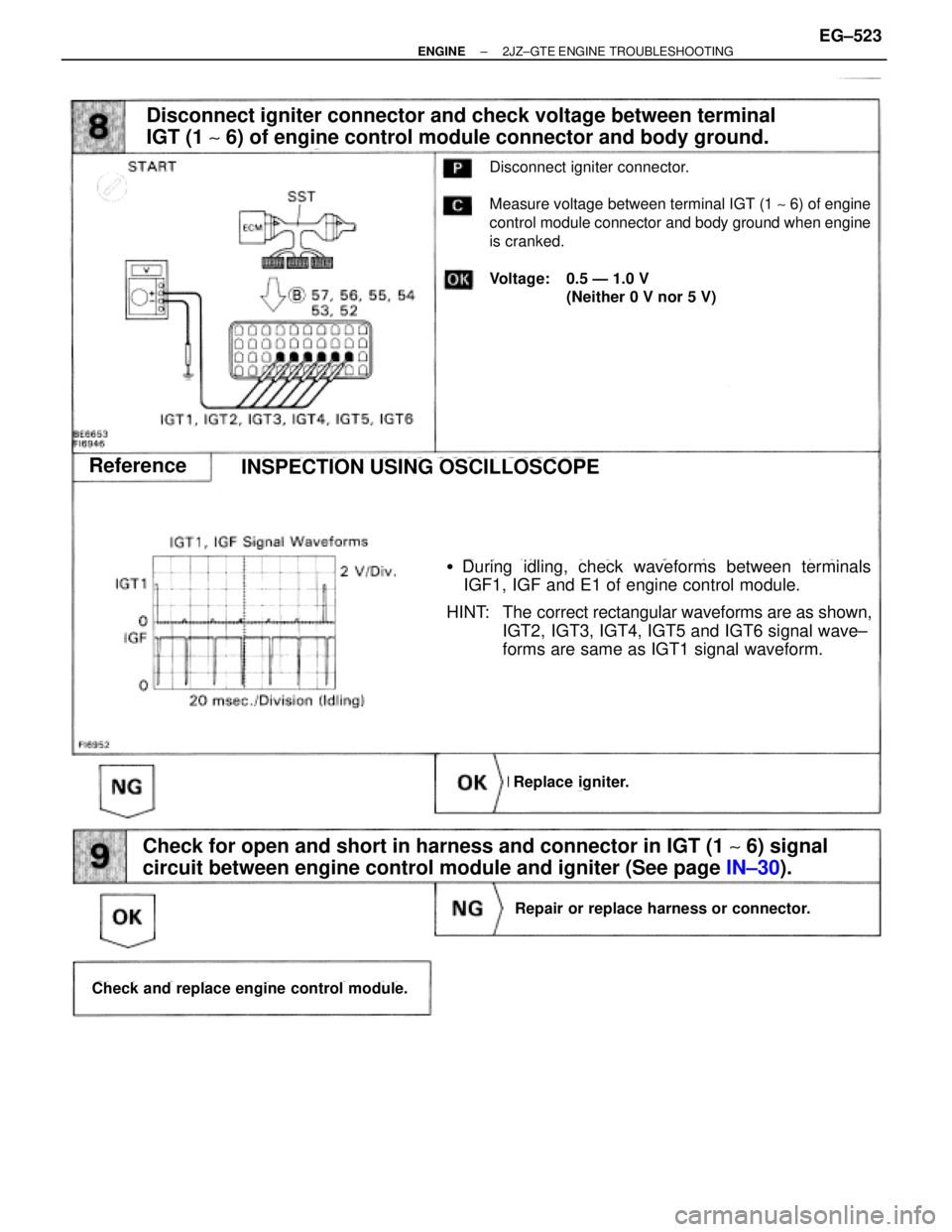

TOYOTA SUPRA 1995 Service Repair Manual Disconnect igniter connector and check voltage between terminal
IGT (1 ~ 6) of engine control module connector and body ground.
Disconnect igniter connector.
Measure voltage between terminal IGT (1 ~

Page 2031 of 2543

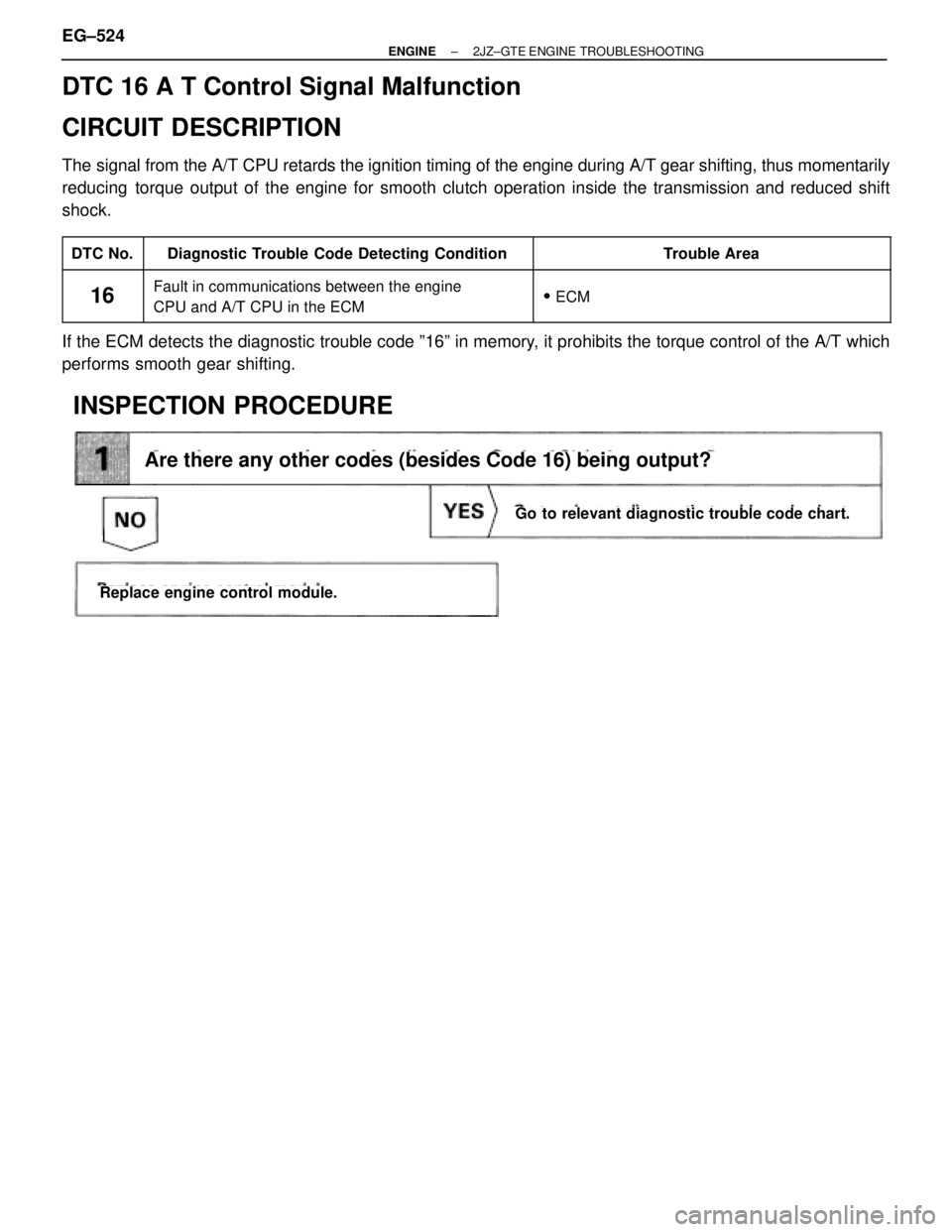

TOYOTA SUPRA 1995 Service Repair Manual DTC 16 A T Control Signal Malfunction
CIRCUIT DESCRIPTION
The signal from the A/T CPU retards the ignition timing of the engine during A/T gear shifting, thus momentarily
reducing torque output of the

Page 2032 of 2543

TOYOTA SUPRA 1995 Service Repair Manual See page EG±503.
CIRCUIT DESCRIPTION
To obtain a high purification rate for the CO, HC and NOx components of the exhaust gas, a three±way
catalytic converter is used, but for most efficient use of t

See page EG±503.
CIRCUIT DESCRIPTION
To obtain a high purification rate for the CO, HC and NOx components of the exhaust gas, a three±way
catalytic converter is used, but for most efficient use of the three±way catalytic converter, the air±fuel
ratio must be precisely controlled so that it is always close to the stoichiometric air±fuel ratio.
The oxygen sensor has the characteristic whereby its output voltage changes suddenly in the vicinity
of the stoichiometric air±fuel ratio. This characteristic is used to detect the oxygen concentration in the
exhaust gas and provide feedback to the computer for control of the air±fuel ratio.
When the air±fuel ratio becomes LEAN, the oxygen concentration in the exhaust increases and the
oxygen sensor informs the ECM of the LEAN condition (small electromotive force: 0 V).
When the air±fuel ratio is RICHER than the stoichiometric air±fuel ratio the oxygen concentration in the
exhaust gas is reduced and the oxygen sensor informs the ECM of the RICH condition (large electro-
motive force: 1 V).
The ECm judges by the electromotive force from the oxygen sensor whether the air±fuel ratio if RICH
or LEAN and controls the injection duration accordingly. However, if malfunction of the oxygen sensor
causes an output of abnormal electromotive force, the ECM is unable to perform accurate air±fuel ratio
control.
The main heated oxygen sensor include a heater which heats the Zirconia element. The heater is con-
trolled by the ECM. When the intake air volume is low (the temperature of the exhaust has is low) current
flows to the heater to heat the sensor for accurate oxygen concentration detection.)
Diagnostic Trouble Code Detecting ConditionDTC No.Trouble Area
(1) Open or short in heater circuit of main heated
oxygen sensor for 0.5 sec. or more.
(2) Main heated oxygen sensor signal voltage is
reduced to be 0.35 V and 0.70V for 60 sec.
under condition (a) ~ (d):
(2 trip detection logic)*1
(a) Engine coolant temp.: Between 80°C
(176°F) and 95°C (203°F)
(b) Engine speed: 1,500 rpm or more
(c) Load driving (Example A/T in
overdrive (5th for M/T), A/C ON, Flat
road, 80 km/h (50 mph))
(d) Main heated oxygen sensor signal
voltage: Alternating above and below
0.45V
Open or short in heater circuit of main heated
oxygen sensor
Main heated oxygen sensor heater
ECM
Main heated oxygen sensor circuit
Main heated oxygen sensor

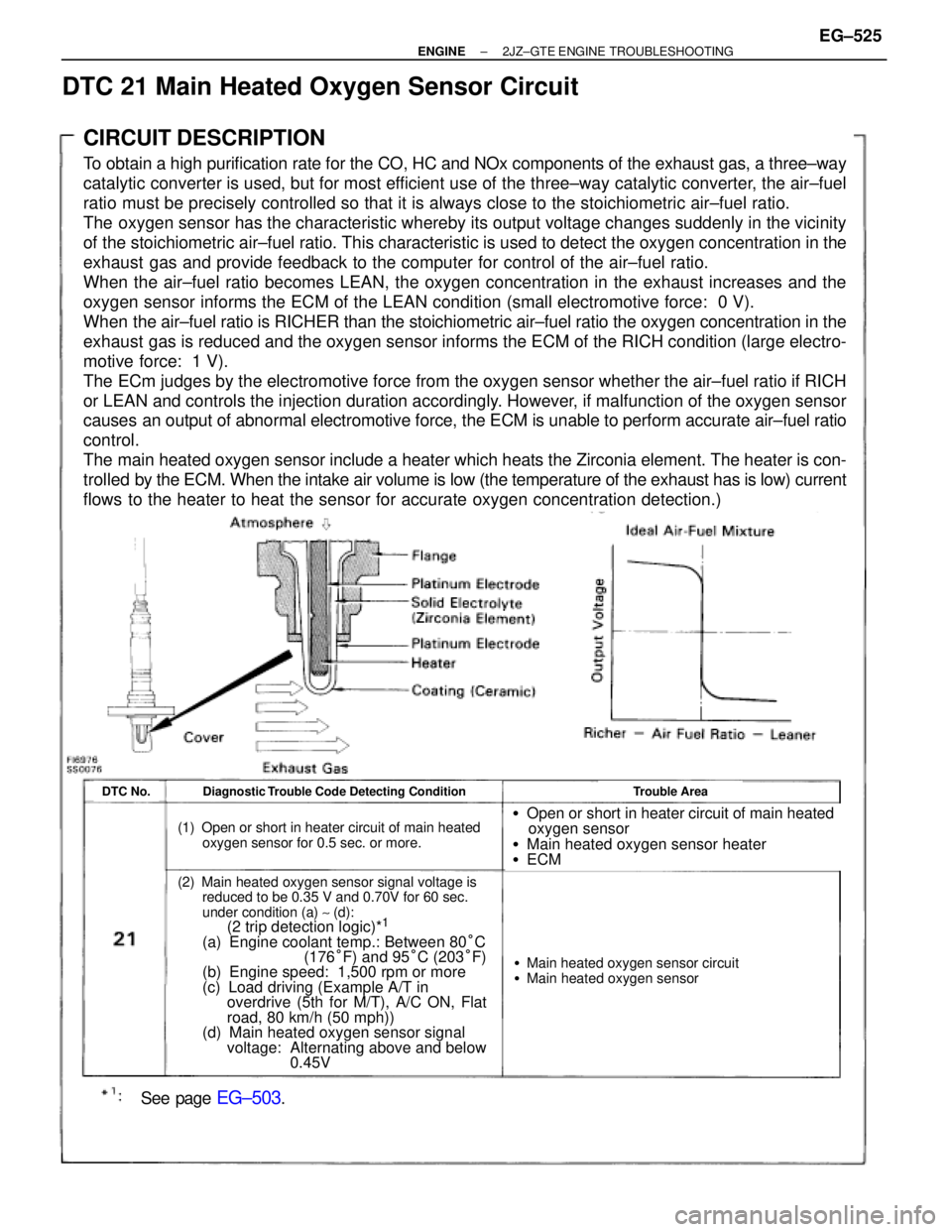

DTC 21 Main Heated Oxygen Sensor Circuit
± ENGINE2JZ±GTE ENGINE TROUBLESHOOTINGEG±525
