Page 1593 of 2543

TOYOTA SUPRA 1995 Service Repair Manual VSV INSPECTION 1. REMOVE VSV 2. INSPECT VSV A. Inspect VSV for open circuit Using an ohmmeter, check that there is continuity between the terminals. Resistance: At 20°C (68°F) 38.5±44.5  If there

Page 1594 of 2543

TOYOTA SUPRA 1995 Service Repair Manual VSV FOR WASTE GATE VALVE COMPONENTS FOR REMOVAL AND INSTALLATION VSV INSPECTION 1. REMOVE VSV ASSEMBLY 2. INSPECT VSV A. Inspect VSV for open circuit Using an ohmmeter, check that there is continuit

Page 1595 of 2543

TOYOTA SUPRA 1995 Service Repair Manual C. Inspect VSV operation (a) Check that air does not flow from port E to F. (b) Apply battery voltage across the terminals. (c) Check that air flows from port E to F. If operation is not as specif

Page 1596 of 2543

TOYOTA SUPRA 1995 Service Repair Manual VSV INSPECTION 1. REMOVE VSV ASSEMBLY 2. INSPECT VSV A. Inspect VSV for open circuit Using an ohmmeter, check that there is continuity between the terminals. Resistance: At 20°C (68°F) 38.5±44.5

Page 1597 of 2543

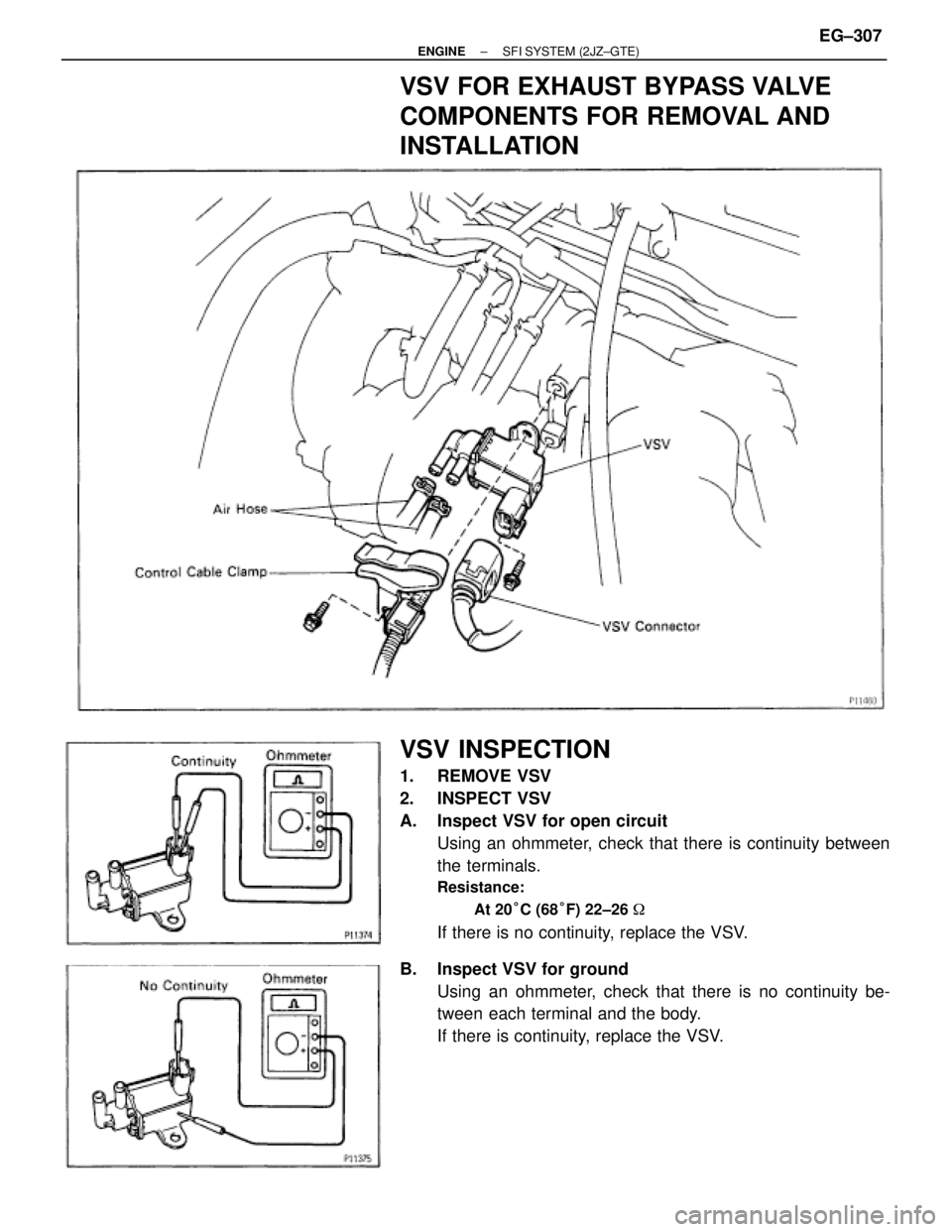

TOYOTA SUPRA 1995 Service Repair Manual VSV FOR EXHAUST BYPASS VALVE COMPONENTS FOR REMOVAL AND INSTALLATION VSV INSPECTION 1. REMOVE VSV 2. INSPECT VSV A. Inspect VSV for open circuit Using an ohmmeter, check that there is continuity betw

Page 1598 of 2543

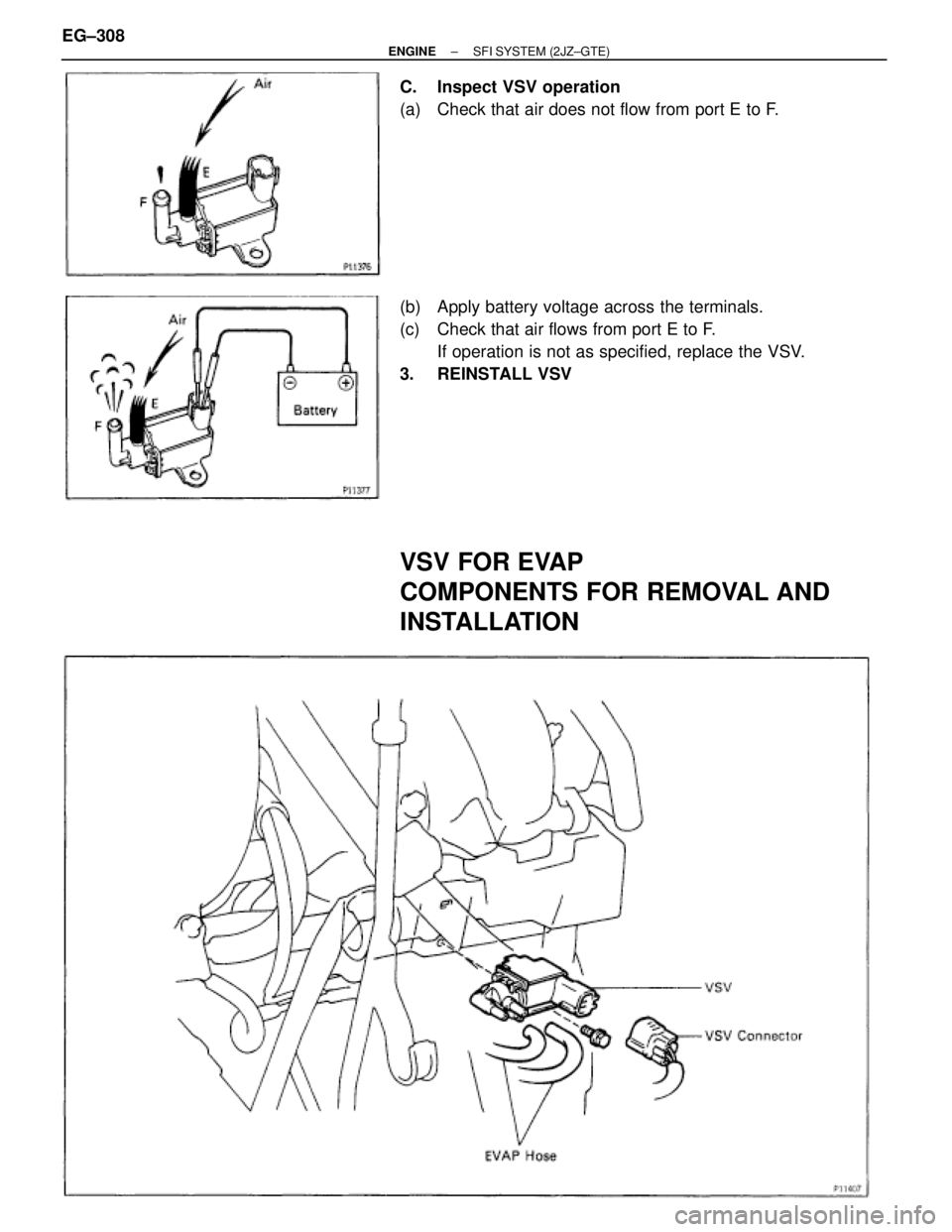

TOYOTA SUPRA 1995 Service Repair Manual C. Inspect VSV operation (a) Check that air does not flow from port E to F. (b) Apply battery voltage across the terminals. (c) Check that air flows from port E to F. If operation is not as specif

Page 1599 of 2543

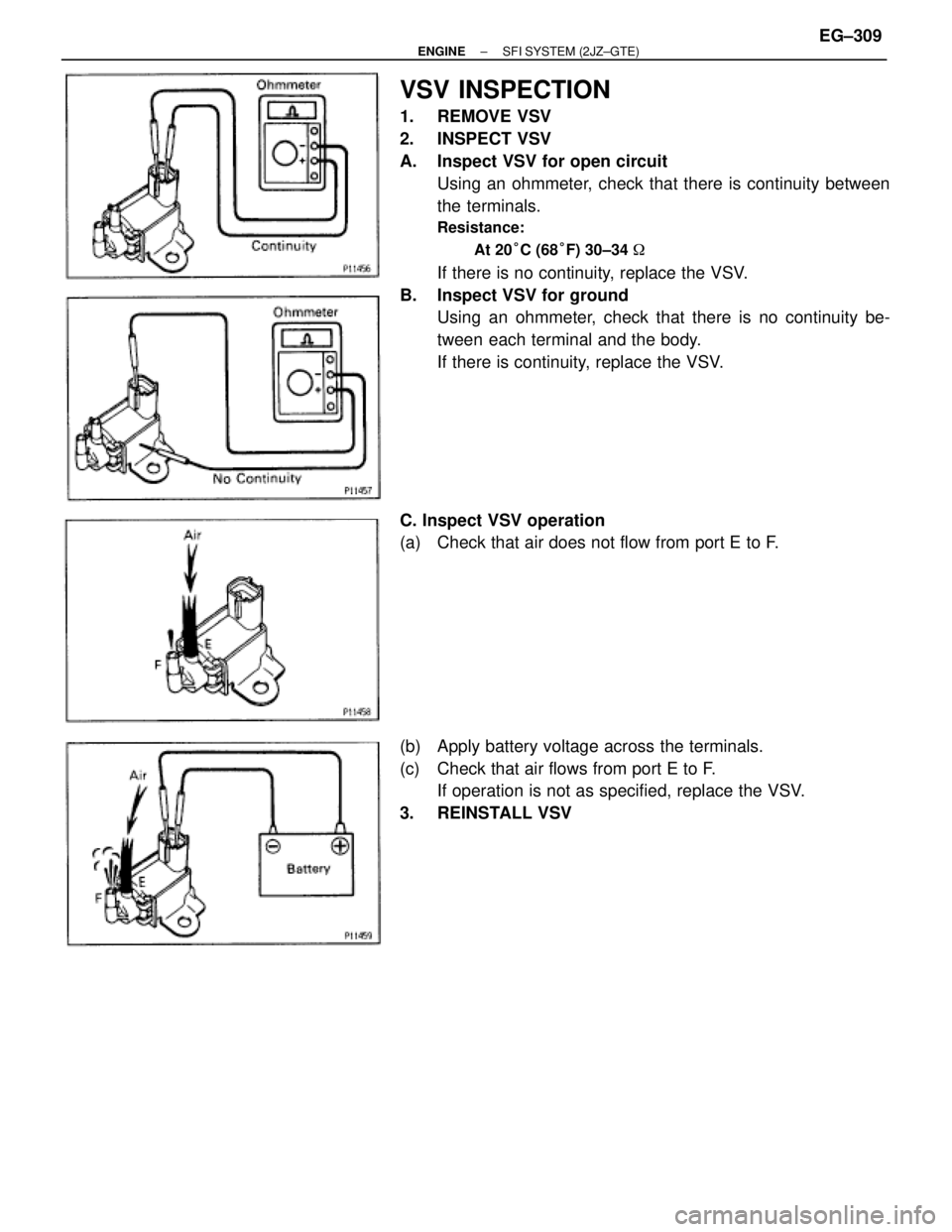

TOYOTA SUPRA 1995 Service Repair Manual VSV INSPECTION 1. REMOVE VSV 2. INSPECT VSV A. Inspect VSV for open circuit Using an ohmmeter, check that there is continuity between the terminals. Resistance: At 20°C (68°F) 30±34  If there is

Page 1600 of 2543

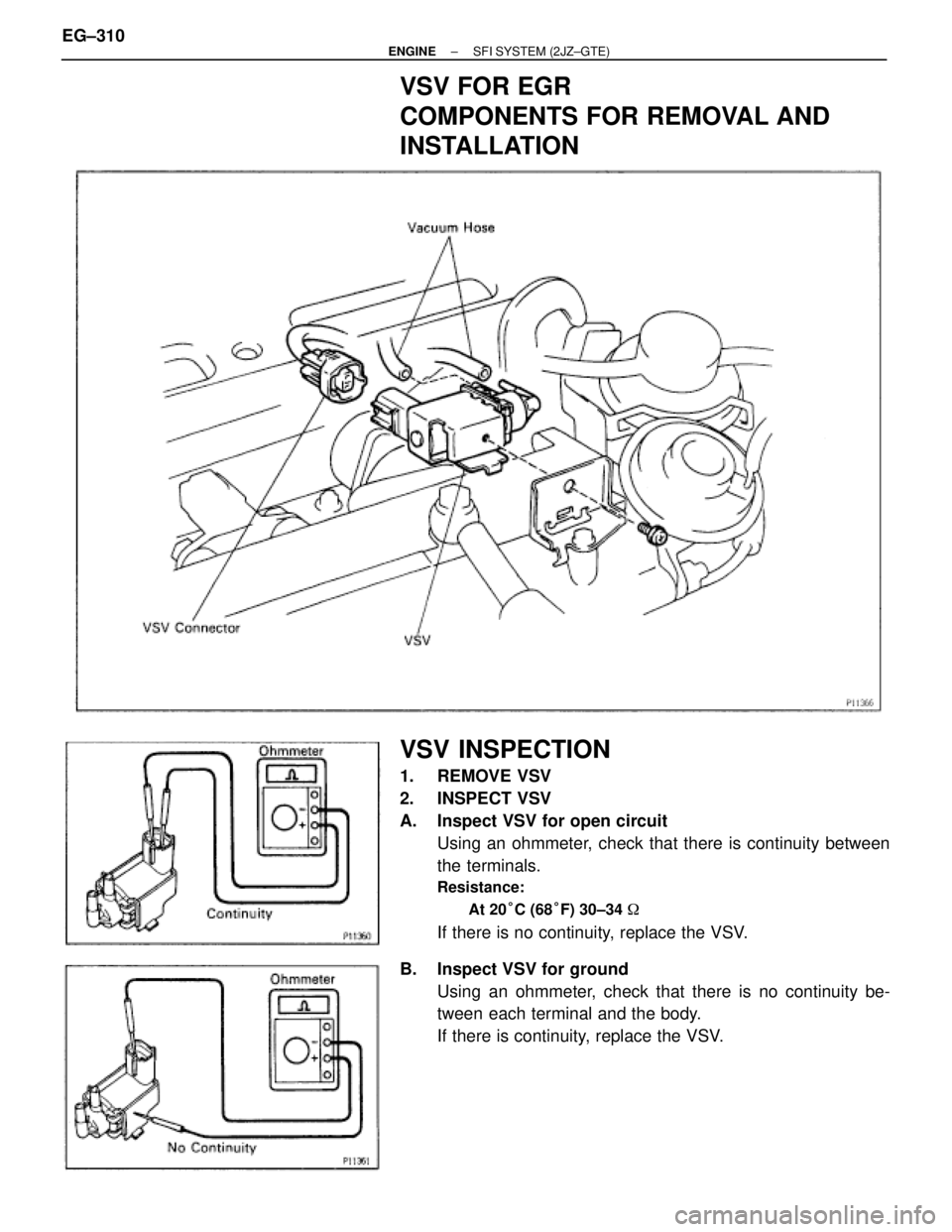

TOYOTA SUPRA 1995 Service Repair Manual VSV FOR EGR COMPONENTS FOR REMOVAL AND INSTALLATION VSV INSPECTION 1. REMOVE VSV 2. INSPECT VSV A. Inspect VSV for open circuit Using an ohmmeter, check that there is continuity between the terminals
