TOYOTA SUPRA 1995 Service Repair Manual LOCK±UP POINT
NORM Mode
D position Throttle valve opening 5% Lock±up ON km/h (mph) Lock±up OFF km/h (mph)

Page 602 of 2543

TOYOTA SUPRA 1995 Service Repair Manual TORQUE SPECIFICATIONS
Part tightened NVm kgfVcm ftVlbf
No.1 vehicle speed sensor

TORQUE SPECIFICATIONS
Part tightened NVm kgfVcm ftVlbf
No.1 vehicle speed sensor 16 160 12
No.2 vehicle speed sensor 5.4 55 48 in.Vlbf
O/D direct clutch speed sensor 5.4 55 48 in.Vlbf
A/T fluid temp. sensor 15 150 11 Valve body 10 100 7 Oil strainer 10 100 7
Oil pan

7.4

75

65 in.Vlbf
Starter 37 380 27
Rear support X Body 25 260 19
Torque converter X Drive plate 34 340 25
Oil cooler union nut 34 350 25
Oil cooler pipe bracket 10 100 7
Propeller shaft X Transmission 56 570 41 Propeller shaft X Differential 79 805 58
Propeller shaft center support

49

500

36
Propeller shaft adjusting nut 53 540 39
Oil pan drain plug 17 175 13
Drive plate X Torque converter 33 340 25
Drive plate X Crankshaft 64 650 47

Transmission X Engine block 14 mm bolt
17 mm bolt

37
72

380
730

27
53
Park/neutral position switch X Transmission case 16 160 12
Transmission output flange 123 1,250 90
Shift control rod X Shift lever 13 130 9 Shift control rod X Park/neutral position switch 16 160 12
Exhaust pipe bracket X Transmission housing

37

380

27
No.2 exhaust pipe X Center exhaust pipe 58 590 43
Rear center floor crossmember brace X Body 13 130 9
Heat insulator X Body 5.4 55 48 in.Vlbf
AT2±118± A340E (2JZÐGTE) AUTOMATIC TRANSMISSIONSERVICE SPECIFICATIONS

Page 603 of 2543

TOYOTA SUPRA 1995 Service Repair Manual
BODY ELECTRICAL SYSTEM
BE±1

Page 604 of 2543

TOYOTA SUPRA 1995 Service Repair Manual PRECAUTION
Take care to observe the doing precautions when performing inspections or removal and replacement of
body electrical related parts.
HEADLIGHT SYSTEM
wHalogen bulbs have pressurized gas ins

PRECAUTION
Take care to observe the doing precautions when performing inspections or removal and replacement of
body electrical related parts.
HEADLIGHT SYSTEM
wHalogen bulbs have pressurized gas inside and require special handling. They can burst if scratched or
dropped. Hold a bulb only by its plastic or metal case.
Don't touch the glass part of a bulb with bare hands.
SRS (SUPPLEMENTAL RESTRAINT SYSTEM)
wWork must be started after 90 seconds from the time the ignition switch is turned to the ºLOCKº position
and the negative (±) terminal cable is disconnected from the battery.
wWhen disconnecting any of the connectors in the SRS, be sure to lock the ignition switch and disconnect
the negative (±) terminal cable from the battery first. Since the connectors are twin lock type connectors,
disconnect the connectors only after releasing the first stage lock.
wWhen connecting SRS connectors, be sure to lock them securely. (If the connectors are not locked
securely, the system may not operate when needed.)
wAlways store the steering wheel pad with the pad surface facing upward. (Storing the pad with its metallic
surface up may lead to a serious accident if the SRS inflates for some reason.)
wWhen installing the spiral cable, be sure the vehicle is in the straight ahead condition and confirm that the
spiral cable is in the neutral position when it is installed.
wINFORMATION LABELS (NOTICE) are attached to the periphery of the SRS components. Follow the
NOTICE.
AUDIO SYSTEM
wIf the negative (±) terminal cable is disconnected from the battery, the preset AM, FM 1 and FM 2 stations
stored in memory are erased, so be sure to note the stations and reset them after the battery terminal is
reconnected.
wIf the negative (±) terminal cable is disconnected from the battery, the ºANTI±THEFT SYSTEMº will operate
when the cable is reconnected, but the radio, tape player and CD player will not operate. Be sure to input
the correct ID number so that the radio, tape player and CD player can be operated again.
MOBILE COMMUNICATION SYSTEM
wIf the vehicle is equipped with a mobile communication system, refer to precautions in the IN section. BE±2
± BODY ELECTRICAL SYSTEMPRECAUTION

Page 605 of 2543

TOYOTA SUPRA 1995 Service Repair Manual PREPARATION
SST (SPECIAL SERVICE TOOLS)
09843±18020Diagnosis Check Wire
09808±14010Fuel Sender Gauge Tool Assy
09950±50010Puller C Set
RECOMMENDED TOOLS
09082±00050TOYOTA Electrical Tester Set

E

PREPARATION
SST (SPECIAL SERVICE TOOLS)
09843±18020Diagnosis Check Wire
09808±14010Fuel Sender Gauge Tool Assy
09950±50010Puller C Set
RECOMMENDED TOOLS
09082±00050TOYOTA Electrical Tester Set

EQUIPMENT

Voltmeter

Ammeter
Ohmmeter
Test lead
Thermometer Engine oil level warning switch, Seat heater
Syphon Brake fluid level warning switch
Oil bath Engine oil level warning switch
Bulb (3.4 W) Fuel sender gauge, Seat belt warning relay Bulb (21 W) Turn signal flasher relay Dry cell battery Fuel sender gauge
Heat light

Seat heater
Torque wrench
Masking tape Rear window defogger wire
Tin foil Rear window defogger wire
SSM (SPECIAL SERVICE MATERIAL)

DuPont Paste No. 4817 or
equivalent

Rear window defogger

equivalent

± BODY ELECTRICAL SYSTEMPREPARATIONBE±3

Page 606 of 2543

TOYOTA SUPRA 1995 Service Repair Manual POWER SOURCE

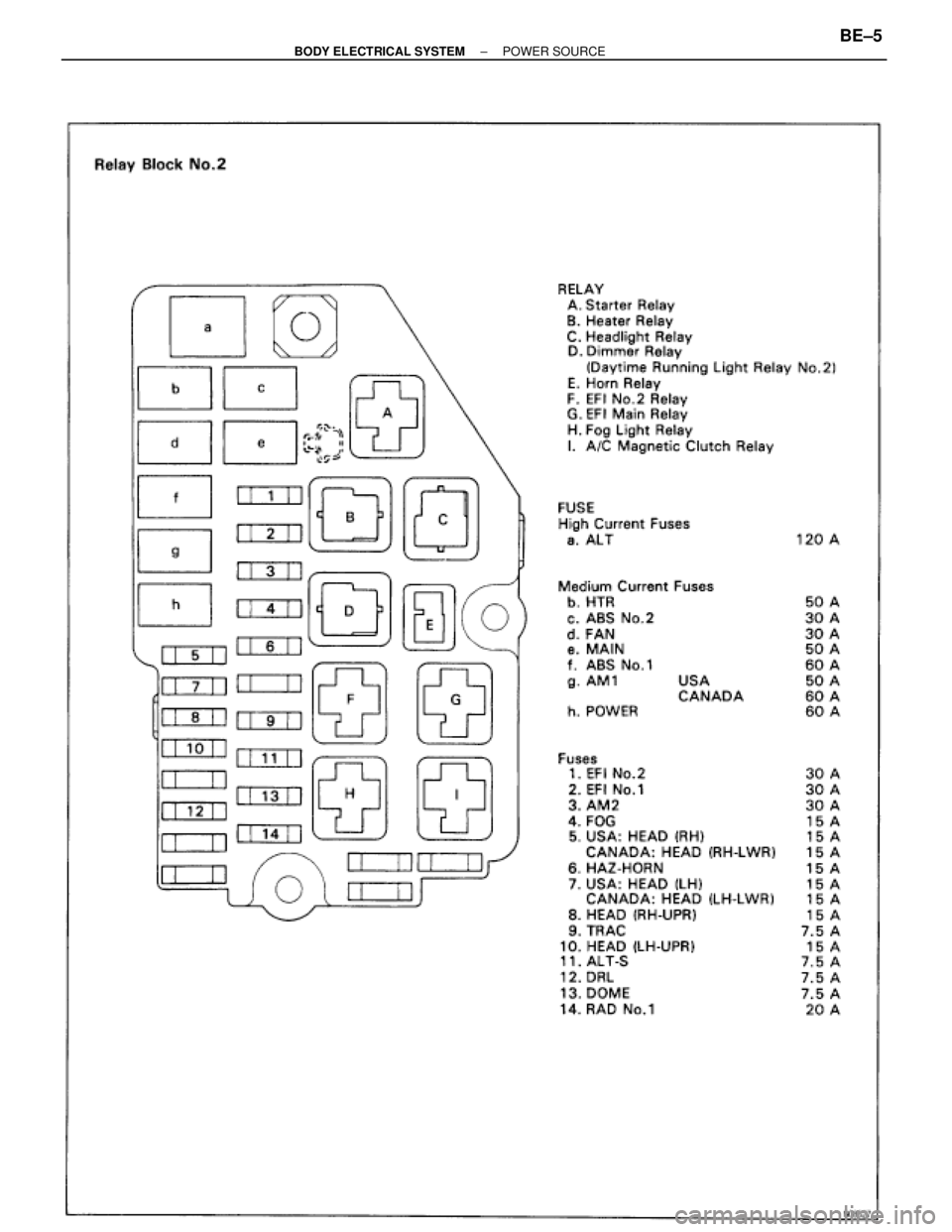

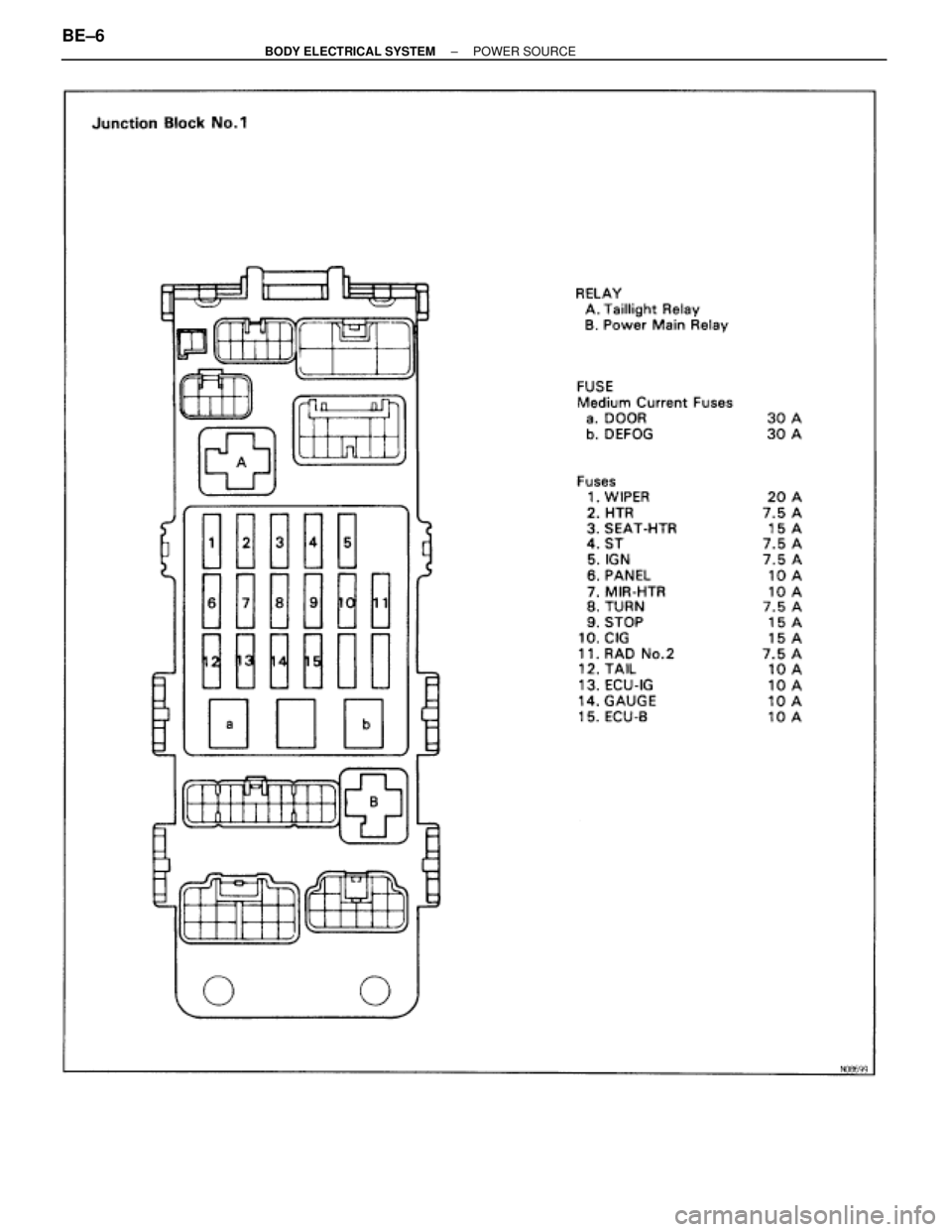

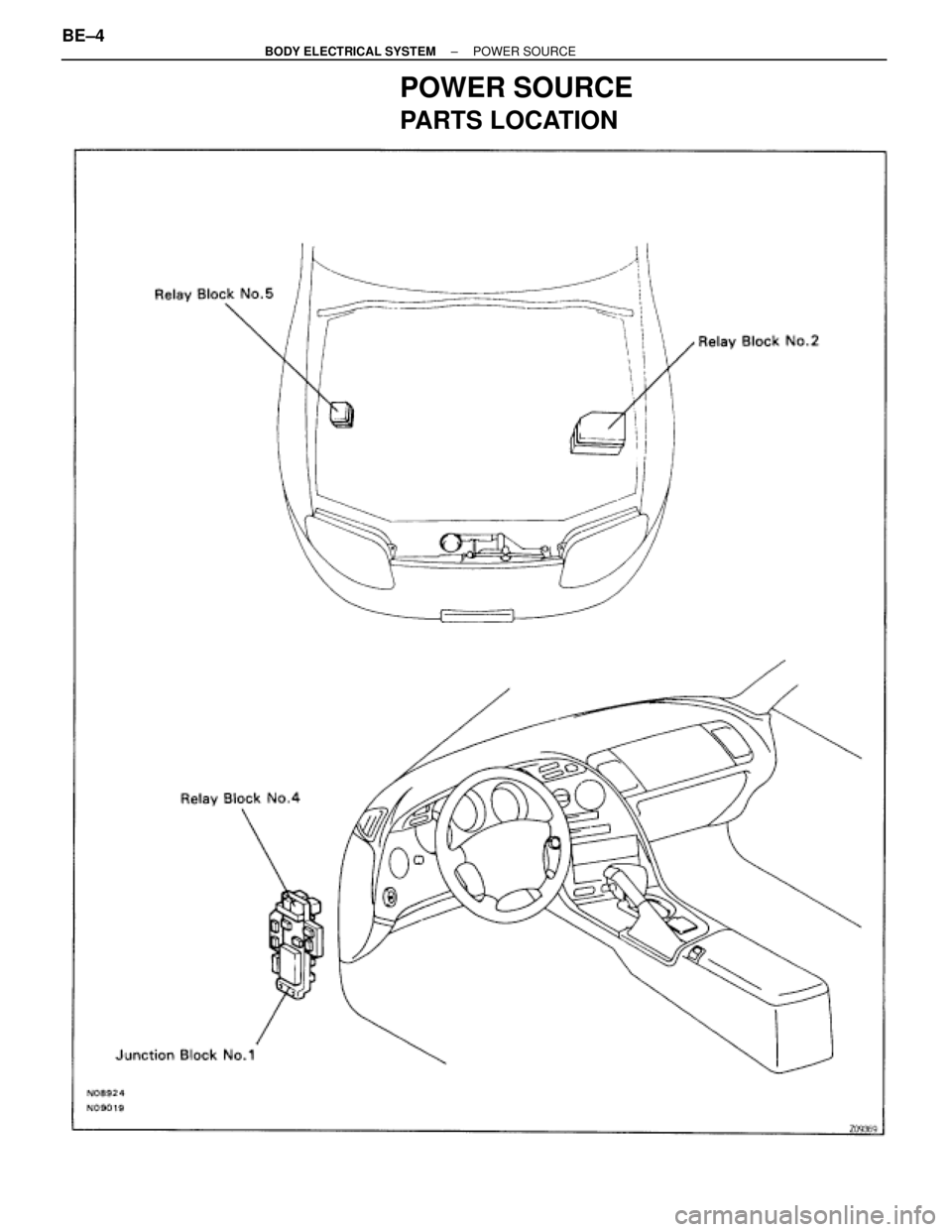

PARTS LOCATION
BE±4± BODY ELECTRICAL SYSTEMPOWER SOURCE

Page 607 of 2543

TOYOTA SUPRA 1995 Service Repair Manual ± BODY ELECTRICAL SYSTEMPOWER SOURCEBE±5

Page 608 of 2543

TOYOTA SUPRA 1995 Service Repair Manual BE±6± BODY ELECTRICAL SYSTEMPOWER SOURCE
