Page 2161 of 2543

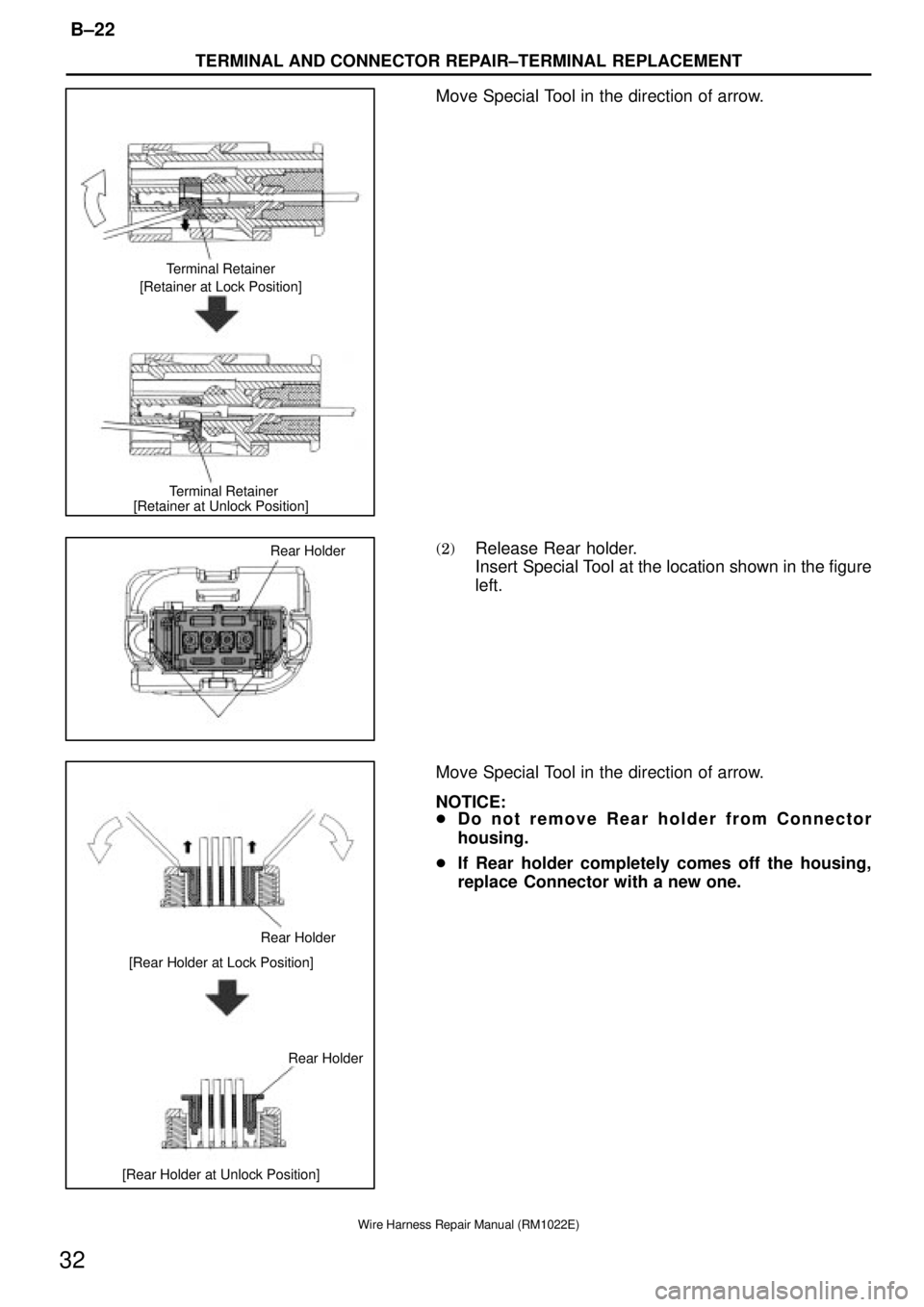

TOYOTA SUPRA 1995 Service Repair Manual Terminal Retainer [Retainer at Lock Position] [Retainer at Unlock Position]Terminal Retainer Rear Holder Rear Holder [Rear Holder at Lock Position] [Rear Holder at Unlock Position]Rear Holder TERMINAL

Page 2162 of 2543

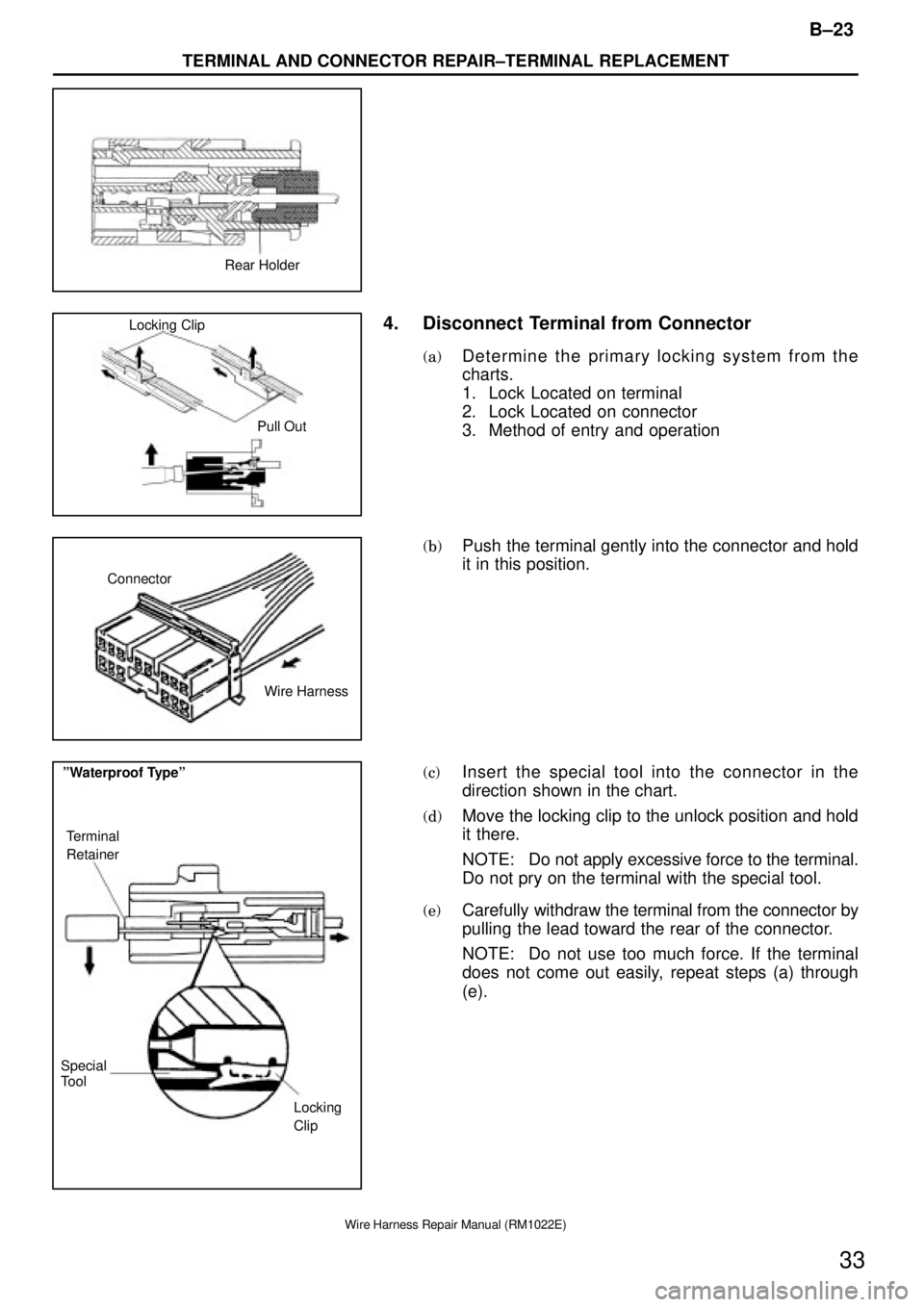

TOYOTA SUPRA 1995 Service Repair Manual Rear Holder Locking Clip Pull Out Connector Wire Harness Terminal Retainer Locking Clip ºWaterproof Typeº Special Tool B±23 TERMINAL AND CONNECTOR REPAIR±TERMINAL REPLACEMENT 33 Wire Harness Repai

Page 2163 of 2543

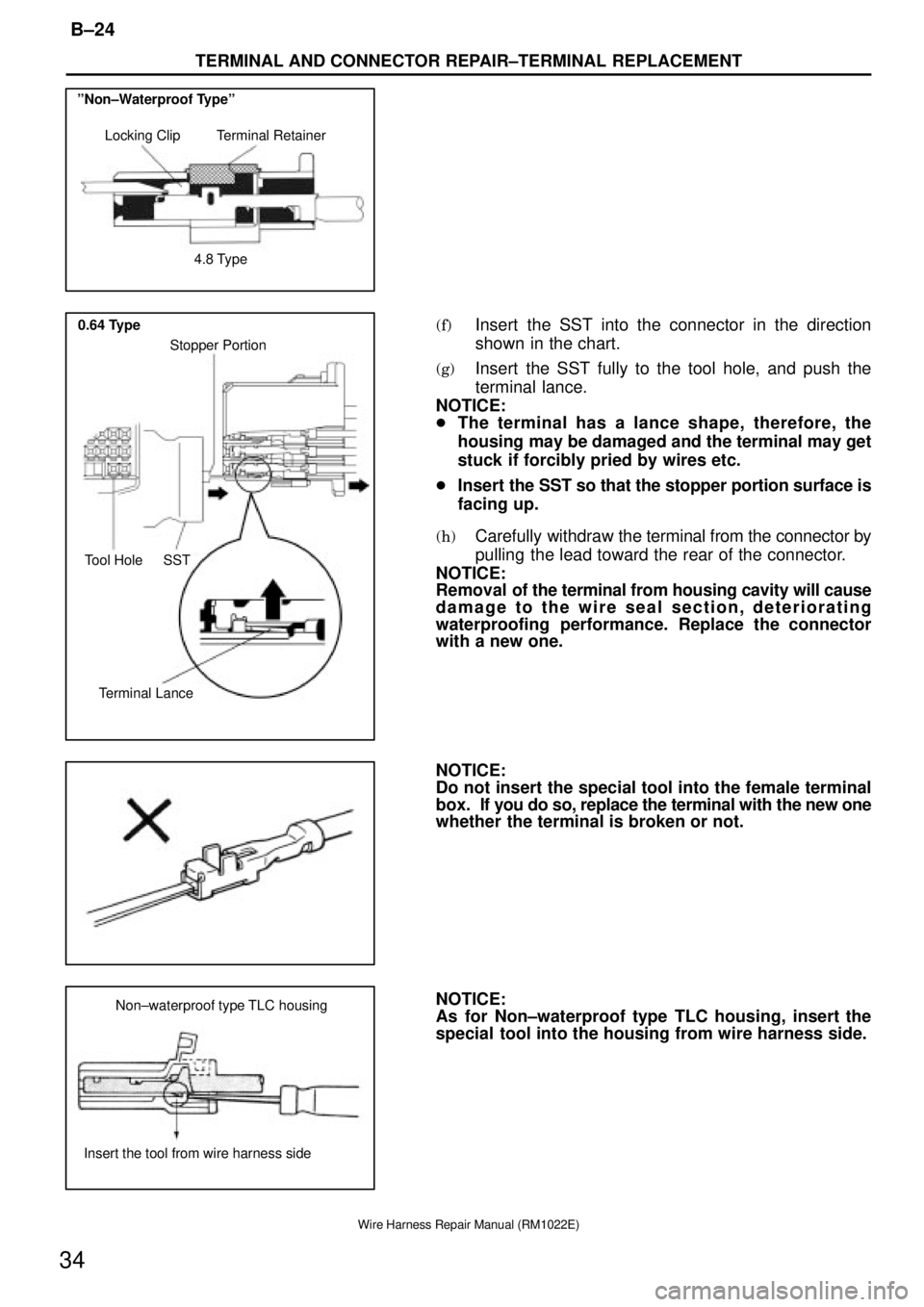

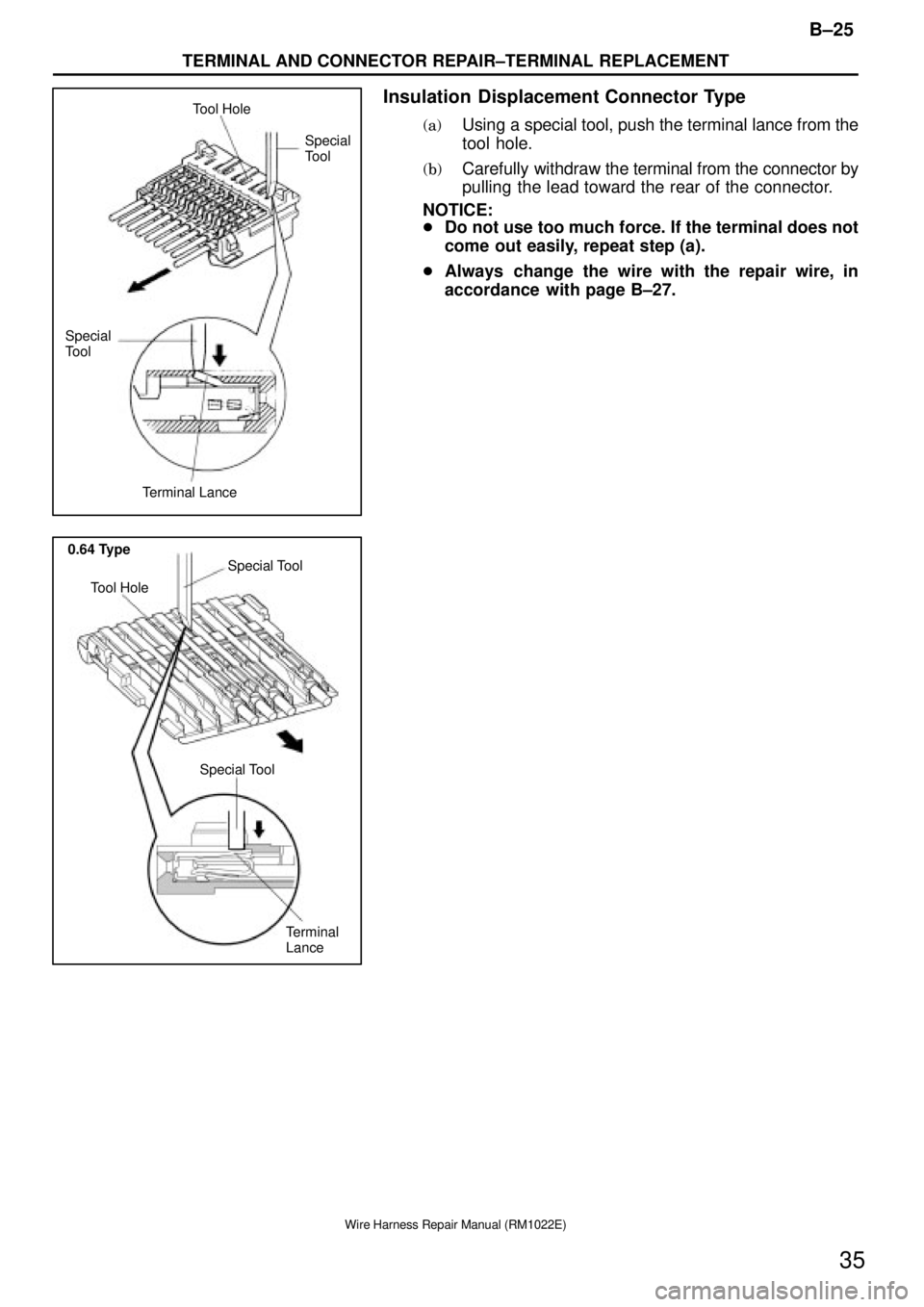

TOYOTA SUPRA 1995 Service Repair Manual Locking Clip Terminal Retainer 4.8 Type ºNon±Waterproof Typeº SST Tool Hole Terminal LanceStopper Portion 0.64 Type Non±waterproof type TLC housing Insert the tool from wire harness side TERMINAL

Page 2164 of 2543

TOYOTA SUPRA 1995 Service Repair Manual Tool Hole Terminal LanceSpecial Tool Special Tool Tool HoleSpecial Tool Terminal Lance Special Tool 0.64 Type B±25 TERMINAL AND CONNECTOR REPAIR±TERMINAL REPLACEMENT 35 Wire Harness Repair Manual (R

Page 2165 of 2543

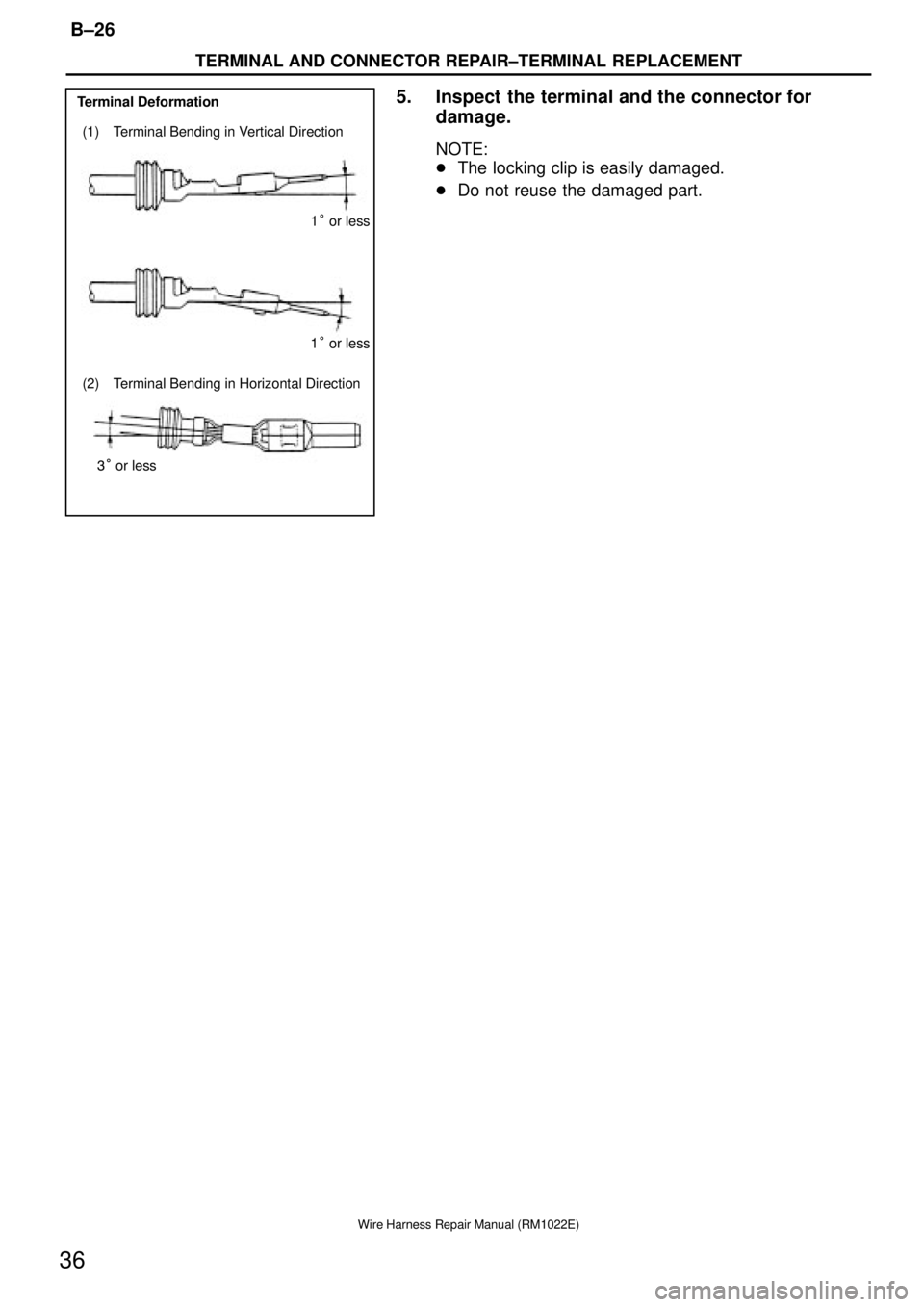

TOYOTA SUPRA 1995 Service Repair Manual Terminal Deformation (1) Terminal Bending in Vertical Direction (2) Terminal Bending in Horizontal Direction1° or less 1° or less 3° or less TERMINAL AND CONNECTOR REPAIR±TERMINAL REPLACEMENT B±2

Page 2166 of 2543

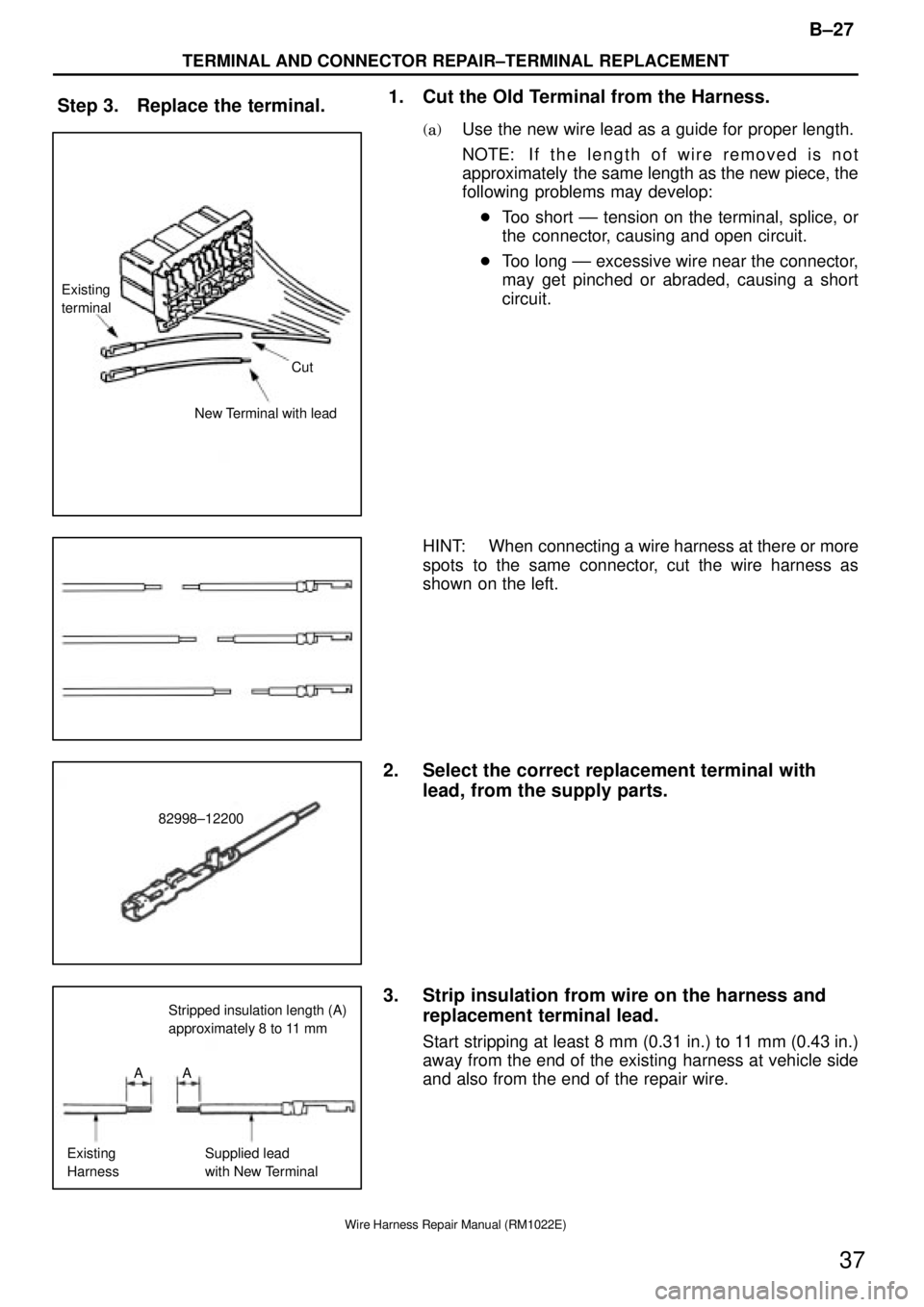

TOYOTA SUPRA 1995 Service Repair Manual Step 3. Replace the terminal. Cut Existing terminal New Terminal with lead 82998±12200 Stripped insulation length (A) approximately 8 to 11 mm Existing HarnessSupplied lead with New Terminal AA B±27

Page 2167 of 2543

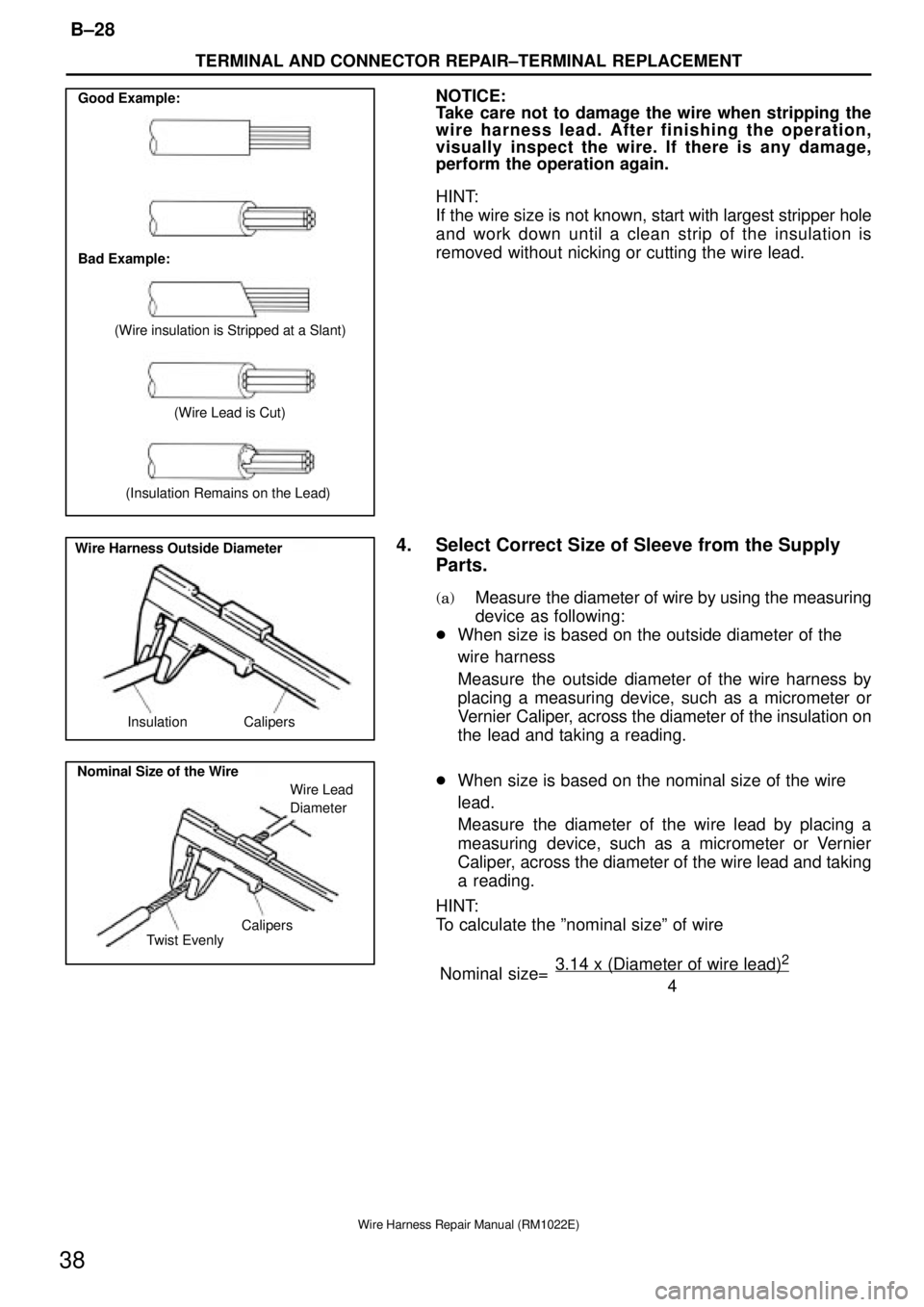

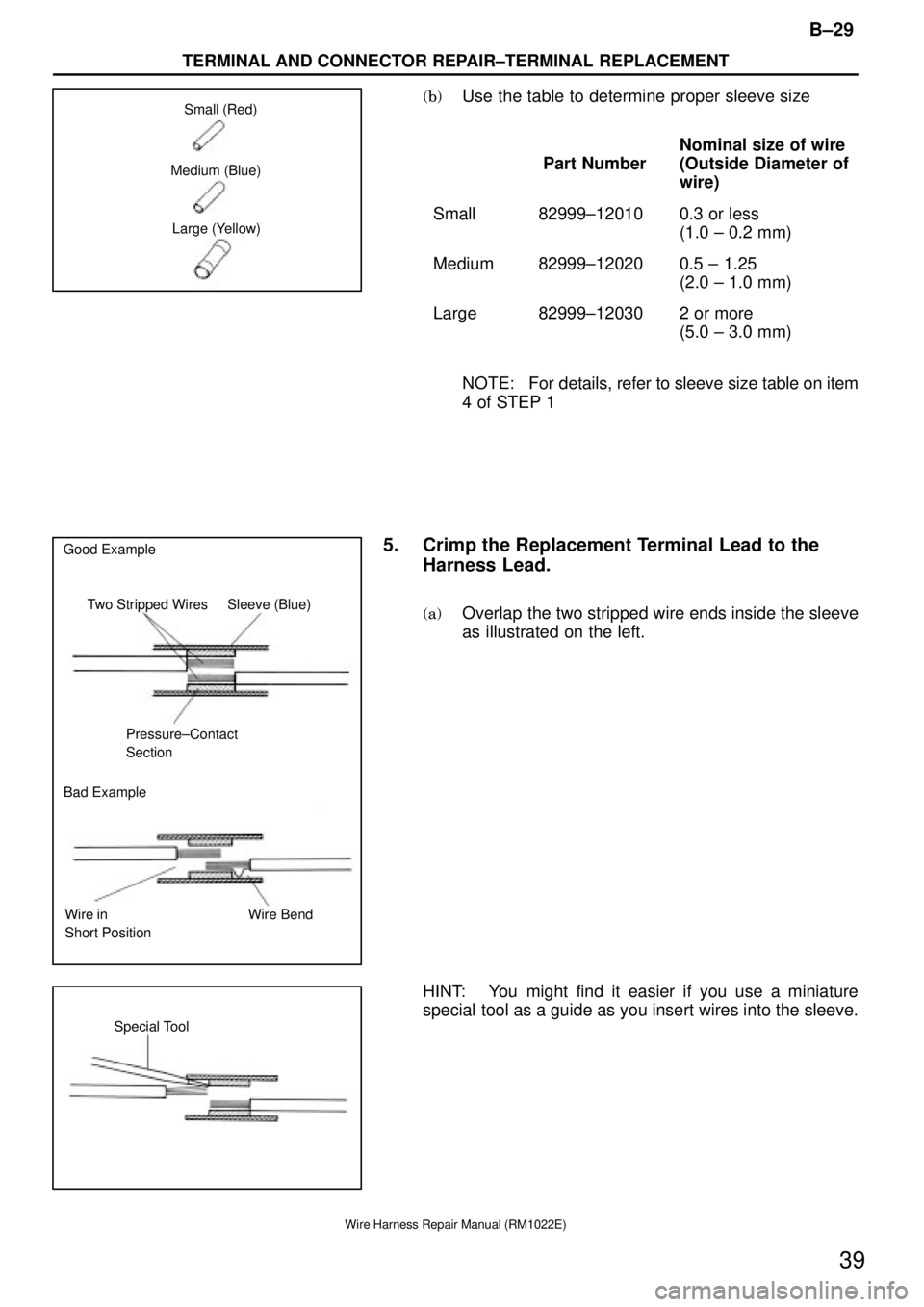

TOYOTA SUPRA 1995 Service Repair Manual Good Example: Bad Example: (Wire insulation is Stripped at a Slant) (Wire Lead is Cut) (Insulation Remains on the Lead) Wire Harness Outside Diameter Insulation Calipers Nominal Size of the Wire Twist

Page 2168 of 2543

TOYOTA SUPRA 1995 Service Repair Manual Small (Red) Medium (Blue) Large (Yellow) Good Example Two Stripped Wires Sleeve (Blue) Bad ExamplePressure±Contact Section Wire in Short PositionWire Bend Special Tool B±29 TERMINAL AND CONNECTOR RE
