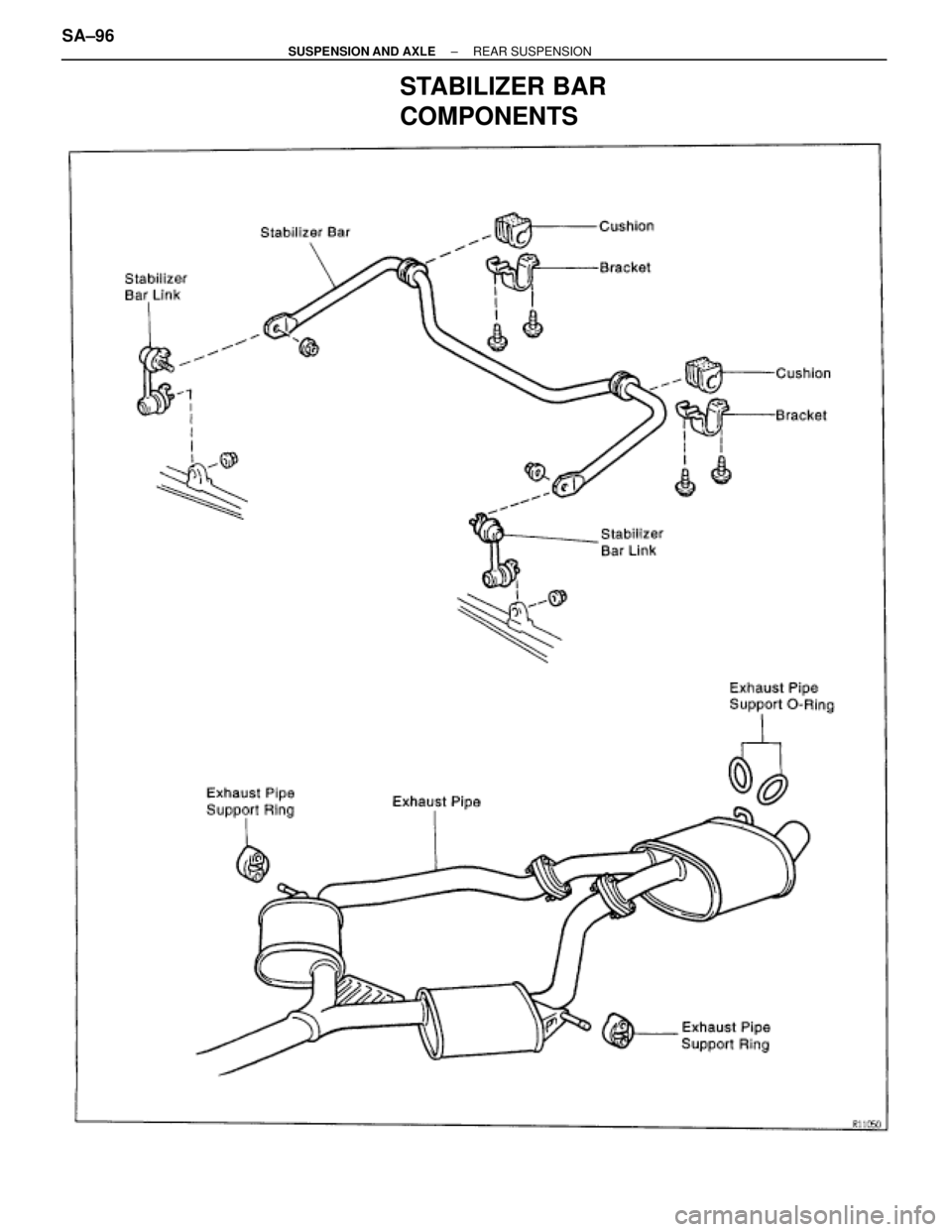

TOYOTA SUPRA 1995 Service Repair Manual STABILIZER BAR
COMPONENTS
SA±96± SUSPENSION AND AXLEREAR SUSPENSION

Page 1882 of 2543

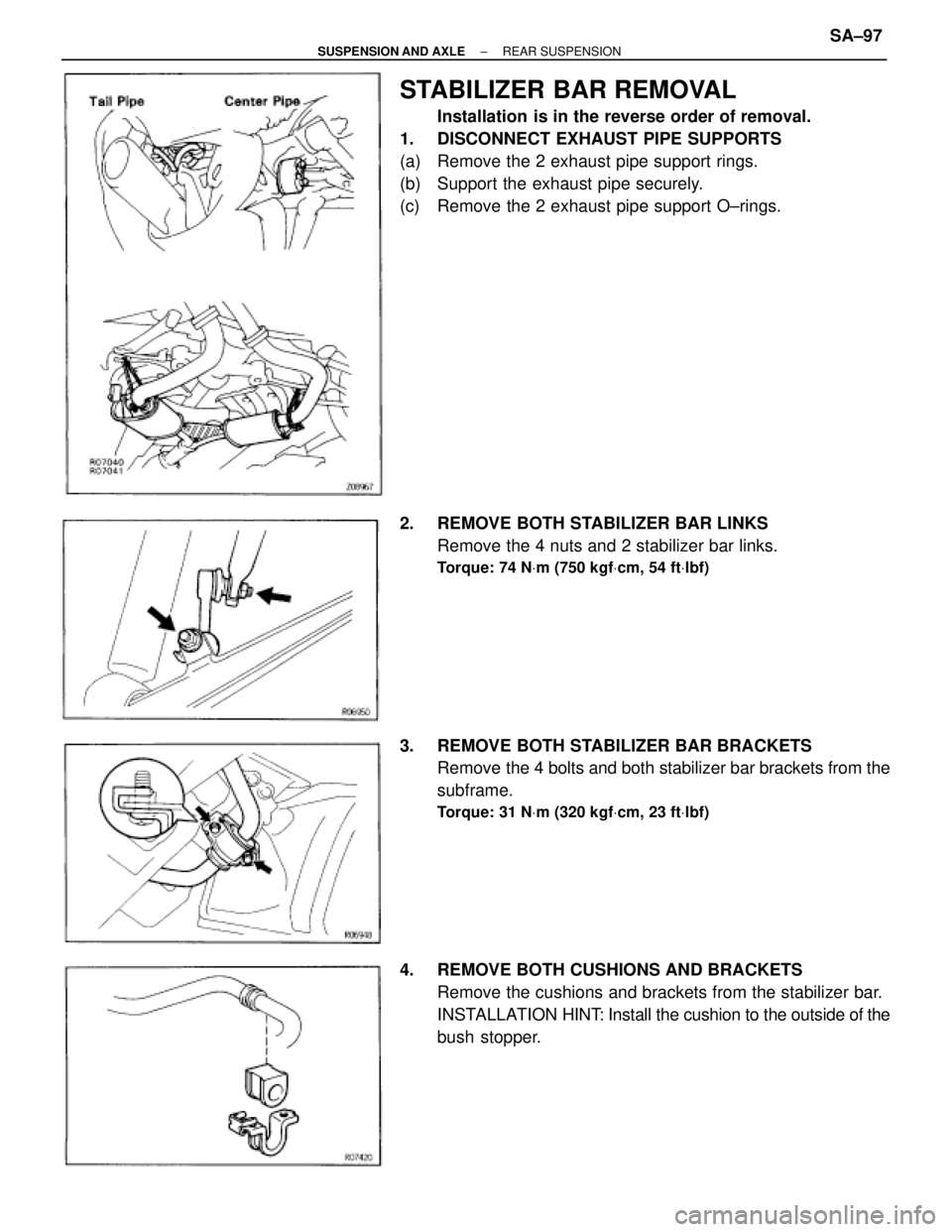

TOYOTA SUPRA 1995 Service Repair Manual STABILIZER BAR REMOVAL
Installation is in the reverse order of removal.
1. DISCONNECT EXHAUST PIPE SUPPORTS
(a) Remove the 2 exhaust pipe support rings.
(b) Support the exhaust pipe securely.
(c)

Page 1883 of 2543

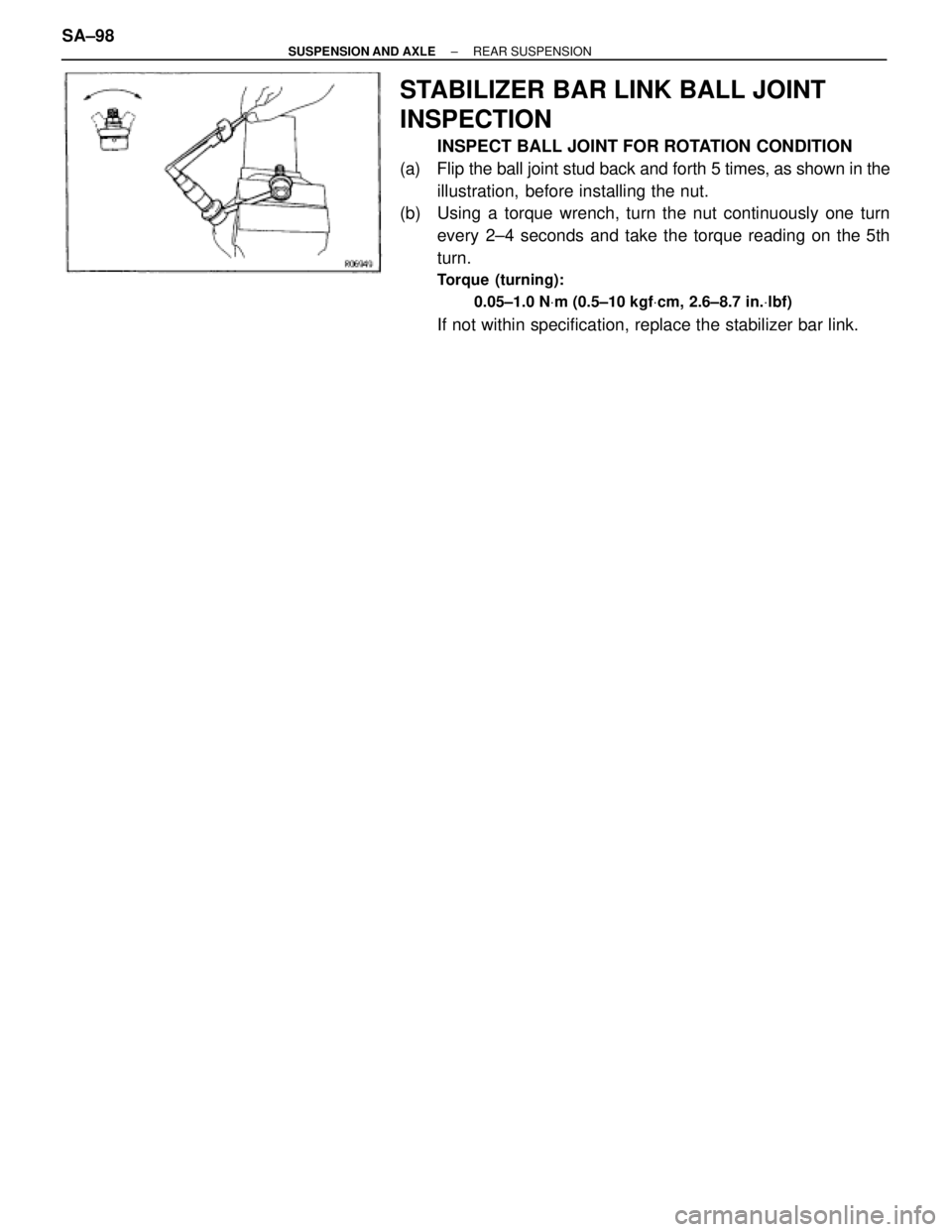

TOYOTA SUPRA 1995 Service Repair Manual STABILIZER BAR LINK BALL JOINT
INSPECTION
INSPECT BALL JOINT FOR ROTATION CONDITION
(a) Flip the ball joint stud back and forth 5 times, as shown in the
illustration, before installing the nut.
(b)

Page 1884 of 2543

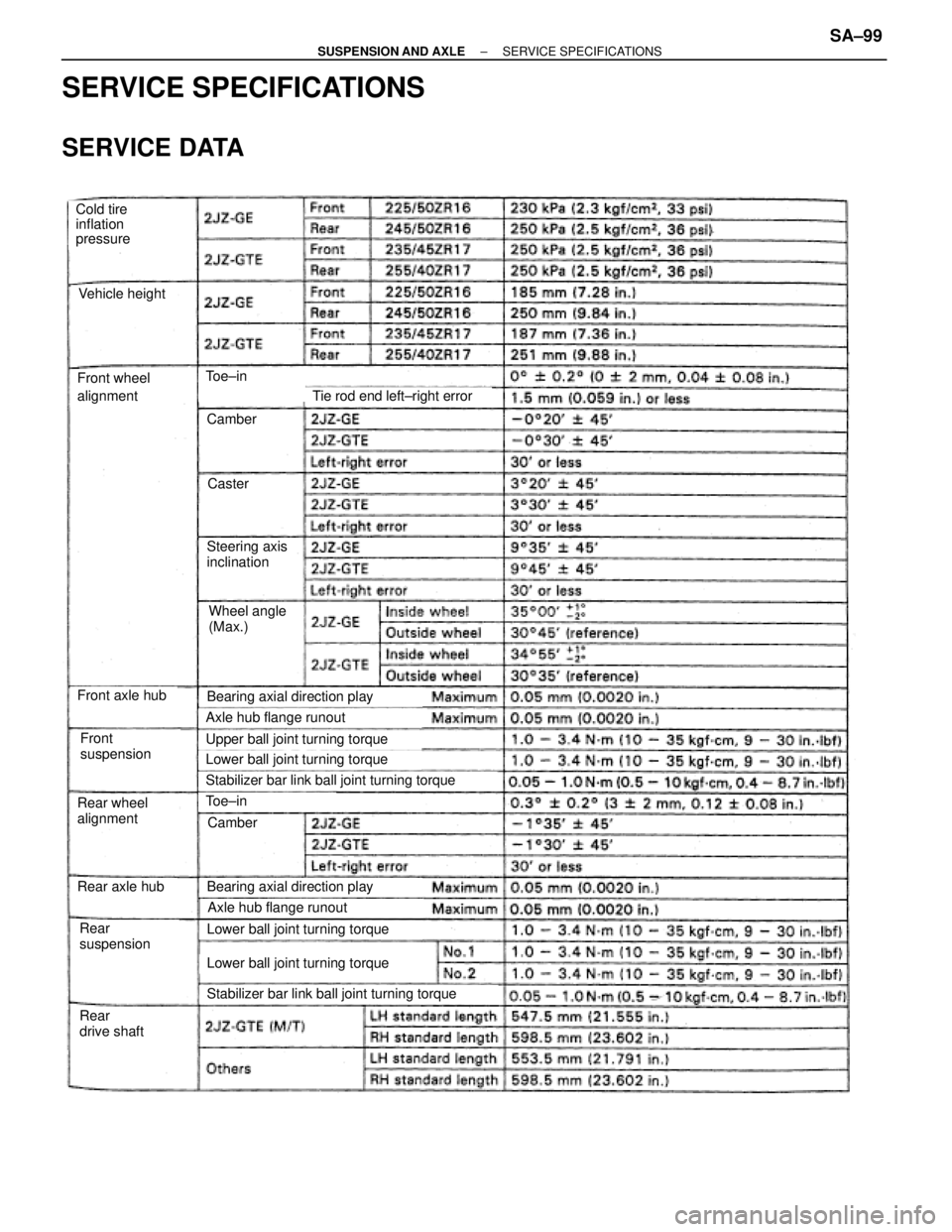

TOYOTA SUPRA 1995 Service Repair Manual Cold tire
inflation
pressure
Vehicle height
Front wheel
alignment
Front axle hub
Front
suspension
Rear wheel
alignment
Rear axle hub
Rear
suspension
Rear
drive shaft
Toe±in
Camber
Caster
Steering axi

Page 1885 of 2543

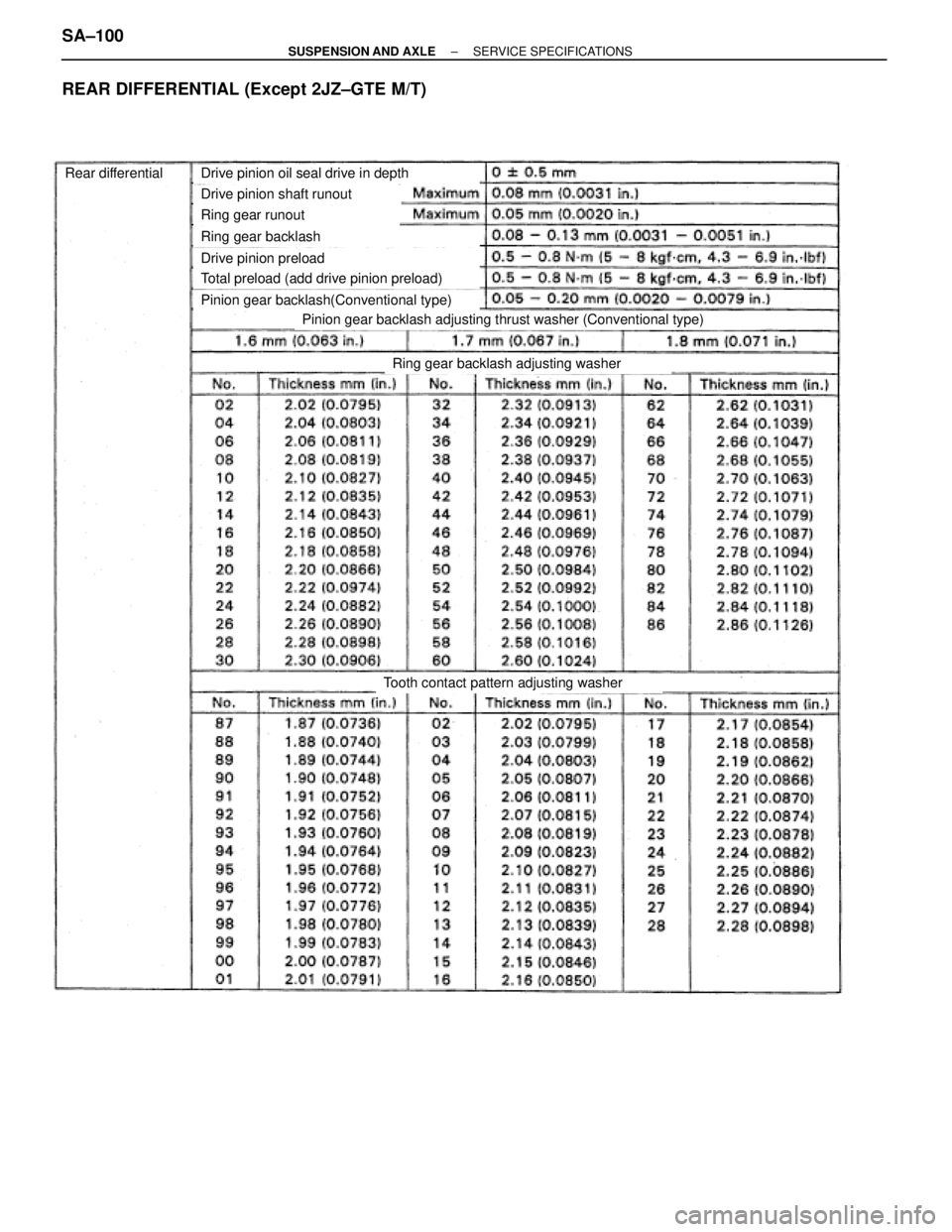

TOYOTA SUPRA 1995 Service Repair Manual Rear differentialDrive pinion oil seal drive in depth
Drive pinion shaft runout
Ring gear runout
Drive pinion preload
Ring gear backlash
Total preload (add drive pinion preload)
Pinion gear backlash(C

Page 1886 of 2543

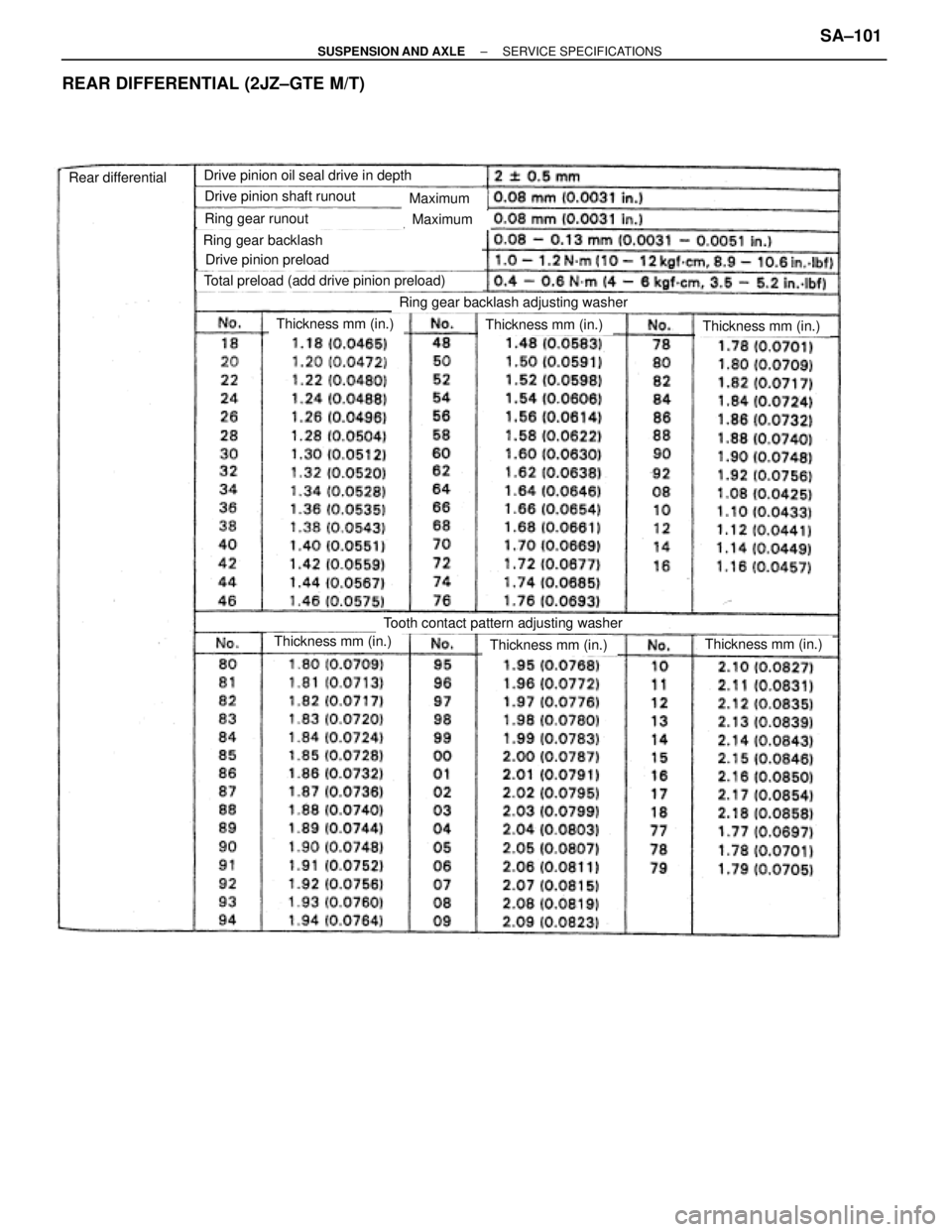

TOYOTA SUPRA 1995 Service Repair Manual Drive pinion oil seal drive in depth
Drive pinion shaft runout
Ring gear runout
Drive pinion preload
Ring gear backlash
Total preload (add drive pinion preload)
Ring gear backlash adjusting washer
Too

Page 1887 of 2543

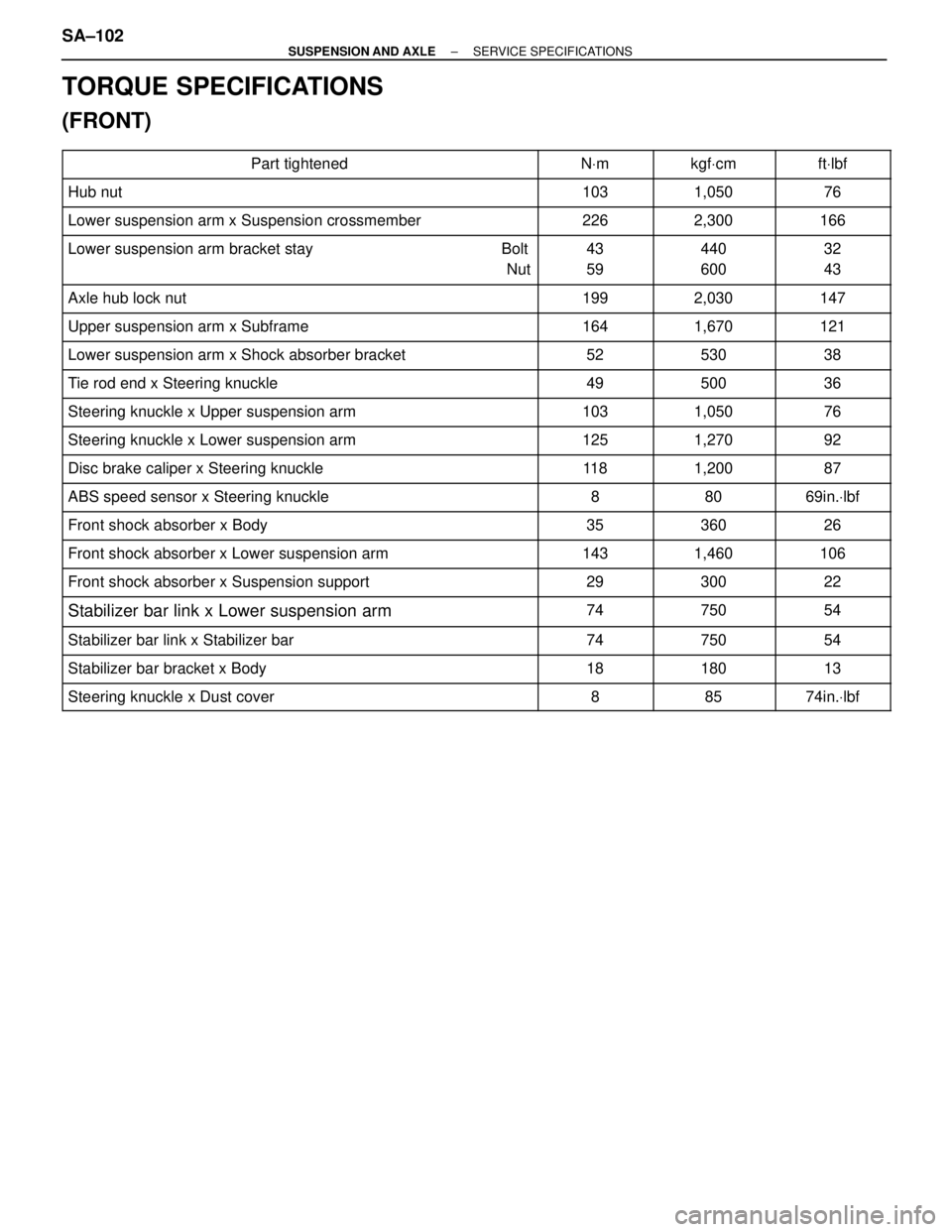

TOYOTA SUPRA 1995 Service Repair Manual TORQUE SPECIFICATIONS
(FRONT)
Part tightened NVm kgfVcm ftVlbf
Hub nut

TORQUE SPECIFICATIONS
(FRONT)
Part tightened NVm kgfVcm ftVlbf
Hub nut 103 1,050 76
Lower suspension arm x Suspension crossmember 226 2,300 166
Lower suspension arm bracket stay Bolt
Nut
43
59
440
600
32
43

Axle hub lock nut

199

2,030

147
Upper suspension arm x Subframe 164 1,670 121
Lower suspension arm x Shock absorber bracket 52 530 38
Tie rod end x Steering knuckle 49 500 36
Steering knuckle x Upper suspension arm 103 1,050 76
Steering knuckle x Lower suspension arm
125
1,270
92
Disc brake caliper x Steering knuckle 11 8 1,200 87
ABS speed sensor x Steering knuckle 8 80 69in.Vlbf
Front shock absorber x Body 35 360 26
Front shock absorber x Lower suspension arm 143 1,460 106 Front shock absorber x Suspension support 29 300 22
Stabilizer bar link x Lower suspension arm

74

750

54
Stabilizer bar link x Stabilizer bar 74 750 54
Stabilizer bar bracket x Body 18 180 13
Steering knuckle x Dust cover 8 85 74in.Vlbf
SA±102± SUSPENSION AND AXLESERVICE SPECIFICATIONS

Page 1888 of 2543

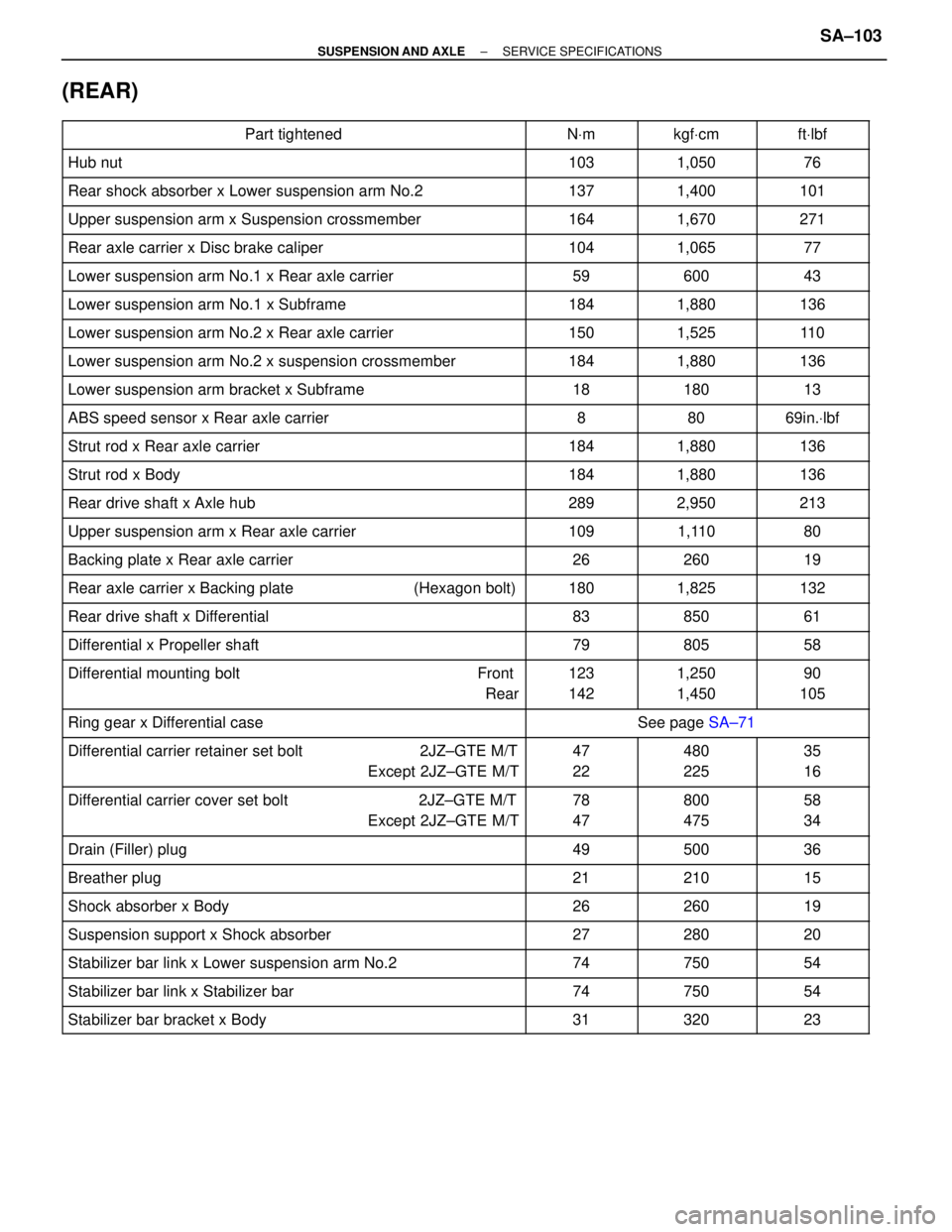

TOYOTA SUPRA 1995 Service Repair Manual (REAR)
Part tightened NVm kgfVcm ftVlbf
Hub nut 103 1,050

(REAR)
Part tightened NVm kgfVcm ftVlbf
Hub nut 103 1,050 76
Rear shock absorber x Lower suspension arm No.2 137 1,400 101
Upper suspension arm x Suspension crossmember 164 1,670 271 Rear axle carrier x Disc brake caliper 104 1,065 77
Lower suspension arm No.1 x Rear axle carrier

59

600

43
Lower suspension arm No.1 x Subframe 184 1,880 136
Lower suspension arm No.2 x Rear axle carrier 150 1,525 11 0
Lower suspension arm No.2 x suspension crossmember 184 1,880 136
Lower suspension arm bracket x Subframe 18 180 13
ABS speed sensor x Rear axle carrier

8

80

69in.Vlbf
Strut rod x Rear axle carrier 184 1,880 136
Strut rod x Body 184 1,880 136
Rear drive shaft x Axle hub 289 2,950 213
Upper suspension arm x Rear axle carrier 109 1,110 80
Backing plate x Rear axle carrier
26
260
19
Rear axle carrier x Backing plate (Hexagon bolt) 180 1,825 132
Rear drive shaft x Differential 83 850 61
Differential x Propeller shaft 79 805 58

Differential mounting bolt Front
Rear
123
142
1,250
1,450
90
105
Ring gear x Differential case See page SA±71
Differential carrier retainer set bolt 2JZ±GTE M/T
Except 2JZ±GTE M/T
47
22
480
225
35
16

Differential carrier cover set bolt 2JZ±GTE M/T
Except 2JZ±GTE M/T

78
47

800
475

58
34

Drain (Filler) plug

49

500

36
Breather plug 21 210 15
Shock absorber x Body 26 260 19
Suspension support x Shock absorber 27 280 20
Stabilizer bar link x Lower suspension arm No.2 74 750 54
Stabilizer bar link x Stabilizer bar

74

750

54
Stabilizer bar bracket x Body 31 320 23
± SUSPENSION AND AXLESERVICE SPECIFICATIONSSA±103
