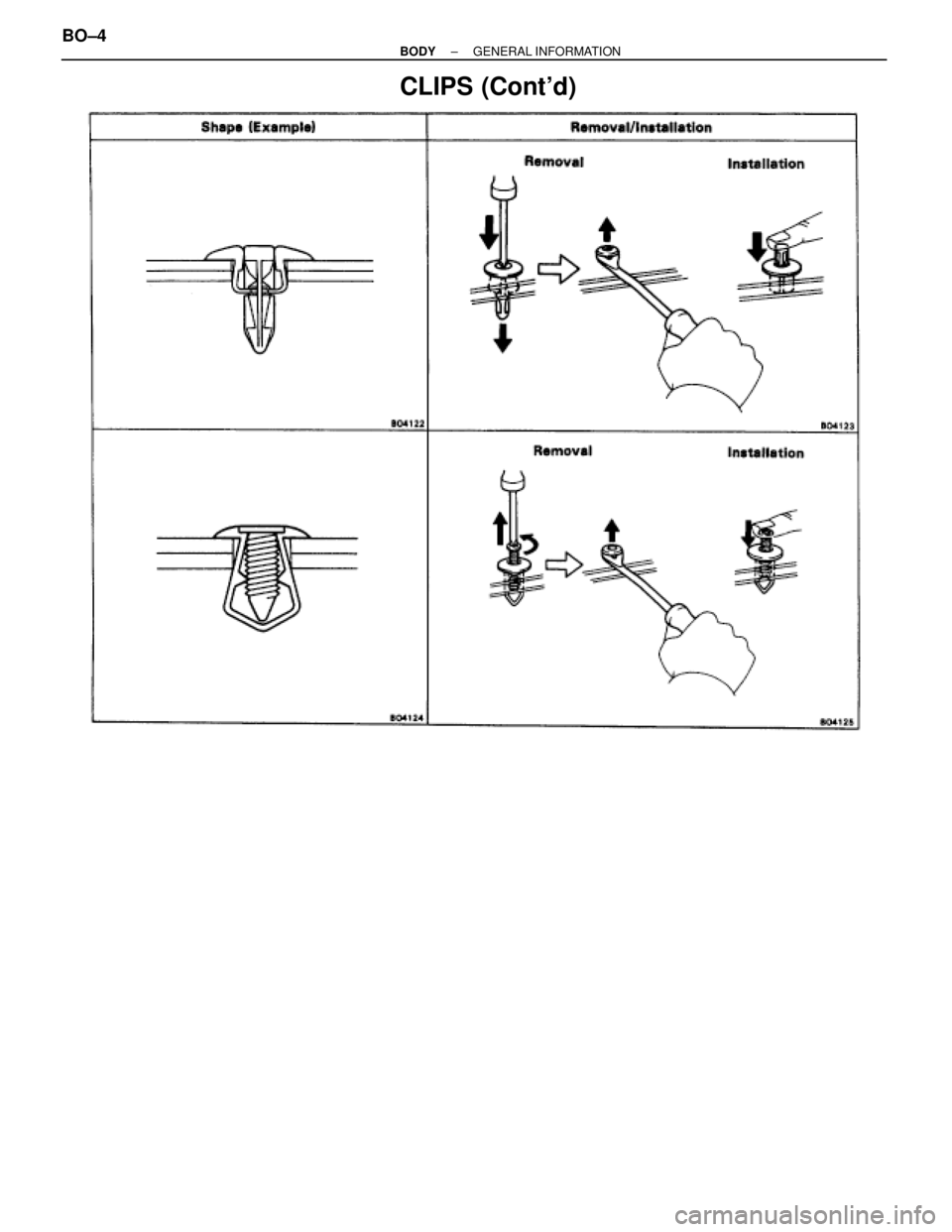

TOYOTA SUPRA 1995 Service Repair Manual CLIPS (Contd)
BO±4± BODYGENERAL INFORMATION

Page 810 of 2543

TOYOTA SUPRA 1995 Service Repair Manual SRS (Supplemental Restraint System)
The 1995 SUPRA is equipped with an SRS, such as the driver airbag and front passenger airbag assembly.
Failure to carry out service operations in the correct sequen

SRS (Supplemental Restraint System)
The 1995 SUPRA is equipped with an SRS, such as the driver airbag and front passenger airbag assembly.
Failure to carry out service operations in the correct sequence could cause the SRS to deploy, possibly
leading to a serious accident.
When removing or installing of airbag parts and the yellow wire harness and connector for the airbag is
necessary, refer to the precautionary notices in the RS section before performing the operation.
wWork must be started after 90 seconds from the time the ignition switch is set to the LOCK position
and the negative (±) terminal cable is disconnected from the battery.
(The SRS is equipped with a back±up power source so that if work is started within 90 seconds of
disconnecting the negative (±) terminal cable of the battery, the SRS may deploy.)
wTo avoid erasing the memory of each memory system, never use a back±up power supply from
outside the vehicle.
wBefore repairs, remove the airbag sensors if shocks are likely to be applied to the sensors during
repairs.
wThe front airbag sensor set bolt has been anti±rust treated. When the sensor is removed, always
replace the set bolt with a new one.
wIf the front airbag sensors, center airbag sensor assembly, steering wheel pad or front passenger
airbag assembly have been dropped, or if there are cracks, dents or other defects in the case, bracket
or connector, replace them with new ones.
wNever use SRS parts from another vehicle. When replacing parts, replace them with new parts.
wDo not expose the front airbag sensors, center airbag sensor assembly, steering wheel pad or front
passenger airbag assembly directly to hot air or flames.
wThe SRS wire harness is integrated with the cowl wire harness assembly. The wires for the SRS wire
harness are encased in a yellow corrugated tube. All the connectors for the system are also a standard
yellow color. If the SRS wire harness becomes disconnected or the connector becomes broken due
to an accident, etc., repair or replace it. (See RS section)
wThe steering wheel must be fitted correctly to the steering column with the spiral cable at the neutral
position; otherwise, cable disconnection and other troubles may result. Refer to RS section of this
manual concerning correct steering wheel installation.
wWhen removing or handling the steering wheel pad or front passenger airbag assembly, it should be
placed with their top surface facing up. In this case, the twin±lock type connector lock lever should
be in the locked state and care should be taken to place it so the connector will not be damaged.
(Storing the pad with its metallic surface up, the front passenger airbag assembly with the airbag door
facing down may lead to a serious accident if the airbag inflates for some reason.)
wGrease should not be applied to the steering wheel pad or the front passenger airbag assembly, and
they should not be cleaned with detergents of any kind.
wStore the steering wheel pad or the front passenger airbag assembly where the ambient temperature
remains below 93°C (200°F), without high humidity and away from electrical noise.
wInformation labels are attached to the periphery of the SRS components. Follow the notices.
wWhen the ignition switch is at ACC or ON and the SRS warning light remains on, the center airbag
sensor assembly has detected a malfunction code. (See RS section)
± BODYGENERAL INFORMATIONBO±5

Page 811 of 2543

TOYOTA SUPRA 1995 Service Repair Manual PREPARATION

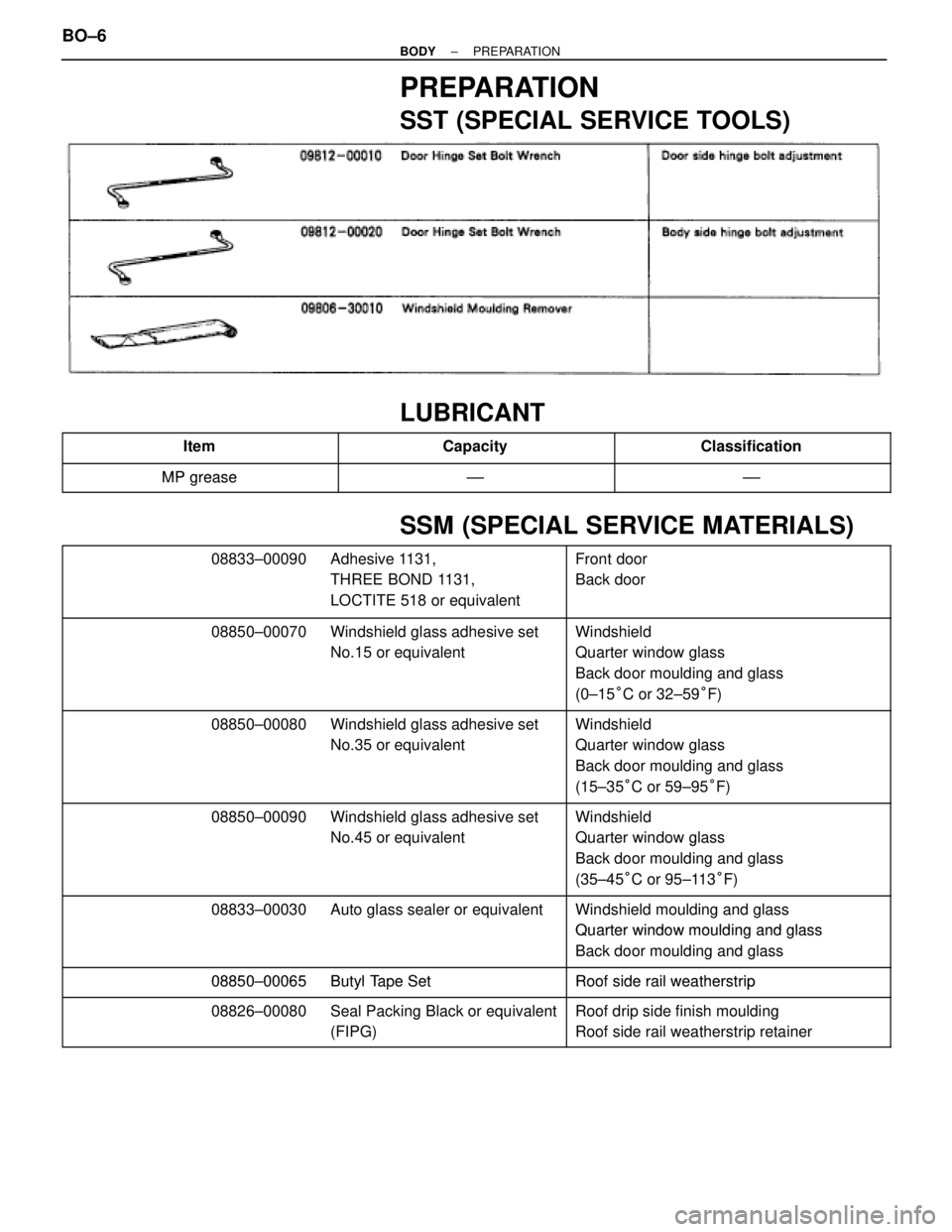

SST (SPECIAL SERVICE TOOLS)
LUBRICANT
Item Capacity Classification
MP grease±±±±

PREPARATION
SST (SPECIAL SERVICE TOOLS)
LUBRICANT
Item Capacity Classification
MP grease±±±± MP grease±±±±
SSM (SPECIAL SERVICE MATERIALS)

08833±00090 Adhesive 1131,
THREE BOND 1131,
LOCTITE 518 or equivalent

Front door
Back door

08850±00070 Windshield glass adhesive set
No.15 or equivalentWindshield
Quarter window glass

qg
Back door moulding and glass
(0±15°C or 32±59°F)

08850±00080 Windshield glass adhesive set
No.35 or equivalentWindshield
Quarter window glass

qg
Back door moulding and glass
(15±35°C or 59±95°F)

08850±00090 Windshield glass adhesive set
No.45 or equivalentWindshield
Quarter window glass

qg
Back door moulding and glass
(35±45°C or 95±113°F)
08833±00030 Auto glass sealer or equivalentWindshield moulding and glass
Quarter window moulding and glass

Quarter window moulding and glass
Back door moulding and glass
08850±00065 Butyl Tape SetRoof side rail weatherstrip

08850±00065 Butyl Tape SetRoof side rail weatherstrip
08826±00080 Seal Packing Black or equivalentRoof drip side finish moulding gq
(FIPG)
g
Roof side rail weatherstrip retainer
BO±6± BODYPREPARATION

Page 812 of 2543

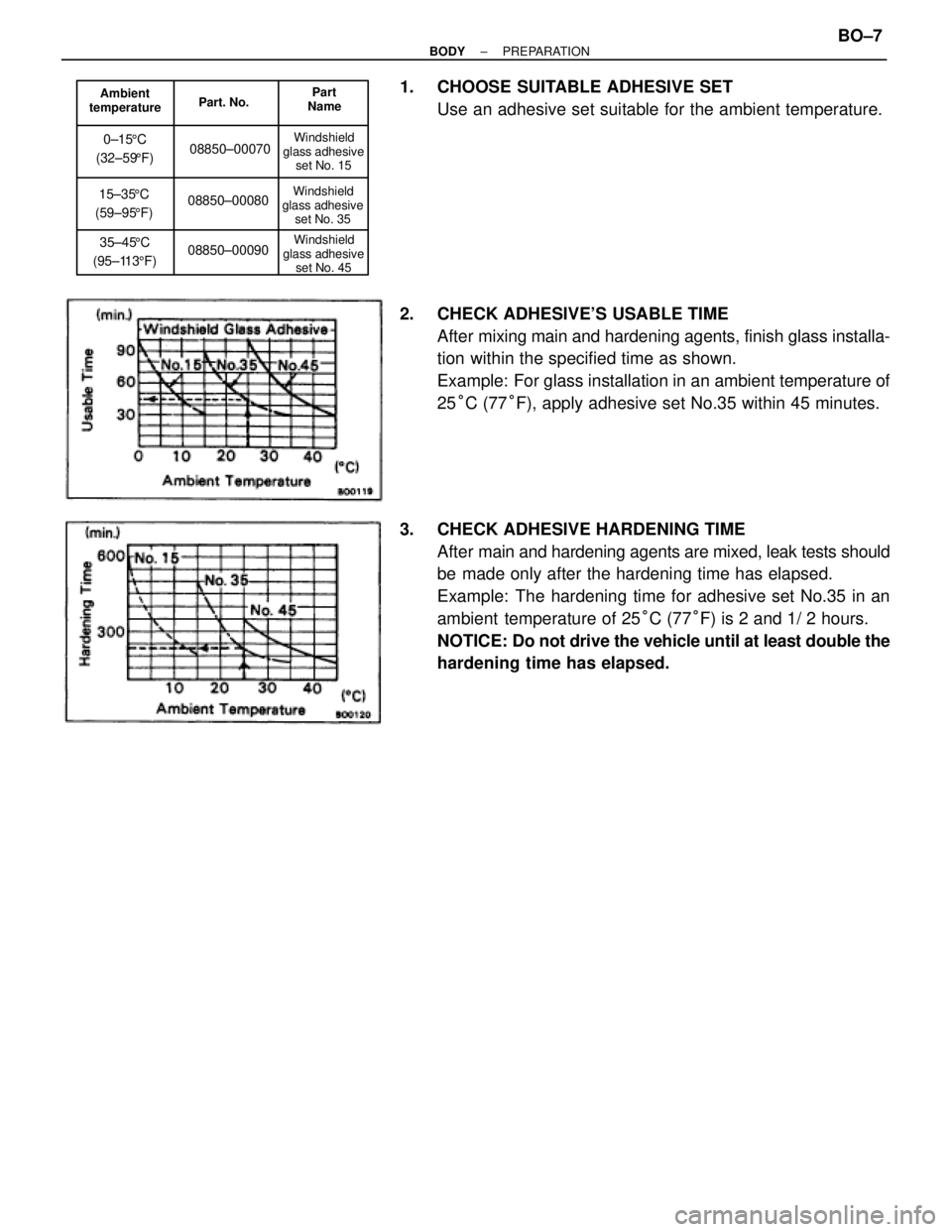

TOYOTA SUPRA 1995 Service Repair Manual Ambient
temperature
0±155C
(32±595F)
15±355C
(59±955F)
35±455C
(95±1135F)
Part
Name
Windshield
glass adhesive
set No. 15 Part. No.
08850±00070
08850±00080
08850±00090
Windshield
glass adhesiv

Page 813 of 2543

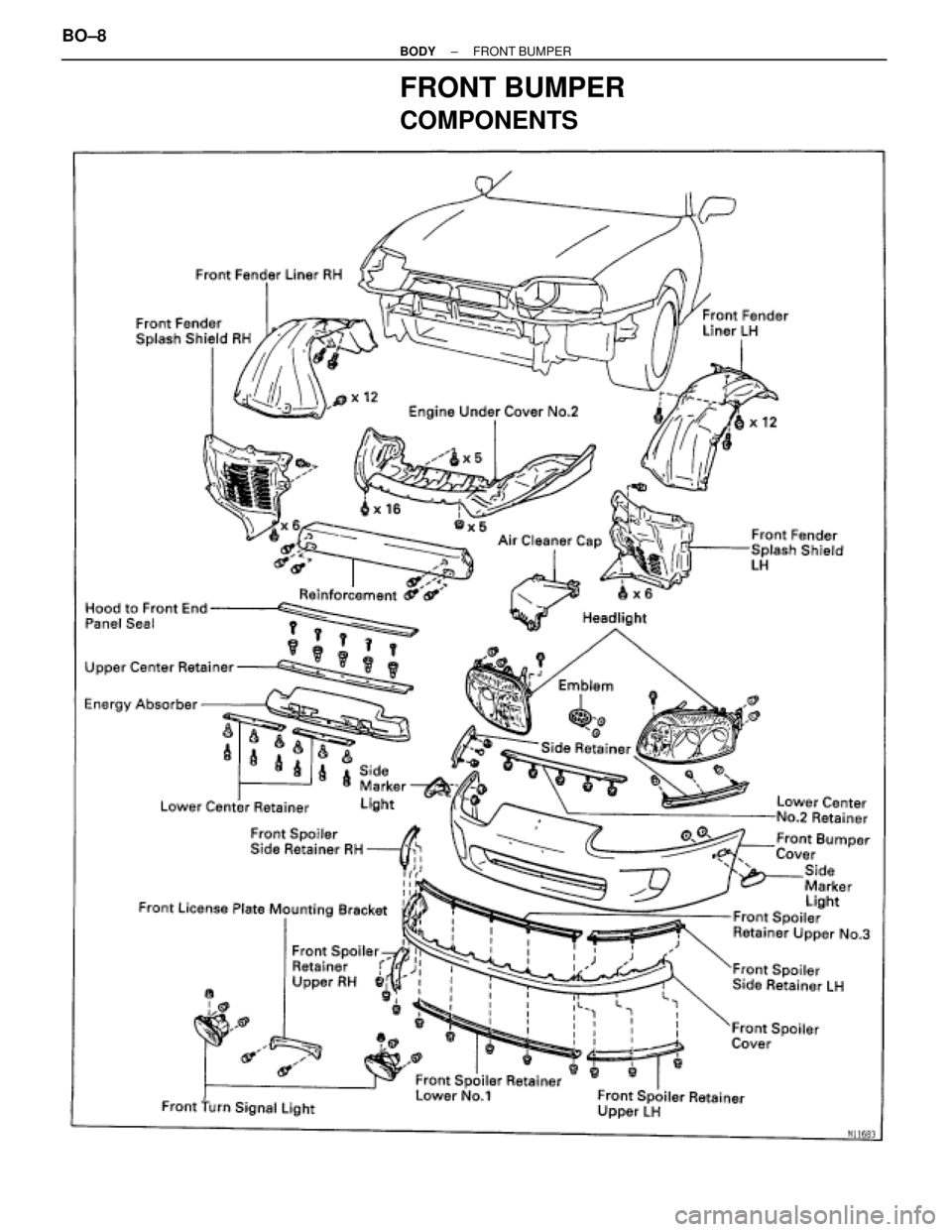

TOYOTA SUPRA 1995 Service Repair Manual FRONT BUMPER
COMPONENTS
BO±8± BODYFRONT BUMPER

Page 814 of 2543

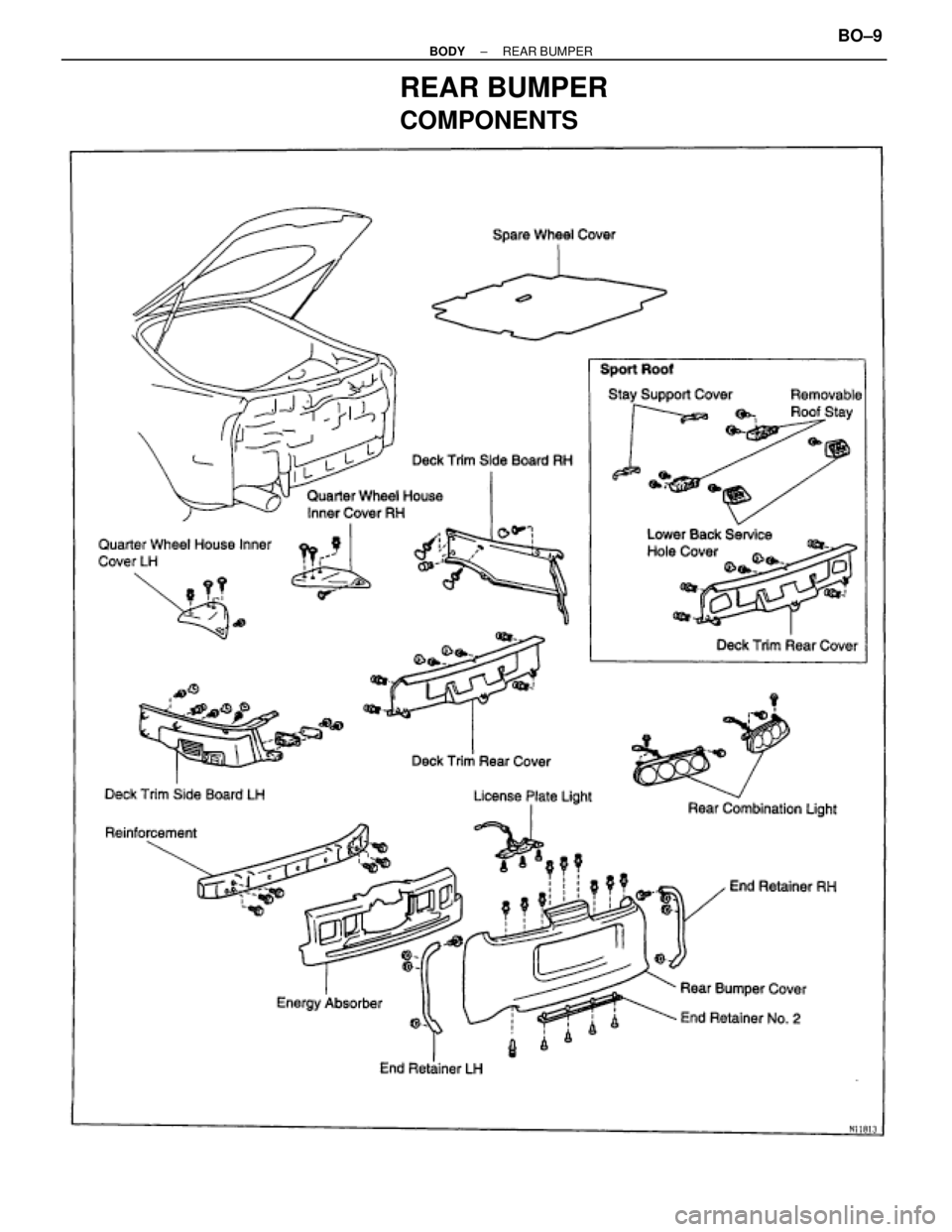

TOYOTA SUPRA 1995 Service Repair Manual REAR BUMPER
COMPONENTS
± BODYREAR BUMPERBO±9

Page 815 of 2543

TOYOTA SUPRA 1995 Service Repair Manual HOOD
HOOD ADJUSTMENT

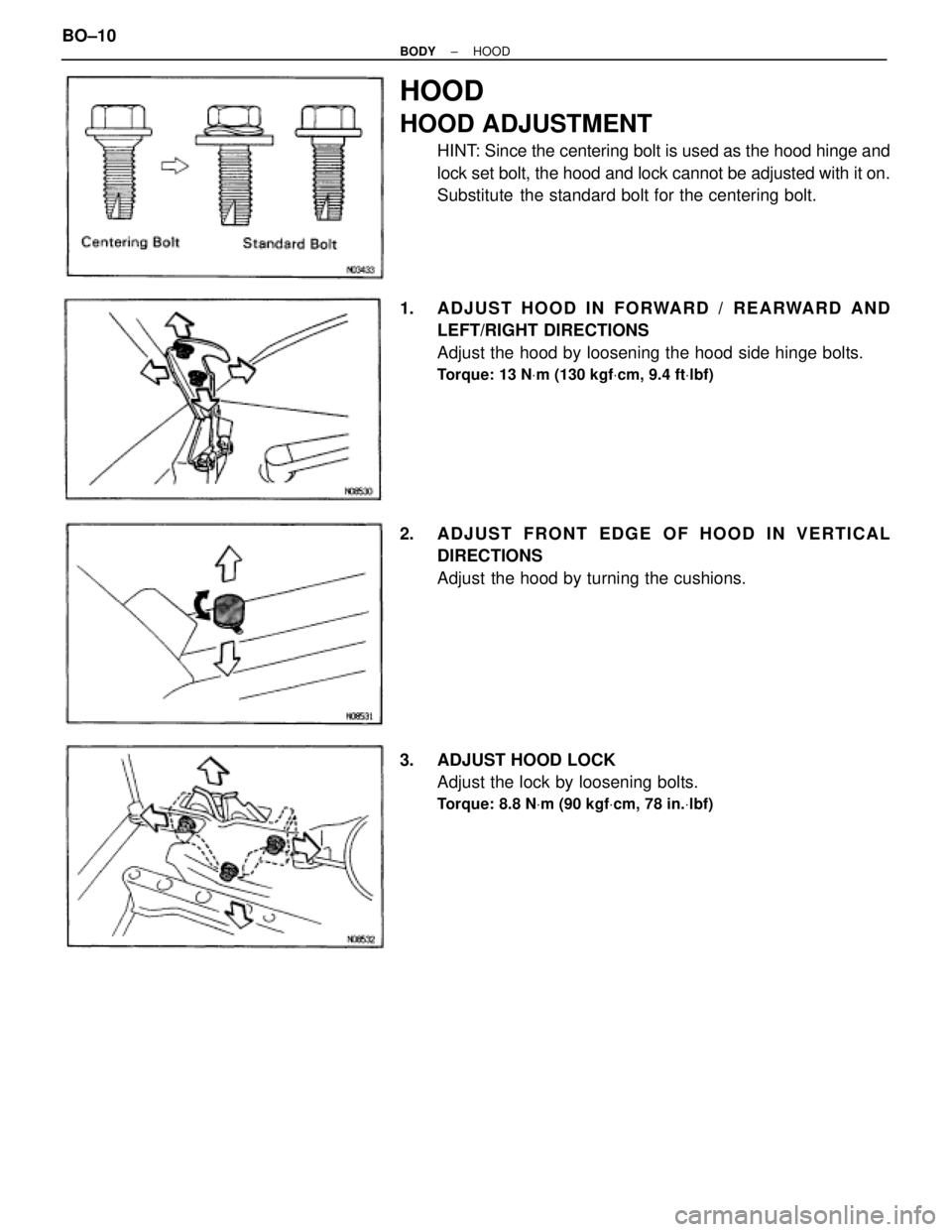

HINT: Since the centering bolt is used as the hood hinge and
lock set bolt, the hood and lock cannot be adjusted with it on.
Substitute the standard bolt for the centering bolt.

Page 816 of 2543

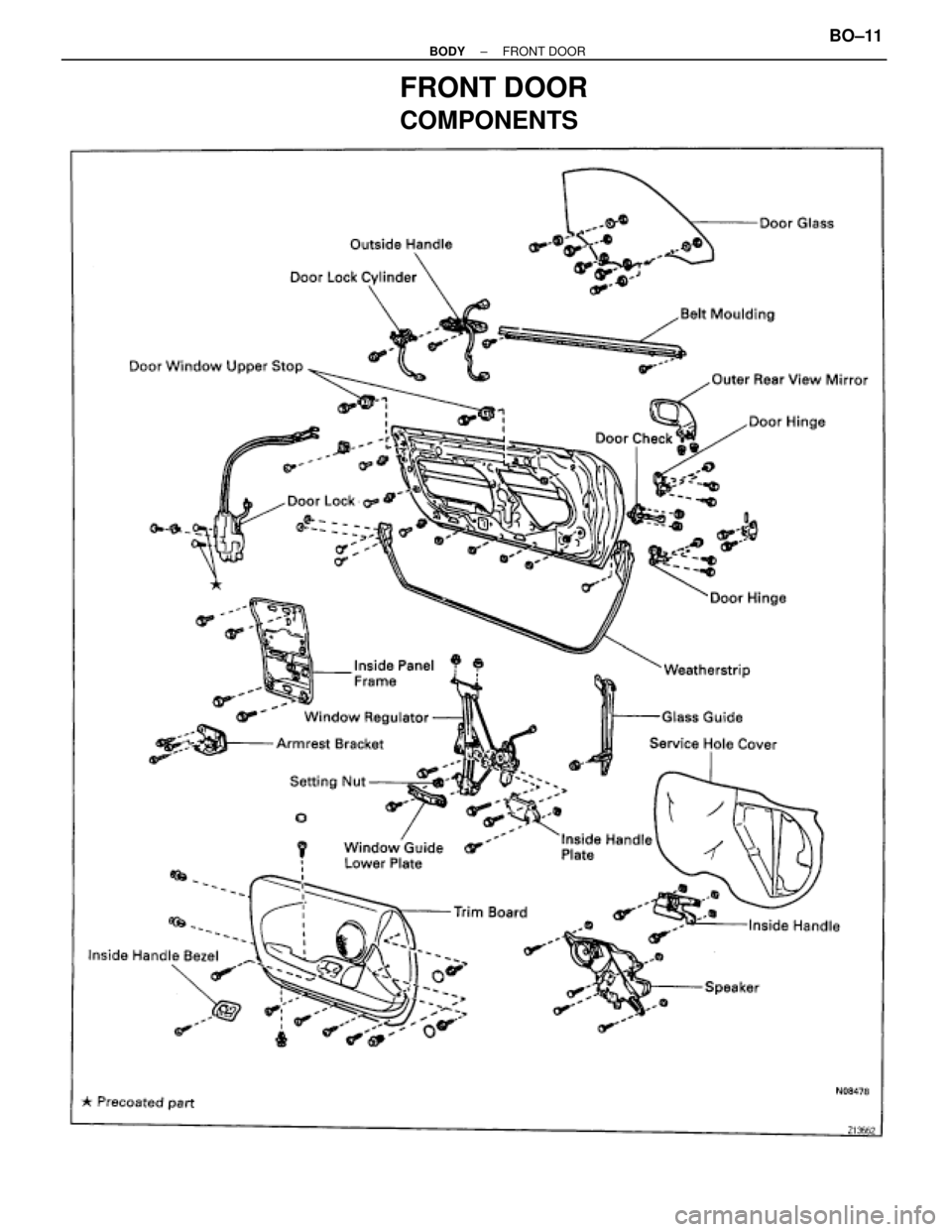

TOYOTA SUPRA 1995 Service Repair Manual FRONT DOOR
COMPONENTS
± BODYFRONT DOORBO±11
