Page 1033 of 2543
(See page IN±30).
Check voltage between terminals Tc and E1 of DLC2 or DLC1.
Turn ignition switch ON
Measure voltage between terminals Tc and E1 of DLC2
or DLC1.
Voltage: 10 Ð 14 V
Proceed to next circuit inspection shown on
problem symptoms chart (See page BR±133).
Repair or replace harness or connector.
Check and replace TRAC ECU.
Check for open and short in harness and connector of symptoms con-
nected to Tc terminal (See page IN±30).

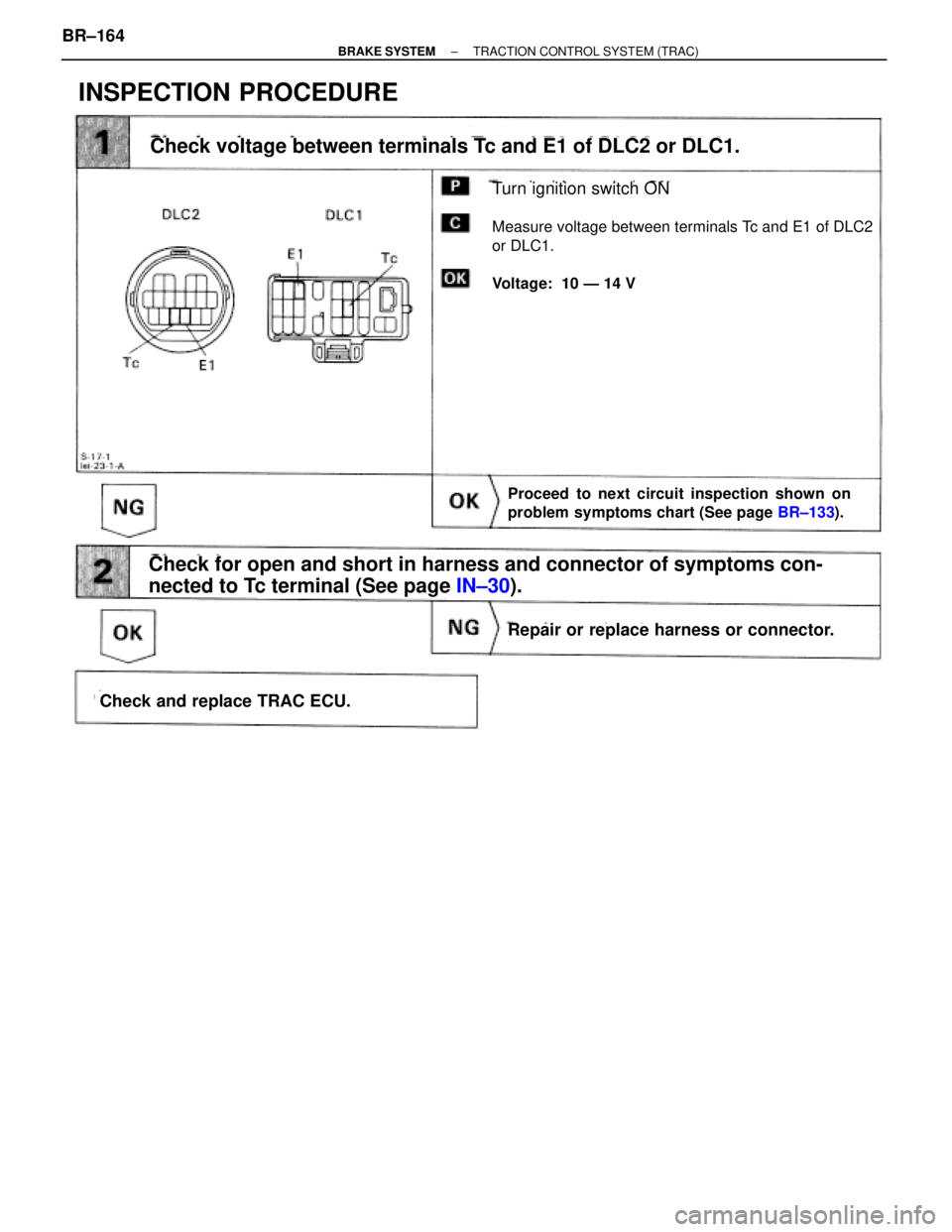

INSPECTION PROCEDURE
BR±164± BRAKE SYSTEMTRACTION CONTROL SYSTEM (TRAC)
Page 1034 of 2543

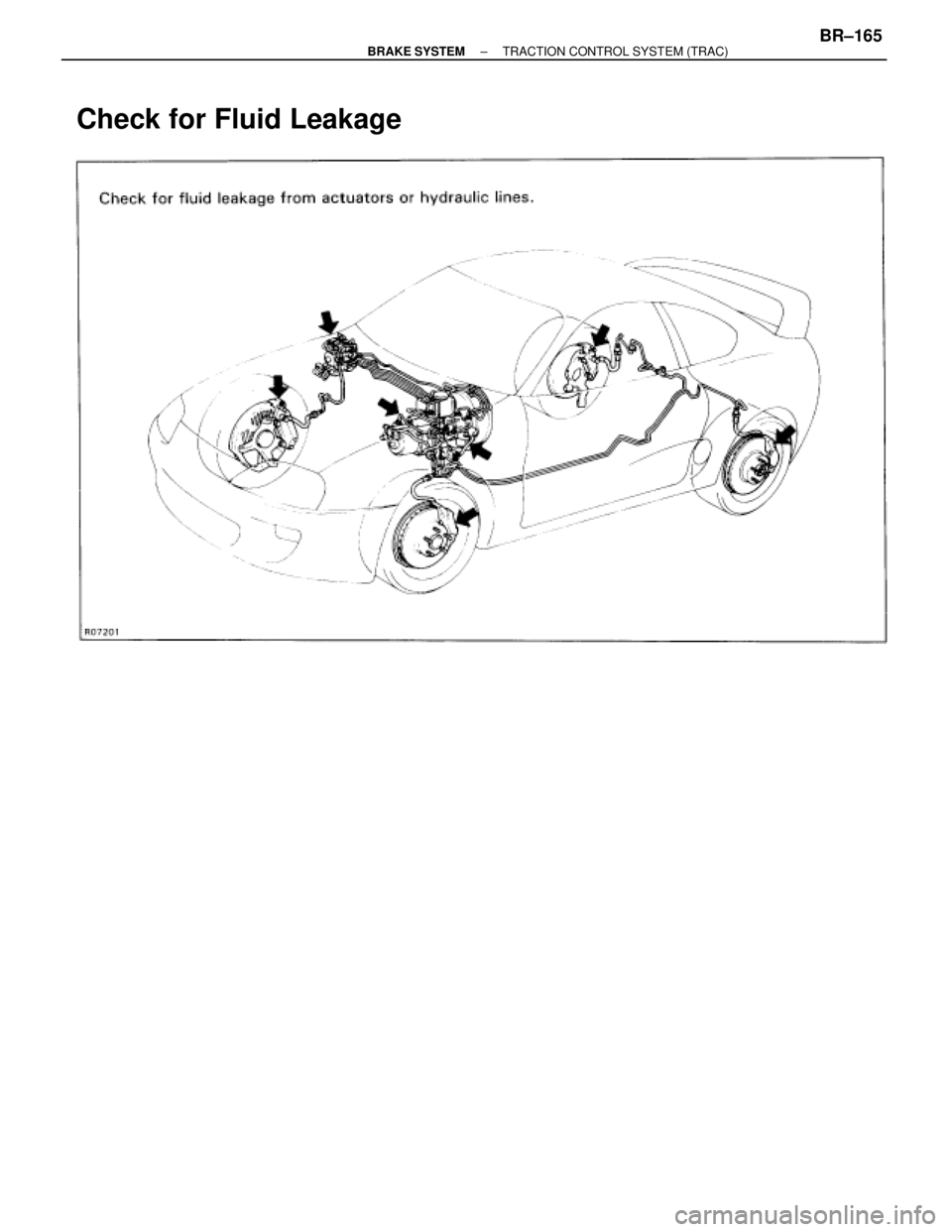

Check for Fluid Leakage
± BRAKE SYSTEMTRACTION CONTROL SYSTEM (TRAC)BR±165
Page 1035 of 2543

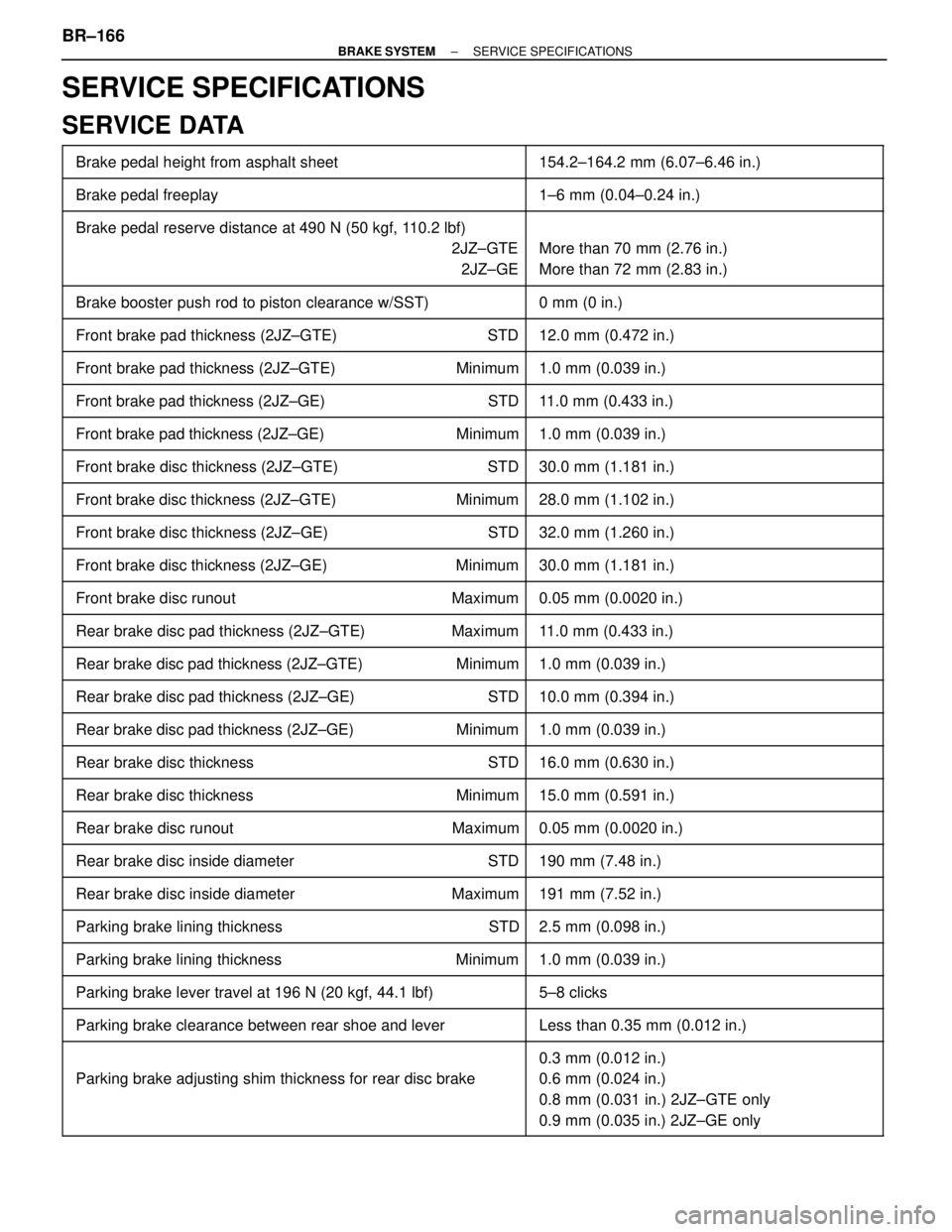

SERVICE SPECIFICATIONS
SERVICE DATA
Brake pedal height from asphalt sheet 154.2±164.2 mm (6.07±6.46 in.)
Brake pedal freeplay 1±6 mm (0.04±0.24 in.)
Brake pedal reserve distance at 490 N (50 kgf, 110.2 lbf)
2JZ±GTE
2JZ±GE
More than 70 mm (2.76 in.)
More than 72 mm (2.83 in.)
Brake booster push rod to piston clearance w/SST)
0 mm (0 in.)
Front brake pad thickness (2JZ±GTE) STD 12.0 mm (0.472 in.)
Front brake pad thickness (2JZ±GTE) Minimum
1.0 mm (0.039 in.)
Front brake pad thickness (2JZ±GE) STD 11.0 mm (0.433 in.)
Front brake pad thickness (2JZ±GE) Minimum 1.0 mm (0.039 in.)
Front brake disc thickness (2JZ±GTE) STD
30.0 mm (1.181 in.)
Front brake disc thickness (2JZ±GTE) Minimum 28.0 mm (1.102 in.)
Front brake disc thickness (2JZ±GE) STD 32.0 mm (1.260 in.)
Front brake disc thickness (2JZ±GE) Minimum
30.0 mm (1.181 in.)
Front brake disc runout Maximum 0.05 mm (0.0020 in.)
Rear brake disc pad thickness (2JZ±GTE) Maximum
11.0 mm (0.433 in.)
Rear brake disc pad thickness (2JZ±GTE) Minimum 1.0 mm (0.039 in.)
Rear brake disc pad thickness (2JZ±GE) STD 10.0 mm (0.394 in.)
Rear brake disc pad thickness (2JZ±GE) Minimum
1.0 mm (0.039 in.)
Rear brake disc thickness STD 16.0 mm (0.630 in.)
Rear brake disc thickness Minimum 15.0 mm (0.591 in.)
Rear brake disc runout Maximum
0.05 mm (0.0020 in.)
Rear brake disc inside diameter STD 190 mm (7.48 in.)
Rear brake disc inside diameter Maximum
191 mm (7.52 in.)
Parking brake lining thickness STD 2.5 mm (0.098 in.)
Parking brake lining thickness Minimum 1.0 mm (0.039 in.)
Parking brake lever travel at 196 N (20 kgf, 44.1 lbf)
5±8 clicks
Parking brake clearance between rear shoe and lever Less than 0.35 mm (0.012 in.)
Parking brake adjusting shim thickness for rear disc brake
0.3 mm (0.012 in.)
0.6 mm (0.024 in.)
0.8 mm (0.031 in.) 2JZ±GTE only
0.9 mm (0.035 in.) 2JZ±GE only
BR±166± BRAKE SYSTEMSERVICE SPECIFICATIONS
Page 1036 of 2543

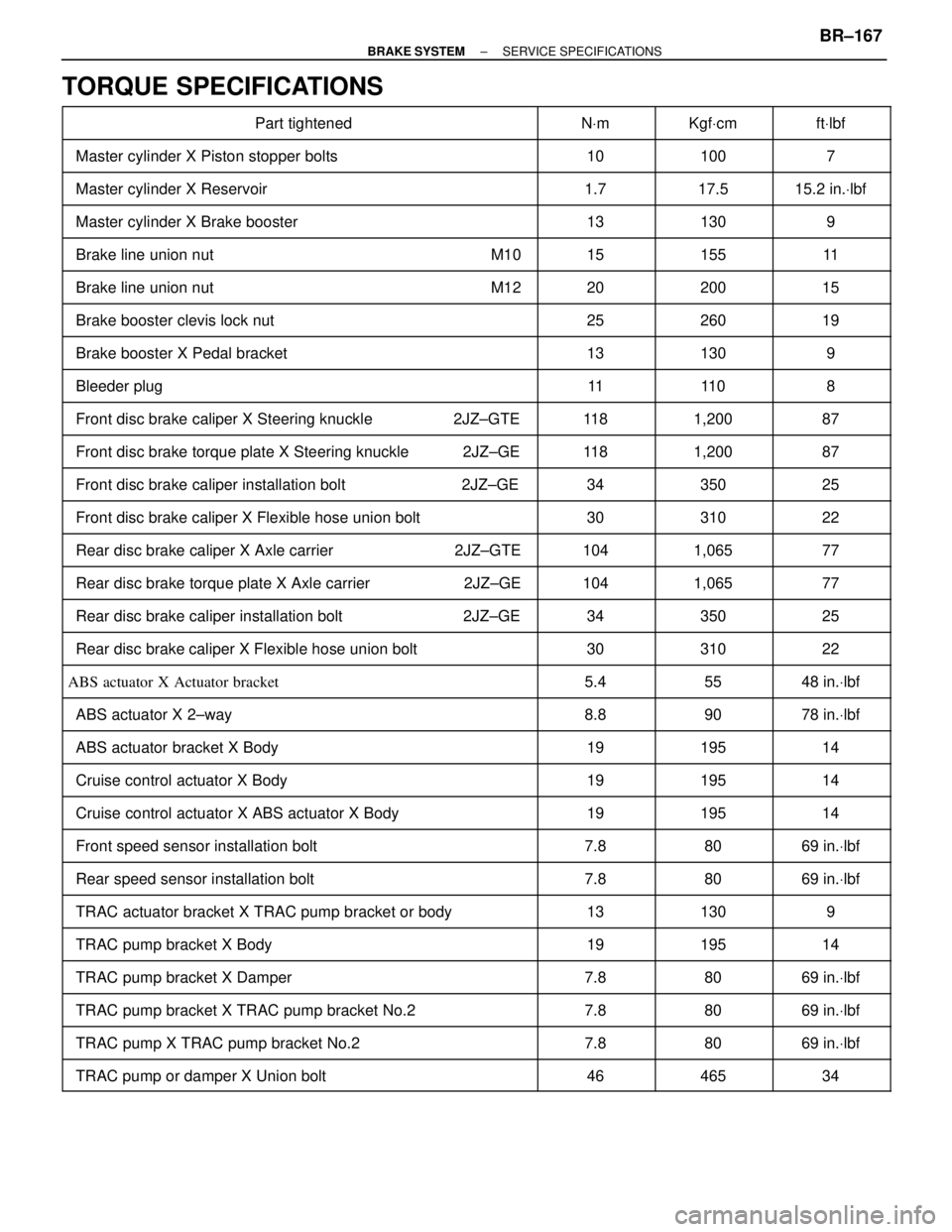

TORQUE SPECIFICATIONS
Part tightened NVm KgfVcm ftVlbf
Master cylinder X Piston stopper bolts
10
100
7
Master cylinder X Reservoir 1.7 17.5 15.2 in.Vlbf
Master cylinder X Brake booster 13 130 9
Brake line union nut M10
15
155
11
Brake line union nut M12 20 200 15
Brake booster clevis lock nut
25
260
19
Brake booster X Pedal bracket 13 130 9
Bleeder plug 11 11 0 8
Front disc brake caliper X Steering knuckle 2JZ±GTE
11 8
1,200
87
Front disc brake torque plate X Steering knuckle 2JZ±GE 11 8 1,200 87
Front disc brake caliper installation bolt 2JZ±GE 34 350 25
Front disc brake caliper X Flexible hose union bolt
30
310
22
Rear disc brake caliper X Axle carrier 2JZ±GTE 104 1,065 77
Rear disc brake torque plate X Axle carrier 2JZ±GE
104
1,065
77
Rear disc brake caliper installation bolt 2JZ±GE 34 350 25
Rear disc brake caliper X Flexible hose union bolt 30 310 22
ABS actuator X Actuator bracket
5.4
55
48 in.Vlbf
ABS actuator X 2±way 8.8 90 78 in.Vlbf
ABS actuator bracket X Body 19 195 14
Cruise control actuator X Body
19
195
14
Cruise control actuator X ABS actuator X Body 19 195 14
Front speed sensor installation bolt
7.8
80
69 in.Vlbf
Rear speed sensor installation bolt 7.8 80 69 in.Vlbf
TRAC actuator bracket X TRAC pump bracket or body 13 130 9
TRAC pump bracket X Body
19
195
14
TRAC pump bracket X Damper 7.8 80 69 in.Vlbf
TRAC pump bracket X TRAC pump bracket No.2 7.8 80 69 in.Vlbf
TRAC pump X TRAC pump bracket No.2
7.8
80
69 in.Vlbf
TRAC pump or damper X Union bolt 46 465 34
± BRAKE SYSTEMSERVICE SPECIFICATIONSBR±167
Page 1037 of 2543
Page 1038 of 2543
1. Check that the battery cables are connected to the correct terminals.
2. Disconnect the battery cables when the battery is given a quick charge.
3. Do not do these tests with a high voltage insulation resistance tester.
4. Never disconnect the battery while the engine is running.
PREPARATION

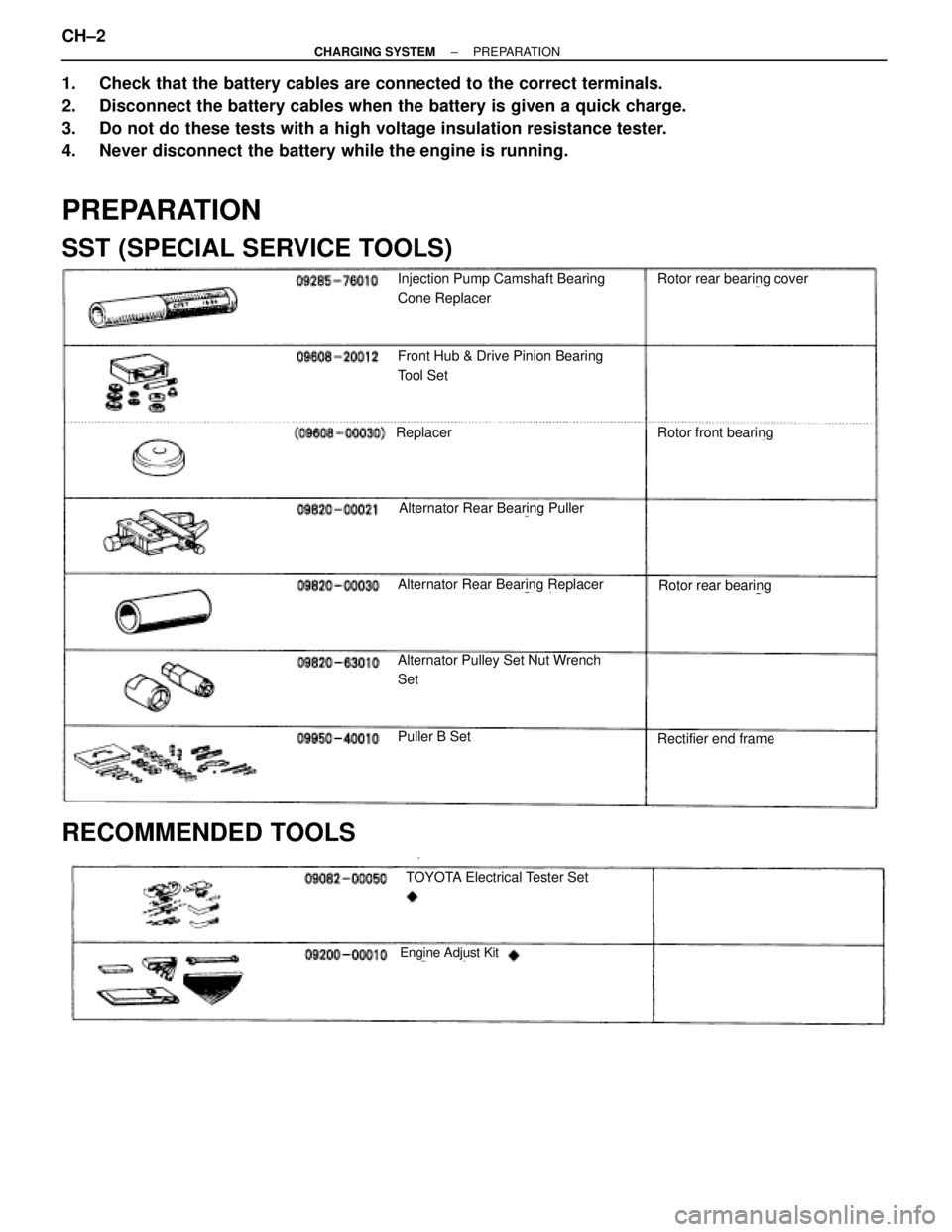

SST (SPECIAL SERVICE TOOLS)
Injection Pump Camshaft Bearing
Cone Replacer
Front Hub & Drive Pinion Bearing
Tool Set
Replacer
Alternator Rear Bearing Puller
Alternator Rear Bearing Replacer
Alternator Pulley Set Nut Wrench
Set
Puller B Set
Rotor rear bearing cover
Rotor front bearing
Rotor rear bearing
Rectifier end frame
RECOMMENDED TOOLS
TOYOTA Electrical Tester Set
Engine Adjust Kit
CH±2± CHARGING SYSTEMPREPARATION
Page 1039 of 2543

EQUIPMENT
Battery specific gravity gauge Except maintenance±free battery
Torque wrench
Vernier calipers Rotor (Slip ring)
ON±VEHICLE INSPECTION
1. CHECK BATTERY ELECTROYTE LEVEL AND VOLTAGE
(a) Check the electrolyte quantity of each cell.
Maintenance±Free Battery:
If under the lower level, replace the battery (or add distilled
water if possible.). Need to check the charging system.
Except Maintenance±Free Battery:
If under the lower level, add distilled water.
(b) Except Maintenance±Free Battery:
Check the specific gravity of each cell.
Standard specific gravity:
1.27±1.29 at 205C (685F)
If the specific gravity is less than specification, charge the
battery.
(c) Maintenance±Free Battery:
Measure the battery voltage between the negative (±) and
positive (+) terminals of the battery.
Standard voltage:
12.7±12.9 V at 205C (685F)
HINT:
wBefore measuring the voltage, turn the ignition switch
OFF and turn off the electrical systems (headlight,
blower motor, rear defogger etc.) for 60 seconds to
remove the surface charge.
wIf the vehicle has been running, wait 5 minutes or more
after the vehicle stops before measuring the battery
voltage.
If the voltage is less than specification, charge the battery.
HINT: Check the indicator as shown in the illustration.
± CHARGING SYSTEMPREPARATIONCH±3
Page 1040 of 2543

EQUIPMENT
Battery specific gravity gauge Except maintenance±free battery
Torque wrench
Vernier calipers Rotor (Slip ring)
ON±VEHICLE INSPECTION
1. CHECK BATTERY ELECTROYTE LEVEL AND VOLTAGE
(a) Check the electrolyte quantity of each cell.
Maintenance±Free Battery:
If under the lower level, replace the battery (or add distilled
water if possible.). Need to check the charging system.
Except Maintenance±Free Battery:
If under the lower level, add distilled water.
(b) Except Maintenance±Free Battery:
Check the specific gravity of each cell.
Standard specific gravity:
1.27±1.29 at 205C (685F)
If the specific gravity is less than specification, charge the
battery.
(c) Maintenance±Free Battery:
Measure the battery voltage between the negative (±) and
positive (+) terminals of the battery.
Standard voltage:
12.7±12.9 V at 205C (685F)
HINT:
wBefore measuring the voltage, turn the ignition switch
OFF and turn off the electrical systems (headlight,
blower motor, rear defogger etc.) for 60 seconds to
remove the surface charge.
wIf the vehicle has been running, wait 5 minutes or more
after the vehicle stops before measuring the battery
voltage.
If the voltage is less than specification, charge the battery.
HINT: Check the indicator as shown in the illustration.
± CHARGING SYSTEMON±VEHICLE INSPECTIONCH±3
