TOYOTA SUPRA 1995 Service Repair Manual TT Terminal Circuit

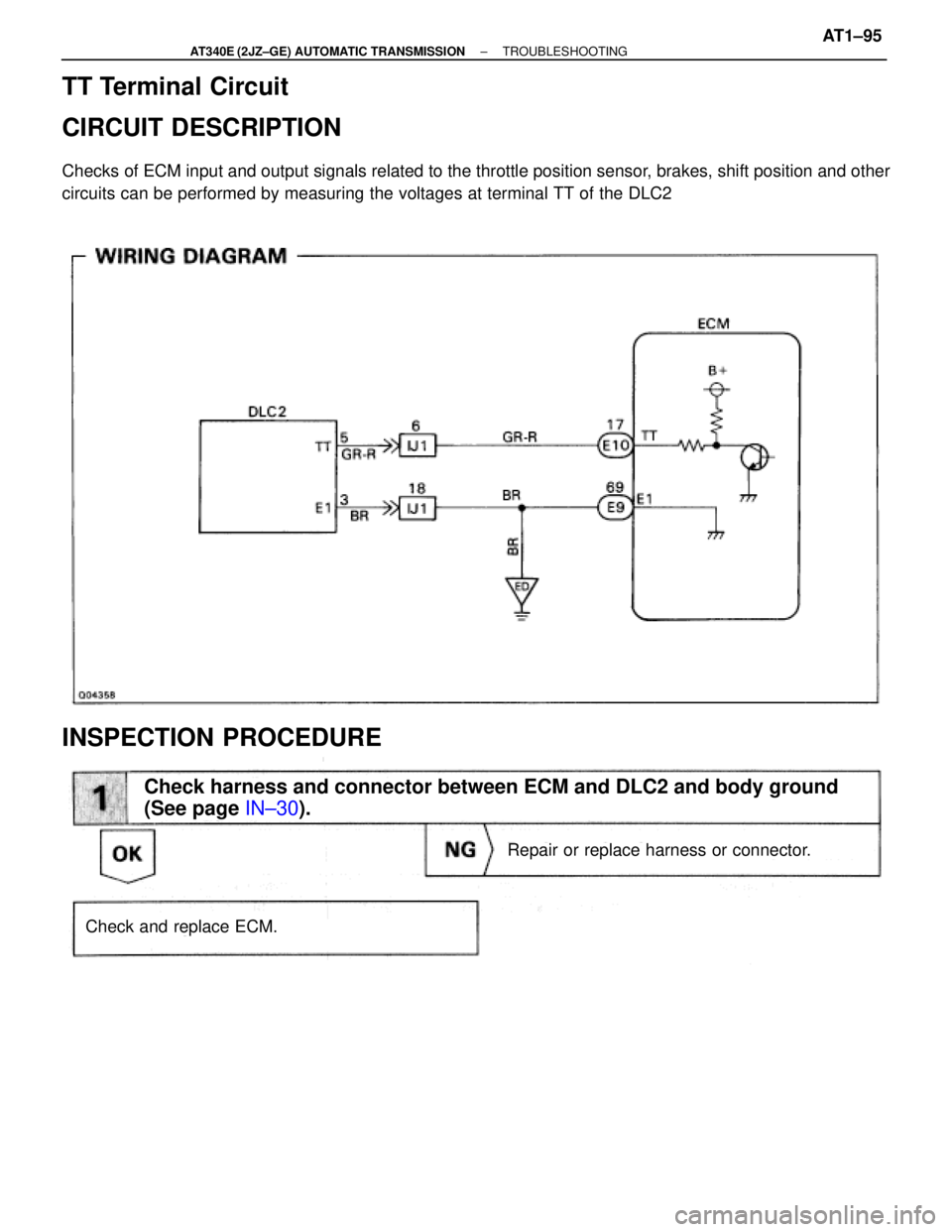

CIRCUIT DESCRIPTION
Checks of ECM input and output signals related to the throttle position sensor, brakes, shift position and other
circuits can be performed by measuring the volt

Page 482 of 2543

TOYOTA SUPRA 1995 Service Repair Manual SERVICE SPECIFICATIONS
SERVICE DATA
Line pressure (wheel locked) Engine idling
D positi

SERVICE SPECIFICATIONS
SERVICE DATA
Line pressure (wheel locked) Engine idling
D position 363±422 kPa 3.7±4.3 kgf/cm2 53±61 psi
R position 500±598 kPa 5.1±6.1 kgf/cm2 73±88 psi
AT stall (Throttle valve fully opened)
D position 902±1,147 kPa 9.2±11.7 kgf/cm2 131±166 psi
R position 1,236±1,589 kPa 12.6±16.2 kgf/cm2 179±230 psi
Engine stall revolution (D and R position) 2,200+150 rpm

Time lag N " D position
N " R position

Less than 1.2 seconds
Less than 1.5 seconds

Engine idle speed
(In N position and air conditioner OFF)

700+50 rpm

Throttle cable adjustment Between boot and face and inner cable stopper
(Throttle valve fully closed) 0±1 mm 0±0.04 in.
Drive plate runout Max 0.20 mm 0.0079 in.
Torque converter clutch runout Max 0.30 mm 0.0118 in.
SHIFT POINT
NORM Mode
Shift Position Shifting Point Vehicle speed km/h (mph)

D
Throttle valve fully opened 1"2
2"3
3"O/D
O/D"3
3"2
2"1
Throttle valve fully closed 3"O/D
O/D"353±62 (33±39)
104±112 (65±70)
163±175 (101±109)
157±169 (98±105)
98±105 (61±65)
42±48 (26±30)
34±39 (21±24)
20±25 (12±16)

2
Throttle valve fully opened 1"2
* 3"2
2"153±62 (33±39)
121±132 (75±82)
42±48 (26±330)
LThrottle valve fully opened * 2"148±53 (30±33)
MANU Mode
Shift Position Shifting Point Vehicle speed km/h (mph)

D
Throttle valve fully opened 2"3
3"O/D
O/D"3
3"2
Throttle valve fully closed 3"O/D
O/D"3104±112 (65±70)
163±175 (101±109)
157±169 (98±109)
98±105 (61±65)
163±175 (101±109)
20±25 (12±16)
2Throttle valve fully opened * 3"2121±132 (75±82)
LThrottle valve fully opened * 2"148±53 (30±33)
AT1±96± AT340E (2JZ±GE) AUTOMATIC TRANSMISSIONSERVICE SPECIFICATIONS

Page 483 of 2543

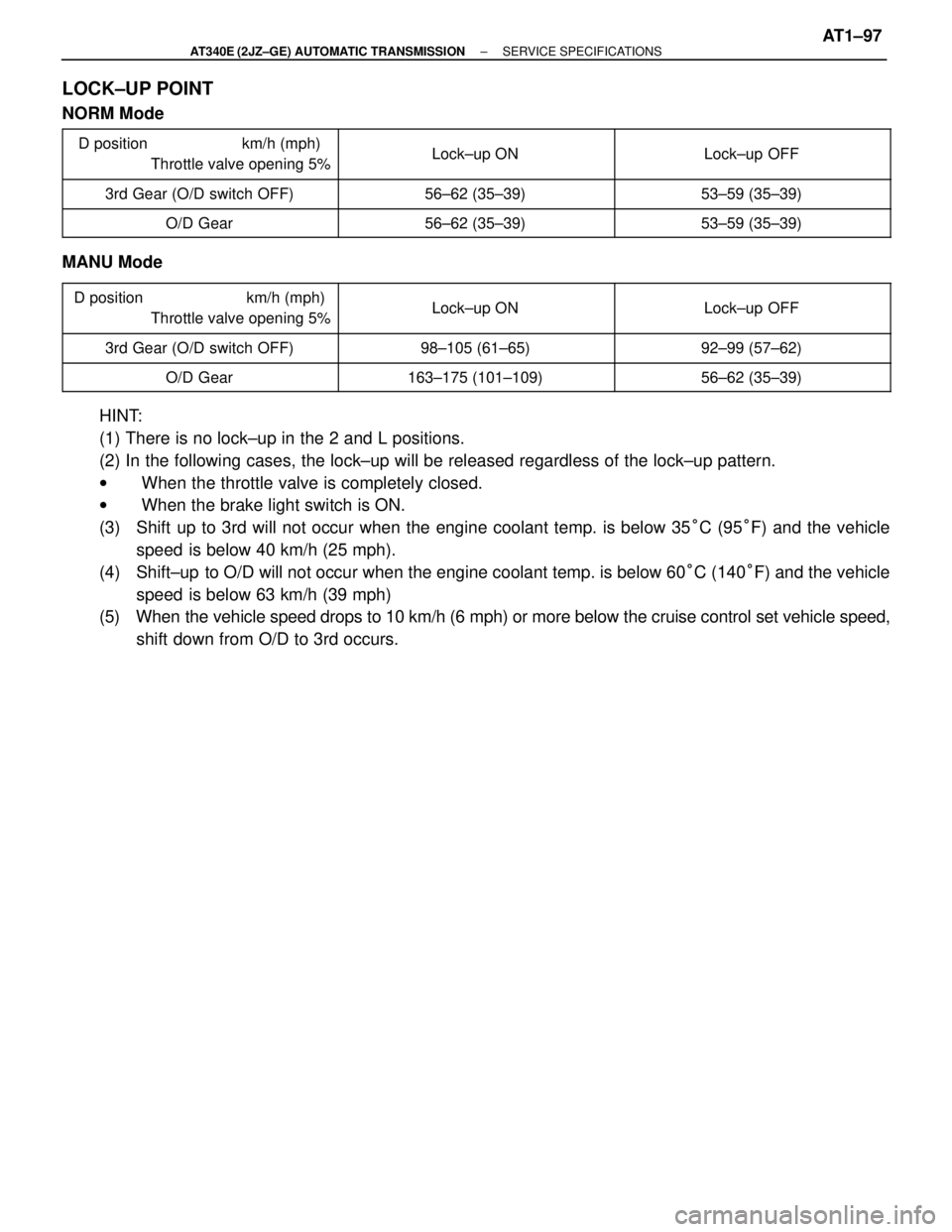

TOYOTA SUPRA 1995 Service Repair Manual LOCK±UP POINT
NORM Mode

D position km/h (mph)
Throttle valve opening 5%
Lock±up ON

Page 484 of 2543

TOYOTA SUPRA 1995 Service Repair Manual TORQUE SPECIFICATIONS

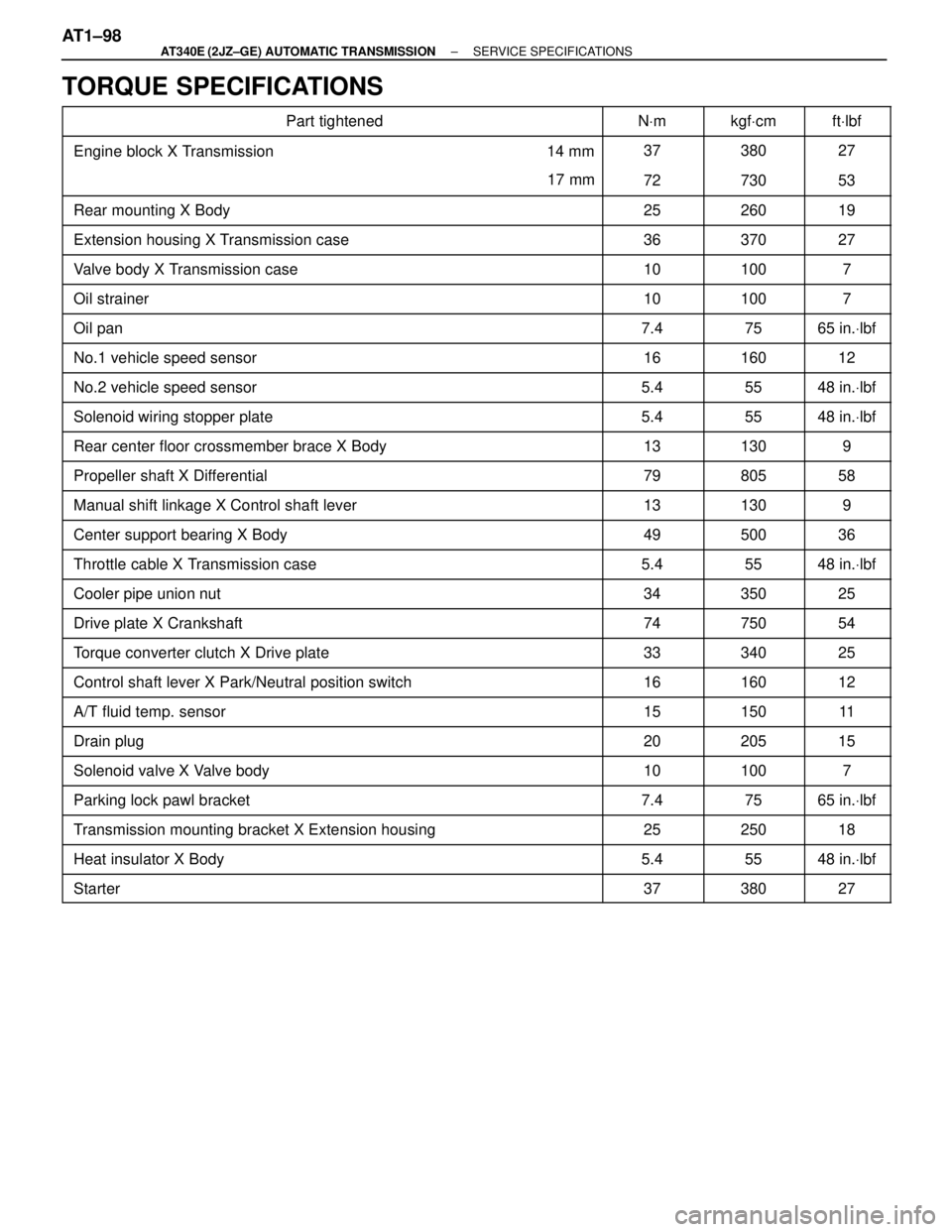

Part tightened NVm kgfVcm ftVlbf
Engine block X Tr

TORQUE SPECIFICATIONS
Part tightened NVm kgfVcm ftVlbf
Engine block X Transmission 14 mm 37 380 27
17 mm

72

730

53
Rear mounting X Body 25 260 19
Extension housing X Transmission case 36 370 27
Valve body X Transmission case 10 100 7
Oil strainer

10

100

7
Oil pan 7.4 75 65 in.Vlbf
No.1 vehicle speed sensor 16 160 12
No.2 vehicle speed sensor 5.4 55 48 in.Vlbf
Solenoid wiring stopper plate

5.4

55

48 in.Vlbf
Rear center floor crossmember brace X Body 13 130 9
Propeller shaft X Differential 79 805 58
Manual shift linkage X Control shaft lever 13 130 9 Center support bearing X Body 49 500 36
Throttle cable X Transmission case

5.4

55

48 in.Vlbf
Cooler pipe union nut 34 350 25
Drive plate X Crankshaft 74 750 54
Torque converter clutch X Drive plate 33 340 25
Control shaft lever X Park/Neutral position switch

16

160

12
A/T fluid temp. sensor 15 150 11
Drain plug 20 205 15
Solenoid valve X Valve body 10 100 7
Parking lock pawl bracket

7.4

75

65 in.Vlbf
Transmission mounting bracket X Extension housing 25 250 18
Heat insulator X Body 5.4 55 48 in.Vlbf
Starter 37 380 27
AT1±98± AT340E (2JZ±GE) AUTOMATIC TRANSMISSIONSERVICE SPECIFICATIONS

Page 485 of 2543

TOYOTA SUPRA 1995 Service Repair Manual A340E (2JZ±GTE)
AUTOMATIC TRANSMISSION
AT2±1

Page 486 of 2543

TOYOTA SUPRA 1995 Service Repair Manual OPERATION

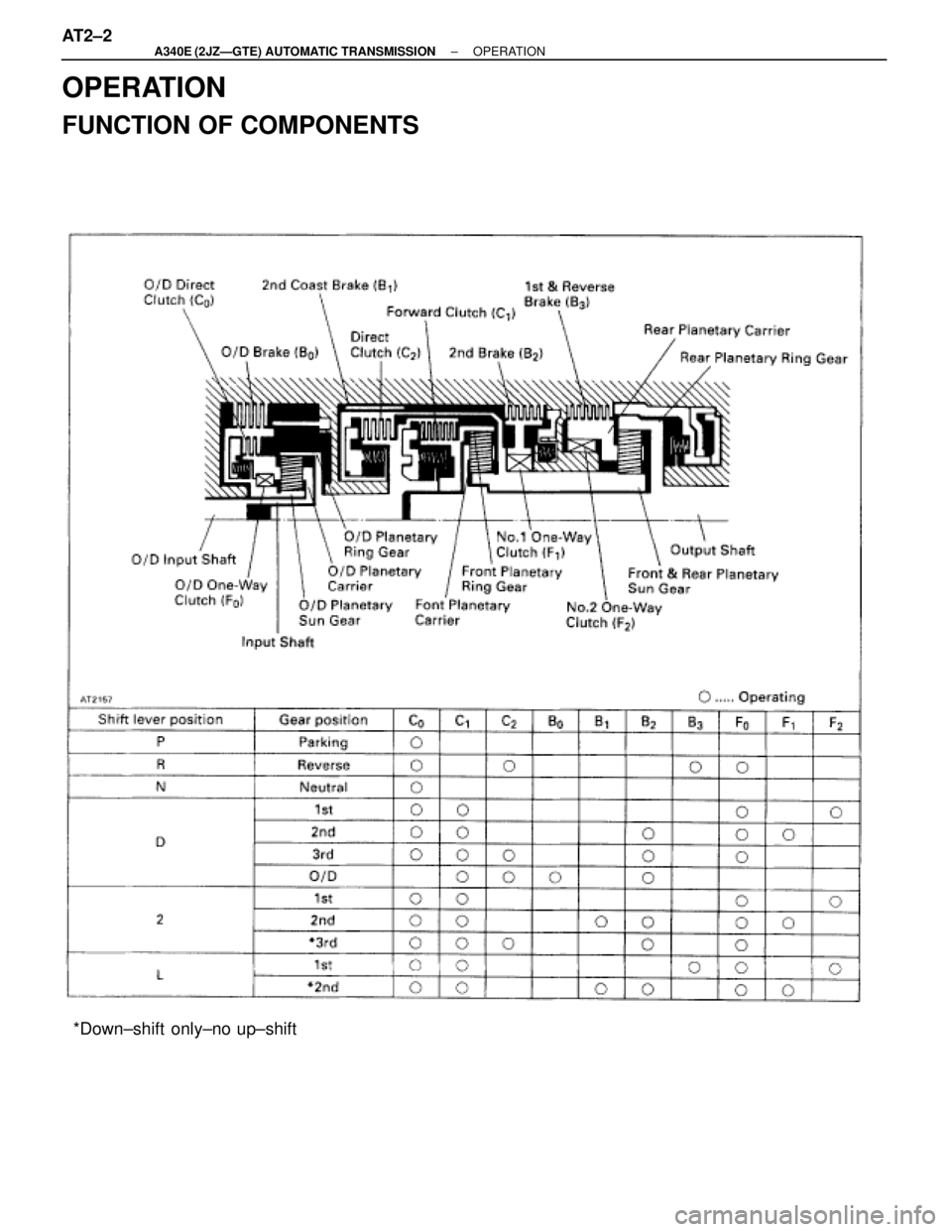

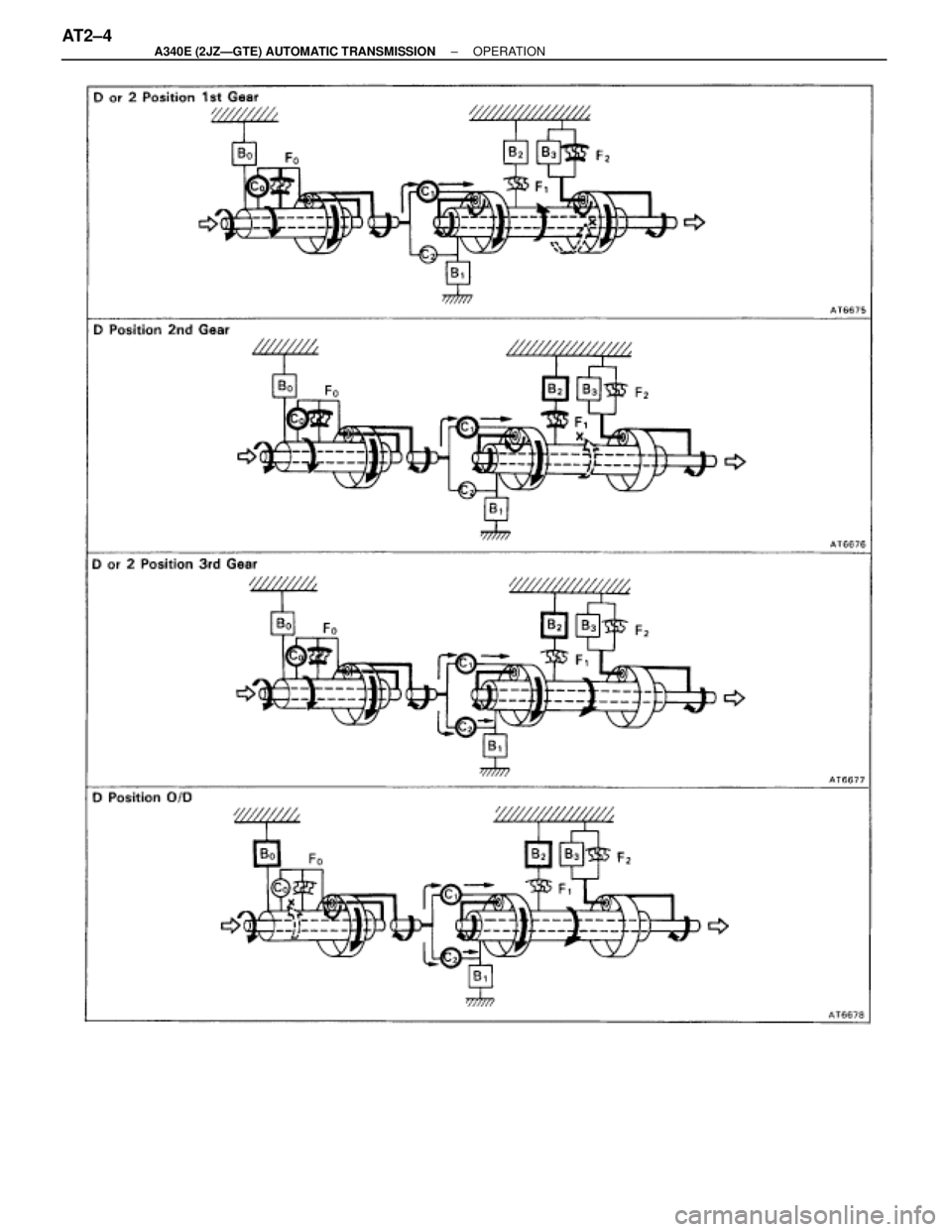

FUNCTION OF COMPONENTS
*Down±shift only±no up±shift AT2±2
± A340E (2JZÐGTE) AUTOMATIC TRANSMISSIONOPERATION

Page 487 of 2543

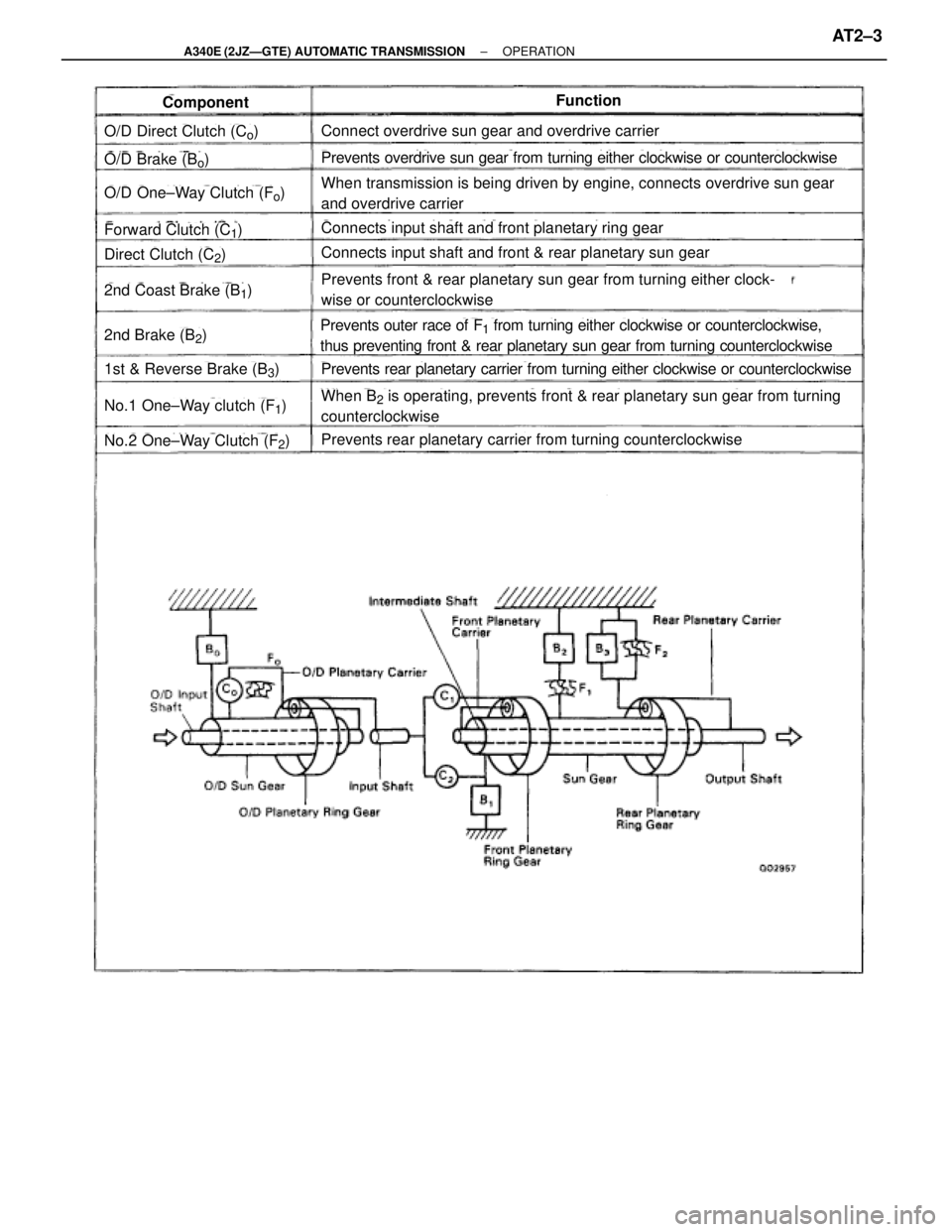

TOYOTA SUPRA 1995 Service Repair Manual ComponentFunction
O/D Direct Clutch (Co)
O/D Brake (Bo)
O/D One±Way Clutch (Fo)
Forward Clutch (C1)
Direct Clutch (C2)
2nd Coast Brake (B1)
2nd Brake (B2)
1st & Reverse Brake (B3)
No.1 One±Way clutc

Page 488 of 2543

TOYOTA SUPRA 1995 Service Repair Manual AT2±4± A340E (2JZÐGTE) AUTOMATIC TRANSMISSIONOPERATION
