Page 1201 of 2543
(a) Continuity Check with Ground
(1) Disconnect connectors (A) and (C) and measure the resistance between terminals 1 and 2 of connector
(A) and body ground.
In the case of Fig. 6,
Between terminal 1 of connector (A) and body ground " Continuity
Between terminal 2 of connector (A) and body ground " No continuity (open)
Therefore, it is found out that there is a short circuit between terminal 1 of connector (A) and terminal 1 of
connector (C).
(2) Disconnect connector (B) and measure the resistance between terminal 1 of connector (A) and body
ground, and terminal 1 of connector (B) and body ground.
Between terminal 1 of connector (A) and body ground " No continuity (open)
Between terminal 1 of connector (B) and body ground " Continuity
Therefore, it is found out that there is a short circuit between terminal 1 of connector (B) and terminal 1 of
connector (C).
IN±34± INTRODUCTIONHOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS
Page 1202 of 2543
Check and Replace ECU
First check the ECU ground circuit. If it is faulty, repair it. If it is nor-
mal, the ECU could be faulty, so replace the ECU with a known
good one and check if the symptoms appear.
(1) Measure the resistance between the ECU ground terminal
and the body body ground.
Resistance: 1 or less
(2) Disconnect the ECU connector, check the ground terminals
on the ECU side and wire harness side for bend and check
the contact pressure.
± INTRODUCTIONHOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMSIN±35
Page 1203 of 2543

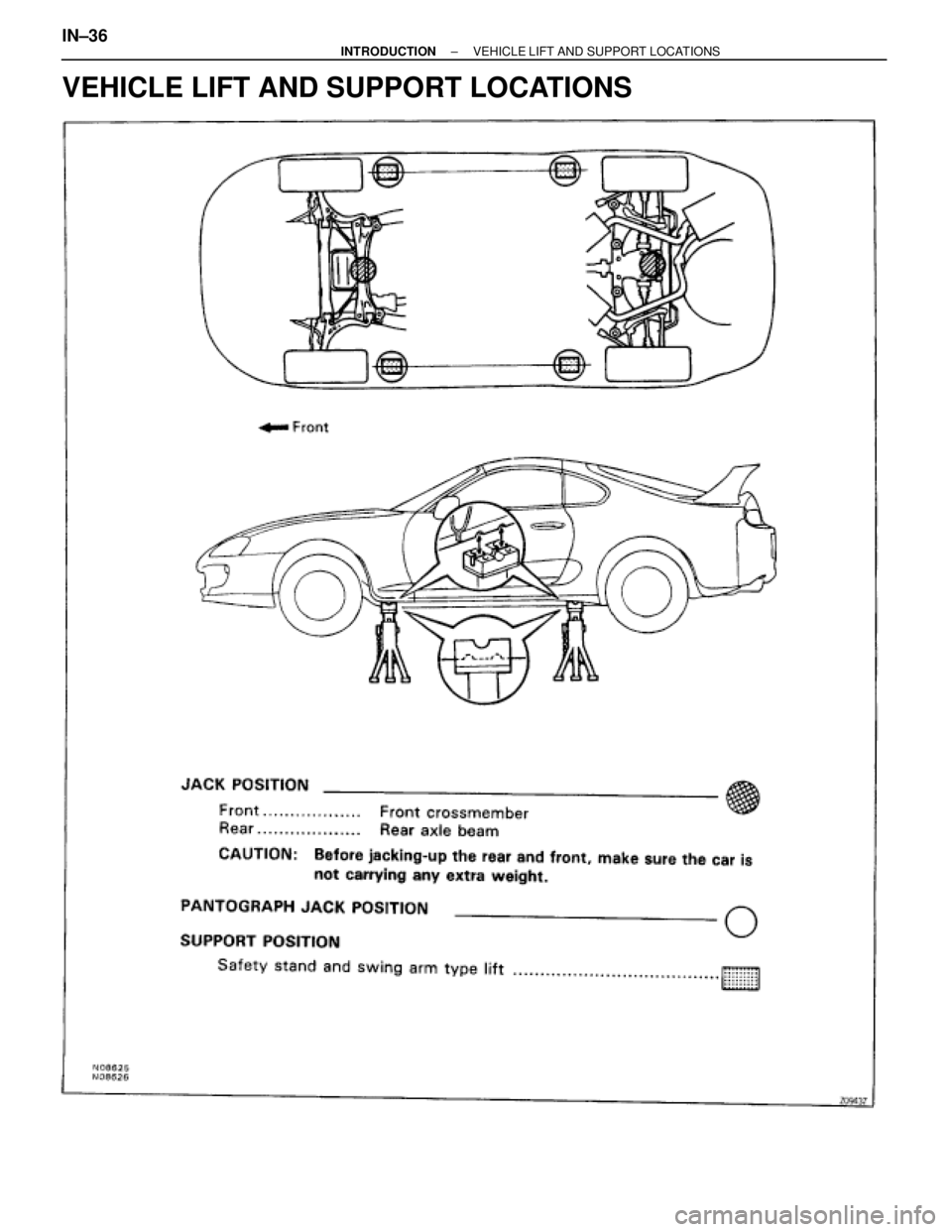

VEHICLE LIFT AND SUPPORT LOCATIONS
IN±36± INTRODUCTIONVEHICLE LIFT AND SUPPORT LOCATIONS
Page 1204 of 2543
ABBREVIATIONS USED IN THIS
MANUAL
ABS Anti±Lock Brake System
ALR Automatic Locking Retractor
APPROX. Approximately
A/T, ATM Automatic Transmission
AT F Automatic Transmission Fluid
BTDC Before Top Dead Center
CB Circuit Breaker
CD Compact Disc CRS Child Restraint System DOHC Double Over Head Cam
DP
Dash Pot
ECU Electronic Control Unit
ELR Emergency Locking Retractor
ESA Electronic Spark Advance
ETR Electronic Turning Radio
EX Exhaust
FIPG Formed in Place Gasket
FL Fusible Link
Fr Front H±Fuse High Current Fuse
IG
Ignition
IN Intake
JB Junction Block
LED Light Emitting Diode
LH Left±Hand
LSD Limited Slip Differential
Max. Maximum
MP Multipurpose
M/T Manual Transmission O/D Overdrive O/S Oversize
P & BV
Proportioning and By±pass Valve
PCV Positive Crankcase Ventilation
PPS Progressive Power Steering
PS Power Steering
± INTRODUCTIONABBREVIATIONS USED IN THIS MANUALIN±37
Page 1205 of 2543
RH Right±Hand
SRS Supplemental Restraint System
SSM Special Service Materials
SST Special Service Tools
STD Standard
SW Switch TEMP. Temperature TRAC Traction Control System
U/S
Undersize
VSV Vacuum Switching Valve
w/ With
w/o Without
IN±38± INTRODUCTIONABBREVIATIONS USED IN THIS MANUAL
Page 1206 of 2543

GLOSSARY OF SAE AND TOYOTA TERMS
This glossary lists all SAE±J1930 terms and abbreviations used in this manual in compliance with SAE
recommendations, as well as their Toyota equivalents.
SAE ABBREVI±
ATIONS
SAE TERMS
TOYOTA TERMS
( ) ±± ABBREVIATIONS
A/C Air Conditioning Air Conditioner
ACL Air Cleaner Air Cleaner
AIRSecondary Air InjectionAir Injection (AI) AP Accelerator Pedal ± B+ Battery Positive Voltage +B, Battery Voltage BARO Barometric Pressure ±
CAC Charge Air Cooler Intercooler
CARB Carburetor Carburetor
CFI Continuous Fuel Injection ±
CKP Crankshaft Position Crank Angle
CLClosed LoopClosed Loop CMP Camshaft Position Cam Angle CPP Clutch Pedal Position ±
CTOX Continuous Trap Oxidizer ±
CTP Closed Throttle Position Idle ON (IDL ON)
DFI Direct Fuel Injection (Diesel) Direct Injection (DI)
DI Distributor Ignition ±
DLC1
DLC2
DLC3
Data Link Connector 1
Data Link Connector 2
Data Link Connector 3
1: Check Connector
2: Toyota Diagnosis Comunication Link (TDCL)
3: OBD II Diagnostic Connector
DTC Diagnostic Trouble Code Diagnostic Code
DTM Diagnostic Test Mode ±
ECL Engine Control Level ±
ECM Engine Control Module Engine ECU (Electronic Control Unit)
ECT Engine Coolant Temperature Coolant Temperature, Water Temperature
(THW)
EEPROM
Electrically Erasable Programmable Read Only
Memory
Electrically Erasable Programmable Read Only
Memory (EEPROM),
Erasable Programmable Read Only Memory
(EPROM)
EFE
Early Fuel Evaporation
Cold Mixture Heater (CMH), Heat Control Valve
(HCV)
EGRExhaust Gas RecirculationExhaust Gas Recirculation (EGR) EI Electronic Ignition Toyota Distributorless Ignition (TDI) EM Engine Modification Engine Modification (EM) EPROM Erasable Programmable Read Only Memory Programmable Read Only Memory (PROM)
EVAP Evaporative Emission Evaporative Emission Control (EVAP)
FC Fan Control ±
FEEPROM Flash Electrically Erasable Programmable
Read Only Memory ±
FEPROM
Flash Erasable Programmable Read Only
Memory
±
FF Flexible Fuel ±
FP Fuel Pump Fuel Pump
GEN Generator Alternator
GND Ground Ground (GND)
HO2SHeated Oxygen SensorHeated Oxygen Sensor (HO2S)
± INTRODUCTIONGLOSSARY OF SAE AND TOYOTA TERMSIN±39
Page 1207 of 2543

IAC Idle Air Control Idle Speed Control (ISC)
IATIntake Air TemperatureIntake or Inlet Air Temperature ICM Ignition Control Module ± IFI Indirect Fuel Injection Indirect Injection IFS Inertia Fuel±Shutoff ±
ISC Idle Speed Control ±
KS Knock Sensor Knock Sensor
MAF Mass Air Flow Air Flow Meter
MAP Manifold Absolute Pressure Manifold Pressure
Intake Vacuum
MC
Mixture Control
Electric Bleed Air Control Valve (EBCV)
Mixture Control Valve (MCV)
Electric Air Control Valve (EACV)
MDP Manifold Differential Pressure ±
MFI Multiport Fuel Injection Electronic Fuel Injection (EFI)
MILMalfunction Indicator LampCheck Engine Light MST Manifold Surface Temperature ± MVZ Manifold Vacuum Zone ± NVRAM Non±Volatile Random Access Memory ±
O2S Oxygen Sensor Oxygen Sensor, O2 Sensor (O2S)
OBD On±Board Diagnostic On±Board Diagnostic (OBD)
OC Oxidation Catalytic Converter Oxidation Catalyst Converter (OC), CCo
OPOpen LoopOpen Loop PAIR Pulsed Secondary Air Injection Air Suction (AS) PCM Powertrain Control Module ± PNP Park/Neutral Position ±
PROM Programmable Read Only Memory ±
PSP Power Steering Pressure ±
PTOX
Periodic Trap Oxidizer
Diesel Particulate Filter (DPF)
Diesel Particulate Trap (DPT)
RAMRandom Access MemoryRandom Access Memory (RAM) RM Relay Module ± ROM Read Only Memory Read Only Memory (ROM) RPM Engine Speed Engine Speed
SC Supercharger Supercharger
SCB Supercharger Bypass ±
SFI Sequential Multiport Fuel Injection Electronic Fuel Injection (EFI), Sequential Injec-
tion
SPL Smoke Puff Limiter ± SRI Service Reminder Indicator ± SRT System Readiness Test ±
ST Scan Tool ±
TB Throttle Body Throttle Body
TBI Throttle Body Fuel Injection Single Point Injection
Central Fuel Injection (Ci)
TC Turbocharger Turbocharger TCC Torque Converter Clutch Torque Converter TCM Transmission Control Module Transmission ECU (Electronic Control Unit)
TP Throttle Position Throttle Position
TR Transmission Range ±
IN±40± INTRODUCTIONGLOSSARY OF SAE AND TOYOTA TERMS
Page 1208 of 2543
TVV
Thermal Vacuum Valve
Bimetallic Vacuum Switching Valve (BVSV)
Thermostatic Vacuum Switching Valve (TVSV)
TWC Three±Way Catalytic Converter Three±Way Catalytic (TWC)
CC
RO
TWC+OC
Three±Way + Oxidation Catalytic Converter
CCR + CCo
VA F
Volume Air Flow
Air Flow Meter
VR
Voltage Regulator
Voltage Regulator
VSS
Vehicle Speed Sensor
Vehicle Speed Sensor (Read Switch Type)
WOT
Wide Open Throttle
Full Throttle
WU±OC
Warm Up Oxidation Catalytic Converter
±
WU±TWC
Warm Up Three±Way Catalytic Converter
Manifold Converter
3GR
Third Gear
±
4GR
Fourth Gear
±
± INTRODUCTIONGLOSSARY OF SAE AND TOYOTA TERMSIN±41
