Page 409 of 2543

TOYOTA SUPRA 1995 Service Repair Manual TRANSMISSION REMOVAL
Installation is in the reverse order of removal.
INSTALLATION HINT: After installation, fill A/T fluid and
check fluid level. (See page AT1±42)
1. REMOVE A/T FLUID LEVEL GAUGE
2

Page 410 of 2543

TOYOTA SUPRA 1995 Service Repair Manual 6. REMOVE REAR CENTER FLOOR CROSSMEMBER
BRACE
Normal Roof:
Remove the 4 bolts and center floor crossmember brace.
Torque: 13 NVm (130 kgfVcm, 9 ftVlbf)
Sport Roof:
Remove the 6 bolts and center floor

Page 411 of 2543

TOYOTA SUPRA 1995 Service Repair Manual 11. DISCONNECT OIL COOLER PIPES
(a) Remove the 3 bolts and oil cooler pipe clamps.
(b) Disconnect the 2 oil cooler pipes.
Torque: 34 NVm (350 kgfVcm, 25 ftVlbf)
12. REMOVE TORQUE CONVERTER CLUTCH MO

Page 412 of 2543

TOYOTA SUPRA 1995 Service Repair Manual 15. REMOVE STARTER
(a) Disconnect the connector.
(b) Remove the nut and cable.
(c) Remove the 2 bolts and starter.
Torque: 37 NVm (380 kgfVcm, 27 ftVlbf)
16. REMOVE TRANSMISSION
Remove the 9 bolts

Page 413 of 2543

TOYOTA SUPRA 1995 Service Repair Manual (c) With the torque converter clutch standing on its side the
clutch should lock when turned counterclockwise, and rotate
freely and smoothly clockwise.
If necessary, clean the converter clutch and r

Page 414 of 2543

TOYOTA SUPRA 1995 Service Repair Manual SHIFT LOCK SYSTEM
COMPONENT PARTS LOCATION
WIRING DIAGRAM
AT1±28± AT340E (2JZ±GE) AUTOMATIC TRANSMISSIONSHIFT LOCK SYSTEM

Page 415 of 2543

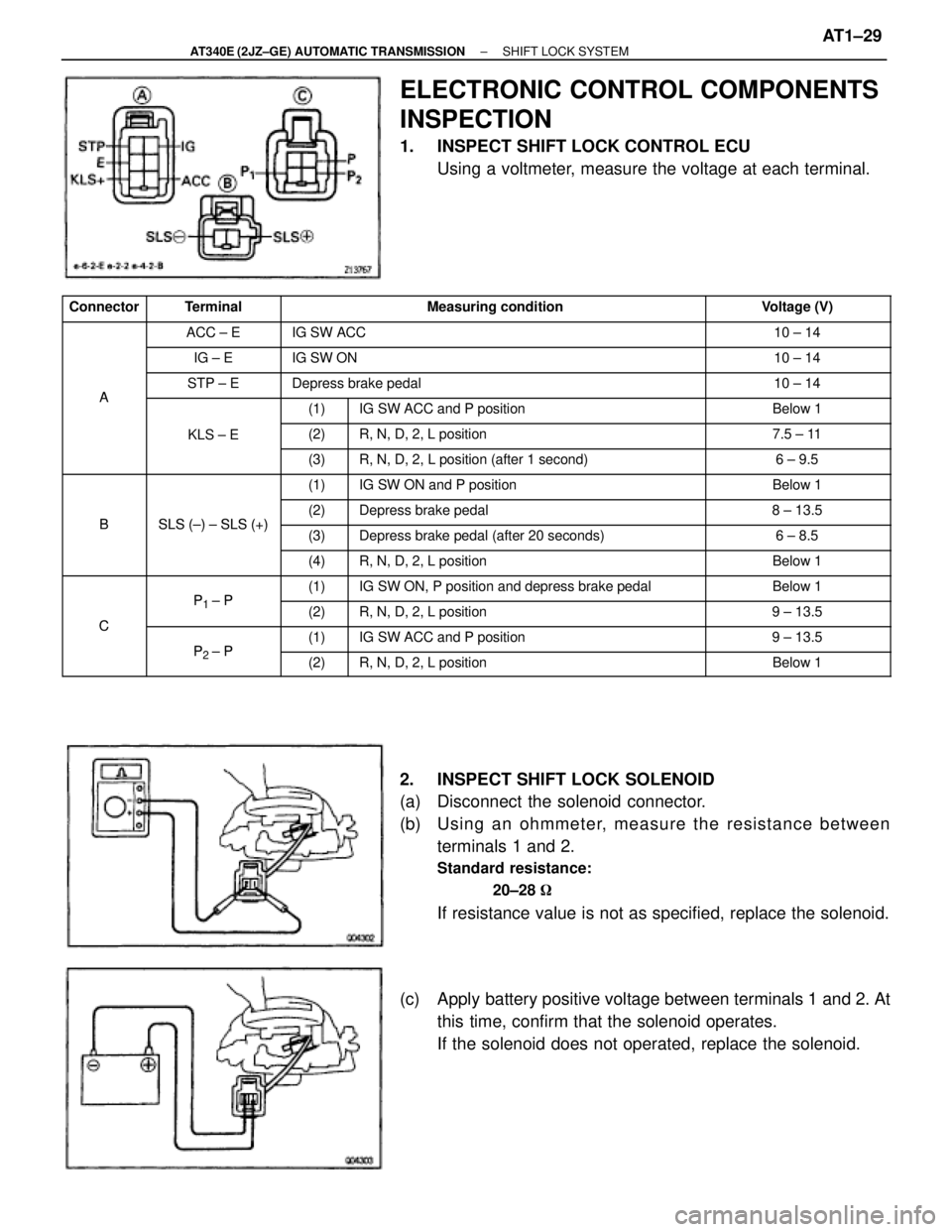

TOYOTA SUPRA 1995 Service Repair Manual ELECTRONIC CONTROL COMPONENTS
INSPECTION
1. INSPECT SHIFT LOCK CONTROL ECU
Using a voltmeter, measure the voltage at each terminal.
Connector Terminal

ELECTRONIC CONTROL COMPONENTS
INSPECTION
1. INSPECT SHIFT LOCK CONTROL ECU
Using a voltmeter, measure the voltage at each terminal.
Connector Terminal Measuring condition Voltage (V)
ACC ± E IG SW ACC 10 ± 14
IG ± E IG SW ON 10 ± 14

A
STP ± E Depress brake pedal 10 ± 14
A (1) IG SW ACC and P position Below 1
KLS ± E (2) R, N, D, 2, L position 7.5 ± 11 (3) R, N, D, 2, L position (after 1 second) 6 ± 9.5 (1) IG SW ON and P position Below 1
B

SLS ( ) SLS (+)
(2) Depress brake pedal 8 ± 13.5

B

SLS (±) ± SLS (+)
(3)
Depress brake pedal (after 20 seconds)
6 ± 8.5
(4) R, N, D, 2, L position Below 1
P1P (1) IG SW ON, P position and depress brake pedal Below 1
C
P1 ± P
(2) R, N, D, 2, L position 9 ± 13.5
C P2P (1) IG SW ACC and P position 9 ± 13.5
P2 ± P (2) R, N, D, 2, L position Below 1
2. INSPECT SHIFT LOCK SOLENOID
(a) Disconnect the solenoid connector.
(b) Usin g an oh mme te r, me a su re th e re sista n ce be twe e n
terminals 1 and 2.
Standard resistance:
20±28
If resistance value is not as specified, replace the solenoid.
(c) Apply battery positive voltage between terminals 1 and 2. At
this time, confirm that the solenoid operates.
If the solenoid does not operated, replace the solenoid.
± AT340E (2JZ±GE) AUTOMATIC TRANSMISSIONSHIFT LOCK SYSTEMAT1±29

Page 416 of 2543

TOYOTA SUPRA 1995 Service Repair Manual 3. INSPECT KEY INTERLOCK SOLENOID
(a) Disconnect the solenoid connector.
(b) Usin g an oh mme te r, me a su re th e re sista n ce be twe e n
terminals 1 and 2.
Standard resistance:
12±17
If resi
