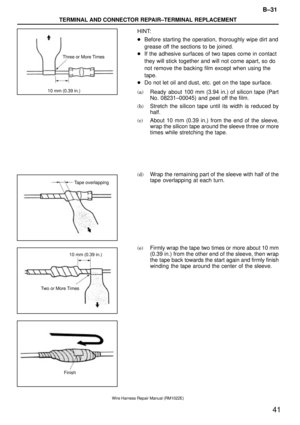

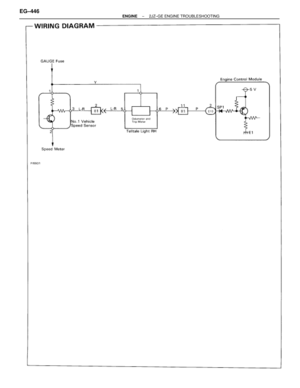

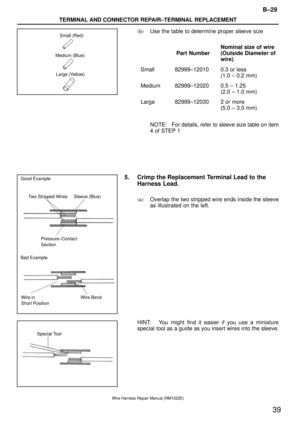

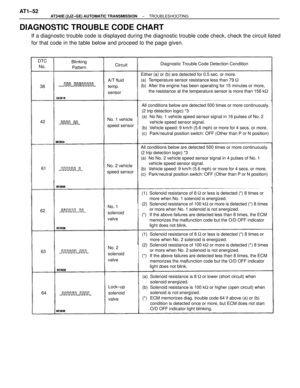

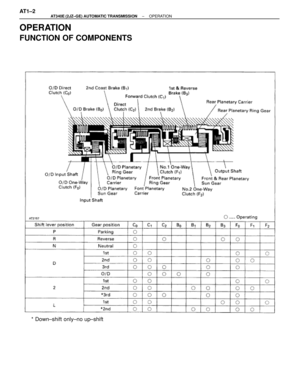

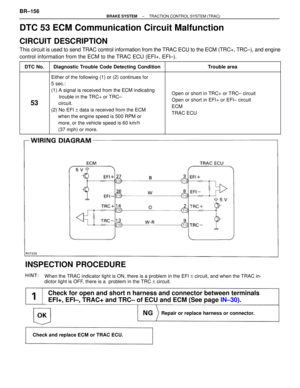

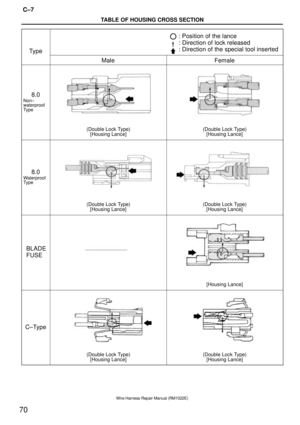

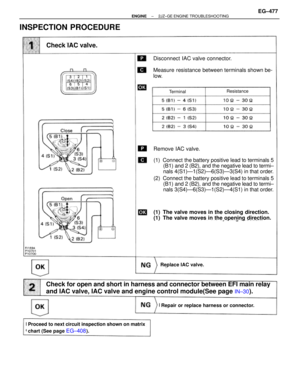

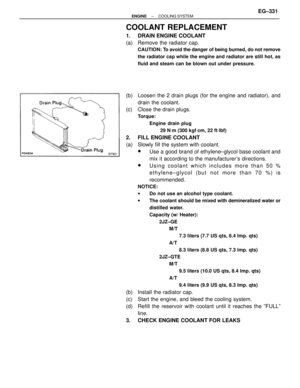

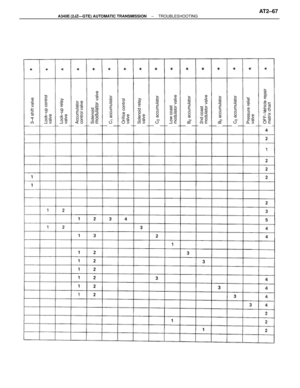

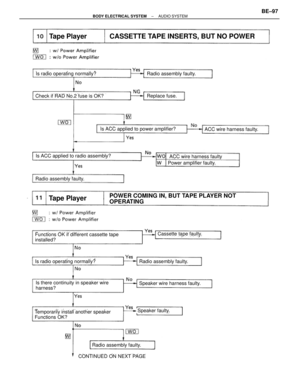

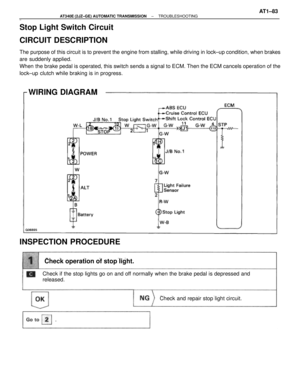

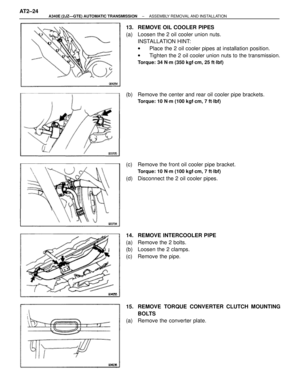

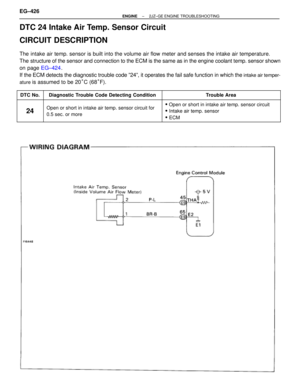

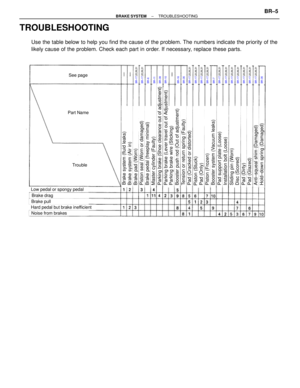

TOYOTA SUPRA 1995 Service Repair Manual AIR CONDITIONING SYSTEM AC±1

Page 2 of 2543

TOYOTA SUPRA 1995 Service Repair Manual GENERAL DESCRIPTION NEW AIR CONDITIONING SYSTEM WITH HFC134a Refrigerant CFC 12 (R 12), previously used in automobiles air conditioning systems is believed to contribute towards the depletion the e

Page 3 of 2543

TOYOTA SUPRA 1995 Service Repair Manual 3. USE OF PROPER O±RINGS AND SEALS O±rings and seals used for conventional CFC12 air condi- tioning systems cannot be used for HFC134a air conditioning systems. Always use genuine Toyota HFC134a sy

Page 4 of 2543

TOYOTA SUPRA 1995 Service Repair Manual SERVICE TOOLS FOR HFC134a AIR CONDITIONING When servicing HFC134a air conditioning systems always use the HFC134a dedicated manifold gauges, gas leak de- tector and vacuum pump adaptor. 1. USE MANIFO

Page 5 of 2543

TOYOTA SUPRA 1995 Service Repair Manual HANDLING PRECAUTIONS FOR REFRIGERANT 1. DO NOT HANDLE REFRIGERANT IN AN ENCLOSED AREA OR NEAR AN OPEN FLAME 2. ALWAYS WEAR EYE PROTECTION 3. BE CAREFUL THAT LIQUID REFRIGERANT DOES NOT GET IN YOUR E

Page 6 of 2543

TOYOTA SUPRA 1995 Service Repair Manual CAUTION: wBe sure to connect both the high and low pressure quick±connectors onto the A/C system when evacuating. If only one side is connected, the system would be open to atmosphere through the ot

Page 7 of 2543

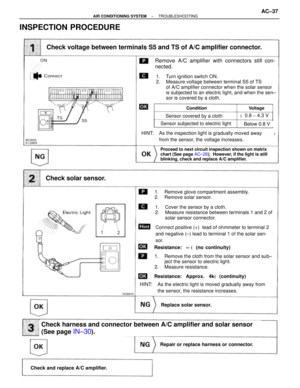

TOYOTA SUPRA 1995 Service Repair Manual DESCRIPTION PARTS LOCATION ± AIR CONDITIONING SYSTEMDESCRIPTIONAC±7

Page 8 of 2543

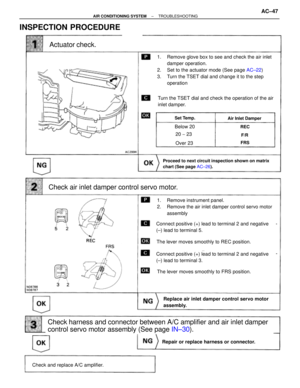

TOYOTA SUPRA 1995 Service Repair Manual DAMPERS OPERATION ModeMode Control Damper PositionVentHeatDef. Face Bi±Level Foot* I Foot* II Foot/Def. Def. The size of the circleindicates the proportion of air flow volume. Foot I indicates the st
