Page 825 of 2543

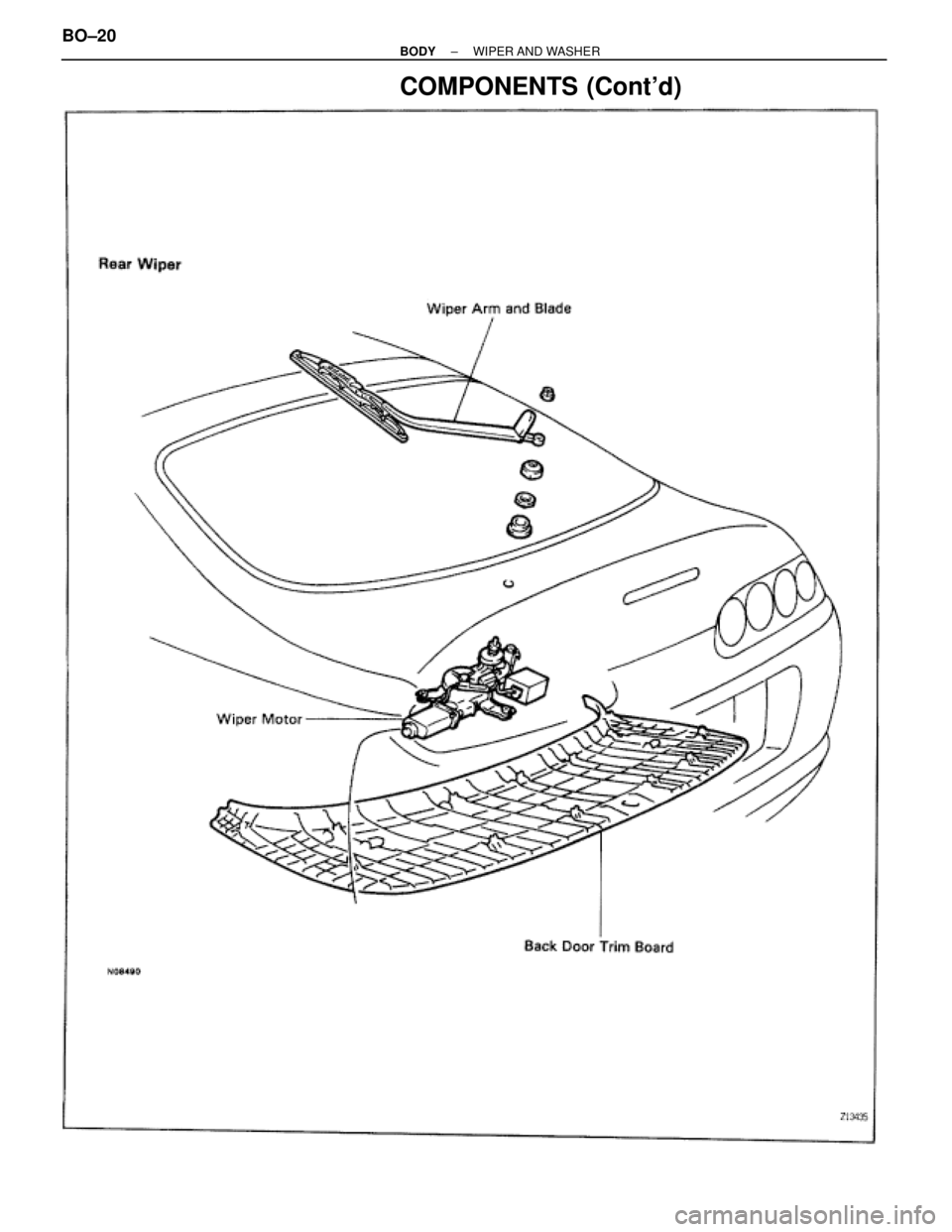

TOYOTA SUPRA 1995 Service Repair Manual COMPONENTS (Contd) BO±20± BODYWIPER AND WASHER

Page 826 of 2543

TOYOTA SUPRA 1995 Service Repair Manual FRONT WIPER REMOVAL 1. REMOVE THESE PARTS: (a) Wiper arm and blade (b) Cowl top ventilator louver 2. REMOVE FRONT WIPER MOTOR (a) Disconnect the connector, then unfasten the 3 bolts. (b) Remove

Page 827 of 2543

TOYOTA SUPRA 1995 Service Repair Manual REAR WIPER REMOVAL 1. REMOVE WIPER ARM AND BLADE 2. REMOVE BACK DOOR TRIM BOARD 3. REMOVE WIPER MOTOR ASSEMBLY (a) Disconnect the connector, then unfasten the 3 bolts. (b) Remove the motor. REAR

Page 828 of 2543

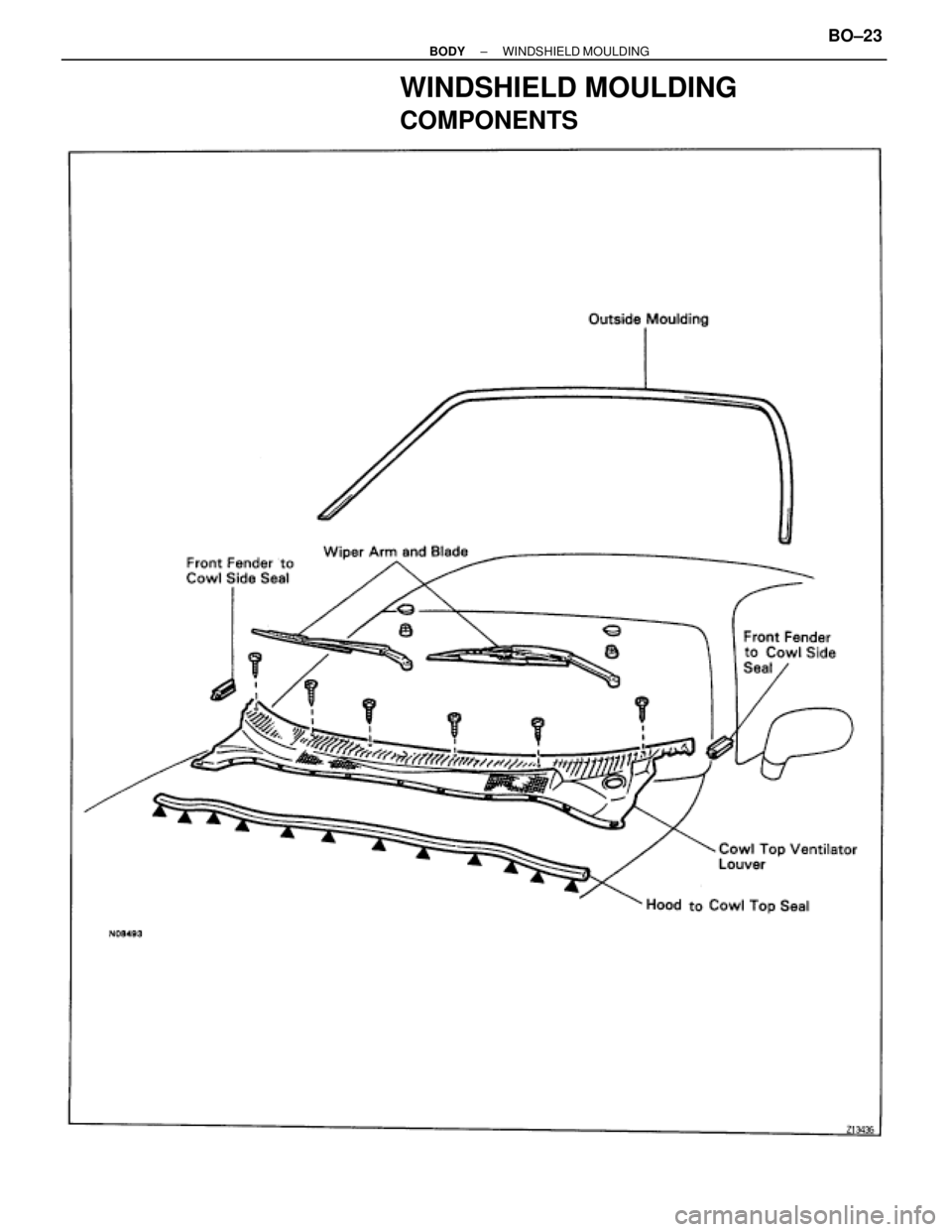

TOYOTA SUPRA 1995 Service Repair Manual WINDSHIELD MOULDING COMPONENTS ± BODYWINDSHIELD MOULDINGBO±23

Page 829 of 2543

TOYOTA SUPRA 1995 Service Repair Manual WINDSHIELD MOULDING REMOVAL 1. REMOVE THESE PARTS: (a) Wiper arm and blade (b) Cowl top ventilator louver 2. REMOVE WINDSHIELD MOULDING (a) Using a knife, cut off the moulding as shown. (b) Cut

Page 830 of 2543

TOYOTA SUPRA 1995 Service Repair Manual BODY OUTSIDE MOULDING COMPONENTS ± BODYBODY OUTSIDE MOULDINGBO±25

Page 831 of 2543

TOYOTA SUPRA 1995 Service Repair Manual COMPONENTS (Contd) BO±26± BODYBODY OUTSIDE MOULDING

Page 832 of 2543

TOYOTA SUPRA 1995 Service Repair Manual ROOF DRIP SIDE FINISH MOULDING REMOVAL Normal roof 1. REMOVE ROOF SIDE RAIL WEATHERSTRIP Using a clip remover, remove 2 clips for front and 3 clips for rear side of the weatherstrip and remove the we
