Page 1393 of 2543

TOYOTA SUPRA 1995 Service Repair Manual (d) Remove the rubber cap and nut, and disconnect the generator wire. (e) Disconnect these connectors: (1) Connector from engine room main wire (2) Igniter connector (3) Theft deterrent horn conn

Page 1394 of 2543

TOYOTA SUPRA 1995 Service Repair Manual 13. DISCONNECT FUEL HOSES (a) Remove the union bolt and 2 gaskets, disconnect the fuel inlet hose. HINT: wPut a suitable container or shop rag under the fuel pipe support. wSlowly loosen the union b

Page 1395 of 2543

TOYOTA SUPRA 1995 Service Repair Manual 16. DISCONNECT PS PRESSURE TUBE FROM ENGINE Remove the 2 clamp bolts, and disconnect the pressure tube. 17. DISCONNECT A/C COMPRESSOR WITHOUT DISCONNECTING HOSES (a) Remove the 2 bolts. (b) Disc

Page 1396 of 2543

TOYOTA SUPRA 1995 Service Repair Manual 19. DISCONNECT ENGINE WIRE FROM CABIN (a) Remove the scuff plate. (b) Take out the front side of the floor carpet. (c) Remove the 2 nuts and ECM protector. (d) Remove the nut, and disconnect the

Page 1397 of 2543

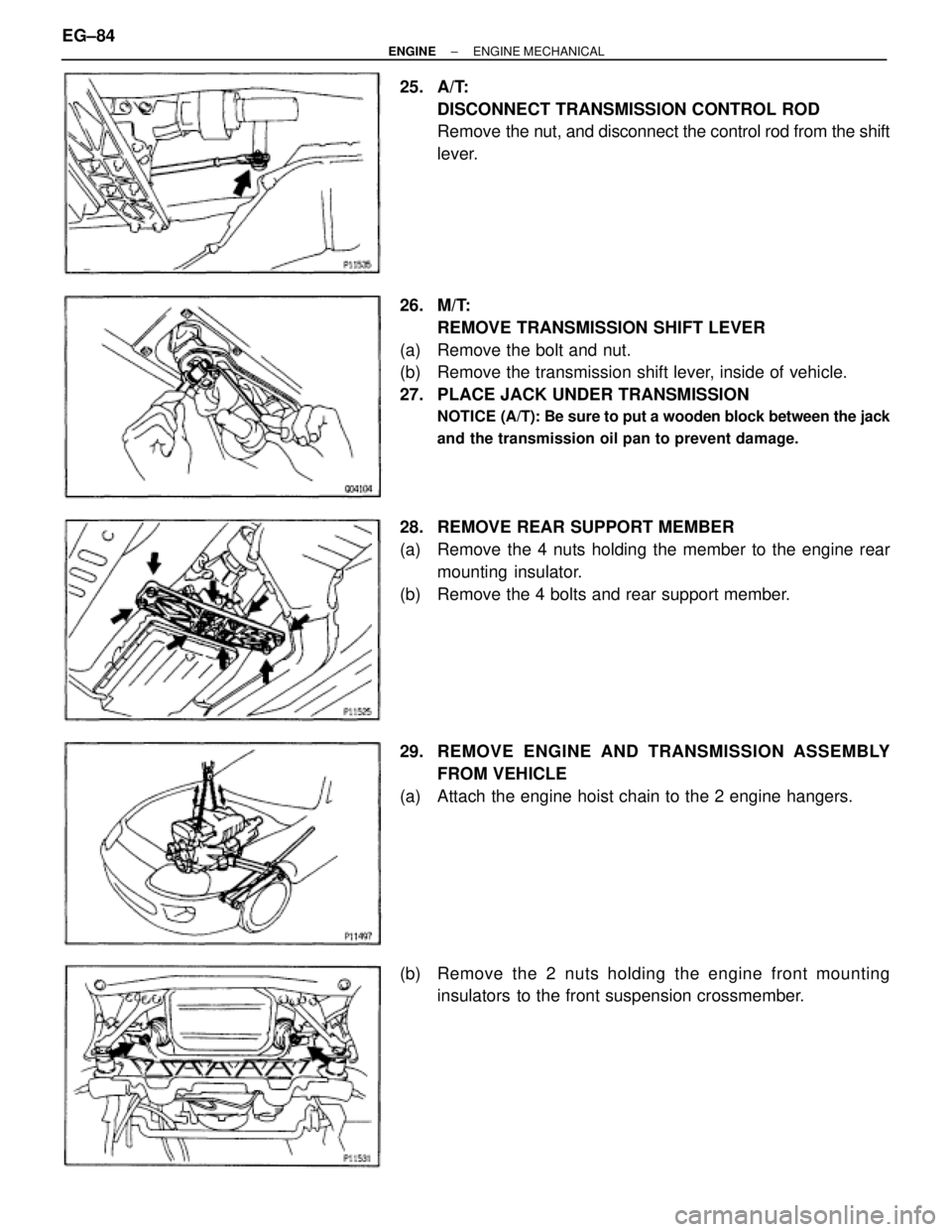

TOYOTA SUPRA 1995 Service Repair Manual (c) Remove the 4 bolts holding the lever boot to the transmission cover. (d) Remove the shift and select lever boots. (e) Remove the 4 bolts holding the shift lever to the shift lever retainer. 21.

Page 1398 of 2543

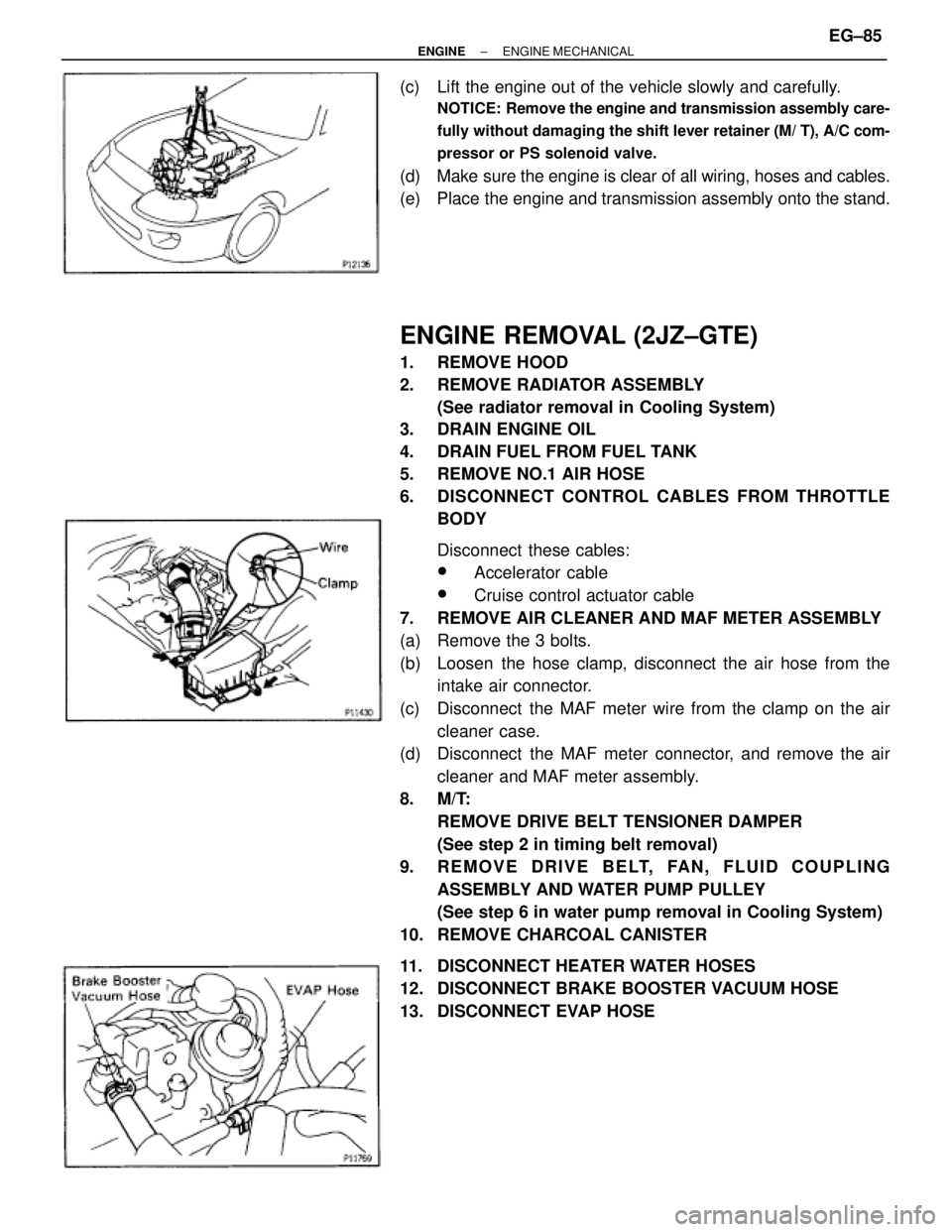

TOYOTA SUPRA 1995 Service Repair Manual 25. A/T: DISCONNECT TRANSMISSION CONTROL ROD Remove the nut, and disconnect the control rod from the shift lever. 26. M/T: REMOVE TRANSMISSION SHIFT LEVER (a) Remove the bolt and nut. (b) Remove the

Page 1399 of 2543

TOYOTA SUPRA 1995 Service Repair Manual (c) Lift the engine out of the vehicle slowly and carefully. NOTICE: Remove the engine and transmission assembly care- fully without damaging the shift lever retainer (M/ T), A/C com- pressor or PS s

Page 1400 of 2543

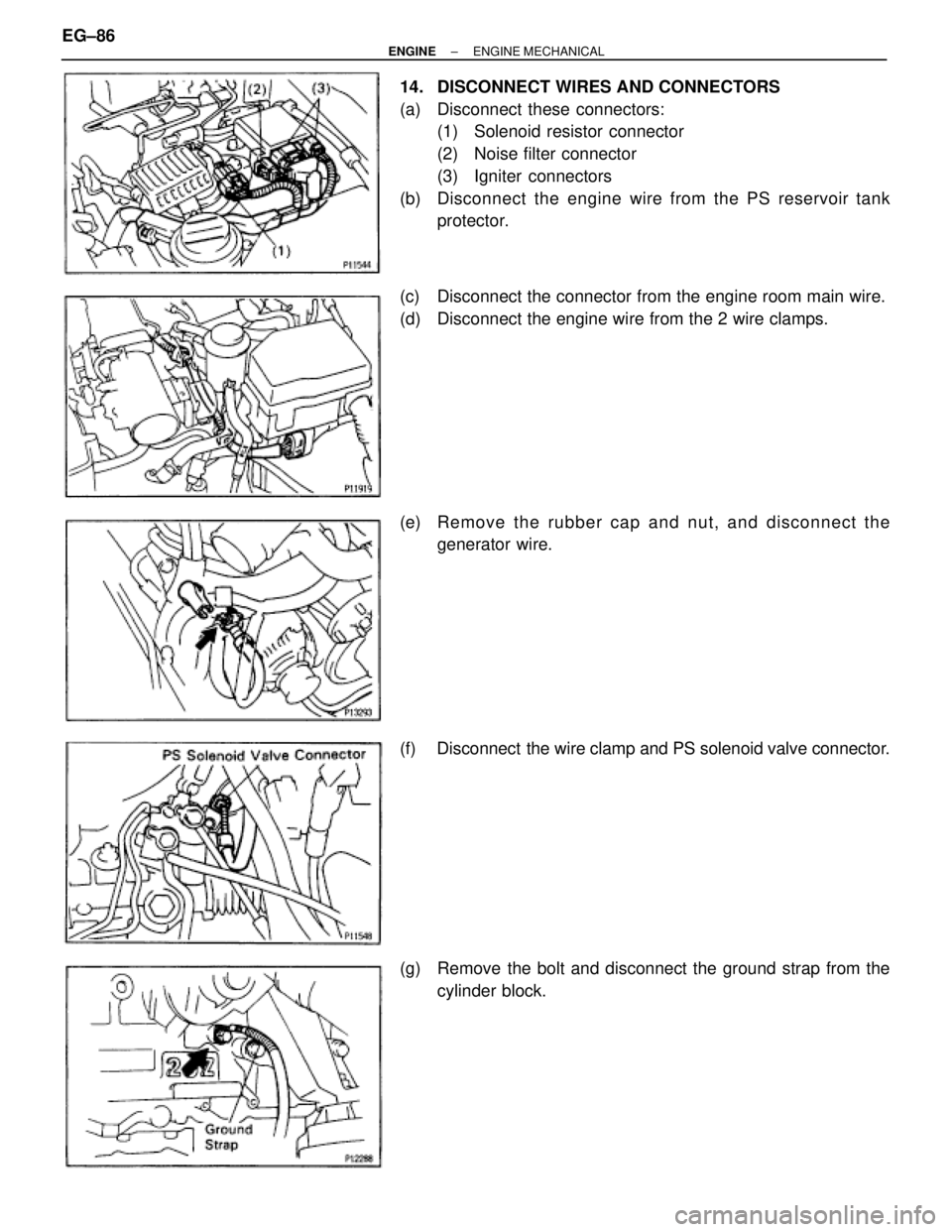

TOYOTA SUPRA 1995 Service Repair Manual 14. DISCONNECT WIRES AND CONNECTORS (a) Disconnect these connectors: (1) Solenoid resistor connector (2) Noise filter connector (3) Igniter connectors (b) Disconnect the engine wire from the PS re
