OIL PUMP

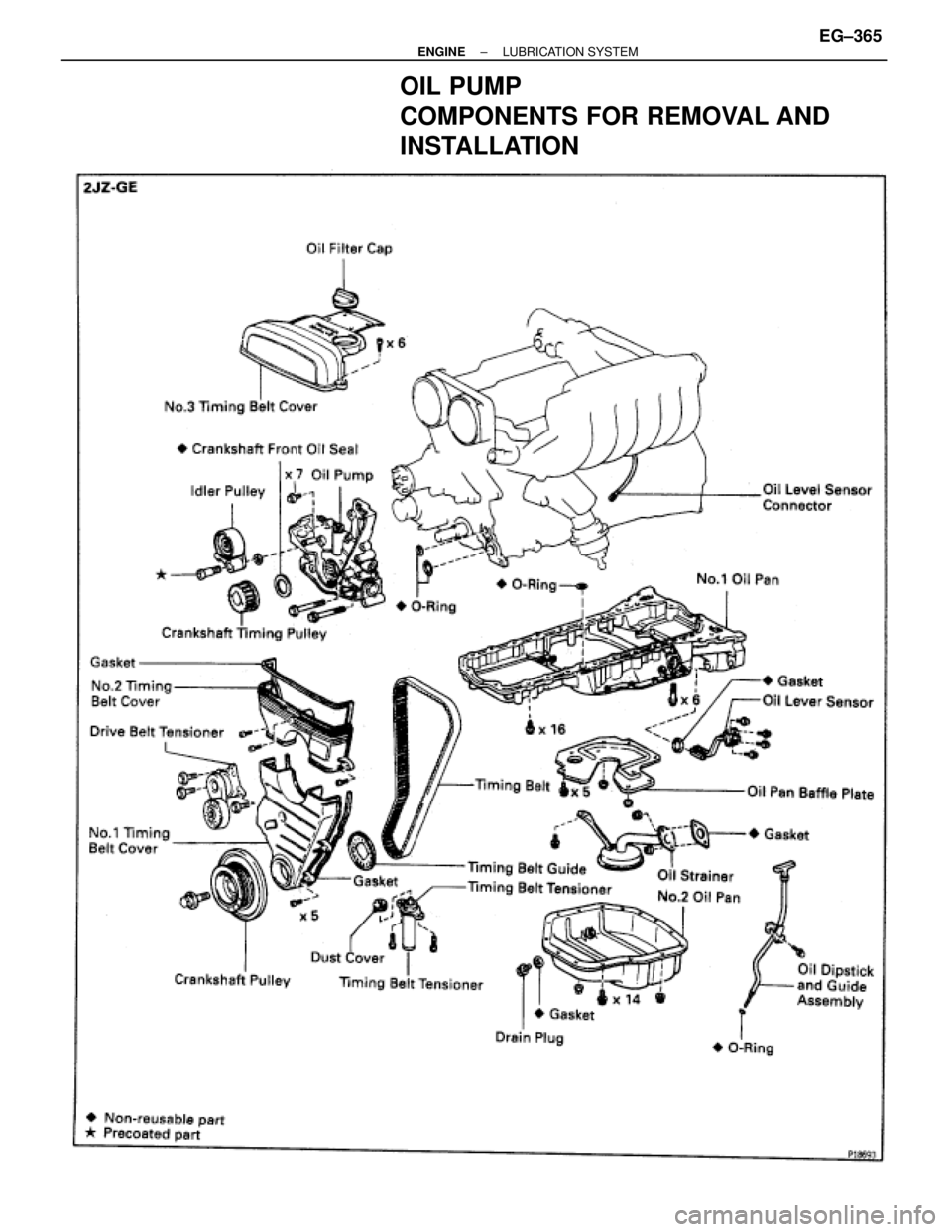

COMPONENTS FOR REMOVAL AND
INSTALLATION
± ENGINELUBRICATION SYSTEMEG±365
Page 1218 of 2543
EG±366± ENGINELUBRICATION SYSTEM
Page 1219 of 2543

OIL PUMP REMOVAL
HINT: When repairing the oil pump, the oil pan and strainer
should be removed and cleaned.
1. REMOVE ENGINE WITH TRANSMISSION
(See components for engine removal and installation)
2. SEPARATE ENGINE AND TRANSMISSION
(See components for engine & transmission separation
and assembly)
3. INSTALL ENGINE TO ENGINE STAND FOR REMOVAL
4. 2JZ±GTE:
REMOVE GENERATOR
5. 2JZ±GTE:
REMOVE CRANKSHAFT POSITION SENSOR
(a) Disconnect the sensor connector from the bracket.
(b) Disconnect the sensor connector from the wiring connector.
(c) Disconnect the wire clamp from the cylinder block.
(d) Remove the bolt and position sensor.
6. REMOVE TIMING BELT
(See steps 4 to 8 in timing belt removal in Engine Me-
chanical)
7. 2JZ±GTE M/T:
REMOVE DRIVE BELT TENSIONER BRACKET
Remove the 2 nuts and tensioner bracket.
8. REMOVE IDLER PULLEY
(See step 15 in timing belt removal in Engine Mechanical)
9. REMOVE CRANKSHAFT TIMING PULLEY
(See step 17 in timing belt removal in Engine Mechanical)
10. REMOVE OIL DIPSTICK AND GUIDE ASSEMBLY
(a) Remove the bolt.
(b) Pull out the dipstick guide together with the dipstick.
(c) Remove the O±ring from the dipstick guide.
11. REMOVE OIL LEVEL SENSOR
(a) Disconnect the level sensor connector.
(b) Remove the 4 bolts and level sensor.
(c) Remove the gasket from the level sensor.
NOTICE: Be careful not to drop the oil level sensor when re-
moving it.
± ENGINELUBRICATION SYSTEMEG±367
Page 1220 of 2543
12. REMOVE NO.2 OIL PAN
(a) Remove the 14 bolts and 2 nuts.
(b) Insert the blade of SST between the No.1 and No.2 oil pan,
break the seal of the applied sealer and remove the No.2 oil
pan.
SST 09032±00100
NOTICE:
wBe careful not to damage the No.2 oil pan contact surface
of the No.1 oil pan.
wBe careful not to damage the oil pan flange.
13. REMOVE OIL STRAINER
Remove the bolt, 2 nuts, oil strainer and gasket.
14. REMOVE OIL PAN BAFFLE PLATE
Remove the 5 bolts, 2 nuts and baffle plate.
15. 2JZ±GTE:
REMOVE TURBO OIL OUTLET PIPE
(a) Disconnect the 2 turbo oil outlet hoses.
(b) Remove the 2 nuts, oil outlet pipe and gasket. EG±368
± ENGINELUBRICATION SYSTEM
Page 1221 of 2543
16. REMOVE NO.1 OIL PAN
(a) Remove the 22 bolts.
(b) Remove the No.1 oil pan by prying the portions between the
cylinder block and No.1 oil pan with a screwdriver.
NOTICE: Be careful not to damage the contact surfaces of the
cylinder block and No.1 oil pan.
(c) Remove the O±ring from the cylinder block.
17. REMOVE CRANKSHAFT FRONT OIL SEAL
(a) Using a knife, cut off the oil seal lip.
(b) Using a screwdriver, pry out the oil seal.
NOTICE: Be careful not to damage the crankshaft. Tape the
screwdriver tip.
18. REMOVE OIL PUMP
(a) Remove the 9 bolts.
± ENGINELUBRICATION SYSTEMEG±369
Page 1222 of 2543
(b) Using a hammer and brass bar, remove the oil pump by
carefully tapping the oil pump body.
(c) Remove the 2 O±rings from the cylinder block.

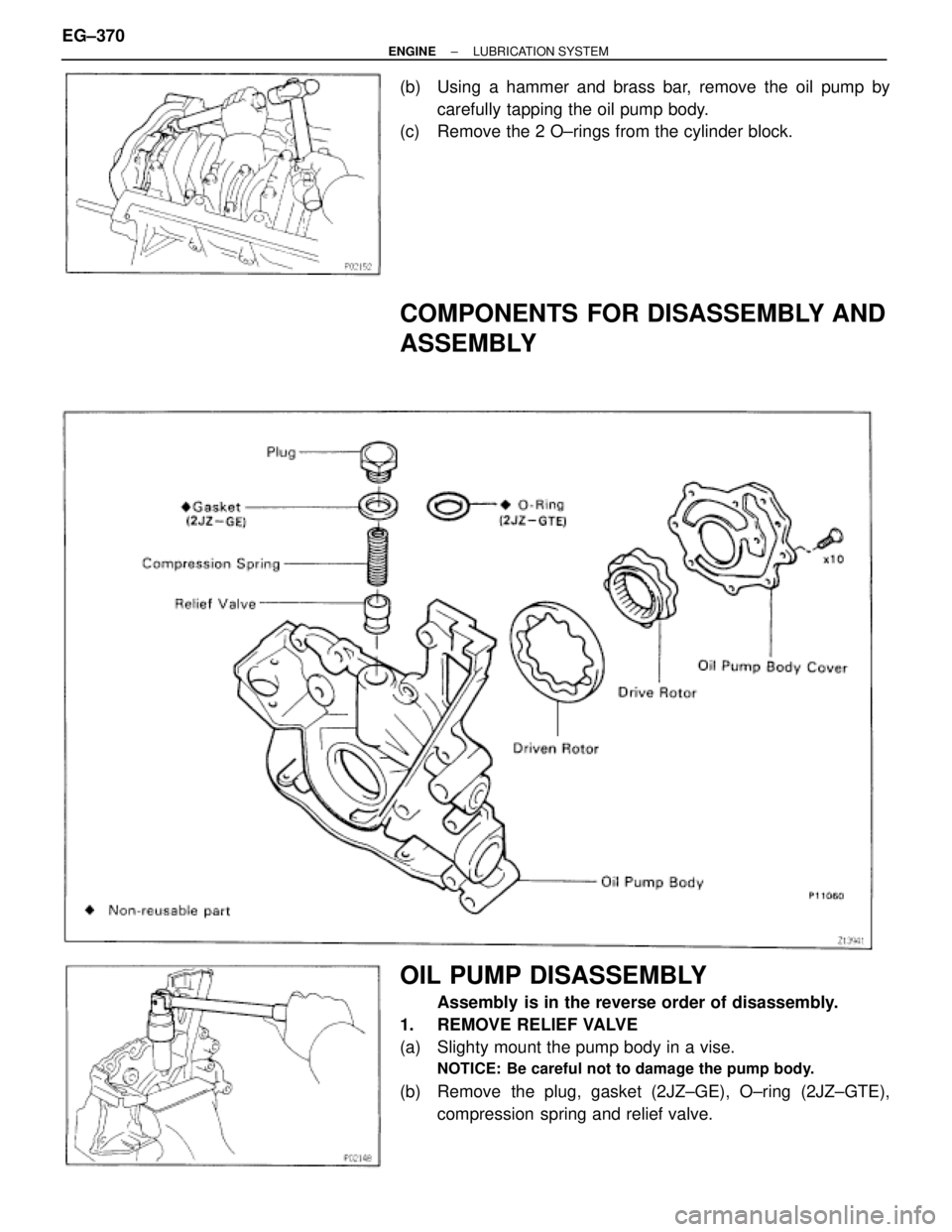

COMPONENTS FOR DISASSEMBLY AND
ASSEMBLY
OIL PUMP DISASSEMBLY
Assembly is in the reverse order of disassembly.
1. REMOVE RELIEF VALVE
(a) Slighty mount the pump body in a vise.
NOTICE: Be careful not to damage the pump body.
(b) Remove the plug, gasket (2JZ±GE), O±ring (2JZ±GTE),
compression spring and relief valve. EG±370
± ENGINELUBRICATION SYSTEM
Page 1223 of 2543
INSTALLATION HINT:
Use a new gasket (2JZ±GE) or O±ring (2JZ±GTE).
Torque:
2JZ±GE
49 NVm (500 kgfVcm, 36 ftVlbf)
2JZ±GTE
29 NVm (300 kgfVcm, 22 ftVlbf)
2. REMOVE DRIVE AND DRIVEN ROTORS
Remove the 10 screws, pump body cover, the drive and driv-
en rotors.
Torque: 10 NVm (105 kgfVcm, 8.0 ftVlbf)
ASSEMBLY HINT: Place the drive and driven rotors into the
oil pump body with the mark facing upward.
OIL PUMP INSPECTION
1. INSPECT RELIEF VALVE
Coat the valve with engine oil and check that it falls smoothly
into the valve hole under its own weight.
If it doesn't, replace the relief valve. If necessary, replace the
oil pump assembly.
2. INSPECT DRIVE AND DRIVEN ROTORS
A. Place drive and driven rotors into oil pump body
ASSEMBLY HINT: Place the drive and driven rotors into the
oil pump body with the mark facing upward.
± ENGINELUBRICATION SYSTEMEG±371
Page 1224 of 2543

B. Inspect rotor tip clearance
Using a feeler gauge, measure the clearance between the
drive and driven rotors.
Standard tip clearance:
2JZ±GE
0.310±0.490 mm (0.0122±0.0193 in.)
2JZ±GTE
0.056±0.326 mm (0.0022±0.0128 in.)
Maximum tip clearance:
2JZ±GE
0.53 mm (0.0209 in.)
2JZ±GTE
0.40 mm (0.0157 in.)
If the tip clearance is greater than maximum, replace the ro-
tors as a set.
C. Inspect rotor body clearance
Using a feeler gauge, measure the clearance between the
driven rotor and pump body.
Standard body clearance:
2JZ±GE
0.100±0.175 mm (0.0039±0.0069 in.)
2JZ±GTE
0.080±0.135 mm (0.0031±0.0053 in.)
Maximum body clearance:
2JZ±GE
0.20 mm (0.0079 in.)
2JZ±GTE
0.16 mm (0.0063 in.)
If the body clearance is greater than maximum, replace the
rotors as a set. If necessary, replace the oil pump assembly.
D. Inspect rotor side clearance
Using a feeler gauge and precision straight edge, measure
the clearance between the rotors and precision straight
edge.
Standard side clearance:
2JZ±GE
0.030±0.090 mm (0.0012±0.0035 in.)
2JZ±GTE
0.020±0.065 mm (0.0007±0.0026 in.)
EG±372± ENGINELUBRICATION SYSTEM
