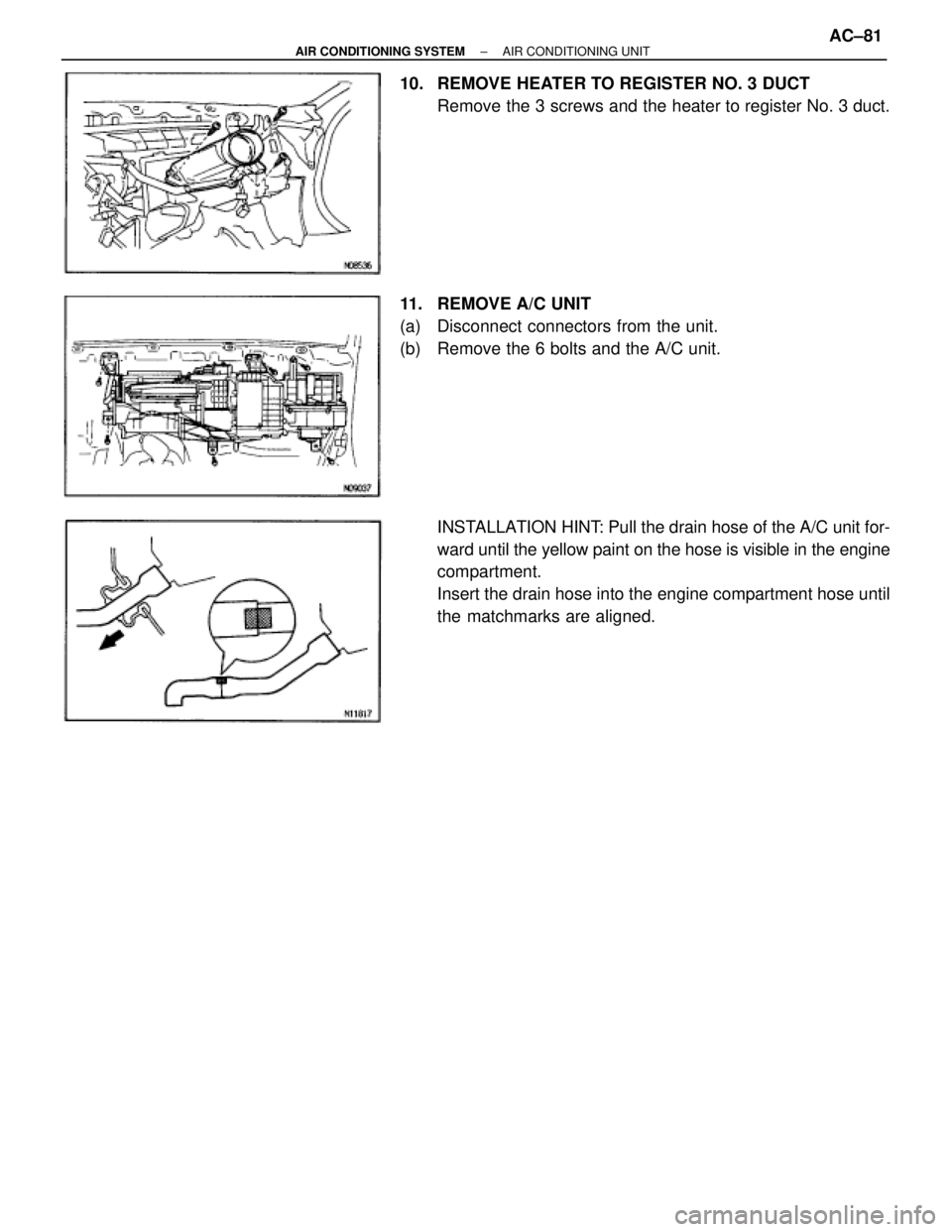

TOYOTA SUPRA 1995 Service Repair Manual 10. REMOVE HEATER TO REGISTER NO. 3 DUCT Remove the 3 screws and the heater to register No. 3 duct. 11. REMOVE A/C UNIT (a) Disconnect connectors from the unit. (b) Remove the 6 bolts and the A/C

Page 82 of 2543

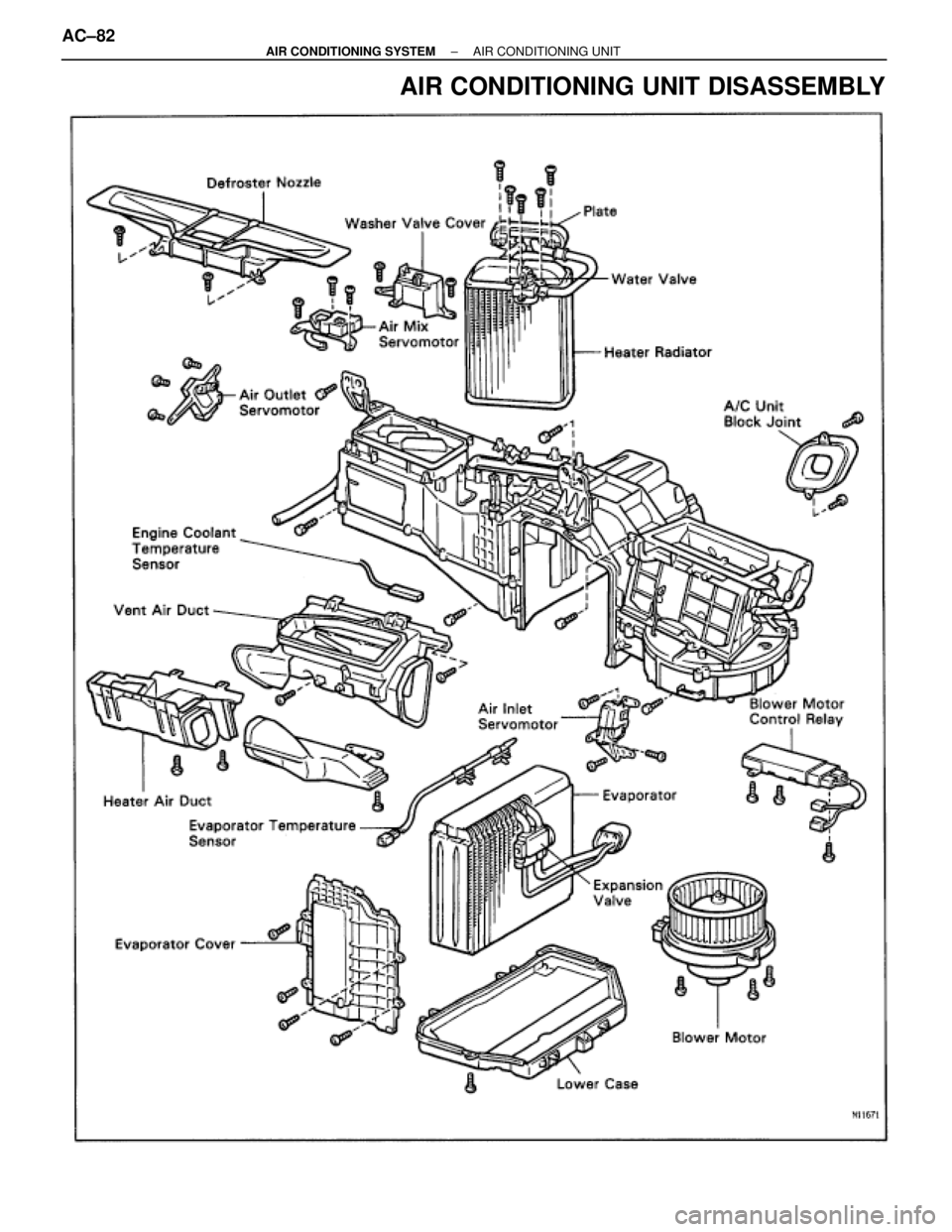

TOYOTA SUPRA 1995 Service Repair Manual AIR CONDITIONING UNIT DISASSEMBLY AC±82± AIR CONDITIONING SYSTEMAIR CONDITIONING UNIT

Page 83 of 2543

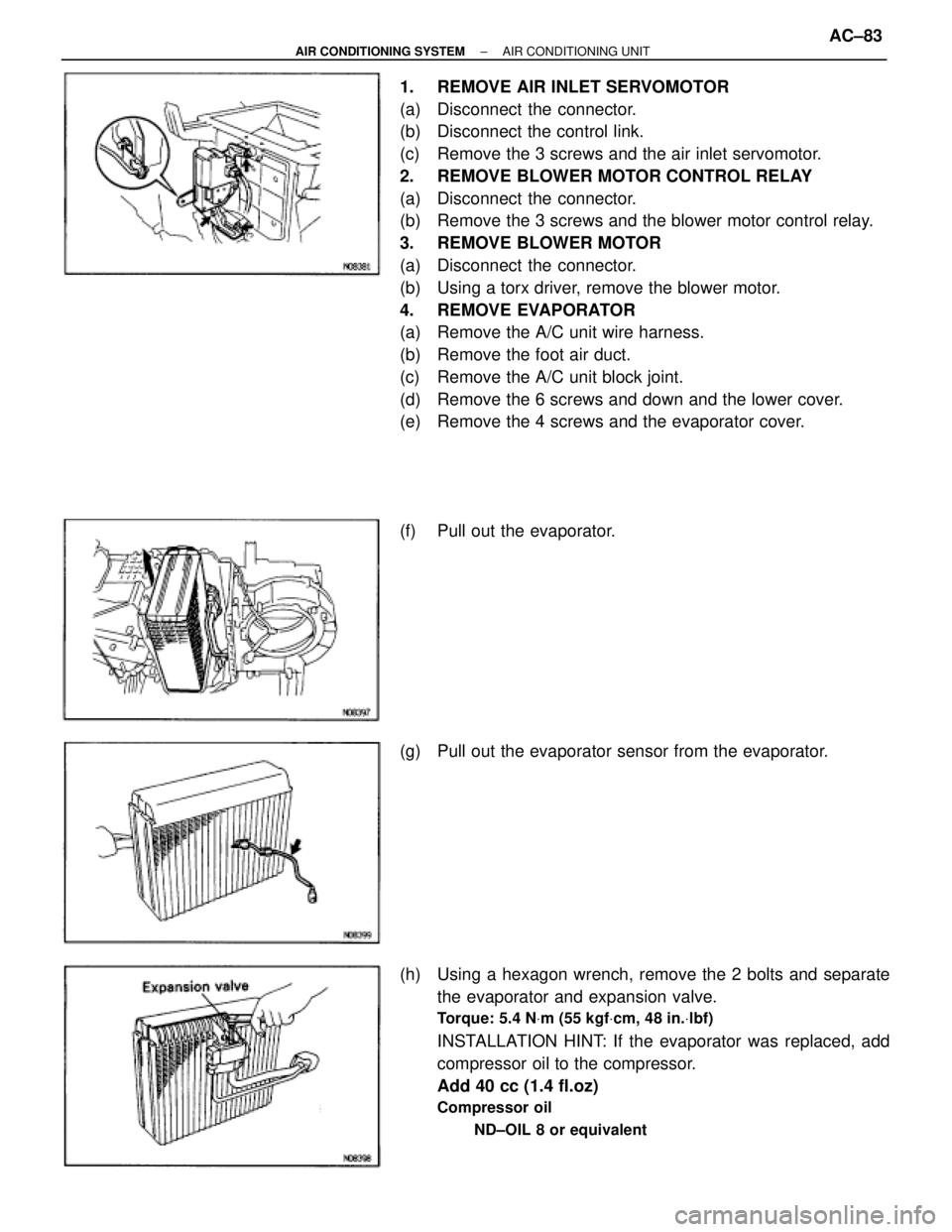

TOYOTA SUPRA 1995 Service Repair Manual 1. REMOVE AIR INLET SERVOMOTOR (a) Disconnect the connector. (b) Disconnect the control link. (c) Remove the 3 screws and the air inlet servomotor. 2. REMOVE BLOWER MOTOR CONTROL RELAY (a) Disco

Page 84 of 2543

TOYOTA SUPRA 1995 Service Repair Manual 5. REMOVE AIR MIX SERVOMOTO (a) Remove the defroster duct. (b) Remove the 3 screws and the water valve cover. (c) Disconnect the connector. (d) Disconnect the control link. (e) Remove the 2 scre

Page 85 of 2543

TOYOTA SUPRA 1995 Service Repair Manual AIR CONDITIONING UNIT ASSEMBLY Assembly is in the reverse order of disassembly. AIR CONDITIONING UNIT INSTALLATION Installation is in the reverse order of removal. COMPRESSOR ON±VEHICLE INSPECTION M

Page 86 of 2543

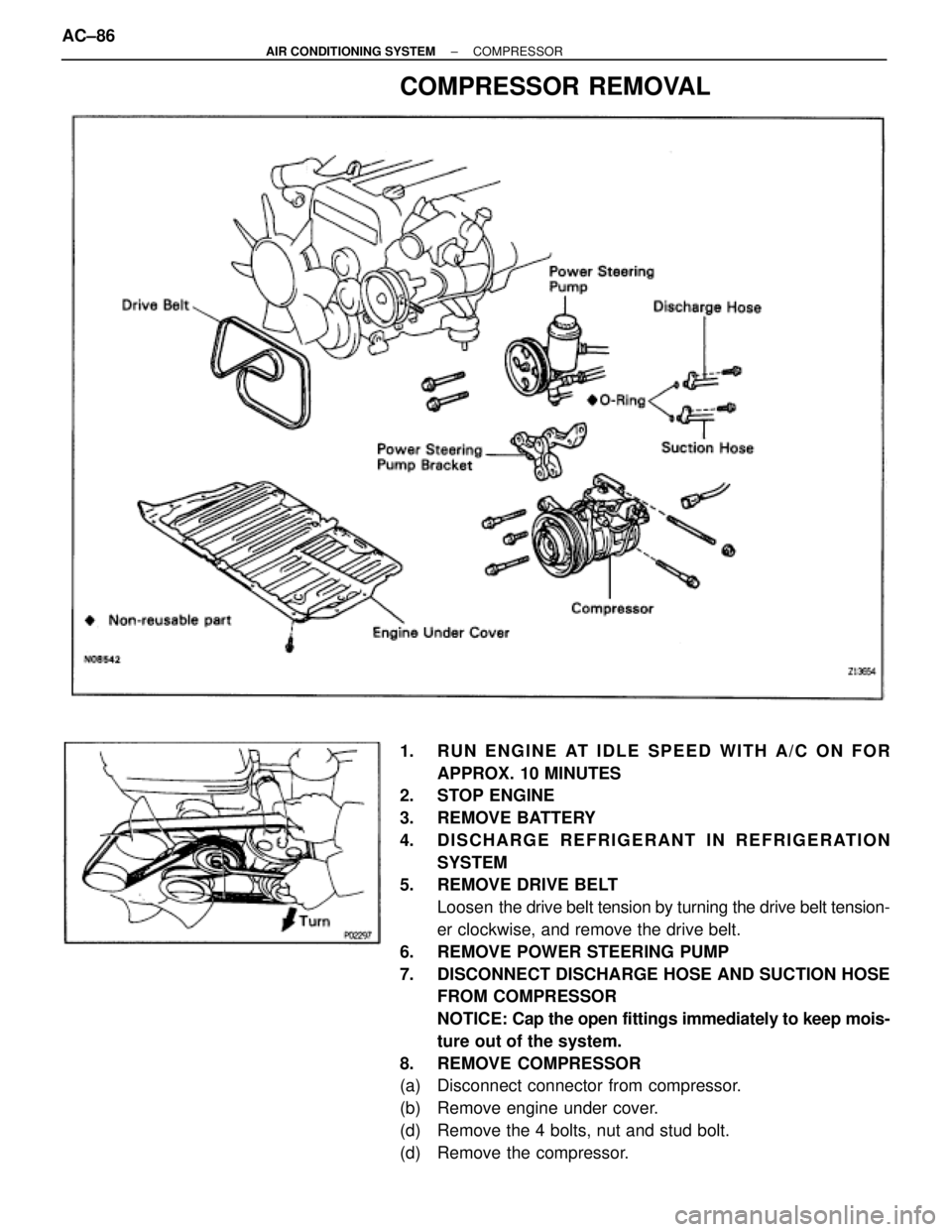

TOYOTA SUPRA 1995 Service Repair Manual COMPRESSOR REMOVAL 1. RUN ENGINE AT IDLE SPEED WITH A/C ON FOR APPROX. 10 MINUTES 2. STOP ENGINE 3. REMOVE BATTERY 4. DISCHARGE REFRIGERANT IN REFRIGERATION SYSTEM 5. REMOVE DRIVE BELT Loosen the d

Page 87 of 2543

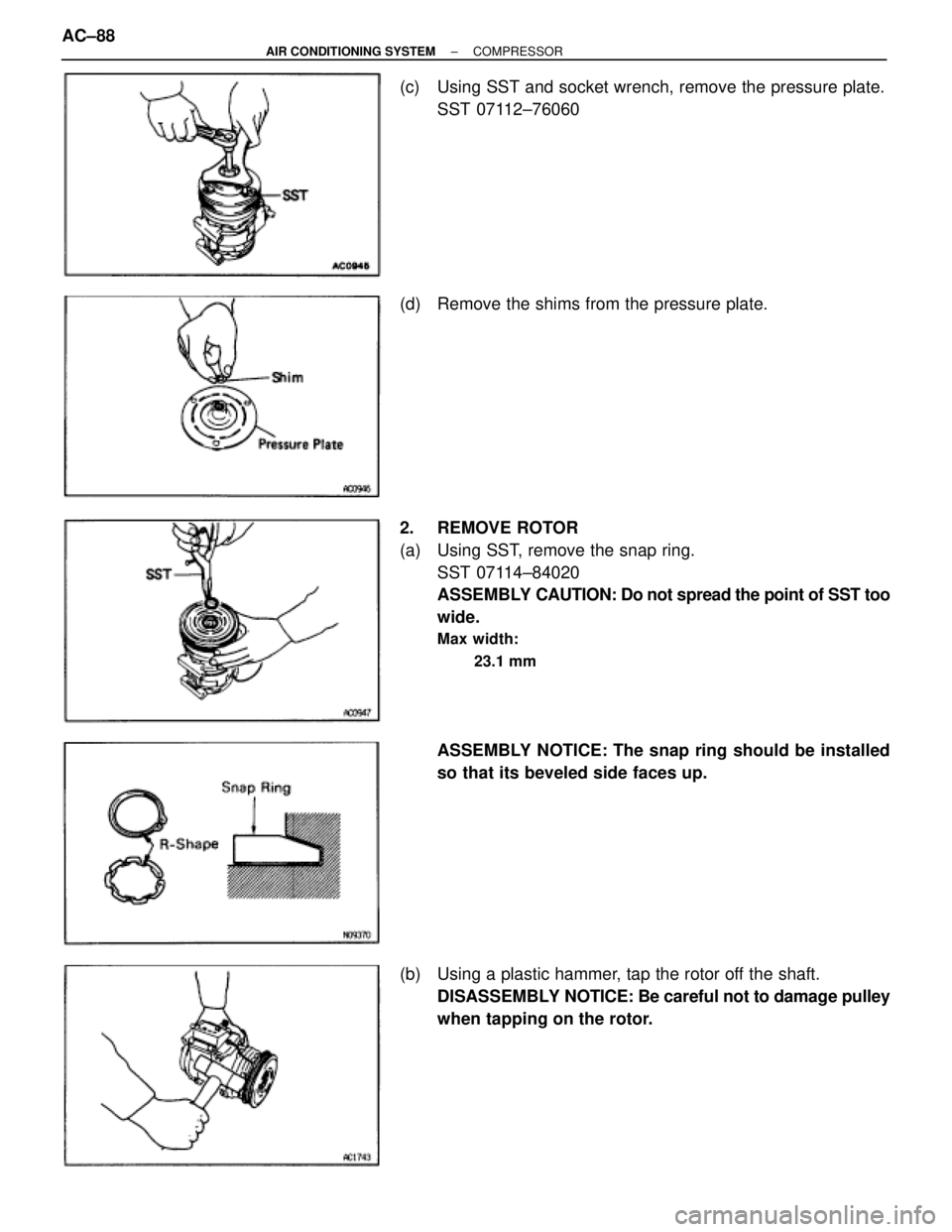

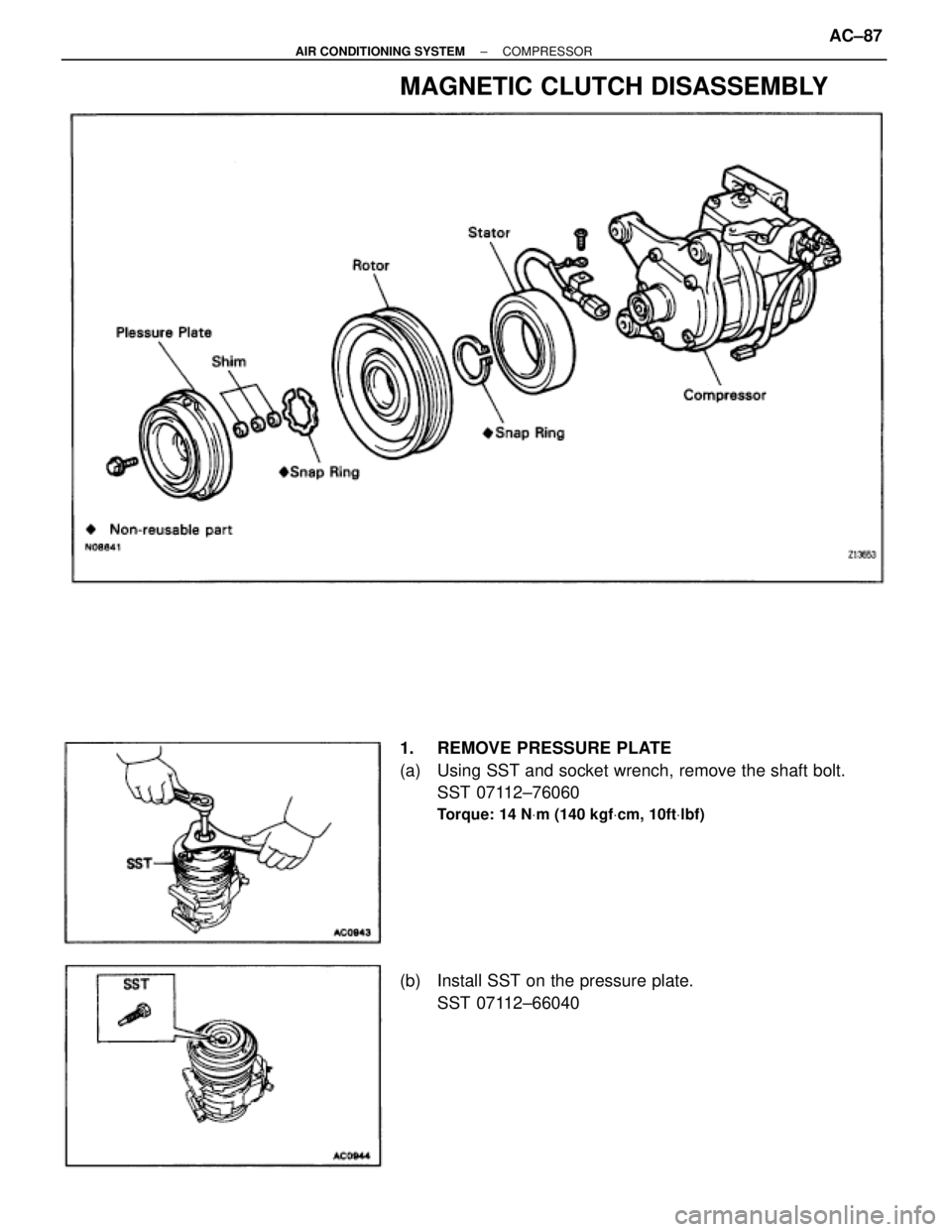

TOYOTA SUPRA 1995 Service Repair Manual MAGNETIC CLUTCH DISASSEMBLY 1. REMOVE PRESSURE PLATE (a) Using SST and socket wrench, remove the shaft bolt. SST 07112±76060 Torque: 14 NVm (140 kgfVcm, 10ftVlbf) (b) Install SST on the pressure p

Page 88 of 2543

TOYOTA SUPRA 1995 Service Repair Manual (c) Using SST and socket wrench, remove the pressure plate. SST 07112±76060 (d) Remove the shims from the pressure plate. 2. REMOVE ROTOR (a) Using SST, remove the snap ring. SST 07114±84020 ASSE
