If a malfunction code is displayed during the diagnostic trouble code check in test mode, check the circuit for
that code listed in the table below (Proceed to the page given for that circuit).
EG±409
EG±412
EG±413
EG±418
EG±419
Malfunction
Indicator
Lamp*
1Trouble Area
Normal
ModeTest
Mode
See pageMemory*2
ON
ON
N.A.
N.A.
N.A.
N.A.
N.A.
N.A.
N.A.
ON
ON
ON
ON
Open or short in NE, G circuit
Distributor
Open or short in STA circuit
ECM
Open or short in NE circuit
Distributor
ECM
Open or short in NE circuit
Distributor
ECM
Open or short in IGT or IGT circuit from igniter to ECM
Igniter
ECM
ECM
Open or short in heater circuit of main heated oxygen
sensor (Fr)
Main heated oxygen sensor (Fr) heater
ECM
(Main heated*3) oxygen sensor (Fr) circuit
(Main heated*3) oxygen sensor (Fr)
*1, 2, 3: See page EG±396
± ENGINE2JZ±GE ENGINE TROUBLESHOOTINGEG±389
Page 1898 of 2543

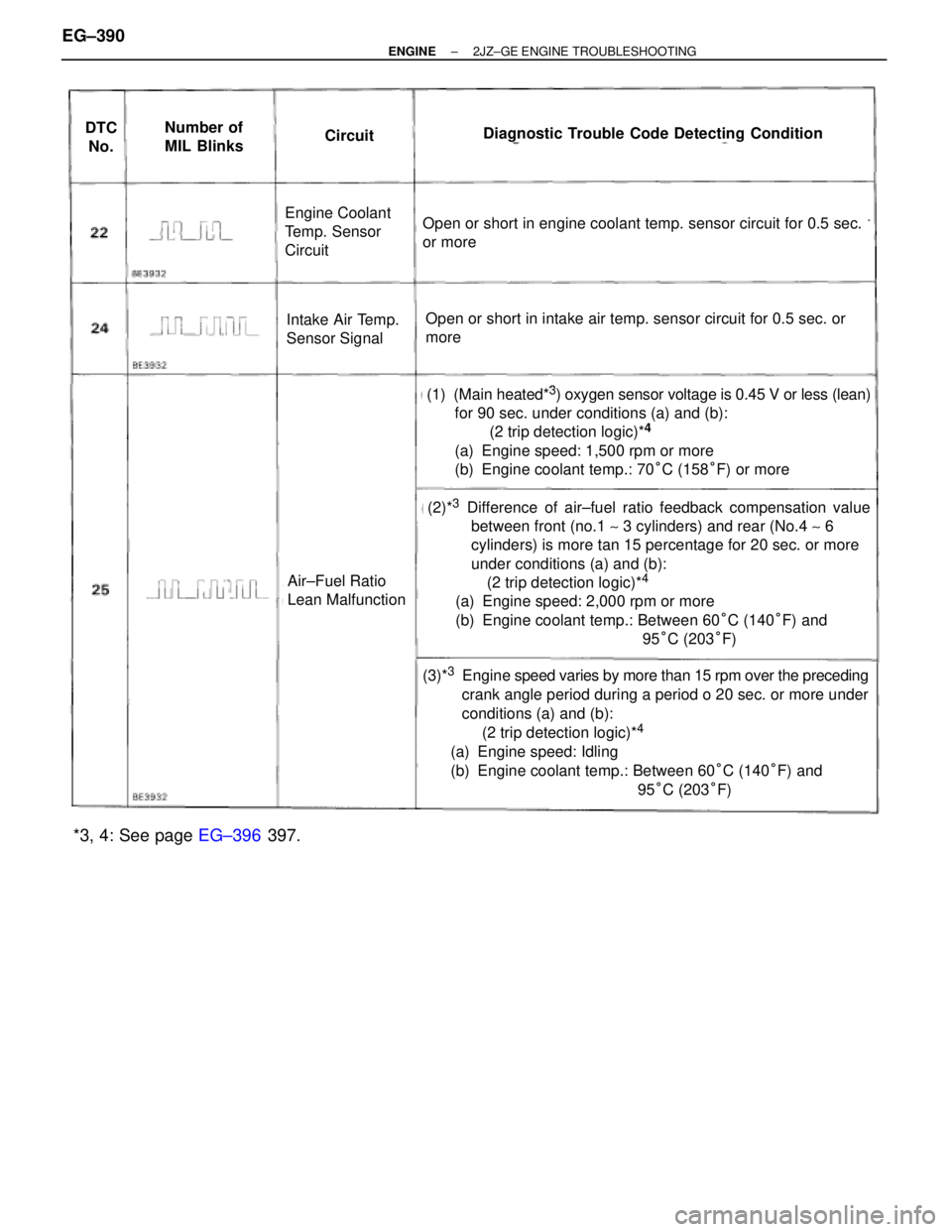

DTC
No.Number of
MIL BlinksCircuitDiagnostic Trouble Code Detecting Condition
Engine Coolant
Temp. Sensor
Circuit
Intake Air Temp.
Sensor Signal
Air±Fuel Ratio
Lean Malfunction
Open or short in engine coolant temp. sensor circuit for 0.5 sec.
or more
Open or short in intake air temp. sensor circuit for 0.5 sec. or
more
(1) (Main heated*3) oxygen sensor voltage is 0.45 V or less (lean)
for 90 sec. under conditions (a) and (b):
(2 trip detection logic)*
4
(a) Engine speed: 1,500 rpm or more
(b) Engine coolant temp.: 70°C (158°F) or more
(2)*3Difference of air±fuel ratio feedback compensation value
between front (no.1 ~ 3 cylinders) and rear (No.4 ~ 6
cylinders) is more tan 15 percentage for 20 sec. or more
under conditions (a) and (b):
(2 trip detection logic)*
4
(a) Engine speed: 2,000 rpm or more
(b) Engine coolant temp.: Between 60°C (140°F) and
95°C (203°F)
(3)*3Engine speed varies by more than 15 rpm over the preceding
crank angle period during a period o 20 sec. or more under
conditions (a) and (b):
(2 trip detection logic)*
4
(a) Engine speed: Idling
(b) Engine coolant temp.: Between 60°C (140°F) and
95°C (203°F)
*3, 4: See page EG±396 397. EG±390
± ENGINE2JZ±GE ENGINE TROUBLESHOOTING
Page 1899 of 2543

Trouble Area
Malfunction
Indicator
Lamp*
1
Memory*2
See page
Trouble Area
Normal
Mode
Test
Mode
Memory
See page

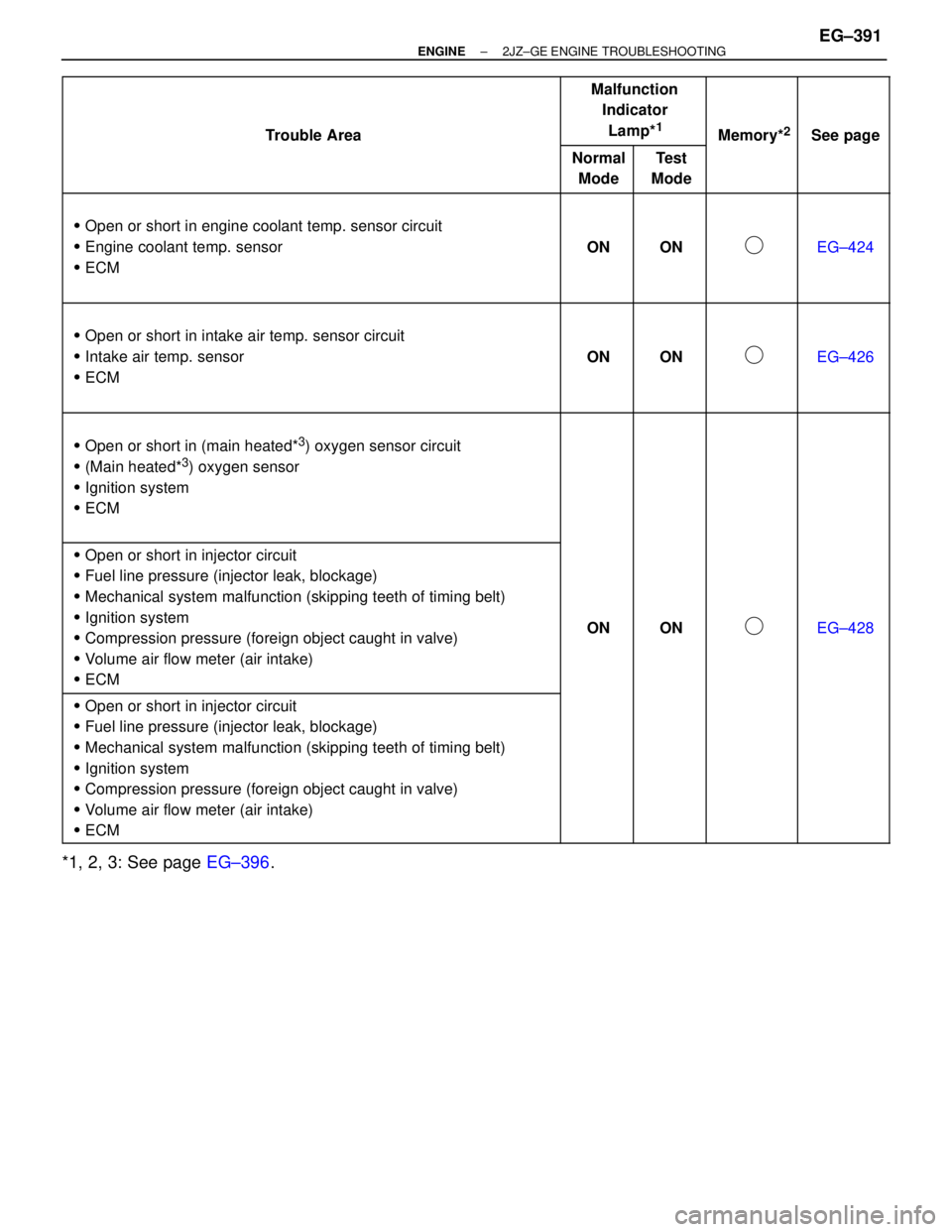

Open or short in engine coolant temp. sensor circuit
Engine coolant temp. sensor
ECM
ON
ON
EG±424
Open or short in intake air temp. sensor circuit
Intake air temp. sensor
ECM
ON
ON
EG±426
Open or short in (main heated*3) oxygen sensor circuit
(Main heated*3) oxygen sensor
Ignition system
ECM
Open or short in injector circuit
Fuel line pressure (injector leak, blockage)
Mechanical system malfunction (skipping teeth of timing belt)
Ignition system
Compression pressure (foreign object caught in valve)
Volume air flow meter (air intake)
ECM
ON
ON
EG±428
Open or short in injector circuit
Fuel line pressure (injector leak, blockage)
Mechanical system malfunction (skipping teeth of timing belt)
Ignition system
Compression pressure (foreign object caught in valve)
Volume air flow meter (air intake)
ECM
*1, 2, 3: See page EG±396.
± ENGINE2JZ±GE ENGINE TROUBLESHOOTINGEG±391
Page 1900 of 2543

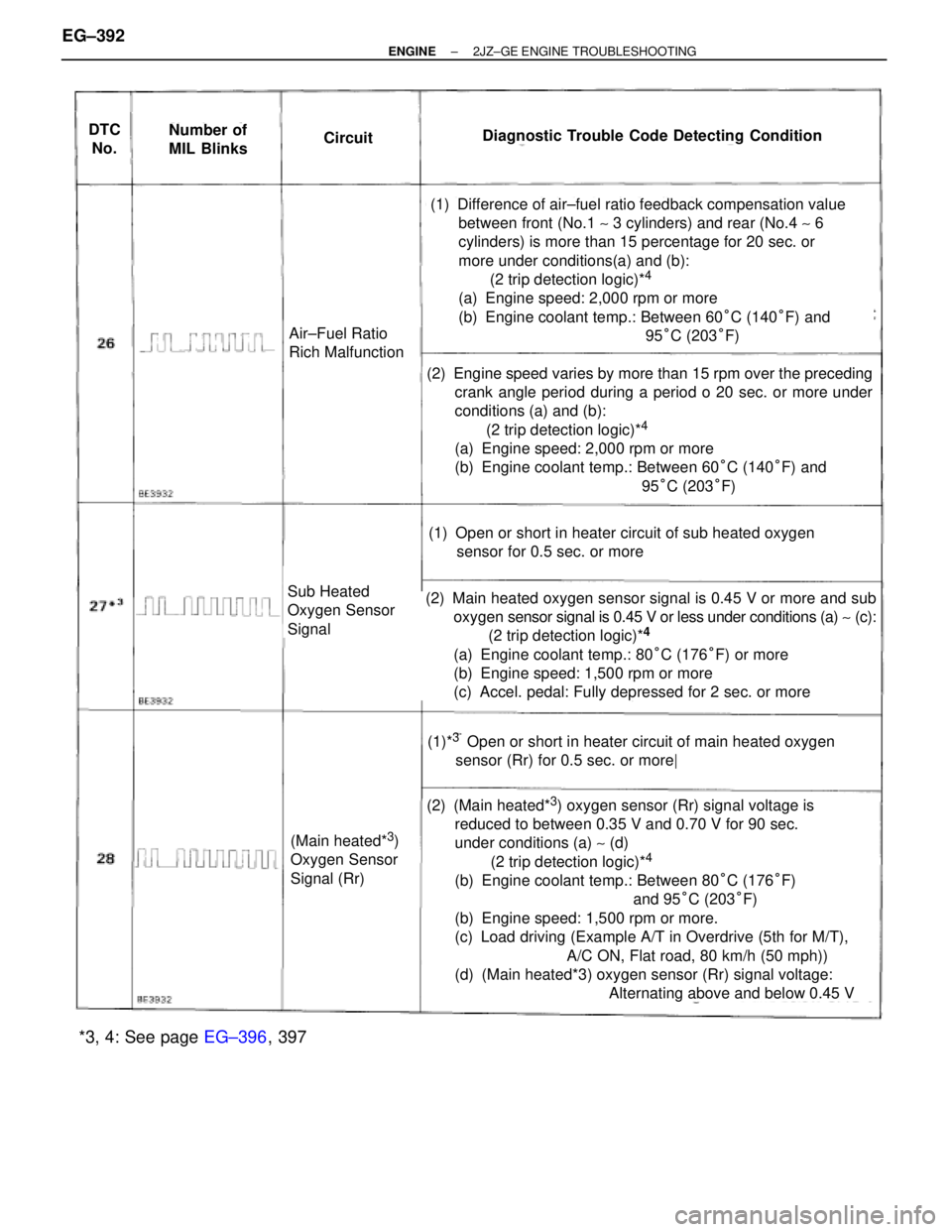

DTC
No.Number of
MIL BlinksCircuitDiagnostic Trouble Code Detecting Condition
Air±Fuel Ratio
Rich Malfunction
(1) Difference of air±fuel ratio feedback compensation value
between front (No.1 ~ 3 cylinders) and rear (No.4 ~ 6
cylinders) is more than 15 percentage for 20 sec. or
more under conditions(a) and (b):
(2 trip detection logic)*
4
(a) Engine speed: 2,000 rpm or more
(b) Engine coolant temp.: Between 60°C (140°F) and
95°C (203°F)
(2) Engine speed varies by more than 15 rpm over the preceding
crank angle period during a period o 20 sec. or more under
conditions (a) and (b):
(2 trip detection logic)*
4
(a) Engine speed: 2,000 rpm or more
(b) Engine coolant temp.: Between 60°C (140°F) and
95°C (203°F)
(1) Open or short in heater circuit of sub heated oxygen
sensor for 0.5 sec. or more
(2) Main heated oxygen sensor signal is 0.45 V or more and sub
oxygen sensor signal is 0.45 V or less under conditions (a) ~ (c):
(2 trip detection logic)*
4
(a) Engine coolant temp.: 80°C (176°F) or more
(b) Engine speed: 1,500 rpm or more
(c) Accel. pedal: Fully depressed for 2 sec. or more
(1)*3Open or short in heater circuit of main heated oxygen
sensor (Rr) for 0.5 sec. or more|
(2) (Main heated*3) oxygen sensor (Rr) signal voltage is
reduced to between 0.35 V and 0.70 V for 90 sec.
under conditions (a) ~ (d)
(2 trip detection logic)*
4
(b) Engine coolant temp.: Between 80°C (176°F)
and 95°C (203°F)
(b) Engine speed: 1,500 rpm or more.
(c) Load driving (Example A/T in Overdrive (5th for M/T),
A/C ON, Flat road, 80 km/h (50 mph))
(d) (Main heated*3) oxygen sensor (Rr) signal voltage:
Alternating above and below 0.45 V
Sub Heated
Oxygen Sensor
Signal
(Main heated*3)
Oxygen Sensor
Signal (Rr)
*3, 4: See page EG±396, 397 EG±392
± ENGINE2JZ±GE ENGINE TROUBLESHOOTING
Page 1901 of 2543

Trouble Area
Malfunction
Indicator
Lamp*
1
Memory*2
See page
Trouble Area
Normal
Mode
Test
Mode
Memory
See page

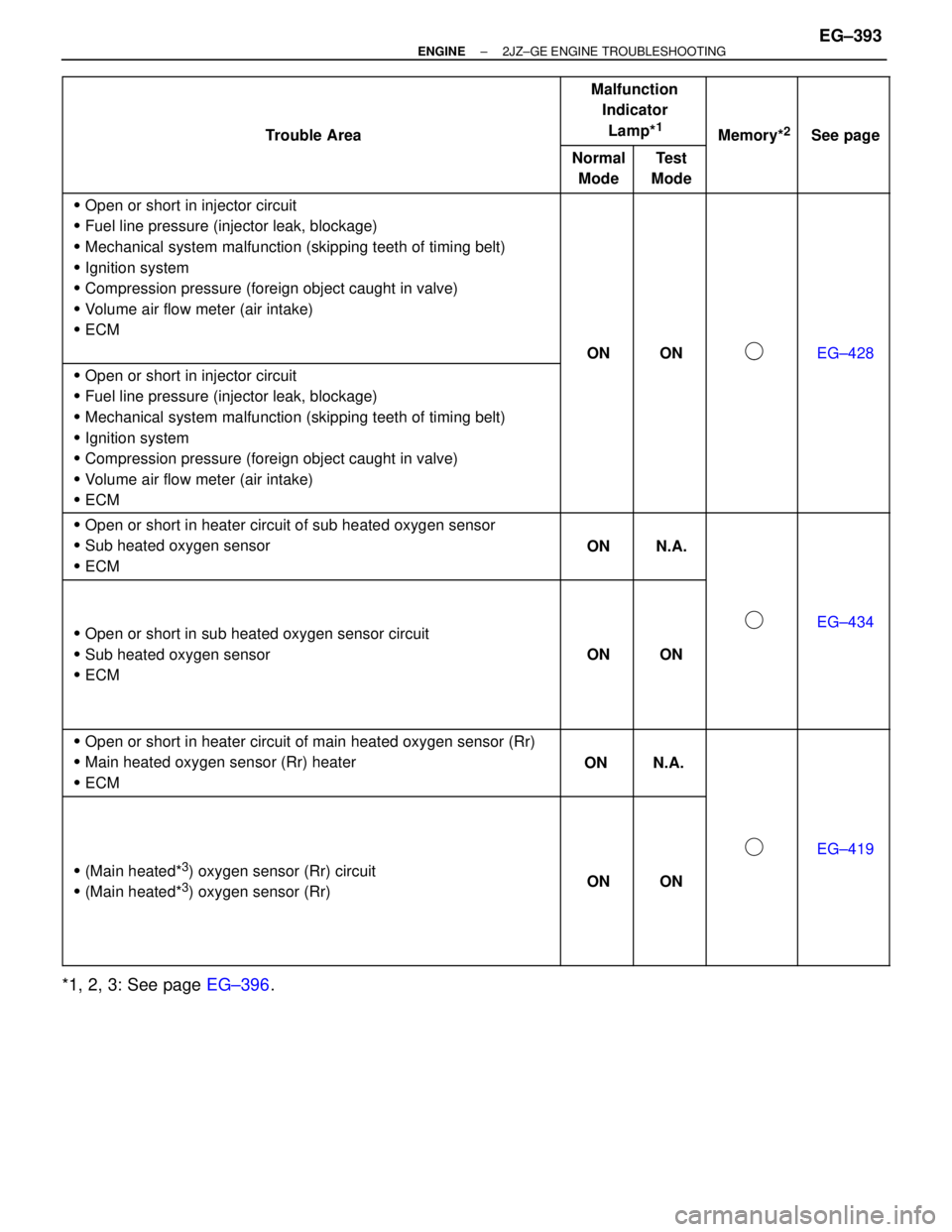

Open or short in injector circuit
Fuel line pressure (injector leak, blockage)
Mechanical system malfunction (skipping teeth of timing belt)
Ignition system
Compression pressure (foreign object caught in valve)
Volume air flow meter (air intake)
ECM
ON
ON
EG±428
Open or short in injector circuit
Fuel line pressure (injector leak, blockage)
Mechanical system malfunction (skipping teeth of timing belt)
Ignition system
Compression pressure (foreign object caught in valve)
Volume air flow meter (air intake)
ECM
ON
ON
EG 428
Open or short in heater circuit of sub heated oxygen sensor
Sub heated oxygen sensor
ECM
ON
N.A.
Open or short in sub heated oxygen sensor circuit
Sub heated oxygen sensor
ECM
ON
ON
EG±434
Open or short in heater circuit of main heated oxygen sensor (Rr)
Main heated oxygen sensor (Rr) heater
ECM
ON
N.A.
(Main heated*3) oxygen sensor (Rr) circuit
(Main heated*3) oxygen sensor (Rr)
ON
ON
EG±419
*1, 2, 3: See page EG±396.
± ENGINE2JZ±GE ENGINE TROUBLESHOOTINGEG±393
Page 1902 of 2543

DTC
No.Number of
MIL BlinksCircuitDiagnostic Trouble Code Detecting Condition
Volume Air
Flow Meter
Signal
Barometric
Pressure
Sensor Signal
Throttle Position
Sensor Signal
No.1 Vehicle
Speed Sensor
Signal
(for A/T)
No.1 Vehicle
Speed Sensor
Signal
(for A/T)
Starter Signal
Knock Sensor
Signal
(front side)
Knock Control
Signal
Knock Sensor
Signal (rear side)
All conditions below are detected:
(a) No volume air flow meter signal to ECM for 2 sec. when
engine speed is above 300 rpm
(b) Engine stall
Open or short in BARO sensor circuit for 0.5 sec. or more
Open or short in throttle position sensor circuit for 0.5 sec. or
more
All conditions below are detected continuously for 8 sec. or more:
(a) No.1 vehicle speed signal: 0 km/h (mph)
(b) Engine speed: 3,000 rpm or more
(c) Park/neutral position switch: OFF
(d) Stop Light switch: OFF
All conditions below are detected continuously for 8 sec. or more:
(a) No.1 vehicle speed signal: 0 km/h (mph)
(b) Engine speed: 2,000 rpm and 5,000 rpm
(c) Engine coolant temp.: 80°C (176°F) or more
(d) Load driving
No starter signal to ECM
No. No.1 knock sensor signal to ECM for 4 crank revolutions
with engine speed between 1,600 rpm and 5,200 rpm
Engine control computer (for knock control) malfunction at en-
gine speed between 650 rpm and 5,200 rpm
No No.2 knock sensor signal to ECM for 4 crank revolutions with
engine speed between 1,600 rpm and 5,200 rpm
EG±394± ENGINE2JZ±GE ENGINE TROUBLESHOOTING
Page 1903 of 2543
Trouble Area
Malfunction
Indicator
Lamp*
1
Memory*2
See page
Trouble Area
Normal
Mode
Test
Mode
Memory
See page

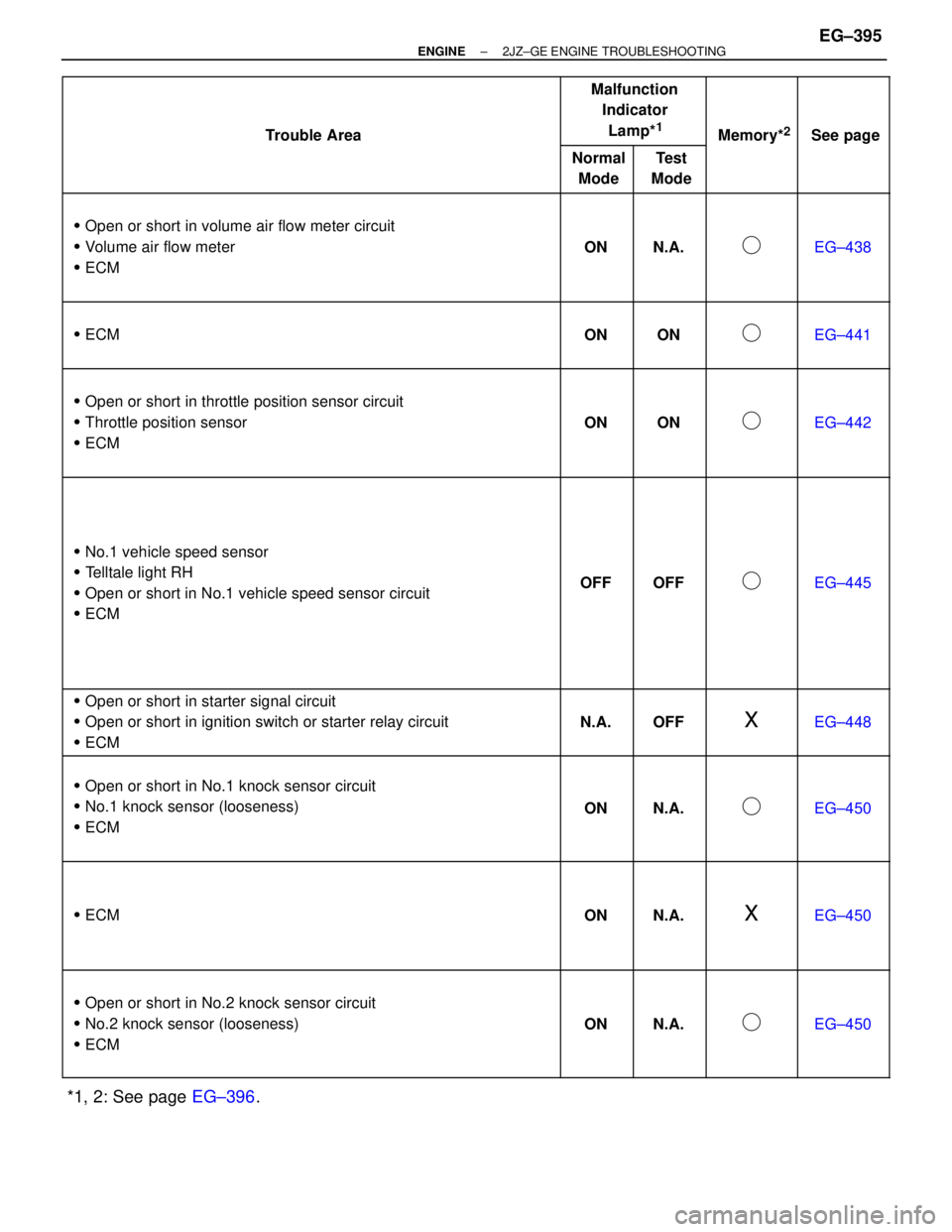

Open or short in volume air flow meter circuit
Volume air flow meter
ECM
ON
N.A.
EG±438
ECM
ON
ON
EG±441
Open or short in throttle position sensor circuit
Throttle position sensor
ECM
ON
ON
EG±442
No.1 vehicle speed sensor
Telltale light RH
Open or short in No.1 vehicle speed sensor circuit
ECM
OFF
OFF
EG±445
Open or short in starter signal circuit
Open or short in ignition switch or starter relay circuit
ECM
N.A.
OFF
X
EG±448
Open or short in No.1 knock sensor circuit
No.1 knock sensor (looseness)
ECM
ON
N.A.
EG±450
ECM
ON
N.A.
X
EG±450
Open or short in No.2 knock sensor circuit
No.2 knock sensor (looseness)
ECM
ON
N.A.
EG±450
*1, 2: See page EG±396.
± ENGINE2JZ±GE ENGINE TROUBLESHOOTINGEG±395
Page 1904 of 2543

DTC
No.Number of
MIL BlinksCircuitDiagnostic Trouble Code Detecting Condition
EGR System
Malfunction
Fuel Pump
Control Signal
Switch Condition
Signal
(1) 3 sec. or more after engine starts, with closed throttle posi±
tion switch OFF (IDL1)
(2) Park/neutral position switch: OFF
(Shift position in ªRº, ªDº, ª2º, or ªLº position)
(3) A/C switch ON
(3) Open or short in diagnostic signal line (DI) of fuel pump
ECU with engine speed 1,000 rpm or less
(2 trip detection logic)*
4
(2) Open in input circuit of fuel pump ECU (FPC) with engine
speed 1,000 rpm or less
(2 trip detection logic)*
4
(1) Open or short in fuel pump circuit for 1 sec. or more with
engine speed 1,000 rpm or less
(2 trip detection logic)*
4
EGR gas temp. is 70°C (158°F) or less for 1 Ð 4 min. under
conditions (a) and (b):
(2 trip detection logic)*
4
(a) Engine Coolant temp.: 63°C (145°F) or more
(b) EGR operation possible (Example A/T in 3rd speed (5th for
M/T),
A/C ON, 96 km/h (60 mph), Flat road)
*1: ºONº displayed in the diagnostic mode column indicates that the Malfunction Indicator Lamp is lit up when
a malfunction is detected. ºOFFº indicates that the ºCHECKº does not light up during malfunction
diagnosis, even if a malfunction is detected. ºN.A.º indicates that the item is not included in malfunction
diagnosis.
*2: º
º in the memory column indicates that a diagnostic trouble code is recorded in the ECM memory when
a malfunction occurs. ºxº indicates that a diagnostic trouble code is not recorded in the ECM memory even
if a malfunction occurs. Accordingly, output of diagnostic results in normal or test mode is done with the
IG switch ON.
*3: Only for California specification vehicles. EG±396
