Page 673 of 2543

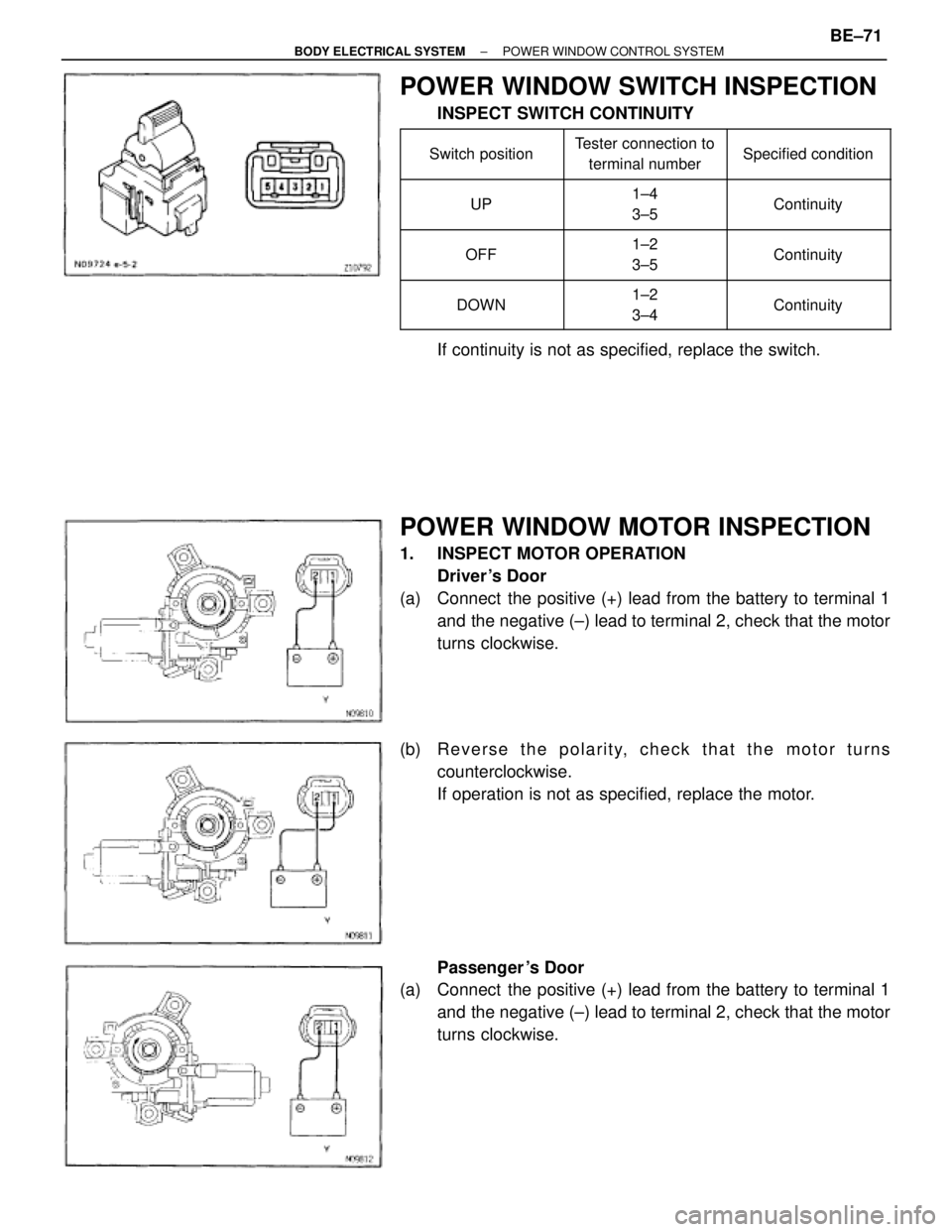

POWER WINDOW SWITCH INSPECTION
INSPECT SWITCH CONTINUITY
Switch position
Tester connection to
terminal number
Specified condition
UP
1±4
3±5
Continuity
OFF
1±2
3±5
Continuity
DOWN
1±2
3±4
Continuity
If continuity is not as specified, replace the switch.
POWER WINDOW MOTOR INSPECTION
1. INSPECT MOTOR OPERATION
Driver 's Door
(a) Connect the positive (+) lead from the battery to terminal 1
and the negative (±) lead to terminal 2, check that the motor
turns clockwise.
(b) R e v e r s e t h e p o l a r i t y, c h e c k t h a t t h e m o t o r t u r n s
counterclockwise.
If operation is not as specified, replace the motor.

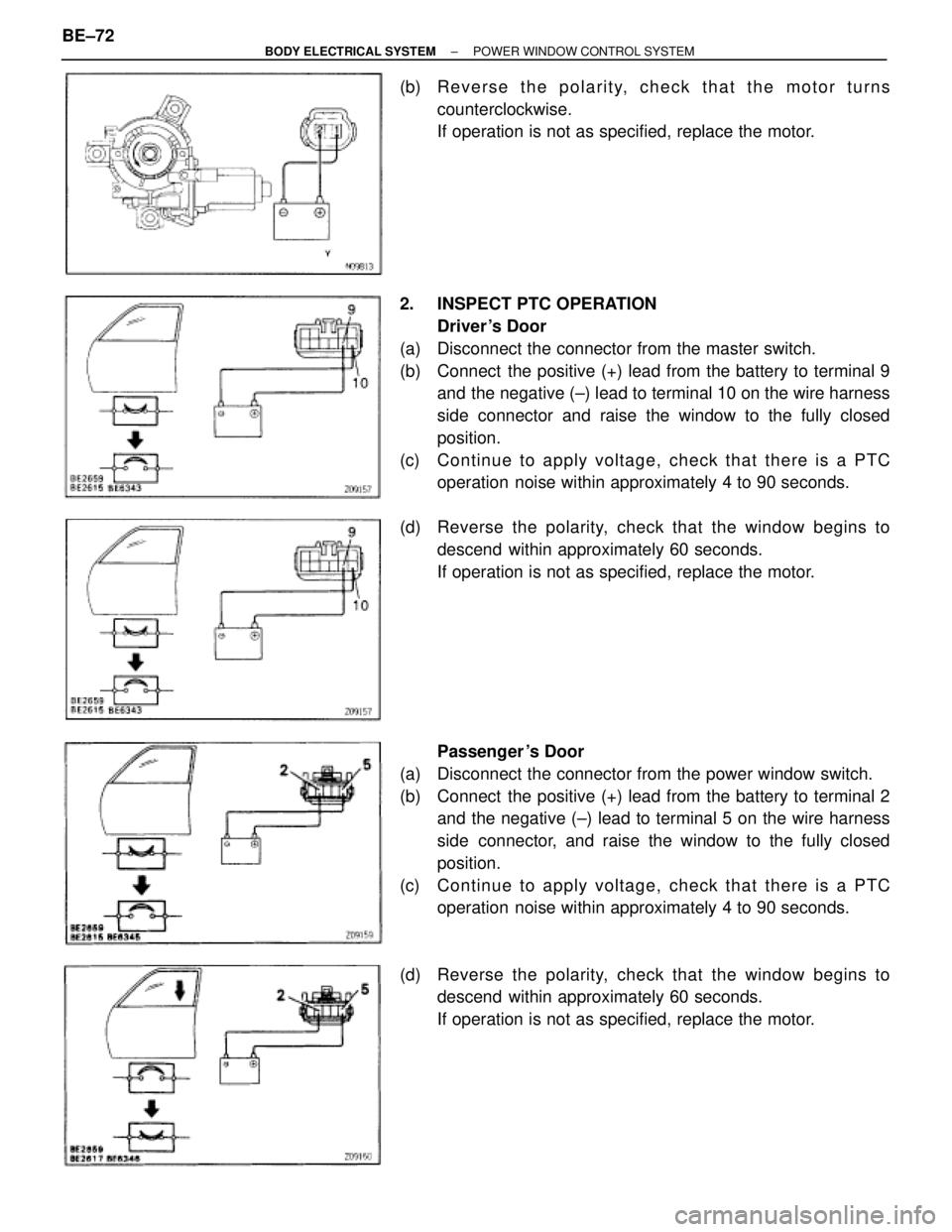

Passenger 's Door
(a) Connect the positive (+) lead from the battery to terminal 1
and the negative (±) lead to terminal 2, check that the motor
turns clockwise.
± BODY ELECTRICAL SYSTEMPOWER WINDOW CONTROL SYSTEMBE±71
Page 674 of 2543

(b) R e v e r s e t h e p o l a r i t y, c h e c k t h a t t h e m o t o r t u r n s
counterclockwise.
If operation is not as specified, replace the motor.
2. INSPECT PTC OPERATION
Driver 's Door
(a) Disconnect the connector from the master switch.
(b) Connect the positive (+) lead from the battery to terminal 9
and the negative (±) lead to terminal 10 on the wire harness
side connector and raise the window to the fully closed
position.
(c) Continue to apply voltage, check that there is a PTC
operation noise within approximately 4 to 90 seconds.
(d) Reverse the polarity, check that the window begins to
descend within approximately 60 seconds.
If operation is not as specified, replace the motor.
Passenger 's Door
(a) Disconnect the connector from the power window switch.
(b) Connect the positive (+) lead from the battery to terminal 2
and the negative (±) lead to terminal 5 on the wire harness
side connector, and raise the window to the fully closed
position.
(c) Continue to apply voltage, check that there is a PTC
operation noise within approximately 4 to 90 seconds.
(d) Reverse the polarity, check that the window begins to
descend within approximately 60 seconds.
If operation is not as specified, replace the motor. BE±72
± BODY ELECTRICAL SYSTEMPOWER WINDOW CONTROL SYSTEM
Page 675 of 2543

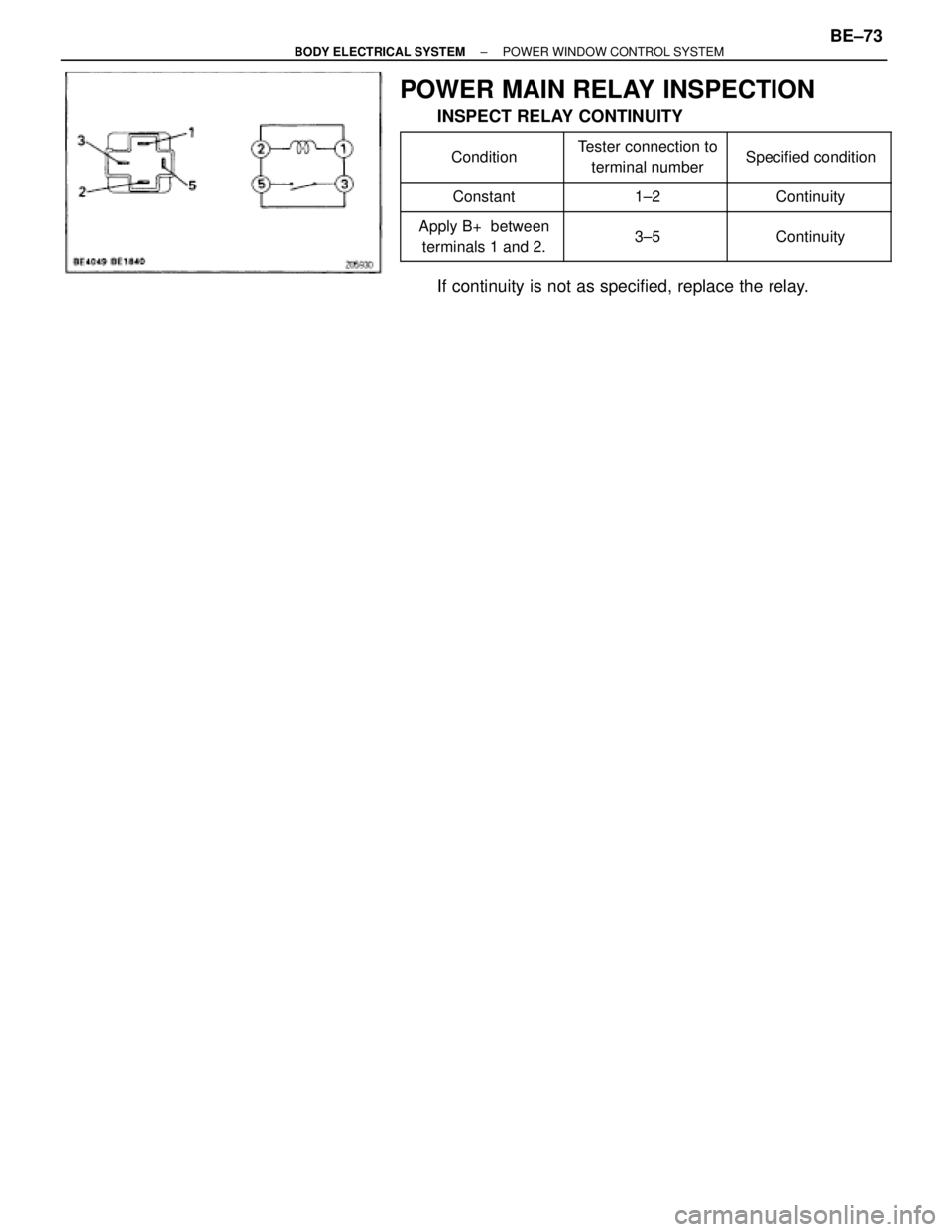

POWER MAIN RELAY INSPECTION
INSPECT RELAY CONTINUITY
Condition
Tester connection to
terminal number
Specified condition
Constant 1±2 Continuity
Apply B+ between
terminals 1 and 2.
3±5
Continuity
If continuity is not as specified, replace the relay.
± BODY ELECTRICAL SYSTEMPOWER WINDOW CONTROL SYSTEMBE±73
Page 676 of 2543

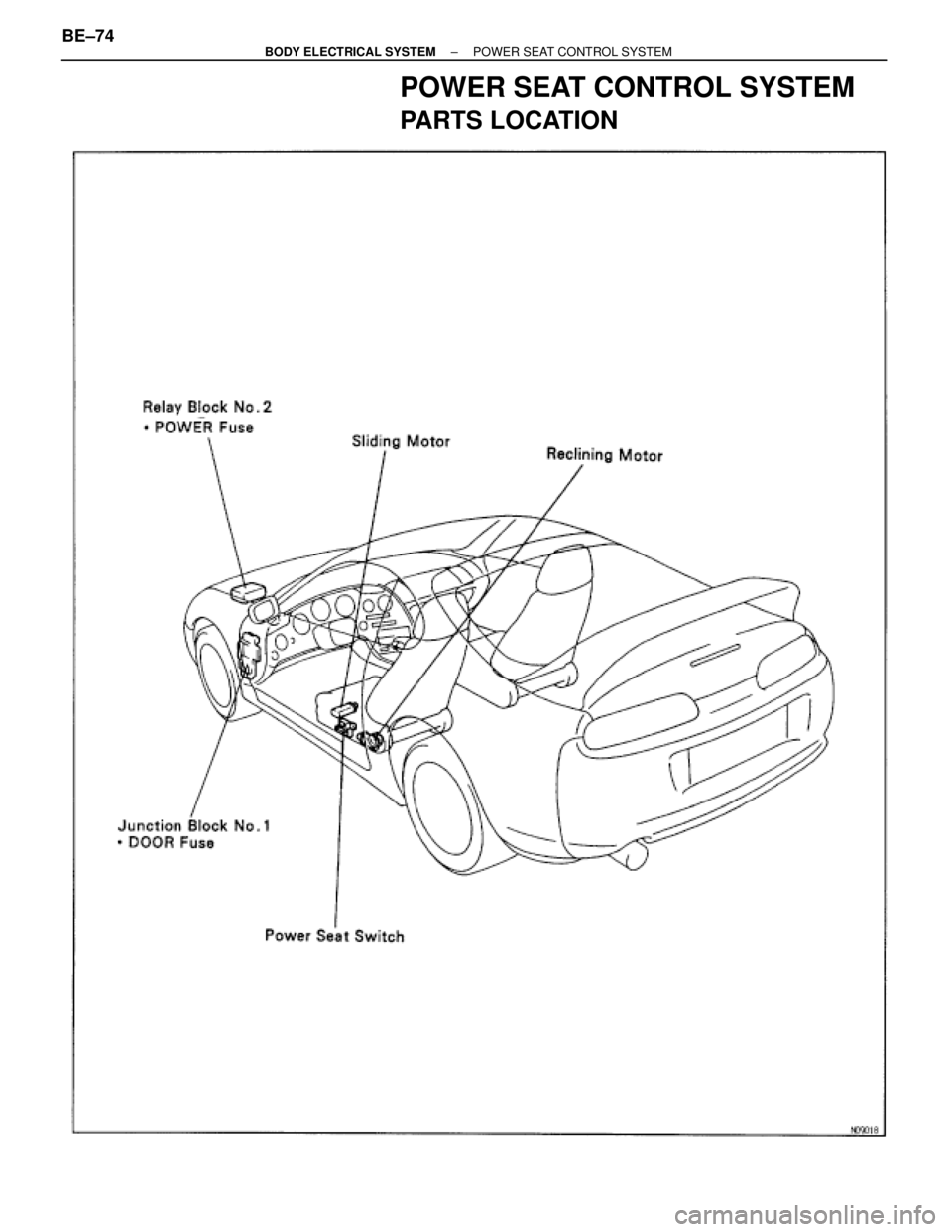

POWER SEAT CONTROL SYSTEM
PARTS LOCATION
BE±74± BODY ELECTRICAL SYSTEMPOWER SEAT CONTROL SYSTEM
Page 677 of 2543

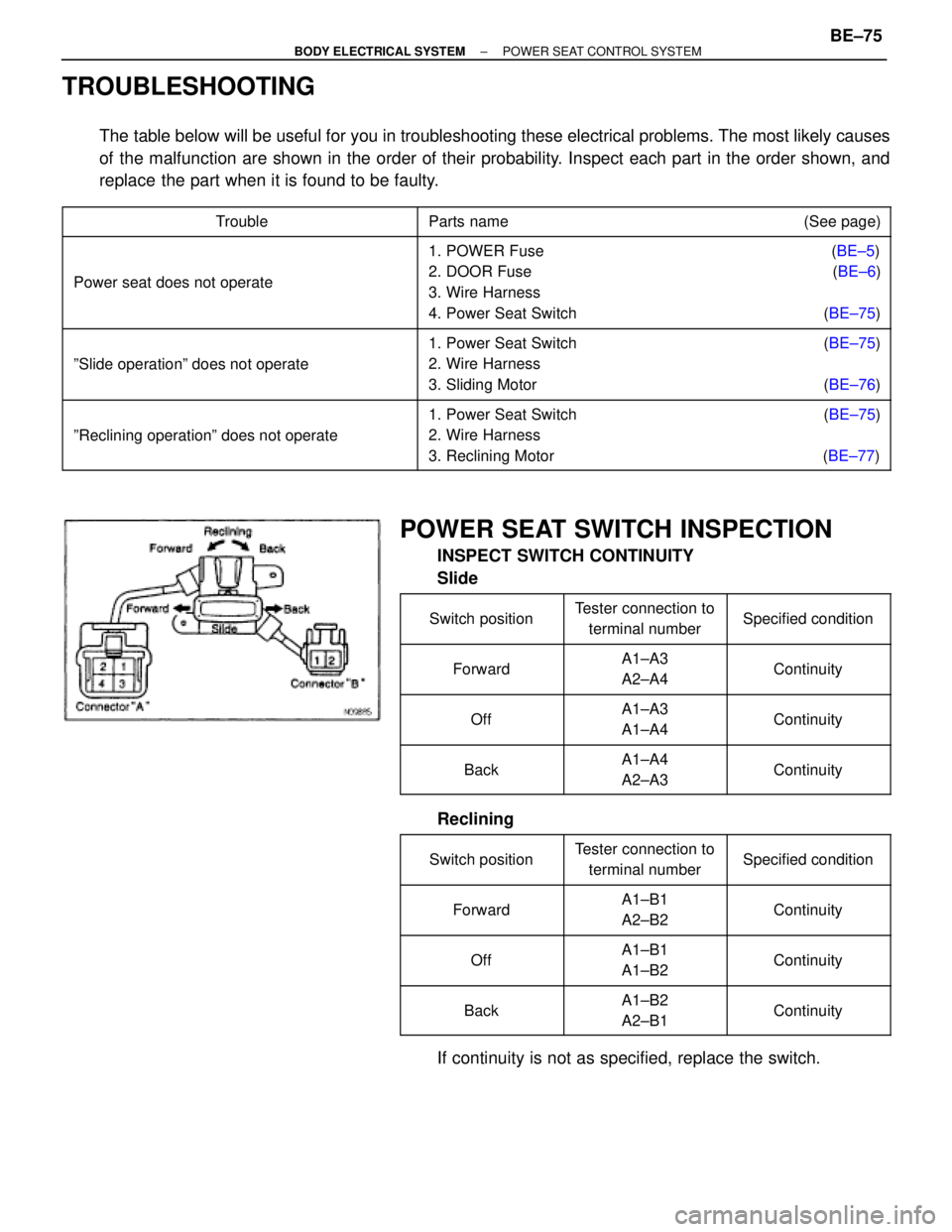

TROUBLESHOOTING
The table below will be useful for you in troubleshooting these electrical problems. The most likely causes
of the malfunction are shown in the order of their probability. Inspect each part in the order shown, and
replace the part when it is found to be faulty.
Trouble Parts name (See page)
Power seat does not operate
1. POWER Fuse (BE±5)
2. DOOR Fuse (BE±6)
3. Wire Harness
4. Power Seat Switch (BE±75)
ºSlide operationº does not operate
1. Power Seat Switch (BE±75)
2. Wire Harness
3. Sliding Motor (BE±76)
ºReclining operationº does not operate
1. Power Seat Switch (BE±75)
2. Wire Harness
3. Reclining Motor (BE±77)
POWER SEAT SWITCH INSPECTION
INSPECT SWITCH CONTINUITY
Slide
Switch position
Tester connection to
terminal number
Specified condition
Forward
A1±A3
A2±A4
Continuity
Off
A1±A3
A1±A4
Continuity
Back
A1±A4
A2±A3
Continuity
Reclining
Switch position
Tester connection to
terminal number
Specified condition
Forward
A1±B1
A2±B2
Continuity
Off
A1±B1
A1±B2
Continuity
Back
A1±B2
A2±B1
Continuity
If continuity is not as specified, replace the switch.
± BODY ELECTRICAL SYSTEMPOWER SEAT CONTROL SYSTEMBE±75
Page 678 of 2543

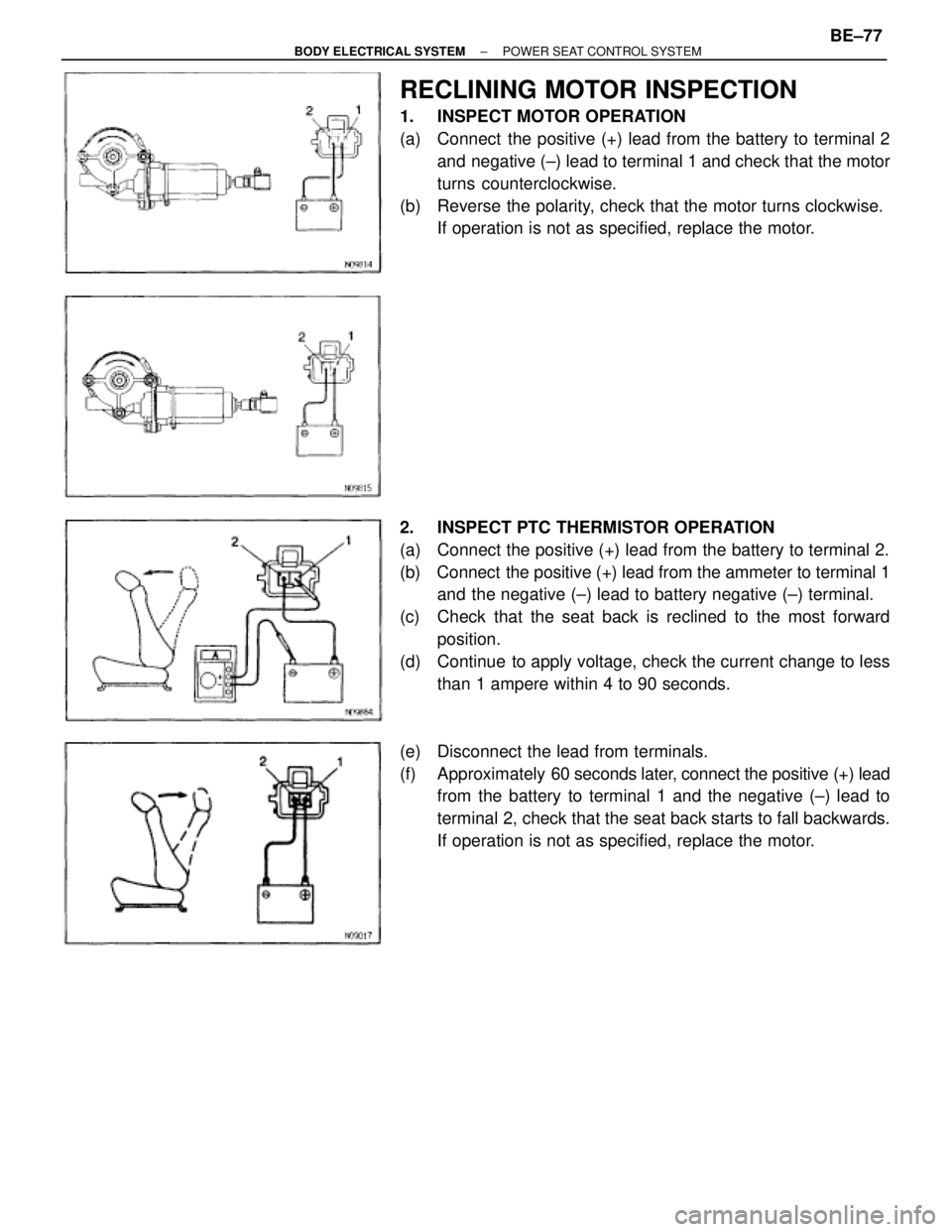

SLIDE MOTOR INSPECTION
1. INSPECT MOTOR OPERATION
(a) Connect the positive (+) lead from the battery to terminal 2
and the negative (±) lead to terminal 1, check that the motor
turns counterclockwise.
(b) Reverse the polarity, check that the motor turns clockwise.
If operation is not as specified, replace the motor.
2. INSPECT PTC THERMISTOR OPERATION
(a) Separate power seat adjuster from front seat.
(b) Connect the positive (+) lead from the battery to terminal 2,
the positive (+) lead from the ammeter to terminal 1, and the
negative (±) lead to battery negative (±) terminal, and move
the seat front end position.
(c) Continue to apply voltage, check the current changes to less
than 1 ampere within 4 to 90 seconds.
(d) Disconnect the lead from terminals.
(e) Approximately 60 seconds later, connect the positive (+) lead
from battery to terminal 1 and the negative (±) lead to terminal
2, check that the seat begins to move backwards.
If operation is not as specified, replace the motor. BE±76
± BODY ELECTRICAL SYSTEMPOWER SEAT CONTROL SYSTEM
Page 679 of 2543

RECLINING MOTOR INSPECTION
1. INSPECT MOTOR OPERATION
(a) Connect the positive (+) lead from the battery to terminal 2
and negative (±) lead to terminal 1 and check that the motor
turns counterclockwise.
(b) Reverse the polarity, check that the motor turns clockwise.
If operation is not as specified, replace the motor.
2. INSPECT PTC THERMISTOR OPERATION
(a) Connect the positive (+) lead from the battery to terminal 2.
(b) Connect the positive (+) lead from the ammeter to terminal 1
and the negative (±) lead to battery negative (±) terminal.
(c) Check that the seat back is reclined to the most forward
position.
(d) Continue to apply voltage, check the current change to less
than 1 ampere within 4 to 90 seconds.
(e) Disconnect the lead from terminals.
(f) Approximately 60 seconds later, connect the positive (+) lead
from the battery to terminal 1 and the negative (±) lead to
terminal 2, check that the seat back starts to fall backwards.
If operation is not as specified, replace the motor.
± BODY ELECTRICAL SYSTEMPOWER SEAT CONTROL SYSTEMBE±77
Page 680 of 2543

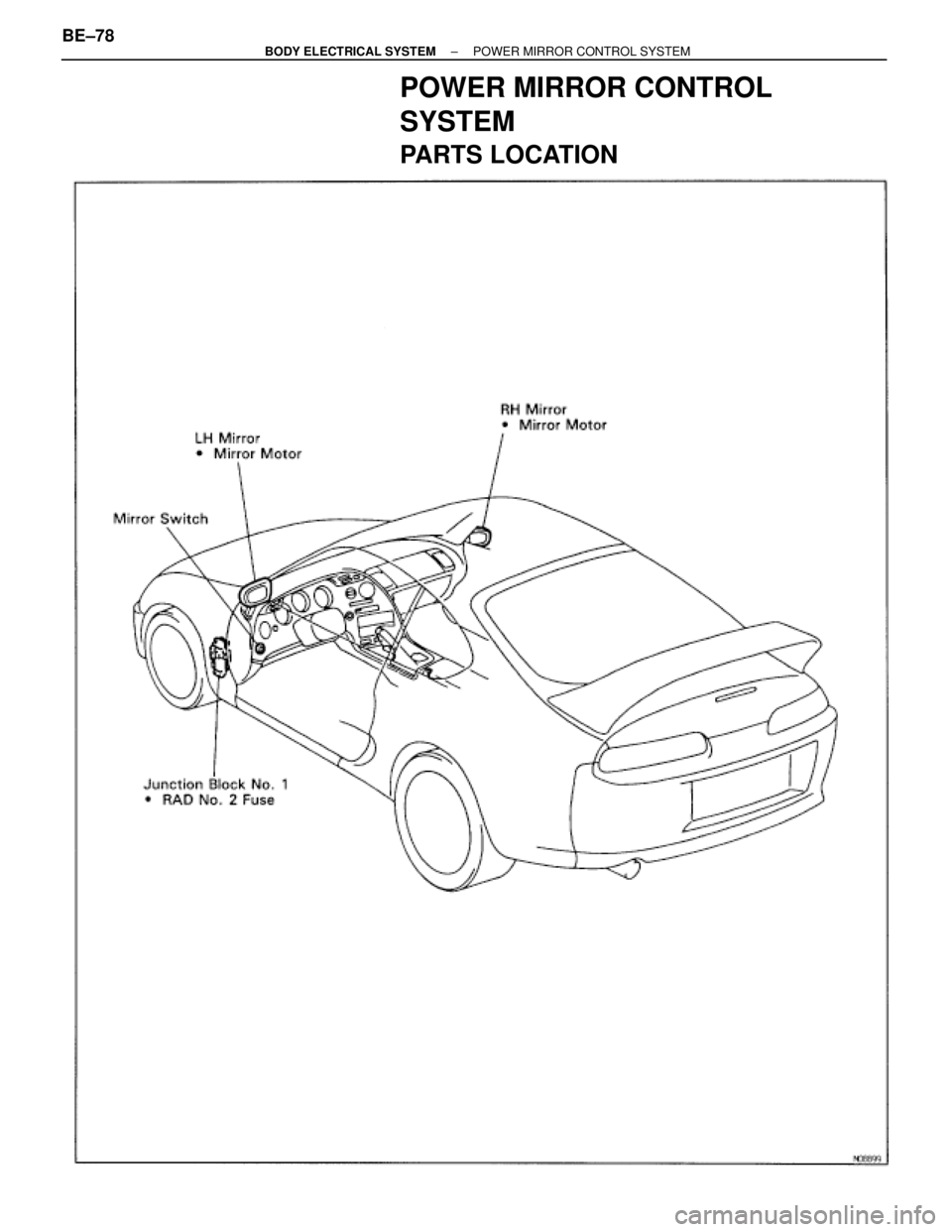

POWER MIRROR CONTROL
SYSTEM
PARTS LOCATION
BE±78± BODY ELECTRICAL SYSTEMPOWER MIRROR CONTROL SYSTEM
