Load previous 8 pages

Page 1233 of 2543

TOYOTA SUPRA 1995 Service Repair Manual ±MEMO± EG±380
± ENGINELUBRICATION SYSTEM

Page 1234 of 2543

TOYOTA SUPRA 1995 Service Repair Manual MAINTENANCE
GENERAL NOTES:
wThere are two separate maintenance schedules,
namely A and B, which apply to different driving
conditions. Find out how the vehicle is driven, select the
appropriate sched

Page 1235 of 2543

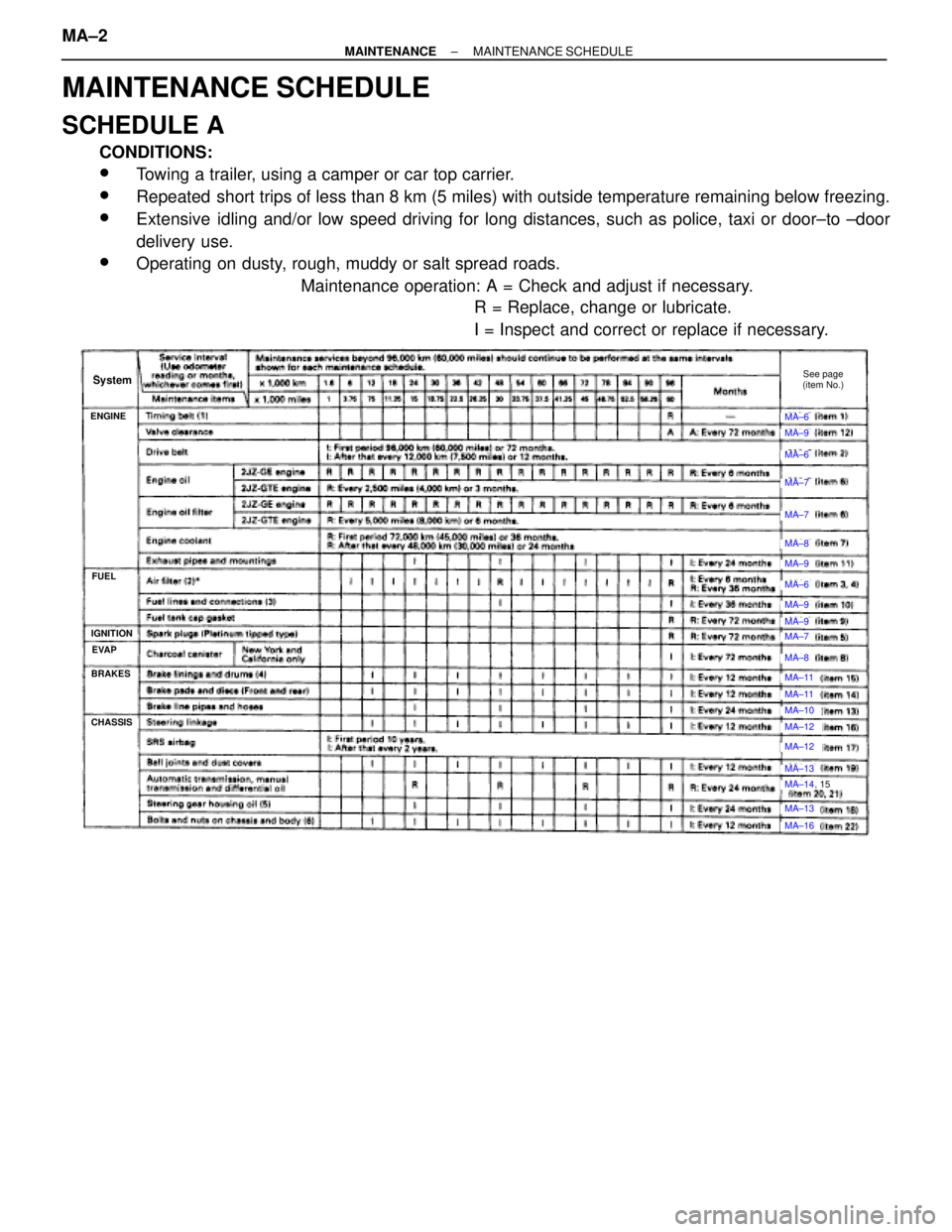

TOYOTA SUPRA 1995 Service Repair Manual MAINTENANCE SCHEDULE
SCHEDULE A
CONDITIONS:
wTowing a trailer, using a camper or car top carrier.
wRepeated short trips of less than 8 km (5 miles) with outside temperature remaining below freezing.

Page 1236 of 2543

TOYOTA SUPRA 1995 Service Repair Manual * mark indicates maintenance which is part of the warranty conditions for the Emission Control Systems.
The warranty period is in accordance with the owners guide or the warranty booklet.
2JZ±GE:
*:

Page 1237 of 2543

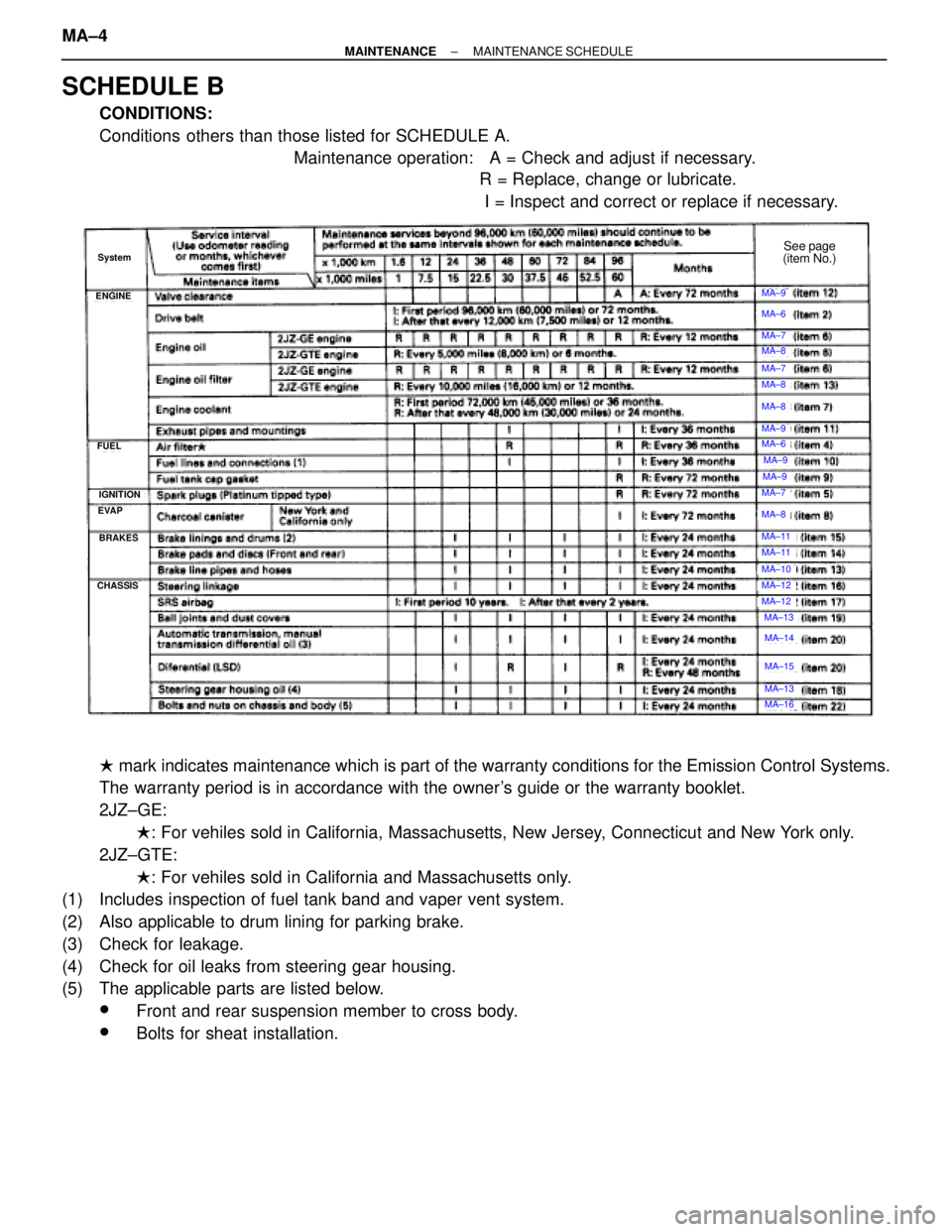

TOYOTA SUPRA 1995 Service Repair Manual SCHEDULE B
CONDITIONS:
Conditions others than those listed for SCHEDULE A.
Maintenance operation: A = Check and adjust if necessary.
R = Replace, change or lubricate.
I = Inspect and correct or

Page 1238 of 2543

TOYOTA SUPRA 1995 Service Repair Manual PREPARATION
RECOMMENDED TOOLS
09200±00010 Engine Adjust Kit.
EQUIPMENT
Dial indicator Brake disc

PREPARATION
RECOMMENDED TOOLS
09200±00010 Engine Adjust Kit.
EQUIPMENT
Dial indicator Brake disc
Micrometer Brake disc
Mirror Brake hose
Thermometer
Torque wrench
Vernier calipers Parking brake drum
COOLANT
Item Capacity Classification
Engine coolant 2JZ±GE M/T
(w/ Heater) A/T7.3 liters (7.7 US qts, 6.4 lmp. qts)
8.3 liters (8.8 US qts, 7.3 lmp. qts)Ethylene±glycol base

()
2JZ±GTE M/T
A/T
(q q)
9.5 liters (10.0 US qts, 8.4 lmp. qts)
9.4 liters (9.9 US qts, 8.3 lmp. qts)
LUBRICANT
Item Capacity Classification

Engine oil (Drain and refill) (2JZ±GE)
w/ Oil filter change
w/o Oil filter change
5.3 liters (5.6 US qts, 4.7 lmp. qts)
4 9 liters (5 2 US qts 4 3 lmpqts)
API grade SH, Energy±Conserving II
multigrade engine oil or ILSAC multi-
grade engine oil and recommended

w/o Oil filter change4.9 liters (5.2 US qts, 4.3 lmp. qts)grade engine oil and recommended
viscosity oil, with SAE 5W±30 being
preferred engine oil

Engine oil (Drain and refill) (2JZ±GTE)
w/ Oil filter change
5.0 liters (5.3 US qts, 4.4 lmp. qts)
API grade SH, Energy±Conserving II
mutigrade engine oil or ILSAC multi-

g
w/o Oil filter change
(q q)
4.7 liters (5.0 US qts, 4.1 lmp. qts)
gg
grade engine oil and recommended
viscosity oil
Manual transmission oil 2JZ±GE2.6 liters (2.7 US qts, 2.3 lmp. qts)API GL±5 SAE 75W±90
2JZ±GTE
(q, q)
1.8 liters (1.9 US qts, 1.6 lmp. qts)Castle gear oil V160
Automatic transmission 2JZ±GE1.6 liters (1.7 US qts, 1.4 lmp. qts)ATF DEXRON® II
fluid (Drain and refill) 2JZ±GTE
(q, q)
1.9 liters (2.0 US qts, 1.7 lmp. qts)ATF TYPE T±II

Differential oil1.35 liters (1.43 US qts, 1.19 lmp. qts)API GL±5
Above±185 C (05 F)
SAE 90

SAE 90
Below±185 C (05 F)
SAE 80W±90 or 80W
± MAINTENANCEPREPARATIONMA±5

Page 1239 of 2543

TOYOTA SUPRA 1995 Service Repair Manual MAINTENANCE OPERATIONS
ENGINE
Cold Engine Operations
1. REPLACE TIMING BELT
(See timing belt removal and installation in Engine Me-
chanical)
2. INSPECT DRIVE BELT
(See step 3 in on±vehicle insecti

Page 1240 of 2543

TOYOTA SUPRA 1995 Service Repair Manual Recommended spark plug:
2JZ±GE
ND
PK16R11
HGK
BKR5EP11
2JZ±GTE
ND
PK20R11
NGK
BKR6EP11
NOTICE: If adjusting the gap of a new spark plug, bend
only the base of the ground electrode. Do not touch the

Load next 8 pages
