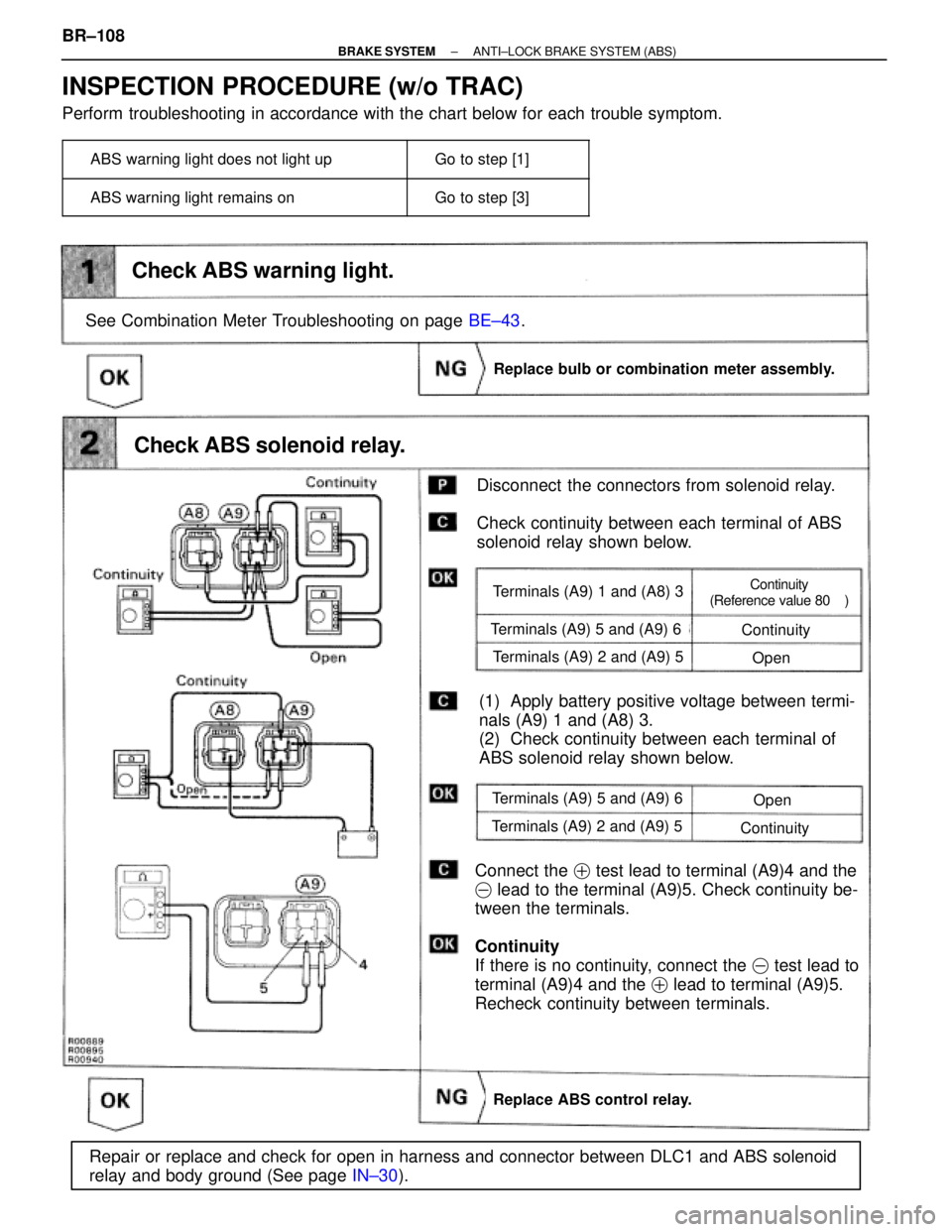

Check ABS warning light.
Disconnect the connectors from solenoid relay.
Check continuity between each terminal of ABS
solenoid relay shown below.
Replace bulb or combination meter assembly.
See Combination Meter Troubleshooting on page BE±43.
(1) Apply battery positive voltage between termi-
nals (A9) 1 and (A8) 3.
(2) Check continuity between each terminal of
ABS solenoid relay shown below.
Connect the test lead to terminal (A9)4 and the
lead to the terminal (A9)5. Check continuity be-
tween the terminals.
Continuity
If there is no continuity, connect the test lead to
terminal (A9)4 and the lead to terminal (A9)5.
Recheck continuity between terminals.
Terminals (A9) 5 and (A9) 6
Terminals (A9) 2 and (A9) 5
Open
Continuity
Continuity
Open
Terminals (A9) 1 and (A8) 3
Terminals (A9) 5 and (A9) 6
Terminals (A9) 2 and (A9) 5
Continuity
(Reference value 80 )
Replace ABS control relay.
Check ABS solenoid relay.
Repair or replace and check for open in harness and connector between DLC1 and ABS solenoid
relay and body ground (See page IN±30).Repair or replace and check for open in harness and connector between DLC1 and ABS solenoid
relay and body ground (See page IN±30).
INSPECTION PROCEDURE (w/o TRAC)
Perform troubleshooting in accordance with the chart below for each trouble symptom.
ABS warning light does not light up
Go to step [1]
ABS warning light remains on
Go to step [3]
BR±108± BRAKE SYSTEMANTI±LOCK BRAKE SYSTEM (ABS)
Page 978 of 2543

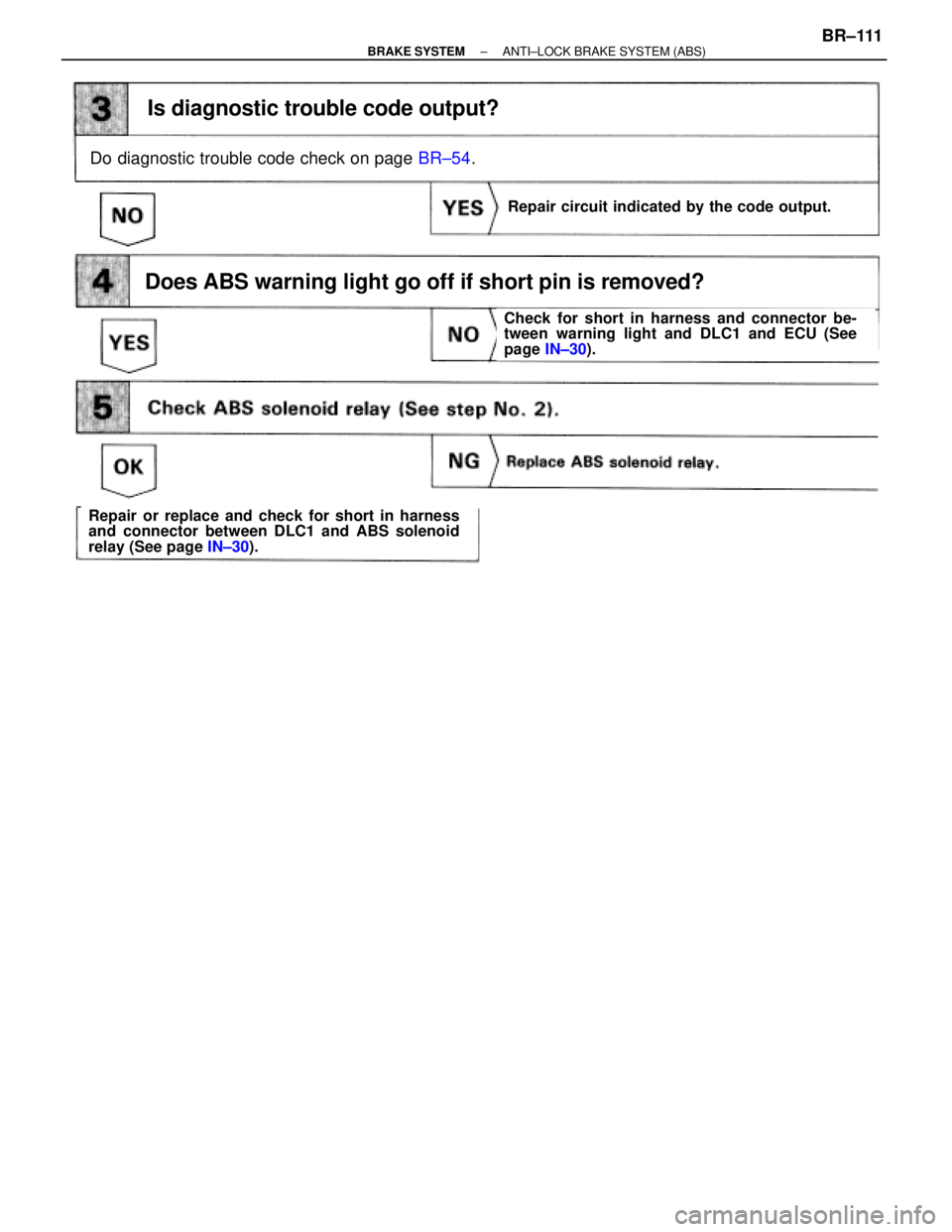

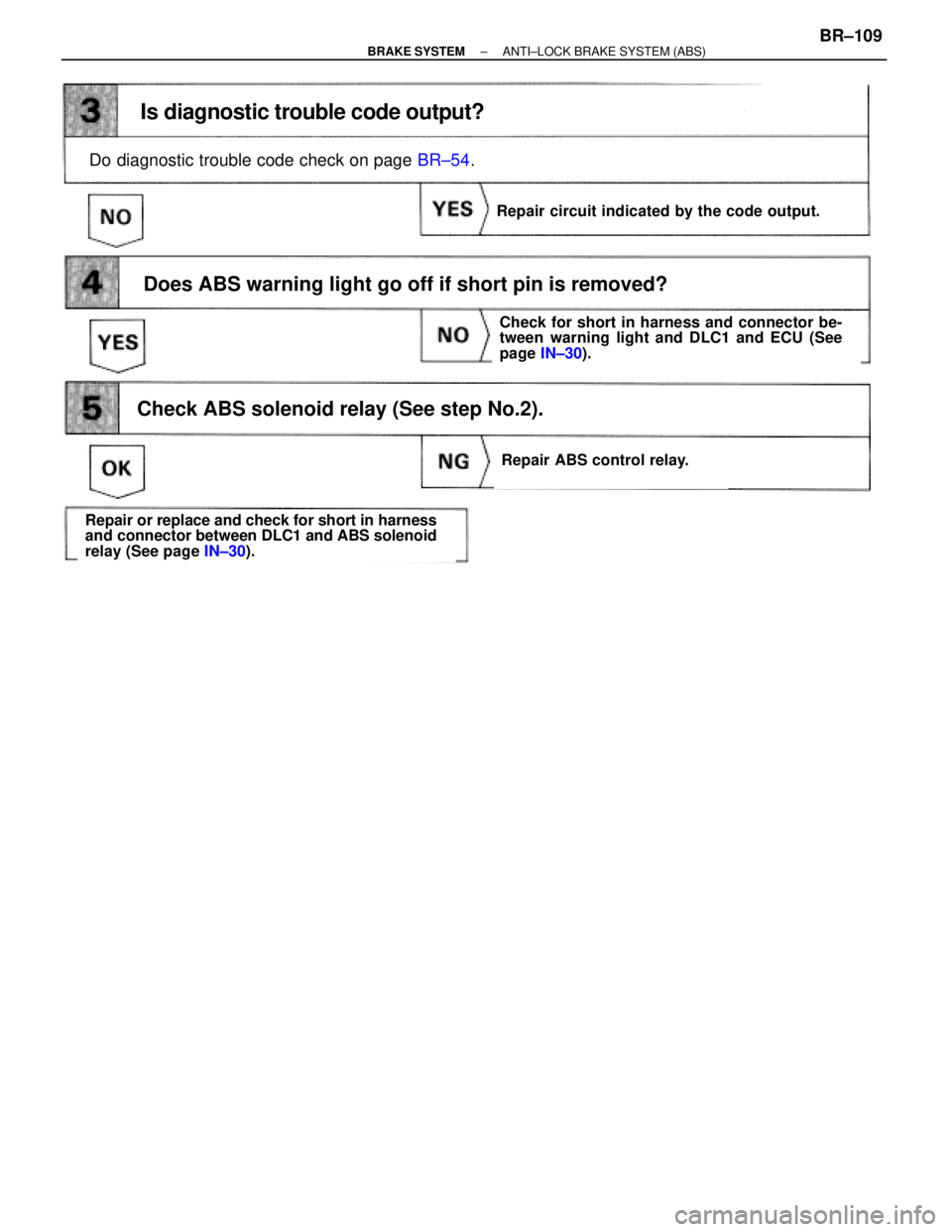

Is diagnostic trouble code output?
Repair circuit indicated by the code output.
Do diagnostic trouble code check on page BR±54.
Does ABS warning light go off if short pin is removed?
Check ABS solenoid relay (See step No.2).
Repair ABS control relay.
Check for short in harness and connector be-
tween warning light and DLC1 and ECU (See
page IN±30).
Repair or replace and check for short in harness
and connector between DLC1 and ABS solenoid
relay (See page IN±30).
± BRAKE SYSTEMANTI±LOCK BRAKE SYSTEM (ABS)BR±109
Page 979 of 2543

Check ABS warning light.

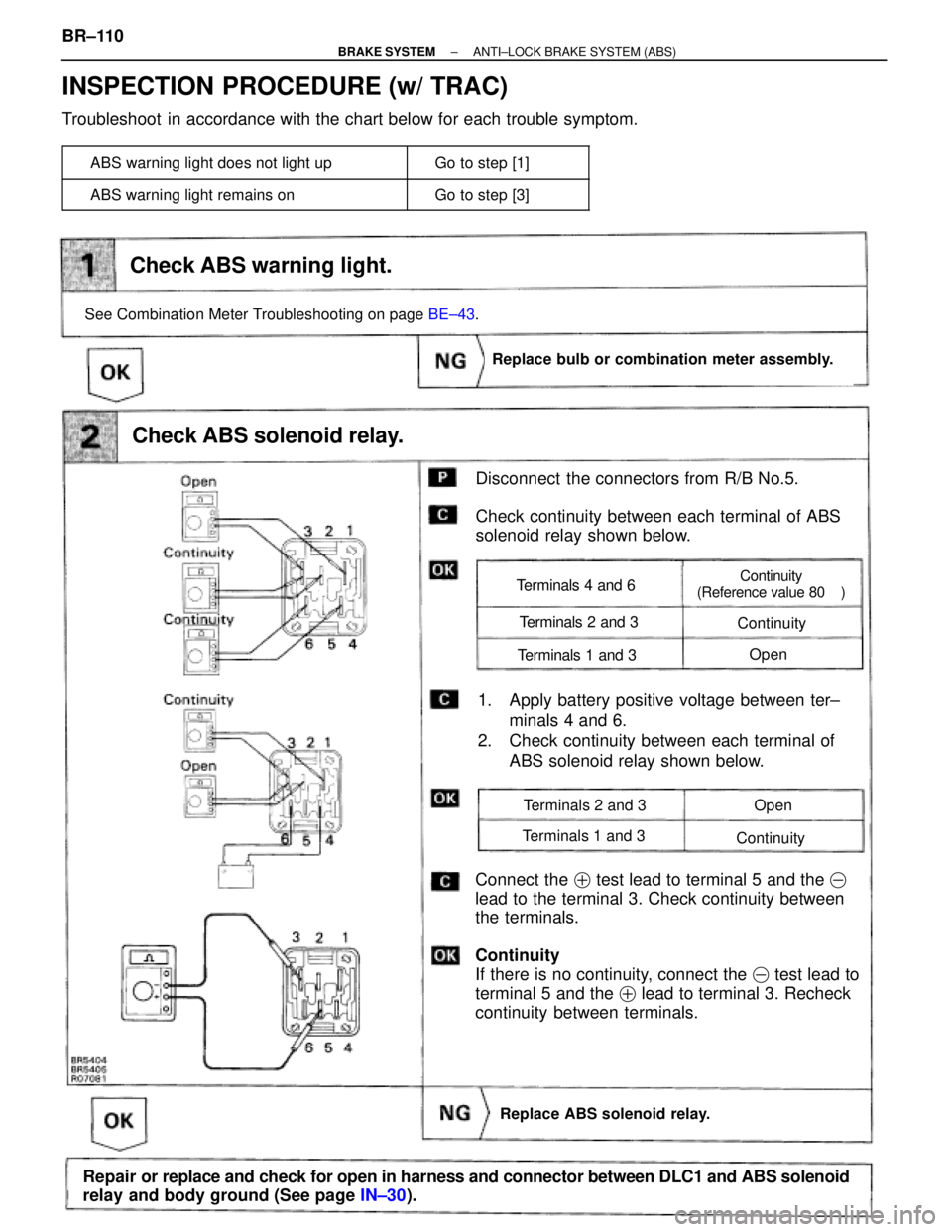

Disconnect the connectors from R/B No.5.
Check continuity between each terminal of ABS
solenoid relay shown below.
Replace bulb or combination meter assembly.
1. Apply battery positive voltage between ter±
minals 4 and 6.
2. Check continuity between each terminal of
ABS solenoid relay shown below.
Terminals 2 and 3
Terminals 1 and 3
Open
Continuity
Continuity
Open
Terminals 4 and 6
Terminals 2 and 3
Terminals 1 and 3
Continuity
(Reference value 80 )
Replace ABS solenoid relay.
Check ABS solenoid relay.
Repair or replace and check for open in harness and connector between DLC1 and ABS solenoid
relay and body ground (See page IN±30).
Connect the test lead to terminal 5 and the
lead to the terminal 3. Check continuity between
the terminals.
Continuity
If there is no continuity, connect the test lead to
terminal 5 and the lead to terminal 3. Recheck
continuity between terminals.
See Combination Meter Troubleshooting on page BE±43.
INSPECTION PROCEDURE (w/ TRAC)
Troubleshoot in accordance with the chart below for each trouble symptom.
ABS warning light does not light up Go to step [1]
ABS warning light remains on Go to step [3]
BR±110± BRAKE SYSTEMANTI±LOCK BRAKE SYSTEM (ABS)
Page 980 of 2543
Is diagnostic trouble code output?
Repair circuit indicated by the code output.
Does ABS warning light go off if short pin is removed?
Do diagnostic trouble code check on page BR±54.
Check for short in harness and connector be-
tween warning light and DLC1 and ECU (See
page IN±30).
Repair or replace and check for short in harness
and connector between DLC1 and ABS solenoid
relay (See page IN±30).
± BRAKE SYSTEMANTI±LOCK BRAKE SYSTEM (ABS)BR±111
Page 981 of 2543
Tc Terminal Circuit

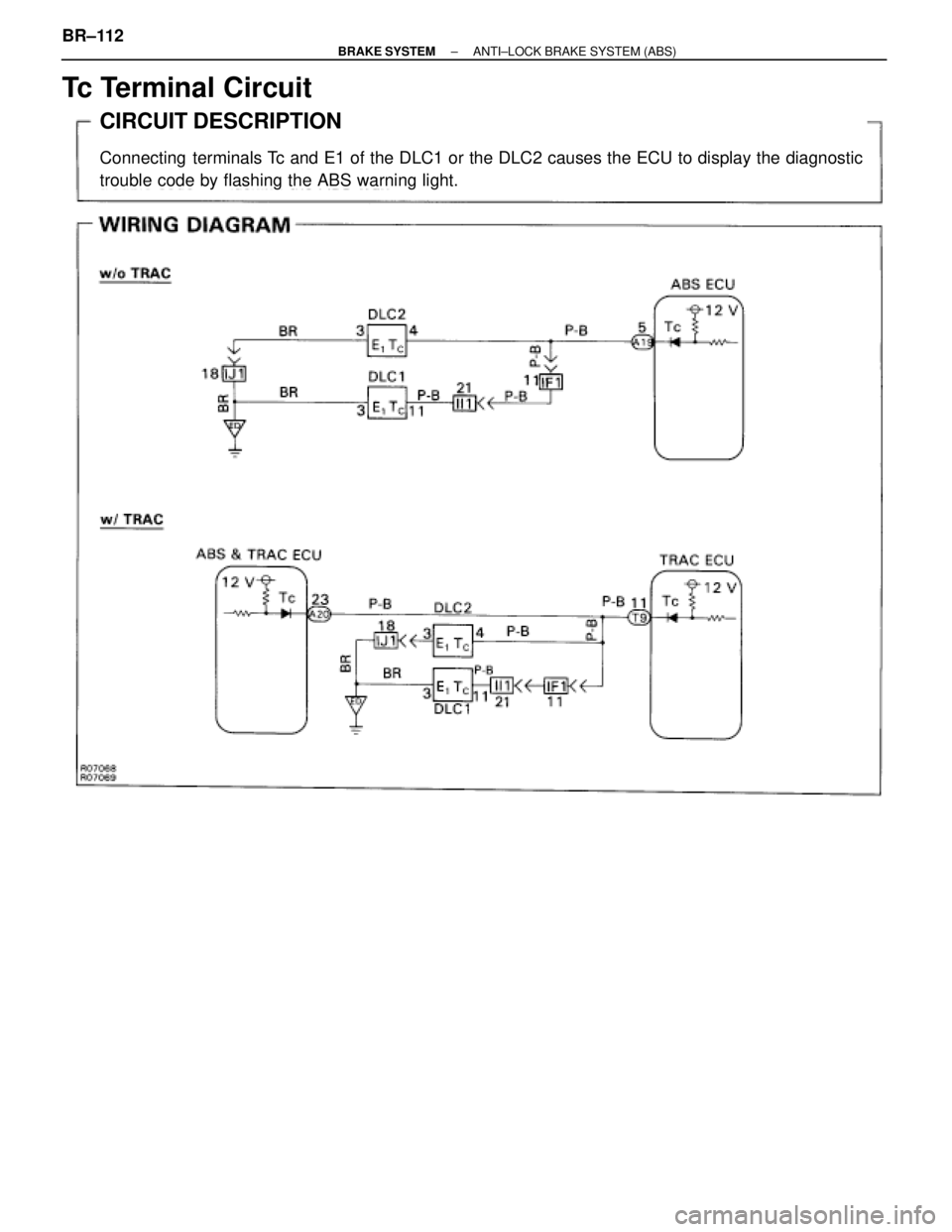

CIRCUIT DESCRIPTION
Connecting terminals Tc and E1 of the DLC1 or the DLC2 causes the ECU to display the diagnostic
trouble code by flashing the ABS warning light. BR±112
± BRAKE SYSTEMANTI±LOCK BRAKE SYSTEM (ABS)
Page 982 of 2543

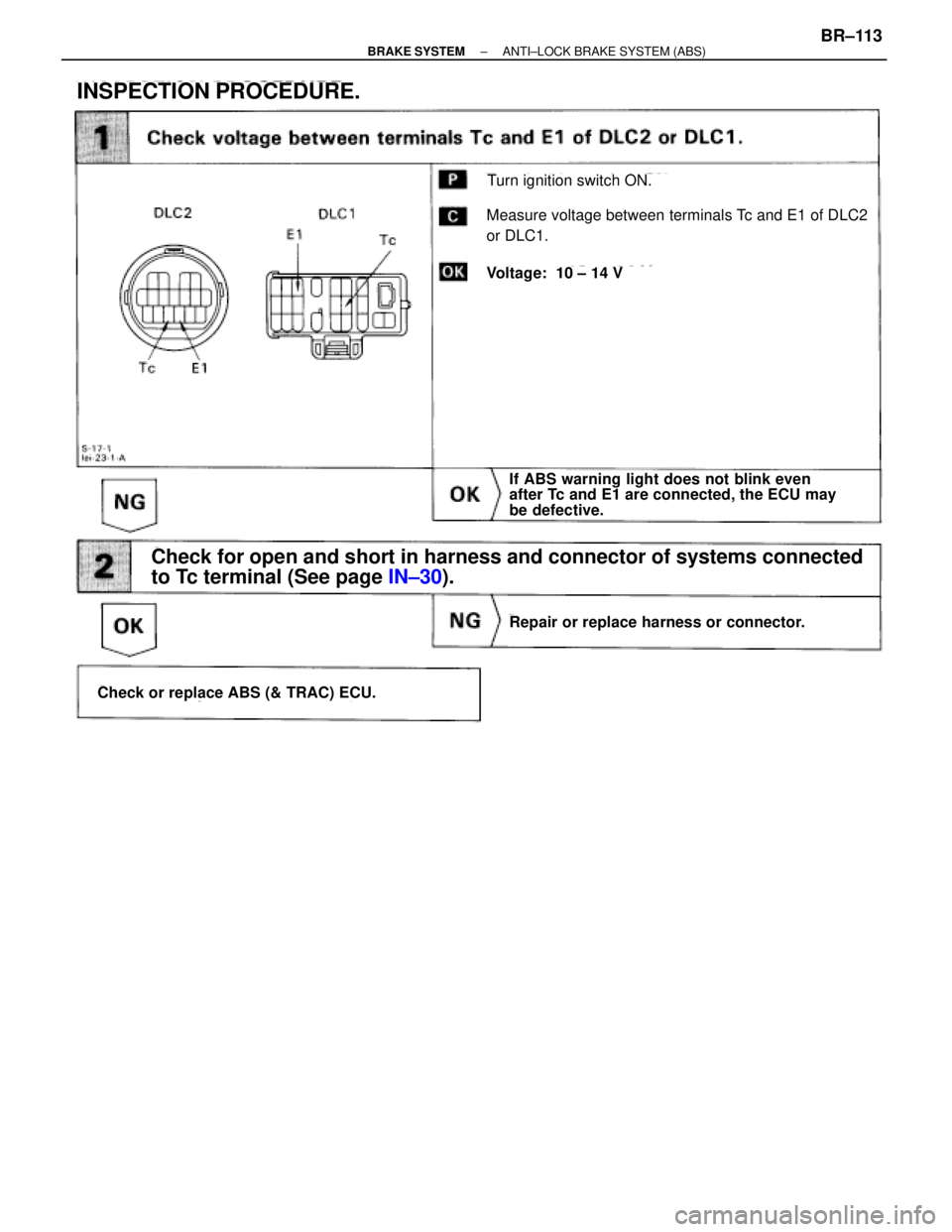

Check for open and short in harness and connector of systems connected
to Tc terminal (See page IN±30).
Turn ignition switch ON.
Measure voltage between terminals Tc and E1 of DLC2
or DLC1.
Voltage: 10 ± 14 V
If ABS warning light does not blink even
after Tc and E1 are connected, the ECU may
be defective.
Repair or replace harness or connector.
Check or replace ABS (& TRAC) ECU.
INSPECTION PROCEDURE.
± BRAKE SYSTEMANTI±LOCK BRAKE SYSTEM (ABS)BR±113
Page 983 of 2543
Ts Terminal Circuit
CIRCUIT DESCRIPTION
The sensor check circuit detects abnormalities in the speed sensor signal which cannot be detected with the
diagnostic trouble code check.
Connecting terminals Ts and E1 of the DLC1 in the engine compartment starts the check.

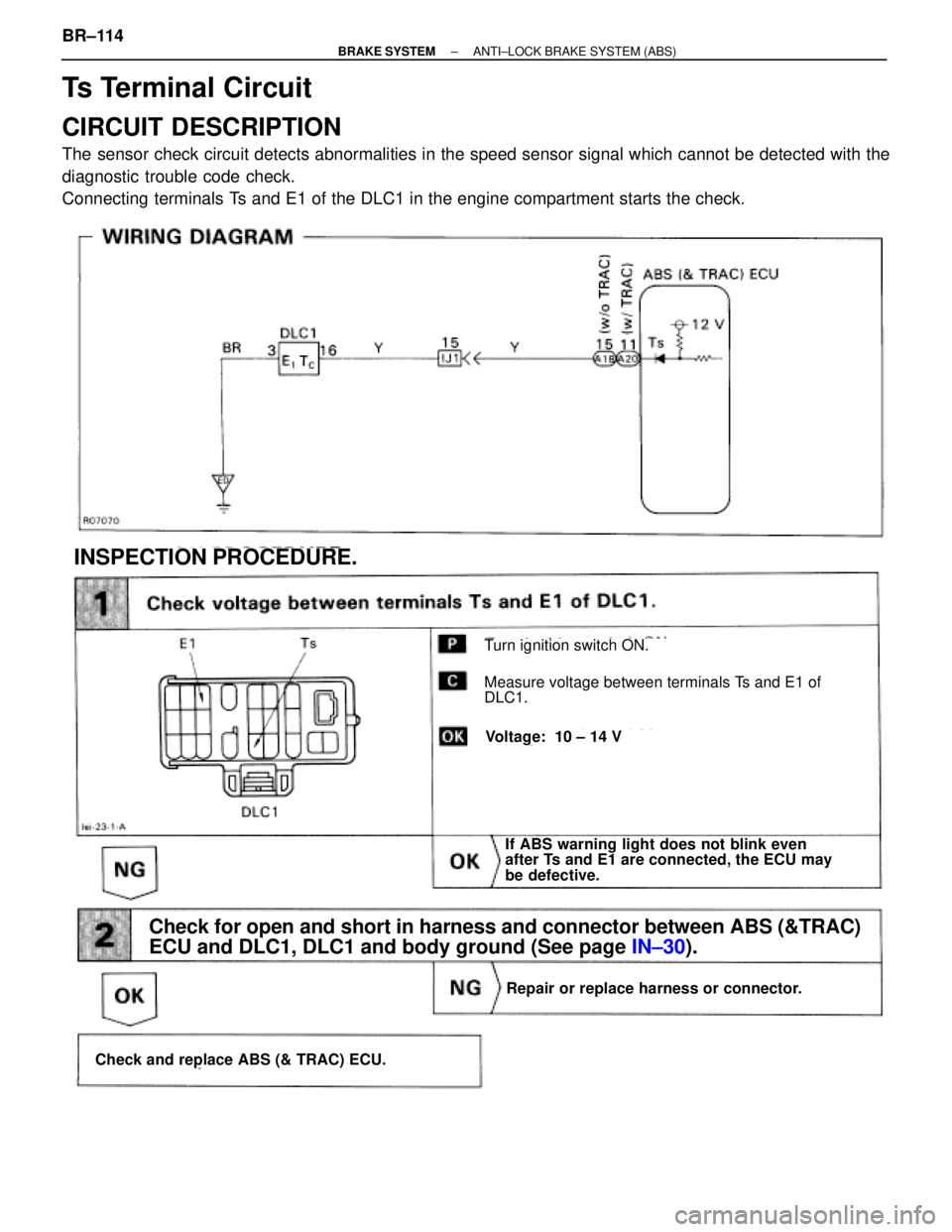

Check for open and short in harness and connector between ABS (&TRAC)
ECU and DLC1, DLC1 and body ground (See page IN±30).
Turn ignition switch ON.
Measure voltage between terminals Ts and E1 of
DLC1.
Voltage: 10 ± 14 V
If ABS warning light does not blink even
after Ts and E1 are connected, the ECU may
be defective.
Repair or replace harness or connector.
Check and replace ABS (& TRAC) ECU.
INSPECTION PROCEDURE.
BR±114± BRAKE SYSTEMANTI±LOCK BRAKE SYSTEM (ABS)
Page 984 of 2543

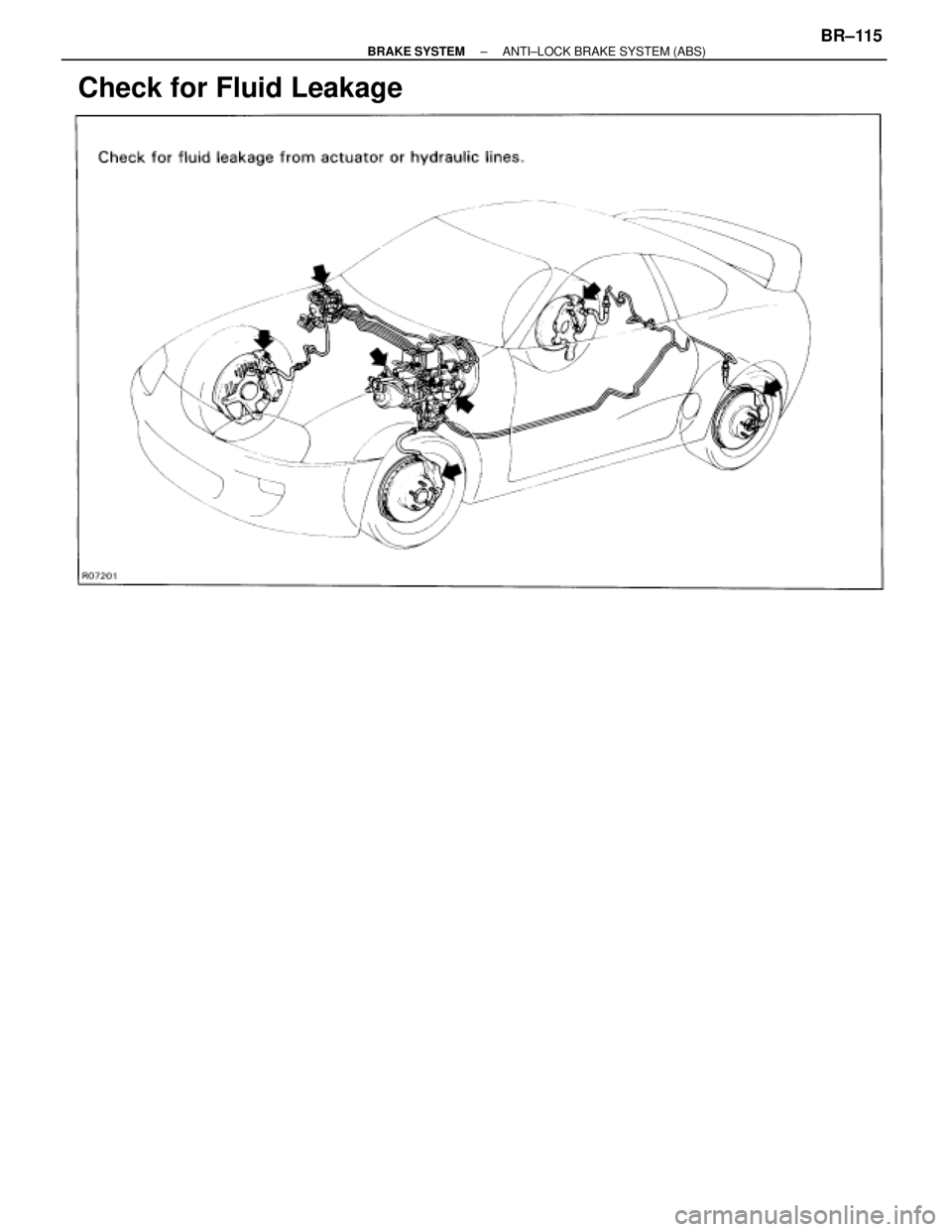

Check for Fluid Leakage
