Page 1697 of 2543

When scrapping vehicle
HINT: Have a battery ready as the power source to deploy the
airbag.
1. CONFIRM FUNCTIONING OF SST
(See page RS±19)
SST 09082±00700
2. INSTALL SST
CAUTION: Check that there is no looseness in the steer-
ing wheel and steering wheel pad.
(a) Disconnect the airbag connector of the spiral cable.
(b) Connect the SST connector to the airbag connector of the
spiral cable.
SST 09082±00700
(c) Move the SST to at least 10 m (33 ft) from the front of the
vehicle.
(d) Close all the doors and windows of the vehicle.
NOTICE: Take care not to damage the SST wire harness.
(e) Connect the SST red clip to the battery positive (+) terminal
and the black clip to the battery negative (±) terminal.
3. DEPLOY AIRBAG
(a) Confirm that no±one is inside the vehicle or within 10 m
(33 ft) of the vehicle.
(b) Press the SST activation switch and deploy the airbag.
HINT: The airbag deploys simultaneously as the LED of the
SST activation switch lights up. RS±14
± SUPPLEMENTAL RESTRAINT SYSTEMSTEERING WHEEL PAD AND SPIRAL CABLE
Page 1698 of 2543

4. DISPOSAL OF STEERING WHEEL PAD (WITH AIRBAG)
CAUTION:
wThe steering wheel pad is very hot when the airbag is
deployed, so leave it alone for at least 30 minutes after
deployment.
wUse gloves and safety glasses when handling a steering
wheel pad with a deployed airbag.
wDo not apply water, etc. to a steering wheel pad with a
deployed airbag.
wAlways wash your hands with water after completing the
operation.
(a) When scrapping a vehicle, deploy the airbag and scrap the
vehicle with the steering wheel pad still installed.
(b) When moving a vehicle for scrapping which has a steering
wheel pad with deployed airbag, use gloves and safety
glasses.
When disposing of steering wheel pad only
When disposing of the steering wheel pad (with airbag)
only, never use the customer's vehicle to deploy the air-
bag.
Remove the steering wheel pad from the vehicle and be sure
to follow the procedure given below when deploying the air-
bag.
HINT: Have a battery ready as the power source to deploy the
airbag.
1. REMOVE STEERING WHEEL PAD (See SR section)
CAUTION:
wWhen removing the steering wheel pad (with airbag),
work must be started after 90 seconds from the time the
ignition switch is turned to the ºLOCKº position and the
negative (±) terminal cable is disconnected from the
battery.
wWhen storing the steering wheel pad, keep the upper
surface of the pad facing upward.
2. REMOVE STEERING WHEEL PAD CONNECTOR
Remove the connector on the steering wheel pad rear sur-
face from the inflater cover.
± SUPPLEMENTAL RESTRAINT SYSTEMSTEERING WHEEL PAD AND SPIRAL CABLERS±15
Page 1699 of 2543

3. FIX STEERING WHEEL PAD TO DISC WHEEL WITH TIRE
(a) Install the 2 bolts and washers in the 2 bolt holes in the
steering wheel pad.
Bolt:
L: 35.0 mm (1.378 in.)
M: 6.0 mm (0.236 in.)
Pitch: 1.0 mm (0.039 in.)
NOTICE:
wTighten the bolts by hand until the bolts become difficult
to turn.
wDo not tighten the bolts too much.
(b) Using a service±purpose wire harness for the vehicle tie
down the steering wheel pad to the disc wheel.
Wire harness: Stripped wire harness section
1.25 mm
2 or more (0.0019 in2 or more)
HINT: To calculate the square of the stripped wire harness
section
Square = 3.14 X (Diameter)
2 divided by 4
CAUTION: If a wire harness which is too thin or some oth-
er thing is used to tie down the steering wheel pad, it may
be snapped by the shock when the airbag is deployed.
This is highly dangerous. Always use a wire harness for
vehicle use which is at least 1.25 mm
2 (0.0019 in2.).
(1) Using 3 wire harnesses, wrap the wire harnesses at
least 2 times each around the bolts installed on the left
and right sides of the steering wheel pad.
CAUTION:
wTightly wind the wire harness around the bolts so that
there is no slack.
wIf there is slackness in the wire harness, the steering
wheel pad may come loose due to the shock when the
airbag is deployed. This is highly dangerous.
(2) Face the upper surface of the steering wheel pad upward.
(3) Separately tie the left and right sides of the steering wheel
pad to the disc wheel through the hub nut holes.
(c) Position the steering wheel pad connector so that it hangs
downward through a hub hole in the disc wheel. RS±16
± SUPPLEMENTAL RESTRAINT SYSTEMSTEERING WHEEL PAD AND SPIRAL CABLE
Page 1700 of 2543

CAUTION:
wMake sure that the wire harness is tight. It is very
dangerous if looseness in the wire harness results in the
steering wheel pad coming free through the shock of the
airbag deploying.
wAlways tie down the steering wheel pad with the pad side
facing upward. It is very dangerous if the steering wheel
pad is tied down with the metal surface facing upward as
the wire harness will be cut by the shock of the airbag
deploying and the steering wheel pad will be thrown into
the air.
HINT: The disc wheel will be marked by airbag deployment,
so use a redundant disc wheel.

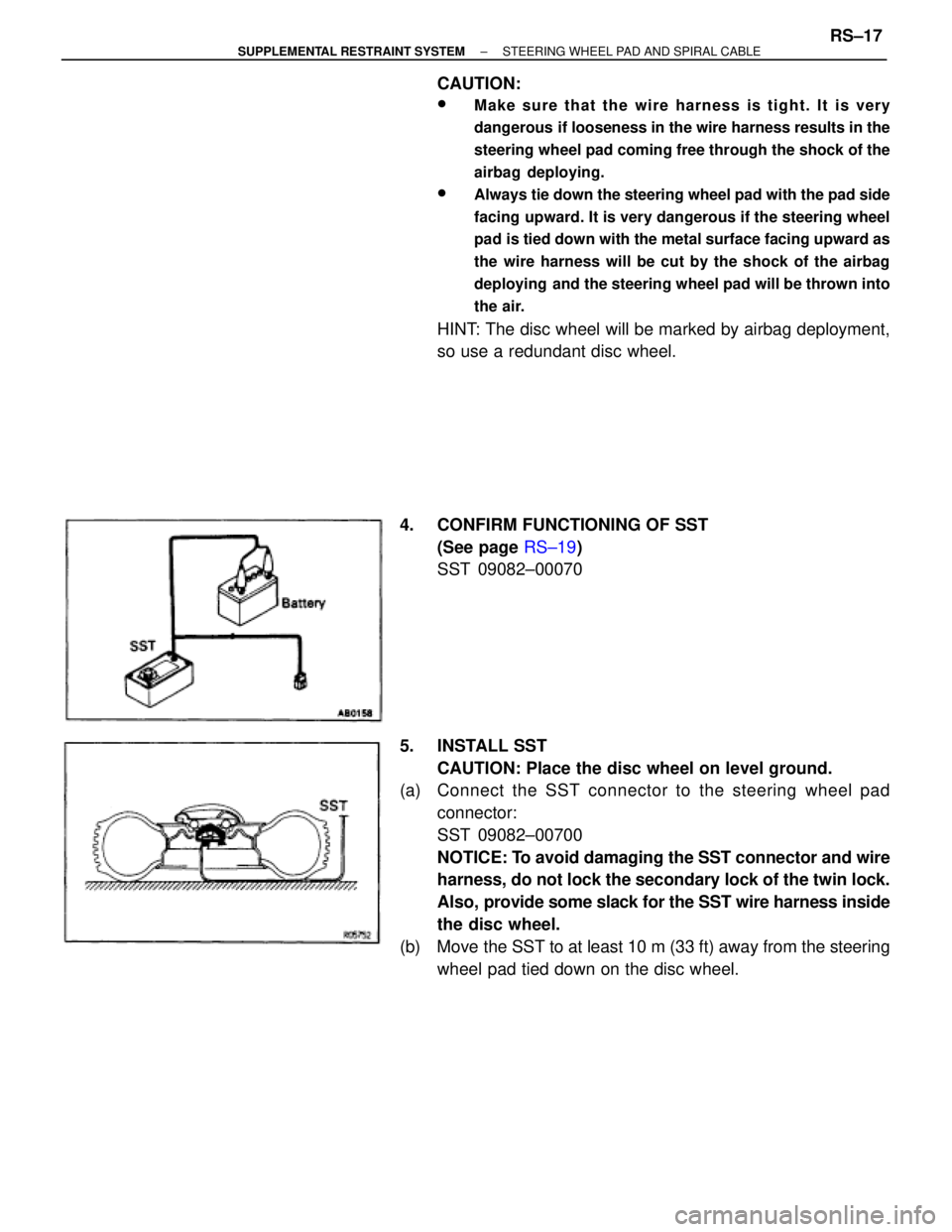

4. CONFIRM FUNCTIONING OF SST
(See page RS±19)
SST 09082±00070
5. INSTALL SST
CAUTION: Place the disc wheel on level ground.
(a) Connect the SST connector to the steering wheel pad
connector:
SST 09082±00700
NOTICE: To avoid damaging the SST connector and wire
harness, do not lock the secondary lock of the twin lock.
Also, provide some slack for the SST wire harness inside
the disc wheel.
(b) Move the SST to at least 10 m (33 ft) away from the steering
wheel pad tied down on the disc wheel.
± SUPPLEMENTAL RESTRAINT SYSTEMSTEERING WHEEL PAD AND SPIRAL CABLERS±17
Page 1701 of 2543

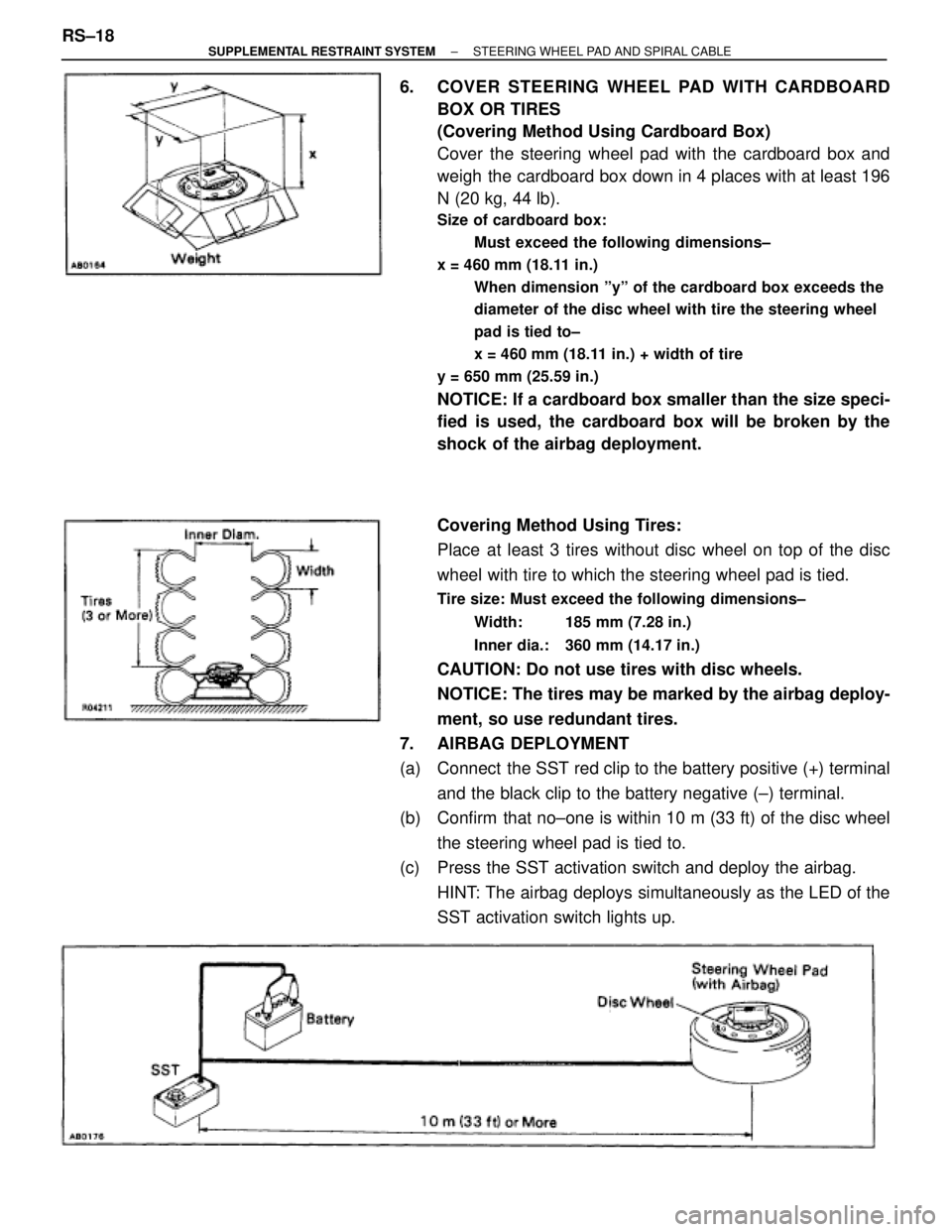

6. COVER STEERING WHEEL PAD WITH CARDBOARD
BOX OR TIRES
(Covering Method Using Cardboard Box)
Cover the steering wheel pad with the cardboard box and
weigh the cardboard box down in 4 places with at least 196
N (20 kg, 44 lb).
Size of cardboard box:
Must exceed the following dimensions±
x = 460 mm (18.11 in.)
When dimension ºyº of the cardboard box exceeds the
diameter of the disc wheel with tire the steering wheel
pad is tied to±
x = 460 mm (18.11 in.) + width of tire
y = 650 mm (25.59 in.)
NOTICE: If a cardboard box smaller than the size speci-
fied is used, the cardboard box will be broken by the
shock of the airbag deployment.
Covering Method Using Tires:
Place at least 3 tires without disc wheel on top of the disc
wheel with tire to which the steering wheel pad is tied.
Tire size: Must exceed the following dimensions±
Width: 185 mm (7.28 in.)
Inner dia.: 360 mm (14.17 in.)
CAUTION: Do not use tires with disc wheels.
NOTICE: The tires may be marked by the airbag deploy-
ment, so use redundant tires.
7. AIRBAG DEPLOYMENT
(a) Connect the SST red clip to the battery positive (+) terminal
and the black clip to the battery negative (±) terminal.
(b) Confirm that no±one is within 10 m (33 ft) of the disc wheel
the steering wheel pad is tied to.
(c) Press the SST activation switch and deploy the airbag.
HINT: The airbag deploys simultaneously as the LED of the
SST activation switch lights up. RS±18
± SUPPLEMENTAL RESTRAINT SYSTEMSTEERING WHEEL PAD AND SPIRAL CABLE
Page 1702 of 2543

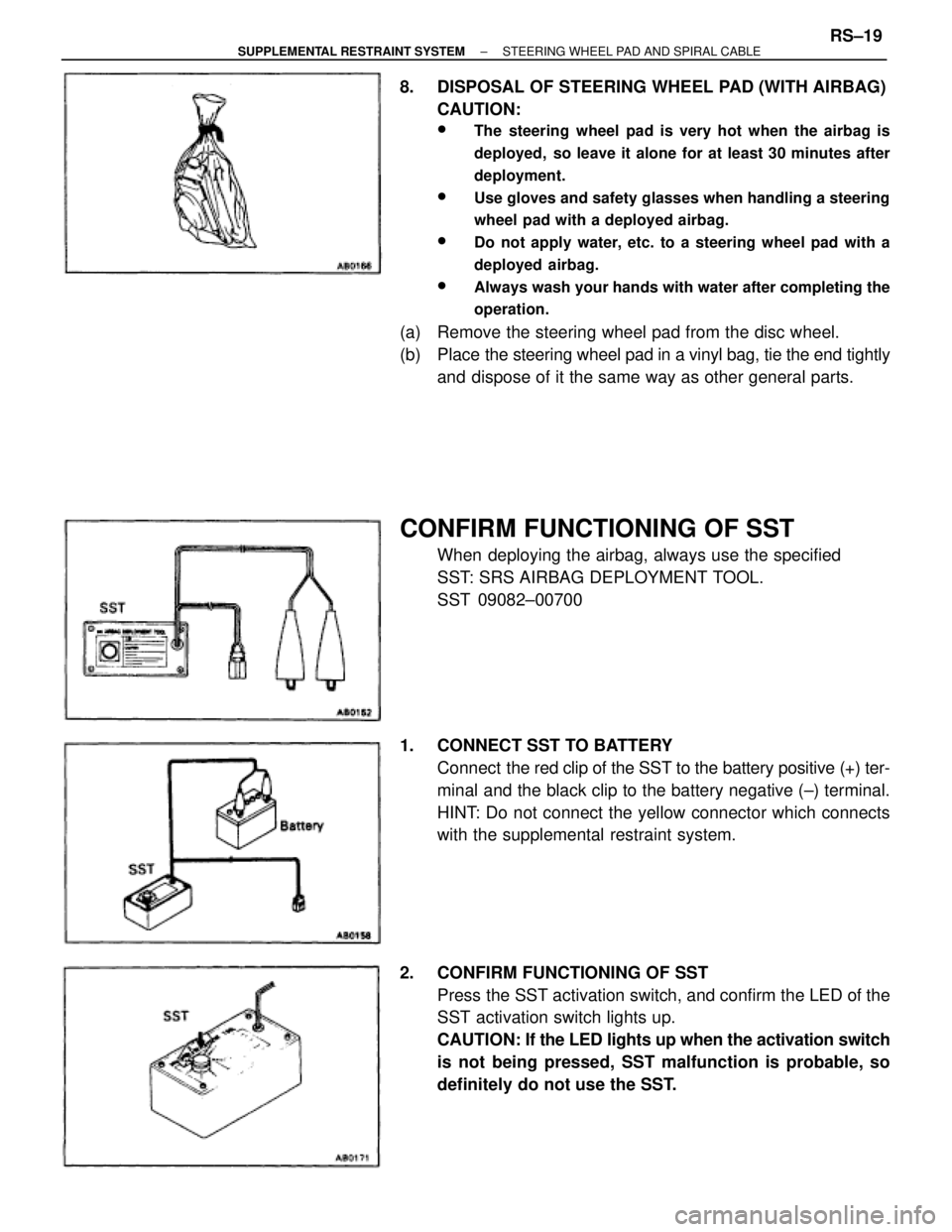

8. DISPOSAL OF STEERING WHEEL PAD (WITH AIRBAG)
CAUTION:
wThe steering wheel pad is very hot when the airbag is
deployed, so leave it alone for at least 30 minutes after
deployment.
wUse gloves and safety glasses when handling a steering
wheel pad with a deployed airbag.
wDo not apply water, etc. to a steering wheel pad with a
deployed airbag.
wAlways wash your hands with water after completing the
operation.
(a) Remove the steering wheel pad from the disc wheel.
(b) Place the steering wheel pad in a vinyl bag, tie the end tightly
and dispose of it the same way as other general parts.
CONFIRM FUNCTIONING OF SST
When deploying the airbag, always use the specified
SST: SRS AIRBAG DEPLOYMENT TOOL.
SST 09082±00700
1. CONNECT SST TO BATTERY
Connect the red clip of the SST to the battery positive (+) ter-
minal and the black clip to the battery negative (±) terminal.
HINT: Do not connect the yellow connector which connects
with the supplemental restraint system.
2. CONFIRM FUNCTIONING OF SST
Press the SST activation switch, and confirm the LED of the
SST activation switch lights up.
CAUTION: If the LED lights up when the activation switch
is not being pressed, SST malfunction is probable, so
definitely do not use the SST.
± SUPPLEMENTAL RESTRAINT SYSTEMSTEERING WHEEL PAD AND SPIRAL CABLERS±19
Page 1703 of 2543

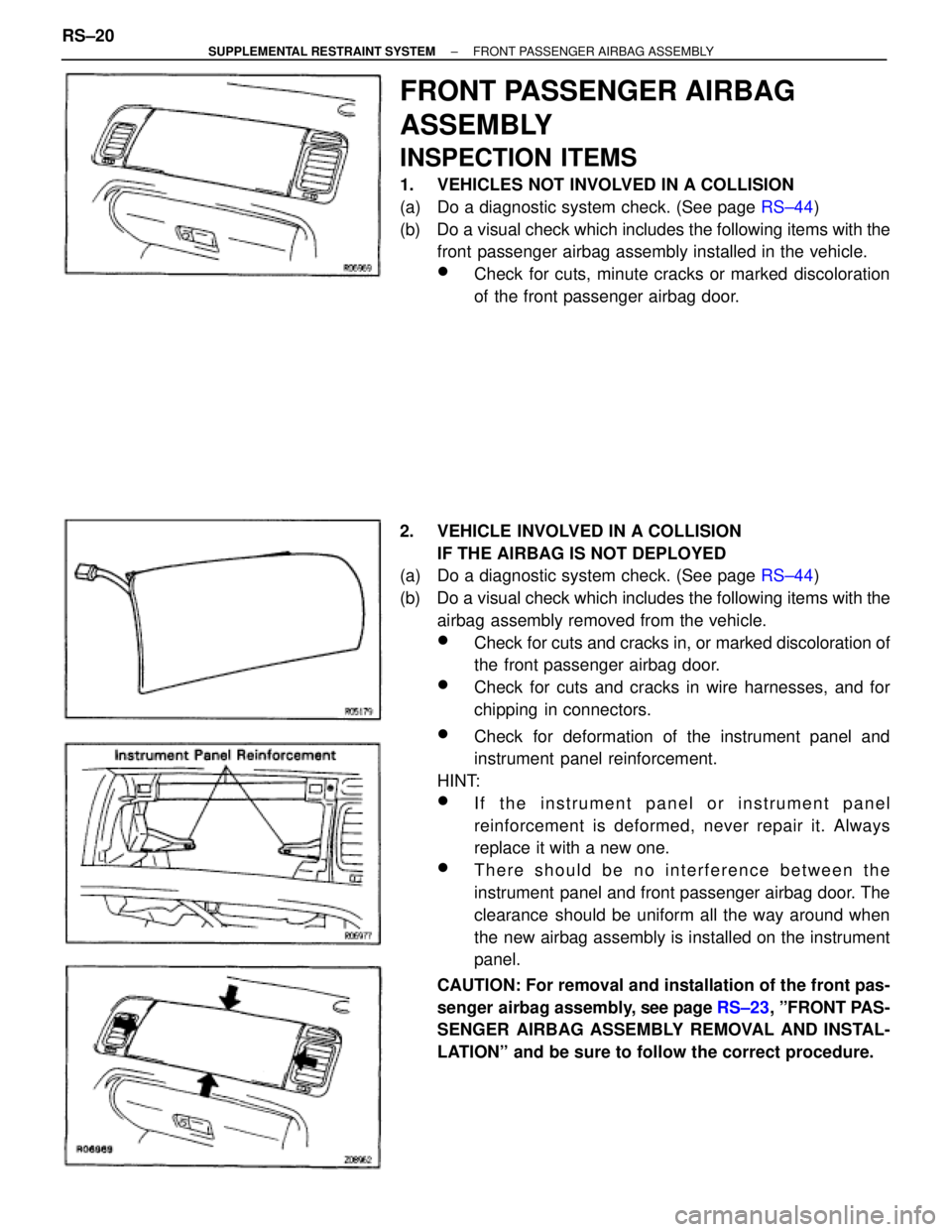

FRONT PASSENGER AIRBAG
ASSEMBLY
INSPECTION ITEMS
1. VEHICLES NOT INVOLVED IN A COLLISION
(a) Do a diagnostic system check. (See page RS±44)
(b) Do a visual check which includes the following items with the
front passenger airbag assembly installed in the vehicle.
wCheck for cuts, minute cracks or marked discoloration
of the front passenger airbag door.
2. VEHICLE INVOLVED IN A COLLISION
IF THE AIRBAG IS NOT DEPLOYED
(a) Do a diagnostic system check. (See page RS±44)
(b) Do a visual check which includes the following items with the
airbag assembly removed from the vehicle.
wCheck for cuts and cracks in, or marked discoloration of
the front passenger airbag door.
wCheck for cuts and cracks in wire harnesses, and for
chipping in connectors.
wCheck for deformation of the instrument panel and
instrument panel reinforcement.
HINT:
wIf the instrument panel or instrument panel
reinforcement is deformed, never repair it. Always
replace it with a new one.
wThere should be no interference between the
instrument panel and front passenger airbag door. The
clearance should be uniform all the way around when
the new airbag assembly is installed on the instrument
panel.
CAUTION: For removal and installation of the front pas-
senger airbag assembly, see page RS±23, ºFRONT PAS-
SENGER AIRBAG ASSEMBLY REMOVAL AND INSTAL-
LATIONº and be sure to follow the correct procedure. RS±20
± SUPPLEMENTAL RESTRAINT SYSTEMFRONT PASSENGER AIRBAG ASSEMBLY
Page 1704 of 2543

IF THE AIRBAG IS DEPLOYED
(a) Do a diagnostic system check. (See page RS±44)
(b) Do a visual check which includes the following items with the
airbag assembly removed from vehicle.
wCheck for deformation of the instrument panel and
instrument panel reinforcement.
wCheck for damage to the connector and wire harness.
HINT:
wIf the instrument panel or instrument panel
reinforcement is deformed, never repair it. Always
replace it with a new one.
wThere should be no interference between the
instrument panel and front passenger airbag door. The
clearance should be uniform all the way around when
the new airbag assembly is installed on the instrument
panel.
REPLACEMENT REQUIREMENTS
In the following case, replace the front passenger airbag as-
sembly, instrument panel and instrument panel reinforce-
ment.
wIf the airbag has been deployed.
wIf the front passenger airbag assembly has been found
to be faulty in troubleshooting.
wIf the front passenger airbag assembly, instrument
panel or instrument panel reinforcement has been
found to be faulty during the check in items 1±(b) or
2±(b).
wIf the front passenger airbag assembly has been
dropped.
CAUTION: For replacement of the front passenger airbag
assembly, see page RS±23, ªFRONT PASSENGER AIR-
BAG ASSEMBLY REMOVAL AND INSTALLATIONº and
be sure to follow the correct procedure.
± SUPPLEMENTAL RESTRAINT SYSTEMFRONT PASSENGER AIRBAG ASSEMBLYRS±21
