1995 TOYOTA SUPRA Service Repair Manual

Load previous 8 pages

Page 865 of 2543

TOYOTA SUPRA 1995 Service Repair Manual (p) Deck trim side service hole cover
(q) Roof side inner garnish
(r) Removable roof (Sport roof)
(s) Assist grip
(t) Front pillar garnish
(u) Interior light
(v) Sunvisor and holder BO±60
± BOD

Page 866 of 2543

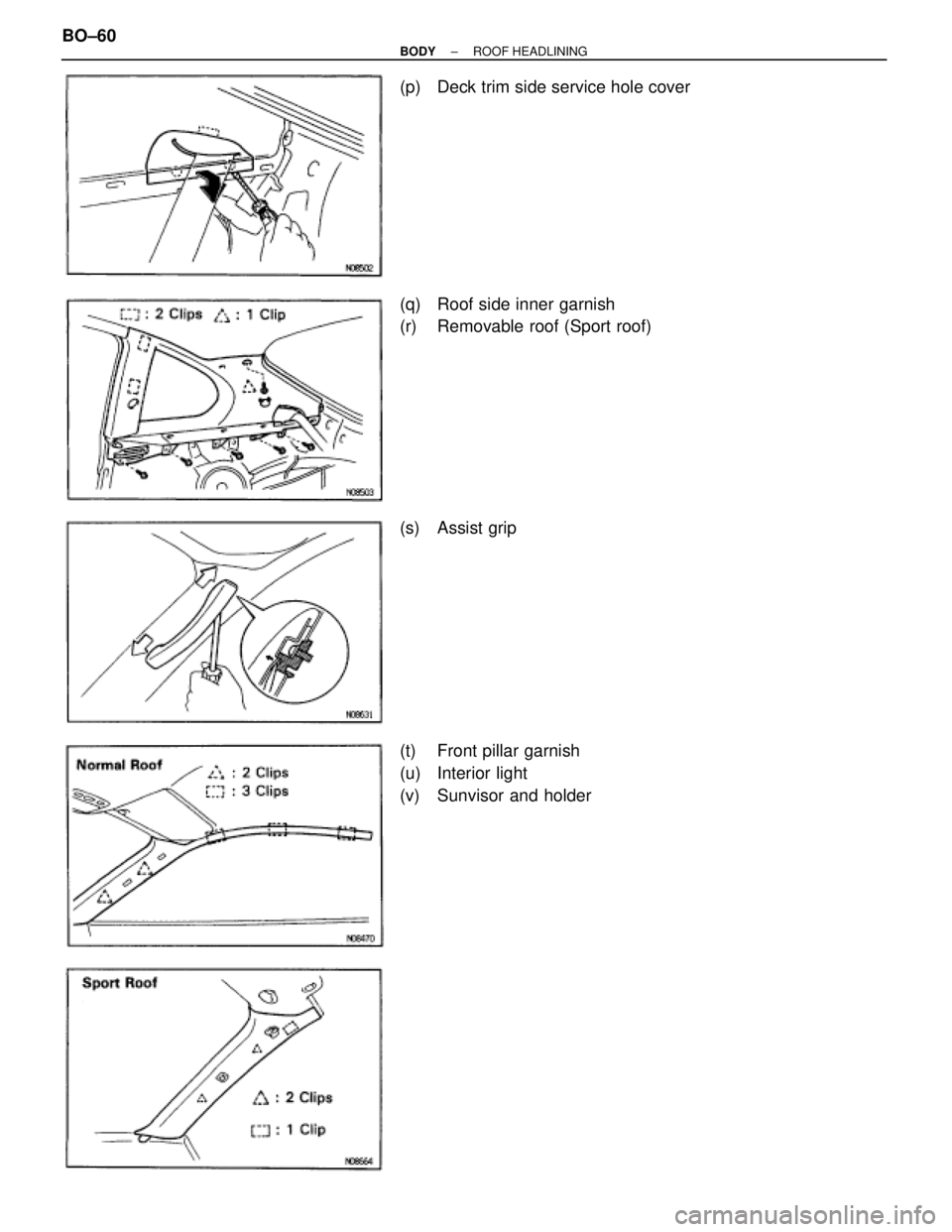

TOYOTA SUPRA 1995 Service Repair Manual 2. REMOVE ROOF HEADLINING
(a) Using a clip remover, remove the 2 clips.
(b) Normal roof±Remove the roof headlining.
3. SPORT ROOF:
REMOVE ROOF HEADLINING
(a) Remove the rear roof headlining.
(b)

Page 867 of 2543

TOYOTA SUPRA 1995 Service Repair Manual ROOF HEADLINING INSTALLATION
Installation is in the reverse order of removal.
HINT: Torque these parts:
(a) Front seat belt shoulder anchor bolt
Torque: 43 NVm (440 kgfVcm, 32 ftVlbf)
(b) Front seat

Page 868 of 2543

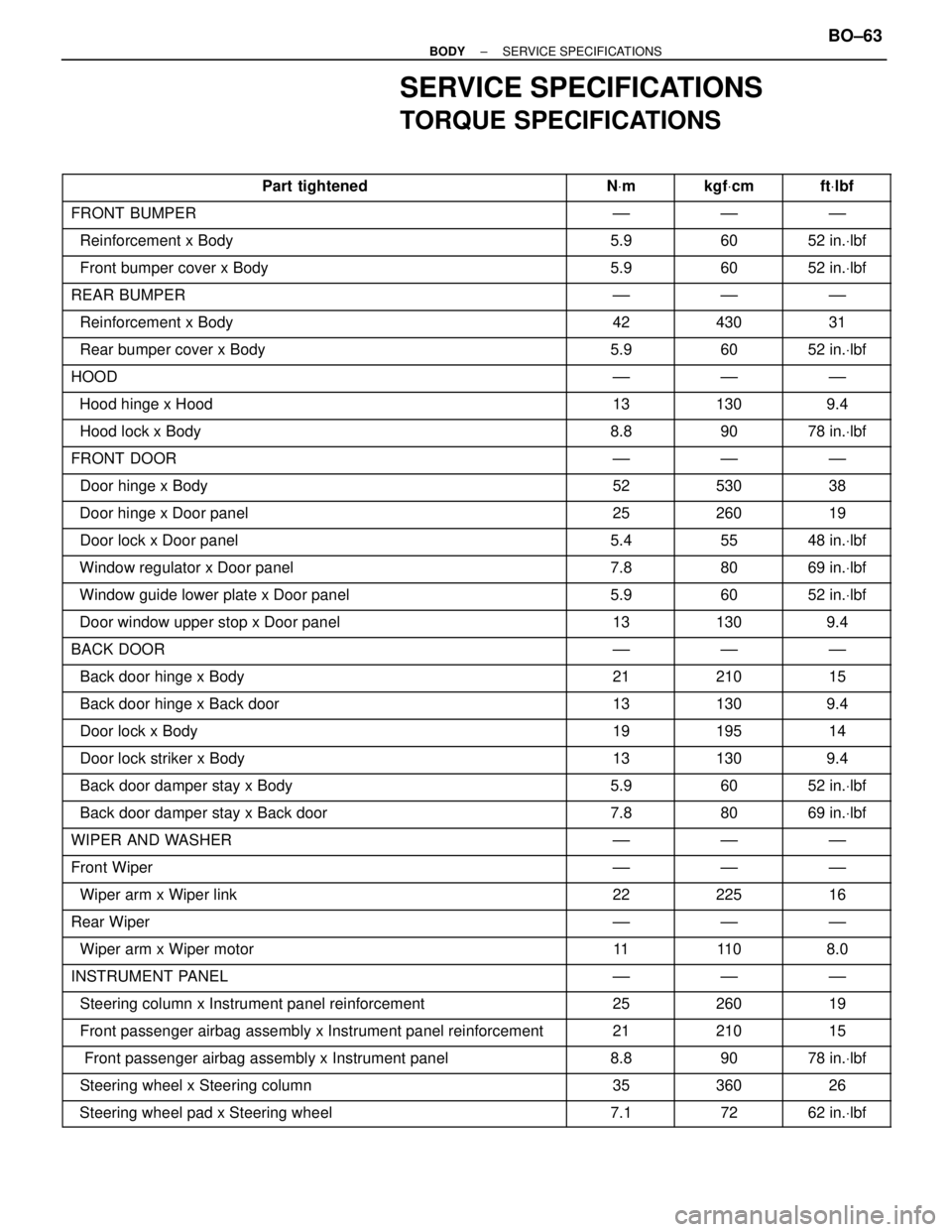

TOYOTA SUPRA 1995 Service Repair Manual SERVICE SPECIFICATIONS
TORQUE SPECIFICATIONS
Part tightened NVm kgfVcm ftVlbf

SERVICE SPECIFICATIONS
TORQUE SPECIFICATIONS
Part tightened NVm kgfVcm ftVlbf
FRONT BUMPER ±± ±± ±±
Reinforcement x Body 5.9 60 52 in.Vlbf
Front bumper cover x Body 5.9 60 52 in.Vlbf REAR BUMPER ±± ±± ±±
Reinforcement x Body

42

430

31
Rear bumper cover x Body 5.9 60 52 in.Vlbf
HOOD ±± ±± ±±
Hood hinge x Hood 13 130 9.4
Hood lock x Body 8.8 90 78 in.Vlbf
FRONT DOOR ±± ±± ±± Door hinge x Body 52 530 38
Door hinge x Door panel

25

260

19
Door lock x Door panel 5.4 55 48 in.Vlbf
Window regulator x Door panel 7.8 80 69 in.Vlbf
Window guide lower plate x Door panel 5.9 60 52 in.Vlbf
Door window upper stop x Door panel 13 130 9.4
BACK DOOR ±± ±± ±± Back door hinge x Body 21 210 15
Back door hinge x Back door

13

130

9.4
Door lock x Body 19 195 14
Door lock striker x Body 13 130 9.4
Back door damper stay x Body 5.9 60 52 in.Vlbf
Back door damper stay x Back door 7.8 80 69 in.Vlbf
WIPER AND WASHER ±± ±± ±± Front Wiper ±± ±± ±±
Wiper arm x Wiper link

22

225

16
Rear Wiper ±± ±± ±±
Wiper arm x Wiper motor 11 11 0 8.0
INSTRUMENT PANEL ±± ±± ±±
Steering column x Instrument panel reinforcement 25 260 19
Front passenger airbag assembly x Instrument panel reinforcement 21 210 15 Front passenger airbag assembly x Instrument panel 8.8 90 78 in.Vlbf
Steering wheel x Steering column
35
360
26
Steering wheel pad x Steering wheel 7.1 72 62 in.Vlbf
± BODYSERVICE SPECIFICATIONSBO±63

Page 869 of 2543

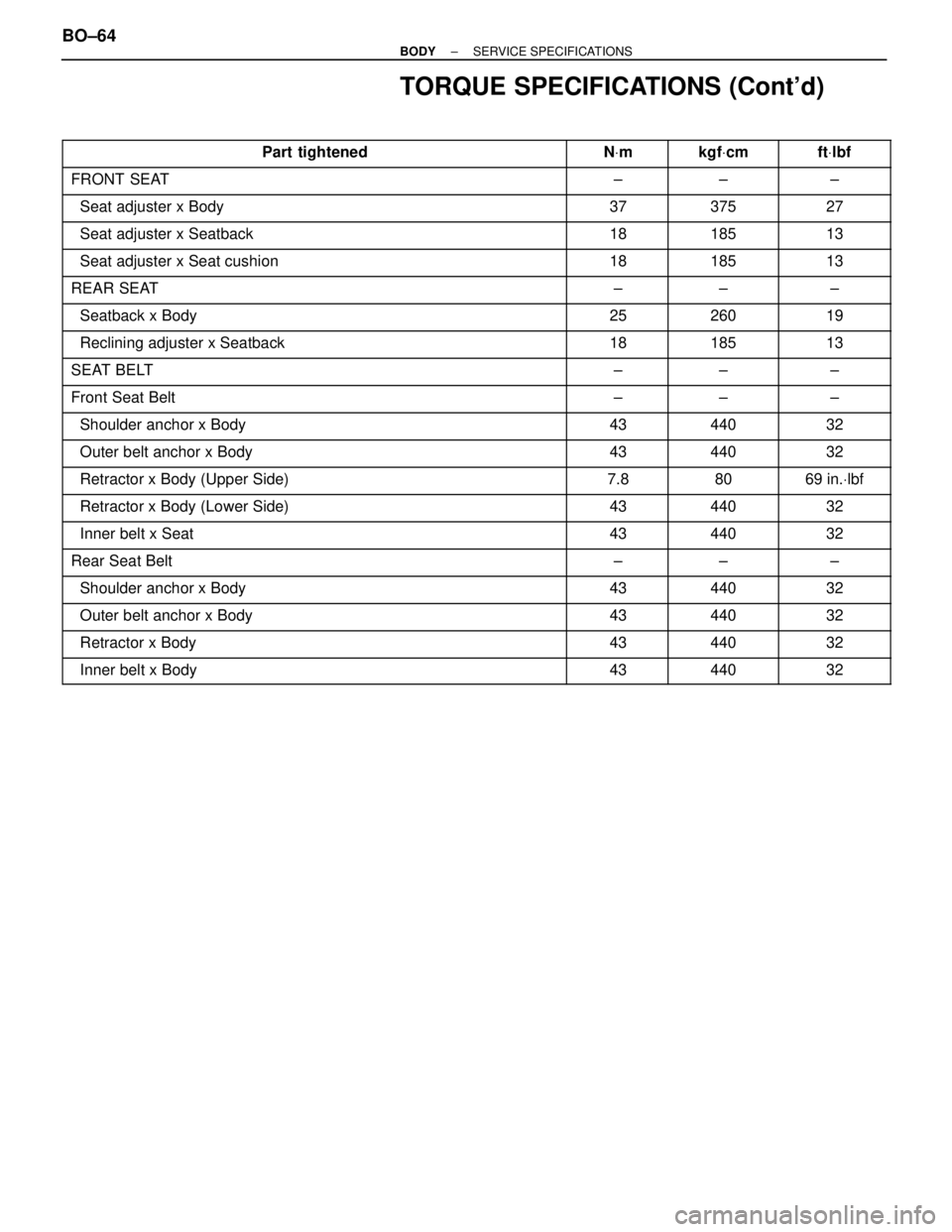

TOYOTA SUPRA 1995 Service Repair Manual TORQUE SPECIFICATIONS (Contd)
Part tightened NVm kgfVcm ftVlbf

TORQUE SPECIFICATIONS (Cont'd)
Part tightened NVm kgfVcm ftVlbf
FRONT SEAT

±

±

±
Seat adjuster x Body 37 375 27
Seat adjuster x Seatback 18 185 13
Seat adjuster x Seat cushion 18 185 13
REAR SEAT ± ± ±
Seatback x Body 25 260 19 Reclining adjuster x Seatback 18 185 13
SEAT BELT

±

±

±
Front Seat Belt ± ± ±
Shoulder anchor x Body 43 440 32
Outer belt anchor x Body 43 440 32
Retractor x Body (Upper Side) 7.8 80 69 in.Vlbf
Retractor x Body (Lower Side) 43 440 32 Inner belt x Seat 43 440 32
Rear Seat Belt

±

±

±
Shoulder anchor x Body 43 440 32
Outer belt anchor x Body 43 440 32
Retractor x Body 43 440 32
Inner belt x Body 43 440 32
BO±64± BODYSERVICE SPECIFICATIONS

Page 870 of 2543

TOYOTA SUPRA 1995 Service Repair Manual BRAKE SYSTEM
BR±1

Page 871 of 2543

TOYOTA SUPRA 1995 Service Repair Manual GENERAL DESCRIPTION
1. Care must be taken to replace each part properly as it could affect the performance of the brake
system and result in a driving hazard. Replace the parts with parts of the same

Page 872 of 2543

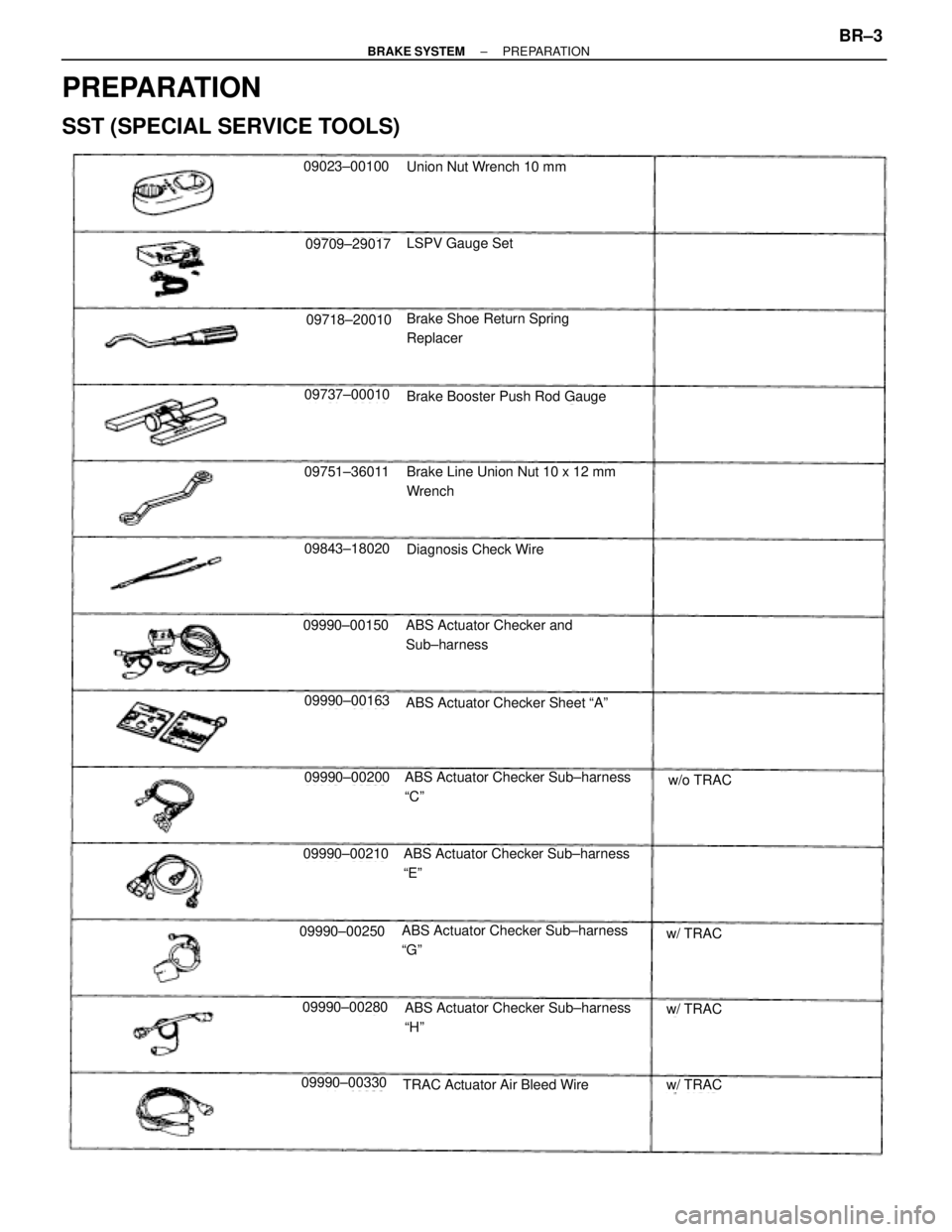

TOYOTA SUPRA 1995 Service Repair Manual PREPARATION
SST (SPECIAL SERVICE TOOLS)
09023±00100
09709±29017
09718±20010
09737±00010
09751±36011
09843±18020
09990±00150
09990±00163
09990±00200
09990±00210
09990±00250
09990±00280
0999
