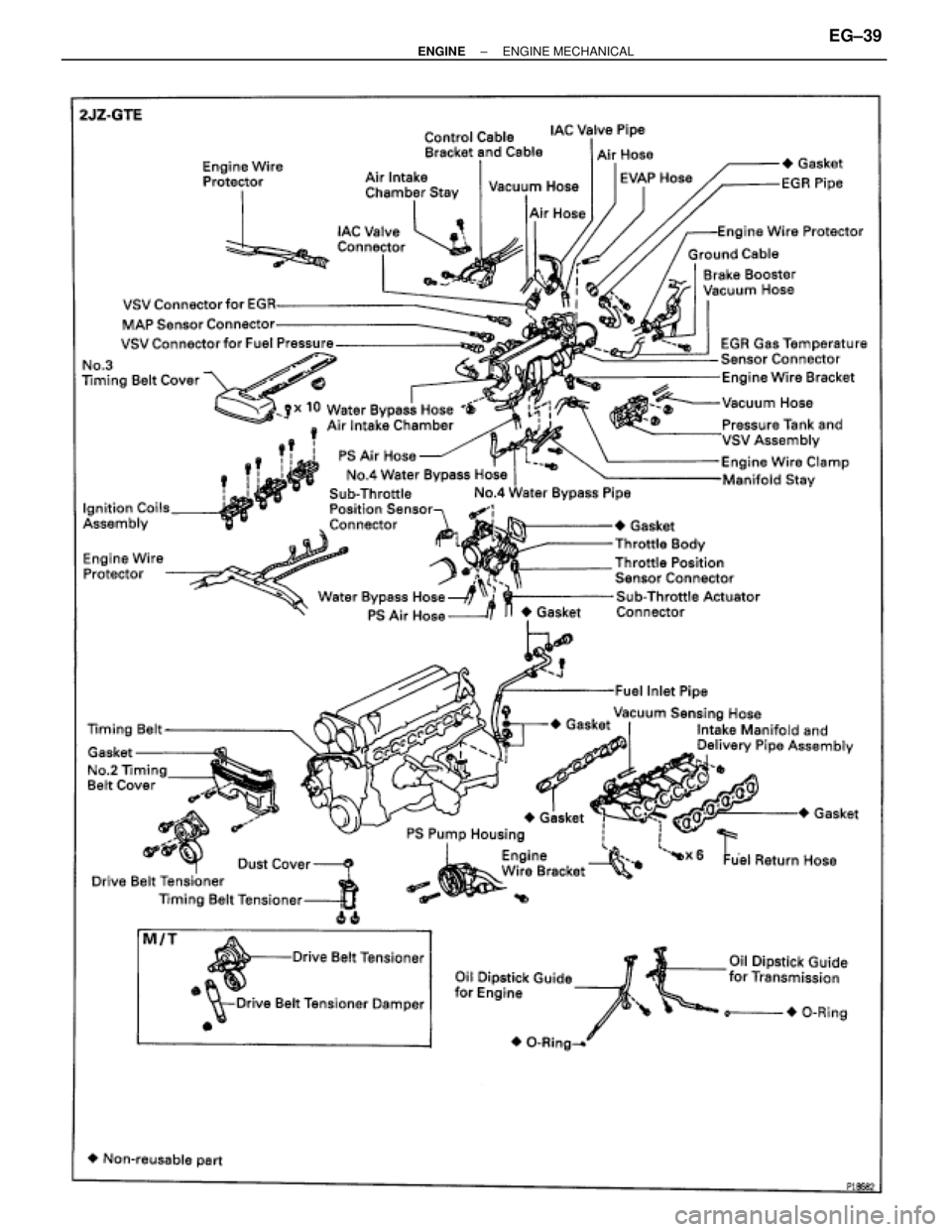

TOYOTA SUPRA 1995 Service Repair Manual ± ENGINEENGINE MECHANICALEG±39

Page 1354 of 2543

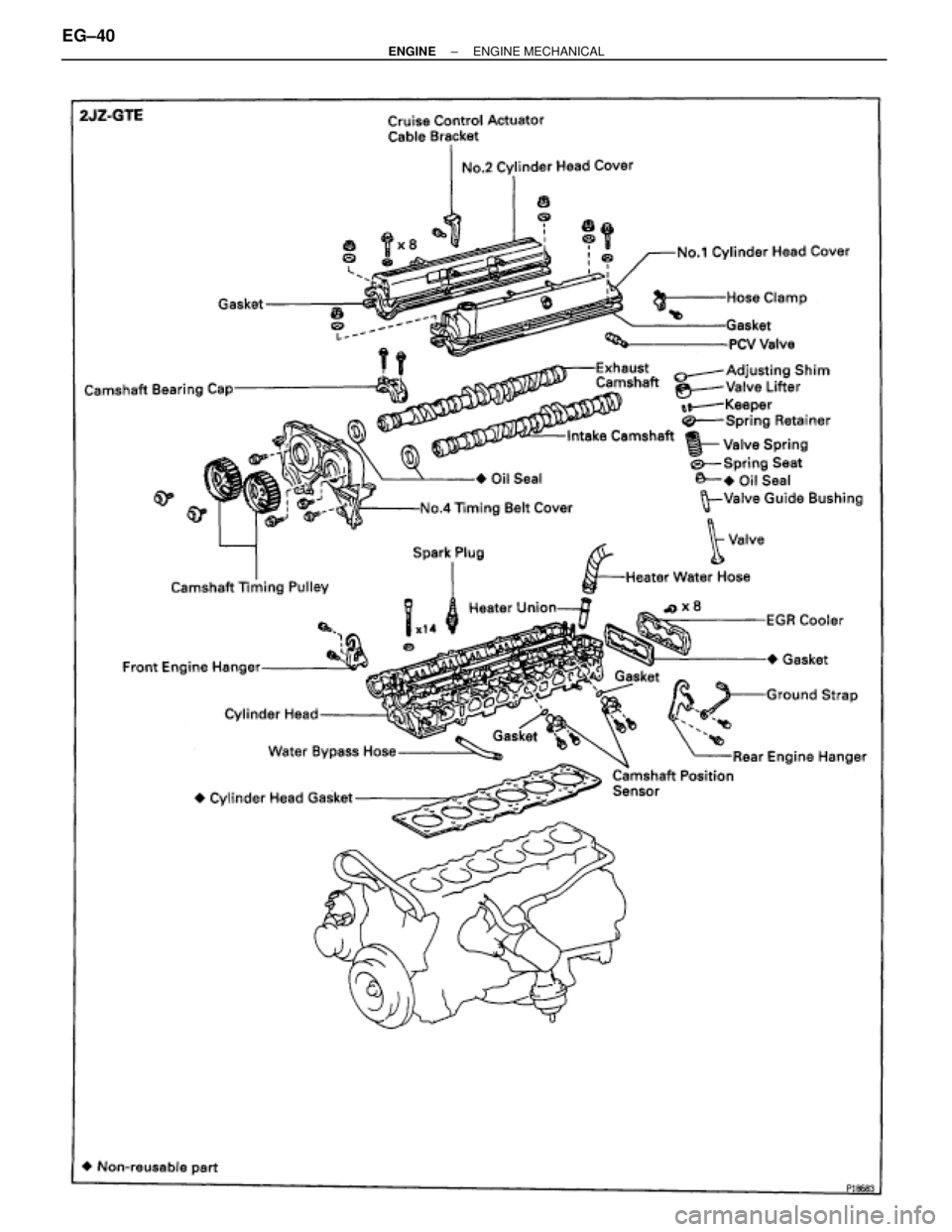

TOYOTA SUPRA 1995 Service Repair Manual EG±40± ENGINEENGINE MECHANICAL

Page 1355 of 2543

TOYOTA SUPRA 1995 Service Repair Manual CYLINDER HEAD REMOVAL (2JZ±GE) 1. REMOVE ENGINE UNDER COVER 2. DRAIN ENGINE COOLANT 3. REMOVE AIR CLEANER DUCT 4. REMOVE AIR CLEANER, VAF METER AND INTAKE AIR CONNECTOR PIPE ASSEMBLY (See step 6

Page 1356 of 2543

TOYOTA SUPRA 1995 Service Repair Manual 12. REMOVE AIR INTAKE CHAMBER STAYS (a) Remove the bolt, nut and No.1 stay. (b) Remove the bolt, nut and No.2 stay. 13. REMOVE NO.2 VACUUM PIPE AND VSV ASSEMBLY 14. REMOVE NO.3 TIMING BELT COVER

Page 1357 of 2543

TOYOTA SUPRA 1995 Service Repair Manual 23. REMOVE OIL DIPSTICK GUIDES FOR ENGINE AND TRANSMISSION (a) Remove the 2 bolts. (b) Pull out the dipstick guide together with the dipstick. (c) Remove the O±ring from the dipstick guide. 24. RE

Page 1358 of 2543

TOYOTA SUPRA 1995 Service Repair Manual (e) Remove the 3 nuts, and disconnect the engine wire protector from the intake manifold. 28. REMOVE WATER OUTLET AND NO.1 BYPASS HOSE ASSEMBLY Remove the 2 nuts, bolt and water outlet. 29. REMOVE

Page 1359 of 2543

TOYOTA SUPRA 1995 Service Repair Manual 33. REMOVE NO.3, NO.1 AND NO.2 CYLINDER HEAD COVERS (a) Remove the PCV valve. (b) Remove the 4 bolts, 4 nuts and No.3 cylinder head cover. (c) Remove the 4 bolts, No.1 cylinder head cover and gask

Page 1360 of 2543

TOYOTA SUPRA 1995 Service Repair Manual (c) Uniformly loosen and remove the 12 bearing cap bolts, in several passes, in the sequence shown, and remove the 6 bearing caps and camshaft. (d) Remove the intake and exhaust camshafts. 37. REMOV
