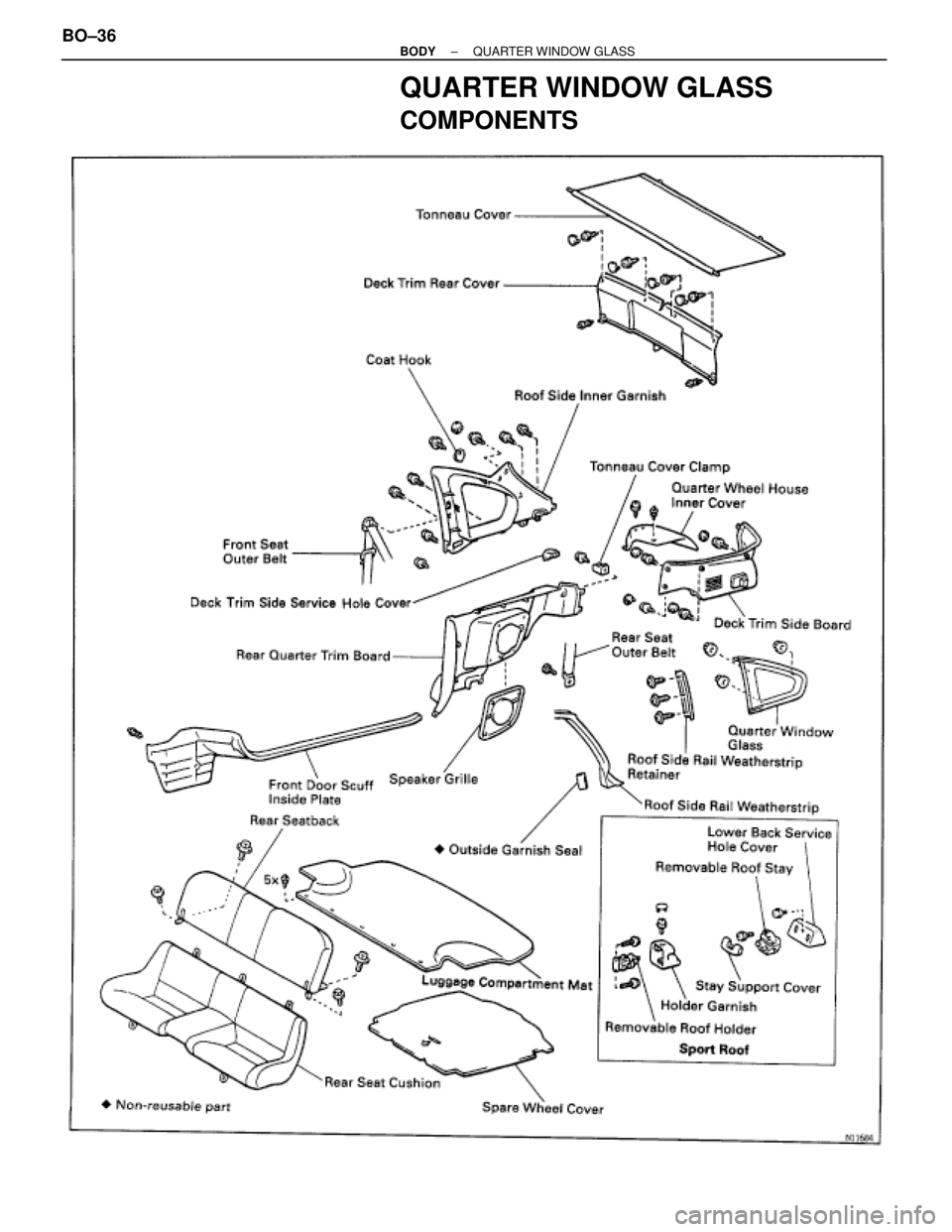

Page 841 of 2543

TOYOTA SUPRA 1995 Service Repair Manual QUARTER WINDOW GLASS COMPONENTS BO±36± BODYQUARTER WINDOW GLASS

Page 842 of 2543

TOYOTA SUPRA 1995 Service Repair Manual QUARTER WINDOW GLASS REMOVAL 1. REMOVE THESE PARTS: (See pages BO±59 to BO±61) (a) Tonneau cover (b) Luggage compartment mat (c) Spare wheel cover (d) Rear seatback (e) Removable roof stay RH and LH

Page 843 of 2543

TOYOTA SUPRA 1995 Service Repair Manual (b) Push piano wire through from the interior. (c) Tie both wire ends to a wooden block or similar object. HINT: Apply adhesive tape to the outer surface to keep the surface from being scratched. NO

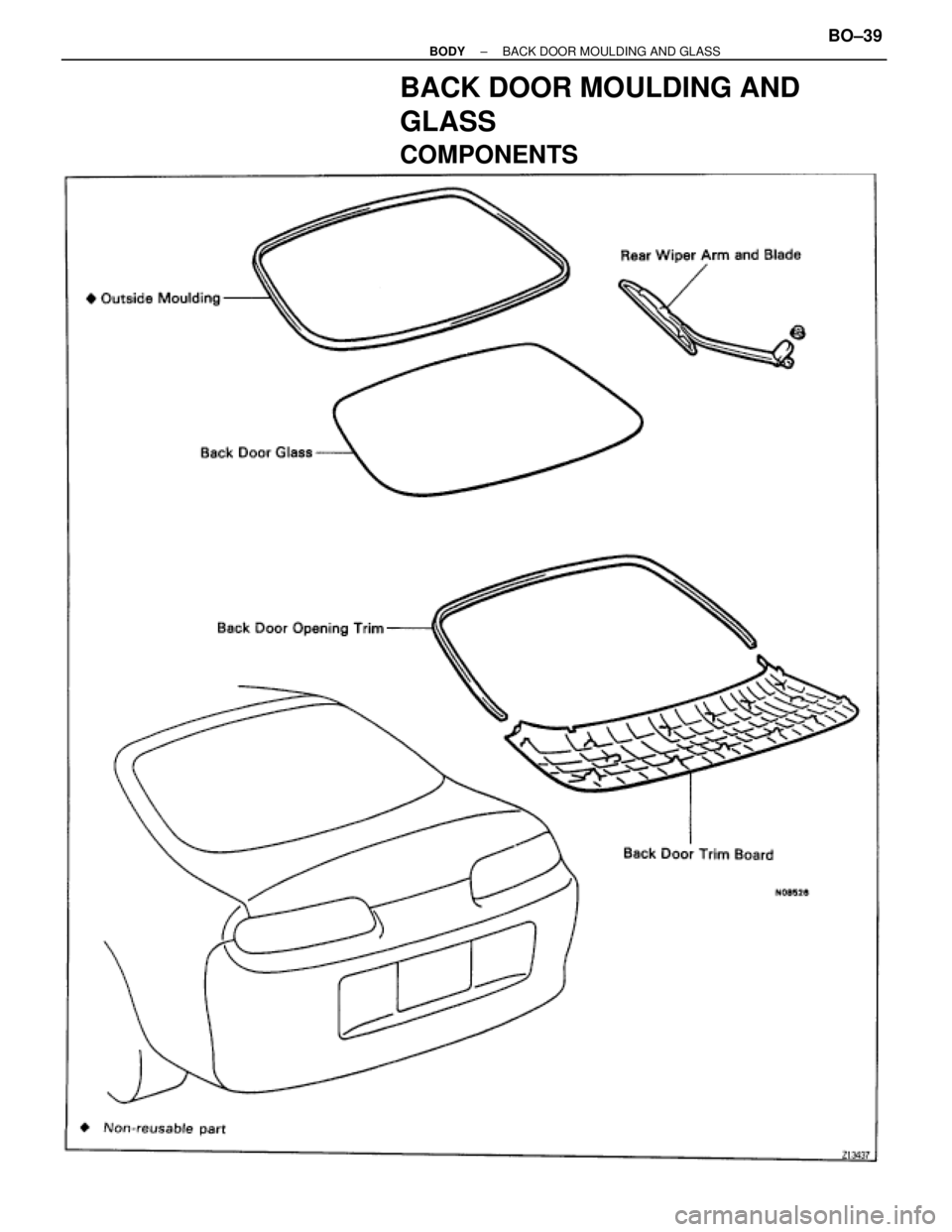

Page 844 of 2543

TOYOTA SUPRA 1995 Service Repair Manual BACK DOOR MOULDING AND GLASS COMPONENTS ± BODYBACK DOOR MOULDING AND GLASSBO±39

Page 845 of 2543

TOYOTA SUPRA 1995 Service Repair Manual BACK DOOR MOULDING AND GLASS REMOVAL 1. DISCONNECT DEFOGGER CONNECTOR 2. REMOVE THESE PARTS: (a) Rear wiper arm and blade (b) Back door trim board (c) Back door opening trim 3. REMOVE BACK DOOR

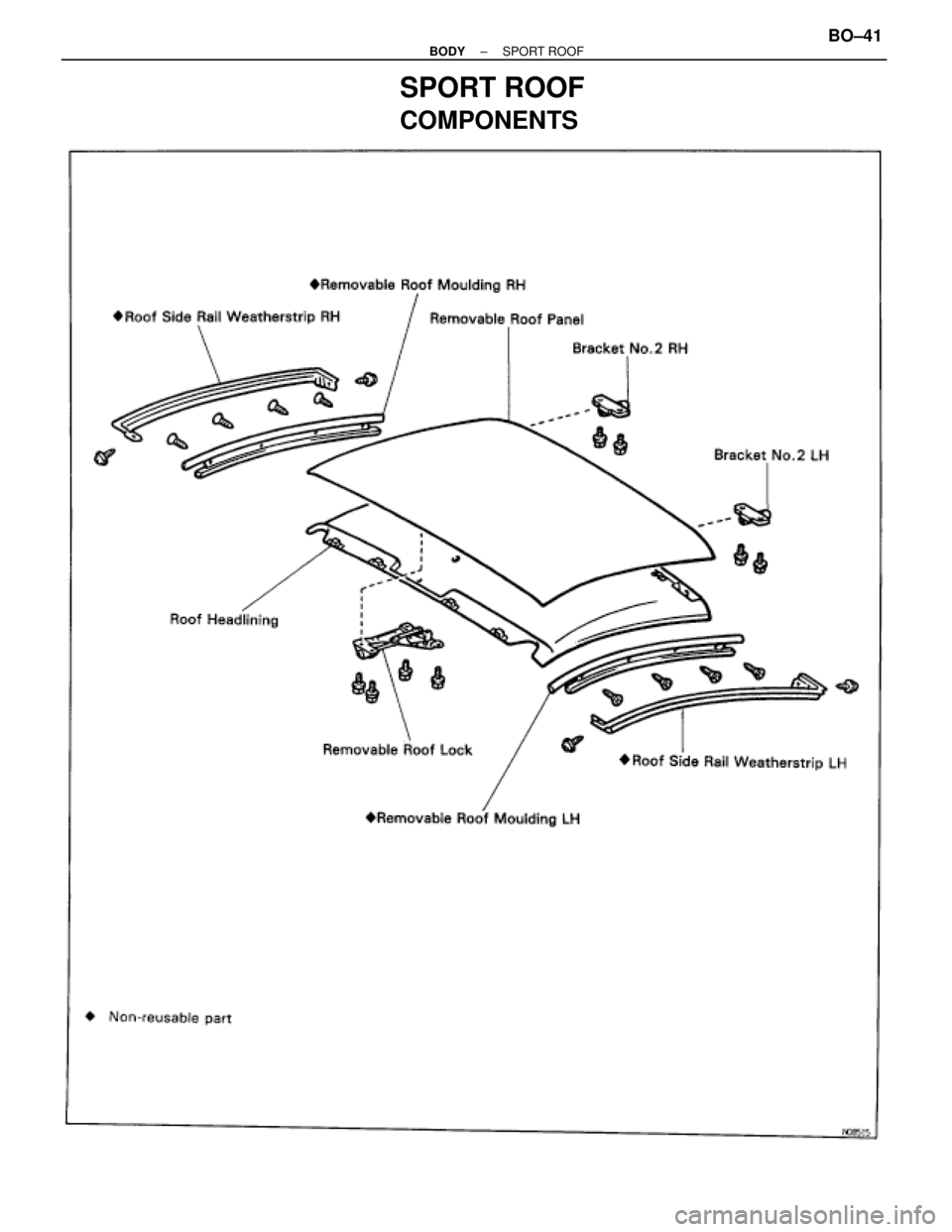

Page 846 of 2543

TOYOTA SUPRA 1995 Service Repair Manual SPORT ROOF COMPONENTS ± BODYSPORT ROOFBO±41

Page 847 of 2543

TOYOTA SUPRA 1995 Service Repair Manual ON±VEHICLE INSPECTION INSPECT REMOVABLE ROOF PANEL ALIGNMENT (a) With the removable roof installed, check for water leakage. (b) Check for a difference in clearance and level between the removable

Page 848 of 2543

TOYOTA SUPRA 1995 Service Repair Manual 2. ADJUST CLEARANCE Adjust the removable roof bracket by loosening the remov- able roof bracket bolts. If the clearance is not within specification, repair the body panel. 3. ADJUST LEVEL Select the s
