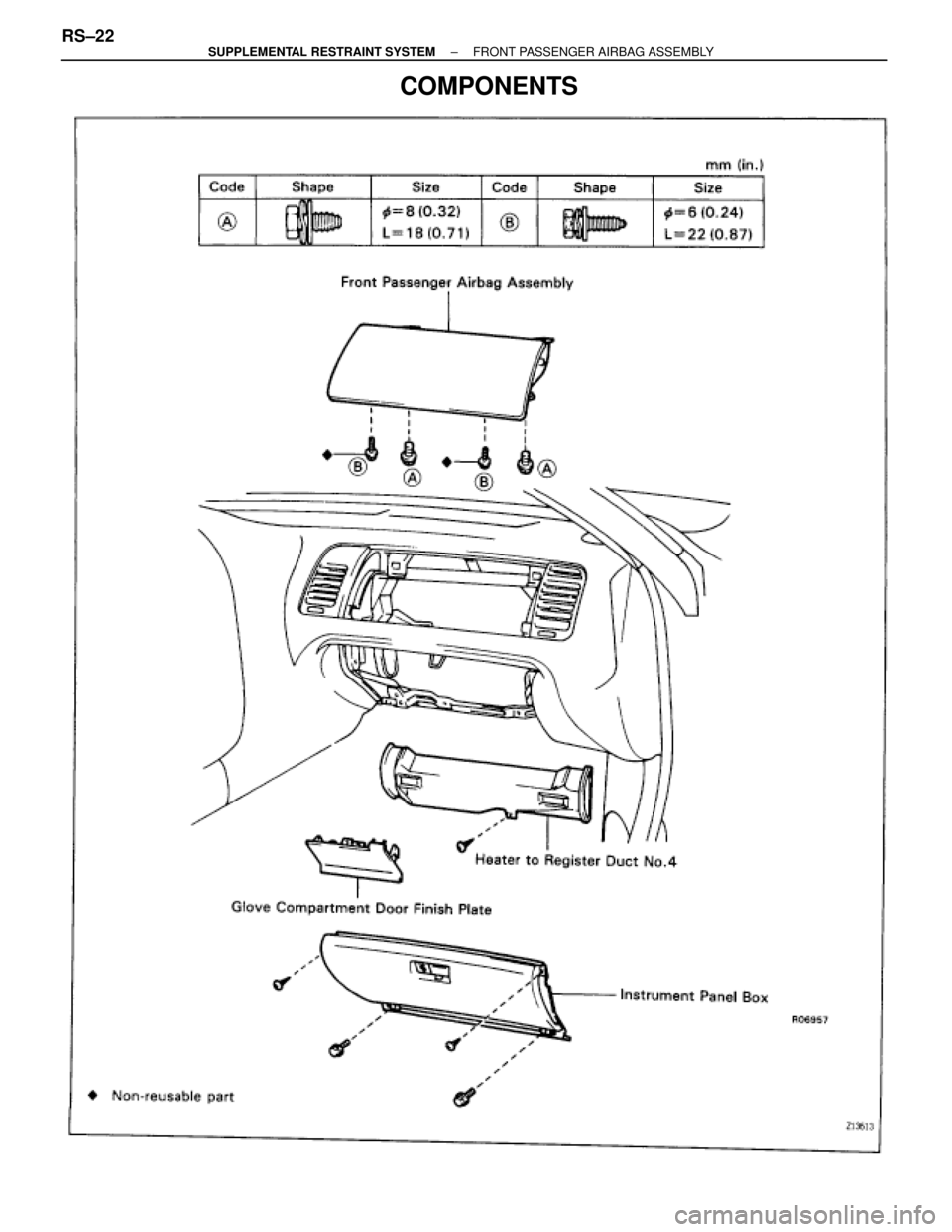

Page 1705 of 2543

TOYOTA SUPRA 1995 Service Repair Manual COMPONENTS RS±22± SUPPLEMENTAL RESTRAINT SYSTEMFRONT PASSENGER AIRBAG ASSEMBLY

Page 1706 of 2543

TOYOTA SUPRA 1995 Service Repair Manual FRONT PASSENGER AIRBAG ASSEMBLY REMOVAL AND INSTALLATION NOTICE: wIf the wiring connector of the SRS is disconnected with the ignition switch at ON or ACC, diagnostic trouble codes will be recorded. w

Page 1707 of 2543

TOYOTA SUPRA 1995 Service Repair Manual wIf the front passenger airbag assembly has been dropped, or there are cracks, dents or other defects in the case or connector, replace the front passenger airbag assembly with a new one. wAdhesive h

Page 1708 of 2543

TOYOTA SUPRA 1995 Service Repair Manual FRONT PASSENGER AIRBAG ASSEMBLY DISPOSAL When scrapping vehicles equipped with an SRS or disposing of a front passenger airbag assembly, always first deploy the airbag in accordance with the procedure

Page 1709 of 2543

TOYOTA SUPRA 1995 Service Repair Manual When scrapping vehicle HINT: Have a battery ready as the power source to deploy the airbag. 1. CONFIRM FUNCTIONING OF SST (See page RS±19) SST 09082±00700 2. DISCONNECT AIRBAG CONNECTOR (a) Remove

Page 1710 of 2543

TOYOTA SUPRA 1995 Service Repair Manual 5. DISPOSAL OF FRONT PASSENGER AIRBAG ASSEMBLY CAUTION: wThe front passenger airbag assembly is very hot when the airbag is deployed, so leave it alone for at least 30 minutes after deployment. wUse g

Page 1711 of 2543

TOYOTA SUPRA 1995 Service Repair Manual CAUTION: If the front passenger airbag assembly is tied down by too thin a wire harness, it may snap. This is highly dangerous. Always use a wire harness which is at least 1.25 mm 2 (0.0019 in.2). (1)

Page 1712 of 2543

TOYOTA SUPRA 1995 Service Repair Manual CAUTION: Make sure that the wire harnesses are tight. It is very dangerous if loose wire harnesses result in the tires coming free due to the shock of the airbag deploy- ing. HINT: Place the SST conne
