Page 49 of 2543

(See page IN±30).
AC±50,

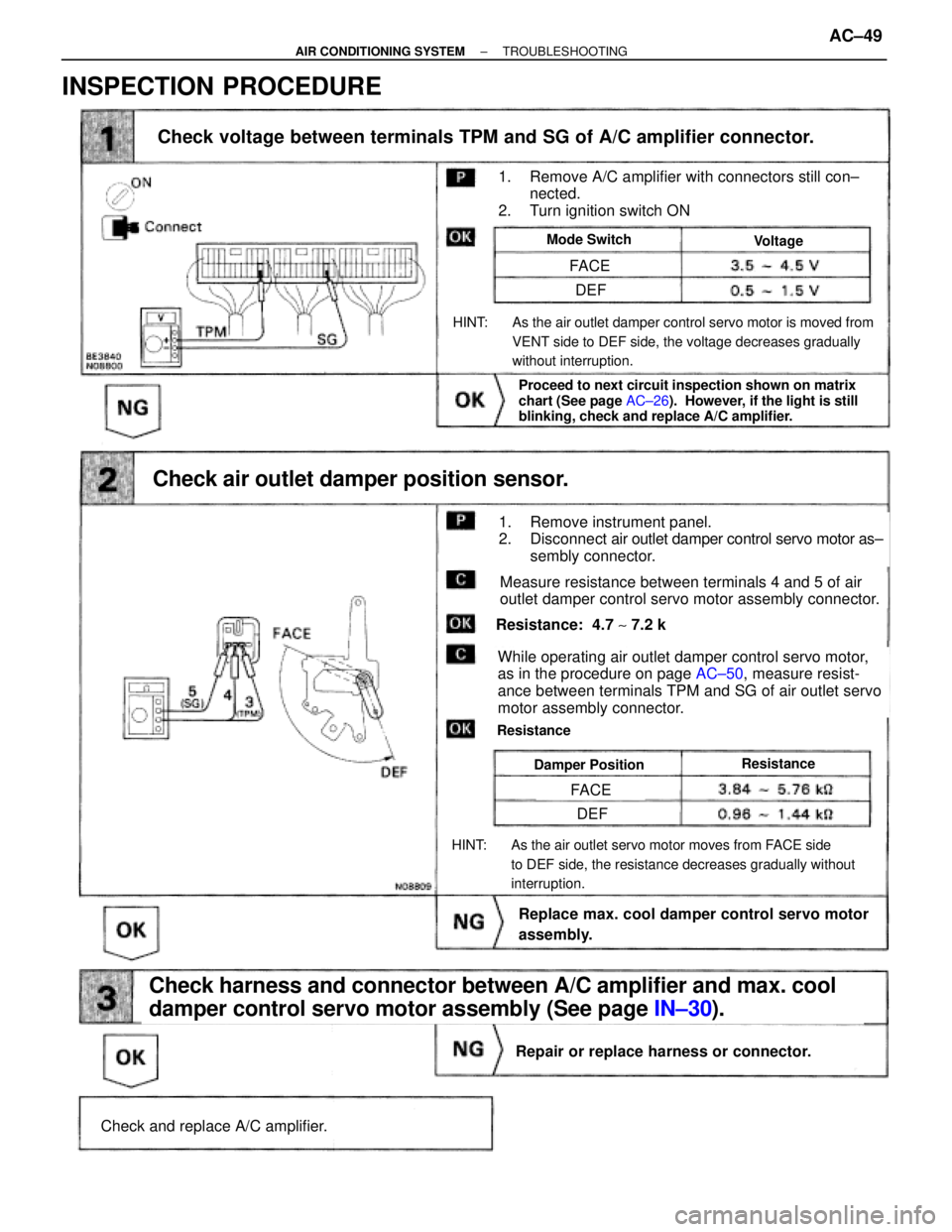

Check voltage between terminals TPM and SG of A/C amplifier connector.
Check and replace A/C amplifier.
Repair or replace harness or connector.
Check harness and connector between A/C amplifier and max. cool
damper control servo motor assembly (See page IN±30).
Replace max. cool damper control servo motor
assembly.
Check air outlet damper position sensor.
Proceed to next circuit inspection shown on matrix
chart (See page AC±26). However, if the light is still
blinking, check and replace A/C amplifier.
ResistanceDamper Position
Resistance: 4.7 ~ 7.2 k
While operating air outlet damper control servo motor,
as in the procedure on page AC±50, measure resist-
ance between terminals TPM and SG of air outlet servo
motor assembly connector.
Resistance
HINT: As the air outlet servo motor moves from FACE side
to DEF side, the resistance decreases gradually without
interruption.
Measure resistance between terminals 4 and 5 of air
outlet damper control servo motor assembly connector.
1. Remove instrument panel.
2. Disconnect air outlet damper control servo motor as±
sembly connector.
HINT: As the air outlet damper control servo motor is moved from
VENT side to DEF side, the voltage decreases gradually
without interruption.
Mode SwitchVoltage
1. Remove A/C amplifier with connectors still con±
nected.
2. Turn ignition switch ON
FACE
FACE
DEF
DEF
INSPECTION PROCEDURE
± AIR CONDITIONING SYSTEMTROUBLESHOOTINGAC±49
Page 50 of 2543
Blinking Light HI Air Outlet Damper Control Servo Motor Circuit

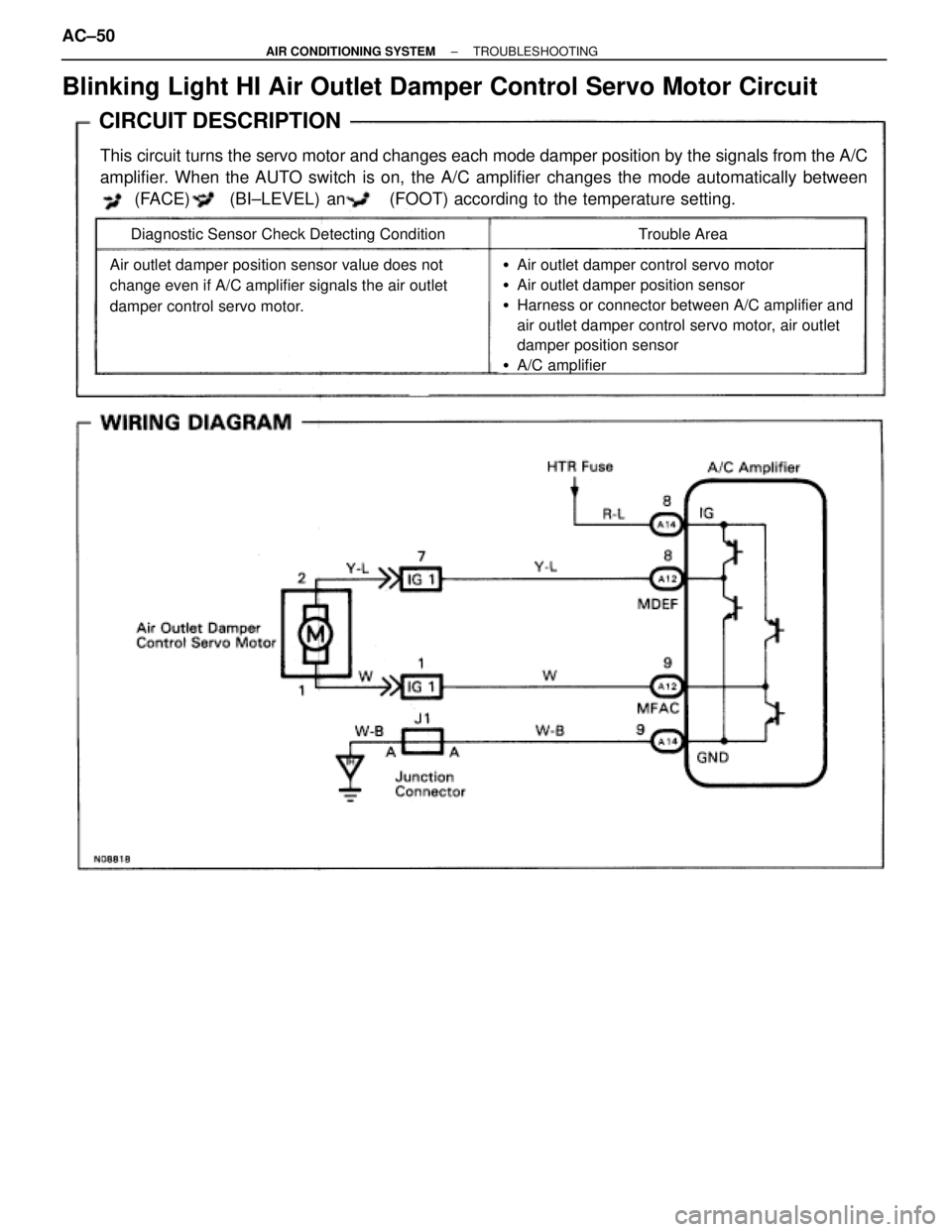

CIRCUIT DESCRIPTION
This circuit turns the servo motor and changes each mode damper position by the signals from the A/C
amplifier. When the AUTO switch is on, the A/C amplifier changes the mode automatically between
(FACE), (BI±LEVEL) and (FOOT) according to the temperature setting.
Trouble AreaDiagnostic Sensor Check Detecting Condition
Air outlet damper control servo motor
Air outlet damper position sensor
Harness or connector between A/C amplifier and
air outlet damper control servo motor, air outlet
damper position sensor
A/C amplifier Air outlet damper position sensor value does not
change even if A/C amplifier signals the air outlet
damper control servo motor.
AC±50± AIR CONDITIONING SYSTEMTROUBLESHOOTING
Page 51 of 2543

INSPECTION PROCEDURE
AC±22).
Check and replace A/C amplifier.
Repair or replace harness or connector.
Check for open and short in harness and connector between A/C amplifier and air outlet damper control
servo motor, air outlet damper control servo motor and battery, air outlet damper control servo motor
and body ground (See page IN±26).
Replace air outlet servo motor.
Check air outlet damper control servo motor.
Proceed to next circuit inspection shown on matrix
chart (See page AC±26).

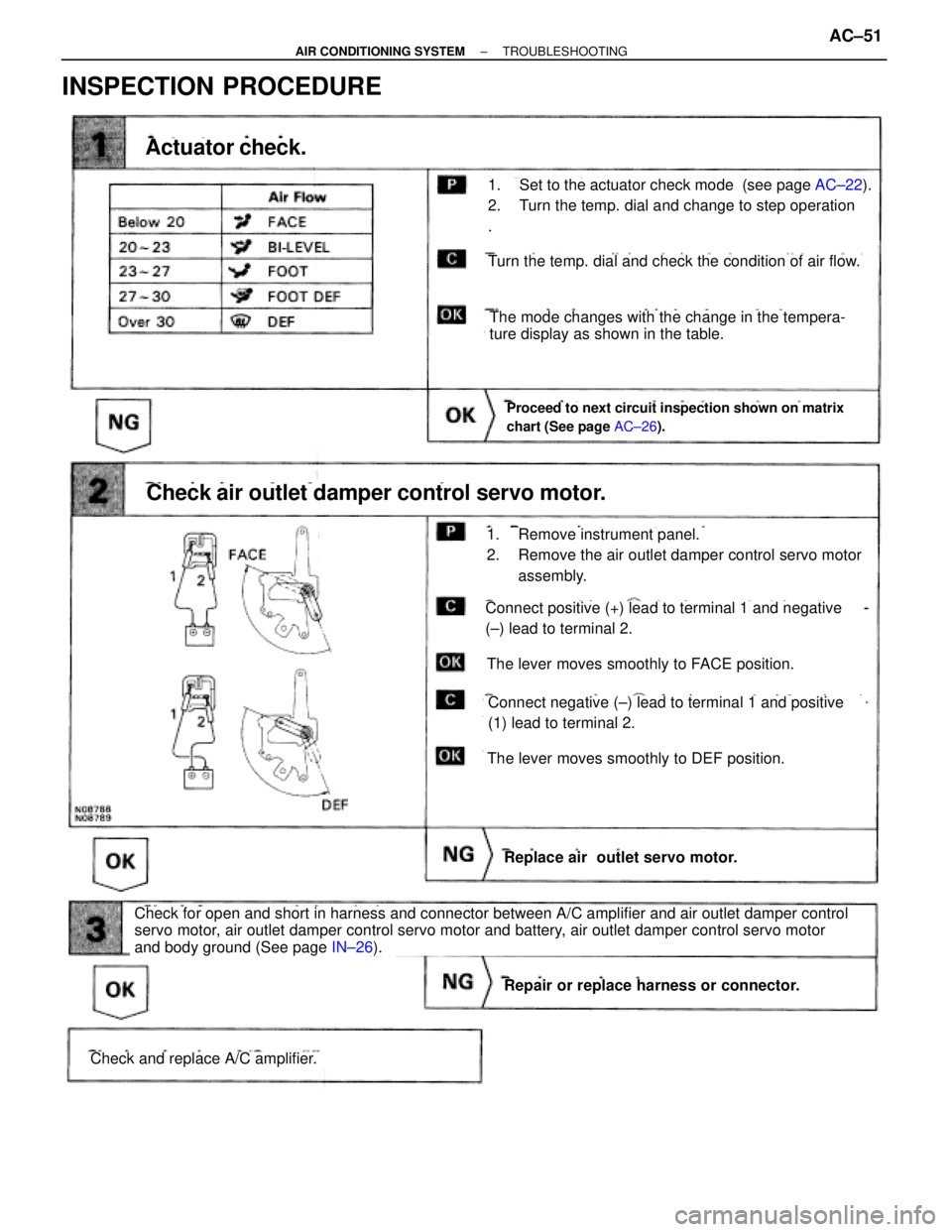

Actuator check.
Turn the temp. dial and check the condition of air flow.
The mode changes with the change in the tempera-
ture display as shown in the table.
The lever moves smoothly to DEF position.
The lever moves smoothly to FACE position.
Connect positive (+) lead to terminal 1 and negative
(±) lead to terminal 2.
Connect negative (±) lead to terminal 1 and positive
(1) lead to terminal 2.
1. Remove instrument panel.
2. Remove the air outlet damper control servo motor
assembly.
1. Set to the actuator check mode (see page AC±22).
2. Turn the temp. dial and change to step operation
.
± AIR CONDITIONING SYSTEMTROUBLESHOOTINGAC±51
Page 52 of 2543
Back Up Power Source Circuit
CIRCUIT DESCRIPTION

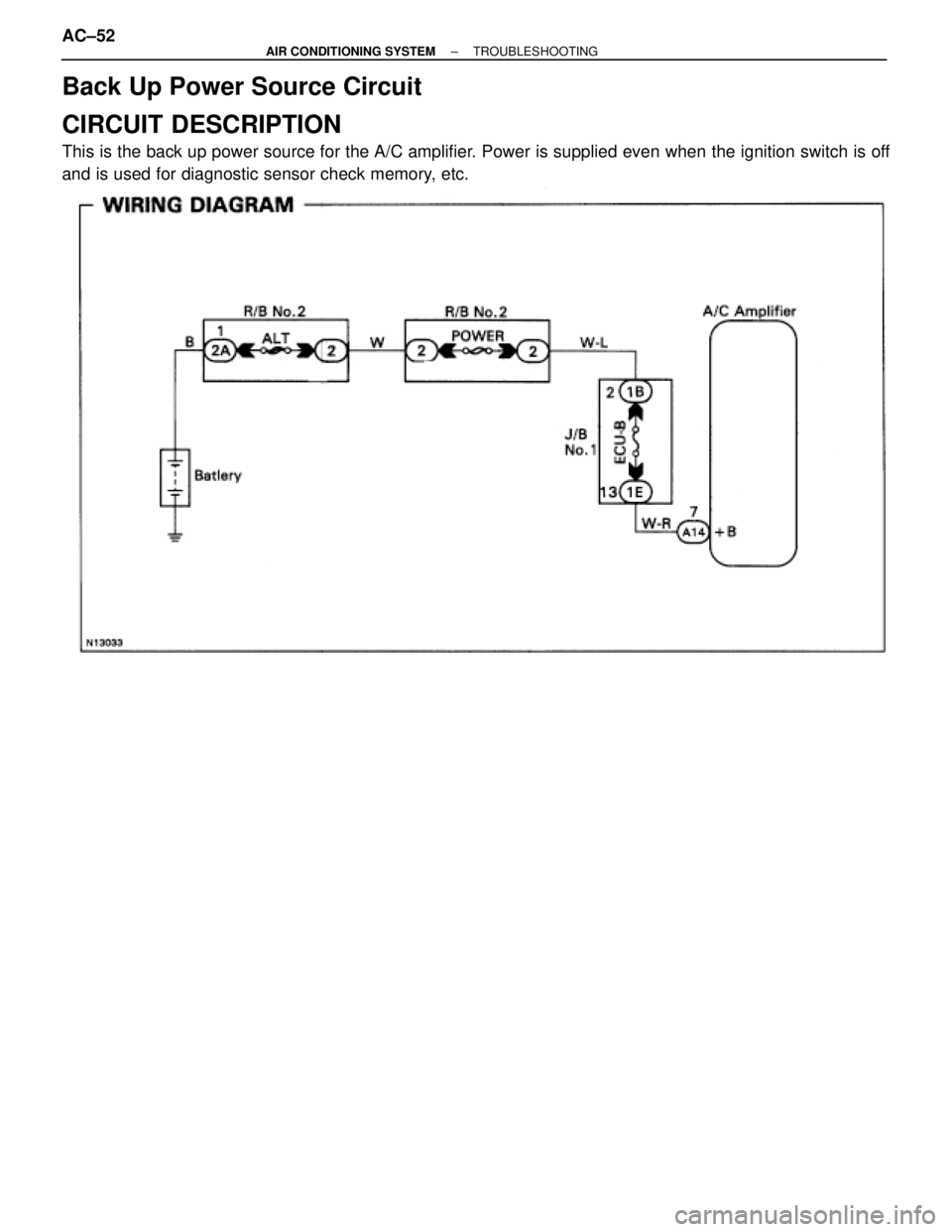

This is the back up power source for the A/C amplifier. Power is supplied even when the ignition switch is off
and is used for diagnostic sensor check memory, etc.
AC±52± AIR CONDITIONING SYSTEMTROUBLESHOOTING
Page 53 of 2543
INSPECTION PROCEDURE

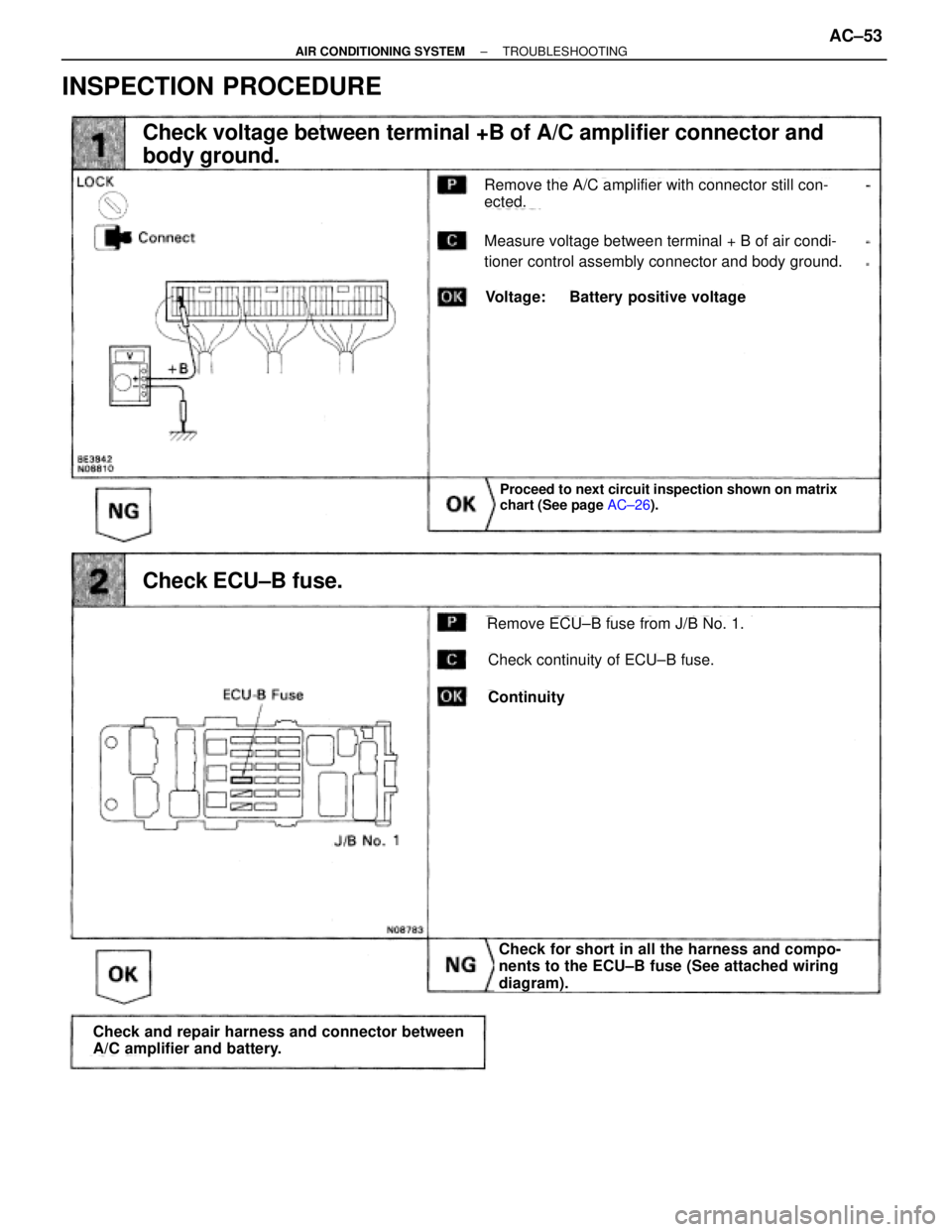

Remove the A/C amplifier with connector still con-
ected.
Measure voltage between terminal + B of air condi-
tioner control assembly connector and body ground.
Voltage: Battery positive voltage
Proceed to next circuit inspection shown on matrix
chart (See page AC±26).
Remove ECU±B fuse from J/B No. 1.
Check continuity of ECU±B fuse.
Continuity
Check ECU±B fuse.
Check for short in all the harness and compo-
nents to the ECU±B fuse (See attached wiring
diagram).
Check voltage between terminal +B of A/C amplifier connector and
body ground.
Check and repair harness and connector between
A/C amplifier and battery.
± AIR CONDITIONING SYSTEMTROUBLESHOOTINGAC±53
Page 54 of 2543
IG Power Source Circuit
CIRCUIT DESCRIPTION
This is the power source for the A/C amplifier and servo motors, etc.
INSPECTION PROCEDURE
Remove the A/C amplifier with connector still con-
nected
Voltage: Battery positive voltage
1. Turn ignition switch ON.
2. Measure voltage between terminals IG and GND
of A/C amplifier.
Proceed to next circuit inspection shown on matrix
chart (See page AC±26).
Go to step
Check voltage between terminals IG and GND of A/C amplifier connector.
AC±54± AIR CONDITIONING SYSTEMTROUBLESHOOTING
Page 55 of 2543

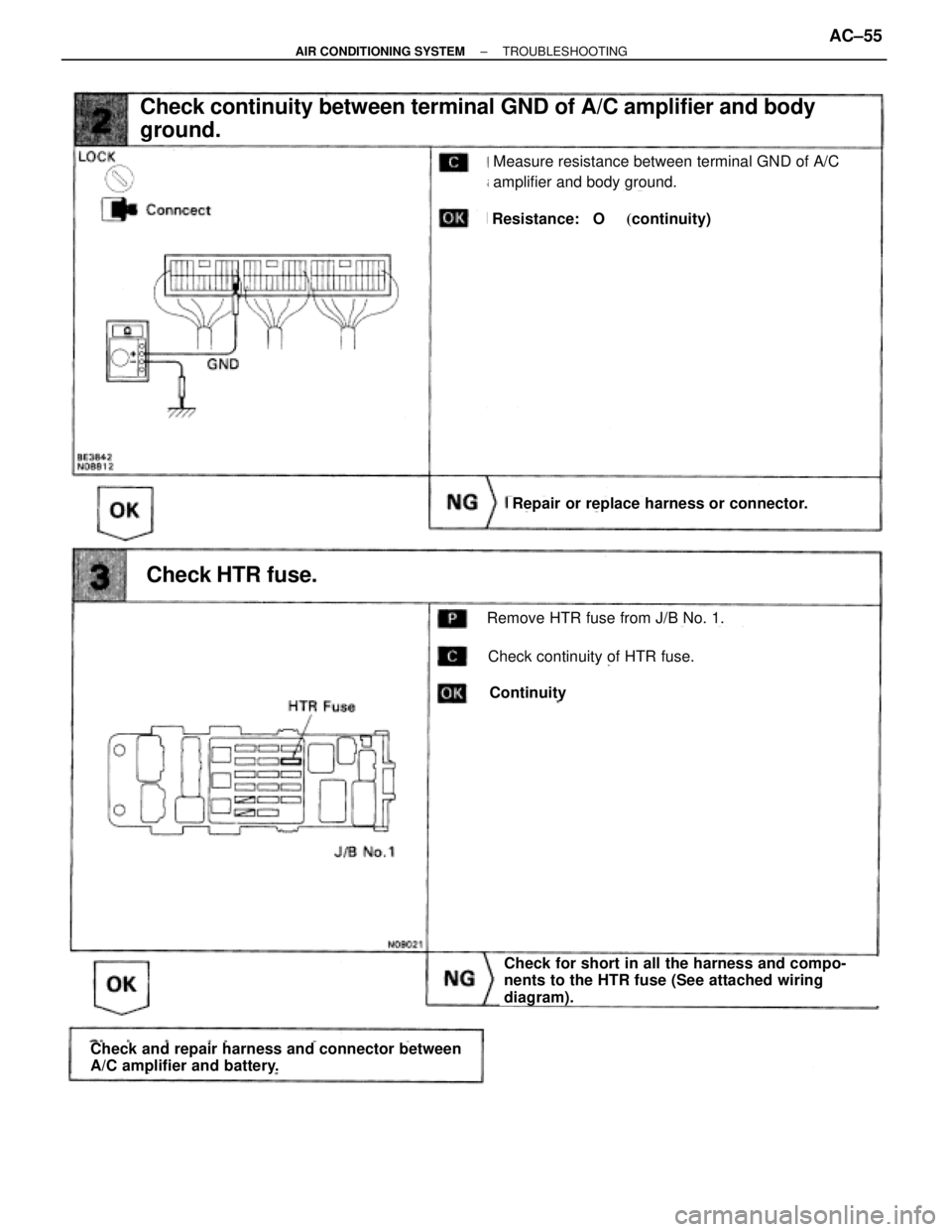

Check continuity between terminal GND of A/C amplifier and body
ground.
Measure resistance between terminal GND of A/C
amplifier and body ground.
Remove HTR fuse from J/B No. 1.
Check continuity of HTR fuse.
Continuity
Check for short in all the harness and compo-
nents to the HTR fuse (See attached wiring
diagram).
Check and repair harness and connector between
A/C amplifier and battery.
Check HTR fuse.
Repair or replace harness or connector.
Resistance: O continuity)
± AIR CONDITIONING SYSTEMTROUBLESHOOTINGAC±55
Page 56 of 2543
ACC Power Source Circuit
CIRCUIT DESCRIPTION

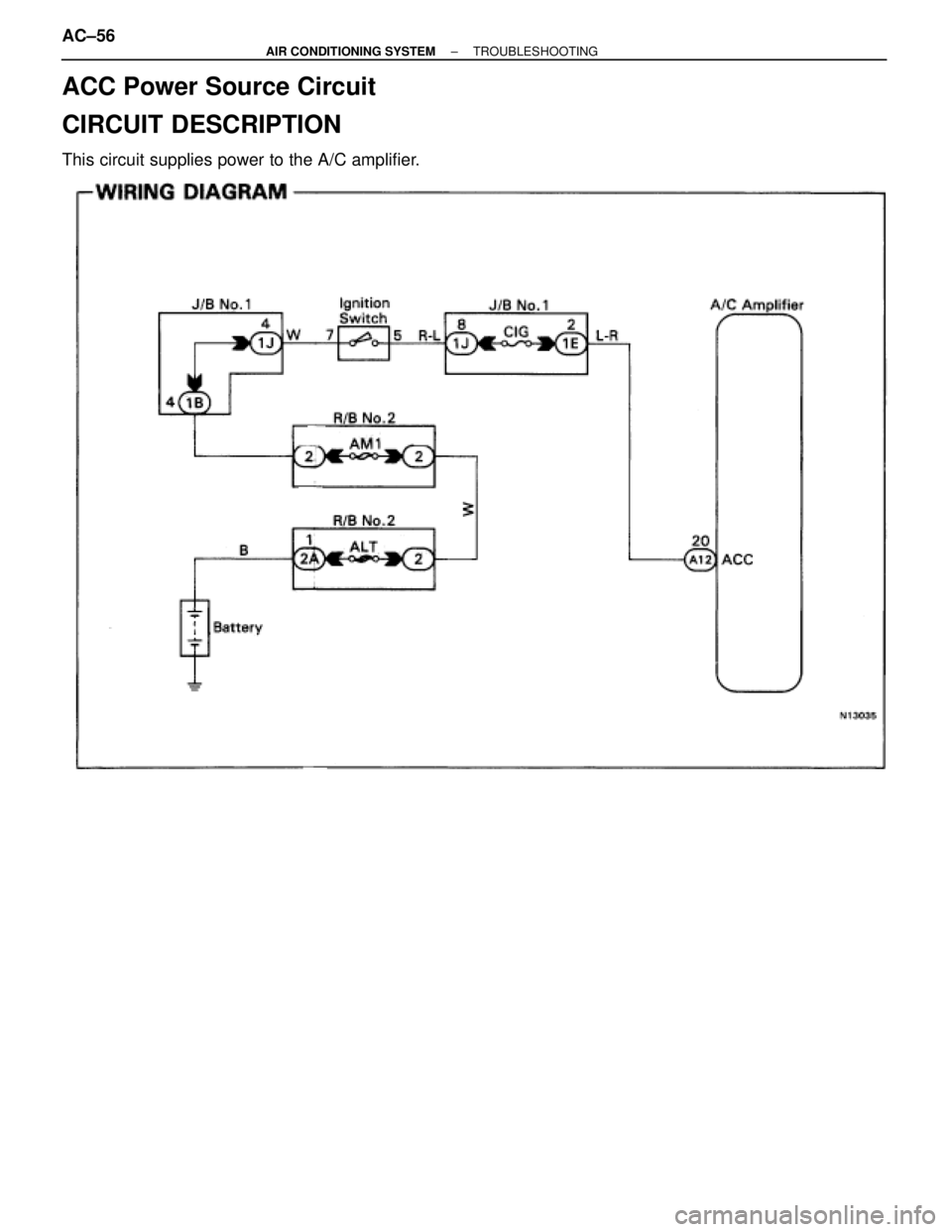

This circuit supplies power to the A/C amplifier.
AC±56± AIR CONDITIONING SYSTEMTROUBLESHOOTING
