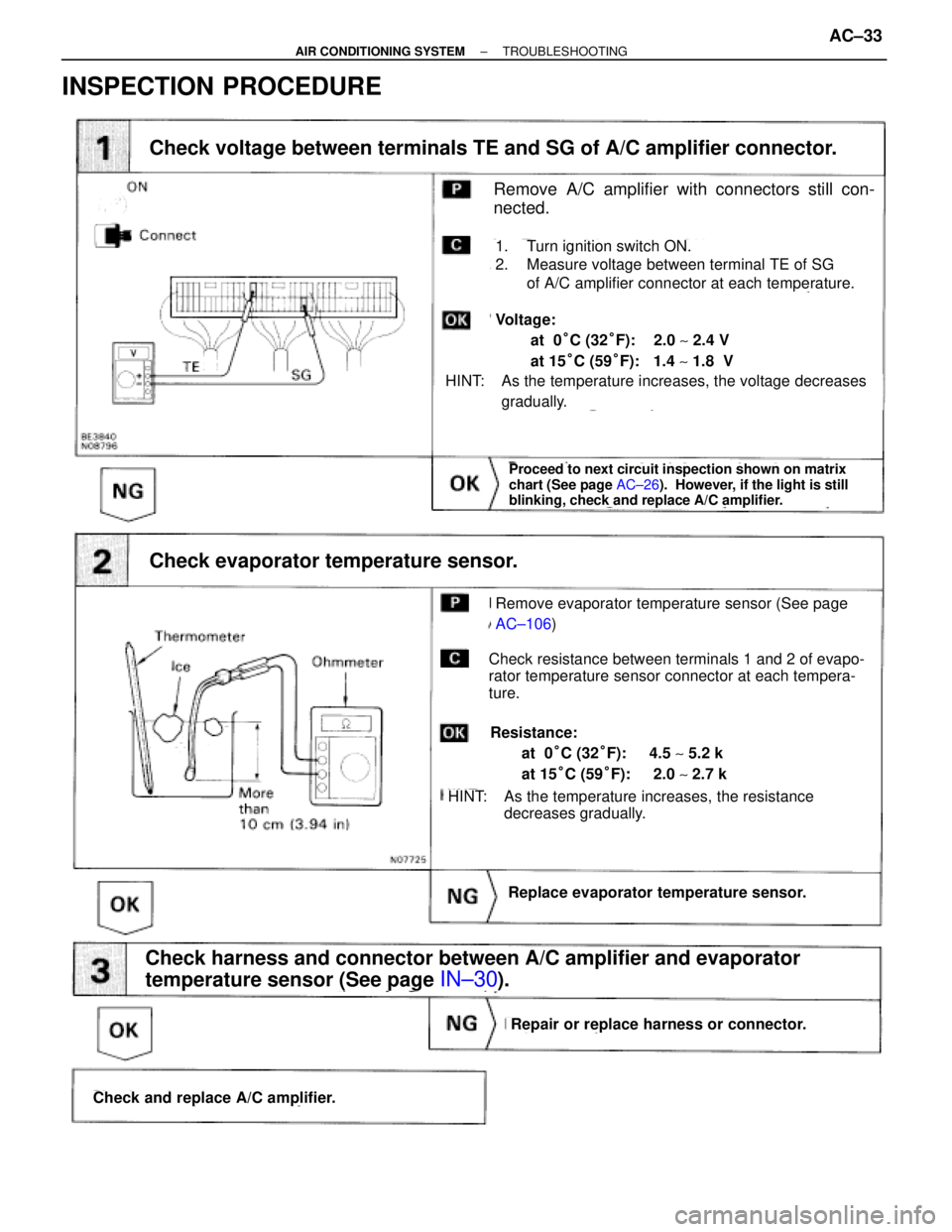

TOYOTA SUPRA 1995 Service Repair Manual INSPECTION PROCEDURE (See page AC±26). (See page IN±30) Check voltage between terminals TE and SG of A/C amplifier connector. Check and replace A/C amplifier. Repair or replace harness or connector.

Page 34 of 2543

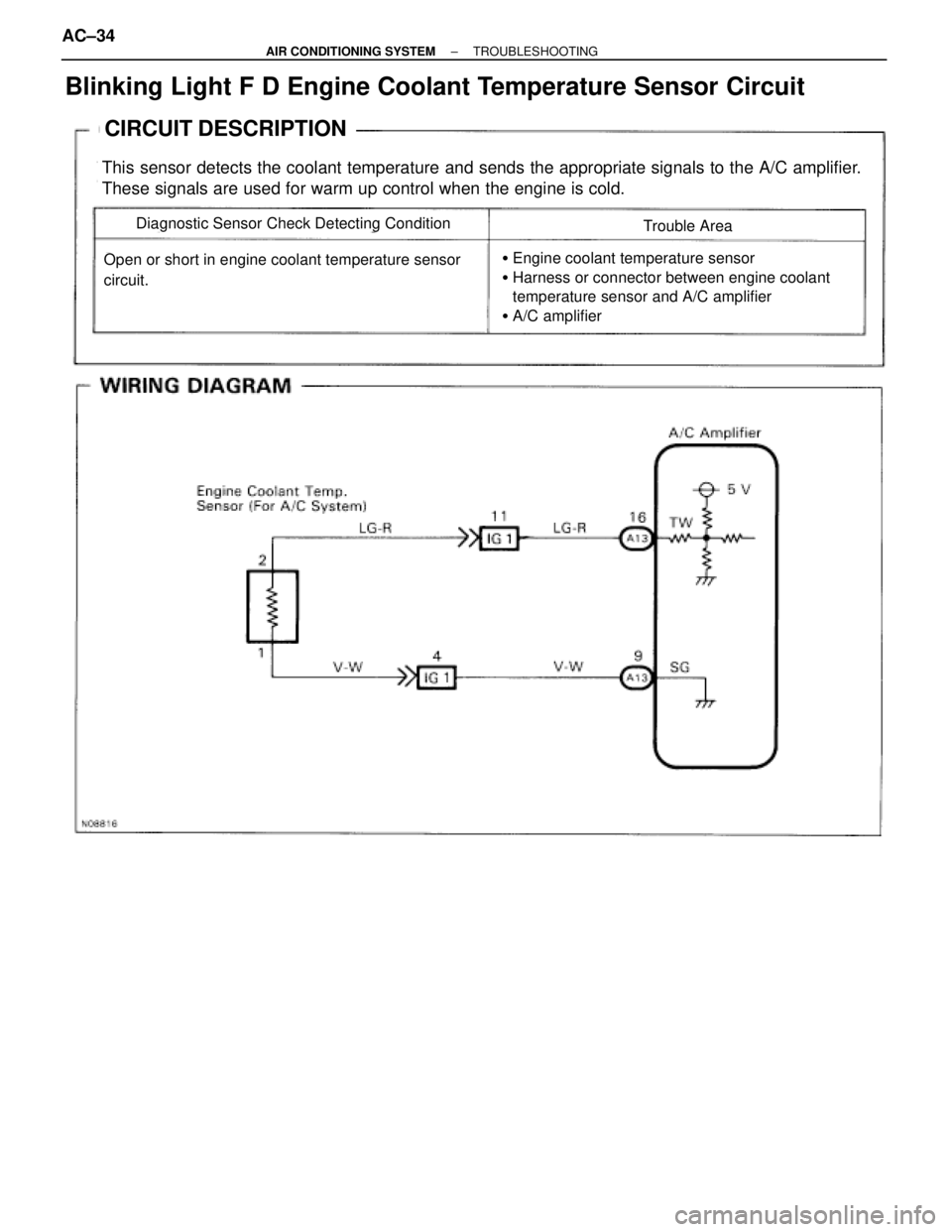

TOYOTA SUPRA 1995 Service Repair Manual Blinking Light F D Engine Coolant Temperature Sensor Circuit CIRCUIT DESCRIPTION This sensor detects the coolant temperature and sends the appropriate signals to the A/C amplifier. These signals are u

Page 35 of 2543

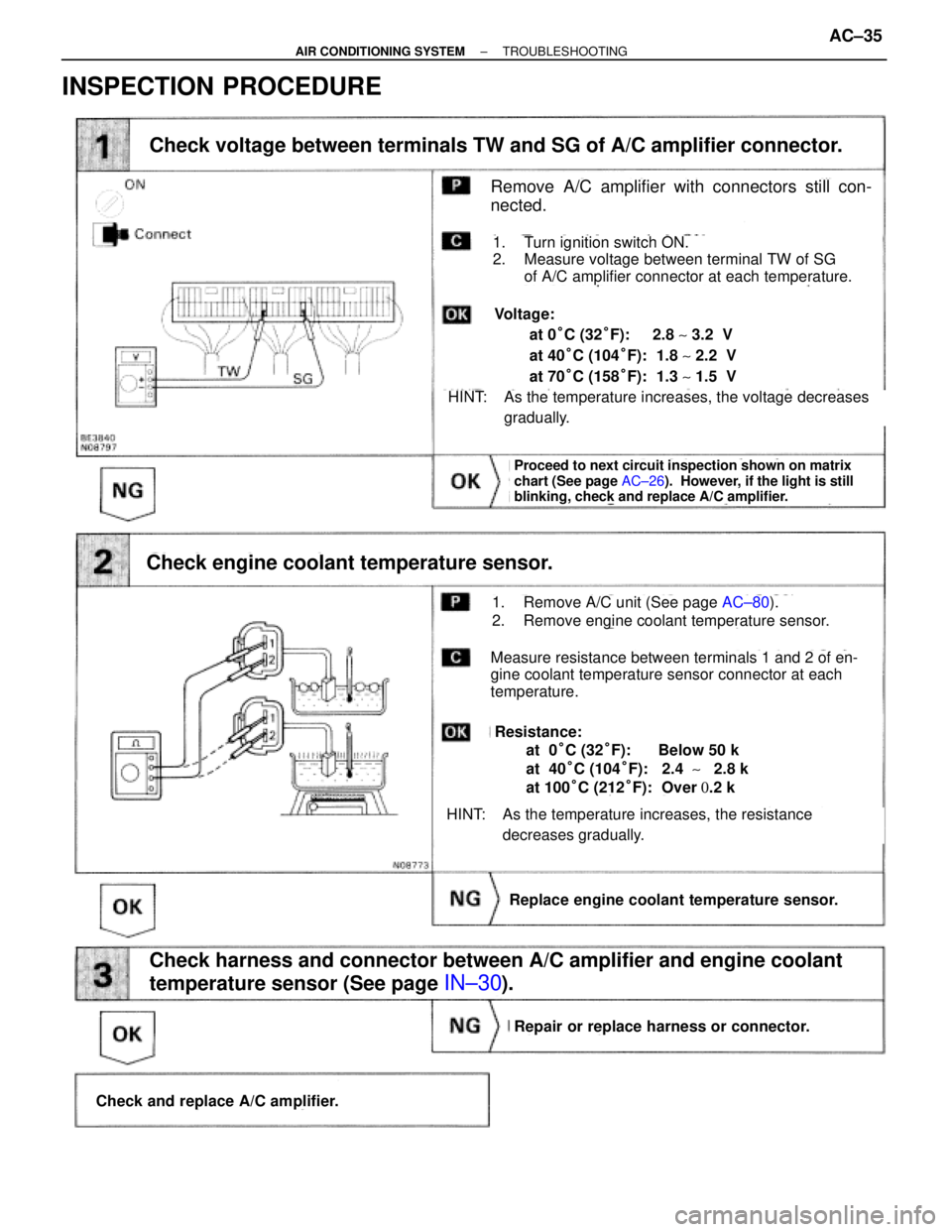

TOYOTA SUPRA 1995 Service Repair Manual INSPECTION PROCEDURE (See page AC±26). (See page IN±30) Check voltage between terminals TW and SG of A/C amplifier connector. Proceed to next circuit inspection shown on matrix chart (See page AC±2

Page 36 of 2543

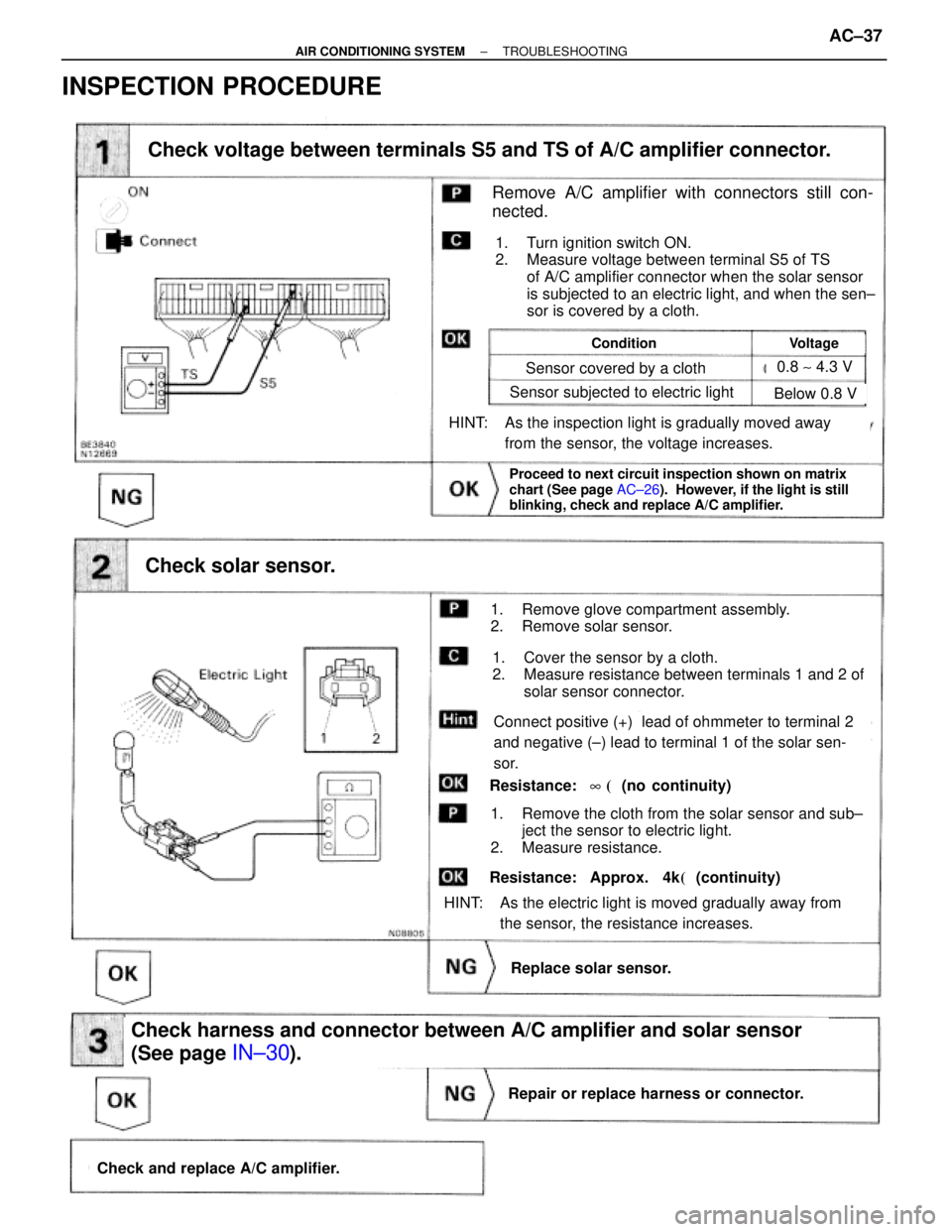

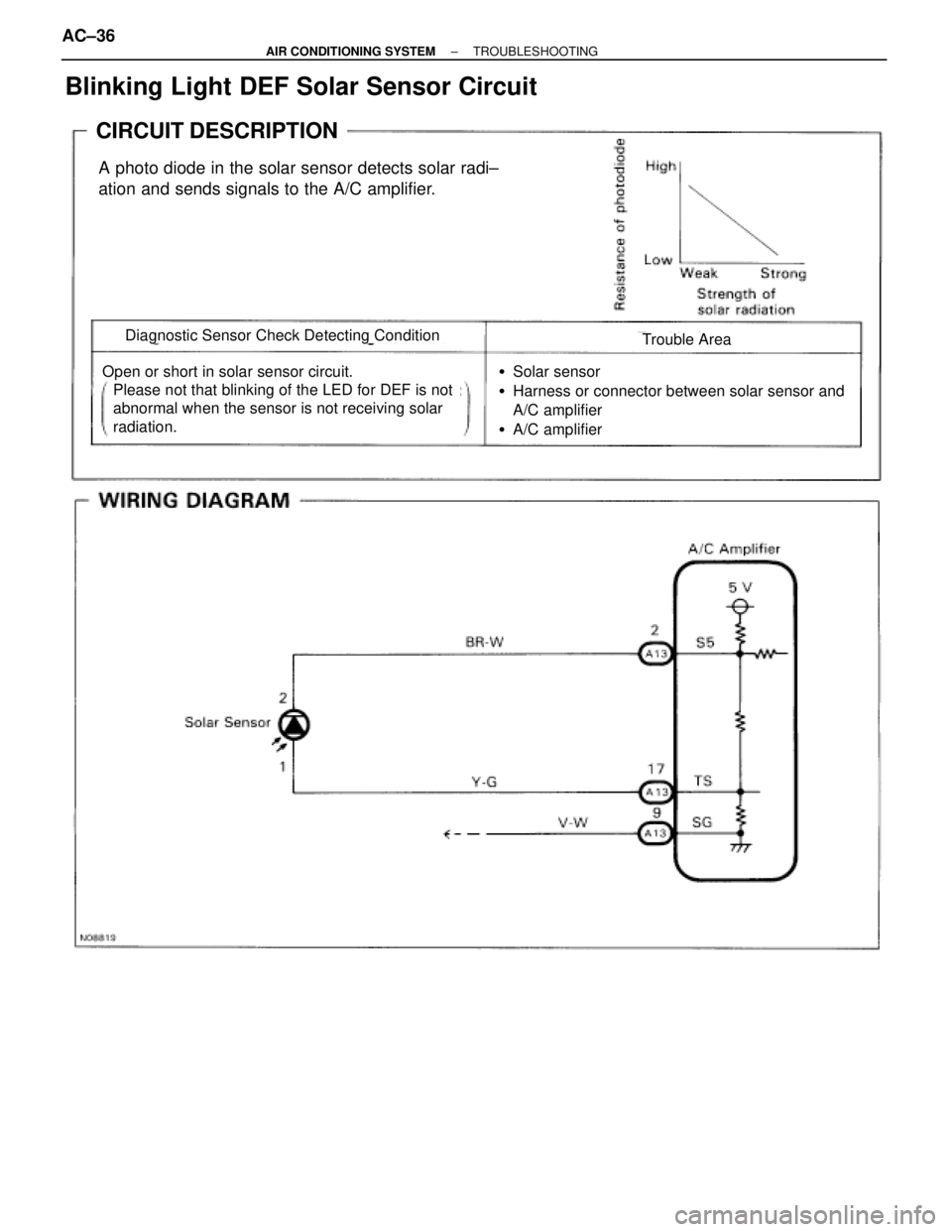

TOYOTA SUPRA 1995 Service Repair Manual Blinking Light DEF Solar Sensor Circuit CIRCUIT DESCRIPTION A photo diode in the solar sensor detects solar radi± ation and sends signals to the A/C amplifier. Diagnostic Sensor Check Detecting Condi

Page 37 of 2543

TOYOTA SUPRA 1995 Service Repair Manual (See page IN±30) Check and replace A/C amplifier. Repair or replace harness or connector. Check harness and connector between A/C amplifier and solar sensor (See page IN±30). Replace solar sensor.

Page 38 of 2543

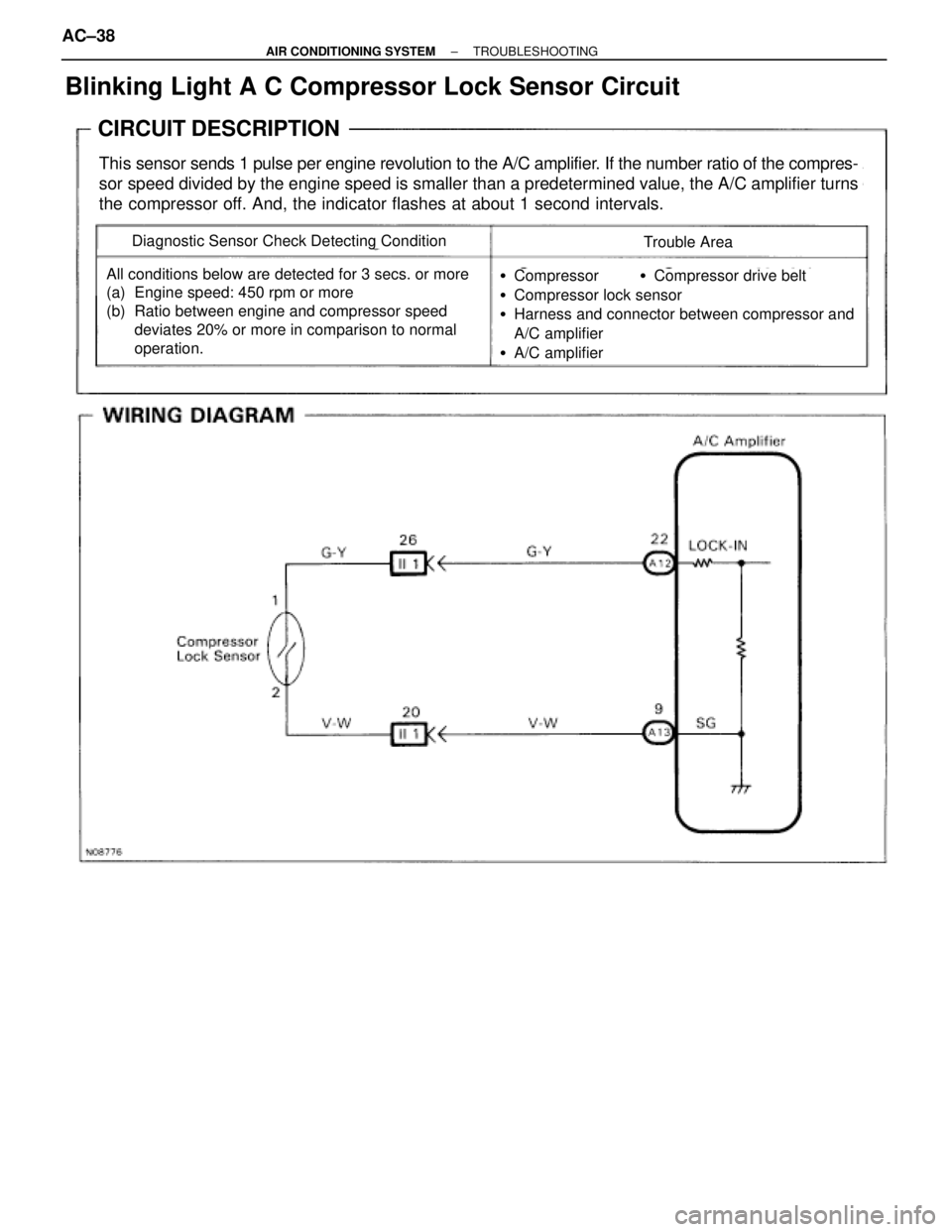

TOYOTA SUPRA 1995 Service Repair Manual Blinking Light A C Compressor Lock Sensor Circuit CIRCUIT DESCRIPTION This sensor sends 1 pulse per engine revolution to the A/C amplifier. If the number ratio of the compres- sor speed divided by the

Page 39 of 2543

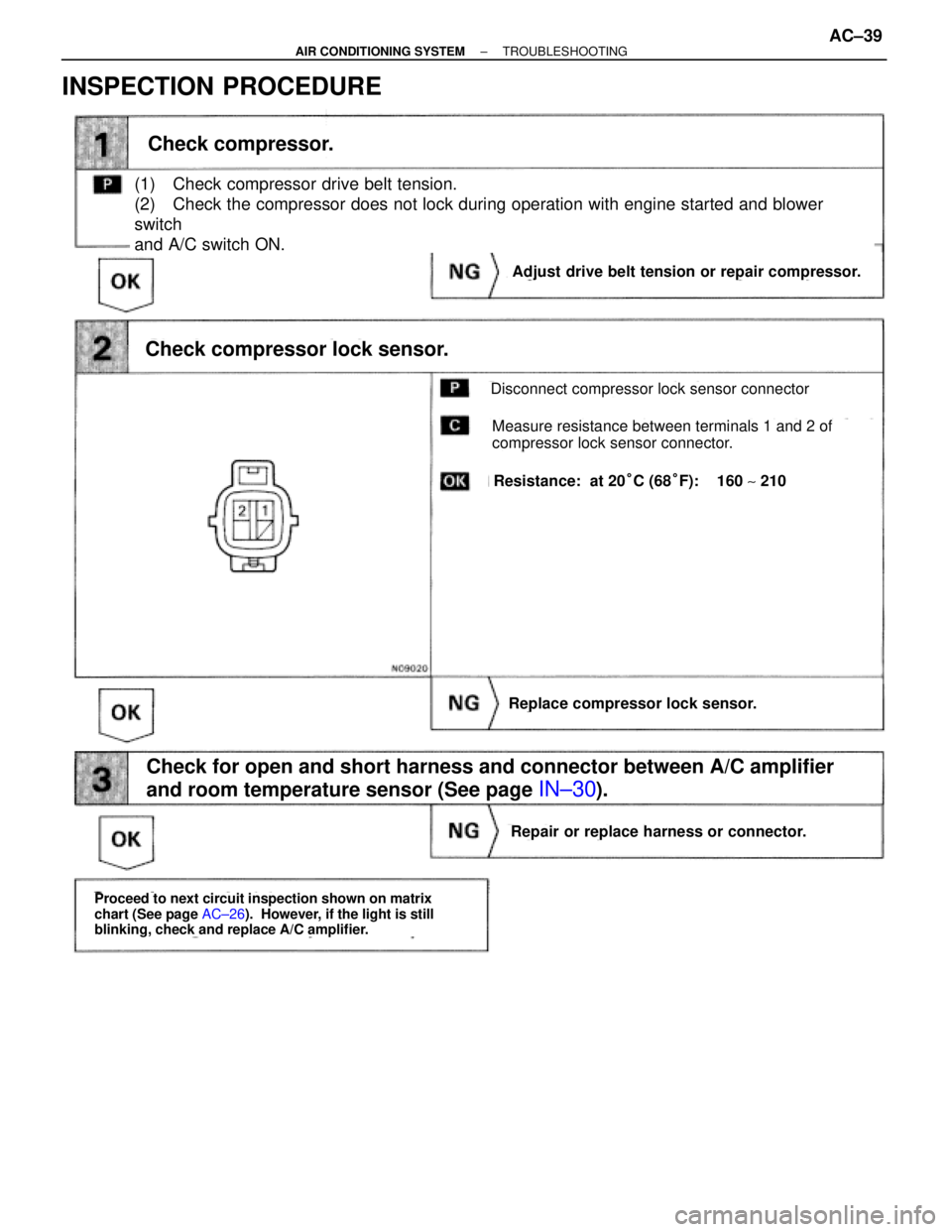

TOYOTA SUPRA 1995 Service Repair Manual INSPECTION PROCEDURE (See page AC±26). (See page IN±30). Repair or replace harness or connector. Replace compressor lock sensor. Check for open and short harness and connector between A/C amplifier

Page 40 of 2543

TOYOTA SUPRA 1995 Service Repair Manual Blinking Light FRS Pressure Switch Circuit CIRCUIT DESCRIPTION The pressure switch sends the appropriate signals to the A/C amplifier when the air conditioning refrig- erant pressure drops too low or
