Page 1401 of 2543

TOYOTA SUPRA 1995 Service Repair Manual (h) Disconnect the starter wire from the LH engine mounting bracket. (i) Remove the rubber cap and nut, and disconnect the starter wire. 15. DISCONNECT FUEL HOSES (a) Remove the union bolt and 2

Page 1402 of 2543

TOYOTA SUPRA 1995 Service Repair Manual 17. DISCONNECT PS PRESSURE TUBE FROM ENGINE Remove the 2 clamp bolts and disconnect the pressure tube. 18. DISCONNECT A/C COMPRESSOR WITHOUT DISCONNECTING HOSES (a) Remove the 2 bolts. (b) Disco

Page 1403 of 2543

TOYOTA SUPRA 1995 Service Repair Manual 20. DISCONNECT ENGINE WIRE FROM CABIN (a) Remove the scuff plate. (b) Take out the front side of the floor carpet. (c) Remove the 2 nuts and ECM protector. (d) Remove the nut, and disconnect the

Page 1404 of 2543

TOYOTA SUPRA 1995 Service Repair Manual (c) Remove the 4 bolts holding the lever boot to the transmission cover. (d) Remove the shift & select lever boots. (e) Remove the 4 bolts holding the shift lever to the shift lever retainer. 22. M

Page 1405 of 2543

TOYOTA SUPRA 1995 Service Repair Manual (d) Disconnect the hook of the tailpipe from the 2 rings. (e) Disconnect the 2 rings on the exhaust pipe from the exhaust pipe brackets, and remove the exhaust pipe assembly. 25. REMOVE NO.2 FRONT

Page 1406 of 2543

TOYOTA SUPRA 1995 Service Repair Manual 30. M/T: REMOVE TRANSMISSION SHIFT LEVER (a) Remove the bolt and nut. (b) Remove the transmission shift lever, inside of vehicle. 31. PLACE JACK UNDER TRANSMISSION NOTICE (A/T): Be sure to put a wo

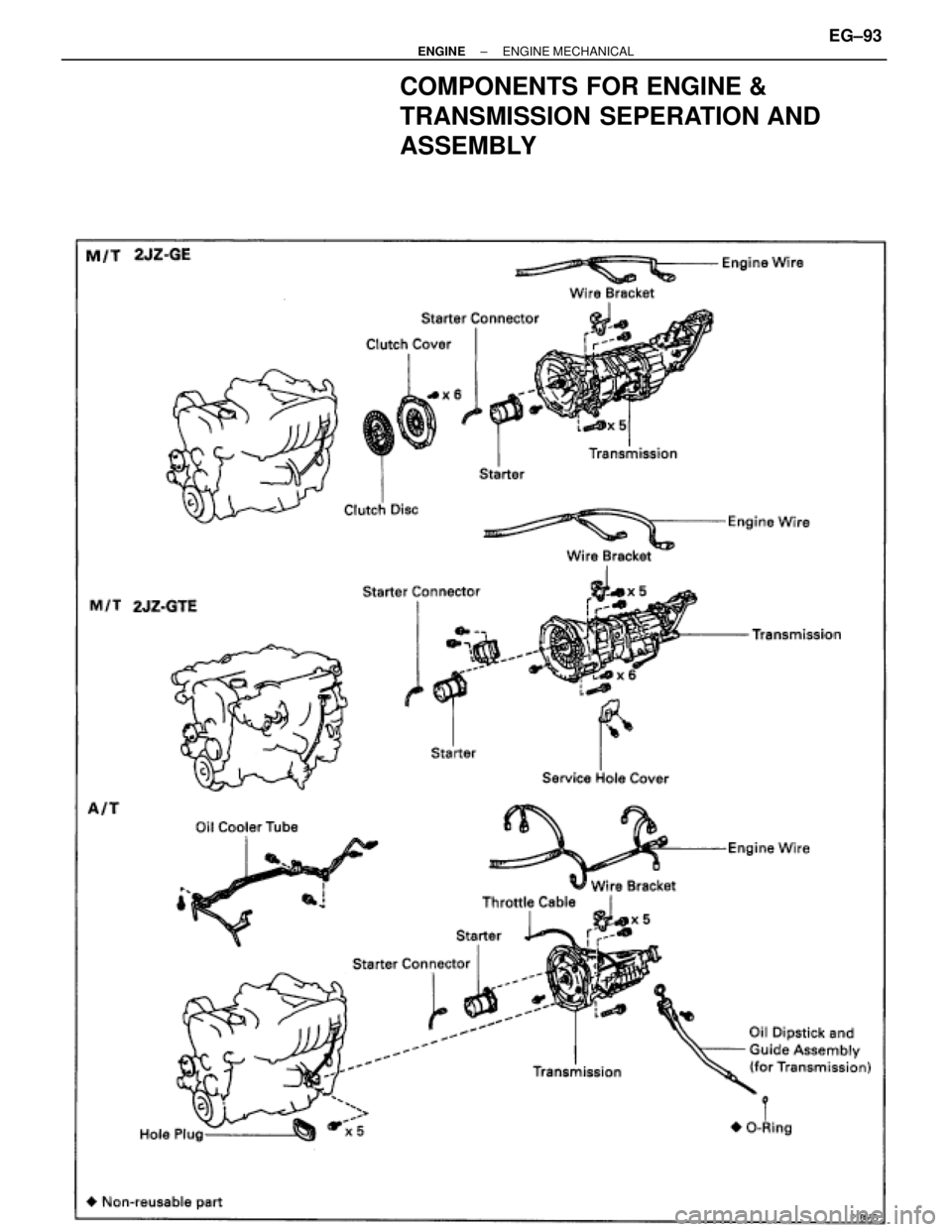

Page 1407 of 2543

TOYOTA SUPRA 1995 Service Repair Manual COMPONENTS FOR ENGINE & TRANSMISSION SEPERATION AND ASSEMBLY ± ENGINEENGINE MECHANICALEG±93

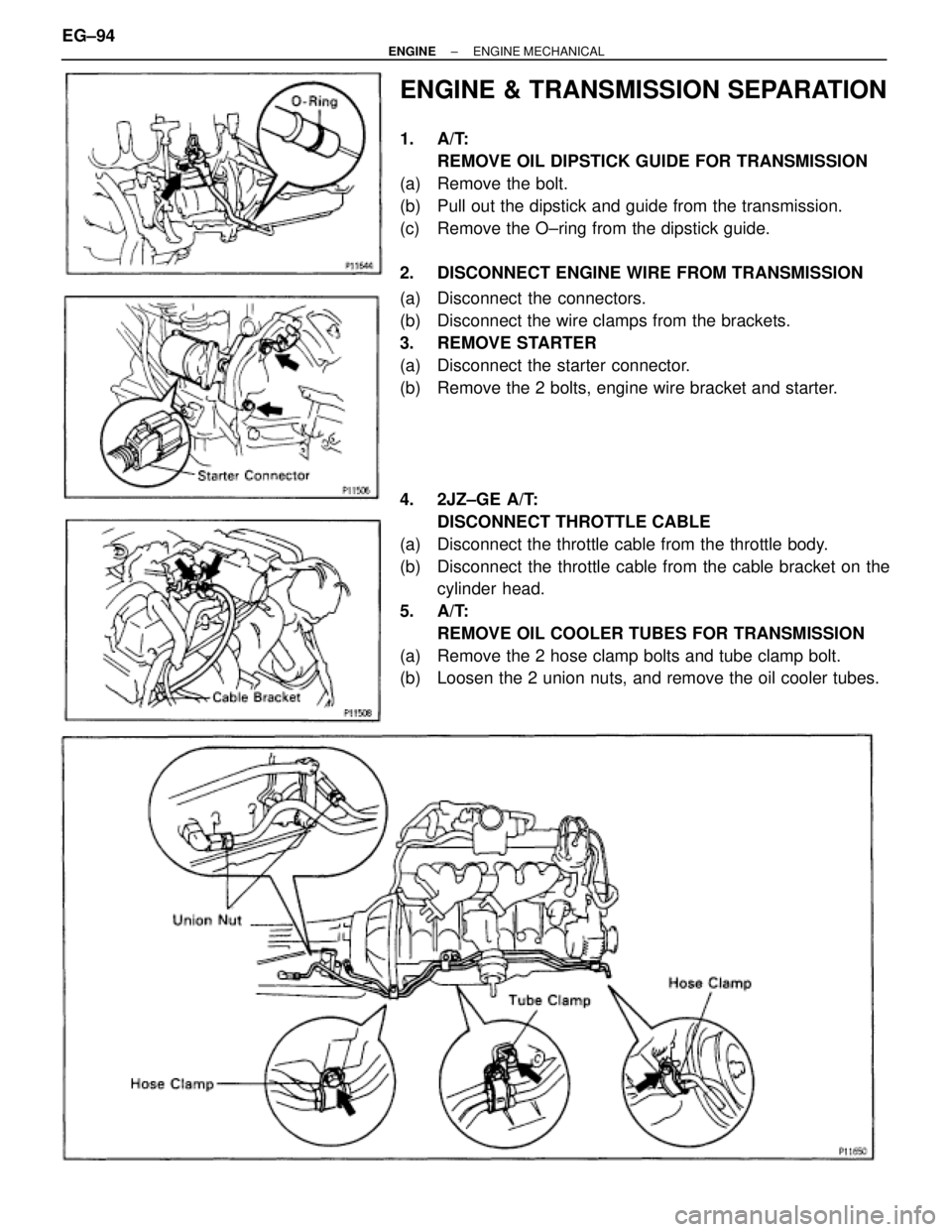

Page 1408 of 2543

TOYOTA SUPRA 1995 Service Repair Manual ENGINE & TRANSMISSION SEPARATION 1. A/T: REMOVE OIL DIPSTICK GUIDE FOR TRANSMISSION (a) Remove the bolt. (b) Pull out the dipstick and guide from the transmission. (c) Remove the O±ring from the d
