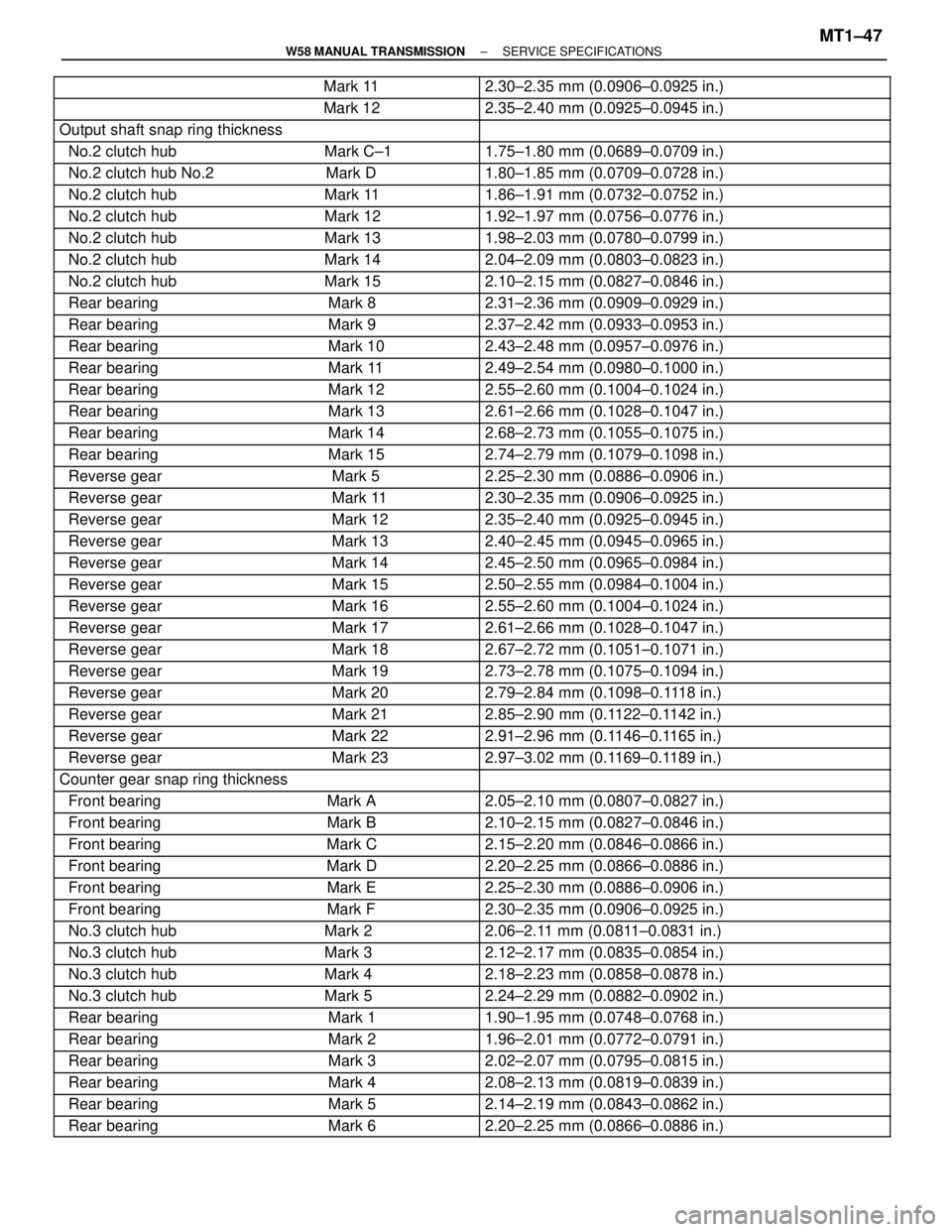

Page 1313 of 2543

TOYOTA SUPRA 1995 Service Repair Manual Mark 11 2.30±2.35 mm (0.0906±0.0925 in.)

Mark 11 2.30±2.35 mm (0.0906±0.0925 in.)
Mark 12 2.35±2.40 mm (0.0925±0.0945 in.) Output shaft snap ring thickness
No.2 clutch hub Mark C±1 1.75±1.80 mm (0.0689±0.0709 in.) No.2 clutch hub No.2 Mark D 1.80±1.85 mm (0.0709±0.0728 in.) No.2 clutch hub Mark 11 1.86±1.91 mm (0.0732±0.0752 in.) No.2 clutch hub Mark 12 1.92±1.97 mm (0.0756±0.0776 in.)
No.2 clutch hub Mark 13 1.98±2.03 mm (0.0780±0.0799 in.)
No.2 clutch hub Mark 14 2.04±2.09 mm (0.0803±0.0823 in.)
No.2 clutch hub Mark 15 2.10±2.15 mm (0.0827±0.0846 in.)
Rear bearing Mark 8 2.31±2.36 mm (0.0909±0.0929 in.)
Rear bearing Mark 9 2.37±2.42 mm (0.0933±0.0953 in.)
Rear bearing Mark 102.43±2.48 mm (0.0957±0.0976 in.) Rear bearing Mark 11 2.49±2.54 mm (0.0980±0.1000 in.) Rear bearing Mark 12 2.55±2.60 mm (0.1004±0.1024 in.) Rear bearing Mark 13 2.61±2.66 mm (0.1028±0.1047 in.) Rear bearing Mark 14 2.68±2.73 mm (0.1055±0.1075 in.)
Rear bearing Mark 15 2.74±2.79 mm (0.1079±0.1098 in.)
Reverse gear Mark 5 2.25±2.30 mm (0.0886±0.0906 in.)
Reverse gear Mark 11 2.30±2.35 mm (0.0906±0.0925 in.)
Reverse gear Mark 12 2.35±2.40 mm (0.0925±0.0945 in.)
Reverse gear Mark 13 2.40±2.45 mm (0.0945±0.0965 in.)
Reverse gear Mark 14 2.45±2.50 mm (0.0965±0.0984 in.)
Reverse gear Mark 152.50±2.55 mm (0.0984±0.1004 in.) Reverse gear Mark 16 2.55±2.60 mm (0.1004±0.1024 in.) Reverse gear Mark 17 2.61±2.66 mm (0.1028±0.1047 in.) Reverse gear Mark 18 2.67±2.72 mm (0.1051±0.1071 in.) Reverse gear Mark 19 2.73±2.78 mm (0.1075±0.1094 in.)
Reverse gear Mark 20 2.79±2.84 mm (0.1098±0.1118 in.)
Reverse gear Mark 21 2.85±2.90 mm (0.1122±0.1142 in.)
Reverse gear Mark 22 2.91±2.96 mm (0.1146±0.1165 in.)
Reverse gear Mark 23 2.97±3.02 mm (0.1169±0.1189 in.)
Counter gear snap ring thickness
Front bearing Mark A2.05±2.10 mm (0.0807±0.0827 in.) Front bearing Mark B 2.10±2.15 mm (0.0827±0.0846 in.) Front bearing Mark C 2.15±2.20 mm (0.0846±0.0866 in.) Front bearing Mark D 2.20±2.25 mm (0.0866±0.0886 in.) Front bearing Mark E 2.25±2.30 mm (0.0886±0.0906 in.) Front bearing Mark F 2.30±2.35 mm (0.0906±0.0925 in.)
No.3 clutch hub Mark 2 2.06±2.11 mm (0.0811±0.0831 in.)
No.3 clutch hub Mark 3 2.12±2.17 mm (0.0835±0.0854 in.)
No.3 clutch hub Mark 4 2.18±2.23 mm (0.0858±0.0878 in.)
No.3 clutch hub Mark 5 2.24±2.29 mm (0.0882±0.0902 in.)
Rear bearing Mark 1 1.90±1.95 mm (0.0748±0.0768 in.)
Rear bearing Mark 21.96±2.01 mm (0.0772±0.0791 in.) Rear bearing Mark 3 2.02±2.07 mm (0.0795±0.0815 in.) Rear bearing Mark 4 2.08±2.13 mm (0.0819±0.0839 in.) Rear bearing Mark 5 2.14±2.19 mm (0.0843±0.0862 in.) Rear bearing Mark 6 2.20±2.25 mm (0.0866±0.0886 in.)
± W58 MANUAL TRANSMISSIONSERVICE SPECIFICATIONSMT1±47

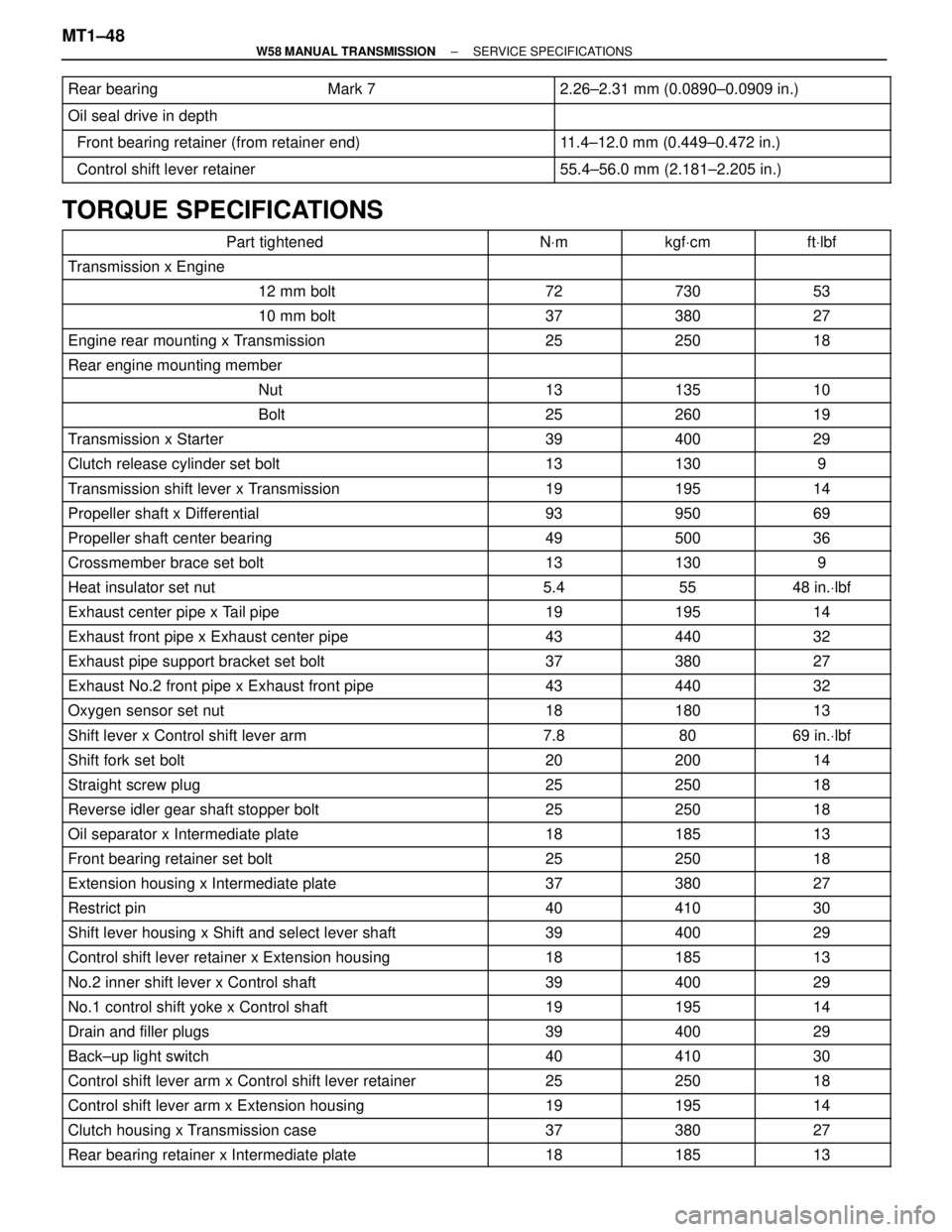

Page 1314 of 2543

TOYOTA SUPRA 1995 Service Repair Manual Rear bearing Mark 7 2.26±2.31 mm (0.0890±0.0909 in.)

Rear bearing Mark 7 2.26±2.31 mm (0.0890±0.0909 in.)
Oil seal drive in depth
Front bearing retainer (from retainer end) 11.4±12.0 mm (0.449±0.472 in.)
Control shift lever retainer 55.4±56.0 mm (2.181±2.205 in.)
TORQUE SPECIFICATIONS
Part tightened NVm kgfVcm ftVlbf
Transmission x Engine
12 mm bolt 72 730 53 10 mm bolt 37 380 27 Engine rear mounting x Transmission 25 250 18 Rear engine mounting member
Nut 13 135 10 Bolt 25 260 19 Transmission x Starter 39 400 29 Clutch release cylinder set bolt 13 130 9
Transmission shift lever x Transmission

19

195

14
Propeller shaft x Differential

93

950

69
Propeller shaft center bearing

49

500

36
Crossmember brace set bolt 13 130 9
Heat insulator set nut 5.4 55 48 in.Vlbf
Exhaust center pipe x Tail pipe 19 195 14
Exhaust front pipe x Exhaust center pipe 43 440 32
Exhaust pipe support bracket set bolt 37 380 27
Exhaust No.2 front pipe x Exhaust front pipe 43 440 32
Oxygen sensor set nut 18 180 13
Shift lever x Control shift lever arm 7.8 80 69 in.Vlbf
Shift fork set bolt 20 200 14
Straight screw plug 25 250 18
Reverse idler gear shaft stopper bolt 25 250 18
Oil separator x Intermediate plate 18 185 13
Front bearing retainer set bolt 25 250 18
Extension housing x Intermediate plate 37 380 27
Restrict pin 40 410 30
Shift lever housing x Shift and select lever shaft 39 400 29
Control shift lever retainer x Extension housing 18 185 13
No.2 inner shift lever x Control shaft 39 400 29
No.1 control shift yoke x Control shaft 19 195 14 Drain and filler plugs 39 400 29 Back±up light switch 40 410 30 Control shift lever arm x Control shift lever retainer 25 250 18 Control shift lever arm x Extension housing 19 195 14 Clutch housing x Transmission case 37 380 27 Rear bearing retainer x Intermediate plate 18 185 13
MT1±48± W58 MANUAL TRANSMISSIONSERVICE SPECIFICATIONS

Page 1315 of 2543

TOYOTA SUPRA 1995 Service Repair Manual ENGINE
EG±1

Page 1316 of 2543

TOYOTA SUPRA 1995 Service Repair Manual EG±2

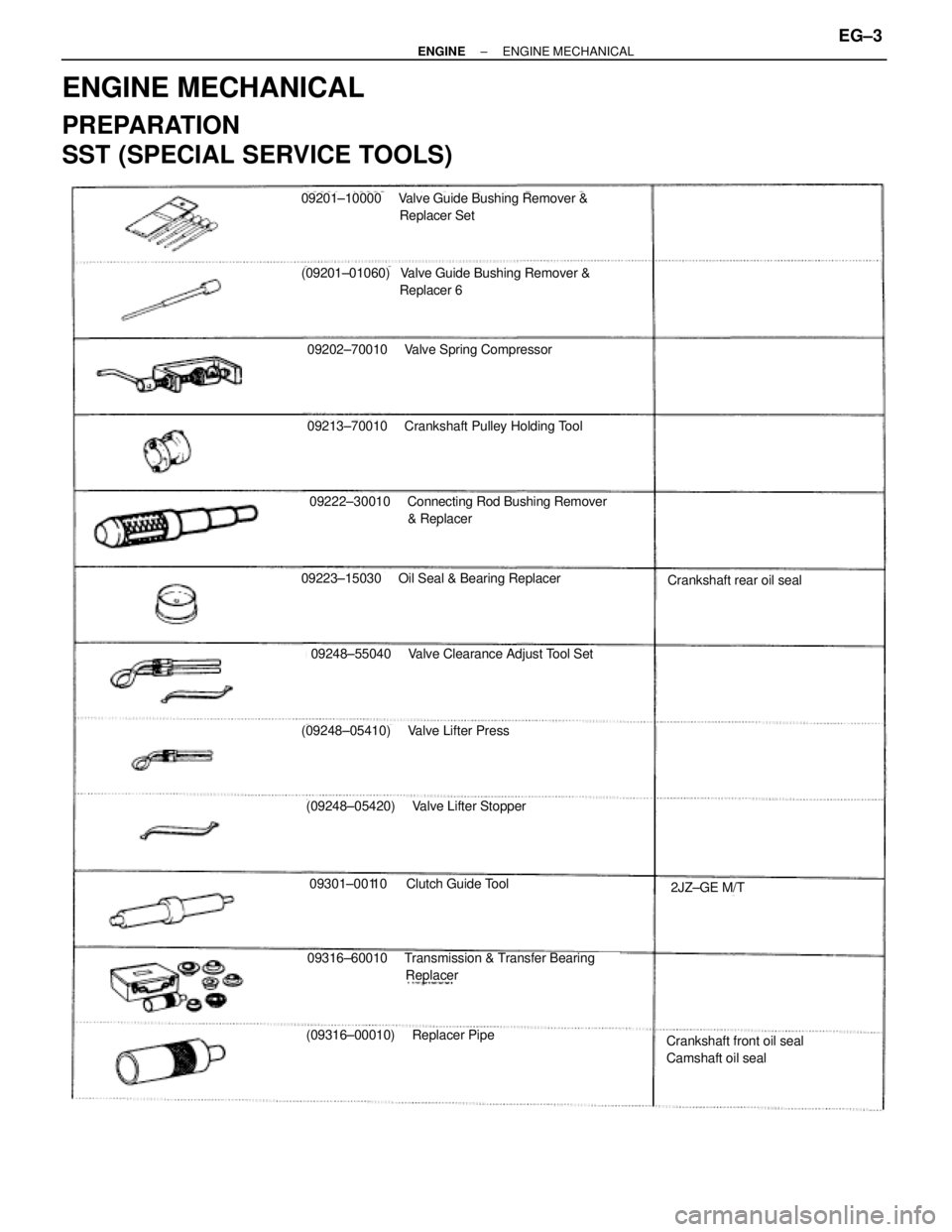

Page 1317 of 2543

TOYOTA SUPRA 1995 Service Repair Manual ENGINE MECHANICAL
PREPARATION
SST (SPECIAL SERVICE TOOLS)
09201±10000 Valve Guide Bushing Remover &
Replacer Set
(09201±01060) Valve Guide Bushing Remover &
Replacer 6
09202±70010 Valve Spring Comp

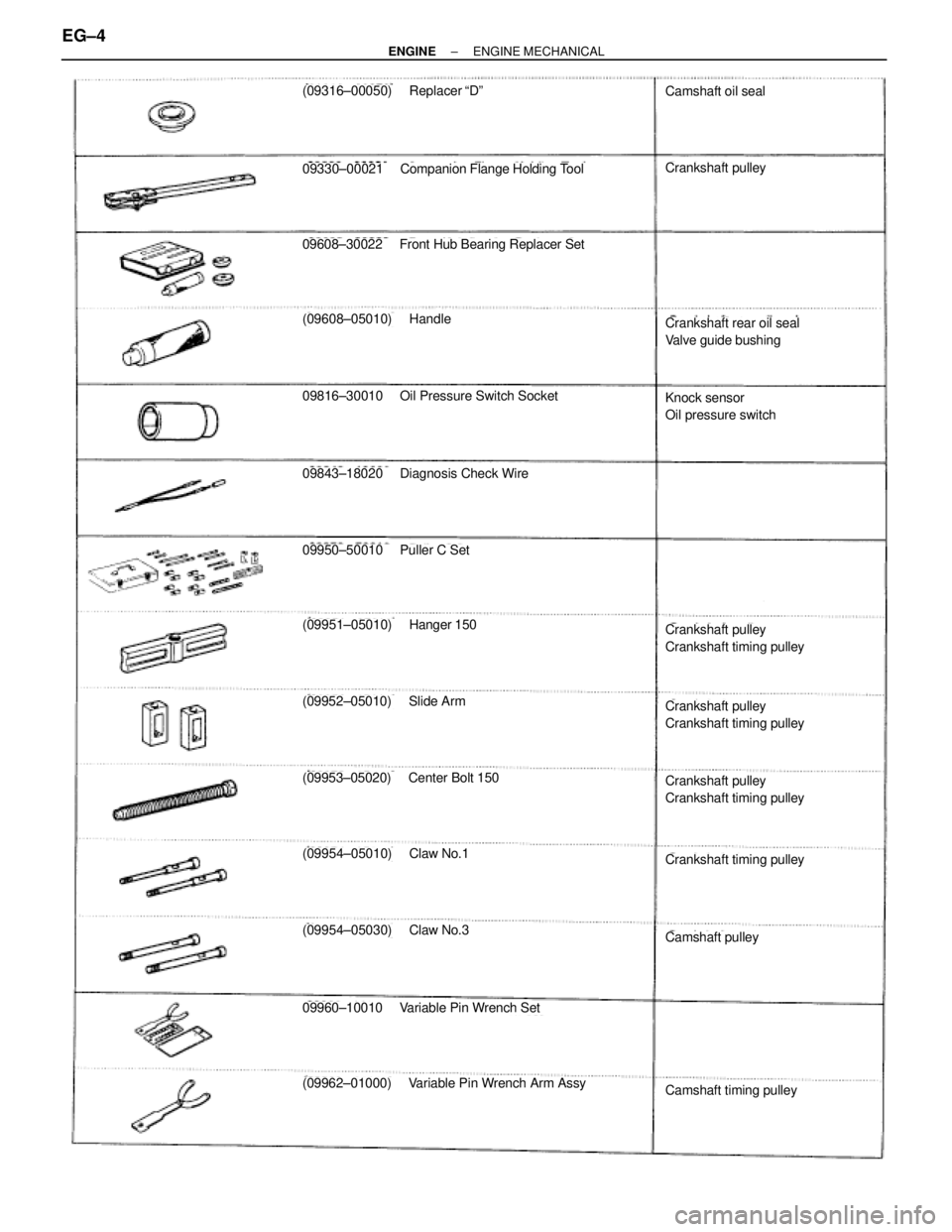

Page 1318 of 2543

TOYOTA SUPRA 1995 Service Repair Manual (09316±00050) Replacer ªDº
09330±00021Companion Flange Holding Tool
09608±30022 Front Hub Bearing Replacer Set
(09608±05010) Handle
09816±30010 Oil Pressure Switch Socket
09843±18020 Diagnosis

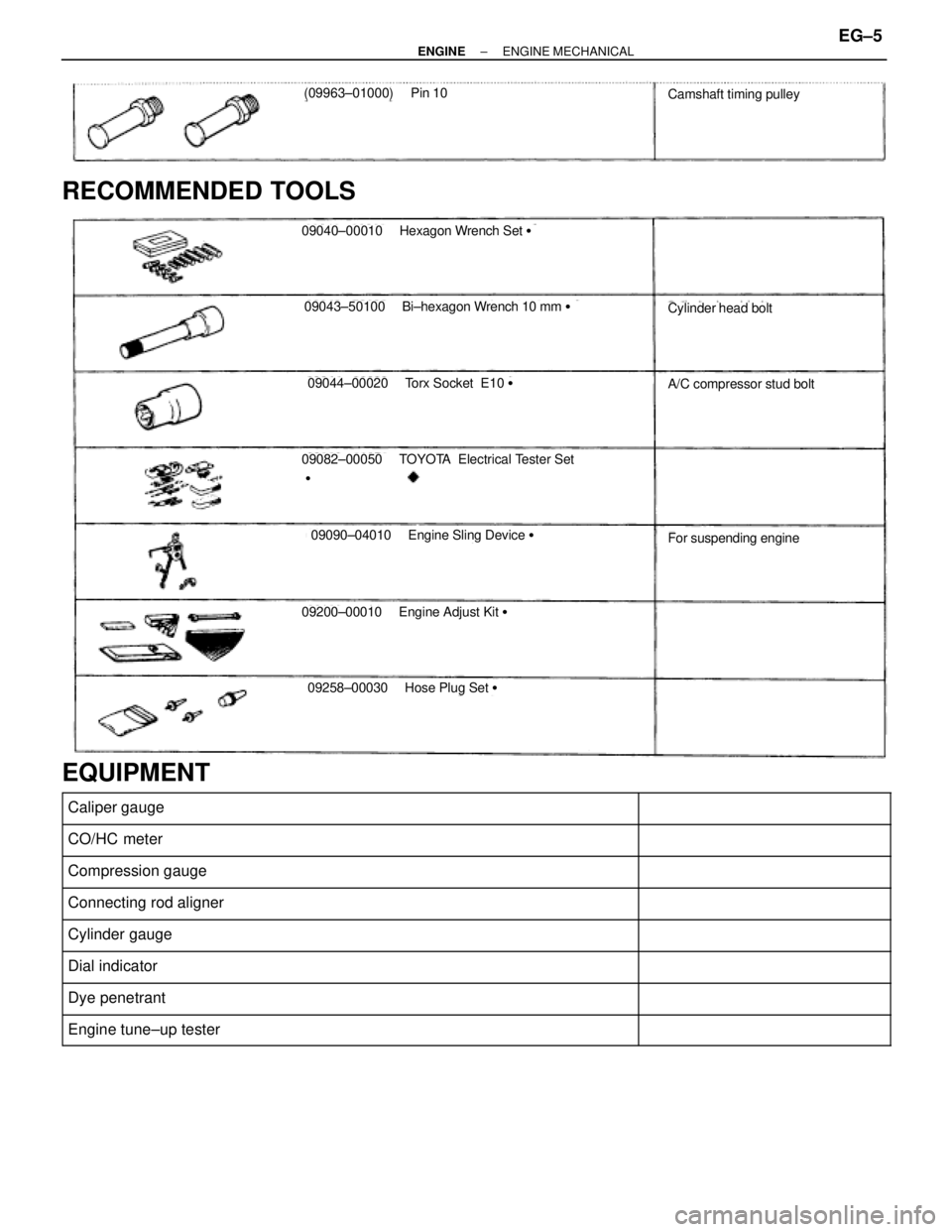

Page 1319 of 2543

TOYOTA SUPRA 1995 Service Repair Manual (09963±01000) Pin 10Camshaft timing pulley
RECOMMENDED TOOLS
Cylinder head bolt
A/C compressor stud bolt
For suspending engine
09040±00010Hexagon Wrench Set
09043±50100Bi±hexagon Wrench 10 mm

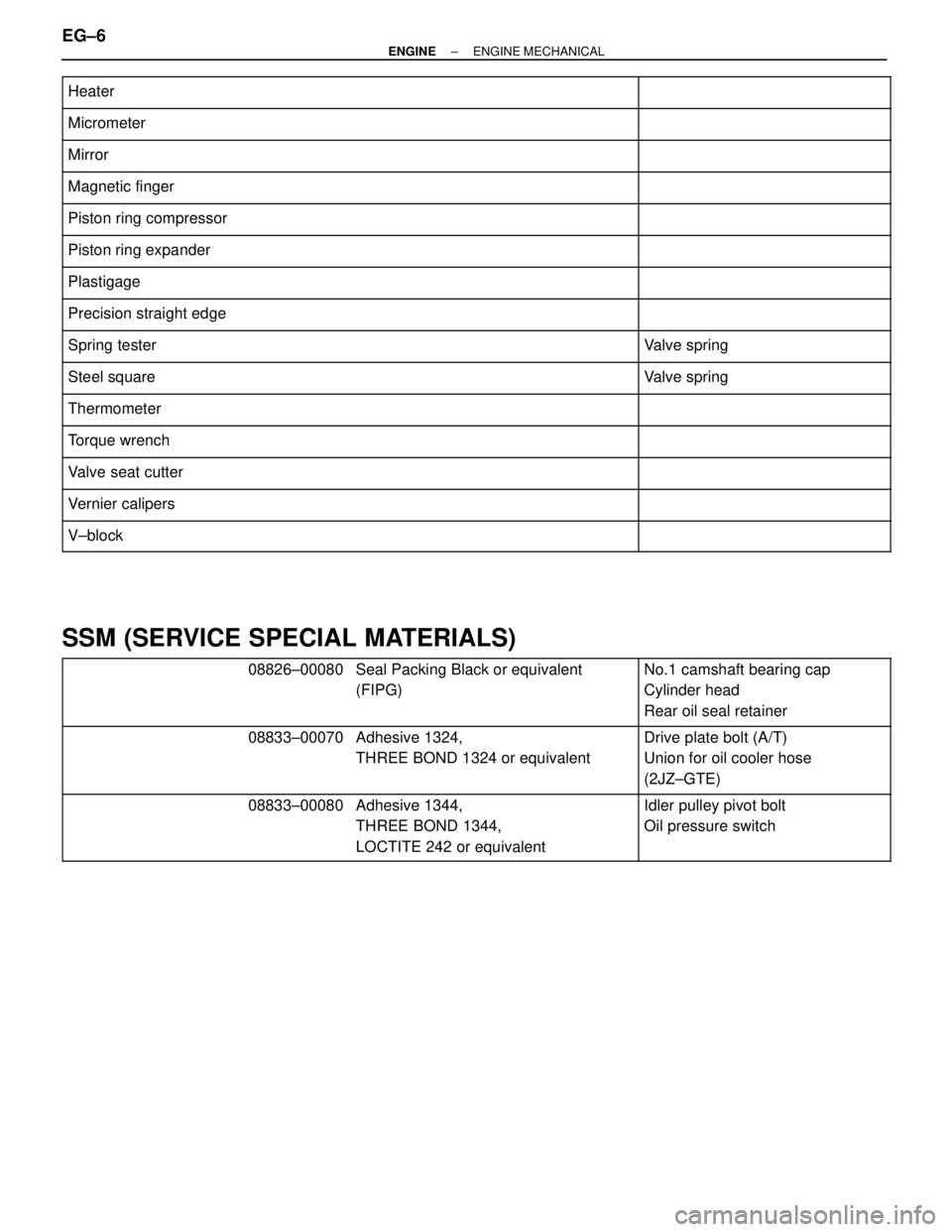

Page 1320 of 2543

TOYOTA SUPRA 1995 Service Repair Manual Heater
Micrometer

Heater
Micrometer

Mirror

Magnetic finger
Piston ring compressor

Piston ring expander

Plastigage
Precision straight edge

Spring tester

Valve spring
Steel square Valve spring
Thermometer

Torque wrench

Valve seat cutter
Vernier calipers

V±block

SSM (SERVICE SPECIAL MATERIALS)

08826±00080

Seal Packing Black or equivalent
(FIPG)

No.1 camshaft bearing cap
Cylinder head
Rear oil seal retainer

08833±00070

Adhesive 1324,
THREE BOND 1324 or equivalent

Drive plate bolt (A/T)
Union for oil cooler hose
(2JZ±GTE)

08833±00080

Adhesive 1344,
THREE BOND 1344,
LOCTITE 242 or equivalent

Idler pulley pivot bolt
Oil pressure switch
EG±6± ENGINEENGINE MECHANICAL
