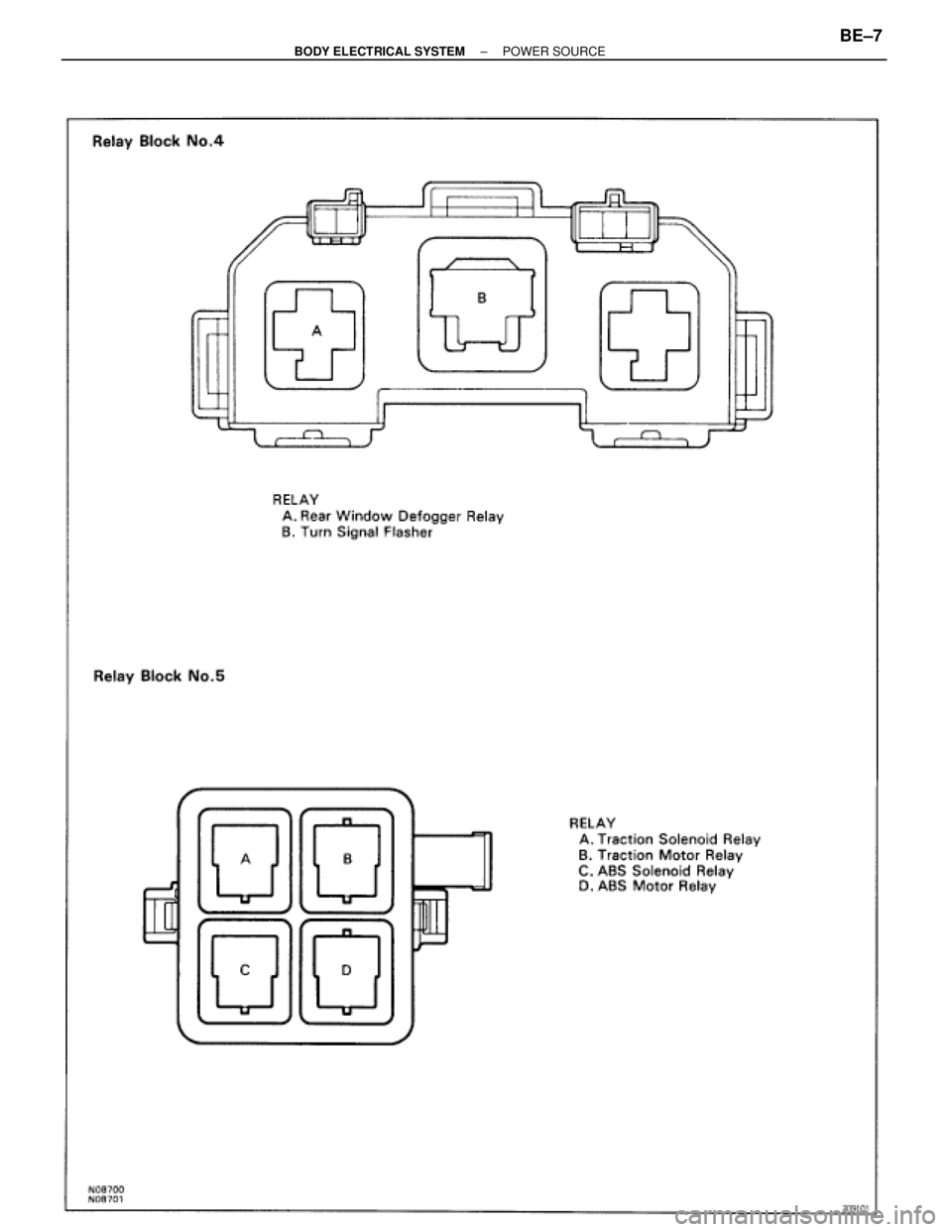

Page 609 of 2543
± BODY ELECTRICAL SYSTEMPOWER SOURCEBE±7
Page 610 of 2543

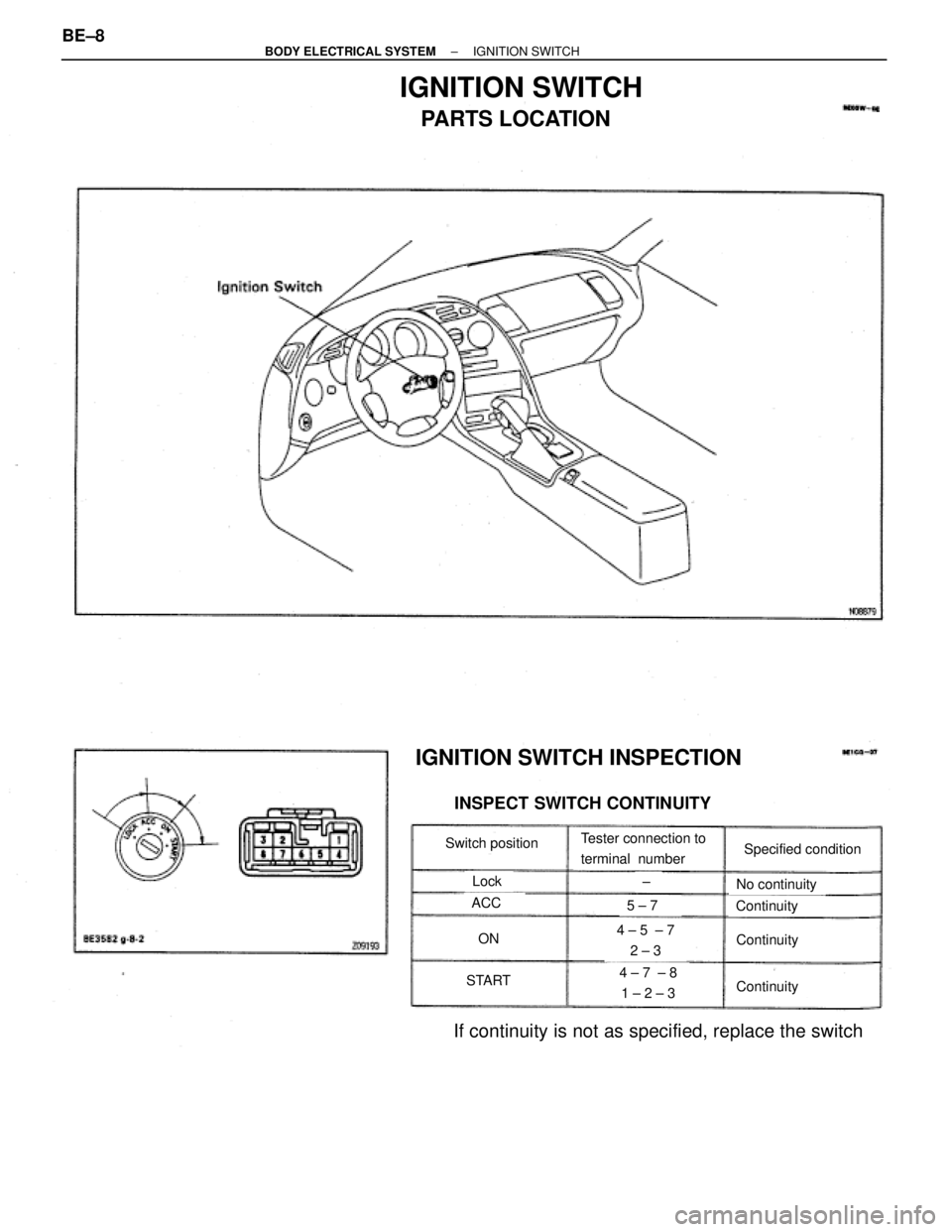

PARTS LOCATION
IGNITION SWITCH INSPECTION
INSPECT SWITCH CONTINUITY
Switch position
4 ± 5 ± 7
2 ± 3
Tester connection to
terminal numberSpecified condition
5 ± 7ACC
Lock
ON
No continuity
START
Continuity
±
Continuity
Continuity4 ± 7 ± 8
1 ± 2 ± 3
If continuity is not as specified, replace the switch
IGNITION SWITCH
BE±8± BODY ELECTRICAL SYSTEMIGNITION SWITCH
Page 611 of 2543
KEY UNLOCK WARNING INSPECTION
1. INSPECT INTEGRATION RELAY OPERATION
(a) Connect the positive (+) lead from the battery to terminal 1,
the negative (±) lead to terminals 5 and 10.
(b) Check that the buzzer sounds when the negative (±) lead
from the battery is connected to terminal 6.
If operation is not as specified, replace the relay.
2. INSPECT RELAY CIRCUIT
See page BE±18
± BODY ELECTRICAL SYSTEMIGNITION SWITCHBE±9
Page 612 of 2543
HEADLIGHT AND TAILLIGHT
SYSTEM

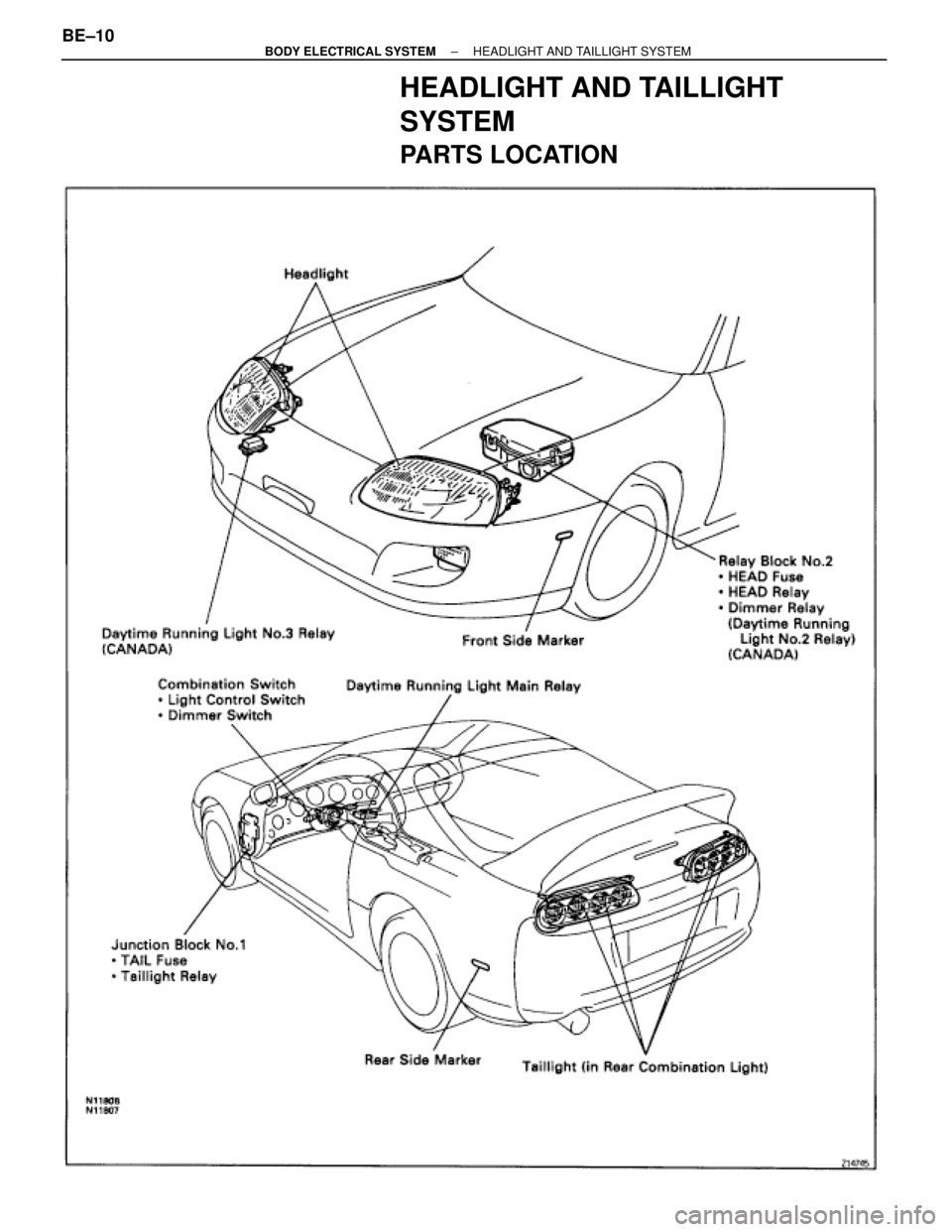

PARTS LOCATION
BE±10± BODY ELECTRICAL SYSTEMHEADLIGHT AND TAILLIGHT SYSTEM
Page 613 of 2543

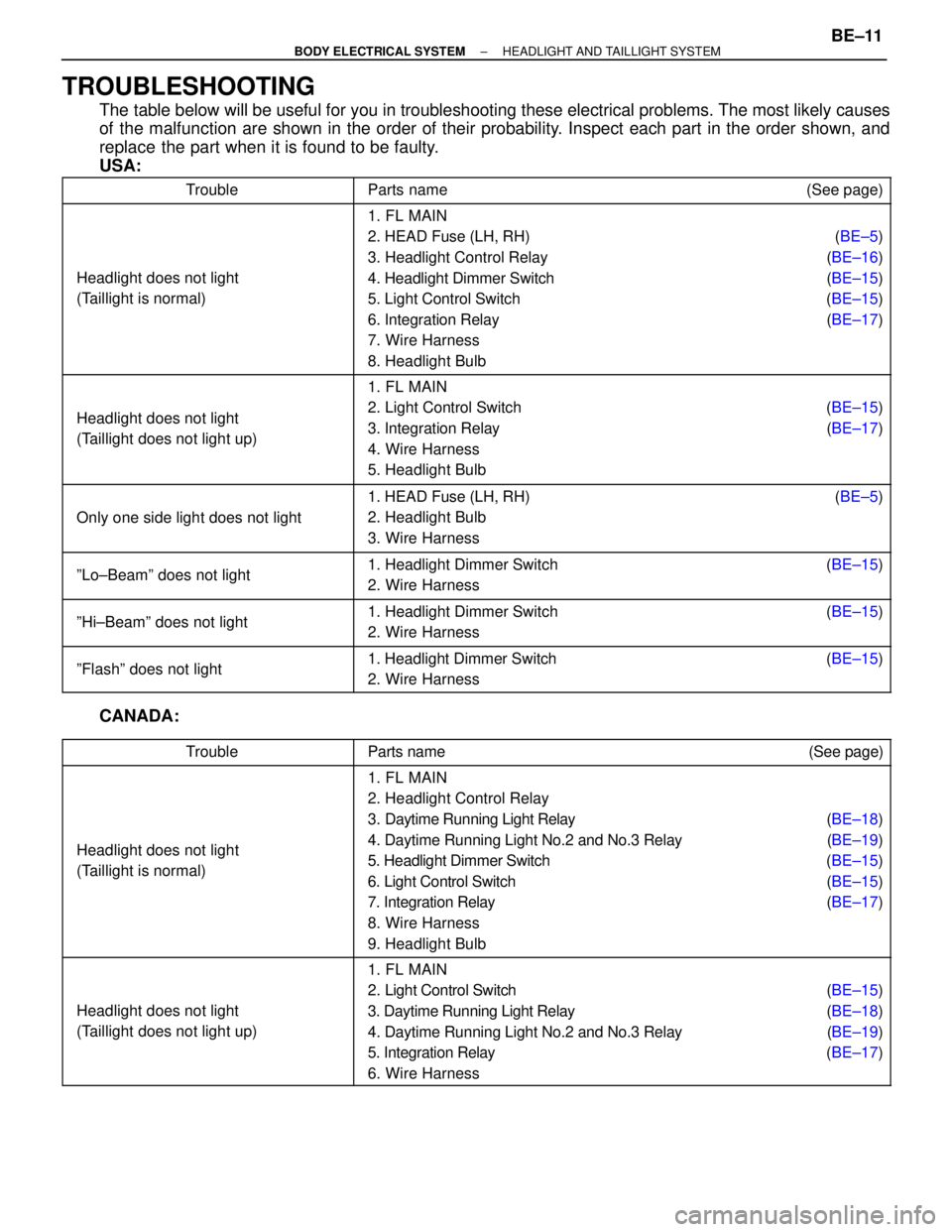

TROUBLESHOOTING
The table below will be useful for you in troubleshooting these electrical problems. The most likely causes
of the malfunction are shown in the order of their probability. Inspect each part in the order shown, and
replace the part when it is found to be faulty.
USA:
Trouble Parts name (See page)
Headlight does not light
(Taillight is normal)
1. FL MAIN
2. HEAD Fuse (LH, RH) (BE±5)
3. Headlight Control Relay (BE±16)
4. Headlight Dimmer Switch (BE±15)
5. Light Control Switch (BE±15)
6. Integration Relay (BE±17)
7. Wire Harness
8. Headlight Bulb
Headlight does not light
(Taillight does not light up)
1. FL MAIN
2. Light Control Switch (BE±15)
3. Integration Relay (BE±17)
4. Wire Harness
5. Headlight Bulb
Only one side light does not light
1. HEAD Fuse (LH, RH) (BE±5)
2. Headlight Bulb
3. Wire Harness
ºLo±Beamº does not light
1. Headlight Dimmer Switch (BE±15)
2. Wire Harness
ºHi±Beamº does not light
1. Headlight Dimmer Switch (BE±15)
2. Wire Harness
ºFlashº does not light
1. Headlight Dimmer Switch (BE±15)
2. Wire Harness
CANADA:
Trouble
Parts name (See page)
Headlight does not light
(Taillight is normal)
1. FL MAIN
2. Headlight Control Relay
3. Daytime Running Light Relay (BE±18)
4. Daytime Running Light No.2 and No.3 Relay (BE±19)
5. Headlight Dimmer Switch (BE±15)
6. Light Control Switch (BE±15)
7. Integration Relay (BE±17)
8. Wire Harness
9. Headlight Bulb
Headlight does not light
(Taillight does not light up)
1. FL MAIN
2. Light Control Switch (BE±15)
3. Daytime Running Light Relay (BE±18)
4. Daytime Running Light No.2 and No.3 Relay (BE±19)
5. Integration Relay (BE±17)
6. Wire Harness
± BODY ELECTRICAL SYSTEMHEADLIGHT AND TAILLIGHT SYSTEMBE±11
Page 614 of 2543

Trouble Parts name (See page)
Only one side light does not light
1. Headlight Bulb
2. Wire Harness
ºLo±Beamº does not light (ALL)
1. Headlight Control Relay (BE±16)
2. Wire Harness
ºLo±Beamº does not light (ONE SIDE)
1. HEAD LH±LWR Fuse (BE±5)
2. HEAD RH±LWR Fuse (BE±5)
3. Headlight Bulb
4. Wire Harness
ºHi±Beamº does not light (ALL)
1. Headlight Dimmer Switch (BE±15)
2. Daytime Running Light Relay (BE±18)
3. Daytime Running Light No.2 and No.3 Relay (BE±19)
4. Wire Harness
ºHi±Beamº does not light (ONE SIDE)
1. HEAD LH±UPR Fuse (BE±5)
2. HEAD RH±UPR Fuse (BE±5)
3. Headlight Bulb
4. Wire Harness
ºFlashº does not light
1. Headlight Dimmer Switch (BE±15)
2. Daytime Running Light Relay (BE±18)
3. Daytime Running Light No.2 and No.3 Relay (BE±19)
4. Wire Harness
ºAuto Turn±off Systemº dose not operate
1. Integration Relay (BE±17)
2. GAUGE Fuse (BE±6)
3. Wire Harness
4. Door Courtesy Switch (driver's) (BE±28)
Headlight does not light with light control SW in HEAD.
1. Integration Relay (BE±17)
2. Light Control Switch (BE±15)
3. Daytime Running Light Relay (BE±18)
4. Daytime Running Light No.2 and No.3 Relay (BE±19)
5. Wire Harness
Headlight does not go out with light control SW in OFF
1. Headlight Control Relay (BE±16)
2. Wire Harness
Taillight does not light with light control SW in TAIL
1. Taillight Control Relay (BE±16)
2. Integration Relay (BE±17)
3. Light Control Switch (BE±15)
4. Wire Harness
Taillight does not go out with light control SW in OFFª
1. Taillight Control Relay (BE±16)
2. Integration Relay (BE±17)
3. Light Control Switch (BE±15)
4. Wire Harness
Headlight and Taillight do not light with engine running and
light control SW in OFF
1. GAUGE Fuse (BE±6)
2. Daytime Running Light Relay (BE±18)
3. Daytime Running Light No.2 and No.3 Relay (BE±19)
4. Wire Harness
5. Generator L Terminal
6. Parking Brake Switch (BE±52)
BE±12± BODY ELECTRICAL SYSTEMHEADLIGHT AND TAILLIGHT SYSTEM
Page 615 of 2543
HEADLIGHT AIM ADJUSTMENT
Adjusting headlight aim only
1. INSPECT HEADLIGHT AIM
Do the following before inspection.
wMake sure the body around the headlight is not
deformed.
wPark the vehicle on a level spot.
wThe driver gets into the driver's seat and puts the vehicle
in a state ready for driving (with a full tank).
wBounce the vehicle several times.
2. ADJUST HEADLIGHT VERTICAL ALIGNMENT
If the bubble is outside the acceptable range of the beam
angle gauge, adjust it using adjusting screw A.
3. ADJUST HEADLIGHT HORIZONTAL ALIGNMENT
If the º0º moves away from the mark beyond the acceptable
range, adjust the º0º back to the mark using adjusting screw
B.
± BODY ELECTRICAL SYSTEMHEADLIGHT AND TAILLIGHT SYSTEMBE±13
Page 616 of 2543

Replacing headlight
1. REPLACE HEADLIGHT
2. INSPECT HEADLIGHT AIM
Do the following before inspection.
wMake sure the body around the headlight is not
deformed.
wPark the vehicle on a level spot.
wThe driver gets into the driver's seat and puts the vehicle
in a state ready for driving (with a full tank).
wBounce the vehicle several times.
3. ADJUST HEADLIGHT IN VERTICAL ALIGNMENT
(a) Using adjusting screw A, adjust the headlight aim to within
the specifications.
(b) Make sure the gauge bubble is within the acceptable range.
HINT: If the gauge bubble is outside the acceptable range,
check that the vehicle is parked on a level spot. Readjust the
headlight aim after parking the vehicle on a level spot.
4. ADJUST HEADLIGHT IN HORIZONTAL ALIGNMENT
(a) Using adjusting screw B, adjust the headlight aim to within
the specifications.
(b) Using adjusting nut C, adjust the º0º back to the mark.
HINT: For adjustment, pull nut C to the rear vehicle to free it.
After adjustment, check that the nut C is locked in.
COMBINATION SWITCH REMOVAL AND
INSTALLATION
See SR±Section BE±14
