9. Use SST for inspection or test of the injector or its wiring
connector.
SST 09842±30070
FUEL SYSTEM
1. When disconnecting the high pressure fuel line, a large
amount of gasoline will spill out, so observe the following
procedures:
(a) Disconnect the fuel pump connector.
(b) Start the engine. After the engine has stopped on its own,
turn off the ignition switch.
(c) Put a container under the connection.
(d) Slowly loosen the connection.
(e) Disconnect the connection.
(f) Plug the connection with a rubber plug.
(g) Reconnect the fuel pump connector.
2. When connecting the flare nut or union bolt on the high
pressure pipe union, observe the following procedures:
Union Bolt Type:
(a) Always use a new gasket.
(b) Tighten the union bolt by hand.
(c) Tighten the union bolt to the specified torque.
Torque: 29 NVm (300 kgfVcm, 22 ftVlbf)
Flare Nut Type:
(a) Apply a light coat of engine oil to the flare nut, and tighten the
flare nut by hand.
(b) Using SST, tighten the flare nut to specified torque.
SST 09631±22020
Torque: 30 NVm (310 kgfVcm, 22 ftVlbf)
HINT: Use a torque wrench with a fulcrum length of 30 cm
(11.81 in.).
± ENGINESFI SYSTEM (2JZ±GE)EG±191
Page 1482 of 2543

3. Observe the following precautions when removing and
installing the injectors.
(a) Never reuse the O±ring.
(b) When placing a new O±ring on the injector, take care not to
damage it in any way.
(c) Coat a new O±ring with spindle oil or gasoline before
installing±never use engine, gear or brake oil.
4. Install the injector to the delivery pipe and intake manifold as
shown in the illustration.
5. Check that there are no fuel leaks after doing maintenance
anywhere on the fuel system.
(a) Using SST, connect terminals +B and FP of the DLC 1.
SST 09843±18020
(b) With engine stopped, turn the ignition switch ON.
(c) Pinch the fuel return hose.
The pressure in the high pressure line will rise to approx. 392
kPa (4 kgf/cm
2, 57 psi). In this state, check to see that there
are no leaks from any part of the fuel system.
NOTICE: Always pinch the hose. Avoid bending as it may
cause the hose to crack.
(d) Turn the ignition switch OFF.
(e) Remove the SST from the DLC1.
SST 09843±18020 EG±192
± ENGINESFI SYSTEM (2JZ±GE)
Page 1483 of 2543

FUEL PUMP
ON±VEHICLE INSPECTION
1. CHECK FUEL PUMP OPERATION
(a) Using SST, connect terminals +B and FP of the DLC 1.
SST 09843±18020
(b) Turn the ignition switch ON.
NOTICE: Do not start the engine.
(c) Check that there is pressure in the fuel inlet hose from the fuel
filter.
HINT: If there is fuel pressure, you will hear the sound of fuel
flowing.
If there is no pressure, check the following parts:
wFuse
wEFI main relay
wFuel pump
wECM
wWiring connections
(d) Turn the ignition switch OFF.
(e) Remove the SST from the DLC1.
SST 09843±18020
2. CHECK FUEL PRESSURE
(a) Check the battery voltage is above 12 V.
(b) Disconnect the negative (±) terminals cable from the battery.
(c) Remove the 2 nuts, and disconnect the No.2 vacuum pipe
from the air intake chamber and intake manifold.
(d) Remove the union bolt and 2 gaskets, disconnect the fuel
inlet pipe from the delivery pipe.
CAUTION:
Put a shop towel under the delivery pipe.
Slowly loosen the union bolt.
(e) Install the fuel inlet pipe and SST (pressure gauge) to the
delivery pipe with the 3 gaskets and SST (union bolt).
SST 09268±45012
Torque: 42 NVm (420 kgfVcm, 30 ftVlbf)
(f) Wipe off any splattered gasoline.
(g) Using SST, connect terminals +B and FP of the DLC 1.
SST 09843±18020
± ENGINESFI SYSTEM (2JZ±GE)EG±193
Page 1484 of 2543

(h) Reconnect the negative (±) terminal cable to the battery.
(i) Turn the ignition switch ON.
(j) Measure the fuel pressure.
Fuel pressure:
265±304 kPa (2.7±3.1 kgf/cm
2, 38±44 psi)
If pressure is high, replace the fuel pressure regulator.
If pressure is low, check the following parts:
wFuel hoses and connections
wFuel pump
wFuel filter
wFuel pressure regulator
(k) Remove the SST from the DLC1.
SST 09843±18020
(l) Start the engine.
(m) Disconnect the vacuum sensing hose from the fuel pressure
regulator, and plug the hose end.
(n) Measure the fuel pressure at idle.
Fuel pressure:
265±304 kPa (2.7±3.1 kgf/cm
2, 38±44 psi)
(o) Reconnect the vacuum sensing hose to the fuel pressure
regulator.
(p) Measure the fuel pressure at idle.
Fuel pressure:
196±235 kPa (2.0±2.4 kgf/cm
2, 28±34 psi)
If pressure is not as specified, check the vacuum sensing
hose and fuel pressure regulator.
(q) Stop the engine.
(r) Check that the fuel pressure remains as specified for 5
minutes after the engine has stopped.
Fuel pressure:
147 kPa (1.5 kgf/cm
2, 21 psi) or more
If pressure is not as specified, check the fuel pump, pressure
regulator and/or injectors.
(s) After checking fuel pressure, disconnect the negative (±)
terminal cable from the battery and carefully remove the SST
to prevent gasoline from splashing.
SST 09268±45012
(t) Install the fuel inlet pipe to the delivery pipe with 2 new
gaskets and the union bolt.
Torque: 42 NVm (420 kgfVcm2, 30 ftVlbf)
(u) Install the No.2 vacuum pipe with the 2 nuts.
Torque: 27 NVm (270 kgfVcm2, 20 ftVlbf)
(v) Reconnect the negative (±) terminal cable to the battery.
(w) Check for fuel leaks.
(See item 5 in fuel system in precaution) EG±194
± ENGINESFI SYSTEM (2JZ±GE)
Page 1485 of 2543
COMPONENTS FOR REMOVAL AND
INSTALLATION
FUEL PUMP REMOVAL
CAUTION: Do not smoke or work near an open flame when
working on the fuel pump.
1. TAKE OUT FLOOR CARPET
2. REMOVE SPARE WHEEL COVER
3. REMOVE SPARE WHEEL
4. REMOVE SERVICE HOLE COVER
± ENGINESFI SYSTEM (2JZ±GE)EG±195
Page 1486 of 2543

5. REMOVE FUEL PUMP AND SENDER GAUGE ASSEMBLY
(a) Disconnect the connector and hoses from the fuel pump
bracket:
(1) Fuel pump connector
(2) Fuel outlet hose
Remove the union bolt and 2 gaskets, and disconnect
the outlet hose.
(3) Fuel return hose
(4) Fuel breather hose
(b) Remove the retainer clamp.
(c) Using SST, loosen the retainer.
SST 09808±14010
(d) Remove the retainer, the fuel pump, sender gauge assembly
and gasket.
FUEL PUMP INSPECTION
1. INSPECT FUEL PUMP RESISTANCE
Using an ohmmeter, measure the resistance between termi-
nals 4 and 5.
Resistance:
0.2±3.0 at 205C (685F)
If the resistance is not as specified, replace the fuel pump,
lead wire or fuel pump bracket.
2. INSPECT FUEL PUMP OPERATION
Connect a tester lead from terminal 4 of the connector to the
positive (+) terminal of the battery; connect another tester
lead from terminal 5 of the connector to the negative (±) termi-
nal of the battery.
NOTICE:
These tests must be performed quickly (within 10 seconds)
to prevent the coil from burning out.
Keep the fuel pump as far away from the battery as possible.
Always connect or disconnect at the battery.
If operation is not as specified, replace the fuel pump, lead
wire or fuel pump bracket. EG±196
± ENGINESFI SYSTEM (2JZ±GE)
Page 1487 of 2543

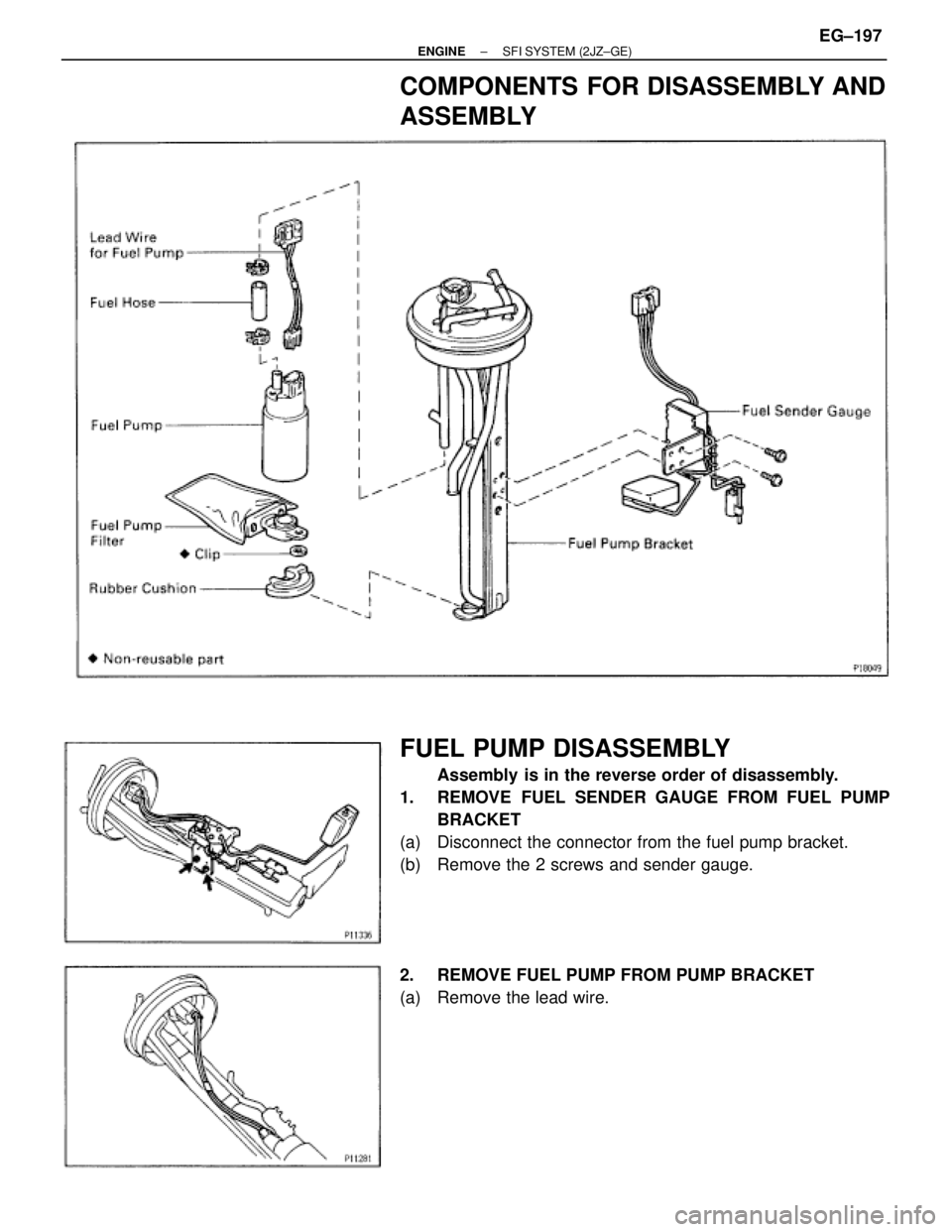

COMPONENTS FOR DISASSEMBLY AND
ASSEMBLY
FUEL PUMP DISASSEMBLY
Assembly is in the reverse order of disassembly.
1. REMOVE FUEL SENDER GAUGE FROM FUEL PUMP
BRACKET
(a) Disconnect the connector from the fuel pump bracket.
(b) Remove the 2 screws and sender gauge.
2. REMOVE FUEL PUMP FROM PUMP BRACKET
(a) Remove the lead wire.
± ENGINESFI SYSTEM (2JZ±GE)EG±197

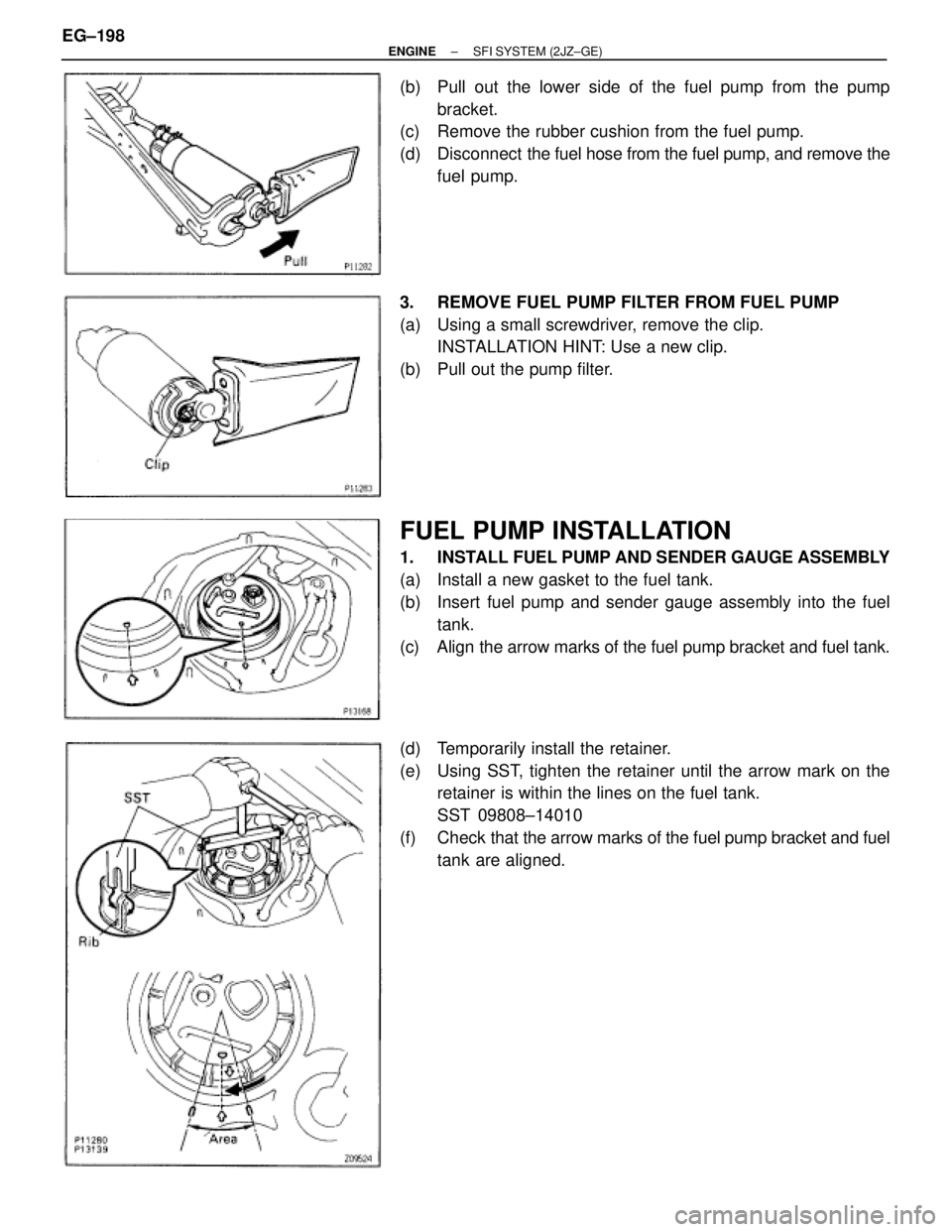

Page 1488 of 2543
(b) Pull out the lower side of the fuel pump from the pump
bracket.
(c) Remove the rubber cushion from the fuel pump.
(d) Disconnect the fuel hose from the fuel pump, and remove the
fuel pump.
3. REMOVE FUEL PUMP FILTER FROM FUEL PUMP
(a) Using a small screwdriver, remove the clip.
INSTALLATION HINT: Use a new clip.
(b) Pull out the pump filter.
FUEL PUMP INSTALLATION
1. INSTALL FUEL PUMP AND SENDER GAUGE ASSEMBLY
(a) Install a new gasket to the fuel tank.
(b) Insert fuel pump and sender gauge assembly into the fuel
tank.
(c) Align the arrow marks of the fuel pump bracket and fuel tank.
(d) Temporarily install the retainer.
(e) Using SST, tighten the retainer until the arrow mark on the
retainer is within the lines on the fuel tank.
SST 09808±14010
(f) Check that the arrow marks of the fuel pump bracket and fuel
tank are aligned. EG±198
